2AC5BC03WTPMS External Sensor

1：Parking mode a: The sensor measures pressure ,temperature and voltage every 4 seconds. b: The sensor transmits pressure and temperature every 5 minutes if the tire's pressure is normal. It transmits one time. c: The sensor transmits pressure and temperature as soon as the tire's pressure is abnormal. It transmits six times continue. d: Once the car's speed reaches over 20km/h,the sensor transmits signal at once. 2：moving mode a: The sensor measures pressure ,temperature and voltage every 4 seconds. b: The sensor transmits pressure and temperature every 2 minutes if the tire's pressure is normal. It transmits one time. c: The sensor transmits pressure and temperature as soon as the tire's pressure is abnormal. It transmits six times continue. 3: Technical Characteristics Description NO. Project External Sensor 1 Battery Type CR1632(120mAh) 2 RF frequency 433.92MHz 3 Standby Current <1uA 4 Emission current <9mA 5 RF Power 8dbm@50Ω 6 RF Modulation FSK 7 LF frequency 125KHz±5KHz 8 LF Modulation ASK 9 LF Power 1~30mVp‐p 10 Pressure Measuring Range 0‐8bar 11 Pressure Resolution 25mbar 12 ±0.07bar@‐20°C~50°C 13 Pressure Measurement Accuracy ±0.15bar@‐40°C~125°C 14 Temperature Measuring Range ‐40°C~125°C 15 Temperature Resolution ±3°C 16 Temperature Measurement Accuracy ±3°C@‐20°C~50°C 17 Resistance to rotational acceleration >1500g（Be equipped with locknut） 18 Operating Temperature Range ‐20°C~80°C 19 Storage temperature range ‐30°C~80°C 20 Protection class IP67 21 Sensor weight <10g（With battery, without locking pieces） 22 Total weight sensor <11g（ with locking pieces） 4: FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

Eckom Auto Parts(Shanghai) Limited Letter of Authorization Company: Eckom Auto Parts(Shanghai) Limited Address: Room 226, Building 2, No.526, Gaoxiang Road, Pudong, Shanghai, China Product Name: TPMS External Sensor Model Number: C03W We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, CA 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. This shall include the following: • Testing • Approval applications (includes complete product documentation package, including Confidential information) and procedures • Payment of approval fees We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, CA 94566, USA, is allowed to forward all information related to the approval project to the applied notified body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Jot Qiao Date: Sept. 02, 2014 Title: Manager Signature of applicant:

External photo

LABEL ARTWORK AND LOCATION FCC ID: 2AC5BC03W FCC ID Location

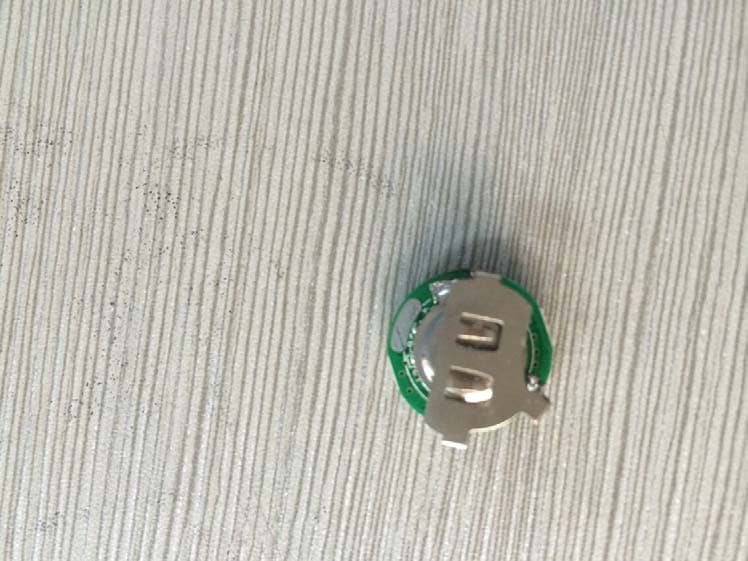

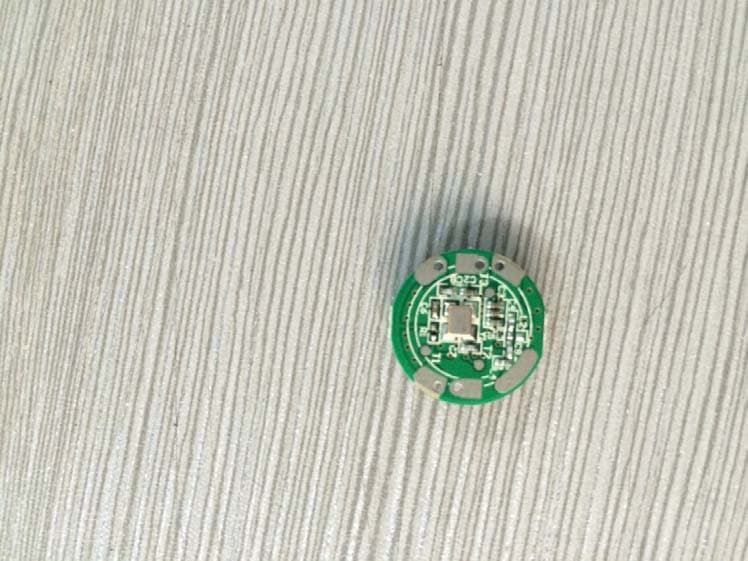

1 Internal photo 2 3 4

FCC ID TEST REPORT for TPMS External Sensor Model: C03W FCC ID: 2AC5BC03W Prepared for: Eckom Auto Parts(Shanghai) Limited Room 226, Building 2, No.526, Gaoxiang Road, Pudong, Shanghai, China Prepared by: Shenzhen TCT Testing Technology Co.,Ltd 1F, Building 1, Yibaolai Industrial Park, Qiaotou Village, Fuyong Town, Baoan District, Shenzhen, Guangdong, China TEL: +86-0755-27363339 FAX: +86-0755-27673332 Report Number：TCT140827E013 Date of Test： Aug. 27~Sept. 03, 2014 Date of Report： Sept. 03, 2014 The results detailed in this test report relate only to the specific sample(s) tested. It is the Application’s responsibility to ensure that all production units are manufactured with equivalent EMC characteristics. This report is not to be reproduced except in full, without written approval from TCT Testing Technology. FCC ID: 2AC5BC03W Report Number: TCT140827E013 Page 2 of 19 Table of Contents 1.0 General Details....................................................................................................................................................... 4 1.1 Test Lab Details ............................................................................................................................................... 4 1.2 Applicant Details ............................................................................................................................................. 4 1.3 Description of EUT.......................................................................................................................................... 5 1.4 Statement: ........................................................................................................................................................ 5 1.5 Test Engineer ................................................................................................................................................... 5 2.0 Test equipments and Associated Equipment used during the test..................................................................... 6 2.1 Test Equipments............................................................................................................................................... 6 2.2 AE used during the test .................................................................................................................................... 6 2.3. Block Diagram of EUT Configuration ........................................................................................................... 6 3.0 Technical Details.................................................................................................................................................... 7 3.1 Summary of test results ................................................................................................................................... 7 3.2 Test Standards .................................................................................................................................................. 7 4.0 EUT Modification.................................................................................................................................................. 7 5.0 Measurement Uncertainty（95% confidence levels, k=2)................................................................................. 7 6.0 Power Line Conducted Emission Test.................................................................................................................. 8 6.1 Schematics of the test ...................................................................................................................................... 8 6.2 Test Method and test Procedure ....................................................................................................................... 8 6.3 EUT Operating Condition................................................................................................................................ 8 6.4 Test Equipment ................................................................................................................................................ 8 6.5 Conducted Emission Limit .............................................................................................................................. 9 6.6 Test specification: ............................................................................................................................................ 9 6.7 Test result......................................................................................................................................................... 9 7.0 Radiated Emission Test....................................................................................................................................... 10 7.1 Test Method and test Procedure:.................................................................................................................... 10 7.2 Block diagram of Test setup .......................................................................................................................... 10 7.3 Limit .............................................................................................................................................................. 12 7.4 Test Equipment .............................................................................................................................................. 13 7.5 Test specification ........................................................................................................................................... 13 7.6 Test result....................................................................................................................................................... 14 8.0 Limit of Transmission Time................................................................................................................................ 16 8.1 Block diagram of Test setup .........................…
