2AC67-B320BTBluetooth Headset

VT B320 BT Headset User Manual User Manual 1. WELCOME 3 2. VT B320 BT OVERVIEW 4 3. HOW TO WEAR5 5. HOW TO CONNECT9 4. BASE CHARGING8 6. HOW TO USE10 42.1 HEADSET 52.2 INCLUDED ACCESSORIES 63.1 LEFT OR RIGHT WEARING STYLE 63.2 ADJUST THE HEADBAND 84.1 CHARGE THE HEADSET 84.2 SUPPORT WIRELESS CHARGING FOR MOBILE PHONE 73.3 POSITION THE MICROPHONE 73.4 STORING THE MICROPHONE 95.2 CONNECT TO MOBILE DEVICE (USING BLUETOOTH) 95.1 CONNECT TO PC (USING BT 100U) 116.1 EVERYDAY USE 7. SUPPORT12 8. TECHNICAL SPECIFICATION13 127.1 FAQ 126.2 MULTIPLE CALL HANDLING 127.2 HOW TO CARE FOR YOUR HEADSET 1. WELCOME Thank you for using the VT B320 BT Headset. We hope you will enjoy it ! • Comfortable noise-isolating design • 2-microphone call technology makes voice clear • Hybrid Active Noise Cancelling • Superior music and voice capabilities • Hi-Fi Sound • Integrated Busylight • Discreet boom arm can be neatly folded away into the headband when not on a call • Compatible with Microsoft Teams/Skype for Business/3CX, Cisco Jabber,Avaya workplace, and Counterpath Bria, etc via BT100U 3 VT B320 BT FEATURES 2. VT B320 BT OVERVIEW 2.1 HEADSET 4 Base Charge Point USB charging port ANC button Power On/off/ Connect switch Bluetooth indicator Volume up Volume down/ Mute Adjustable headband Busylight indicator Multi-function touch button Noise canceling microphone Voice pick up microphone Carry pouchUSB-C cableCharging Base (Optional) BT 100U (Optional) 2.2 INCLUDED ACCESSORIES 5 3. HOW TO WEAR 3.1 LEFT OR RIGHT WEARING STYLE The VT B320 BT can be worn on the right or left which you want. 6 3.2 ADJUST THE HEADBAND Adjust the headband to find the most comfortable fit. 3.3 POSITION THE MICROPHONE It is recommended to position the microphone close to your mouth. 7 3.4 STORING THE MICROPHONE Discreet boom arm can be neatly folded away into the headband when not on a call. 8 4.1 CHARGE THE HEADSET 4.2 SUPPORT WIRELESS CHARGING FOR MOBILE PHONE 4. BASE CHARGING Base connects Power Adapter by USB cable, and put the mobile phone on the Base, then the charging indicator green light on. Charging indicator Option 1: The headset battery will be charged when connected to a PC using a USB cable, or when using any USB charger supplied with your mobile device. Option 2: If you have a charging base, you could plug the charging base into a powered USB port and then dock the headset. - Busylight indicator will turn red during charging, and it will turn green when headset is fully charged. - It takes approx.3 hours to fully charge the battery. 1. Ensure the headset is switched on. 2. Plug the BT 100U dongle into a USB port on your PC. The headset and BT 100U are already pre-connected. 5. HOW TO CONNECT 5.1 CONNECT TO PC (USING BT 100U) 5.2 CONNECT TO MOBILE DEVICE (USING BLUETOOTH) 9 1. Wear the headset. 2. Hold (2 secs) the On/off/connect switch in the connect position until you hear the voice guided instructions. The Bluetooth indicator will turn blue. 3. Follow the voice guided instructions to connect. 6. HOW TO USE 10 Base Charge Point USB charging port ANC button Power On/off/ Connect switch Bluetooth indicator Volume up Volume down/ Mute Adjustable headband Busylight indicator Multi-function touch button Noise canceling microphone Voice pick up microphone 6.1 EVERYDAY USE 11 Headset onSlide the On switch Headset offSlide the off switch Pairing Successfully The blue light stays on for 3 seconds Blue Light flashes 1 time per 8 secs Blue Light flashes twice in succession Red Light flashes once Blue Light flashes Standby When there's an incoming call, the busylight flashes red, and the busylight stays red when on a call. Answer/ End Call Tap the Multi-function button Reject call Double-tap the Multi- function button FUNCTIONACTIONLED STATUS PairingSlide the Pair Button Adjust volume and mute Tap the Volume up or Volume down button, when on a call,hold the volume down button 2s, it will be muted, and Hold 2s again it will be unmuted ANC on/off Tap the ANC button once to turn on the ANC function(There are 3 modes for your option, and the switching order is Basic Mode-Transparent Mode-ANC Mode). • Always store the headset with the power off and safely protected. • Avoid storage at extreme temperatures (above 55°C or below -10°). This can shorten battery life and may adversely affect the headset. 6.2 MULTIPLE CALL HANDLING 7.1 FAQ View the FAQs on www.Vbet.cn/VT B320 BT. 7.2 HOW TO CARE FOR YOUR HEADSET 7. SUPPORT 12 End current call and answer incoming call Tap the Multi-function button Switch between held call and active call Press and hold (2 secs) the Multi-function button Reject incoming call, when on a call Double-tap the Multi-function button Put current call on hold and answer incoming call Press and hold (2 secs) the Multi-function button FUNCTIONACTION The headset can accept and handle multiple calls at the same time. Bluetooth Version:V5.0(Without BLE) Headset dimensions: Wear Style:Headband Talk Time:17 hours (Basic mode), 15 hours (ANC mode) Charging Time:3 hours Speaker frequency range:20hz - 20 kHz Speaker Size:40 mm Operating temperature:-10°C to 55°C Storage temperature:-20°C to 25°C Frequency Range:2402~2480MHz Transmit power: 6.0dBm Microphones:Noise cancelling microphone Charging Base:Optional Cable length:Connect to PC for charging: 1500 mm Mono headset L196.3mm x W72.5mm x H189.1mm Stereo headset L196.3mm x W72.5mm x H191.1mm Headset weight: Mono headset 106g Stereo headset 146g Music time:19 hours (Basic mode), 13 hours (ANC mode) VT B320 BT HEADSETSPECIFICATION PC connection:USB 2.0 Bluetooth range: Bluetooth profiles: Simultaneous Bluetooth Connection: 1 Support Softphones: Microsoft Teams/Skype for Business/3CX, Cisco Jabber, Avaya, and Counterpath Bria, etc. Bluetooth audio bandwidth:HD voice (wideband), A2DP Up to 30m (100 feet), Class 1 A2DP (V1.2), Hands free profile (V1.6) Bluetooth version:V5.0(Without BLE) Visual indicators:Multicolor LED BLUETOOTH ADAPTER(BT 100U)SPECIFICATION 13 8. TECHNICAL SPECIFICAT…

Text truncated - open the document above for the full version.

Xiamen VBeT Electronic Co.,Ltd. Address: N403, Weiye Building, Xiamen Pioneering Park for Overseas Chinese Scholars, PRC ,Xiamen, China Tel: 13950190158 Email: [email protected] Product Difference Declaration 2023-08-21 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, We , Xiamen VBeT Electronics Co.,Ltd., declare that our product Bluetooth Headset, the models VT B320 BT, B320 BT ( FCC ID: 2AC67-B320BT) are identical in the circuit design, PCB layout, internal wiring and product functions, the difference only lies in the model name. We confirm that all information above is true, and we will be responsible for all the consequences. Please contact me if you have any question. Si ncerely, Signature: Vic tor Fan Title: CEO

Xiamen VBeT Electronics Co.,Ltd. Address: N403, Weiye Building, Xiamen Pioneering Park for Overseas Chinese Scholars, PRC ,Xiamen, China Tel: 13950190158 Email: [email protected] Attestation Letter Date: 2023-08-21 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: The RF chip, model: QCC3034, installed in our product named as Bluetooth Headset, Model No.: VT B320 BT, B320 BT, FCC ID: 2AC67-B320BT, which support BDR (GFSK), EDR (π/4-DQPSK, 8DPSK), and BLE functions. For use in America, this chip in this product only supports BDR (GFSK), EDR (π/4-DQPSK, 8DPSK). The BLE function has been shielded by the manufacturer by using the software, the end user has no capability to activate it. Sincerely, Signature Victor Fan CEO

Xiamen VBeT Electronic Co.,Ltd. N403, Weiye Buildin g, Xiamen Pioneering Park for Overseas Chinese Scholars, PRC ,Xiamen, China Tel: 13950190158 Email: [email protected] CFR 47 §2.911(d)(5)(i) Attestation Letter A ttestation Letter Date: 2023/08/21 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID: 2AC67-B320BT X iamen VBeT Electronic Co.,Ltd. certifies that the equipment for which authorization is sought, is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature: V ictor Fan CEO

Xiamen VBeT Electronic Co.,Ltd. N403, Weiye Building, Xiamen Pioneering Park for Overseas Chinese Scholars, PRC ,Xiamen, China Tel: 13950190158 Email: [email protected] CFR 47 §2.911 (d)(5)(ii) Attestation Letter A ttestation Letter Date: 2023-08-16 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID: 2AC67-B320BT Xiamen VBeT Electronic Co.,Ltd. certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Si gnature: Victor Fan CEO

Xiamen VBeT Electronic Co.,Ltd . N403, Weiye Building, Xiamen Pioneering Park for Overseas Chinese Scholars, PRC Xiamen China Tel: 13950190158 Email: [email protected] QA-FR-170-B 7/29/2014 FCC Authorization Date: 2023-08-21 FE DERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subj ect: Agent Authorization To w hom it may concern: We Xiamen VBeT Electronic Co.,Ltd., the undersigned, hereby authorizes China Certification ICT Co., Ltd (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by China Certification ICT Co., Ltd (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Th is authorization is valid until further written notice from the applicant. Sincerely Yours, Signa ture: Vic tor Fan CEO

Xiamen VBeT Electronic C o.,Ltd. N403, Weiye Building, Xiamen Pioneering Park for Overseas Chinese Scholars, PRC ,Xiamen, China Tel: 13 950190158 Email: victor.fan@vbet. cn FCC Confidential Authorization Date: 2023-08-21 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AC67-B320BT In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Xiamen VBeT Electronic Co.,Ltd. hereby requests long-term confidential treatment of information accompanying this application as outlined below: •Block Diagram •Schematics •Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature Vic tor Fan CEO

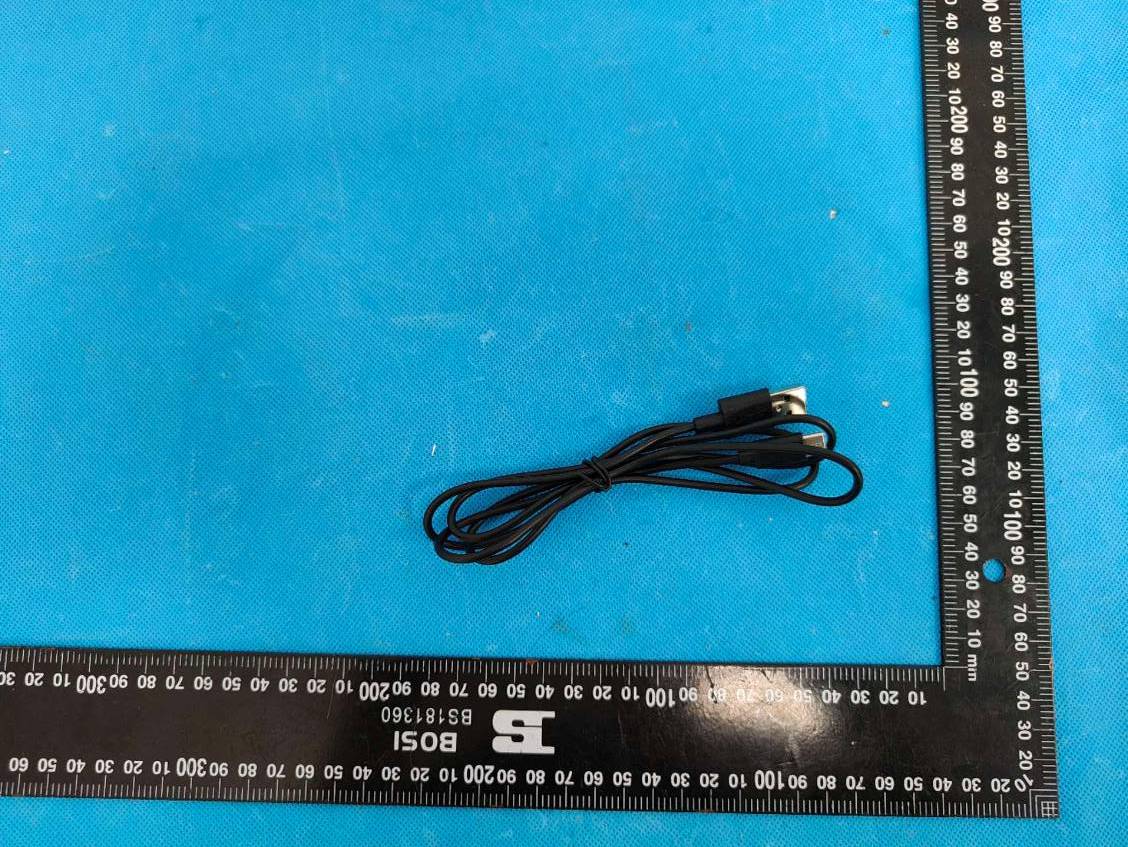

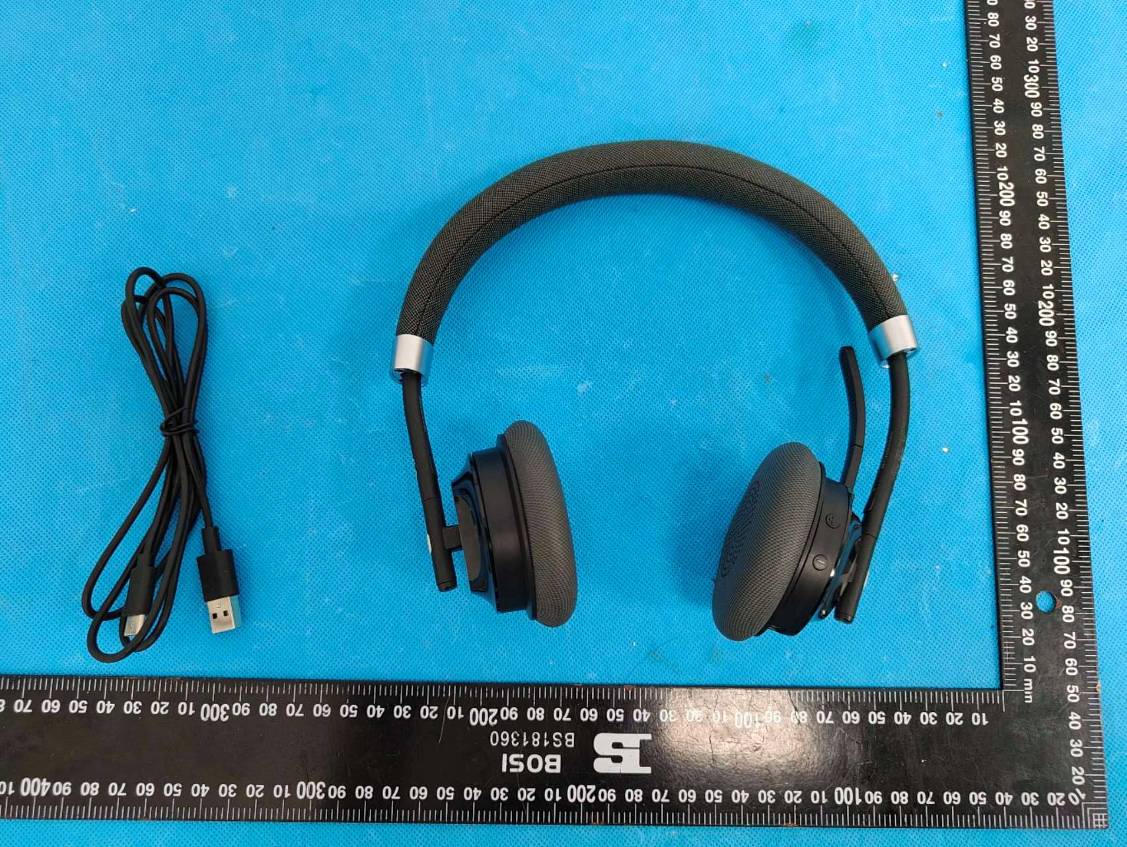

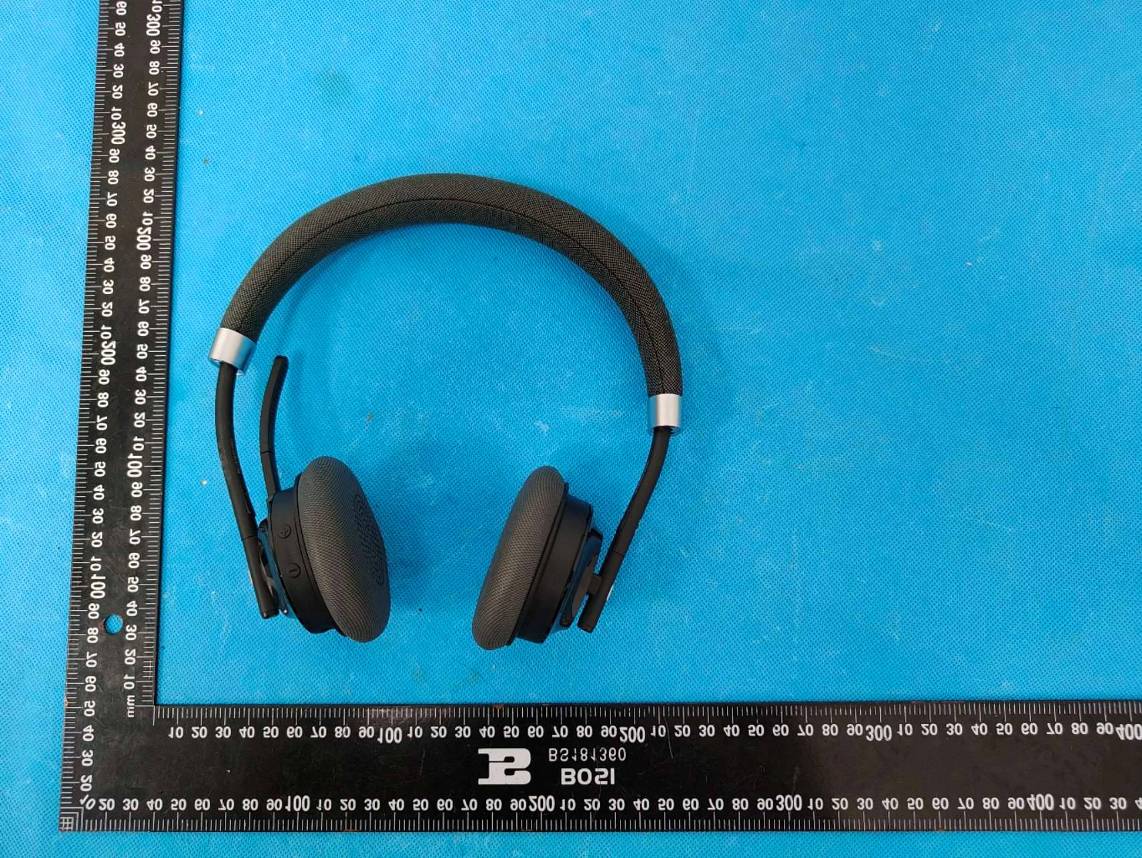

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743745-EXP Page 1 of 5 EUT EXTERNAL PHOTOGRAPHS China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743745-EXP Page 2 of 5 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743745-EXP Page 3 of 5 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743745-EXP Page 4 of 5 Port China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743745-EXP Page 5 of 5

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743745-INP Page 1 of 5 EUT INTERNAL PHOTOGRAPHS China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743745-INP Page 2 of 5 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743745-INP Page 3 of 5 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743745-INP Page 4 of 5 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743745-INP Page 5 of 5 Antenna

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743745-00B Page 57 of 59 5. RF EXPOSURE EVALUATION 5.1 Applicable Standard According to§15.247(i) and §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB447498 D01 General RF Exposure Guidance v06: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 5.2 Measurement Result The max conducted power including tune-up tolerance is 6 dBm (3.98 mW). [(max. power of channel, mW)/(min. test separation distance, mm)][√f(GHz)] =3.98/5*(√2.480) = 1.3 < 3.0 Result: Compliant. The stand-alone SAR evaluation is not necessary.

ReportNo.:RFI-LAB-RF-202308-HH19 QP030-E41 Page1of10 TestingReport CustomerName:XiamenVBeTElectronicsCo.,Ltd. ProductName:HeadsetAntenna SampleModel:2.4GA ReferenceStandard:GB/T9410-2008;ANSI/IEEEStd149-2021 IssueDate:2023.8.25 Engineer:Date: Auditor:Date: Approver:Date: ReportNo.:RFI-LAB-RF-202308-HH19 QP030-E41 Page2of10 Version VersionNo.DateDescriptionFormulateApproval A02023.8.25Forthefirsttime,formulateZkrisEason Contents 1.GeneralInformation.........................................................................................................................3 1.1Generalinformationoftestinginstitutions...........................................................................3 1.2Testingprinciple...................................................................................................................3 1.3Testequipment......................................................................................................................4 1.4Testenvironment...................................................................................................................4 1.5Statement..............................................................................................................................4 2.SampleInformation.........................................................................................................................5 2.1Clientinformation.................................................................................................................5 2.2DescriptionofEUT(S)..........................................................................................................5 2.3EUTappearance....................................................................................................................6 2.4EUTsetupphotooffreespaceOTAtesing..........................................................................6 3.TestResults......................................................................................................................................7 3.1Teststandard.........................................................................................................................7 3.2Testuncertainty.....................................................................................................................7 3.3Testdata................................................................................................................................8 3.3.1VSWRparameters.....................................................................................................8 3.3.2VSWRdata................................................................................................................8 3.3.3Typicalfreespaceefficiencyandgain......................................................................8 3.3.4Typicalfreespaceradiationpattern...........................................................................9 （Thefollowingisblank）..............................................................................................................10 ReportNo.:RFI-LAB-RF-202308-HH19 QP030-E41 Page3of10 1.GeneralInformation 1.1Generalinformationoftestinginstitutions Name ShenzhenRFI-LABCommunicationTechnologyCo.,Ltd. Address 10/FA,LingyunBld,LiufangRd,BaoanDistrict,SZ Tel / E-mail / Equipment AlltheequipmentusedinthereportisfixedinZoneB,WestSideof1/F,Building1, TingweiIndustrialPark,No.6LiufangRoad,Bao'anDistrict,Shenzhen 1.2Testingprinciple ReportNo.:RFI-LAB-RF-202308-HH19 QP030-E41 Page4of10 1.3Testequipment EquipmentModelNo.SerialNo.Manufacturer Calibration date Next calibration date OTATest System RayZone-5000 RFI-LAB-RF -D00 GTS2023.3.142025.3.13 Network Analyzer E5071C RFI-LAB-RF -D01 KEYSIGHT2023.5.112024.5.10 Network Analyzer E5071C RFI-LAB-RF -C02 KEYSIGHT2023.5.112024.5.10 1.4Testenvironment Temperature 23.6°C Humidity 58%RH Pressure 100.14kPa 1.5Statement (1)Thetestresultsinthereportareonlyapplicabletothetestedsamplesandthetestedsamples workundertheenvironmentdescribedinthereport. (2)OnlyShenzhenRFI-LABCommunicationTechnologyCo.,Ltd.havetherighttomodifythe report,andthemodificationinformationshallbeannotatedintherevisionform. (3)Anyobjectiontothisreportshallberaisedwithin30daysafterformalconfirmationofthe report. (4)Thisreportisinvalidifthereisanyevidencethatthesampleinformationprovidedisfalsified. (5)Thereportisinvalidwithoutthesignatureoftheauditorandapprover. ReportNo.:RFI-LAB-RF-202308-HH19 QP030-E41 Page5of10 2.SampleInformation 2.1Clientinformation Name XiamenVBeTElectronicsCo.,Ltd. Address N403,WeiyeBuilding,XiamenPioneeringParkforOverseasChinese Scholars,PRC Contacts / Tel / E-mail [email protected] Manufacturer / 2.2DescriptionofEUT(S) ProductName HeadsetAntenna SampleModel 2.4GA AntennaSize / SerialNo. / AntennaType PCBAntenna TestItem VSWR;Antennagain;Efficiency;Radiationpattern FrequencyRange 2400-2500MHz ReceivedDate 2023.8.25 TestDate 2023.8.25 Remark ThelengthoftheRFcableis90mm ReportNo.:RFI-LAB-RF-202308-HH19 QP030-E41 Page6of10 2.3EUTappearance 2.4EUTsetupphotooffreespaceOTAtesing Planform Frontview ReportNo.:RFI-LAB-RF-202308-HH19 QP030-E41 Page7of10 3.TestResults 3.1Teststandard NameParameterMethodStandardno. Mobile communication antenna Antennagain Genericspecification forantennasusedinthe mobilecommunications GB/T 9410-2008 Radiationpattern VSWR Antenna Radiationefficiency IEEEStandardTest ProceduresforAntennas ANSI/IEEEStd 149-2021 Gainanddirectivity 3.2Testuncertainty TheuncertaintywascalculatedonthebasisoftheGUMpublishedbyISO,usingthe inclusionfactorofK=2andthe95%confidenceleveltoexpresstheextended uncertainty. ItemUncertainty VSWR±0.3 Antennagain±0.72dB Radiationefficiency±0.72dB ReportNo.:RFI-LAB-RF-202308-HH19 QP030-E41 Page8of10 3.3Testdata 3.3.1VSWRparameters 3.3.2VSWRdata 3.3.3Typicalfreespaceefficiencyandgain Frequency/MHz 240024502500 VSWR 2.54082.12071.7183 Frequency/MHz 24002410242024302440245024602470248024902500 PeakGain/dBi 0.670.991.341.561.772.022.382.612.732.943.11 Effic…

Text truncated - open the document above for the full version.

TEST REPORT Applicant: Xiamen VBeT Electronic Co., Ltd. Address: N403, Weiye Building, Xiamen Pioneering Park for Overseas Chinese Scholars, PRC ,Xiamen, China FCC ID: 2AC67-B320BT Product Name: Bluetooth Headset Standard(s): 47 CFR Part 15, Subpart C (15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR230743745-00B Date Of Issue: 2023/8/25 Reviewed By: Calvin Chen Title: RF Engineer Approved By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743745-00B Page 2 of 59 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743745-00B Page 3 of 59 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 DOCUMENT REVISION HISTORY .......................................................................................... 5 1. GENERAL INFORMATION .................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 6 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 7 1.2.1 EUT Operation Condition: ............................................................................................................................. 7 1.2.2 Support Equipment List and Details .............................................................................................................. 7 1.2.3 Support Cable List and Details ...................................................................................................................... 7 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 7 1.3 MEASUREMENT UNCERTAINTY .......................................................................................................... 8 2. SUMMARY OF TEST RESULTS ............................................................................................ 9 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 10 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 10 3.1.1 Applicable Standard ..................................................................................................................................... 10 3.1.2 EUT Setup.................................................................................................................................................... 11 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 11 3.1.4 Test Procedure ............................................................................................................................................. 12 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 12 3.2 RADIATED SPURIOUS EMISSIONS ...................................................................................................... 13 3.2.1 Applicable Standard ..................................................................................................................................... 13 3.2.2 EUT Setup.................................................................................................................................................... 13 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 14 3.2.4 Test Procedure ............................................................................................................................................. 14 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 14 3.3 20 DB EMISSION BANDWIDTH ..................................................…

Text truncated - open the document above for the full version.

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743745-00B-TSP TEST SETUP PHOTOGRAPHS Conducted Emissions Front View -M1 Conducted Emissions Side View-M1 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743745-00B-TSP Radiated Emission Below 1GHz View Radiated Emission Below 1GHz View
