OPERATION & INSTALLATION MANUAL AIS CTRX GRAPHENE Class B AIS Transponder Version 1.9E © True Heading 2013 The manual may not in any aspect be copied without the prior authorization from True Heading AB. AIS CTRX GRAPHENE Class B AIS Transponder Manual 1.9E 2 CTRX GRAPHENE Manual TABLE OF CONTENTS TABLE OF CONTENTS ........................................................................................................ 2 ABOUT THIS MANUAL ......................................................................................................... 3 IMPORTANT INFORMATION ............................................................................................... 4 EC DECLARATION OF CONFORMITY ................................................................................ 6 INTRODUCTION ................................................................................................................... 7 SAFETY INFORMATION ...................................................................................................... 8 WARRANTY .......................................................................................................................... 9 SUPPORT ............................................................................................................................10 PRODUCT SPECIFICATION ...............................................................................................11 Getting started ....................................................................................................... 12 BEFORE YOU BEGIN THE INSTALLATION ........................................................................13 INSTALLATION ....................................................................................................................14 CONNECTION TO THE DC POWER SUPPLY ....................................................................20 CONNECTION OF AN EXTERNAL SILENT SWITCH WITH LED INDICATOR ...................21 PROAIS2 CONFIGURATION SOFTWARE ..........................................................................22 NOTES .................................................................................................................................29 Mounting Template ................................................................................................ 30 APPENDIX A CONFIGURING THE AIS CTRX GRAPHENE ............................................31 APPENDIX B ANTENNAS AND ANTENNA MOUNTING..................................................33 GPS Antenna ......................................................................................................... 33 VHF antenna for AIS use ....................................................................................... 33 WARNINGS ........................................................................................................... 34 APPENDIX C WIFI OPTION .............................................................................................35 APPENDIX D CTRX GRAPHENE NMEA 2000 PGN LIST ................................................36 AIS CTRX GRAPHENE Class B AIS Transponder Manual 1.9E 3 CTRX GRAPHENE Manual ABOUT THIS MANUAL In accordance with our policy of continuous development and product improvement the AIS CTRX GRAPHENE hardware and/or software may be upgraded from time to time and future versions of the AIS CTRX GRAPHENE may therefore not correspond exactly with this manual. When necessary, upgrades to the product are made. These will be accompanied by updates or addendum to this manual. Please take time to read this manual carefully in order to fully understand the functions and preparations necessary for the installation and operation of your AIS transponder. Information contained in this manual is subject to change without notice. True Heading AB disclaims any liability for consequences arising from omissions or inaccuracies in this manual and any other documentation provided with this product. UNDER NO CIRCUMSTANCES SHALL TRUE HEADING AB BE LIABLE FOR INDIRECT OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH OR ARISING OUT OF THE USE OF ANY OF OUR PRODUCTS. Revision history Version Date Responsible Approved Changes 1.0PE 2012-12-14 Anders Bergström Nils Willart Preliminary release 1.1PE 2013-03-08 Nils Willart Update 1.2PE 2013-04-09 Nils Willart Editorial 1.3PE - - - Intermediate, not issued 1.4E 2013-05-21 Nils Willart PGN list added 1.5E 2014-03-03 Nils Willart USB caution 1.51E 2014-09-11 Nils Willart Editorial 1.6E 2014-09-11 C. Ander Smith (legal) Legal comments 1.7E 2014-09-15 Nils Willart Editorial, WiFi added 1.8E 2014-05-05 Nils Willart Editorial 1.9E 2015-07-08 Nils Willart RF exposure added AIS CTRX GRAPHENE Class B AIS Transponder Manual 1.9E 4 CTRX GRAPHENE Manual IMPORTANT INFORMATION Licensing In most countries the operation of an AIS unit is included under the vessels marine VHF radio licence provisions. The user/owner of the vessel on to which the AIS unit is to be installed must therefore possess a valid VHF radiotelephone licence which lists the AIS system and the vessel Call Sign and MMSI number. Please contact the relevant authority in your country for more information. US Customers: There are specific laws in the USA regarding the configuration of AIS class B transceivers. The entry of static data into a Class B AIS device shall be performed by the vendor of the device or by an appropriately qualified person in the business of installing marine communications equipment on board vessels. In no event shall the entry of static data into a Class B AIS device be performed by the user of the device or the licensee of a ship station. WARNING: It is a violation of the rules of the Federal Communications Commission to input an MMSI that has not been properly assigned to the end user, or to otherwise input any inaccurate data in this device. FCC notice This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to par…

Text truncated - open the document above for the full version.

Quick S tartup guide for CTRX Graphene and Graphene + Rev. 1.0 (130226) Get started with CTRX Graphene and CTRX Graphene+ – What is in the box? – Enclosed in the box to the CTRX Graphene, part# 0012-001-000, you shall find: • 1 x AIS transponder CTRX Graphene (see picture below). • 1 x BNC to UHF adapter (for connection of VHF antenna) • 1 x DC/Data cable • 1 x USB cable (mini USB to regular USB) • 1 x CD w/installation program for MMSI number etc. In the combo package ”CTRX Carbon incl. combo antenna , AU-2”, part# 0012-110-000, you shall find the above items plus the combo antenna, part# 0811-010-000. The antenna might be found outside the AIS package: Part# 0012-001-000 Enclosed in the box to the CTRX Graphene+, part# 0012-002-000, you shall find: • 1 x AIS transponder CTRX Graphene+ (see picture below). • 1 x BNF to UHF adapter (for connection of VHF antenna) • 1 x DC/Data cable • 1 x USB cable (mini USB to regular USB) • 1 x CD w/installation program for MMSI number etc. • 1 x RG-58 cable (2m) w/FME to UHF connectors (For connection to existing befintlig VHF radio). Part# 0012-002-000 Part# 0012-001-000 Part# 0012-002-000 Part# 0811-010-000 Part# 0810-105-000 Part# 0012-110-000 Part# 0012-120-000 In the combo package ”CTRX Carbon+ incl. GPS antenna , RV-76”, part# 0012-120-000, you shall find the above items plus the GPS antenna, part# 0810-105-000. The antenna might be found outside the AIS package: Get started with CTRX Graphene and CTRX Graphene+ – Connection of the antennas to CTRX GRAPHENE – Connection of combo antenna (AU-2) enclosed in combo pack, part# 0012-110-000: Connection of ”saparate” VHF and GPS antennas: To VHF antenna (use enclosed BNC-UHF adapter). To GPS antenna (TNC connector) General connections: CTRX Graphene Part# 0012-001-000 Combo antenna Part# 0811-010-000 VHF-antenna E.g. AC Marine CX4 CTRX Graphene Part# 0012-001-000 GPS antenna Part# 0810-105-000 CTRX Graphene Part# 0012-001-000 Get started with CTRX Graphene and CTRX Graphene+ – Connection of antennas and VHF radio to CTRX GRAPHENE+ – To VHF antenna (use enclosed BNC-UHF adapter). To GPS antenna (TNC connector in AIS) To VHF radio (use enclosed 2m RG-58 cable w/connectors). CTRX Graphene+ Part# 0012-002-000 Existing VHF radio Existing VHF antenna GPS antenna Part# 0810-105-000 Cable, 5m, RG-58, attached to the GPS antenna Existing VHF antenna cable in your boat Enclosed cable w/AIS, part# 0012-002-000 1 x 2m RG-58 cable w/connectors FME & UHF. Connection of units from combo pack part# 0012-120-000: General connections: CTRX Graphene+ Part# 0012-002-000 Get started with CTRX Graphene and CTRX Graphene+ – Connection of power supply and external units via NMEA0183 – 9-32VDC YELLOW (NMEA OUT-Tx-B) GREY (NMEA OUT- Tx-A) RED 0VDC ORANGE Cut and insulate wires not used VHF antenna (BNC) GPS antenna (TNC) To VHF radio (this connection CAN ONLY be found in the CTRX Graphene + unit) Picture shows CTRX Graphene+ USB to computer NMEA2000* BLACK BLUE GREEN PURPLE GREEN WHITE To NMEA 0183 receiving units e.g. plotter. Please also see special connections on TH ́s website To external Silent button (see next page) To external LED for Silent button (see next page) General connection: NOTE! To see more details about connections (NMEA0183) of the AIS units to external units e.g. plotters, please look at the specific PDF document that can be found on the True Heading website: http://www.trueheading.se/files/document/products/ais/aisctrxgraph ene/CTRX%20Graphene_rev%201.0_eng.pdf. Enclosed DC/Datajabel *Even if it is possible to connect the AIS units to an NMEA2000 network True Heading recommends to use NMEA0183 connection to connect to external units e.g. plotters Get started with CTRX Graphene and CTRX Graphene+ – Connection to an NMEA2000 network – Picture shows CTRX Graphene+ NMEA2000* Connection *Even if it is possible to connect the AIS units to an NMEA2000 network True Heading recommends to use NMEA0183 connection to connect to external units e.g. plotters NMEA2000 T-connector NMEA2000 Backbone NMEA2000 Dropcable Must not be longer than 6m NMEA2000 End resistor 120 Ohm NMEA2000 End resistor 120 Ohm To take under consideration when connecting to an NMEA2000 network: • CTRX Graphene and CTRX Graphene+ shall be connected to the NMEA2000 network as so called ”drop” units. • The ”Drop” cable from the AIS unit to the NMEA2000 ”backbone” must not exceed 6m. • There is no end resistor in the AIS units. • The NMEA2000 network must be power supplied (12VDC) separately. • The NMEA2000 ”backbone” MUST have one end resistor at each end of the NMEA2000 ”backbone”. • Power supply of the AIS unit is made according to previous page: ”– Connection of power supply and external units via NMEA0183 – ”. • NMEA2000 cables, T-connectors and/or end resistors are not enclosed with the AIS. • The LEN value of the CTRX Graphene and CTRX Graphene+ is 1**, respectively. **To learn more about LEN values and NMEA2000 in general, please contact you local certified NMEA2000 dealer. 9-16VDC 0VDC NMEA2000 Power supply 9-32VDC RED 0VDC ORANGE BLACK BLUE Get started with CTRX Graphene and CTRX Graphene+ – Connection of external Silent button – Suggestion of momentary switch w/ built in LED is ELFA part# 35-062-27. Momentary switch VHF antenna (BNC) GPS antenna (TNC) To VHF radio Picture shows CTRX Graphene+ USB to computer NMEA2000 RED ORANGE BLACK BLUE PURPLE GREEN 0VDC 9-32VDC Cut and insulate wires not used Get started with CTRX Graphene and CTRX Graphene+ – Connection of external LED to extern Silen button – LED, preferable blue. GREEN WHITE VHF antenna (BNC) GPS antenna (TNC) To VHF radio Picture shows CTRX Graphene+ USB to computer NMEA2000 Cut and insulate wires not used RED ORANGE BLACK BLUE 9-32VDC 0VDC Get started with CTRX Graphene and CTRX Graphene+ – General AIS information and the software ”proAIS2” – What does the AIS require in order to be able to send AIS information out from your AIS? In order for the AIS transponder to be able to send i…

Text truncated - open the document above for the full version.

TRUE HEADING AB Office address Phone Telefax E-mail Registered office Org.no V.A.T No. Vendevägen 90 +46 8 6609060 +46 8 54593910 [email protected] Stockholm 556658-5054 SE556658505401 182 32 DANDERYD Sweden Internet www.trueheading.se BABT Ref.: NW20150601: Graphene FCC Octagon House, Concorde Way, Segensworth North, Fareham, Hampshire PO15 5RL FCC ID: 2AC79-GRAPHENE174 2AC79-GRAPHENE172 2AC79-GRAPHENE171 CFR 47 part15 Letter of attestation Seapilot Graphene series class B marine AIS transponder True Heading AB hereby attest that the USB data port on the above products is only of use during the manufacturing and initial configuration / programming of the product and during this process the product is inoperable. The end user is unable to use the product as a Class B peripheral. In addition, there are no RF ports on this connector. Danderyd 2015-05-07 Nils Willart CTO True Heading AB

TRUE HEADING AB Office address Phone Telefax E-mail Registered office Org.no V.A.T No. Vendevägen 90 +46 8 6609060 +46 8 54593910 [email protected] Stockholm 556658-5054 SE556658505401 182 32 DANDERYD Sweden Internet www.trueheading.se BABT Ref.: NW20150601: Graphene FCC Octagon House, Concorde Way, Segensworth North, Fareham, Hampshire PO15 5RL FCC ID: 2AC79-GRAPHENE174 2AC79-GRAPHENE172 2AC79-GRAPHENE171 CFR 47 part15 Letter of attestation Seapilot Graphene series class B marine AIS transponder True Heading AB hereby attest that the USB data port on the above products is only of use during the manufacturing and initial configuration / programming of the product and during this process the product is inoperable. The end user is unable to use the product as a Class B peripheral. In addition, there are no RF ports on this connector. Danderyd 2015-05-07 Nils Willart CTO True Heading AB

Company Confidential  2013 SRT Marine Technology Ltd SRT Marine Technology Ltd is a wholly owned subsidiary of the Software Radio Technology plc group 28 June, 2013 SRT Marine Technology Ltd Wireless House Westfield Industrial Estate Midsomer Norton Bath England BA3 4BS Dear Sir, We, SRT Marine Technology Ltd, of Wireless House, Westfield Industrial Estate, Midsomer Norton, England BA3 4BS, hereby grant permission to True Heading AB of Vendevägen 90, 182 32 Danderyd, Sweden, to use the SRT Marine Technology Cobalt unit (011-0014 ) within their own Class B AIS Transponder product. We also give permission for True Heading AB to use all Cobalt module (011-0014) test reports for approvals purposes of their own Cobalt based Class B AIS Transponder. The True Heading AB Class B AIS Transponder uses the identical Cobalt module to the SRT Marine Technology NEON II Class B AIS Transponder, but housed within a different enclosure. Yours sincerely, Name: Richard McMahon Position: Certification Engineer e-mail: [email protected] Tel: +44 (0) 1761 409500 Fax: +44 (0) 1761 410093

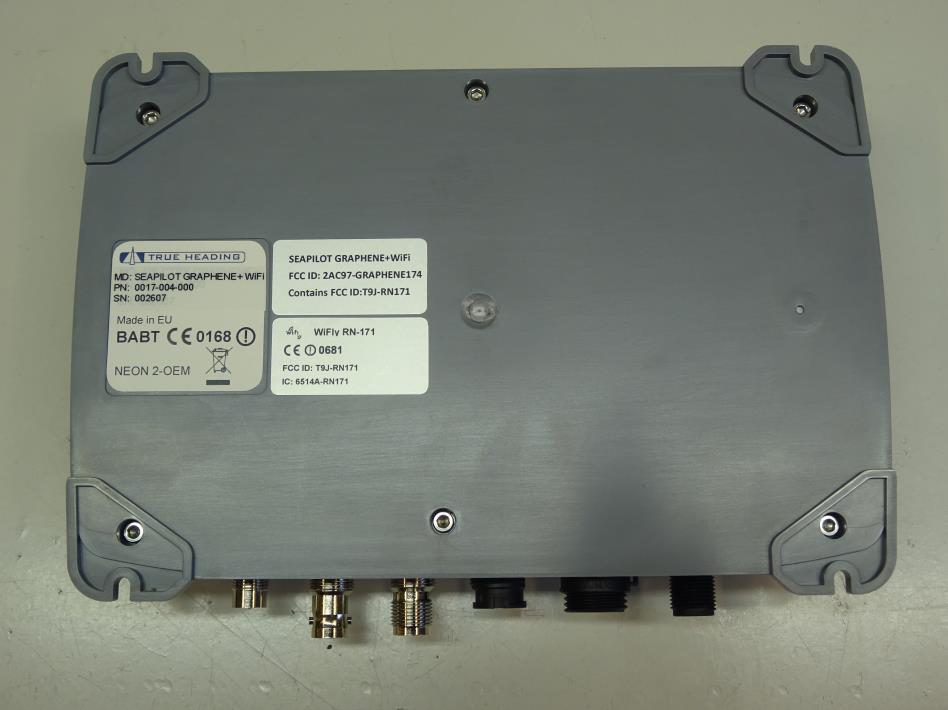

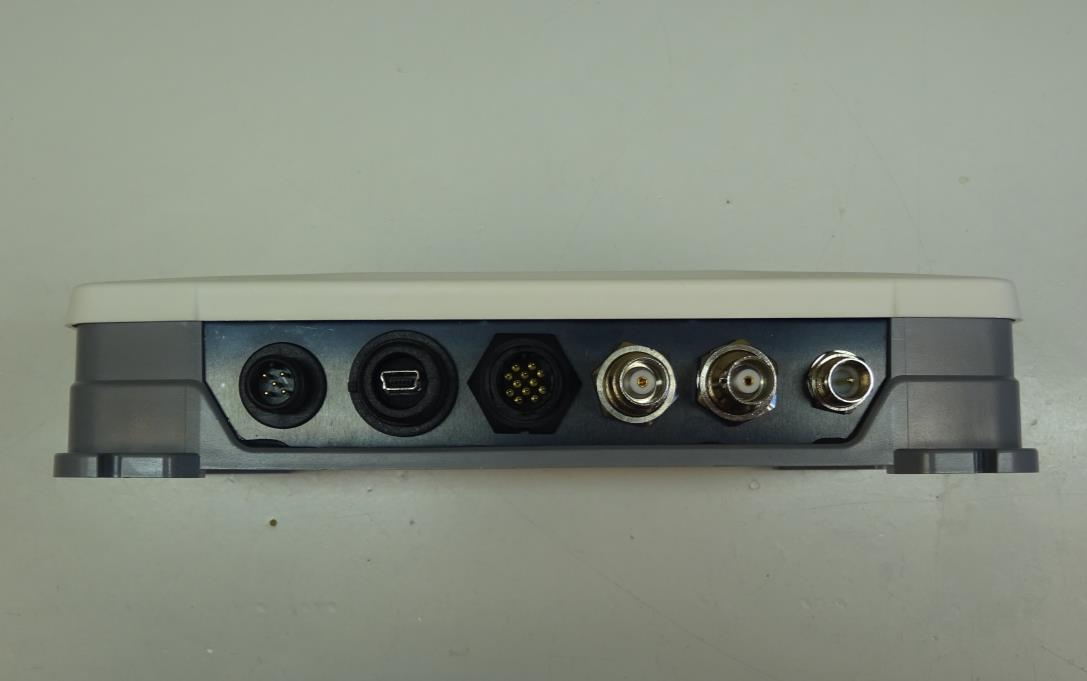

TRUE HEADING AB (publ.) Office address Phone Telefax E-mail Registered office Org.no V.A.T No. Vendevägen 90 +46 8 622 26 60 +46 8 545 93 900 [email protected] Stockholm 556658-5054 SE556658505401 182 32 DANDERYD Sweden Internet www.trueheading.se Seapilot Graphene External photos Top view Bottom view SEAPILOT GRAPHENE+ WiFi FCC ID:2AC79-GRAPHENE174 Contains FCC ID:T9J-RN171 TRUE HEADING AB 2 (4) Seapilot Graphene external photos_rev1 Rear view Front view TRUE HEADING AB 3 (4) Seapilot Graphene external photos_rev1 Side view, left Side view, right TRUE HEADING AB 4 (4) Seapilot Graphene external photos_rev1 2J9001 GPS antenna

TRUE HEADING AB Office address Phone Telefax E-mail Registered office Org.no V.A.T No. Vendevägen 90 +46 8 6622660 +46 8 54593910 [email protected] Stockholm 556658-5054 SE556658505401 182 3218 STOCKHOLM Sweden FCC ID Label Date: 2015-06-01 Document class: Technical documentation Adm.: Nils Willart Part no.: TBD Document no.: TH-15-02-001 Product: Seapilot Graphene Scale: Not to scale Rev.: 2 Title: FCC ID label SEAPILOT GRAPHENE+ WiFi FCC ID: 2AC79-GRAPHENE174 Contains FCC ID:T9J-RN171 40 mm 20 mm TRUE HEADING AB 2 (2) FCC-ID label placement on the Seapilot Graphene+ WiFi transponder FCC ID: 2AC79-GRAPHENE174

TRUE HEADING AB Office address Phone Telefax E-mail Registered office Org.no V.A.T No. Vendevägen 90 +46 8 6622660 +46 8 54593910 [email protected] Stockholm 556658-5054 SE556658505401 182 3218 STOCKHOLM Sweden FCC ID Label Date: 2015-06-01 Document class: Technical documentation Adm.: Nils Willart Part no.: TBD Document no.: TH-15-02-001 Product: Seapilot Graphene Scale: Not to scale Rev.: 2 Title: FCC ID label SEAPILOT GRAPHENE+ WiFi FCC ID: 2AC79-GRAPHENE174 Contains FCC ID:T9J-RN171 40 mm 20 mm TRUE HEADING AB 2 (2) FCC-ID label placement on the Seapilot Graphene+ WiFi transponder FCC ID: 2AC79-GRAPHENE174

TRUE HEADING AB (publ.) Office address Phone Telefax E-mail Registered office Org.no V.A.T No. Vendevägen 90 +46 8 622 26 60 +46 8 545 93 900 [email protected] Stockholm 556658-5054 SE556658505401 182 32 DANDERYD Sweden Internet www.trueheading.se Seapilot Graphene Internal photos Inside overview WiFi antenna, close up WiFi option AIS transceiver Antenna switch option WiFi antenna TRUE HEADING AB 2 (6) Seapilot Graphene internal photos v1 Base pcb, top view Close up of the 3.3V DC/DC converter SD memory card holder 3.3V DC/DC converter Connector to front panel switch and LED’s TRUE HEADING AB 3 (6) Seapilot Graphene internal photos v1 Base pcb, bottom view TRUE HEADING AB 4 (6) Seapilot Graphene internal photos v1 Cobalt AIS transceiver module, top view Cobalt AIS transceiver module bottom view TRUE HEADING AB 5 (6) Seapilot Graphene internal photos v1 Trident II antenna switch, top view Trident II antenna switch, bottom view TRUE HEADING AB 6 (6) Seapilot Graphene internal photos v1 WiFi carrier pcb with module WiFi carrier pcb without module RN-171 WiFi module top and bottom view

Document 75928833 Report 03 Issue 2 October 2015 Report On RF Exposure Assessment of the True Heading AB True Heading/Seapilot Graphene, Graphene+ Marine AIS CSTDMA Class B transponder FCC ID: 2AC79-GRAPHENE174 IC: 9502a-GRAPHENE174 TÜV SÜD Product Service, Octagon House, Concorde Way, Segensworth North, Fareham, Hampshire, United Kingdom, PO15 5RL Tel: +44 (0) 1489 558100. Website: www.tuv-sud.co.uk Document 75928833 Report 03 Issue 2 Page 1 of 14 REPORT ON RF Exposure Assessment of the True Heading AB True Heading/Seapilot Graphene, Graphene+ Marine AIS CSTDMA Class B transponder Document 75928833 Report 03 Issue 2 October 2015 PREPARED FOR True Heading AB Vendevagen 90 182 32 Danderyd SWEDEN PREPARED BY Sarah Jones Senior Engineer (Projects) APPROVED BY Nic Forsyth Authorised Signatory DATED 05 October 2015 This report has been revised to issue 2 to correct the FCC ID. Document 75928833 Report 03 Issue 2 Page 2 of 14 CONTENTS Section Page No 1 REPORT SUMMARY ................................................................................................................... 3 1.1 Introduction .................................................................................................................................... 4 1.2 Regional Requirements ................................................................................................................. 5 1.3 Product Information ....................................................................................................................... 6 1.3.1 Technical Description .................................................................................................................... 6 1.3.2 Supported Features ....................................................................................................................... 6 1.3.3 Antennas ........................................................................................................................................ 6 1.4 Brief Summary of Results .............................................................................................................. 7 2 TEST DETAILS ............................................................................................................................ 9 2.1 Rationale for Assessment of the RF Exposure ........................................................................... 10 2.2 Test Result Details ....................................................................................................................... 11 3 DISCLAIMERS AND COPYRIGHT ............................................................................................ 13 3.1 Disclaimers and Copyright ........................................................................................................... 14 Document 75928833 Report 03 Issue 2 Page 3 of 14 SECTION 1 REPORT SUMMARY RF Exposure Assessment of the True Heading AB True Heading/Seapilot Graphene, Graphene+ Marine AIS CSTDMA Class B transponder Document 75928833 Report 03 Issue 2 Page 4 of 14 1.1 INTRODUCTION The information contained in this report is intended to show verification of the RF Exposure Assessment of the True Heading AB True Heading/Seapilot Graphene, Graphene+ Marine AIS CSTDMA Class B transponder to the requirements of the applied test specifications. Objective To perform RF Exposure Assessment to determine the Equipment Under Test's (EUT’s) compliance of the applied rules. Applicant True Heading AB Manufacturer True Heading AB Manufacturing Description Marine AIS CSTDMA Class B transponder Model Number(s) True Heading/Seapilot Graphene, Graphene+ Test Specification/Issue/Date Council Recommendation 1999/519/EC CFR 47 Pt1.1310 Health Canada Safety Code 6 ARPANSA Radiation Protection Series No.3 Document 75928833 Report 03 Issue 2 Page 5 of 14 1.2 REGIONAL REQUIREMENTS The table below shows the regional requirements that are referenced in this test report. A full list of the requirements is shown in Annex A. Report Reference Regional Requirement EU Council Recommendation 1999/519/EC FCC CFR 47 Pt1.1310 IC Health Canada Safety Code 6 AUS ARPANSA Radiation Protection Series No.3 Document 75928833 Report 03 Issue 2 Page 6 of 14 1.3 PRODUCT INFORMATION 1.3.1 Technical Description The Equipment under test was a True Heading AB True Heading/Seapilot Graphene, Graphene+ Marine AIS CSTDMA Class B transponder. A full technical description can be found in the manufacturer’s documentation. All reported calculations were carried out on the relevant information supplied for the True Heading/Seapilot Graphene, Graphene+ Marine AIS CSTDMA Class B transponder to demonstrate compliance with the applied test specification(s) the sample assessed was found to comply with the requirements of the applied rules. 1.3.2 Supported Features The following radio access technologies and frequency bands are supported by the equipment under test. Radio Access Technology AIS WLAN Frequency Band 156-162 2412-2480 1.3.3 Antennas The following antennas are supported by the equipment under test. No. Model Gain (dBi) 1 AIS 2.15 2 WLAN 2.15 Document 75928833 Report 03 Issue 2 Page 7 of 14 1.4 BRIEF SUMMARY OF RESULTS The wireless device described within this report has been shown to be capable of compliance with the basic restrictions related to human exposure to electromagnetic fields for both General public and Occupational. The calculations shown in this report were made in accordance the procedures specified in the applied test specification(s). Required Compliance Boundary (m) Occupational General Population 0.13 0.27 Table 1 – Compliance Boundary Results Document 75928833 Report 03 Issue 2 Page 8 of 14 The tables below show the summed fractional results from the antenna port summary in section 2.2. Where the result is less than one, the EUT is deemded compliant. Regional Requirement Calculated RF exposure level at compliance boundary of 0.13 m as a Fraction of the Limit S Field E Field H Field ICNIR…
