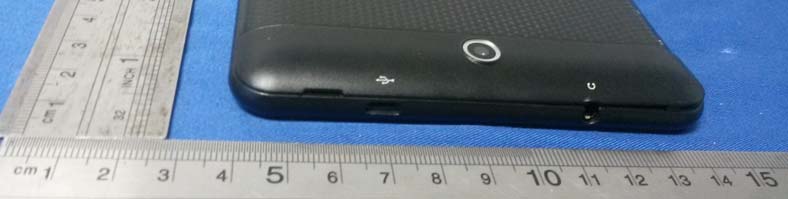

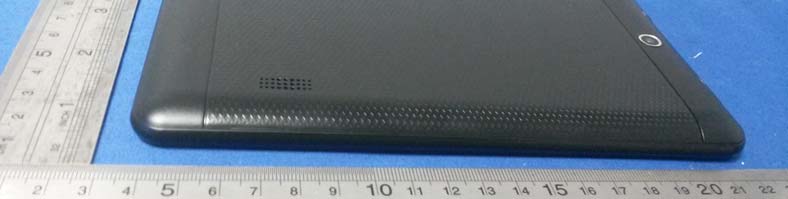

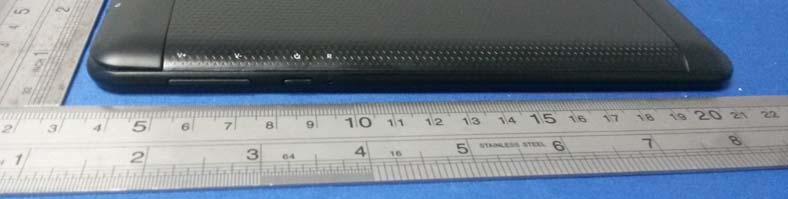

2AC7LPT-701ATablet PC

1 Content Content ..............................................................................................................................................1 1 Introduction....................................................................................................................................3 1.1 Acknowledgement...............................................................................................................3 1.2 Announcements ...................................................................................................................3 1.3 Safety Instruction ................................................................................................................4 1.4 Abbreviation/Terminology ..................................................................................................5 2 MID Introduction ...........................................................................................................................6 2.1 MID Operation and Preparation..........................................................................................6 2.2 MID Status and Reminder.............................................................................................6 3 Quick Start Guide...........................................................................................................................8 3.1 Keys Function .....................................................................................................................8 3.2 Startup and Shutdown .........................................................................................................8 3.3 Open and Close of the Screen .............................................................................................8 3.4 Usage of Touch Screen........................................................................................................9 3.5 Home Page ........................................................................................................................10 3.6 Visit Application Procedures .............................................................................................13 3.7 USB Connection ...............................................................................................................14 3.8 Typing words.....................................................................................................................15 3.9 Operation Technique .........................................................................................................17 4 Basic Setting ................................................................................................................................18 4.1 SIM Management..............................................................................................................18 4.2 Wireless and Internet.........................................................................................................20 4.3 Bluetooth .....................................................................................................................22 4.4 Data Usage ........................................................................................................................25 4.5 More ..................................................................................................................................27 4.14 Language and Input Method .......................................................................................49 4.16 Date and Time .................................................................................................................52 5 Multi-Media .................................................................................................................................56 5.1 Music.................................................................................................................................56 5.2 Video .................................................................................................................................57 5.3 Photo Gallery ....................................................................................................................58 5.4 Camera ..............................................................................................................................59 5.5 FM Radio ..........................................................................................................................60 6 Communication Function.............................................................................................................62 6.1 Phone.................................................................................................................................62 6.2 Text Message.....................................................................................................................63 6.3 Contact List .......................................................................................................................63 7 Internet .........................................................................................................................................64 7.1 Browser .............................................................................................................................64 7.2 Email .................................................................................................................................66 2 8 Other Application Procedures ......................................................................................................69 8.1 Clock .................................................................................................................................69 8.2 Calculator ..........................................................................................................................69 8.3 File Manager ................................................................................…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 3 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 3 Rev 5.0 SISCOSUN GROUP, LLC 315 FIFTH AVENUE, SUITE 1005 NEW YORK, NY 10016,UNITED STATES OF AMERICA 2014-9-13 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, SISCOSUN GROUP, LLC hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): FCC ID: 2AC7LPT-701A Model: PT-701A, PT-701B, PT-701C,PT-701D, PT-701F, PT-701G, Q7 3G Product name: TABLET PC Sincerely, signature : name / title: John Tuli / sales address: 315 FIFTH AVENUE, SUITE 1005 NEW YORK, NY 10016,UNITED STATES OF AMERICA

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 SISCOSUN GROUP, LLC 315 FIFTH AVENUE, SUITE 1005 NEW YORK, NY 10016,UNITED STATES OF AMERICA 2014-9-13 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AC7LPT-701A We hereby request confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Operational Description BOM Tune up Procedure Th e above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, signature : name / title: John Tuli / sales address: 315 FIFTH AVENUE, SUITE 1005 NEW YORK, NY 10016,UNITED STATES OF AMERICA

Updated on 2005/02/07 by Kally Chan DECLARATION OF IDENTITY FCC ID: 2AC7LPT-701A Hereby we: SISCOSUN GROUP, LLC (Name of Manufacturer) Basic Model Number: PT-701A Basic Brand Name: --- Basic Product Name: TABLET PC Declare the Circuit, PCB Layout, shape of enclosure and Electrical Parts of the following product(s) are identical to the basic model: New / Additional Model Number(s): PT-701B, PT-701C,PT-701D, PT-701F, PT-701G, Q7 3G New / Additional Brand Name(s): Except the following(s) : Model numbers，outlook color and size. Signature with Company Chop : Printed Name : John Tuli DATE:2014-09-13

.

Label location Model No.: PT-701A FCC ID: 2AC7LPT-701A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

BT&WIFI Antenna GSM&WCDMA Antenna

SHENZHEN SUNWAY COMMUNICATION CO.,LTD Report NO.: TS201409006 Page 1 / 121 FCC SAR EVALUATION REPORT For SISCOSUN GROUP, LLC 315 FIFTH AVENUE, SUITE 1005 NEW YORK, NY 10016, UNITED STATES OF AMERICA Product Name: Table PC Model No. : PT-701A, PT-701B, PT-701C, PT-701D, PT-701F, PT-701G, Q7 3G Date of Receipt: 12 th Sep. 2014 Date of Test: 12 th Sep. 2014 Issued Date: 14 th Sep. 2014 Report No.:TS201409006 Report Version:V1.0 Issue By Shenzhen Sunway Communication CO.,LTD Testing Center 1/F,BuildingA，SDG Info Port, KefengRoad，Hi-Tech Park, Nanshan District, Shenzhen , Guangdong, China 518104, Note: The test results relate only to the samples tested. This report shall not be reproduced in full, without the written approval of SUNWAY Testing Center. SHENZHEN SUNWAY COMMUNICATION CO.,LTD Report NO.: TS201409006 Page 2 / 121 SAR Evaluation compliance Product Name: Table PC Brand Name: - Model Name: PT-701A, PT-701B, PT-701C, PT-701D, PT-701F, PT-701G, Q7 3G Applicant: SISCOSUN GROUP, LLC Address: 315 FIFTH AVENUE, SUITE 1005 NEW YORK, NY 10016, UNITED STATES OF AMERICA Manufacturer: Potato Technology International Co.,Ltd Address: 3F/Block A1,JuYin industry Zone, ShangLiLang GanLI Road, BuJi street, LongGang District, Shenzhen, China Applicable Standard: IEEE Std. 1528-2013,FCC 47 CFR§2.1093 KDB 865664 D01 SAR measurement 100 MHz to 6 GHz v01r03 KDB 447498 D01 General RF Exposure Guidance v05r02 KDB 941225 D01 SAR test for 3G devices v02 KDB 941225 D03 SAR Test Reduction GSM GPRS EDGE vo1 Test Result: Max. SAR Report: Body (1g): 0.864 W/kg Head(1g): 0.660 W/kg Performed Date: 12 th ~13 th Sep. 2014 Test Engineer: 14 th Sep. 2014 Reviewed By 14 th Sep. 2014 Performed Location: Shenzhen Sunway Communication CO.,LTD Testing Center 1/F,BuildingA，SDG Info Port, KefengRoad，Hi-Tech Park, Nanshan District,Shenzhen , Guangdong, China 518104 Tel: +86-755- 36615880 Fax: +86-755- 86525532 SHENZHEN SUNWAY COMMUNICATION CO.,LTD Report NO.: TS201409006 Page 3 / 121 TABLE OF CONTENS 1. General Information: .......................................................................................................... 4 1.1 EUT Description: ............................................................................................................. 4 1.2 Test Environment: ...........................................................................................................6 2. SAR Measurement System: ............................................................................................... 7 2.1 Dasy4 System Description: ............................................................................................. 7 3. System Components:......................................................................................................... 8 4. Tissue Simulating Liquid ................................................................................................. 10 4.1 The composition of the tissue simulating liquid: ............................................................ 10 4.2 Tissue Calibration Result:.............................................................................................. 10 4.3 Tissue Dielectric Parameters for Head and Body Phantoms:........................................ 11 5. SAR System Validation .................................................................................................... 12 5.1 Validation System:.........................................................................................................12 5.2 Validation Dipoles:.........................................................................................................12 5.3 Validation Result: ..........................................................................................................13 6. SAR Evaluation Procedures: ........................................................................................... 14 7. SAR Exposure Limits ....................................................................................................... 15 8. Measurement Uncertainty:............................................................................................... 16 9. Conducted Power Measurement: .................................................................................... 18 10. Test photos and results: ................................................................................................ 23 10.1 DUT photos: ................................................................................................................23 10.2 Setup photos ...............................................................................................................25 10.3 SAR result summary:................................................................................................... 30 10.4 Co-located SAR........................................................................................................... 31 11. Equipment List:............................................................................................................... 34 Appendix A. System validation plots:................................................................................. 35 Appendix B. SAR Test plots: ............................................................................................... 39 Appendix C. Probe Calibration Data: .................................................................................. 45 Appendix D. DAE Calibration Data:..................................................................................... 45 Appendix E. Dipole Calibration Data: ................................................................................. 45 SHENZHEN SUNWAY COMMUNICATION CO.,LTD Report NO.: TS201409006 Page 4 / 121 1. General Information: 1.1 EUT Description: EUT Information Product Name Table PC Brand Name - Model Name PT-701A, PT-701B, PT-701C, PT-701D, PT-701F, PT-701G, Q7 3G Device Category Protable Antenna Type Integral Antenna Headset / Battery Type: Rechar…

Text truncated - open the document above for the full version.

SHENZHEN SUNWAY COMMUNICATION CO.,LTD Report NO.: TS201409006 Page 61 / 121 Plot 22: Date/Time: 9/13/2014 4:04:01 AM Test Laboratory: SUNWAY COMMUNICATION CO.,LTD. DUT: PT-701; Type: SI PIN; Serial: IMEI Number Program Name: PT-701 Communication System: GPRS850; Frequency: 836.6 MHz;Duty Cycle: 1:4 Medium parameters used: f = 837 MHz; σ = 0.992 mho/m; ε r = 55.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV3 - SN3898; ConvF(9.63, 9.63, 9.63); Calibrated: 3/10/2014 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn914; Calibrated: 12/18/2013 - Phantom: SAM with TP1432; Type: SAM; - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Side2 2slot/Area Scan (101x181x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.449 mW/g Side2 2slot/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.5 V/m; Power Drift = 0.016 dB Peak SAR (extrapolated) = 0.723 W/kg SAR(1 g) = 0.456 mW/g; SAR(10 g) = 0.184 mW/g Maximum value of SAR (measured) = 0.493 mW/g 0 dB = 0.493mW/g SHENZHEN SUNWAY COMMUNICATION CO.,LTD Report NO.: TS201409006 Page 62 / 121 Plot 23: Date/Time: 9/13/2014 4:56:01 AM Test Laboratory: SUNWAY COMMUNICATION CO.,LTD. DUT: PT-701; Type: SI PIN; Serial: IMEI Number Program Name: PT-701 Communication System: GPRS850; Frequency: 836.6 MHz;Duty Cycle: 1:2.67 Medium parameters used: f = 837 MHz; σ = 0.992 mho/m; ε r = 55.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV3 - SN3898; ConvF(9.63, 9.63, 9.63); Calibrated: 3/10/2014 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn914; Calibrated: 12/18/2013 - Phantom: SAM with TP1432; Type: SAM; - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Side2 3slot /Area Scan (101x181x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.527 mW/g Side2 3slot /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.8 V/m; Power Drift = 0.002 dB Peak SAR (extrapolated) = 0.783 W/kg SAR(1 g) = 0.485 mW/g; SAR(10 g) = 0.199 mW/g Maximum value of SAR (measured) = 0.525 mW/g 0 dB = 0.543mW/g SHENZHEN SUNWAY COMMUNICATION CO.,LTD Report NO.: TS201409006 Page 63 / 121 Plot 24: Date/Time: 9/13/2014 5:40:01 AM Test Laboratory: SUNWAY COMMUNICATION CO.,LTD. DUT: PT-701; Type: SI PIN; Serial: IMEI Number Program Name: PT-701 Communication System: GPRS850; Frequency: 836.6 MHz;Duty Cycle: 1:2 Medium parameters used: f = 837 MHz; σ = 0.992 mho/m; ε r = 55.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV3 - SN3898; ConvF(9.63, 9.63, 9.63); Calibrated: 3/10/2014 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn914; Calibrated: 12/18/2013 - Phantom: SAM with TP1432; Type: SAM; - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Side2 4slot/Area Scan (101x181x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.548 mW/g Side2 4slot/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.1 V/m; Power Drift = 0.007 dB Peak SAR (extrapolated) = 0.808 W/kg SAR(1 g) = 0.503 mW/g; SAR(10 g) = 0.112 mW/g Maximum value of SAR (measured) = 0.543 mW/g 0 dB = 0.525mW/g SHENZHEN SUNWAY COMMUNICATION CO.,LTD Report NO.: TS201409006 Page 64 / 121 Plot 25: Date/Time: 9/13/2014 6:13:21 AM Test Laboratory: SUNWAY COMMUNICATION CO.,LTD. DUT: PT-701; Type: SI PIN; Serial: IMEI Number Program Name: PT-701 Communication System: GPRS850; Frequency: 836.6 MHz;Duty Cycle: 1:2 Medium parameters used: f = 837 MHz; σ = 0.992 mho/m; ε r = 55.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV3 - SN3898; ConvF(9.63, 9.63, 9.63); Calibrated: 3/10/2014 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn914; Calibrated: 12/18/2013 - Phantom: SAM with TP1432; Type: SAM; - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Side3 4slot/Area Scan (41x131x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.465 mW/g Side3 4slot/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.9 V/m; Power Drift = 0.035 dB Peak SAR (extrapolated) = 0.692 W/kg SAR(1 g) = 0.428 mW/g; SAR(10 g) = 0.159 mW/g Maximum value of SAR (measured) = 0.472 mW/g 0 dB = 0.472mW/g SHENZHEN SUNWAY COMMUNICATION CO.,LTD Report NO.: TS201409006 Page 65 / 121 Plot 26: Date/Time: 9/13/2014 7:01:12 AM Test Laboratory: SUNWAY COMMUNICATION CO.,LTD. DUT: PT-701; Type: SI PIN; Serial: IMEI Number Program Name: PT-701 Communication System: GPRS850; Frequency: 836.6 MHz;Duty Cycle: 1:2 Medium parameters used: f = 837 MHz; σ = 0.992 mho/m; ε r = 55.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV3 - SN3898; ConvF(9.63, 9.63, 9.63); Calibrated: 3/10/2014 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn914; Calibrated: 12/18/2013 - Phantom: SAM with TP1432; Type: SAM; - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Side6 4slot/Area Scan (41x111x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.285 mW/g Side6 4slot/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.01 V/m; Power Drift = -0.132 dB Peak SAR (extrapolated) = 0.605 W/kg SAR(1 g) = 0.275 mW/g; SAR(10 g) = 0.152 mW/g Maximum value of SAR (measured) = 0.280 mW/g 0 dB = 0.280mW/g SHENZHEN SUNWAY COMMUNICATION CO.,LTD Report NO.: TS201409006 Page 66 / 121 Plot 27: Date/Time: 9/13/2014 7:55:14 AM Test Laboratory: SUNWAY COMMUNICATION CO.,LTD. DUT: PT-701; Type: SI PIN; Serial: IMEI Number Program Name: PT-701 Communication System: EGPRS850; Frequency: 836.6 MHz;Duty Cycle: 1:2 Medium parameters used: f = 837 MHz; σ = 0.992 mho/m; ε r = 55.5; ρ = 1000 …

Text truncated - open the document above for the full version.

FCC ID: 2AC7LPT-701A Keyway Testing Technology Co., Ltd. Report No. 14KWE09187503F Page 1 of 58 FCC TEST REPORT(Tablet PC) for SISCOSUN GROUP, LLC Tablet PC Model Number: PT-701A, PT-701B, PT-701C, PT-701D, PT-701F, PT-701G, Q7 3G FCC ID: 2AC7LPT-701A Prepared for : SISCOSUN GROUP, LLC Address : 315 FIFTH AVENUE, SUITE 1005 NEW YORK, NY 10016, UNITED STATES OF AMERICA Prepared by : Keyway Testing Technology Co., Ltd. Address : Baishun Industrial Zone, Zhangmutou Town, Dongguan, Guangdong, China Tel: 86-769-8718 2258 Fax: 86-769-8718 1058 Report No. : 14KWE09187503F Date of Test : Sep. 4~9, 2014 Date of Report : Sep. 10, 2014 FCC ID: 2AC7LPT-701A Keyway Testing Technology Co., Ltd. Report No. 14KWE09187503F Page 2 of 58 TABLE OF CONTENTS Test Report Declaration Page 1. TEST SUMMARY .......................................................................................................................... 4 2. GENERAL PRODUCT INFORMATION .................................................................................... 5 2.1. Product Function .............................................................................................................................. 5 2.2. Description of Device (EUT) .......................................................................................................... 5 2.3. Difference between Model Numbers ............................................................................................... 6 2.4. Test Supporting System .................................................................................................................... 6 2.5. Independent Operation Modes ......................................................................................................... 6 3. TEST SITES ................................................................................................................................... 7 3.1. Test Facilities ...................................................................................................................................... 7 3.2. List of Test and Measurement Instruments .................................................................................... 8 4. TEST SET-UP AND OPERATION MODES .............................................................................. 9 4.1. Principle of Configuration Selection ................................................................................................. 9 4.2. Block Diagram of Test Set-up ........................................................................................................... 9 4.3. Test Operation Mode and Test Software ........................................................................................ 9 4.4. Special Accessories and Auxiliary Equipment ............................................................................... 9 4.5. Countermeasures to Achieve EMC Compliance ........................................................................... 9 4.6. Test Environment: .............................................................................................................................. 9 5. EMISSION TEST RESULTS...................................................................................................... 10 5.1. Conducted RF Output Power.......................................................................................................... 10 5.2. Peak to Average Radio .................................................................................................................... 12 5.3. 99% Occupied Bandwidth ............................................................................................................... 13 5.4. Frequency Stability ........................................................................................................................... 20 5.5. Conducted Out of Band Emissions ................................................................................................ 23 5.6. Conducted Bandedge Emissions ................................................................................................... 32 5.7. Transmitter Radiated Power (EIRP/ERP) ....................................................................................... 35 5.8. Radiated Out of Band Emissions ..................................................................................................... 43 6. PHOTOGRAPHS OF TEST SET-UP ....................................................................................... 49 7. PHOTOGRAPHS OF THE EUT ................................................................................................ 51 FCC ID: 2AC7LPT-701A Keyway Testing Technology Co., Ltd. Report No. 14KWE09187503F Page 3 of 58 Keyway Testing Technology Co., Ltd. Applicant: Address: SISCOSUN GROUP, LLC 315 FIFTH AVENUE, SUITE 1005 NEW YORK, NY 10016, UNITED STATES OF AMERICA Manufacturer: Address: Potato Technology International Co.,Ltd 3F/Block A1,JuYin industry Zone, ShangLiLang GanLI Road, BuJi street, LongGang District, Shenzhen, China E.U.T: Tablet PC Model Number: PT-701A, PT-701B, PT-701C, PT-701D, PT-701F, PT-701G, Q7 3G Trade Name: ------ Serial No.: ------ Date of Receipt: Sep. 4, 2014 Date of Test: Sep. 4~9, 2014 Test Specification: FCC CFR Title 47 Part 2: 2013 FCC CFR Title 47 Part22 Subpart H: 2013 FCC CFR Title 47 Part24 Subpart E: 2013 Test Result: The equipment under test was found to be compliance with the requirements of the standards applied. Issue Date: Sep. 10, 2014 Tested by: Reviewed by: Approved by: Jack Bu / Engineer Andy Gao / Supervisor Jade Yang/ Supervisor Other Aspects: None. Abbreviations: OK/P=passed fail/F=failed n.a/N=not applicable E.U.T=equipment under tested This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Keyway Testing Technology Co., Ltd. FCC ID: 2AC7LPT-701A Keyway Testing Technology Co., Ltd. Report No. 1…

Text truncated - open the document above for the full version.

1.1. Set-up for Radiated Emission Test 1.2. Set-up for Radiated Emission Test
