2AC8FGC133020Airyzone Mobile Beacon

BEACON MANUAL MBFX14-BSC01 MBFX14-SMP01 MBFX14-FUL01 HARDWARE INSTRUCTION H/W SPEC. LED Color: Green Buzzer: Mono Battery: CR2032 Hygrothermograph Sensor Temperature Correction: 25°C Test Temperature Range: 0~40°C Temperature Resolution: 14bit Humidity: 0~100% Error of Humidity: ± 4% RH (max), 0–80% RH Humidity Resolution: 12bit UV Sensor Range: 0~11+ H/W SPEC. LED顏色： 綠 蜂鳴器：單音 電池： CR2032 溫濕度感應器 校正溫度：25°C 測試溫度範圍: 0~40°C 溫度解析度： 14bit 濕度範圍：0~100％ 濕度誤差：± 4% RH (max), 0‒80% RH 濕度解析度： 12bit 紫外線感應器 範圍： 0~11+ APP INSTRUCTION START YOUR APP SHOW YOU HOW TO ACTIVATE ADD NEW MOBILE BEACON DEVICE STATUS / INFORMATION FUNCTION STATUS SETING THE DEVICE IS LOST RECEIVE THE NOTIFICATION WHEN OTHERS ARE WILLING TO HELP HELP OTHERS INSTRUCTION FOUND NEARBY LOST DEVICE READ LOST DEVICE INFORMATION CHOOSE HOW DO YOU WANT TO HELP SEND MESSAGE TO THE OWNER FCC Statement: FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2 ) this device must accept any interference received, including interference that may cause undesired operation.

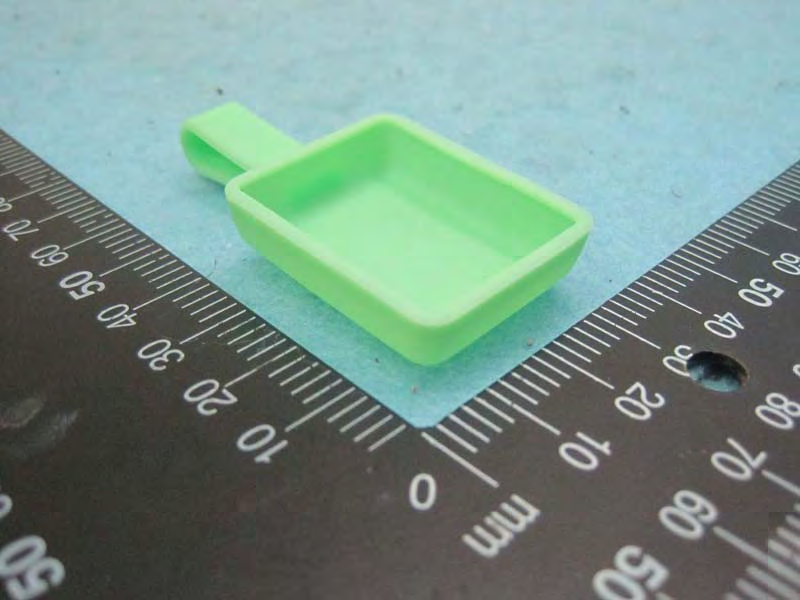

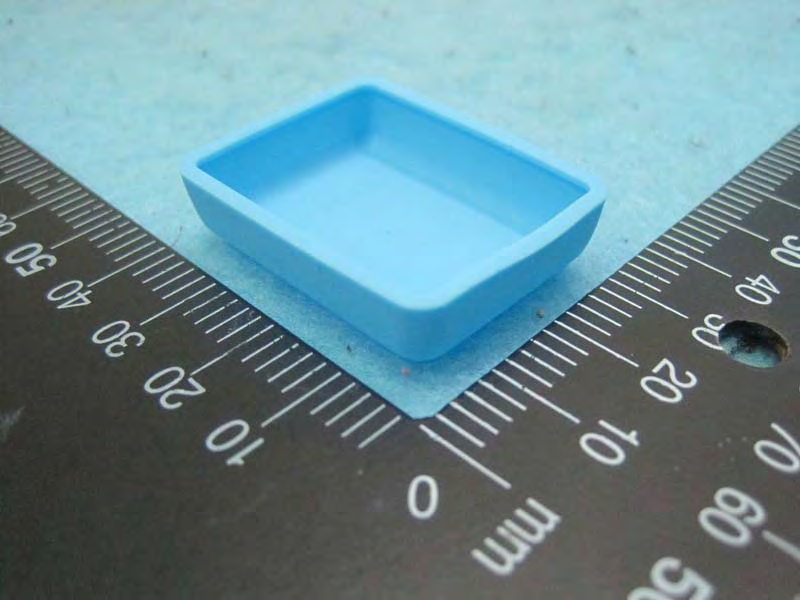

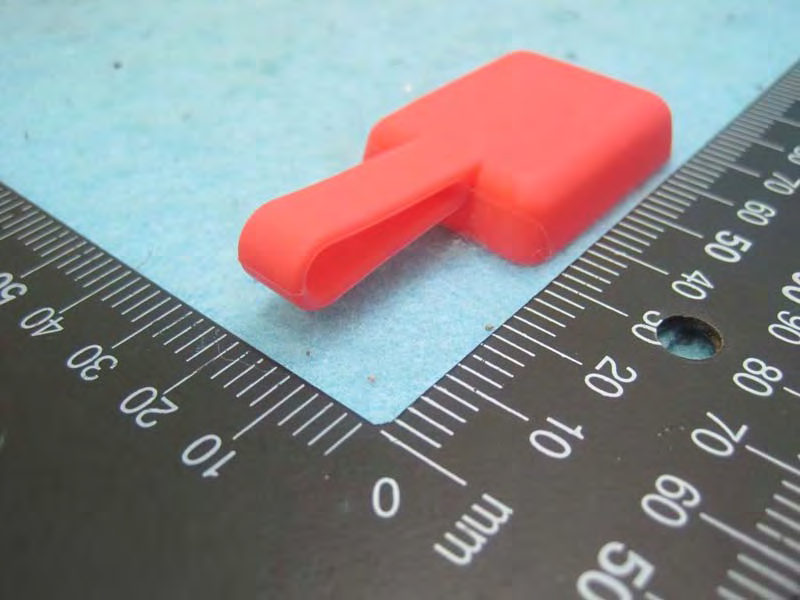

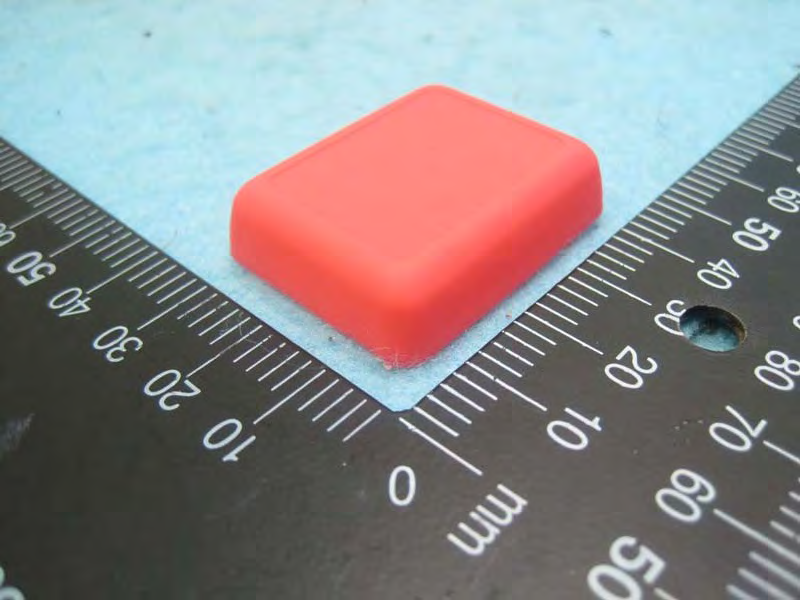

Report No.:490278 SPORTON International Inc. PAGE NUMBER : 1 OF 16 TEL : 886-3-327-3456 ISSUED DATE : Oct. 21, 2014 FAX : 886-3-327-0973 Photographs of EUT EUT1 (Model Name: MBFX14-FUL01) Report No.:490278 SPORTON International Inc. PAGE NUMBER : 2 OF 16 TEL : 886-3-327-3456 ISSUED DATE : Oct. 21, 2014 FAX : 886-3-327-0973 EUT2 (Model Name: MBFX14-SMP01) Report No.:490278 SPORTON International Inc. PAGE NUMBER : 3 OF 16 TEL : 886-3-327-3456 ISSUED DATE : Oct. 21, 2014 FAX : 886-3-327-0973 EUT3 (Model Name: MBFX14-BSC01) Report No.:490278 SPORTON International Inc. PAGE NUMBER : 4 OF 16 TEL : 886-3-327-3456 ISSUED DATE : Oct. 21, 2014 FAX : 886-3-327-0973 Silicon Case Report No.:490278 SPORTON International Inc. PAGE NUMBER : 5 OF 16 TEL : 886-3-327-3456 ISSUED DATE : Oct. 21, 2014 FAX : 886-3-327-0973 Report No.:490278 SPORTON International Inc. PAGE NUMBER : 6 OF 16 TEL : 886-3-327-3456 ISSUED DATE : Oct. 21, 2014 FAX : 886-3-327-0973 Report No.:490278 SPORTON International Inc. PAGE NUMBER : 7 OF 16 TEL : 886-3-327-3456 ISSUED DATE : Oct. 21, 2014 FAX : 886-3-327-0973 Report No.:490278 SPORTON International Inc. PAGE NUMBER : 8 OF 16 TEL : 886-3-327-3456 ISSUED DATE : Oct. 21, 2014 FAX : 886-3-327-0973 Report No.:490278 SPORTON International Inc. PAGE NUMBER : 9 OF 16 TEL : 886-3-327-3456 ISSUED DATE : Oct. 21, 2014 FAX : 886-3-327-0973 Report No.:490278 SPORTON International Inc. PAGE NUMBER : 10 OF 16 TEL : 886-3-327-3456 ISSUED DATE : Oct. 21, 2014 FAX : 886-3-327-0973 Report No.:490278 SPORTON International Inc. PAGE NUMBER : 11 OF 16 TEL : 886-3-327-3456 ISSUED DATE : Oct. 21, 2014 FAX : 886-3-327-0973 Report No.:490278 SPORTON International Inc. PAGE NUMBER : 12 OF 16 TEL : 886-3-327-3456 ISSUED DATE : Oct. 21, 2014 FAX : 886-3-327-0973 Report No.:490278 SPORTON International Inc. PAGE NUMBER : 13 OF 16 TEL : 886-3-327-3456 ISSUED DATE : Oct. 21, 2014 FAX : 886-3-327-0973 Report No.:490278 SPORTON International Inc. PAGE NUMBER : 14 OF 16 TEL : 886-3-327-3456 ISSUED DATE : Oct. 21, 2014 FAX : 886-3-327-0973 Report No.:490278 SPORTON International Inc. PAGE NUMBER : 15 OF 16 TEL : 886-3-327-3456 ISSUED DATE : Oct. 21, 2014 FAX : 886-3-327-0973 Report No.:490278 SPORTON International Inc. PAGE NUMBER : 16 OF 16 TEL : 886-3-327-3456 ISSUED DATE : Oct. 21, 2014 FAX : 886-3-327-0973

Label: Label Here

Report No.:490278 SPORTON International Inc. PAGE NUMBER : 1 OF 5 TEL : 886-3-327-3456 ISSUED DATE : Oct. 21, 2014 FAX : 886-3-327-0973 Photographs of EUT EUT1 (Model Name: MBFX14-FUL01) Report No.:490278 SPORTON International Inc. PAGE NUMBER : 2 OF 5 TEL : 886-3-327-3456 ISSUED DATE : Oct. 21, 2014 FAX : 886-3-327-0973 Report No.:490278 SPORTON International Inc. PAGE NUMBER : 3 OF 5 TEL : 886-3-327-3456 ISSUED DATE : Oct. 21, 2014 FAX : 886-3-327-0973 Report No.:490278 SPORTON International Inc. PAGE NUMBER : 4 OF 5 TEL : 886-3-327-3456 ISSUED DATE : Oct. 21, 2014 FAX : 886-3-327-0973 EUT2 (Model Name: MBFX14-SMP01) Report No.:490278 SPORTON International Inc. PAGE NUMBER : 5 OF 5 TEL : 886-3-327-3456 ISSUED DATE : Oct. 21, 2014 FAX : 886-3-327-0973 EUT3 (Model Name: MBFX14-BSC01)

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Airyzone Technology Co., Ltd. Applicant Address 5F., No.17-4, Ln. 112, Weiguo St., East Dist. Tainan Taiwan 701 FCC ID 2AC8FGC133020 Manufacturer’s company UONG XING TECHNOLOGY CO., LTD Manufacturer Address No.416, Sec. 1, Beixing Rd., Zhudong Township, Hsinchu County 310, Taiwan (R.O.C.) Product Name Airyzone Mobile Beacon Brand Name AIRYZONE Model Name MBFX14-FUL01, MBFX14-BSC01, MBFX14-SMP01, MBFXzz-xxxvy Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.249 Test Freq. Range 2402 ~ 2480MHz Received Date Sep. 02, 2014 Final Test Date Sep. 26, 2014 Submission Type Original Equipment Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2013 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR490278 Report Format Version: 01 Page No. : i of ii FCC ID: 2AC8FGC133020 Issued Date : Oct. 13, 2014 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Carrier Frequencies .............................................................................................................................................................3 3.4. Table for Test Modes ...........................................................................................................................................................................4 3.5. Table for Testing Locations..................................................................................................................................................................5 3.6. Table for Multiple Listing......................................................................................................................................................................5 3.7. Table for Supporting Units ...................................................................................................................................................................5 3.8. Test Configurations .............................................................................................................................................................................6 4. TEST RESULT ..................................................................................................................................................... 8 4.1. Field Strength of Fundamental Emissions Measurement .....................................................................................................................8 4.2. 20dB Spectrum Bandwidth Measurement ........................................................................................................................................11 4.3. Radiated Emissions Measurement ....................................................................................................................................................14 4.4. Band Edge Emissions Measurement .................................................................................................................................................23 4.5. Antenna Requirements .....................................................................................................................................................................25 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 26 6. MEASUREMENT UNCERTAINTY.......................................................................................................................... 27 APPENDIX A. TEST PHOTOS ........................................................................................................................ A1 ~ A5 Report No.: FR490278 Report Format Version: 01 Page No. : ii of ii FCC ID: 2AC8FGC133020 Issued Date : Oct. 13, 2014 History of This Test Report REPORT NO. VERSION DESCRIPTION ISSUED DATE FR490278 Rev. 01 Initial issue of report Oct. 13, 2014 47 CFR FCC Part 15 Subpart C 15.205(a) 15.209(a) Further, this requirement does not apply to intentional radiators that must be professionally installed. Report No.: FR490278 Report Format Version: 01 Page No. : 2 of 27 FCC ID: 2AC8FGC133020 Issued Date : Oct. 13, 2014 2. SUMMARY OF THE TEST RESULT Applied Standard: 47 CFR FCC Part 15 Subpart C Part Rule Section Description of Test Result Under Limit - 15.207 AC Power Line Conducted Emissions Complies Note 4.1 15.249(a) Field Strength of Fundamental Emissions Complies 2.62 dB 4.2 15.215(c) 20dB Spectrum Bandwidth Complies - 4.3 15.249(a)/(d) Radiated Emissions Complies 10.78 dB 4.4 15.249(d) Band Edge Emissions Complies …

Text truncated - open the document above for the full version.

Report No.: FR490278 FCC ID: 2AC8FGC133020 Page No. : A1 of A5 Appendix A. Test Photos Report No.: FR490278 FCC ID: 2AC8FGC133020 Page No. : A2 of A5 1. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz / Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR490278 FCC ID: 2AC8FGC133020 Page No. : A3 of A5 Test Configuration: 30MHz~1GHz Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR490278 FCC ID: 2AC8FGC133020 Page No. : A4 of A5 Test Configuration: Above 1GHz / Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR490278 FCC ID: 2AC8FGC133020 Page No. : A5 of A5 CLOSE UP VIEW
