2AC8MSUNTOP092ABBluetooth Headphone

USE MANUAL CHARGE HEADSET Plug headset device into power source via provided USB connector Low battery indicator: red light will ash quickly three times and unti will make a “beep” noise TO TURN UNIT ON: Press middle button for ve seconds, blue light will ash quickly four times. PAIRING UNIT Once turned on, press middle buttom for another ttwo seconds ( light will alternate in ashing red and blue lights) unit is ready for pairing, Headset should appear on smartphone bluetooth device list as” SPORT-BT”, password for paieing is 0000 if needed. CALL-IN MODE Press middel button on device one time to answer call Press middle button on device and hold for three seconds to reject call VOLUME CONTROL Short press volume + or volume – repeatedly adjust the volume TURN UNIT OFF Press middle button for three seconds, lights will ash four times and unit will shut down Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment Note: This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cases harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televison reception, which can be detarmined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following mensures: □ Reorient or relocate the receiving antenna □ Increase the separation between the equipment and receiver □ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. □ Consult the dealer or an experienced radio/TV technician for help The device complies with part 15 of the FCC Rules.Operation is subject to the following two conditions(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesied operation.

Scanned by CamScanner

Scanned by CamScanner

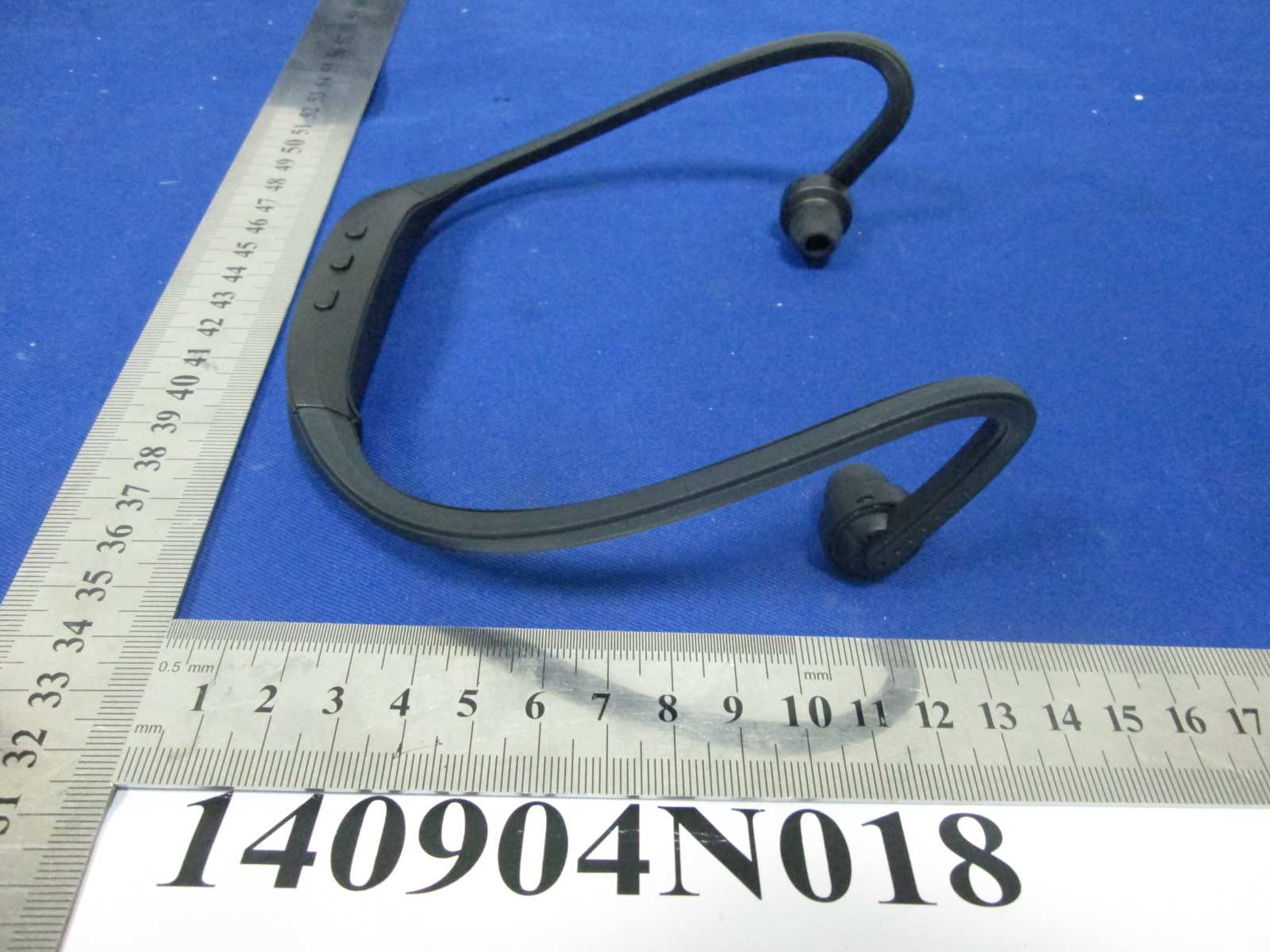

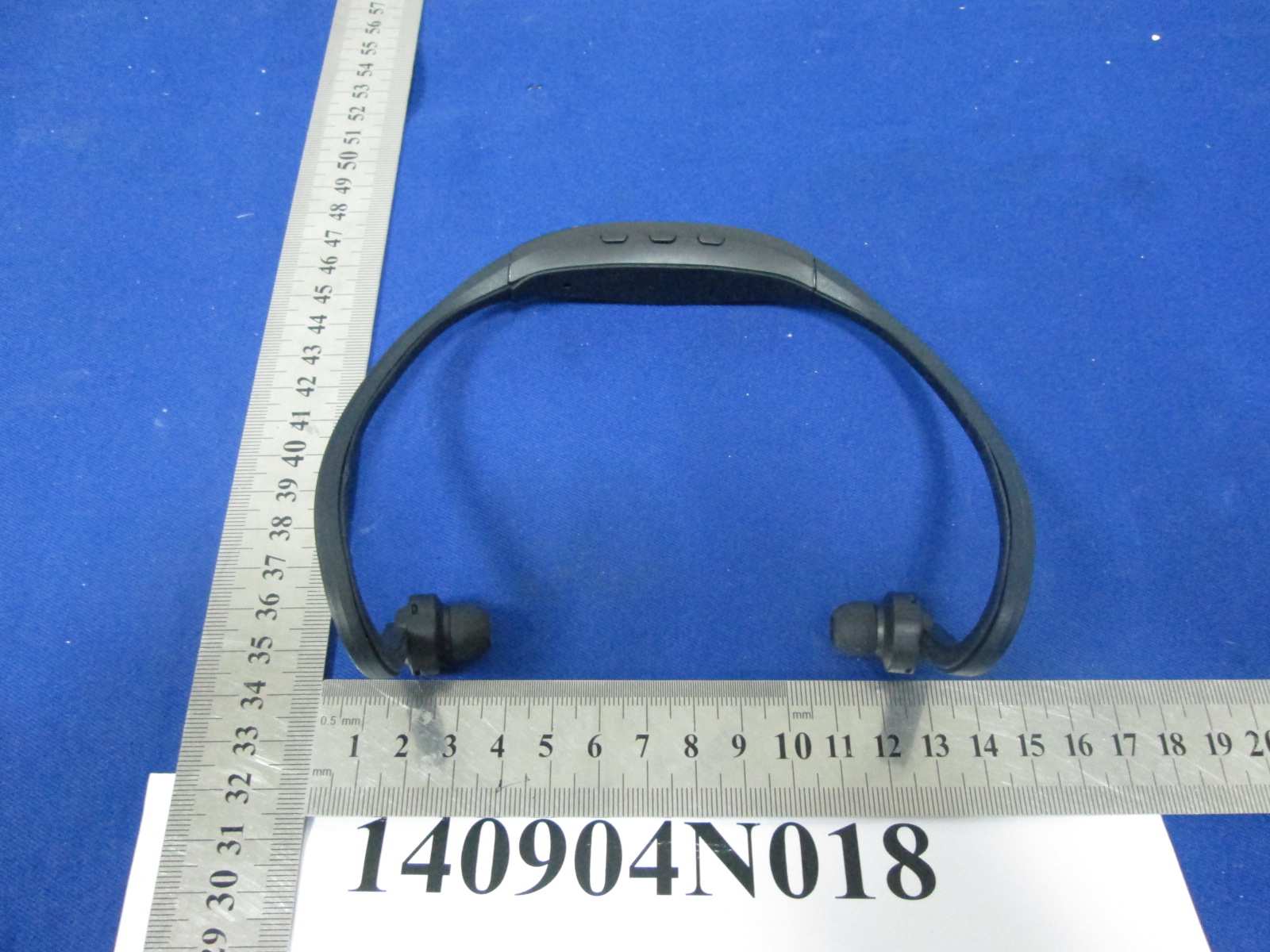

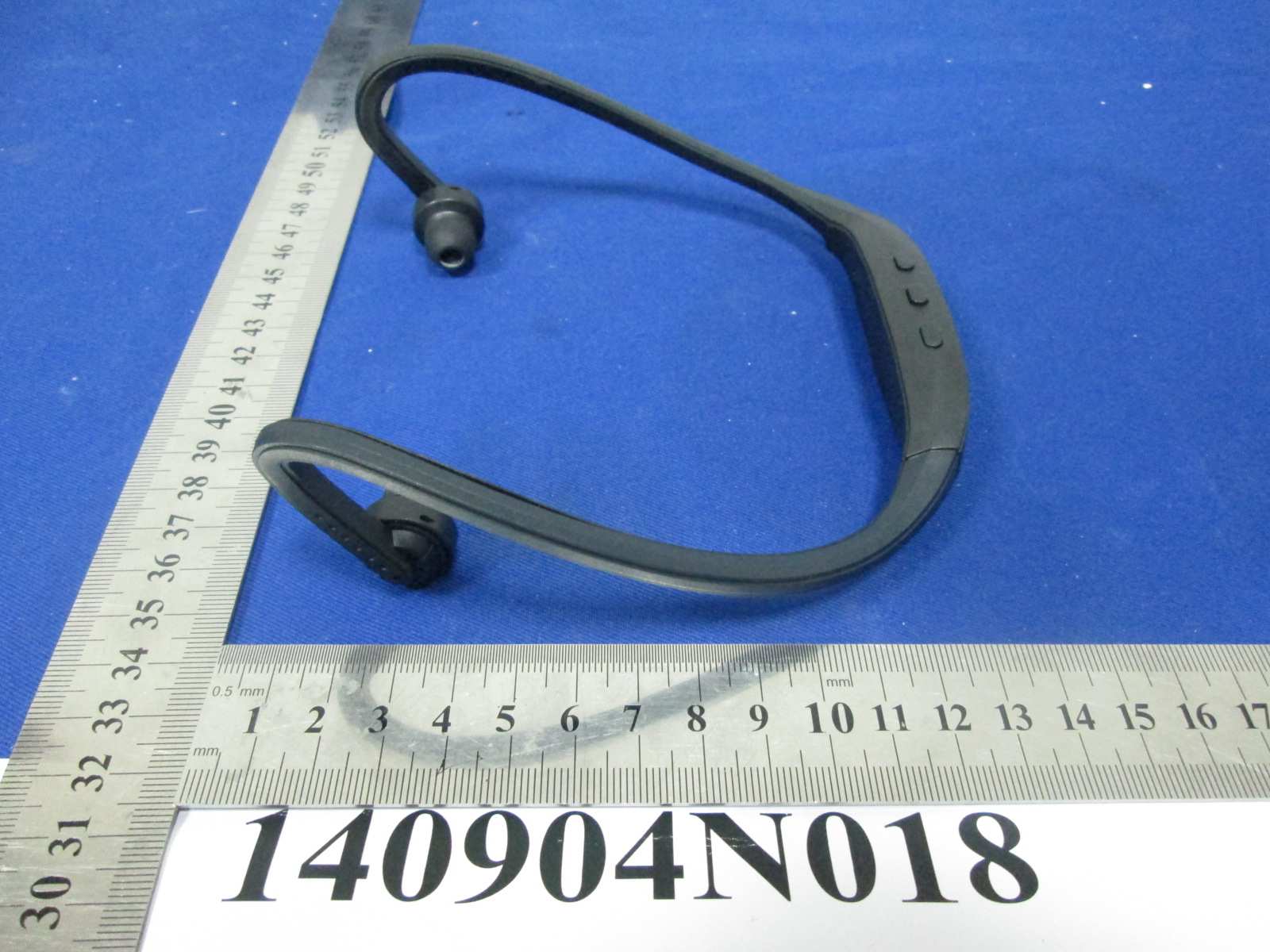

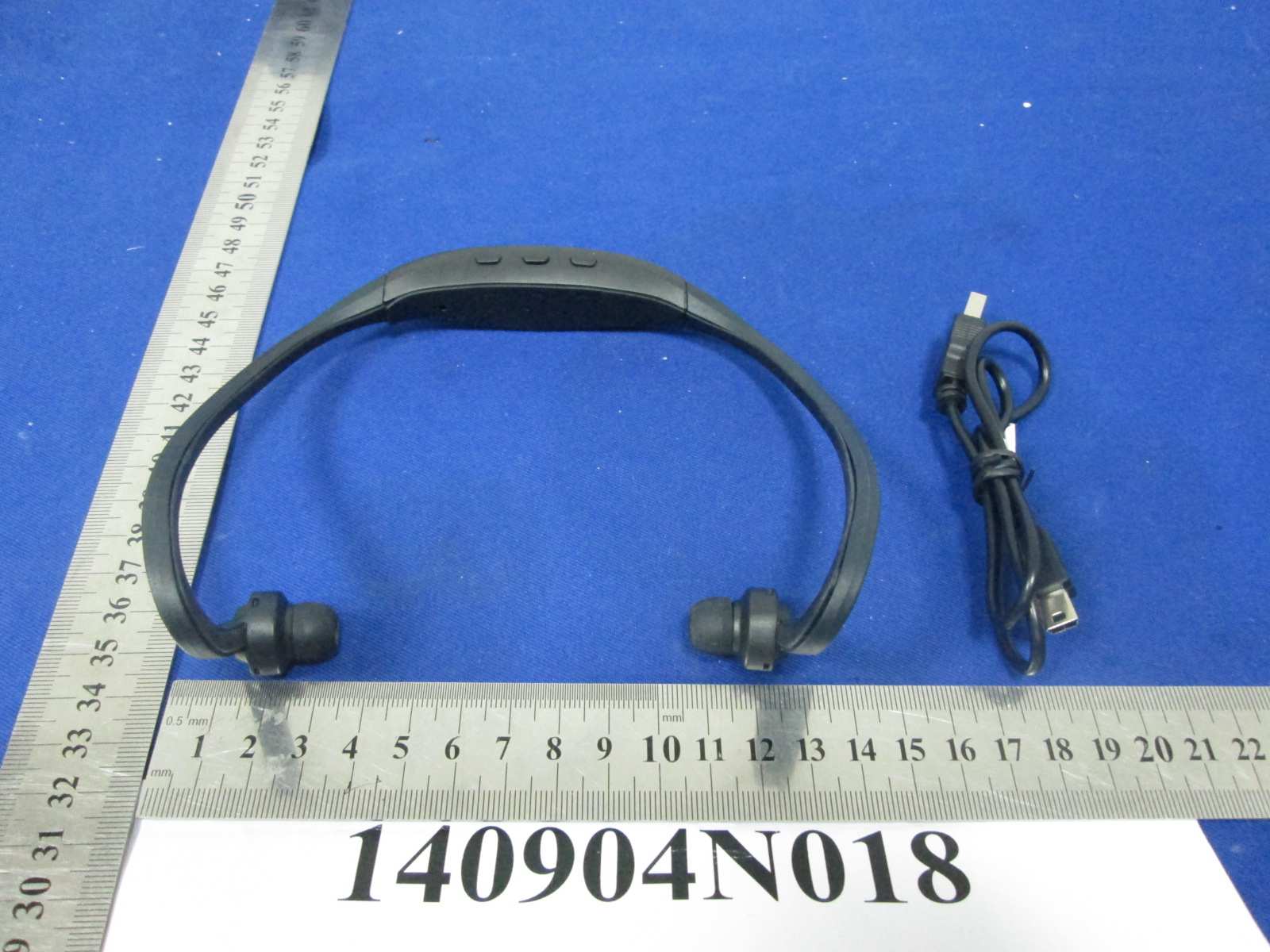

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 4 Report Version 1 Reference No.: 140904N018 PHOTOGRAPHS OF THE EUT Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 4 Report Version 1 Reference No.: 140904N018 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 4 Report Version 1 Reference No.: 140904N018 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 4 of 4 Report Version 1 Reference No.: 140904N018

FCC ID Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesied operation.

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 4 Report Version 1 Reference No.:140904N018 PHOTOGRAPHS OF THE EUT Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 4 Report Version 1 Reference No.:140904N018 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 4 Report Version 1 Reference No.:140904N018 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 4 of 4 Report Version 1 Reference No.:140904N018 ANT

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 33 Report Version 1 Test Report No.: RF140904N018 TEST REPORT Applicant Shenzhen Suntop Enterprises Co. ,Ltd Address Rm507# 5/F Dongle Building Shennan East Road 2019# Luohu District, Shenzhen China Manufacturer or Supplier Shenzhen Suntop Enterprises Co. ,Ltd Address Rm507# 5/F Dongle Building Shennan East Road 2019# Luohu District, Shenzhen China Product Bluetooth headphone Brand Name N/A Model CH-092 Additional Model & Model Difference N/A Date of tests Sep. 04 ~ Sep. 15, 2014 The submitted sample of the above equipment has been tested according to the requirements of the following standards: FCC Part 15, Subpart C, Section 15.249(2012-10) CONCLUSION: The submitted sample was found to COMPLY with the test requirement Tested by Yuqiang Yin Project Engineer / EMC Department Approved by Glyn He Supervisor / EMC Department Date: Sep. 16, 2014 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 33 Report Version 1 Test Report No.: RF140904N018 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................................ 4 1 SUMMARY OF TEST RESULTS .................................................................................................... 5 2 MEASUREMENT UNCERTAINTY ................................................................................................. 5 3 GENERAL INFORMATION ............................................................................................................ 6 3.1 GENERAL DESCRIPTION OF EUT ........................................................................................... 6 3.2 DESCRIPTION OF TEST MODES ............................................................................................. 7 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................ 8 3.4 DESCRIPTION OF SUPPORT UNITS ....................................................................................... 8 4 TEST TYPES AND RESULTS ........................................................................................................ 9 4.1 CONDUCTED EMISSION MEASUREMENT ............................................................................. 9 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ................................................... 9 4.1.2 TEST INSTRUMENTS ........................................................................................................ 9 4.1.3 TEST PROCEDURES....................................................................................................... 10 4.1.4 DEVIATION FROM TEST STANDARD............................................................................. 10 4.1.5 TEST SETUP ..................................................................................................................... 11 4.1.6 EUT OPERATING CONDITIONS ...................................................................................... 11 4.1.7 TEST RESULTS ................................................................................................................ 12 4.2 RADIATED EMISSION MEASUREMENT ................................................................................ 14 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ........................................................ 14 4.2.2 TEST INSTRUMENTS ........................................................................................................ 15 4.2.3 TEST PROCEDURES ........................................................................................................ 16 4.2.4 DEVIATION FROM TEST STANDARD ............................................................................... 17 4.2.5 TEST SETUP ...................................................................................................................... 17 4.2.6 EUT OPERATING CONDITIONS ....................................................................................... 17 4.2.7 TEST RESULTS ................................................................................................................. 18 4.3 20dB BANDWIDTH MEASUREMENT ...................................................................................... 26 4.3.1 LIMITS OF 20dB BANDWIDTH MEASUREMENT .........................................…

Text truncated - open the document above for the full version.

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 2 Report Version 1 Reference No.: 140904N018 SET-UP FOR CONDUCTED EMISSION TEST Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 2 Report Version 1 Reference No.: 140904N018 SET-UP FOR RADIATED EMISSION TEST Frequency Range< 30MHz~1GHz > Frequency Range< Above 1GHz >
