2AC8P-MBT1RF Module

Version 2020-05-18 © ABITRON Control Systems GmbH Wiesnerstraße 20 Änderungen vorbehalten! A-4950 Altheim changes reserved! User Guide Multiband-Transceiver MBT-1 KH669111xx Multiband-Transceiver MBT-1 1 Module Description The Multiband-Transceiver MBT-1 is primary used as a central receiving unit, which receives the data telegram sent by the Coder CMB-1 via an integrated RF part and converts it into a digital data telegram, which is valid for the receiver board. The integrated RF-part is designed as a multiband transceiver, which allows the receiving of control commands from the transmitter as well transmitting feedback data to the transmitter. Depending on the version of the decoder board, the Multiband Transceiver MBT-1 covers different SubGHz frequencies and additionally 2.4GHz each. The frequency can be set with reference to the applicable country regulations, legal provisions and approvals, using an ABITRON configuration tool. The Multiband-Transceiver MBT-1 contains all necessary function blocks and interfaces that are required for the operation. Additional external modules can be optionally connected and controlled via the integrated interfaces. The functions can be set and assigned using an ABITRON configuration tool. 5 Integration Instructions for host product manufacturers according to KDB 996369 D03 OEM Manual v01 5.1 List of applicable FCC & RSS rules Part 15.247 RSS-247 5.2 Specific operational use conditions This module is approved for use in portable and mobile applications. Integrators must supply operating instructions for end users and installers to satisfy RF exposure compliance requirements are met. Integrators and installers must also make sure that compliance with Part 15B are ensured. 5.3 Limited module procedures N/A, a full modular approval is targeted. This module is compliant with Chapter (b) from §15.212. 5.4 Trace antenna designs N/A, the module does not use a trace antenna, it uses an external dipole antenna 5.5 RF exposure considerations WARNING: In order to comply with the FCC RF Exposure limits, the end customer has to assure that the antenna of the device has a distance of more than 8mm from the human body for bodyworn devices. For handheld devices, no distance is needed. In order to comply with the ISED RF Exposure limits, the end customer has to assure that the antenna of the device has a distance of more than 15mm from the human body for bodyworn devices. For handheld devices, no distance is needed. Nevertheless, this device should be used in such a manner that the potential for human contact during normal operation is minimized. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). 5.6 Antennas 5.6.1 902-928MHz A ABITRON Probe-Antenna “FLX 900/868” is intended for 902-928MHz Frequency range: Impendance: VSWR: Peak Gain: 863-928MHz 50Ω ≤ 2.0 2,15 dBi 5.6.2 2.4GHz A ABITRON Probe-Antenna “FLX 2412/2450” is intended for 2.4GHz Frequency range: Impendance: VSWR: Peak Gain: 2 300 – 2 500MHz 50Ω ≤ 2.0 2.15 dBi 5.7 Label and compliance information The MBT-1 module is labelled with its own FCC/IC ID. If the FCC/IC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a physical label or eLabel referring to the enclosed module. In that case the end product must be labelled in a visible area with the following: contains FCC ID: 2AC8P-MBT1 IC ID: 12310A-MBT1 6 Certification Informations 6.1 FCC/IC This device complies with part 15 of the FCC Rules and RSS-247 of the Canadian RSS rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. (2) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: ‐Reorient or relocate the receiving antenna. ‐Increase the separation between the equipment and the receiver. ‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisee aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est susceptible d'en compromettre le fonctionnement.

ABITRON Control Systems GmbH | Wiesnerstraße 20 | 4950 Altheim | Austria | +43. 7723. 44860. 700 Fon | +43. 7723. 44860. 704 Fax | [email protected] | www.abitronremote.com | Sitz der Gesellschaft: Altheim | Landesgericht Ried i. I. | Firmenbuch-Nr.: FN 415634 b | USt-ID-Nr.: ATU 68718435 | Oberbank Altheim | IBAN AT03 1504 2004 9106 4093 | BIC OBKLAT2L Verwendung/Usage CMB-1/MBT-1 Hiermit erklären wir, die ABITRON Control Systems GmbH, dass die Module CMB-1 und MBT-1 nur für den Einsatz in ABITRON Fernsteuerungen vorgesehen sind. We, the ABITRON Control Systems GmbH, hereby declare that the modules CMB-1 and MBT-1 are only planed for the use in ABITRON remote controls. Module FCC ID IC ID HVIN CMB-1 2AC8P-CMB1 12310A-CMB1 CMB-1 MBT-1 2AC8P-MBT1 12310A-MBT1 MBT-1 Altheim, 27-Apr-2020 -------------------------------------------------- i.A. Mathias Friedl

Document Version 1.0 2019-07-01 CONFIDENTIALITY REQUEST for Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the following product: FCC ID: For the product stated above, we request permanent confidentiality for exhibits which contain Operational Description, Block Diagram, Schematics, Parts Lists or Tune Up Information. The above exhibits contain our trade secrets and proprietary informati on that could b e of b enefi t to our competitors. If you have any questi ons, please feel free to contact me at the address shown below. Sincerely, Company Name: Phone: Company Address: Fax: E-mail: Contact Name: Signature: Signature Date: Check your GC here. Click "Grantee Search"

Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 Certification and Engineering Bureau Innovation, Science and Economic Development Canada Spectrum Engineering Branch 3701 Carling Avenue, Building 94 Ottawa, Ontario K2H 8S2 Subject: FCC / ISED Modular Approval Statement FCC ID: Only applicable for ISED certification: CN: (Company Number) UPN: (Unique Product Number) HVIN: (Hardware Version Identification Number) PMN: (Product Marketing Name) HMN: (Host Marketing Name) FVIN: (Firmware Version Identification Number) TO WHOM IT MAY CONCERN Pursuant to Paragraphs RSP-100, Issue 11 and CFR § 15.212, we herewith declare for our module. Modular approval requirement Yes No * (a) The radio elements must have the radio frequency circuitry be shielded. Physical/discrete and tuning capacitors may be located external to the shield, but must be on the module assembly. *Please provide a detailed explanation if the answer is “No.”: (b) The module shall have buffered modulation/data input(s) (if such inputs are provided) to ensure that the module will comply with the requirements set out in the applicable RSS of ISED and with part 15 of FCC under conditions of excessive data rates or over-modulation. *Please provide a detailed explanation if the answer is “No.”: (c) The module shall have its own power supply regulation on the module. This is to ensure that the module will comply with the requirements set out in the applicable standard regardless of the design of the power supplying circuitry in the host device which houses the module. *Please provide a detailed explanation if the answer is “No.”: (d) The module shall comply with the provisions for external power amplifiers and antennas detailed in the applicable RSS. The equipment certification submission shall contain a detailed description of highest antenna gain for each type of antenna. *Please provide a detailed explanation if the answer is “No.”: Modular Approval Attestation RSP-100, Issue 11, Annex D Check your CN here Check your GC here. Click "Grantee Search" Yes No * (e) The module shall be tested for compliance with the applicable standard in a stand-alone configuration, i.e. the module must not be inside another device during testing. *Please provide a detailed explanation if the answer is “No.”: (f) The module comply or will comply with applicable RSS-102 exposure requirements and any applicable FCC RF exposure requirement in its intended use/configurations. *Please provide a detailed explanation if the answer is “No.”: g) The module must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. *Please provide a detailed explanation if the answer is “No.”: Only applicable for FCC certification: (i) The modular transmitter complies with all applicable FCC rules. Instructions for maintaining compliance are given in the user instructions. If you have any questions, please feel free to contact us at the address shown below Best regards, INFO for applicant: Limited Modolar Approval (LMA) may be granted when one or more of the requirements in the table above cannot be demonstrated. LMA will also be issued in those instances where applicants can demonstrate that they will retain control over the final installation of the device, such that compliance of the end product is assured. In such cases, an operating condition on the LMA for the module must state that the module is only approved for use when installed in devices produced by a specific manufacturer. When LMA is sought, the application for equipment certification must specifically state how control of the end product, into which the module will be installed, will be maintained, such that full compliance of the end product is always ensured. Company Name: Phone: Company Address: Fax: E-mail: Contact Name: Signature: Signature Date: Document Version 1.0 2019-07-01

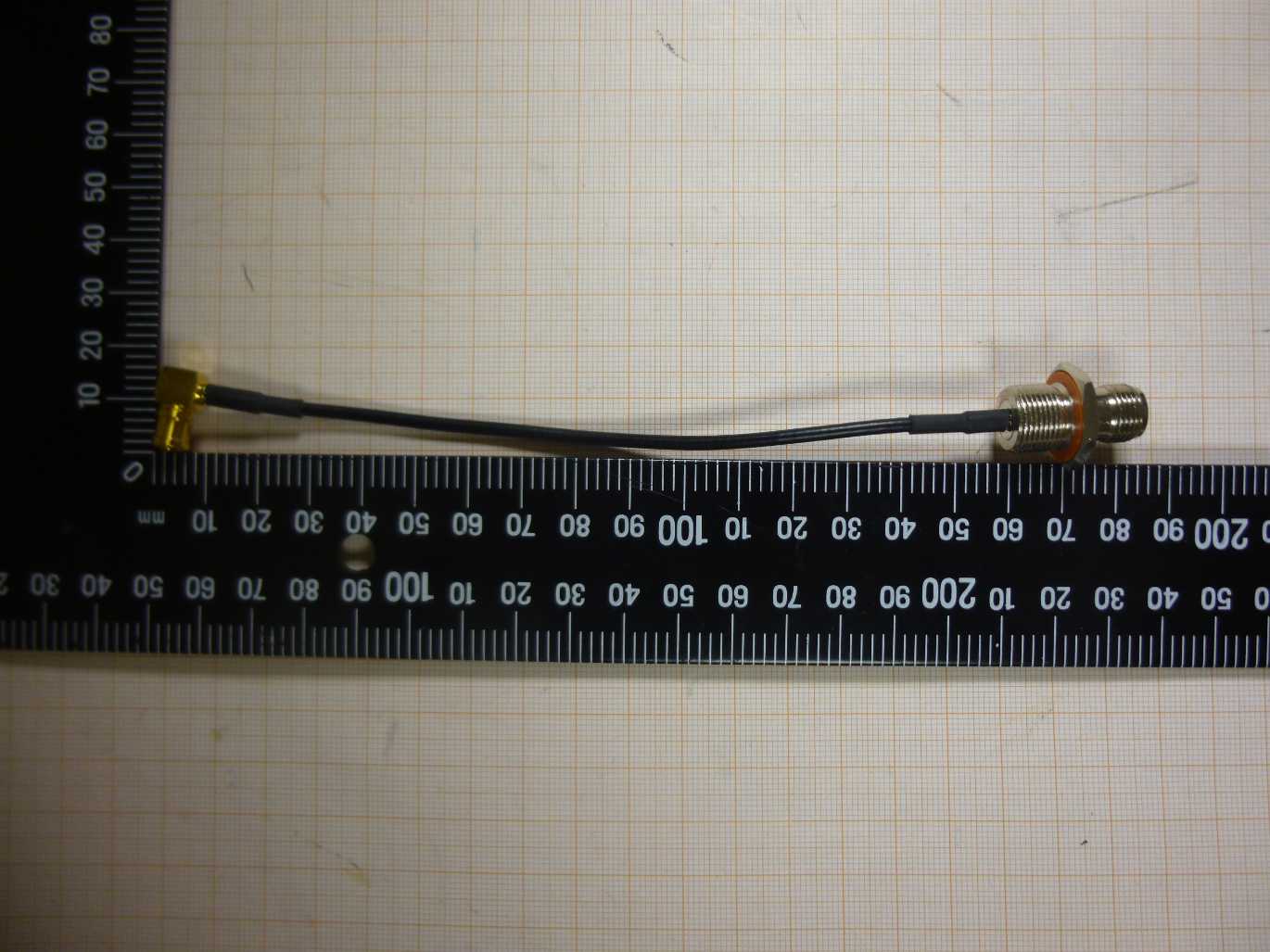

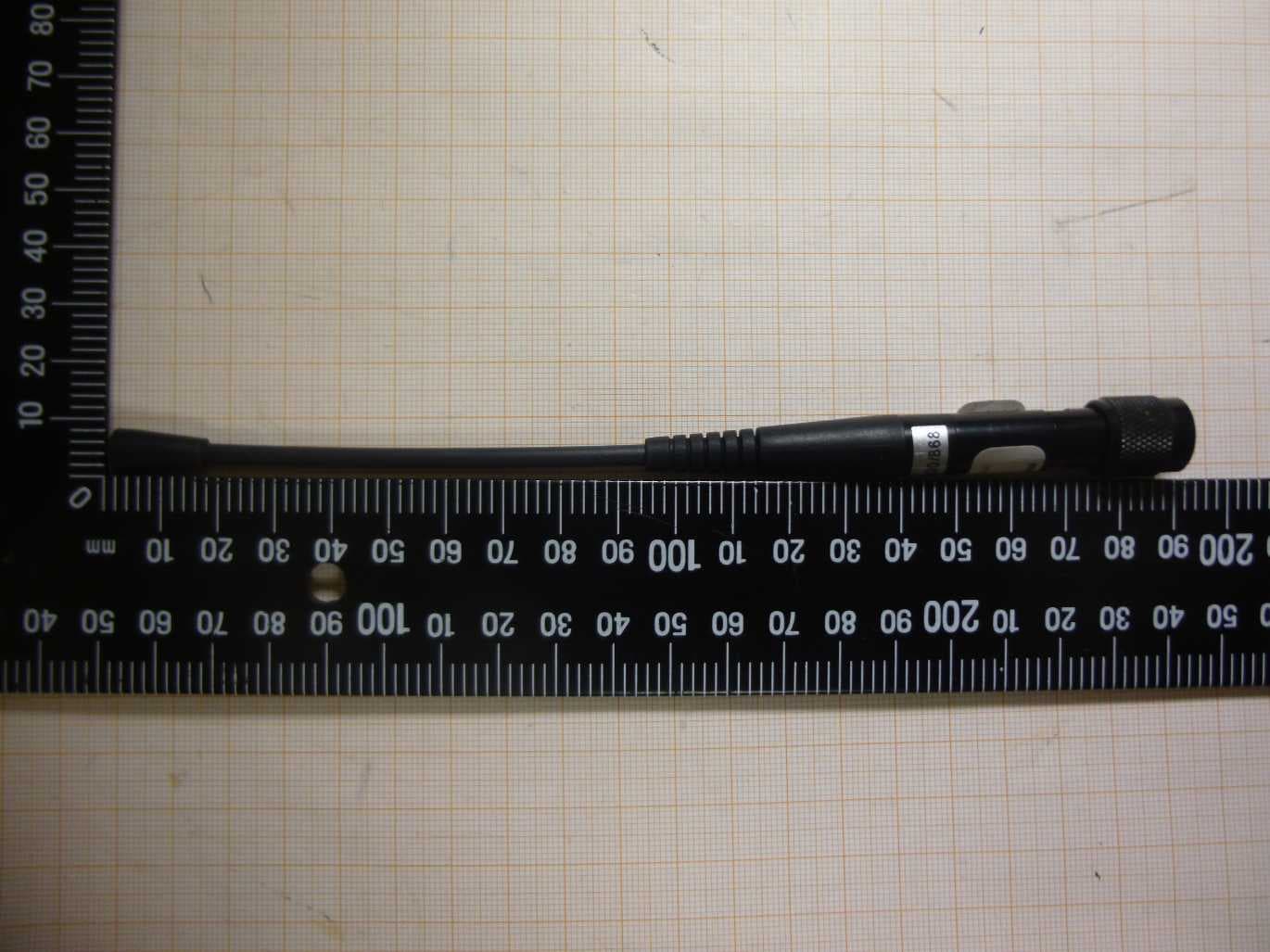

Annex A 1-7810/19-05-01_AnnexA External photos of the Equipment Under Test This addendum is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorized: Mihail Dorongovskij Lab Manager Radio Communications CTC advanced GmbHUntertuerkheimer Str. 6-10 66117 Saarbruecken / Germany Phone: +49 681 5 98 - 0 Fax: +49 681 5 98 - 9075 web: ctcadvanced.com e-mail: [email protected] Photos Photo 1: Module front side view Photo 2: Module back side view 2020-05-19Document No. 1-7810/19-05-01_AnnexA2/6 Photo 3: BTLE antenna Photo 4: BTLE antenna 2020-05-19Document No. 1-7810/19-05-01_AnnexA3/6 Photo 5: BTLE antenna Photo 6: 902-928 MHz proprietary antenna and cable 2020-05-19Document No. 1-7810/19-05-01_AnnexA4/6 Photo 7: 902-928 MHz proprietary antenna Photo 8: 902-928 MHz proprietary cable 2020-05-19Document No. 1-7810/19-05-01_AnnexA5/6 Document history VersionApplied changesDate of release initial release2020-05-19 - END OF DOCUMENT - 2020-05-19Document No. 1-7810/19-05-01_AnnexA6/6

blutorange RAL2002 weiß RAL9016 weiß RAL9016 schwarz RAL9005 schwarz RAL9005 silber RAL9022 dunkelgelb RAL1033 Lieferant:Kunde: - hellrot RAL3020 - hellgrün RAL6018 hellgelb RAL1018hellblau RAL5015 dunkelblau RAL5010 zinkgelb RAL1004 dunkelrot RAL3000 dunkelgrün RAL6001 leuchtgelb RAL1016 orange RAL2011 grau RAL7040 0,18mm 0,5mm ohne Laminat 1,0mm0,8mm ESD-Laminat 0,08mm0,25mm0,10mm Aufdruck Hintergrund Folien-Stärke Typ matt mat glänzend shiny selbstklebend self adhesive nicht klebend not adhesive Artikel-Nr.: - - Datum:Ref-Datum:erstellt von: AV PF KON KD ETV LAG AB:Ref-AB: Bestell-Nr. / Zeichnungs-Nr.:Referenz-Nr.: KHxxxxxxxx 20.05.2020 FRM Menge: Maßstab: 1:1 Einheit: mm 7xxxxx KH66911150 8xx MBT-1WK/YY 17.0 17.0 FCC ID: 2AC8P-MBT1IC ID: 12310A-MBT1

Annex B 1-7810/19-05-01_AnnexB Internal photos of the Equipment Under Test This addendum is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorized: Mihail Dorongovskij Lab Manager Radio Communications CTC advanced GmbHUntertuerkheimer Str. 6-10 66117 Saarbruecken / Germany Phone: +49 681 5 98 - 0 Fax: +49 681 5 98 - 9075 web: ctcadvanced.com e-mail: [email protected] Photos Photo 1: Shielding removed Photo 2: Shielding removed 2020-05-19Document No. 1-7810/19-05-01_AnnexB2/3 Document history VersionApplied changesDate of release initial release2020-05-19 - END OF DOCUMENT - 2020-05-19Document No. 1-7810/19-05-01_AnnexB3/3

BNetzA - CAB - 02/21 - 102 D - P L - 1 2 0 7 6 - 0 1 - 0 3 SAR Test exclusion documentation according to FCC KDB 447498, RSS-102 Report identification number: 1-7810/19-05-07 Exclusion (FCC_ISED) Certification numbers and labeling requirements FCC ID 2AC8P-MBT1 ISED number 12310A-MBT1 HVIN (Hardware Version Identification Number) MBT-1 PMN (Product Marketing Name) MBT-1 FVIN (Firmware Version Identification Number) -/- HMN (Host Marketing Name) -/- This report is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorised: Alexander Hnatovskiy Marco Scigliano Lab Manager Testing Manager Radio Communications & EMC Radio Communications & EMC Test report no.: 1-7810/19-05-07 © CTC advanced GmbH Page 2 of 3 EUT technologies: Technologies: Max. power [dBm] Antenna gain max.: [dBi] * Declared max.EIRP from customer # conducted EIRP Proprietary FHSS 900 to 928 MHz decl. 14.0 (peak) meas. 11.9 (peak) decl. 14.0 (peak) meas. 12.6 (peak) <0.0 13 dBm +/-1 dB A Bluetooth LE 2450 MHz decl. 6.0 (avg) meas. 5.2 (avg) decl. 10.0 (avg) meas. 7.6 (avg) <2.4 9 dBm +/-1 dB B Details and origins of the measurements shown in the table above: # Results from: Additional information A 1-7810/19-05-05-A CTC Advanced GmbH Antenna gain page 20, Max conducted and ERP page 31 B 1-7810/19-05-06 CTC Advanced GmbH Antenna gain page 20, Max conducted page 26 )* worst case of all antenna types, channels and modulations (overrated) SAR test exclusion according to KDB447498 (General RF Exposure Guidance v06) Equation from Chapter 4.3.1: Standalone SAR test exclusion considerations page 11 and ff. (1) Standalone SAR test exclusion for 100 MHz to 6 GHz at test separation distances ≤ 50mm ( Threshold 1-g;10-g ) × d seperation / f 0.5 where Threshold 1-g;10-g is 3 for 1-g; 7.5 for 10-g d seperation is the min. test separation distance; 5mm is used if the distance is less f is the RF channel transmit frequency The table below gives the calculated maximal power that could be used for source based time averaged conducted or radiated power, adjusted for tune up tolerance. If this is at or below the calculated value the DUT is exempted from SAR evaluation. frequency d separation Powerlimit [MHz] [mm] [mW] [dBm] [mW] 900.00 8 3 25.30 14.00 25.12 yes 2450.00 8 3 15.33 6.00 3.98 yes Threshold 1-g Exclusion P max-declared Informational calculation for hand held devices: Standalone SAR test exclusion (Limb worn) Communication system freq. (MHz) distance (mm) P avg (dBm) P avg (mW) threshold 10g comparison value SAR 10g test exclusion thresholds SAR 10g test exclusion FHSS 900 5 14.0 25.1 4.8 7.5 yes BT LE 2450 5 6.0 4.0 1.2 7.5 yes Test report no.: 1-7810/19-05-07 © CTC advanced GmbH Page 3 of 3 SAR test exclusion according to RSS-102 Issue 5 Section 2.5.1/Table 1 The table below gives the calculated maximal power that could be used for source based time averaged conducted or radiated power, adjusted for tune up tolerance. If this is at or below the calculated value the DUT is exempted from SAR evaluation. frequency d separation Powerlimit [MHz] [mm] [mW] [dBm] [mW] 900.00 15 1 g 40.54 14.00 25.12 yes 2450.00 15 1 g 15.00 10.00 10.00 yes tissue volume P max-declared Exclusion Informational calculation for hand held devices: Standalone SAR test exclusion considerations for Limb position Communication system freq. (MHz) distance (mm) P avg (dBm) P avg (mW) Exemption Limits 10g (mW) (×2.5) SAR test exclusion FHSS 900 5 14.0 25.12 41.0 yes BT LE 2450 5 10.0 10.0 10.0 yes The limits above are defined for body worn application and therefore cover all use cases.

BNetzA - CAB - 02/21 - 102 D-PL-12076-01-03 TEST REPORT Test report no.: 1-7810/19-05-05-A Testing laboratory Applicant CTC advanced GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken / Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: http://www.ctcadvanced.com e-mail: [email protected] Accredited Testing Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2005) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate with the registration number: D-PL-12076-01-03 ABITRON Control Systems GmbH Wiesnerstr. 20 4950 Altheim / AUSTRIA Phone: +43 (0) 7723 44 860 700 Contact: Mathias Friedl e-mail: [email protected] Phone: +43 (0) 7723 44860 161 Manufacturers ABITRON Austria GmbH Wiesnerstr. 20 4950 Altheim / AUSTRIA ABITRON Germany GmbH Adalbert-Stifter-Straße 2 D-84085 Langquaid / GERMANY Test standard/s FCC - Title 47 CFR Part 15 FCC - Title 47 of the Code of Federal Regulations; Chapter I; Part 15 - Radio frequency devices RSS - 247 Issue 2 Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and Licence - Exempt Local Area Network (LE-LAN) Devices For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: RF module Model name: MBT-1 FCC ID: 2AC8P-MBT1 IC: 12310A-MBT1 Frequency: 902 MHz – 928 MHz Technology tested: Proprietary Antenna: External antenna Power supply: 3.6 V DC Temperature range: -40°C to +70°C This test report is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report authorized: Test performed: p.o. Christoph Schneider Sumit Kumar Lab Manager Testing Manager Radio Communications Radio Communications Test report no.: 1-7810/19-05-05-A © CTC advanced GmbH Page 2 of 58 1 Table of contents 1 Table of contents ............................................................................................................................................. 2 2 General information ......................................................................................................................................... 4 2.1 Notes and disclaimer ............................................................................................................................ 4 2.2 Application details ................................................................................................................................ 4 2.3 Test laboratories sub-contracted ......................................................................................................... 4 3 Test standard/s and references ....................................................................................................................... 5 4 Test environment ............................................................................................................................................. 6 5 Test item .......................................................................................................................................................... 6 5.1 General description ............................................................................................................................... 6 5.2 Additional information .......................................................................................................................... 6 6 Description of the test setup............................................................................................................................ 7 6.1 Shielded semi anechoic chamber ......................................................................................................... 8 6.2 Shielded fully anechoic chamber ........................................................................................................ 10 6.3 Conducted measurements .................................................................................................................. 11 6.4 AC conducted ...................................................................................................................................... 12 7 Sequence of testing ....................................................................................................................................... 13 7.1 Sequence of testing radiated spurious 9 kHz to 30 MHz ................................................................... 13 7.2 Sequence of testing radiated spurious 30 MHz to 1 GHz .................................................................. 14 7.3 Sequence of testing radiated spurious 1 GHz to 12.75 GHz .............................................................. 15 8 Measurement uncertainty .............................................................................................................................. 16 9 Summary of measurement results ................................................................................................................ 17 10 RF measurements ...................................................................................................................................... 19 10.1 Additional comments ...................................................................................................................... 19 11 Measurement results.................................................................................................................................. 20 11.1 Antenna gain .................................................................................................................................... 20 11.2 Carrier Frequency Separation .......................................................................................................... 21 11.3 Number of Hopping Channels ..............................…
