2AC8ZGS-SHWXUXAXXXElectronic Ballast

Elec P ctroni G Pro c Balla S GS-SH duc ast for Sodium HW1U ct M r High m U2A001 Man h-press 1 nua sure al 1 Features & Benefits：  Suitable Lamp： 1000W HPS of PHILIPS Master Greenpower TD 1000W EL Plus double end lamp GE Lucalox LU400V/1000W/TD/PSL E40/E39 Gavita Pro 1000W EL DE double end lamp  Electronic ballast for single lamp, suitable for horticulture/ indoor/greenhouse use.  Lower input wattage and energy saving compared with magnetic system  Long lamp life by constant output power  High frequency lamp operation, preventing acoustic resonance in the lamp arc tube  Various protection functions: output short circuit protection, output open circuit protection, lamp ignition failure protection, etc.  Ballast life reaches to 10，000 hours with top case temperature less than 70°C  Light weight and no noise  Easy to install and convenient for use  Green , reduce the pollution to the power net 2 Electronic Parameter: Model Name GS-SHW1U2A001 Input voltage 240Vac±10%，60Hz Input wattage 1000W±5%@240V Input current ＜4.7A@240V Energy loss 50~100W PF >0.98 THD <10% CF <1.7 Environmental temperature -10°C~+40°C Top case temperature 70°C 3 Product Parameter  Length：9.80" [250mm]  Width： 6.22" [158mm]  Height： 3.85" [98mm]  Case： Metal 4 Wiring Diagram 5 Installation Notes  Make sure the correct connection of input and output wires of electronic ballast  Place the ballast in safe and reasonable position, especially paying attention to waterproof  Connect output wires of ballast with metal halide lamp in a solider and safe way  Match ballast with compatible lamp（1000W HPS）  Do not have live-line working when connecting input wires  Power ballast in AC240V after everything is readily connected 6 Cautions:  Please use this product under the regulated power and environment temperature.  Must consider heat elimination of electronic ballast when selecting lamp, ensuring top case temperature no more than 70°C.  Case of electronic ballast must be grounded in proper way. NOTE: This device complies with Part 18 of the FCC Rules. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45–30 MHz. If this occurs, please change outlet or move the lamp far away from other appliance. (a) The interference potential of device or system: “Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.” (b) Simple measures that can be taken by the user to correct interference: “NOTE: This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.”

Model and Revision Statement GS‐SHWXUXAXXX Electronic ballast Description The GS‐SHWxUxAxxx is one type of electronic ballast series. This series will have multiple models subsequently. The main differences of these GS‐SHWxUxAxxx are as follows: 1. The Trademark and logo will be different 2. Each model will have revised styling and appearances 3. The software version will be different 4. The watt is different which refer to Wx, w1 represent to 1000W, W2 represent to 750W, W3 represent to 600W, W4 represent to 400W, W5 represent to 250W,in same components premise as W1. However, the GS‐SHWxUxAxxx series product will use the same PCB board; retain same size, future revisions of the product are functional, styling and software only. Golden Scorpion Co., Ltd will be responsible for all consequences caused by various models of GS‐SHWXUXAXXX, and for any of the above‐mentioned differences. Signature/ Tile: Signature date: 2014‐9‐26 Company Name: Golden Scorpion Co., Ltd GS SH Wx Ux Device version (001‐999) Each model will have shape appearances and customer number and the different software version Device Watt version (1‐5): W1: 1000W, W2: 750W, W3: 600W, W4: 400W, W5: 250W, in same components premise as W1. SH: Golden Scorpion’s product code GS: the initial of Golden Scorpion Axxx Voltage version (2) U2: 240V

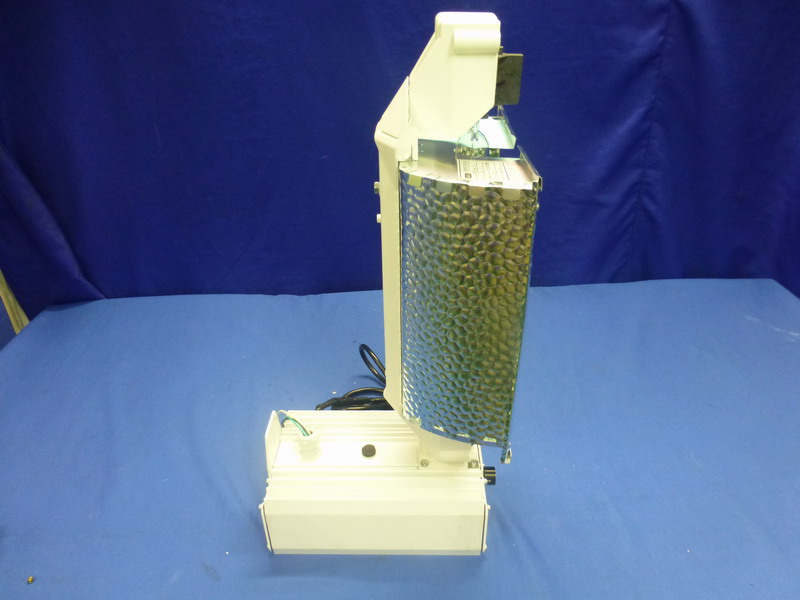

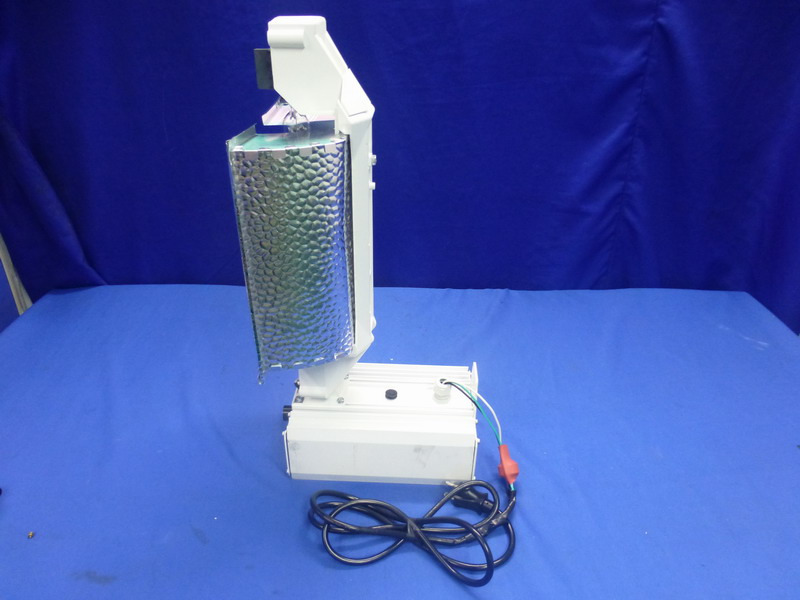

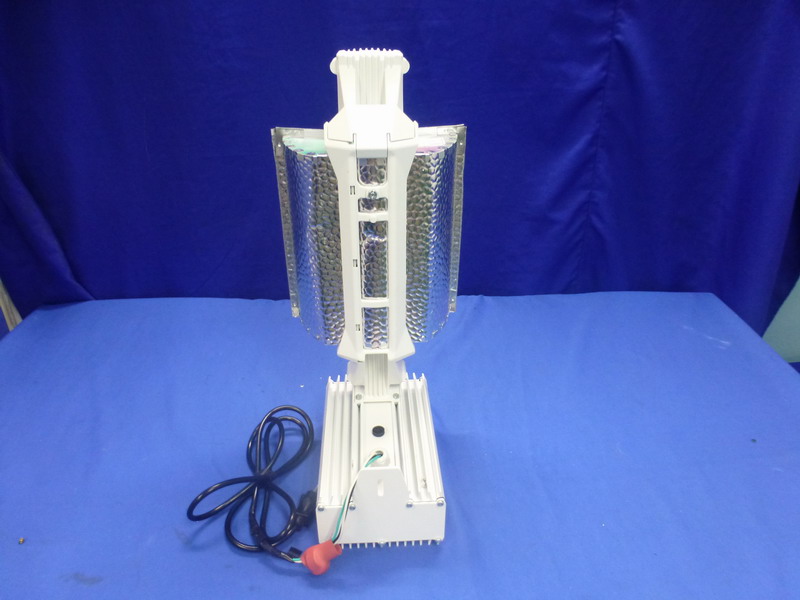

Golden Scorpion (Beijing) Science Co., Ltd. Electronic Ballast FCC ID: 2AC8ZGS-SHWXUXAXXX Sep.18, 2014 WLL Report #14WB0905022F Rev0 第1页 © 2014 Washington Laboratories, Ltd. EUT External PHOTO GOLDEN SCORPION (BEIJING) SCIENCE CO., LTD. E LECTRONIC BALLAST M ODEL: GS-SHWXUXAXXX FCC ID: 2AC8ZGS -SHWXUXAXXX Golden Scorpion (Beijing) Science Co., Ltd. Electronic Ballast FCC ID: 2AC8ZGS-SHWXUXAXXX Sep.18, 2014 WLL Report #14WB0905022F Rev0 第2页 © 2014 Washington Laboratories, Ltd. Golden Scorpion (Beijing) Science Co., Ltd. Electronic Ballast FCC ID: 2AC8ZGS-SHWXUXAXXX Sep.18, 2014 WLL Report #14WB0905022F Rev0 第3页 © 2014 Washington Laboratories, Ltd.

Golden Scorpion Co.,Ltd Electronic Ballast FCC ID: 2AC8ZGS-SHWXUXAXXX Sep.18, 2014 WLL Report #14WB0905022F Rev0 第1页 © 2014 Washington Laboratories, Ltd. Label Location GOLDEN SCORPION CO.,LTD E LECTRONIC BALLAST M ODEL: GS-SHWXUXAXXX FCC ID: 2AC8ZGS-SHWXUXAXXX Label Location FCC ID: 2AC8ZGS-SHWXUXAXXX

Golden Scorpion (Beijing) Science Co., Ltd. Electronic Ballast FCC ID: 2AC8ZGS-SHWXUXAXXX Sep.18, 2014 WLL Report #14WB0905022F Rev0 第1页 © 2014 Washington Laboratories, Ltd. EUT INTERNAL PHOTO G OLDEN SCORPION (BEIJING) SCIENCE CO., LTD. E LECTRONIC BALLAST M ODEL: GS-SHWXUXAXXX FCC ID: 2AC8ZGS-SHWXUXAXXX Golden Scorpion (Beijing) Science Co., Ltd. Electronic Ballast FCC ID: 2AC8ZGS-SHWXUXAXXX Sep.18, 2014 WLL Report #14WB0905022F Rev0 第2页 © 2014 Washington Laboratories, Ltd. Golden Scorpion (Beijing) Science Co., Ltd. Electronic Ballast FCC ID: 2AC8ZGS-SHWXUXAXXX Sep.18, 2014 WLL Report #14WB0905022F Rev0 第3页 © 2014 Washington Laboratories, Ltd. Golden Scorpion (Beijing) Science Co., Ltd. Electronic Ballast FCC ID: 2AC8ZGS-SHWXUXAXXX Sep.18, 2014 WLL Report #14WB0905022F Rev0 第4页 © 2014 Washington Laboratories, Ltd.

FCC / Certification Test Report Golden Scorpion Co.,Ltd Electronic Ballast Model：GS-SHWXUXAXXX REPORT# 14WB0905022F Rev 0 FCC ID: 2AC8ZGS-SHWXUXAXXX Sep.18, 2014 Prepared for: Golden Scorpion Co.,Ltd Floor 2, Building 2, Changping Science Park, No.27, Chuangxin Road, Changping District, Beijing, China Prepared by: WASHINGTON TECHNOLOGY INTERNATIONAL LIMITED This report applies only to the sample evaluated prior to the preparation date stated above. This report must be copied in its entirety, including all technical documents Golden Scorpion Co.,L td Electronic Ballast FCC ID:2AC8ZGS-SHWXUXAXXX Sep.18, 2014 WLL Report #14WB0905022F Rev0 - Page ii - © 2014 Washington Laboratories, Ltd. FCC / Certification Test Report For the Golden Scorpion Co.,Ltd Electronic Ballast MODEL: GS-SHWXUXAXXX FCC ID:2AC8ZGS-SHWXUXAXXX WLL REPORT# 14WB0905022F Rev 0 Sep.18, 2014 ________________________ Henry guo Reviewed by: _______________________ Steven yang Golden Scorpion Co.,L td Electronic Ballast FCC ID:2AC8ZGS-SHWXUXAXXX Sep.18, 2014 WLL Report #14WB0905022F Rev0 - Page iii - © 2014 Washington Laboratories, Ltd. Abstract This report has been prepared on behalf of Golden Scorpion Co.,Ltd to document compliance with the limits for a digital device required under Part 18 of the FCC Rules and Regulations This Industrial scientific and medical equipment (FCC) Test Report documents the test configuration and test results for the Golden Scorpion Co.,Ltd Electronic Ballast. Testing was performed on Audix Technology (Shenzhen) Co., Ltd. has been accepted by the FCC, the FCC Registration Number is 90454. The Golden Scorpion Co.,Ltd Electronic Ballast complies with the requirements for a FCC Part 18 consumer RF lighting device. Revision History Reason Date Rev 0 Initial Release Sep.18, 2014 Golden Scorpion Co.,L td Electronic Ballast FCC ID:2AC8ZGS-SHWXUXAXXX Sep.18, 2014 WLL Report #14WB0905022F Rev0 - Page iv - © 2014 Washington Laboratories, Ltd. Table of Contents Abstract ..................................................................................................................................................................ii 1 Introduction ............................................................................................................................................... 1 1.1 Compliance Statement ............................................................................................................................ 1 1.2 Test Scope Summary .............................................................................................................................. 1 1.3 Contract Information ............................................................................................................................... 1 2 Equipment Under Test .............................................................................................................................. 3 2.1 EUT Identification .................................................................................................................................. 3 2.2 EUT Description ..................................................................................................................................... 3 2.3 Test Configuration .................................................................................................................................. 4 2.4 Equipment Configuration ........................................................................................................................ 4 2.5 Tested Supporting System Details .......................................................................................................... 4 2.6 Testing Algorithm ................................................................................................................................... 4 2.7 Test Location .......................................................................................................................................... 4 2.8 Measurements ......................................................................................................................................... 5 3 Test Results ................................................................................................................................................ 7 3.1 Conducted Emissions .............................................................................................................................. 7 3.2 Radiated Emissions ............................................................................................................................... 12 3.3 Information to User ............................................................................................................................... 20 4 Attachment (EUT Photograph) .............................................................................................................. 21 Golden Scorpion Co.,L td Electronic Ballast FCC ID:2AC8ZGS-SHWXUXAXXX Sep.18, 2014 WLL Report #14WB0905022F Rev0 - Page v - © 2014 Washington Laboratories, Ltd. List of Tables Table 1: Overview of Electronic Ballast, Equipment Under Test ........................................................................ 3 Table 2: Equipment Configuration ...................................................................................................................... 4 Table 3: Tested Supporting System Details......................................................................................................... 4 Table 4: Expanded Uncertainty List .................................................................................................................... 6 Table 5: Conducted Emissions Test Data ........................................................................................................ 9 Table 6: Radiated Emission Test Data .............................................................................................................. 15 List of…
