2AC9LHB092Bluetooth Keyboard

HB092 BluetoothKeyboardforAndroid/Windows/IOStablets&laptops Packingcontents: 1.Cordlesskeyboard 2.USBpowerchargingcable 3.Usermanual BluetoothKeyboardSpecification 1.Built-inBroadcomBluetooth3.0keyboard. 2.Modernslimkeyboardbacksidewithbrushedsteel. 3.Chocolatekeycapwithscissorsstructure,goodtouchfeeling. 4.SuitableforAndroid/Windows/IOStablets,laptops,desktops,andallsmartphones. 5.Built-inrechargeablelithiumbattery,lastforapproximately60hourspercharge. 6.Lightweight,quietkeystrokes,water-proof,dust-proof. 7.Energysavingkeyboardsleepmode. 8.Keyboardsize:281.7*135*4.3MM BluetoothKeyboardSpecificationandPairingInstruction： BluetoothKeyboardSpecification 1.Bluetooth3.0interfacestandard 2.OperatingDistanceto10meters 3.ModulatingSystem:GFSK 4.OperationVoltage:3.0-4.2V 5.WorkingCurrent:<2.5mA 6.StandbyCurrent:0.3-0.5mA 7.SleepingCurrent：<40uA 8.ChargingCurrent:>200uA 9.StandbyTime:>100days 10.ChargingTime:>2hours 11.LithiumBatteryCapacity:110mAH 12.UninterruptedWorkingTime:>64hours 13.LithiumBatteryLife:3year 14.LithiumBatterySpecification:38*20*35mm 15.KeyStrength:50g~80g 16.Keylife:<3millionstrokes 17.OperatingTemperature:-10-+55C BluetoothKeyboardPairing Step1:Turnonthepowertoggleswitch.Thestateindicatorlightwillbeonfor10seconds,and thenthelightwillgooff. Step2:Presson“FN+C”buttontogetheronkeyboard,theindicatorlightwillbeblinking. Step3:TurnonBluetoothsettinginyourdevice,yourdevicewillautomaticallyfind“Bluetooth 3.0Keyboard”,thenconnectit. Step4:DeviceshowedBluetoothhadconnected,keyboardstateindicatorlightwillturnoff. FCC ID:2AC9LHB092 SpecialNote: ForotherBluetoothenableddevice,pleaseverifytheBluetoothStandard&compatibilitybefore attemptingtoconnecttothekeyboard. Battery Thelong-lastingrechargeablebatterycanserviceyouforseveralweeks Withnomemoryeffect,thelithiumbatterycanbechargedatanytime. Inordertoextendservicelife,werecommendyouturnthekeyboardoffwhenthereislongtime withnointeractive. Charging Whenthebatterypowerislow,the[power]indicatorlightwillstartblinking,itistimetorecharge thekeyboard. Step1:ConnectUSB-BofthenativeUSBpowercabletothekeyboardcharginginterface. Step2:ConnectUSB-Atothepoweradapterorcomputer'sUSBinterface. Step3:theredindicatorlightwillstayonwhenthekeyboardischarging.Onceitfinishedcharging theindicatorlightwillturngreencolor. EnergySavingSleepMode Thekeyboardwillkickintosleepmodewhenitisinactivefor10minutesandthekeyboard [power]indicatororlightwillgooff.Toactivatefromsleepmode,justpressanykeyandwait 3seconds,thekeyboardwillcomebackon. SafetyCaution 1.Keeptheitemawayfromsharpobjects. 2.Donotplaceheavyobjectontopofthekeyboard. 3.DonotMicrowavetheitem. 4.Donotforceordistortedthekeyboard 5.Keepawayfromoil.chemicaloranyotherorganicliquid. Cleaning Cleanthesiliconekeyboardwithwater,alcoholoralcoholbaseddisinfectant Troubleshooting A,Unabletoconnect 1.Makesurethepowerswitchison. 2.Makesurethekeyboardiswithintheoperatingdistance. 3.Makesurethebatteryischarged. 4.MakesureyourdeviceBluetoothsettingison. 5.Makesurewirelesskeyboardisconnectedtoyourdevice. 6.Makesurewirelesskeyboardhasbeenpairedwithyourdevice. B.UnabletoChargeKeyboard 1.MakesuretheUSBpowercableisconnectedproperlytothekeyboardandthepowersource. 2.Makesurethewallchargerisplugintothepoweroutlet. SpecialKeysDescription LongpressFnandcombinationwithF1-F12andinsertkeystotheshiftmultimediakeys,and mainlybeusedintheoperationofAndroidsystemmultimedia. SpecialFeaturesandOptions PleasenotethattheKeyboardCaseismadefromsteelwithahighgradefinishsimilartothefinish onmanypopulardevices Options:Asetoffourrubberfeethadpastedonthefourcorners,whichcanhelpprevent scratchinghigh-gradefinishoftheKeyboardCase. WhatdoyouthinkaboutourBluetoothkeyboard Pleasetakeaminutetotellus. Thanksforpurchasingourproduct. http://www.bow.cn ProductEndofLife: Keyboardbatterydisposal 1.Insertscrewdriverbetweenplastictopandmetalcaseatkeyboardtoporbottom 2.Pryupplastictopandremoveitcompletely.Thisactiondestroyskeyboard 3.Turntopoverandremovetapefrombattery. 4.Separatebatteryfromcircuitboard 5.Disposeofbatteryaccordingtolocallaws.Recycleremainingkeyboardparts. TableofToxicandHazardousSubstance/ElementsandTheirContent Ingredients（Pb）（Hg）（Cd）（Cr(VI)）（PBB）（PBDE） CableXOOOOO PWAsXOOOOO PlasticpartsOOOOOO MembraneOOOOOO MeterpartsXOOOOO RubberdomeOOOOOO Ostandsforthistoxicandhazardouscontentinhomogeneousmaterialisunderthe SJ/T11363-2006Standardslimits Xstandsforthistoxicandhazardouscontentinhomogeneousmaterialisbeyondthe SJ/T11363-2006Standardslimits Undertheingredientswith'X'intheformallareuptoROHS; “on27January2003t heEuropeanparliamentandthecouncilannounceelectronicequipmentin limitingtheuseofcertainhazardoussubstancesdirective2002/95/EC” Note:theenvironmentalprotectionusingperiodreferencestandarddependsontheproductof theregularworktemperatureandhumidityconditions。 N OTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful i…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 8/20/2015 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AC9LHB092 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Shenzhen Hastech industries Co., Ltd Contact person: Jiang Wei Title: Manager

Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 8/20/2015 Request for Confidentiality Company name: Shenzhen Hastech industries Co., Ltd FCC ID: 2AC9LHB092 FCC Part 15 Certification Gentlemen, In accordance with CFR 47 § 0.459, Shenzhen Hastech industries Co., Ltd hereby requests confidentiality of following attachments: (1) schematic diagrams, (2) detailed block diagrams, (3) detailed operational descriptions, (4) detailed parts list These documents contain detailed system and equipment description and related information about the product which Shenzhen Hastech industries Co., Ltd considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Shenzhen Hastech industries Co., Ltd considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature [Jiang Wei] [Manager] Shenzhen Hastech industries Co., Ltd 3rd, 4th floor G-A1 Bldg &1st, 2nd floor G-A2 Bldg, Democracy West Industry Park, Shajing Town, Bao'an District, Shenzhen, China

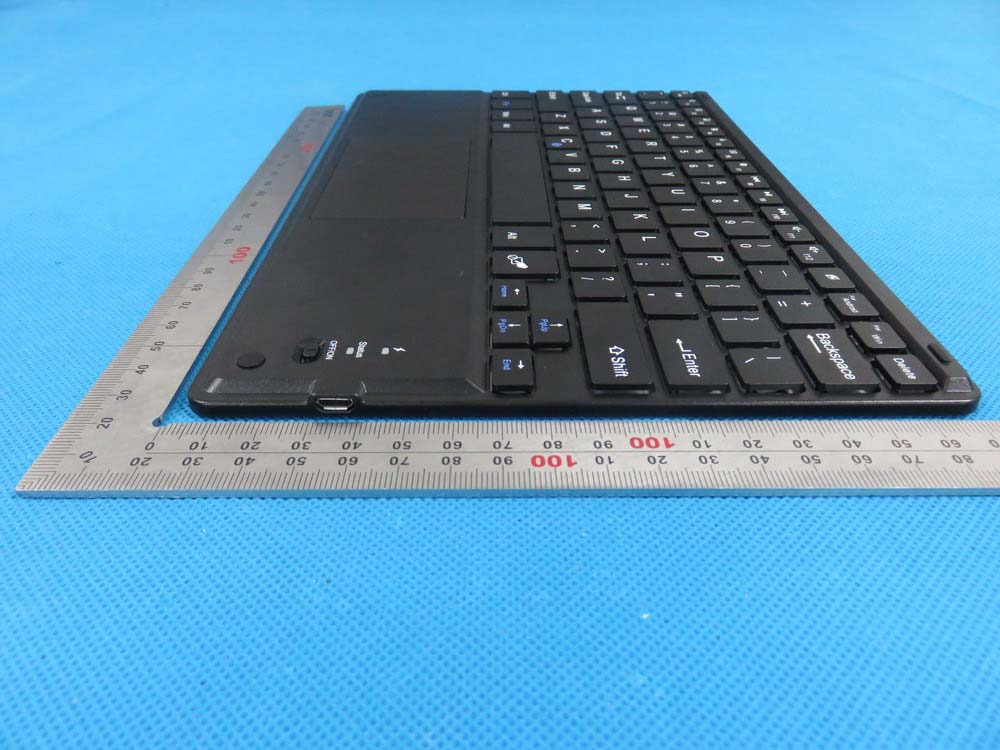

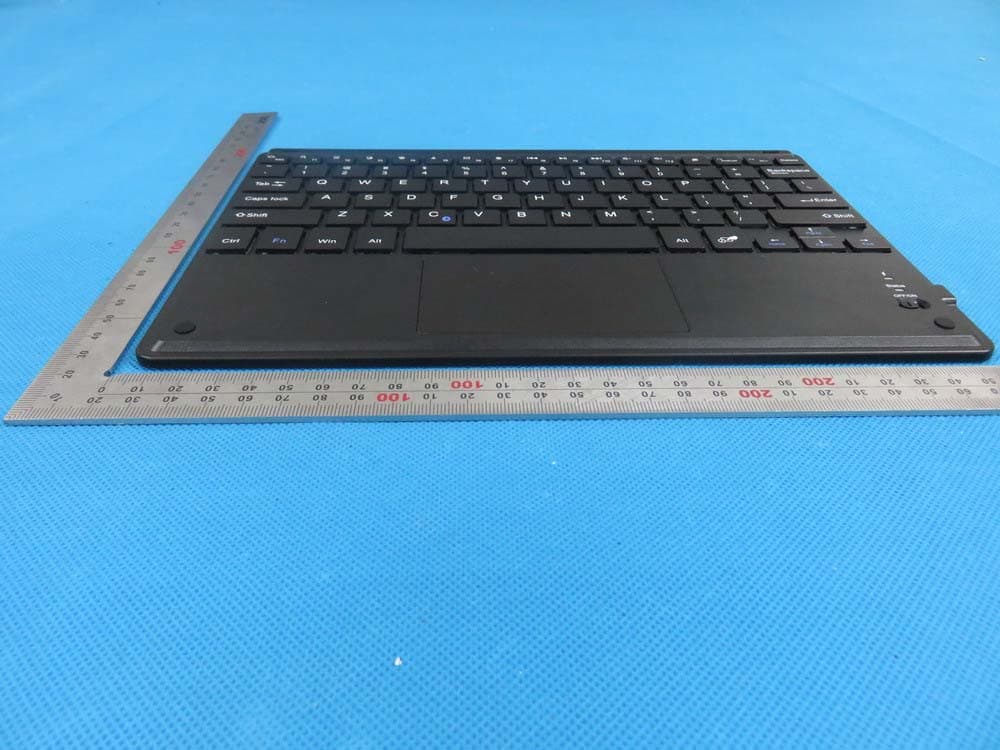

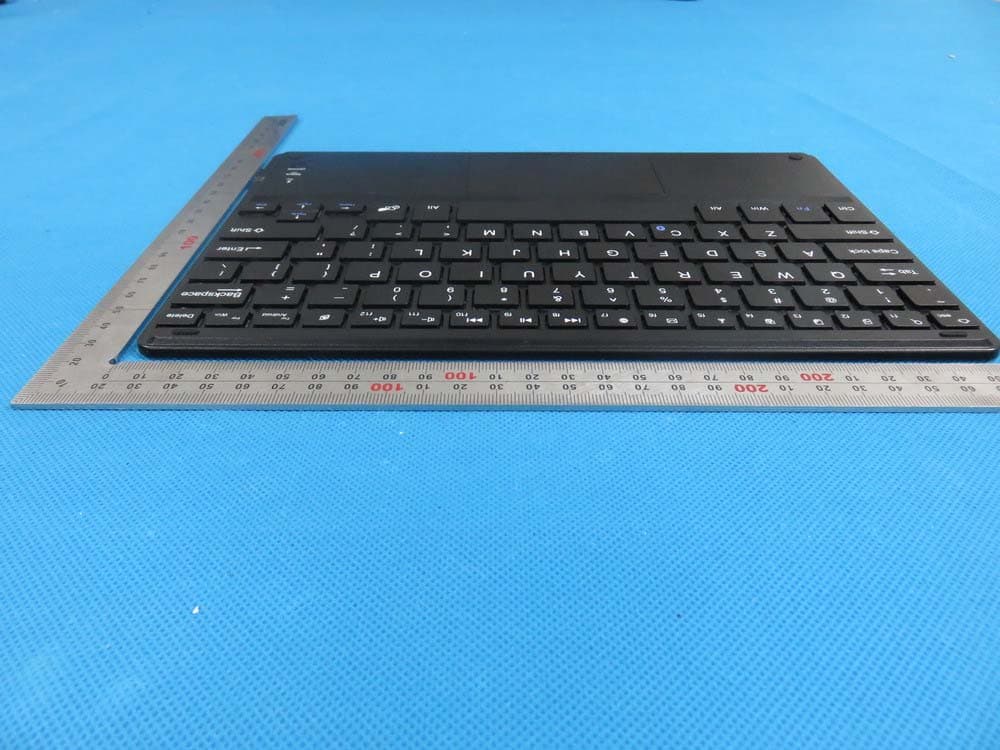

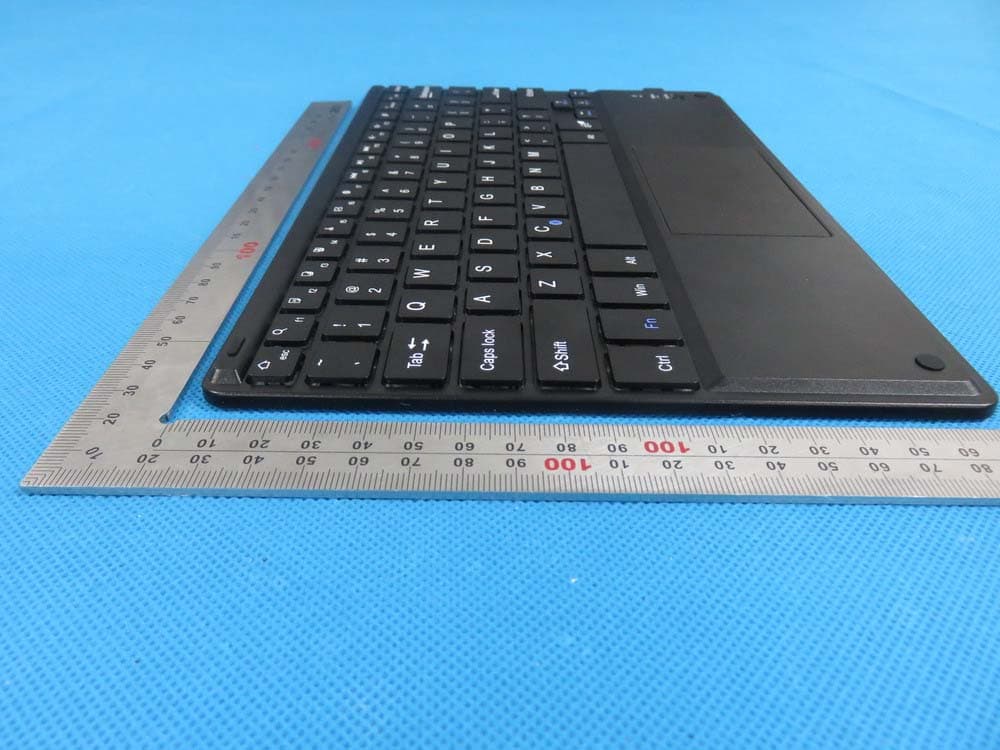

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (PORT)

FCC ID Label Location Bluetooth Keyboard HB092 FCC ID: 2AC9LHB092

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 Antenna INTERNAL VIEW OF EUT-7

Declaration concerning Antenna Specification It is hereby declared that the product Model No.: HB092 FCC ID: 2AC9LHB092 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type described below: Model No. of antenna: N/A Type of antenna: PCB Antenna Gain of the antenna: 0 dBi Frequency range: 2402-2480 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Shenzhen Hastech industries Co., Ltd Address: 3rd, 4th floor G-A1 Bldg &1st, 2nd floor G-A2 Bldg, Democracy West Industry Park, Shajing Town, City: Bao'an District, Shenzhen ZIP / Postal code: Country: China Place: Shenzhen Date: Aug.20,2015 Signature:

RF Exposure evaluation Product Description:Bluetooth Keyboard Model Number: HB092 FCC ID: 2AC9LHB092 According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power（P t ）formula： P t =（E x d） 2 /（30 x g t ） P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data, Emax=91.03dBuv/m=0.036V/m,d=3m,g t =1 P t =（E x d） 2 /（30 x g t ）=(0.036x3) 2 /(30x1)=0.000389W=0.39mW The result is rounded to one decimal place for comparison Worse case is as below: [2402MHz -0.39mW output power] (0.39mW /5mm) .[√2.402(GHz)]= 0.121<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: For the maximum power, you can refer FCC test report.

Page 1 of 48 FCC Test Report Report No.: AGC01680150805FE03 FCC ID : 2AC9LHB092 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth Keyboard BRAND NAME : N/A MODEL NAME : HB092 CLIENT : Shenzhen Hastech industries Co., Ltd. DATE OF ISSUE : Aug.19,2015 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC01680150805FE03 Page 2 of 48 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Aug.19,2015 Valid Original Report Report No.: AGC01680150805FE03 Page 3 of 48 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 4 2. GENERAL INFORMATION .................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................... 5 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 5 3. MEASUREMENT UNCERTAINTY........................................................................................ 6 4. DESCRIPTION OF TEST MODES ........................................................................................ 6 5. SYSTEM TEST CONFIGURATION ...................................................................................... 7 5.1. CONFIGURATION OF EUT SYSTEM .......................................................................................... 7 5.2. EQUIPMENT USED IN EUT SYSTEM ......................................................................................... 7 5.3. SUMMARY OF TEST RESULTS .................................................................................................. 7 6. TEST FACILITY .................................................................................................................... 8 7 ALL TEST EQUIPMENT LIST ............................................................................................... 8 8. RADIATED EMISSION ......................................................................................................... 9 8.1TEST LIMIT ..................................................................................................................................... 9 8.2. MEASUREMENT PROCEDURE ................................................................................................ 10 8.3. TEST SETUP .............................................................................................................................. 12 8.4. TEST RESULT ............................................................................................................................ 14 9. BAND EDGE EMISSION .................................................................................................... 27 9.1. MEASUREMENT PROCEDURE ................................................................................................ 27 9.2 TEST SETUP ............................................................................................................................... 27 9.3 RADIATED TEST RESULT .......................................................................................................... 28 10. 20DB BANDWIDTH .......................................................................................................... 32 10.1. MEASUREMENT PROCEDURE .............................................................................................. 32 10.2. TEST SET-UP ........................................................................................................................... 32 10.3. LIMITS AND MEASUREMENT RESULTS ................................................................................ 32 11. FCC LINE CONDUCTED EMISSION TEST ..................................................................... 35 11.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................... 35 11.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ................................................. 35 11.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST .............................. 36 11.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................. 36 11.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ....................................................... 37 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ............................................................... 39 APPENDIX B: PHOTOGRAPHS OF EUT .............................................................................. 41 Report No.: AGC01680150805FE03 Page 4 of 48 1. VERIFICATION OF CONFORMITY Applicant Shenzhen Hastech industries Co., Ltd. Address 3rd, 4th floor G-A1 Bldg &1st, 2nd floor G-A2 Bldg, Democracy West Industry Park, Shajing Town, Bao'an District, Shenzhen, China. Manufacturer Shenzhen Hastech industries Co., Ltd Address 3rd, 4th floor G-A1 Bldg &1st, 2nd floor G-A2 Bldg, Democracy West Industry Park, Shajing Town, Bao'an District, Shenzhen, China. Product Designation Bluetooth Keyboard Brand Name N/A Test Model HB092 Date of test Aug.18,2015 to Aug.19,2015 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Compliance Certification Service(Shenzhen) Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.249. Tested By Time Huang(Huang Nanhui) Aug.19,2015 Revie…

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
