2AC9N-1686200-MICLED PARTY KARAOKE SPEAKER

Cotton On USA Inc Address: 16511,Trojan Way,La Miranda,California 90638,United States Date: 2024-08-06 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing SUBJECT: FCC Application for FCC ID: 2AC9N-1686200-MIC To Whom It May Concern: Cotton On USA Inc certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature: Date: 2024-08-06

Cotton On USA Inc Address: 16511,Trojan Way,La Miranda,California 90638,United States Date: 2024-08-06 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing SUBJECT: FCC Application for FCC ID: 2AC9N-1686200-MIC To Whom It May Concern: Cotton On USA Inc certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature: Date: 2024-08-06

Cotton On USA Inc U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Cotton On USA Inc FRN: 0023954688 Contact Name: Selwyn A Prince Street Address: 16511,Trojan Way City/Province/Zip: La Miranda,California Telephone No: +61 3 5277 Email: [email protected] This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: Aug. 06, 2024 Signed by (Printed Name/Title): Selwyn A Prince / Compliance Manager The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: Cotton On USA Inc Grantee Code: 2AC9N FCC ID: 2AC9N-1686200-MIC FRN: 0023954688 Contact Name: Selwyn A Prince Street Address: 16511,Trojan Way,La Miranda,California 90638,United States City/Province/Zip: United States Telephone No: +61 3 5277 Email: [email protected] Applicant Signature: Date: 2024.08.06 Signed by (Printed Name/Title): Selwyn A Prince / Compliance Manager

Inverted F Antenna Specification Summary ANT SPECITEM 2.4G ANTModel Name VerticalHorizontal 2500MHz2400MHz2400MHz2500MHz2400MHz2400MHz Center Frequency -1.86-2.46-5.25-0.58-0.76-1.26 -0.58dBMAX. Gain Horizontal and VerticalPolarization Azimuth Beam Pattern Omni-directional 50 OhmImpedance Antenna Length Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) 15.2mm 333 Kexing Road, Xiangzhou District, Zhuhai CityAddress Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Cotton On USA Inc 16511,Trojan Way,La Miranda,California 90638,United States Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: August 6, 2024 Subject; Request for Confidentiality FCC ID: 2AC9N-1686200-MIC To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Selwyn A Prince Title: Compliance Manager

Cotton On USA Inc 16511,Trojan Way,La Miranda,California 90638,United States Date：Aug.06.2024 Product Model Number: 1686200 FCC ID：2AC9N-1686200-MIC To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following:  Testing  Approval applications and procedures We declare that ORGANIZATION. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by ORGANIZATION. on our behalf shall have the same effect as acts of our own. By: Contact Listed on FCC Wesbite Title: Compliance Manager Email: [email protected] Telephone: +61 3 5277 On behalf of: Cotton On USA Inc

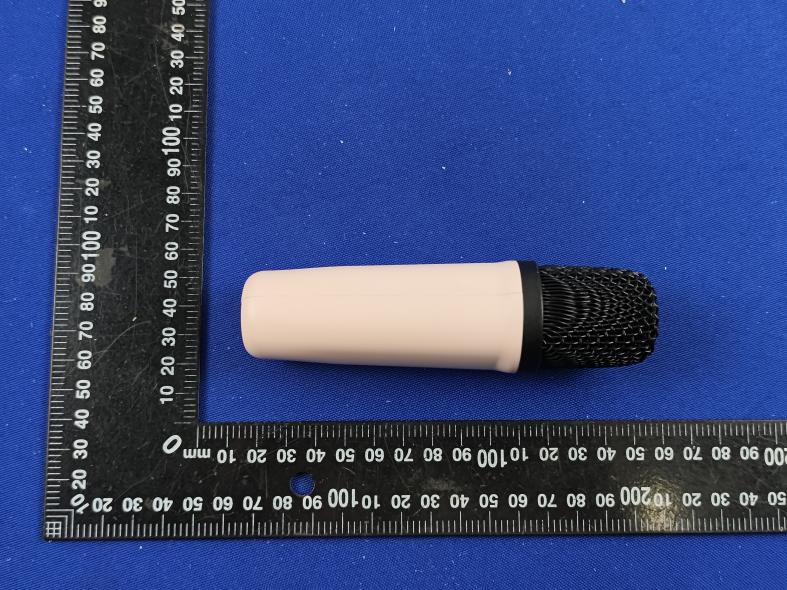

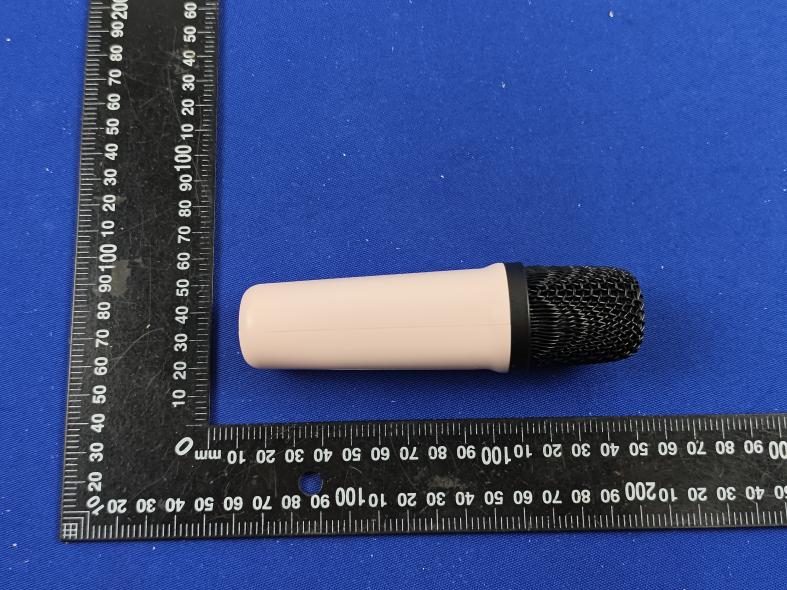

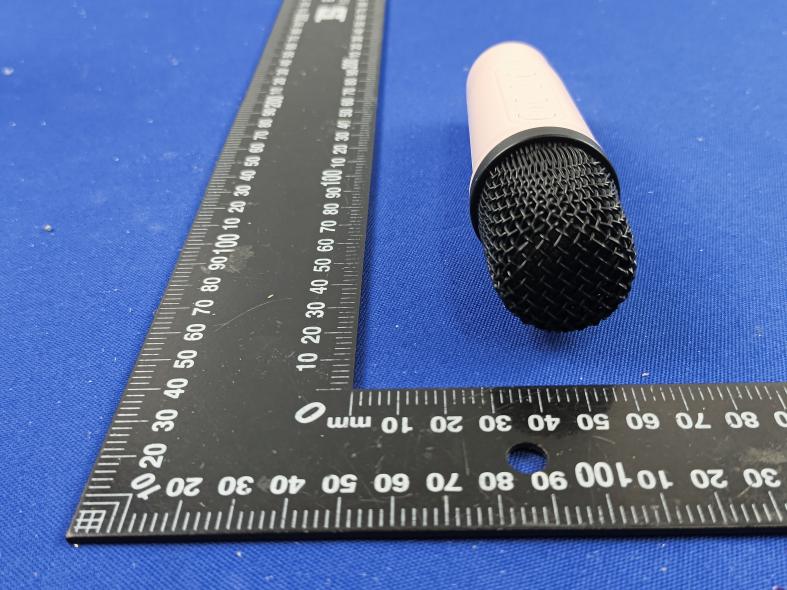

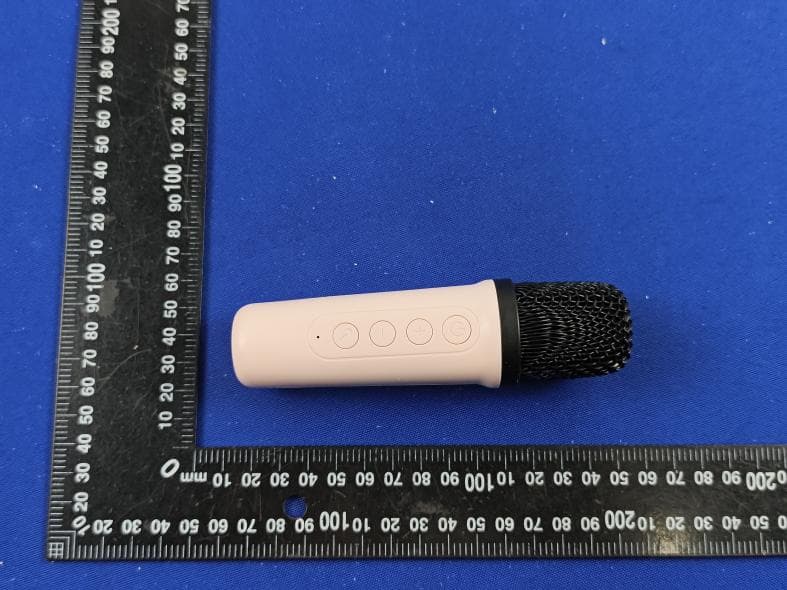

FCC ID: 2AC9N-1686200-MIC Page 1 of 3 Report No.: CTL2406047082-WF External Photos of EUT FCC ID: 2AC9N-1686200-MIC Page 2 of 3 Report No.: CTL2406047082-WF FCC ID: 2AC9N-1686200-MIC Page 3 of 3 Report No.: CTL2406047082-WF

FCC ID: 2AC9N-1686200-MIC Page 1 of 1 Report No.: CTL2406047082-WF FCC ID Label Information Label location: Size:30mm*30mm Note: Label material is transparent PET, glue material is self-adhesive material; 25 square transparent dragon, water glue, plus light film. Not easy to drop. Model: 1686200 FCC ID : 2AC9N-1686200-MIC

FCC ID: 2AC9N-1686200-MIC Page 1 of 2 Report No.: CTL2406047082-WF Internal Photos of EUT FCC ID: 2AC9N-1686200-MIC Page 2 of 2 Report No.: CTL2406047082-WF BLE Chip BLE Antenna

FCC ID: 2AC9N-1686200-MIC Page 1 of 1 Report No.: CTL2406047082-WF RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤3.0 for 1-g SAR and ≤7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison For Bluetooth BLE: pt=-9.73dBm=0.1064mW at 2480MHz So (0.1064mW/5mm)x √2.480GHz = 0.0335<3 Then SAR evaluation is not required.

Shenzhen CTL Testing Technology Co., Ltd. Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Tel: +86-755-89486194 E-mail: [email protected] Page 1 / 26 Annex for BLE Test Report No.: CTL2406047082-WF TABLE OF CONTENTS 1. Bandwidth .......................................................................................................................................... 3 1.1 Test Result ............................................................................................................................... 3 1.1.1 OBW ............................................................................................................................... 3 1.1.2 6dB BW .......................................................................................................................... 3 1.2 Test Graph ................................................................................................................................ 4 1.2.1 OBW ............................................................................................................................... 4 1.2.2 6dB BW .......................................................................................................................... 7 2. Maximum Conducted Output Power ................................................................................................ 10 2.1 Test Result ............................................................................................................................. 10 2.1.1 Power ........................................................................................................................... 10 2.2 Test Graph .............................................................................................................................. 11 2.2.1 Power ........................................................................................................................... 11 3. Maximum Power Spectral Density ................................................................................................... 14 3.1 Test Result ............................................................................................................................. 14 3.1.1 PSD .............................................................................................................................. 14 3.2 Test Graph .............................................................................................................................. 15 3.2.1 PSD .............................................................................................................................. 15 4. Unwanted Emissions In Non-restricted Frequency Bands ................................................................ 18 4.1 Test Result ............................................................................................................................. 18 4.1.1 Ref ................................................................................................................................ 18 Shenzhen CTL Testing Technology Co., Ltd. Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Tel: +86-755-89486194 E-mail: [email protected] Page 2 / 26 4.1.2 CSE .............................................................................................................................. 18 4.2 Test Graph .............................................................................................................................. 19 4.2.1 Ref ................................................................................................................................ 19 4.2.2 CSE .............................................................................................................................. 22 Annex for BLE Test Report No.: CTL2406047082-WF FCCID: 2AC9N-1686200-MIC Page 3 / 26 1. Bandwidth 1.1 Test Result 1.1.1 OBW Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 1.014 / Pass 2440 1 1.014 / Pass 2480 1 1.013 / Pass 2M SISO 2402 1 2.011 / Pass 2440 1 2.008 / Pass 2480 1 2.008 / Pass 1.1.2 6dB BW Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 0.662 >=0.5 Pass 2440 1 0.665 >=0.5 Pass 2480 1 0.664 >=0.5 Pass 2M SISO 2402 1 1.139 >=0.5 Pass 2440 1 1.138 >=0.5 Pass 2480 1 1.137 >=0.5 Pass Annex for BLE Test Report No.: CTL2406047082-WF FCCID: 2AC9N-1686200-MIC Page 4 / 26 1.2 Test Graph 1.2.1 OBW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Annex for BLE Test Report No.: CTL2406047082-WF FCCID: 2AC9N-1686200-MIC Page 5 / 26 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Annex for BLE Test Report No.: CTL2406047082-WF FCCID: 2AC9N-1686200-MIC Page 6 / 26 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Annex for BLE Test Report No.: CTL2406047082-WF FCCID: 2AC9N-1686200-MIC Page 7 / 26 1.2.2 6dB BW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Annex for BLE Test Report No.: CTL2406047082-WF FCCID: 2AC9N-1686200-MIC Page 8 / 26 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Annex for BLE Test Report No.: CTL2406047082-WF FCCID: 2AC9N-1686200-MIC Page 9 / 26 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Annex for BLE Test Report No.: CTL2406047082-WF FCCID: 2AC9N-1686200-MIC Page 10 / 26 2. Maximum Conducted Output Power 2.1 Test Result 2.1.1 Power Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 1M SISO 2402 -13.13 <=30 Pass 2440 -11.32 <=30 Pass 2480 -9.79 <=30 Pass 2M SISO 2402 -13.05 <=30 Pass 2440 -11.26 <=30 Pass 2480 -9.73 <=30 Pass Note1: Antenna Gain: Ant1: -0.58dBi; Annex for BLE Test Report No.: CTL2406047082-WF FCCID: 2AC9N-1686200-MIC Page 11 / 26 2.2 Test Graph 2.2.1 Power 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Annex for BLE Test Report No.: CTL2406047082-WF FCCID: 2AC9N-1686200-MIC Page 12 / 26 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz…

Text truncated - open the document above for the full version.

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15.247 Report Reference No. ................ : CTL2406047082-WF Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Wuqiang Wu (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ............................ : LED PARTY KARAOKE SPEAKER Model/Type reference ................ : 1686200 List Model(s) ............................... : N/A Trade Mark .................................. : TYPO FCC ID ......................................... : 2AC9N-1686200-MIC Applicant’s name ....................... : Cotton On USA Inc Address of applicant ................. : 16511,Trojan Way,La Miranda,California 90638,United States Test Firm ..................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm ................. : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification ....................... : Standard ...................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz. TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2011-01 Date of receipt of test item ........ : Jun. 05, 2024 Date of Test Date ........................ : Jun. 05, 2024-Jul. 31, 2024 Date of Issue .............................. : Aug. 02, 2024 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 38 Report No.: CTL2406047082-WF TEST REPORT Test Report No. : CTL2406047082-WF Aug. 02, 2024 Date of issue Equipment under Test : LED PARTY KARAOKE SPEAKER Sample No : CTL2406047082 Model /Type : 1686200 Listed Models : N/A Applicant : Cotton On USA Inc Address : 16511,Trojan Way,La Miranda,California 90638,United States Manufacturer : TOPAUL TECHNOLOGY LIMITED Address : Room 209, Huiju Building, No. 62, Area 1, Longyuan village, Longhua District, Shenzhen, China. Test result Pass * * In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 38 Report No.: CTL2406047082-WF ** Modified History ** Revisions Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2024-08-02 CTL2406047082-WF Tracy Qi V1.0 Page 4 of 38 Report No.: CTL2406047082-WF Table of Contents Page 1. SUMMARY ............................................................................................................................................................... 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION .......................................................................................................................................... 8 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 8 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 8 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 9 2.4. EQUIPMENTS USED DURING THE TEST ............................................................................................................................ 10 2.5. RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................................................. 10 2.6. MODIFICATIONS ......................................................................................................................................................... 10 3. TEST CONDITIONS AND RESULTS ............................................................................................................................ 11 3.1. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 11 3.2. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 14 3.3. MAXIMUM CONDUCTED OUTPUT POWER....................................................................................................................... 28 3.4. POWER SPECTRAL DENSITY .................................................................................................…

Text truncated - open the document above for the full version.

FCC ID: 2AC9N-1686200-MIC Page 1 of 2 Report No.: CTL2406047082-WF Test Setup Photos of the EUT FCC ID: 2AC9N-1686200-MIC Page 2 of 2 Report No.: CTL2406047082-WF
