2ACARPX31BW01Smart Surge Protector

Smart Surge Protector Quick Start Guide 1. Master Switch 2. Always ON outlets 3. USB ports (Power Only) 4. Smart Power Outlets 5.Bypass button, Notification LEDs : Download the mobile app for iPhone® Search for BRIGHTenergy on the App Store A. Smart Power (Blue) B. Schedule (Orange) C. Wi-Fi (Green) D. Surge(Orange) Login using your account. Manage multiple power strips with a single account. Turn ON/Off the smart power outlets and review power consumption of the connected devices Enable/Disable scheduling, or create a new schedule. Pro- gram 7 Day Schedules Display and Review energy consumption using bar charts. Reports by 24hrs. 2 3 5 4 1 B A C D USER NAME PASSWORD LOGIN ©2013 Tri Cascade. All rights reserved V 0.0 ? Forgot Password Safety Disclaimer The i-BRIGHT 7 Smart Surge Protector is made according to U.S. safety standards with non-flammable materials, but like everything connected to the power line, it requires some precautions to prevent any potential electrical shocks. Please read the following safety precautions carefully before using the product. The i-BRIGHT 7 is designed for indoors use in dry areas only. Never use it in wet areas or outdoors at any time as liquid conduct electricity and pose a serious hazard. If, for any reason, the device is broken or shows any openings, disconnect the power of the i-BRIGHT 7 as the product cannot be used in any inproper conditions. Contact us at [email protected] for support. Note: Only connect i-BRIGHT 7 directly to a wall socket, not to another power strip, and do not exceed 15 Amps maximum total load. Do not power appliances drawing current higher than 15 Amp of current. Never dissasemble the device, we will not be able to offer proper warranty for a disassembled units. There are no serviceable parts inside . Do not connect i-BRIGHT 7 to any life support devices or heavy Industrial devices . Warranty and Service Tri Cascade Inc. (“TCI”) provides one or both of the following warranties (Smart Surge Protector Limited Warranty and Connected Equipment Limited Warranty) to the original consumer of smart surge protectors sold under the i-BRIGHT brand name. Provisions Applicable to Each Warranty These warranties apply only to original retail purchaser of i-BRIGHT 7 smart surge protector. These warranties are valid only in the domestic USA. THESE WARRANTIES ARE IN LIEU OF ALL OTHER EXPRESS WARRANTIES; AND ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS WARRANTY. EXCEPT AS PROVIDED IN THE CONNECTED EQUIPMENT LIMITED WARRANTY (IF APPLICABLE), IN NO EVENT SHALL TCI BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, CONSEQUENTIAL OR MULTIPLE DAMAGES ARISING OUT OF THE USE OF THE i-BRIGHT 7 SMART SURGE PROTECTOR. Specifically, TCI is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties or otherwise. Coverage does not apply to connected life support devices, medical devices or industrial equipment. All warranties contained herein are null and void if used in anyway with any of the aforementioned devices Please visit our website www.TriCascade.com for additional warranty information. Power Rating: Wi-FI: 125V AC / 15 A 1800W / 50-60Hz Surge Protection:3150 Joules 802.11 B/G/N Cord: 6 Ft. CURRENTAVERAGE TOTAL CONS.SMART POWERALWAYS ON 368.000w368.000w kW 60 1.0 1.5 2.0 453015mins ago DASHBOARD ROOMS MY i-BRIGHT 7 UNIT ON ROOM 1 WiFI Network 8C-C7-AA-02-65-2C DASHBOARD ROOMS MY i-BRIGHT 7 UNIT ON ROOM 1 WiFI Network 8C-C7-AA-02-65-2C 12:00 13:00 14:00 15:00 16:00 17:00 MONDAY TCI P/N: AS-02001-07 Apple, the Apple logo and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. kW 1.0 1.5 2.0 2.5 3.0 TIME 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 My i-Bright 7 ROOM 1 WiFI Network 8C-C7-AA-02-65-2C DASHBOARDBENCHMARK TOTA L CONS. SCHEDULEROOMS SMART POWER A LWAY S ON. 24 HOURS STEP 1: Plug equipment into the “Always ON” Outlets These outlets are for the devices that never turn off STEP 2: Plug equipment into the “Cloud Schedule” Outlets These outlets are controled by schedule either with cloud application or mobile app. STEP 3: Plug i-BRIGHT 7 power cord into the wall outlet. STEP 4: Press the main switch into the RESET position. This switch controls power to all the outlets Hardware Installation Account Registration STEP 5: Schedule Setup STEP 7: Note: Is requiered to use a laptop MAC or PC with aWi-Fi adapter with Java 7 update 45+ installed. Please also gather your wireless access point network information: SSID and Password. STEP 6: Device Setup Device Setup (continue...) ! CAUTION: Do not plug i-BRIGHT 7 Smart Surge Protector into a non-grounded outlet. Doing so invalidates your Equipment Warranty and puts your equipment at risk. Do not: Note: It will take a few minutes to register your device until it becomes available. SETUP DISCOVERY DEVICE Note: For any additional setup information please read the users guide, available under the support section at : www.TriCascade.com Create New Account B- Click on “Create new Account” B- Login using you credentials. C- Fill in the requiered information. D- Verify your email address to activate your account. A- Please visit http://bright.tricascade.com A- Click on “SETUP” and select “DEVICE” B- If your web browser prompts for permission to run the Java Applet please select “Allow” or “Always Run on This Site” C- At the Java permission screen select “RUN” D- Click on Discovery E- From the discovery list select the i-BRIGHT 7 that you want to setup F- Type in the Device Name G- From the Drop Down Menu select the Wi-Fi Network that you would like to use with i-BRIGHT 7. H- Type in the Password for the selected network. I- From the Drown Down menu select the room where yo…

Text truncated - open the document above for the full version.

Tri Cascade Inc 5020 Campus Drive , Newport Beach, CA 92660 , USA Date：April 25, 2014 BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Tri Cascade Inc hereby authorize Compliance Certification Services Inc / James Chan . to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 2014/10/24 Your Sincerely, Max C. Li President & CEO Tri Cascade Inc. TEL: +1-949-296-7501 FAX: +1-949-296-7503 E-Mail: [email protected]

Tri Cascade Inc 5020 Campus Drive , Newport Beach, CA 92660 , USA Date：April 25, 2014 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: 2ACARPX31BW01 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Tri Cascade Inc hereby requests permanent confidential treatment of information accompanying this application as outlined below: Common exhibits for which confidentiality is requested are: Schematics Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Your Sincerely, Max C. Li President & CEO Tri Cascade Inc TEL: +1-949-296-7501 FAX: +1-949-296-7503 E-Mail: [email protected]

Tri Cascade Inc 5020 Campus Drive , Newport Beach, CA 92660 , USA Date：May 6, 2014 Subject:DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: FCC ID: 2ACARPX31BW01, would like to declare that the composite Portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Brand Name & Model Name of the specified radio equipment: i-BRIGHT 7 / PX31BW FCC ID: 2ACARPX31BW01 Product Name: Smart Surge Protector Regards, Your Sincerely, Max C. Li President & CEO Tri Cascade Inc TEL: +1-949-296-7501 FAX: +1-949-296-7503 E-Mail: [email protected]

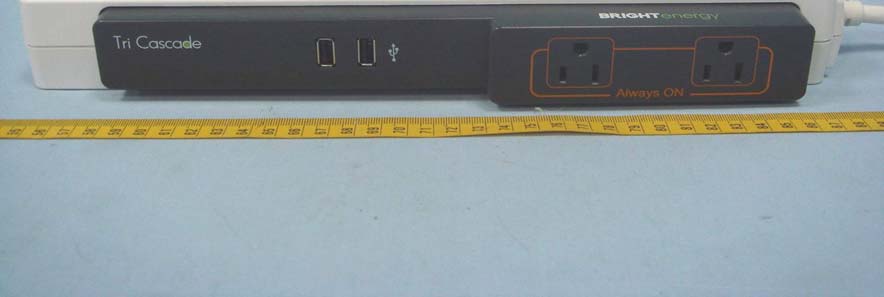

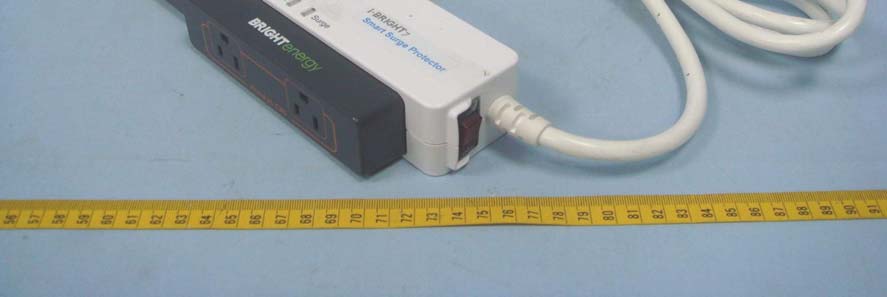

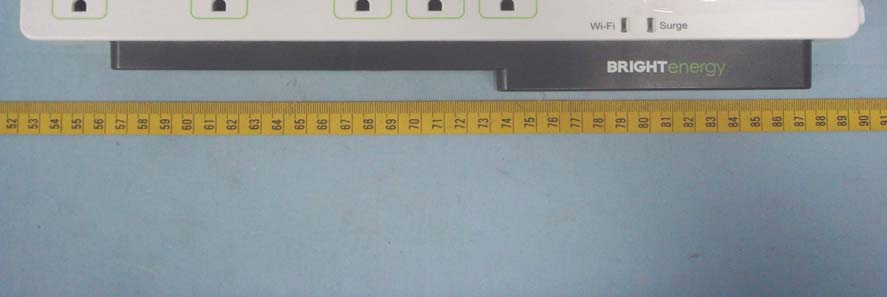

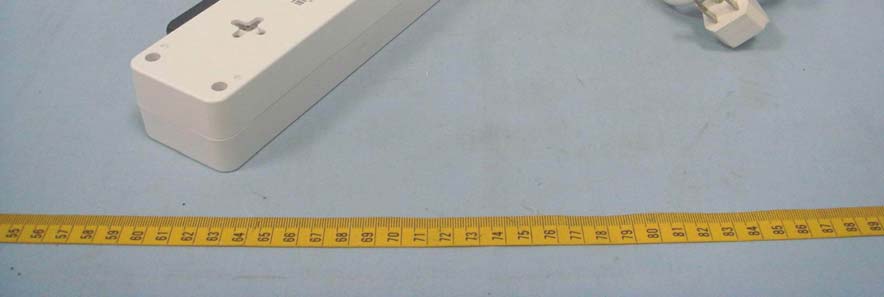

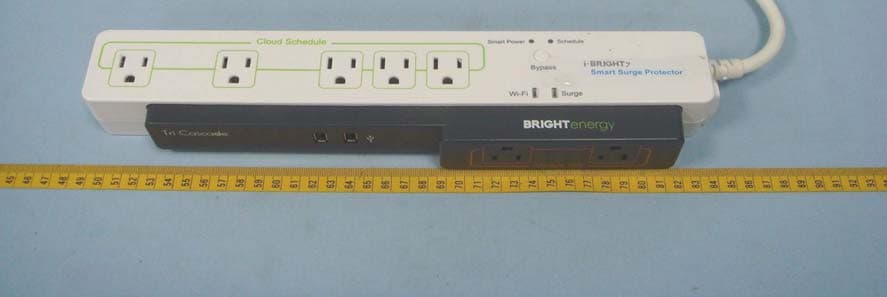

Report No: T130902D04 Page 1 / 11 Rev.00 EXTERNAL PHOTOGRAPHS OF EUT Report No: T130902D04 Page 2 Rev.00 Report No: T130902D04 Page 3 Rev.00

Designed by Tri Cascade in California - Assembled in China i-BRIGHT 7 Smart Surge Protector Model: PX31BW 125 VAC 60Hz 15A 1800W FCC ID: 2ACARPX31BW01 This device complies with Part 15 of FCC Rules. Operation is subject to following two conditions; (1) this device may not cause harmful interference and (2) this device must accept any inetrference received, including interference that may cause undesired operation.

Report No: T130902D04 Page 4 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Report No: T130902D04 Page 5 Rev.00 Report No: T130902D04 Page 6 Rev.00 Report No: T130902D04 Page 7 Rev.00 Report No: T130902D04 Page 8 Rev.00 Report No: T130902D04 Page 9 Rev.00 Report No: T130902D04 Page 10 Rev.00 Antenna Report No: T130902D04 Page 11 Rev.00

Compliance Certification Services Inc. Report No.: T130902D04-MF Date of Issue: April 28, 2014 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Smart Surge Protector Model PX31BW RF Module Ralink Model: WM101A Model Discrepancy N/A Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna Specification 2.4GHz: Antenna Gain :2.52 dBi (Numeric gain:1.79) Maximum Average output power IEEE 802.11b Mode: 19.70 dBm(93.325 mW) IEEE 802.11g Mode: 15.35 dBm(34.277 mW) IEEE 802.11n HT 20 Mode: 15.22 dBm(33.266 mW) IEEE 802.11n HT 40 Mode: 15.55 dBm(35.892 mW) Maximum Tune up Power IEEE 802.11b Mode: 21.00 dBm(125.893 mW) IEEE 802.11g Mode: 17.00 dBm(50.119 mW) IEEE 802.11n HT 20 Mode: 17.00 dBm(50.119 mW) IEEE 802.11n HT 40 Mode: 17.00 dBm(50.119 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T130902D04-MF Date of Issue: April 28, 2014 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2014/04/28 Initial Issue ALL Scott Hsu Compliance Certification Services Inc. Report No.: T130902D04-MF Date of Issue: April 28, 2014 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T130902D04-MF Date of Issue: April 28, 2014 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 12412125.8931.79200.04481 IEEE 802.11g mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1241250.1191.79200.01791 IEEE 802.11n HT20 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1241250.1191.79200.01791 IEEE 802.11n HT40 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1241250.1191.79200.01791

Compliance Certification Services Inc. Report No.: T130902D04-RP1 FCC ID: 2ACARPX31BW01 Date of Issue: April 24, 2014 Page 1 / 87 Rev.00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Smart Surge Protector Model: PX31BW Trade Name: i-BRIGHT 7 Issued to Tri Cascade Inc 5020 Campus Drive , Newport Beach, CA 92660 , USA Issued by Compliance Certification Services Inc. No.81-1, Lane 210, Bade 2nd Rd., Lujhu Township, Taoyuan County 33841, Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 http://www.ccsrf.com [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. Report No.: T130902D04-RP1 FCC ID: 2ACARPX31BW01 Date of Issue: April 24, 2014 Page 2 Rev.00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 April 24, 2014 Initial Issue All Landy Huang Compliance Certification Services Inc. Report No.: T130902D04-RP1 FCC ID: 2ACARPX31BW01 Date of Issue: April 24, 2014 Page 3 Rev.00 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION......................................................................................... 4 2 EUT DESCRIPTION............................................................................................................. 5 3 TEST METHODOLOGY....................................................................................................... 6 3.1 EUT CONFIGURATION ..................................................................................................... 6 3.2 EUT EXERCISE ................................................................................................................. 6 3.3 GENERAL TEST PROCEDURES ...................................................................................... 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .......................................... 7 3.5 DESCRIPTION OF TEST MODES..................................................................................... 8 4 INSTRUMENT CALIBRATION ............................................................................................ 9 4.1 MEASURING INSTRUMENT CALIBRATION..................................................................... 9 4.2 MEASUREMENT EQUIPMENT USED .............................................................................. 9 4.3 MEASUREMENT UNCERTAINTY ................................................................................... 10 5 FACILITIES AND ACCREDITATIONS ................................................................................11 5.1 FACILITIES........................................................................................................................11 5.2 LABORATORY ACCREDITATIONS AND LISTING ...........................................................11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS............................................................... 12 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................... 13 6.1 SETUP CONFIGURATION OF EUT................................................................................. 13 6.2 SUPPORT EQUIPMENT .................................................................................................. 13 7 FCC PART 15 REQUIREMENTS....................................................................................... 14 7.1 6DB BANDWIDTH............................................................................................................ 14 7.2 PEAK POWER .................................................................................................................22 7.3 AVERAGE POWER .......................................................................................................... 24 7.4 BAND EDGES MEASUREMENT ..................................................................................... 26 7.5 PEAK POWER SPECTRAL DENSITY ............................................................................. 48 7.6 SPURIOUS EMISSIONS.................................................................................................. 56 7.7 POWERLINE CONDUCTED EMISSIONS ....................................................................... 80 8 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................. 83 9 APPENDIX II: PHOTOGRAPHS OF EUT.......................................................................... 87 Compliance Certification Services Inc. Report No.: T130902D04-RP1 FCC ID: 2ACARPX31BW01 Date of Issue: April 24, 2014 Page 4 Rev.00 1 TEST RESULT CERTIFICATION Applicant: Tri Cascade Inc 5020 Campus Drive , Newport Beach, CA 92660 , USA Manufacturer: Ahoku Techland Electronics Ltd. No 5, DaBanDi 1 st Rd., ShaBen, ChangAn, DonGguan City, GuangDong, China Equipment Under Test: Smart Surge Protector Trade Name: i-BRIGHT 7 Model: PX31BW Date of Test: October 23, 2013 ~ April 21, 2014 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: Compliance Certification Services Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Stan Lin Section Manager Angel Hu Section Manager Compliance Certification Services Inc. Report No.: T130902D04-RP1 FCC ID: 2ACARPX31BW01 Date of Issue: April 24, 2014 Page 5 Rev.00 2 EUT DESCRIPTION Product S…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T130902D04-RP1 FCC ID: 2ACARPX31BW01 Date of Issue: April 24, 2014 Page 83 Rev.00 8 APPENDIX I PHOTOGRAPHS OF TEST SETUP Radiated Emissions Setup Photos Below 1GHz Compliance Certification Services Inc. Report No.: T130902D04-RP1 FCC ID: 2ACARPX31BW01 Date of Issue: April 24, 2014 Page 84 Rev.00 Above 1GHz Compliance Certification Services Inc. Report No.: T130902D04-RP1 FCC ID: 2ACARPX31BW01 Date of Issue: April 24, 2014 Page 85 Rev.00 Conducted Emissions Setup Photo Compliance Certification Services Inc. Report No.: T130902D04-RP1 FCC ID: 2ACARPX31BW01 Date of Issue: April 24, 2014 Page 86 Rev.00 Powerline Conducted Emissions Setup Photos
