2ACBF-6708Tablet

Quick Start Guide [DRAFT] WHAT’S IN THE BOX • Device • Power adaptor • USB Cable CONNECTING DEVICE 1. To turn on your Device, press and release the power button. To put it in sleep mode, press and release the power button. 2. To turn off your Device, press and hold the power button until a message displays asking if you want to shut down. 3. Your Device will be partially charged when you receive it. To charge your Device, connect one end of the USB cable into your and the other end into the power supply (included). 4. Connect the power supply into a nearby power outlet. CONNECTING DEVICE TO YOUR HOME NETWORK Tap the Quick Settings icon located on the Status bar to display settings for the most commonly performed tasks Select Wireless Network to toggle wireless on or off, display a list of detected Wi-­‐Fi networks, add a network, and access advanced wireless settings. REGISTERING YOUR DEVICE To use many of the Device features, you must register it to your account. If you have not yet registered, please do so now. Prior to registering, connect to a Wi-­‐Fi network by tapping the Quick Settings icon at the top of the Device, then Wi-­‐Fi. Select the network you want to use. Once you are connected, tap the Quick Settings icon, then More, and select the My Account option to register. IMPORTANT PRODUCT INFORMATION For safety, compliance, recycling, and other important information regarding your Device, please refer to the Legal & Compliance section on the Settings menu of your Device.

User Guide [DRAFT] Product Information Safety and Compliance Information Using Your Device Around Other Electronic Devices The Device, uses, and can radiate radio frequency (RF) energy and, if not used in accordance with its instructions, may cause interference to radio communications and electronic equipment. External RF signals may affect improperly installed or inadequately shielded electronic operating systems, entertainment systems, and personal medical devices. While most modern electronic equipment is shielded from external RF signals, if in doubt, check with the manufacturer. For personal medical devices (such as pacemakers and hearing aids), consult with your physician or the manufacturer to determine if they are adequately shielded from external RF signals. There are some places where RF signals could constitute a hazard, such as health care facilities, and construction sites. If you are not sure, look around for signs indicating that two-­‐way radios or mobile phones should be turned off. FCC Compliance Information Radio Frequency Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Changes or modifications that are not expressly approved by the party responsible for compliance could make the device no longer comply with the FCC Rules. Information on your device is on file with the FCC and can be found by inputting your device’s FCC ID, which can be found on the back of Device, into the FCC ID Search form available at transition.fcc.gov/oet/ea/fccid. Information Regarding Exposure to Radio Frequency Energy The output power of the radio technology used in the Device is below the radio frequency exposure limits set by the FCC. Nevertheless, it is advised to use the Device in such a manner that minimizes the potential for human contact during normal operations. Recycling Product Properly In some areas, the disposal of certain electronic devices is regulated. Make sure you dispose of or recycle the Products in accordance with your local laws and regulations. Product Specifications Model #: SR87CV Ports: Micro-­‐USB, Audio port Power — 5V 1A output power adapter (sold in-­‐box) Operating Voltage – 3.4VDC to 4.2VDC Connectivity — Dual Band Wi-­‐Fi (2.4/5 GHz); 802.11 a/b/g/n/ac; BT 2.1 BDR/EDR, BT3.0, BT 4.1LE Operating temperature — 0 °C to 35 °C

Senga Na Lenga Limited Liability Company 3900 N. Causeway Blvd., Suite 1200, Metairie, Louisiana, 70002, Phone: (985) 746-4524 June 24, 2015 FCC Authorization and Evaluation Division 7435 Oakland Mills Rd. Columbia, MD 21046-1609 To whom it may concern: On behalf of Senga Na Lenga Limited Liability Company and its affiliates, I write to request the confidential treatment of the item described below, each of which are attached as exhibits to the equipment authorization application for FCC ID No. 2ACBF-6708. This request is made pursuant to 47 C.F.R. §0.457 and 47 C.F.R. §0.459. Short-Term Confidentiality We request 180 days of confidential treatment (from the date of grant of the equipment authorization for FCC ID No. 2ACBF-6708), for the following confidential materials contained in our application: - User manual/Quick Start Guide - Test setup photos - Internal photos - External photos These materials contain proprietary information about our device that is not publicly available, and we only share this information with third parties who are committed to maintaining the confidentiality of such information. Disclosure of this information prior to our marketing of our device would be detrimental to our business and impair our ability to successfully launch the device. Long-Term Confidentiality We request indefinite confidential treatment for the following confidential materials contained in our application: - Antenna Specifications - Schematics - UNII Device Software Security Description - Block diagram - Operation description Request for Confidential Treatment for FCC ID: 2ACBF-6708

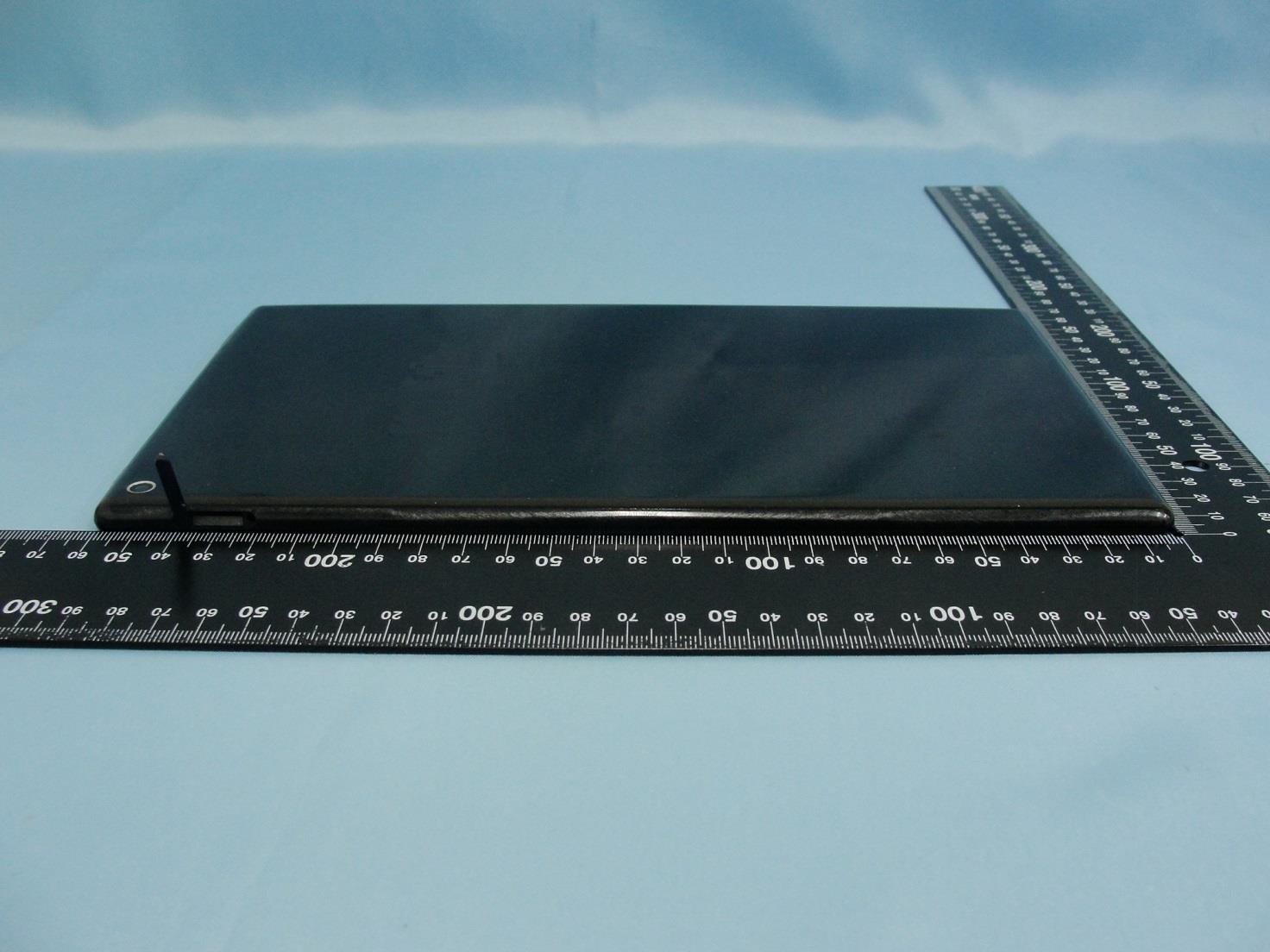

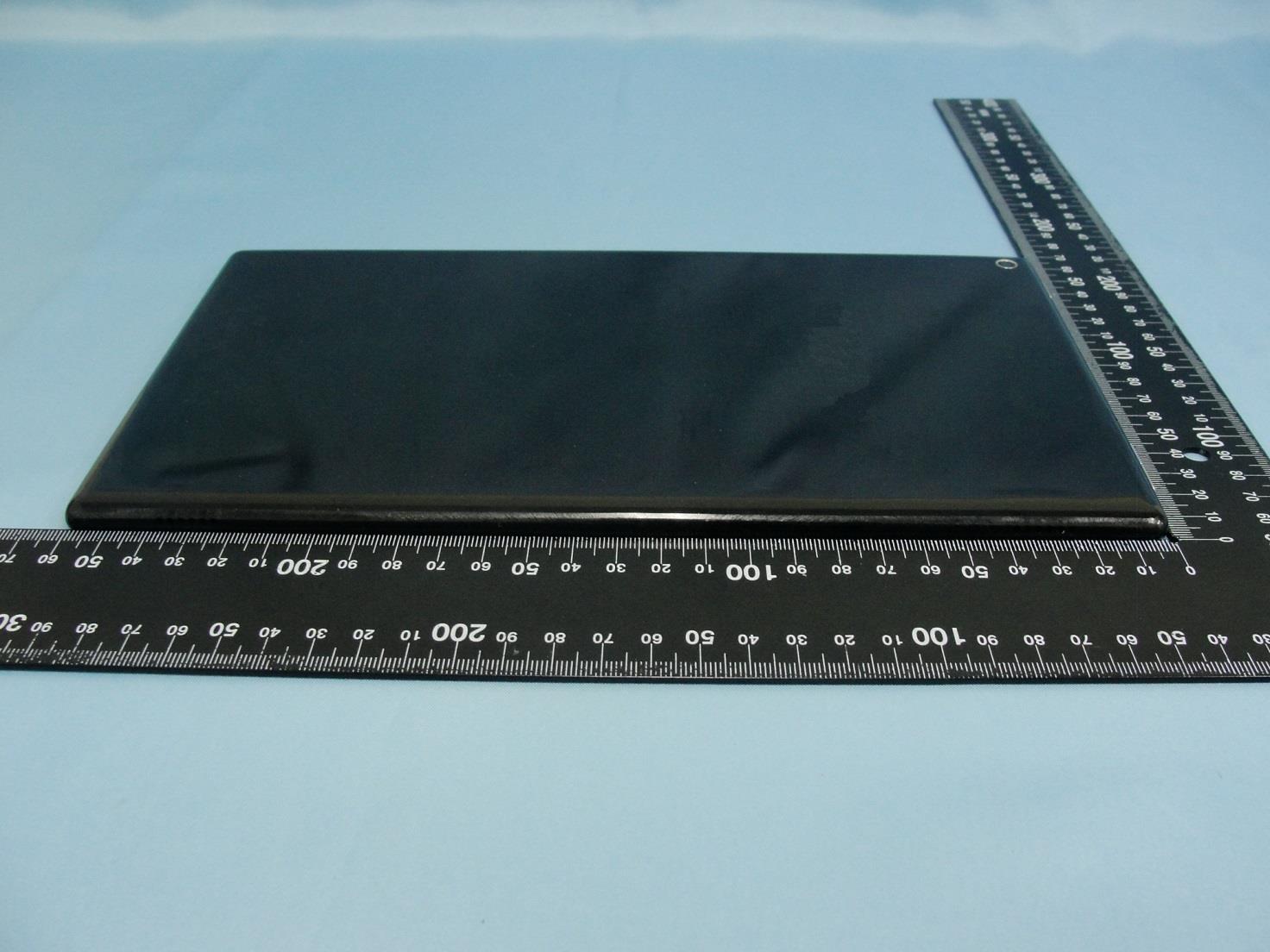

Report Number : EP520216-01 Page Number : 1 of 11 Report Version : Rev. 01 Report Number : EP520216-01 Page Number : 2 of 11 Report Version : Rev. 01 Report Number : EP520216-01 Page Number : 3 of 11 Report Version : Rev. 01 Report Number : EP520216-01 Page Number : 4 of 11 Report Version : Rev. 01 Report Number : EP520216-01 Page Number : 5 of 11 Report Version : Rev. 01 Report Number : EP520216-01 Page Number : 6 of 11 Report Version : Rev. 01 Report Number : EP520216-01 Page Number : 7 of 11 Report Version : Rev. 01

Model SR87CV FCC ID 2ACBF-­‐6708 Label Located on Rear of device

Report Number : EP520216-01 Page Number : 8 of 11 Report Version : Rev. 01 Report Number : EP520216-01 Page Number : 9 of 11 Report Version : Rev. 01 Report Number : EP520216-01 Page Number : 10 of 11 Report Version : Rev. 01 Report Number : EP520216-01 Page Number : 11 of 11 Report Version : Rev. 01

Report Number : FA520216-01 Form version. : 150415 Page 1 of 25 FCC SAR Test Report APPLICANT : Senga Na Lenga Limited Liability Company EQUIPMENT : Tablet MODEL NAME : SR87CV FCC ID : 2ACBF-6708 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and had been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No.52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan District, Taoyuan City, Taiwan (R.O.C.) Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager Report Number : FA520216-01 Form version. : 150415 Page 2 of 25 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 4 3. Guidance Standard ....................................................................................................................................................... 5 4. Equipment Under Test (EUT) ....................................................................................................................................... 5 4.1 General Information ............................................................................................................................................... 5 4.2 Maximum Tune-up Limit ......................................................................................................................................... 6 5. RF Exposure Limits....................................................................................................................................................... 7 5.1 Uncontrolled Environment ...................................................................................................................................... 7 5.2 Controlled Environment .......................................................................................................................................... 7 6. Specific Absorption Rate (SAR) ................................................................................................................................... 8 6.1 Introduction ............................................................................................................................................................ 8 6.2 SAR Definition ........................................................................................................................................................ 8 7. System Description and Setup .................................................................................................................................... 9 8. Measurement Procedures ...........................................................................................................................................10 8.1 Spatial Peak SAR Evaluation ................................................................................................................................10 8.2 Power Reference Measurement............................................................................................................................ 11 8.3 Area Scan ............................................................................................................................................................. 11 8.4 Zoom Scan ............................................................................................................................................................12 8.5 Volume Scan Procedures ......................................................................................................................................12 8.6 Power Drift Monitoring ...........................................................................................................................................12 9. Test Equipment List .....................................................................................................................................................13 10. System Verification ....................................................................................................................................................14 10.1 Tissue Verification ...............................................................................................................................................14 10.2 System Performance Check Results ...................................................................................................................15 11. RF Exposure Positions ..............................................................................................................................................15 11.1 SAR Testing for Tablet .........................................................................................................................................15 12. Conducted RF Output Power (Unit: dBm) ................................................................................................................16 13. Exposure Position Conditions ..................................................................................................................................19 14. SAR Test Results .......................................................................................................................................................20 14.1 Body SAR ............................................................................................................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/5/14 System Check_Body_2450MHz_150514 DUT: D2450V2-924 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_150514 Medium parameters used: f = 2450 MHz; σ = 2.001 mho/m; ε r = 53.484; ρ = 1000 kg/m 3 23.3 22.3 DASY5 Configuration: - Probe: EX3DV4 - SN3955; ConvF(7.32, 7.32, 7.32); Calibrated: 2014/11/21; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1399; Calibrated: 2014/11/13 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (2);SEMCAD X Version 14.6.6 (6477) Configuration/Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 20.2 mW/g Configuration/Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 106.8 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 25.141 mW/g SAR(1 g) = 12.2 mW/g; SAR(10 g) = 5.66 mW/g Maximum value of SAR (measured) = 20.3 mW/g 0 dB = 20.3 mW/g = 26.15 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/5/15 System Check_Body_2450MHz_150515 DUT: D2450V2-924 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_150515 Medium parameters used: f = 2450 MHz; σ = 1.904 S/m; ε r = 51.836; ρ = 1000 kg/m 3 23.2 22.2 DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(7.36, 7.36, 7.36); Calibrated: 2014/9/25; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2014/10/6 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7331) Configuration/Pin=250mW/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 20.1 W/kg Configuration/Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 110.7 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 29.1 W/kg SAR(1 g) = 13.3 W/kg; SAR(10 g) = 6.04 W/kg Maximum value of SAR (measured) = 23.0 W/kg 0 dB = 23.0 W/kg = 13.62 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/5/17 System Check_Body_2450MHz_150517 DUT: D2450V2-924 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_150517 Medium parameters used: f = 2450 MHz; σ = 2 mho/m; ε r = 51.636; ρ = 1000 kg/m 3 23.5 22.5 DASY5 Configuration: - Probe: EX3DV4 - SN3955; ConvF(7.32, 7.32, 7.32); Calibrated: 2014/11/21; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1399; Calibrated: 2014/11/13 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (2);SEMCAD X Version 14.6.6 (6477) Configuration/Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 20.0 mW/g Configuration/Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 104.3 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 24.533 mW/g SAR(1 g) = 12 mW/g; SAR(10 g) = 5.57 mW/g Maximum value of SAR (measured) = 20.0 mW/g 0 dB = 20.0 mW/g = 26.02 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/7/2 System Check_Body_5200MHz_150702 DUT: D5GHzV2-1006 Communication System: CW; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium: MSL_5G_150702 Medium parameters used: f = 5200 MHz; σ = 5.439 S/m; ε r = 47.87; ρ = 1000 kg/m 3 23.5 22.5 DASY5 Configuration - Probe: EX3DV4 - SN3955; ConvF(4.61, 4.61, 4.61); Calibrated: 2014/11/21; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1399; Calibrated: 2014/11/13 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1173 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Configuration/Pin=100mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 16.9 W/kg Configuration/Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 65.15 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 29.7 W/kg SAR(1 g) = 7.21 W/kg; SAR(10 g) = 1.98 W/kg Maximum value of SAR (measured) = 17.7 W/kg 0 dB = 17.7 W/kg = 12.48 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/5/16 System Check_Body_5800MHz_150516 DUT: D5GHzV2-1006 Communication System: CW ; Frequency: 5800 MHz;Duty Cycle: 1:1 Medium: MSL_5G_150516 Medium parameters used: f = 5800 MHz; σ = 6.139 mho/m; ε r = 46.492; ρ = 1000 kg/m 3 23.2 22.2 DASY5 Configuration: - Probe: EX3DV4 - SN3955; ConvF(4.26, 4.26, 4.26); Calibrated: 2014/11/21; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1399; Calibrated: 2014/11/13 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (2);SEMCAD X Version 14.6.6 (6477) Configuration/Pin=100mW/Area Scan (71x71x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 17.6 mW/g Configuration/Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 62.340 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 36.225 mW/g SAR(1 g) = 7.35 mW/g; SAR(10 g) = 1.98 mW/g Maximum value of SAR (measured) = 19.6 mW/g 0 dB = 19.6 mW/g = 25.85 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/7/2 System Check_Body_5800MHz_150702 DUT: D5GHzV2-1006 Communication System: CW; Frequency: 5800 MHz;Duty Cycle: 1:1 Medium: MSL_5G_150702 Medium parameters used: f = 5800 MHz; σ = 6.246 S/m; ε r = 46.849; ρ = 1000 kg/m 3 23.5 22.5 DASY5 Configuration - Probe: EX3DV4 - SN3955; ConvF(4.26, 4.26, 4.26); Calibrated: 2014/11/21; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1399; Calibrated: 2014/11/13 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1173 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/5/14 #01_WLAN2.4GHz_802.11b 1Mbps_Edge 1_0mm_Ch11 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1.007 Medium: MSL_2450_150514 Medium parameters used: f = 2462 MHz; σ = 2.018 mho/m; ε r = 53.443; ρ = 1000 kg/m 3 23.3 22.3 DASY5 Configuration: - Probe: EX3DV4 - SN3955; ConvF(7.32, 7.32, 7.32); Calibrated: 2014/11/21; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1399; Calibrated: 2014/11/13 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (2);SEMCAD X Version 14.6.6 (6477) Configuration/Ch11/Area Scan (51x101x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 1.74 mW/g Configuration/Ch11/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 29.874 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 2.373 mW/g SAR(1 g) = 1.01 mW/g; SAR(10 g) = 0.418 mW/g Maximum value of SAR (measured) = 1.88 mW/g 0 dB = 1.88 mW/g = 5.48 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/7/2 #02_WLAN5GHz_802.11n-HT40 MCS0_Edge 1_0mm_Ch46 Communication System: 802.11n; Frequency: 5230 MHz;Duty Cycle: 1:1.059 Medium: MSL_5G_150702 Medium parameters used: f = 5230 MHz; σ = 5.463 S/m; ε r = 47.826; ρ = 1000 kg/m 3 23.5 22.5 DASY5 Configuration - Probe: EX3DV4 - SN3955; ConvF(4.61, 4.61, 4.61); Calibrated: 2014/11/21; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1399; Calibrated: 2014/11/13 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1173 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Configuration/Ch46/Area Scan (41x81x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 2.79 W/kg Configuration/Ch46/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 25.70 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 5.09 W/kg SAR(1 g) = 1.21 W/kg; SAR(10 g) = 0.323 W/kg Maximum value of SAR (measured) = 3.08 W/kg 0 dB = 3.08 W/kg = 4.89 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/5/16 #03_WLAN5GHz_802.11a 6Mbps_Edge 1_0mm_Ch157 Communication System: 802.11a; Frequency: 5785 MHz;Duty Cycle: 1:1.024 Medium: MSL_5G_150516 Medium parameters used: f = 5785 MHz; σ = 6.136 mho/m; ε r = 46.526; ρ = 1000 kg/m 3 23.2 22.2 DASY5 Configuration: - Probe: EX3DV4 - SN3955; ConvF(4.26, 4.26, 4.26); Calibrated: 2014/11/21; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1399; Calibrated: 2014/11/13 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (2);SEMCAD X Version 14.6.6 (6477) Configuration/Ch157/Area Scan (41x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 2.50 mW/g Configuration/Ch157/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 21.403 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 5.493 mW/g SAR(1 g) = 1.12 mW/g; SAR(10 g) = 0.331 mW/g Maximum value of SAR (measured) = 2.95 mW/g 0 dB = 2.95 mW/g = 9.40 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/5/17 #04_Bluetooth_1Mbps_Edge 1_0mm_Ch78 Communication System: Bluetooth; Frequency: 2480 MHz;Duty Cycle: 1:1.2 Medium: MSL_2450_150517 Medium parameters used: f = 2480 MHz; σ = 2.035 mho/m; ε r = 51.563; ρ = 1000 kg/m 3 23.5 22.5 DASY5 Configuration: - Probe: EX3DV4 - SN3955; ConvF(7.32, 7.32, 7.32); Calibrated: 2014/11/21; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1399; Calibrated: 2014/11/13 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (2);SEMCAD X Version 14.6.6 (6477) Configuration/Ch78/Area Scan (41x81x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 0.633 mW/g Configuration/Ch78/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.312 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 0.748 mW/g SAR(1 g) = 0.334 mW/g; SAR(10 g) = 0.130 mW/g Maximum value of SAR (measured) = 0.590 mW/g 0 dB = 0.590 mW/g = -4.58 dB mW/g

Report No. : FR520216-01E Report Version : Rev. 02 Page Number : 1 of 35 Report Template No.: BU5-FR15EWLB4 AC MA Version 1.0 FCC RF Test Report APPLICANT : Senga Na Lenga Limited Liability Company EQUIPMENT : Tablet MODEL NAME : SR87CV FCC ID : 2ACBF-6708 STANDARD : FCC Part 15 Subpart E §15.407 CLASSIFICATION : (NII) Unlicensed National Information Infrastructure The testing was completed on Jun. 03, 2015. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Joseph Lin / Supervisor Approved by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan District, Tao Yuan City, Taiwan, R.O.C. Report No. : FR520216-01E Report Version : Rev. 02 Page Number : 2 of 35 Report Template No.: BU5-FR15EWLB4 AC MA Version 1.0 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Feature of Equipment Under Test ..................................................................................................... 5 1.3 Product Specification of Equipment Under Test ................................................................................ 5 1.4 Modification of EUT ........................................................................................................................... 5 1.5 Testing Location ................................................................................................................................ 6 1.6 Applicable Standards ......................................................................................................................... 6 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 7 2.1 Carrier Frequency and Channel ........................................................................................................ 7 2.2 Pre-Scanned RF Power ..................................................................................................................... 8 2.3 Test Mode .......................................................................................................................................... 9 2.4 Connection Diagram of Test System ............................................................................................... 10 2.5 Support Unit used in test configuration and system ........................................................................ 11 2.6 EUT Operation Test Setup .............................................................................................................. 11 2.7 Measurement Results Explanation Example ................................................................................... 11 3 TEST RESULT ........................................................................................................................................... 12 3.1 6dB Bandwidth Measurement ......................................................................................................... 12 3.2 Maximum Conducted Output Power Measurement ........................................................................ 14 3.3 Power Spectral Density Measurement ............................................................................................ 15 3.4 Unwanted Emissions Measurement ................................................................................................ 17 3.5 AC Conducted Emission Measurement........................................................................................... 25 3.6 Frequency Stability Measurement ................................................................................................... 30 3.7 Automatically Discontinue Transmission ......................................................................................... 31 3.8 Antenna Requirements .................................................................................................................... 33 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 34 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 35 APPENDIX A. CONDUCTED TEST RESULTS APPENDIX B. RADIATED TEST RESULTS Report No. : FR520216-01E Report Version : Rev. 02 Page Number : 3 of 35 Report Template No.: BU5-FR15EWLB4 AC MA Version 1.0 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FR520216-01E Rev. 01 Initial issue of report May 29, 2015 FR520216-01E Rev. 02 Adding test data of duty cycle in section 3.4.7 and Automatically Discontinue Transmission in section 3.7.3. Jun. 03, 2015 Report No. : FR520216-01E Report Version : Rev. 02 Page Number : 4 of 35 Report Template No.: BU5-FR15EWLB4 AC MA Version 1.0 SUMMARY OF TEST RESULT Report Section FCC Rule Description Limit Result Remark 3.1 15.403(i) 6dB Bandwidth > 500kHz Pass - 3.2 15.407(a) Maximum Conducted Output Power ≤ 30 dBm Pass - 3.3 15.407(a) Power Spectral Density ≤ 30 dBm/500kHz Pass - 3.4 15.407(b) Unwanted Emissions ≤ -17, -27 dBm/MHz &15.209(a) Pass Und…

Text truncated - open the document above for the full version.

Report No. : FR520216-01D Report Version : Rev. 02 Page Number : 1 of 34 Report Template No.: BU5-FR15EWL Version 1.0 FCC RF Test …
