2ACBS-3G5WCDMA Mobile phone

User Manual Model:3G5 FCC ID:2ACBS-3G5 User Manual Model:3G5 FCC ID:2ACBS-3G5 User Manual FCC FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over on one gram of tissue. Device types: 3G5 (FCCID: 2ACBS-3G5) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use at the ear is 0.201 W/kg and when properly worn on the body is 0.440 W/kg. This device was tested for typical body-worn operations with the back of the handset The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment .This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: To comply with RF exposure requirements, a minimum separation distance of 1.0 cm must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna. User Manual - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. The user’s manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. In cases where the manual is provided only in a form other than paper, such as on a computer disk or over the Internet, the information required by this section may be included in the manual in that alternative form, provided the user can reasonably be expected to have the capability to access information in that form

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2Rev 5.0 Shenzhen LangMei Technology Co., Ltd. 2015.4.20 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Shenzhen LangMei Technology Co., Ltd. hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Product description, model name): Product description: WCDMA Mobile phone model name: 3G5, 3G4 FCC ID: 2ACBS-3G5 Sincerely, Client’s signature : Feiqiang Zeng Client’s name / title: manager Applicant company: Shenzhen LangMei Technology Co., Ltd. address: Block B2, 2nd Industrial Park, Fenghuang 3td Industrial Zone,Fuyong Town, Bao'an District,Shenzhen,China.

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 Shenzhen LangMei Technology Co., Ltd. 2015.4.20 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ACBS-3G5 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description - Tune up Procedure - Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Feiqiang Zeng Client’s name & title : manager Contact information / address: Shenzhen LangMei Technology Co., Ltd. / Block B2, 2nd Industrial Park, Fenghuang 3td Industrial Zone,Fuyong Town, Bao'an District, Shenzhen, China.

Differences Description We Shenzhen LangMei Technology Co., Ltd.state: Product： WCDMA Mobile phone Model Name： 3G5, 3G4 Trade Name: N/A FCC ID: 2ACBS-3G5 The electrical circuit design, layout, components used and internal wiring for above models are identical, only the model name is different. Signatory Date 2015-4-20 Signature Name: Feiqiang Zeng Title: Manager Company: Shenzhen LangMei Technology Co., Ltd. Address: Block B2, 2nd Industrial Park, Fenghuang 3td Industrial Zone,Fuyong Town, Bao'an District,Shenzhen,China.

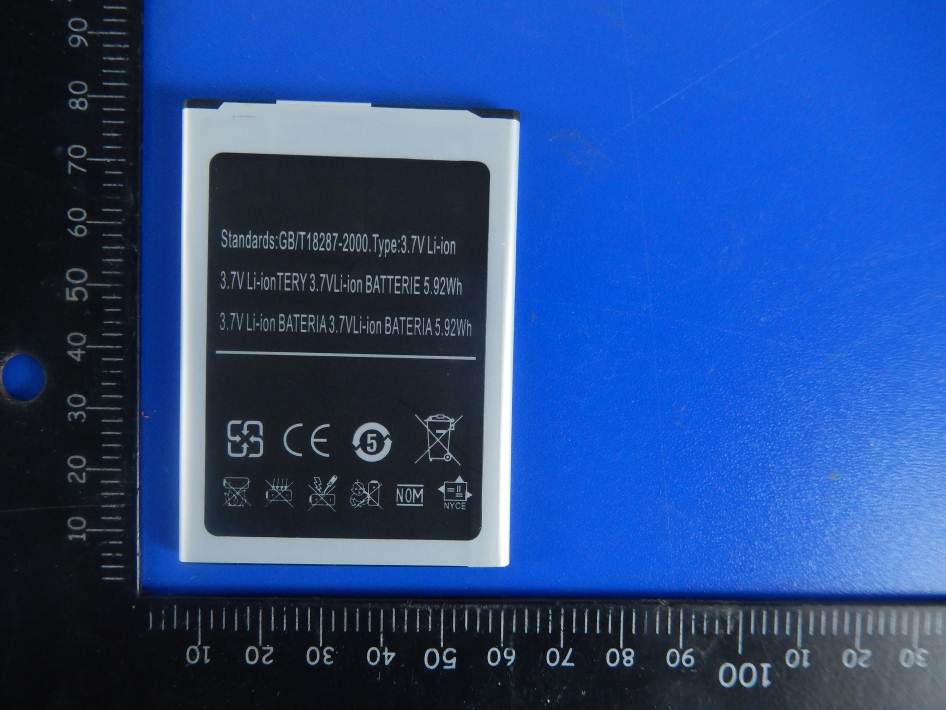

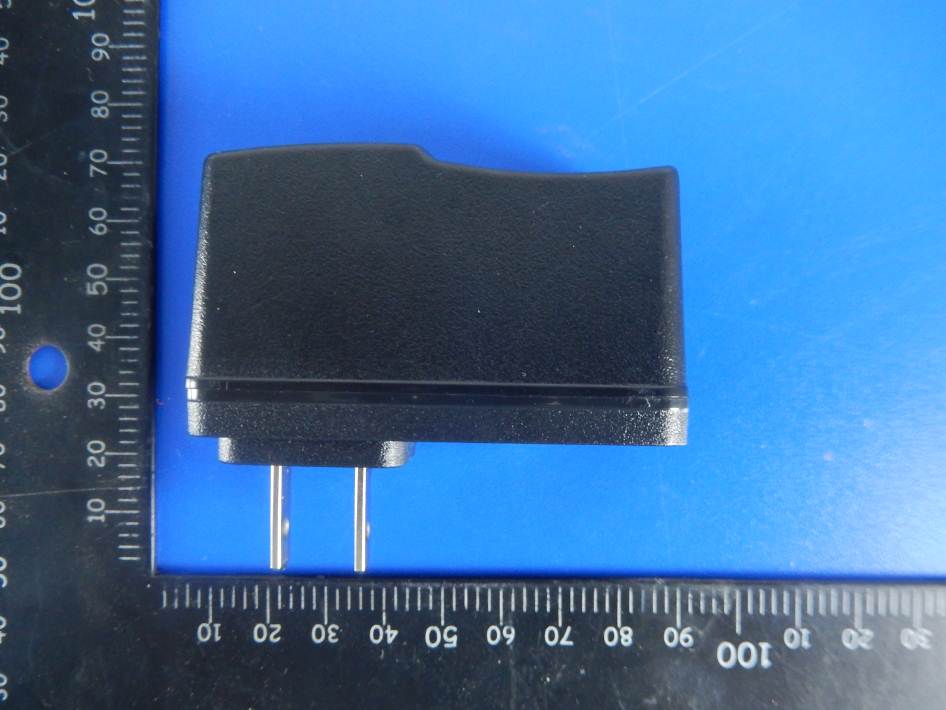

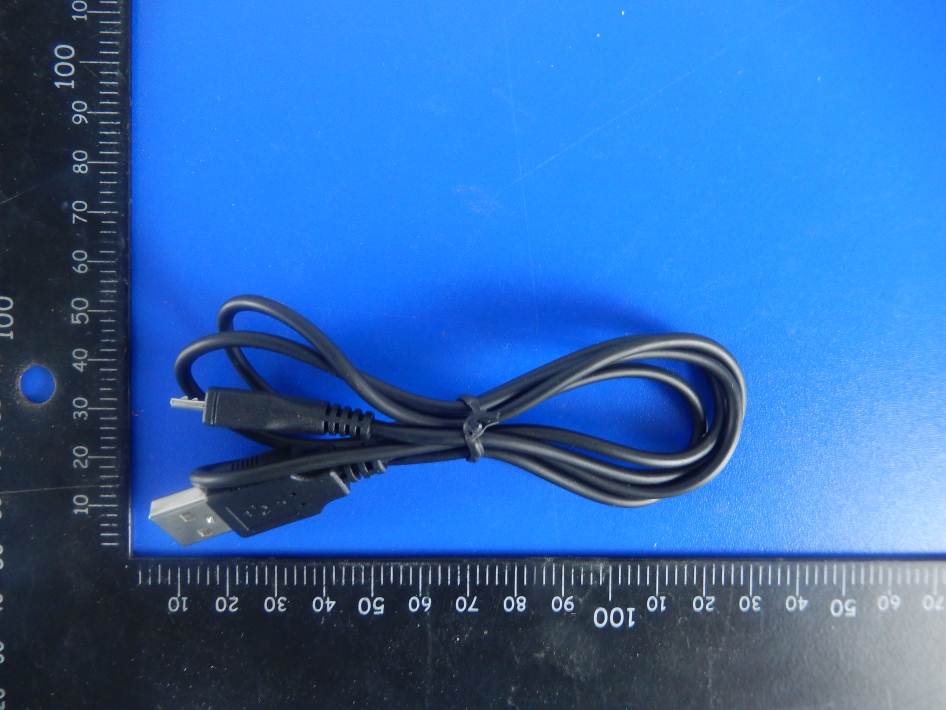

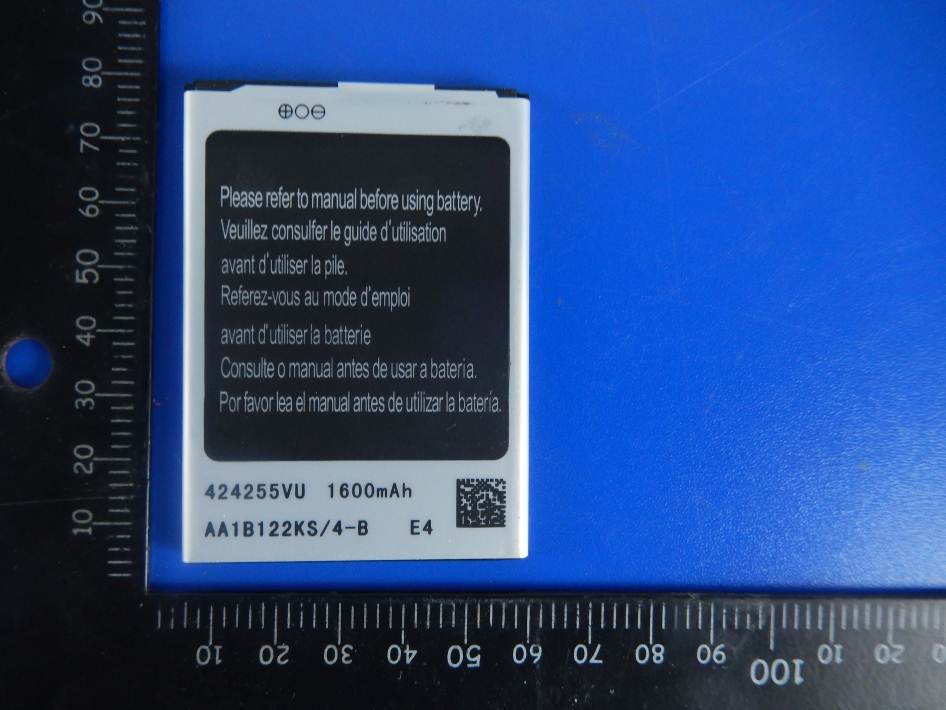

Report No: STS1504056 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Report No: STS1504056 Photo 3 Photo 4 Report No: STS1504056 Photo 5 Photo 6 Report No: STS1504056 Photo 7 Photo 8 Report No: STS1504056 Photo 9 Photo 10 Report No: STS1504056 Photo 11

Label WCDMA Mobile phone Model name: 3G5 Brand name: N/A FCC ID: 2ACBS-3G5 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. label

Report No: STS1504056 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 WCDMA/GSM Antenna BT/WIFI/GPS Antenna Report No: STS1504056 Photo 3 Photo 4 Report No: STS1504056 Photo 5 Photo 6 Report No: STS1504056 Photo 7

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. 1/F, Building B, Zhuoke Science Park, Chongqing Road, Fuyong, Baoan District, Shenzhen, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] FCC SAR TEST REPORT Report No: STS1504056H01 Issued for Shenzhen LangMei Technology Co.,ltd Block B2, 2nd Industrial Park, Fenghuang 3td Industrial Zone, Fuyong Town, Bao'an District, Shenzhen, China. Product Name: WCDMA Mobile phone Brand Name: N/A Model No.: 3G5 Series Model: 3G4 FCC ID: 2ACBS-3G5 Test Standard: ANSI/IEEE Std. C95.1 FCC 47 CFR Part 2 ( 2.1093) IEEE 1528: 2013 Max. SAR (1g): Head:0.201 W/kg Body:0.440 W/kg S T L A B S Page 2 of 100 Report No.: STS1504056H01 Test Report Certification Applicant’s name ................. : Shenzhen LangMei Technology Co.,ltd Address ................................. : Block B2,2nd Industrial Park,Fenghuang 3td Industrial Zone,Fuyong Town,Bao'an District,Shenzhen,China. Manufacture's Name ............ : Shenzhen LangMei Technology Co.,ltd Address ................................. : Block B2,2nd Industrial Park,Fenghuang 3td Industrial Zone,Fuyong Town,Bao'an District,Shenzhen,China. Product description Product name ........................ : WCDMA Mobile phone Trademark ........................... : N/A Model and/or type reference : 3G5 Serial Model： 3G4 Standards ............................. : ANSI/IEEE Std. C95.1-1992 FCC 47 CFR Part 2 ( 2.1093) IEEE 1528: 2013 The device was tested by Shenzhen STS Test Services Co., Ltd. in accordance with the measurement methods and procedures specified in KDB 865664 The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Date of Test ........................................... : Date (s) of performance of tests ............. : 17 Apr. 2015 Date of Issue .......................................... : 15 May. 2015 Test Result.............................................. : Pass Testing Engineer : (Allen Chen) Technical Manager : (John Zou) Authorized Signatory : (Bovey Yang) Page 3 of 100 Report No.: STS1504056H01 TABLE OF CONTENS 1. General Information 4 1.1 EUT Description 4 1.2 Test Environment 5 1.3 Test Facility 5 2. Test Standards And Limits 6 3. SAR Measurement System 7 3.1 Definition Of Specific Absorption Rate (SAR) 7 3.2 SAR System 7 3.2.1 Probe 8 3.2.2 Phantom 9 3.2.3 Device Holder 9 4. Tissue Simulating Liquids 10 4.1 Simulating Liquids Parameter Check 10 5. SAR System Validation 11 5.1 Validation System 11 5.2 Validation Result 11 6. SAR Evaluation Procedures 12 7. EUT Antenna Location Sketch 13 7.1 SAR TEST EXCLUSION CONSIDER TABLE 14 8. EUT Test Position 16 8.1 Define Two Imaginary Lines On The Handset 16 8.2 Hotspot mode exposure position condition 17 9. Uncertainty 18 9.1 Measurement Uncertainty 18 9.2 System validation Uncertainty 20 10. Conducted Power Measurement 22 11. EUT And Test Setup Photo 26 11.1 EUT Photo 26 11.2 Setup Photo 29 12. SAR Result Summary 35 12.1 Head SAR 35 12.2 Body SAR And Hotspot 36 13. Equipment List 39 Appendix A. System Validation Plots 40 Appendix B. SAR Test Plots 56 Appendix C. Probe Calibration And Dipole Calibration Report 100 Page 4 of 100 Report No.: STS1504056H01 1. General Information 1.1 EUT Description Equipment WCDMA Mobile phone Brand Name N/A Model No. 3G5 Serial Model 3G4 FCC ID 2ACBS-3G5 Model Difference Only different in model name Adapter Input: AC100-240V, 0.2A, 50/60 Hz Output: DC 5V, 2000mA Battery Rated Voltage: 3.7V Charge Limit: 4.2V Capacity: 1600mAh Hardware Version 98056_1_10 Software Version N/A Frequency Range GSM 850: 824.2 ~ 848.8 MHz PCS1900: 1850.2 ~ 1909.8 MHz WCDMA II: 1852.4~1907.6 MHz WCDMA V: 826.4~846.6 MHz WLAN 802.11 b/g/n(HT20):2412~2462 MHz WLAN 802.11 n(HT40):2422~2452 MHz Bluetooth：2402~2480MHz Transmit Power(MAX): GSM 850: 30.42dBm GSM 1900: 28.99dBm WCDMA II: 18.07dBm WCDMA V: 20.47dBm 802.11b: 13.90dBm 802.11g: 11.0dBm 802.11 n(HT20): 11.0dBm 802.11 n(HT40): 9.40dBm Bluetooth: 3.323dBm Max. Reported SAR(1g): Head: GSM 850: 0.079 W/kg GSM 1900: 0.046 W/kg WCDMA II: 0.099 W/kg WCDMA V: 0.101 W/kg WIFI: 0.201W/kg Body: GSM 850: 0.440W/kg GSM 1900: 0.381 W/kg WCDMA II: 0.382 W/kg WCDMA V: 0.183 W/kg WIFI: 0.158W/kg Operating Mode: GSM: GSM Voice, GPRS, EGPRS Class 12; WCDMA: RMC, HSDPA, HSUPA Release 6; WLAN: 802.11 b/g/n; Bluetooth: V4.0 + EDR (GFSK +π/4DQPSK+8DPSK) Antenna Specification: GSM/WCDMA: PIFA Antenna BT/WIFI: PIFA Antenna SIM Card Support dual-SIM, dual standby, the multiple SIM card with two lines cannot transmitting at the same time Hotspot Mode: Support DTM Mode: Not Support Page 5 of 100 Report No.: STS1504056H01 1.2 Test Environment Ambient conditions in the SAR laboratory: Items Required Actual Temperature (°C) 18-25 22~23 Humidity (%RH) 30-70 55~65 1.3 Test Facility Shenzhen STS Test Services Co., Ltd. Add. : 1/F, Building B, Zhuoke Science Park, Chongqing Road, Fuyong, Baoan District, Shenzhen, China CNAS Registration No.: L7649 FCC Registration No.: 842334;IC Registration No.: 12108A-1 Page 6 of 100 Report No.: STS1504056H01 2. Test Standards And Limits No. Identity Document Title 1 47 CFR Part 2 Frequency Allocations and Radio Treaty Matters; General Rules and Regulations 2 ANSI/IEEE Std. C95.1-1992 IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz 3 IEEE Std. 1528-2013 Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques 4 FCC KDB 447498 D01 v05r02 Mobile and Portable Device RF Exposure Procedures and Equipment Authorizatio…

Text truncated - open the document above for the full version.

Ref : ACR.262.1.14.SATU.A SHENZHEN STS TEST SERVICES CO., LTD. 1/F, BUILDING B, ZHUOKE SCIENCE PARK, CHONGQING ROAD FUYONG, BAO’ AN DISTRICT, SHENZHEN,CHINA SATIMO COMOSAR DOSIMETRIC E-FIELD PROBE SERIAL NO.: SN 17/14 EP221 Calibrated at SATIMO US 2105 Barrett Park Dr. - Kennesaw, GA 30144 09/01/2014 Summary: This document presents the method and results from an accredited COMOSAR Dosimetric E-Field Probe calibration performed in SATIMO USA using the CALISAR / CALIBAIR test bench, for use with a SATIMO COMOSAR system only. All calibration results are traceable to national metrology institutions. COMOSAR E-Field Probe Calibration Report COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.262.1.14.SATU.A Page: 2/9 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. Name Function Date Signature Prepared by : Jérôme LUC Product Manager 9/19/2014 Checked by : Jérôme LUC Product Manager 9/19/2014 Approved by : Kim RUTKOWSKI Quality Manager 9/19/2014 Customer Name Distribution : Shenzhen STS Test Services Co., Ltd. Issue Date Modifications A 9/19/2014 Initial release COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.262.1.14.SATU.A Page: 3/9 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. TABLE OF CONTENTS 1 Device Under Test ..................................................................................................... 4 2 Product Description ................................................................................................... 4 2.1 General Information _______________________________________________________ 4 3 Measurement Method ................................................................................................ 4 3.1 Linearity ________________________________________________________________ 4 3.2 Sensitivity _______________________________________________________________ 5 3.3 Lower Detection Limit _____________________________________________________ 5 3.4 Isotropy _________________________________________________________________ 5 3.5 Boundary Effect __________________________________________________________ 5 4 Measurement Uncertainty .......................................................................................... 5 5 Calibration Measurement Results .............................................................................. 6 5.1 Sensitivity in air __________________________________________________________ 6 5.2 Linearity ________________________________________________________________ 7 5.3 Sensitivity in liquid ________________________________________________________ 7 5.4 Isotropy _________________________________________________________________ 8 6 List of Equipment ...................................................................................................... 9 COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.262.1.14.SATU.A Page: 4/9 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. 1 DEVICE UNDER TEST Device Under Test Device Type COMOSAR DOSIMETRIC E FIELD PROBE Manufacturer Satimo Model SSE5 Serial Number SN 17/14 EP221 Product Condition (new / used) New Frequency Range of Probe 0.4 GHz- 6 GHz Resistance of Three Dipoles at Connector Dipole 1: R1=0.179 M Dipole 2: R2=0.167 M Dipole 3: R3=0.178 M A yearly calibration interval is recommended. 2 PRODUCT DESCRIPTION 2.1 GENERAL INFORMATION Satimo’s COMOSAR E field Probes are built in accordance to the IEEE 1528, OET 65 Bulletin C and CEI/IEC 62209 standards. Figure 1 – Satimo COMOSAR Dosimetric E field Dipole Probe Length 330 mm Length of Individual Dipoles 4.5 mm Maximum external diameter 8 mm Probe Tip External Diameter 5 mm Distance between dipoles / probe extremity 2.7 mm 3 MEASUREMENT METHOD The IEEE 1528, OET 65 Bulletin C, CENELEC EN50361 and CEI/IEC 62209 standards provide recommended practices for the probe calibrations, including the performance characteristics of interest and methods by which to assess their affect. All calibrations / measurements performed meet the fore mentioned standards. 3.1 LINEARITY The evaluation of the linearity was done in free space using the waveguide, performing a power sweep to cover the SAR range 0.01W/kg to 100W/kg. COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.262.1.14.SATU.A Page: 5/9 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. 3.2 SENSITIVITY The sensitivity factors of the three dipoles were determined using a two step calibration method (air and tissue simulating liquid) using waveguides as outlined in the standards. 3.3 LOWER DETECTION LIMIT The lower detection limit was assessed using the same measurement set up as used for the linearity measurement. The required lower detection limit is 10 mW/kg. 3.4 ISOTROPY The axial isotropy was evaluated by exposing the probe to a reference wave from a standard dipole with the dipole mounted under the flat phantom in the test configuration suggested for system validations and checks. The probe was rotated along its main axis from 0 - 360 degrees in 15 degree steps. The hemispherical isotropy is determined by inserting the probe in a thin plastic box filled with tissue-equivalent liquid,…

Text truncated - open the document above for the full version.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. 1/F, Building B, Zhuoke Science Park, Chongqing Road, Fuyong, Baoan District, Shenzhen, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No: STS1504056F03 Issued for Shenzhen LangMei Technology Co., Ltd. Block B2,2nd Industrial Park,Fenghuang 3td Industrial Zone,Fuyong Town,Bao'an District,Shenzhen,China. Product Name: WCDMA Mobile phone Brand Name: N/A Model No.: 3G5 Series Model: 3G4 FCC ID: 2ACBS-3G5 Test Standard: FCC Part 15.247 S T L A B S Page 2 of 61 Report No.: STS1504056F03 TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen LangMei Technology Co., Ltd. Address ................................. : Block B2,2nd Industrial Park,Fenghuang 3td Industrial Zone,Fuyong Town,Bao'an District,Shenzhen,China. Manufacture's Name ........... : Shenzhen LangMei Technology Co., Ltd. Address ................................. : Block B2,2nd Industrial Park,Fenghuang 3td Industrial Zone,Fuyong Town,Bao'an District,Shenzhen,China. Product description Product name ........................... : WCDMA Mobile phone Model and/or type reference : 3G5 Serial Model .............................. : 3G4 Standards ............................. : FCC Part15.247 Test procedure ............................... : ANSI C63.10-2013 This device described above has been tested by STS, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date (s) of performance of tests ............. : 20 April. 2015 ~27 April. 2015 Date of Issue ......................................... : 30 April. 2015 Test Result ............................................. : Pass Testing Engineer : (Jin Ming) Technical Manager : (Vita Li) Authorized Signatory : (Bovey Yang) Page 3 of 61 Report No.: STS1504056F03 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACILITY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF EUT 8 2.2 DESCRIPTION OF TEST MODES 10 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TEST 10 2.4 DESCRIPTION OF SUPPORT UNITS 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3. EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST RESULT 14 3.2 RADIATED EMISSION MEASUREMENT 16 3.2.1 RADIATED EMISSION LIMITS 16 3.2.2 TEST PROCEDURE 17 3.2.3 TEST SETUP 18 3.2.4 EUT OPERATING CONDITIONS 19 3.2.5 TEST RESULT 20 4. CONDUCTED SPURIOUS EMISSIONS 26 4.1 APPLIED PROCEDURES / LIMIT 26 4.2 TEST PROCEDURE 26 4.3 DEVIATION FROM STANDARD 26 4.4 TEST SETUP 26 4.5 EUT OPERATION CONDITIONS 26 4.6 TEST RESULTS 27 5. POWER SPECTRAL DENSITY TEST 39 5.1 APPLIED PROCEDURES / LIMIT 39 5.2 TEST PROCEDURE 39 5.3 DEVIATION FROM STANDARD 39 5.4 TEST SETUP 39 5.5 EUT OPERATION CONDITIONS 39 5.6 TEST RESULTS 40 6. BANDWIDTH TEST 48 Page 4 of 61 Report No.: STS1504056F03 Table of Contents Page 6.1 APPLIED PROCEDURES / LIMIT 48 6.2 TEST PROCEDURE 48 6.3 DEVIATION FROM STANDARD 48 6.4 TEST SETUP 48 6.5 EUT OPERATION CONDITIONS 48 6.6 TEST RESULTS 49 7. PEAK OUTPUT POWER TEST 57 7.1 APPLIED PROCEDURES / LIMIT 57 7.2 TEST PROCEDURE 57 7.3 DEVIATION FROM STANDARD 57 7.4 TEST SETUP 57 7.5 EUT OPERATION CONDITIONS 57 7.6 TEST RESULTS 58 8. ANTENNA REQUIREMENT 59 8.1 STANDARD REQUIREMENT 59 8.2 EUT ANTENNA 59 APPENDIX - PHOTOS OF TEST SETUP 60 Page 5 of 61 Report No.: STS1504056F03 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 30 April. 2015 STS1504056F03 ALL Initial Issue Page 6 of 61 Report No.: STS1504056F03 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) (reference KDB 558074 d05 v02. /9.1.2) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Conducted Spurious Emission PASS 15.247 (e) Power Spectral Density PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 7 of 61 Report No.: STS1504056F03 1.1 TEST FACILITY Shenzhen STS Test Services Co., Ltd. Add. : 1/F, Building B, Zhuoke Science Park, Chongqing Road, Fuyong, Baoan District, Shenzhen, China. CNAS Registration No.: L7649; FCC Registration No.: 842334; IC Registration No.: 12108A-1 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission (9KHz-150KHz) ±2.88dB 2 Conducted Emission (150KHz-30MHz) ±2.67dB 3 RF power,conducted ±0.70dB 4 Spurious emissions,conducted ±1.19dB 5 All emissions,radiated(<1G) 30MHz-200MHz ±2.83dB 6 All emissions,radiated(<1G) 200MHz-1000MHz ±2.94dB 7 All emissions,radiated(>1G) ±3.03dB 8 Temperature ±0.5°C 9 Humidity ±2% Page 8 of 61 Report No.: STS1504056F03 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment WCDMA Mobile phone Trade Name N/A Model Name 3G5 Serial Model 3G4 Model Difference They are different only for model name. Product Description The EUT is a WCDMA Mobile phone Operation Frequency: 802.11b/g/n 20: 2412~2462 MHz 802.11n 40: 2422~2452MHz Modulation Type: CCK/OFDM/DBPSK/DAPSK Bit Rate of Transmitter 802.11b:11/5.5/2/1 Mbps 8…

Text truncated - open the document above for the full version.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. 1/F A, Building B, Zhuoke Science Park, Chongqing Road, Fuyong, Baoan District, Shenzhen, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No: STS1504056F04 Issued for Shenzhen LangMei Technology Co., Ltd. Block B2,2nd Industrial Park,Fenghuang 3td Industrial Zone,Fuyong Town,Bao'an District,Shenzhen,China Product Name: WCDMA Mobile phone Brand Name: N/A Model No.: 3G5 Series Model: 3G4 FCC ID: 2ACBS-3G5 Test Standard: FCC Part 15.247 S T L A B S Page 2 of 39 Report No.: STS1504056F04 TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen LangMei Technology Co., Ltd. Address ................................. : Block B2,2nd Industrial Park,Fenghuang 3td Industrial Zone,Fuyong Town,Bao'an District,Shenzhen,China Manufacture's Name ............ : Shenzhen LangMei Technology Co., Ltd. Address ................................. : Block B2,2nd Industrial Park,Fenghuang 3td Industrial Zone,Fuyong Town,Bao'an District,Shenzhen,China Product description Product name ............................ : WCDMA Mobile phone Model and/or type reference : 3G5 Serial Model .............................. : 3G4 Standards ............................. : FCC Part15.247 Test procedure ............................... : ANSI C63.10: 2013 This device described above has been tested by STS, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, thidocument may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date (s) of performance of tests ............. : 20 April. 2015 ~27 April. 2015 Date of Issue .......................................... : 30 April. 2015 Test Result .............................................. : Pass Testing Engineer : (Jin Ming) Technical Manager : (Vita Li) Authorized Signatory : (Bovey Yang) Page 3 of 39 Report No.: STS1504056F04 Table of Contents Page 1. SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2. GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 8 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 10 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 11 3. EMC EMISSION TEST 12 3.1 CONDUCTED EMISSION MEASUREMENT 12 3.2 TEST PROCEDURE 13 3.3 TEST SETUP 13 3.4 EUT OPERATING CONDITIONS 13 3.5 TEST RESULTS 14 4. RADIATED EMISSION MEASUREMENT 16 4.1 RADIATED EMISSION LIMITS 16 4.2 TEST PROCEDURE 17 4.3 TEST SETUP 18 4.4 EUT OPERATING CONDITIONS 19 4.5 TEST RESULTS 19 4.6 TEST RESULTS (RESTRICTED BANDS REQUIREMENTS) 23 5. CONDUCTED SPURIOUS EMISSIONS 24 5.1 REQUIREMENT 24 5.2 TEST PROCEDURE 24 5.3 TEST SETUP 24 5.4 EUT OPERATION CONDITIONS 24 5.5 TEST RESULTS 25 6. POWER SPECTRAL DENSITY TEST 28 6.1 APPLIED PROCEDURES / LIMIT 28 6.2 TEST PROCEDURE 28 6.3 TEST SETUP 28 Page 4 of 39 Report No.: STS1504056F04 Table of Contents Page 6.4 EUT OPERATION CONDITIONS 28 6.5 TEST RESULTS 29 7. BANDWIDTH TEST 31 7.1 APPLIED PROCEDURES / LIMIT 31 7.2 TEST PROCEDURE 31 7.3 TEST SETUP 31 7.4 EUT OPERATION CONDITIONS 31 7.5 TEST RESULTS 32 8. PEAK OUTPUT POWER TEST 34 8.1 APPLIED PROCEDURES / LIMIT 34 8.2 TEST PROCEDURE 34 8.3 TEST SETUP 34 8.4 EUT OPERATION CONDITIONS 34 8.5 TEST RESULTS 35 9. ANTENNA REQUIREMENT 37 9.1 STANDARD REQUIREMENT 37 9.2 EUT ANTENNA 37 10. EUT TEST PHOTO 38 Page 5 of 39 Report No.: STS1504056F04 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247 …

Text truncated - open the document above for the full version.
