2ACC5-GT10TITAN 10

TITAN 10 GT1000 2D User Manual 使用手冊 Version 1.0 Copyright Notice Copyright © 2015 Amobile Intelligent Corp. All Rights Reserved. This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer. Disclaimer The information in this document is subject to change without prior notice in order to improve the reliability, design and function. It does not represent a commitment on the part of the manufacturer. Under no circumstances will the manufacturer be liable for any direct, indirect, special, incidental, or consequential damages arising from the use or inability to use the product or documentation, even if advised of the possibility of such damages. III Federal Communications Commission (FCC) Statement 15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 15.105(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: 1) this device may not cause harmful interference and 2) this device must accept any interference received, including interference that may cause undesired operation of the device. FCC RF Radiation Exposure Statement: Use of other accessories may not ensure compliance with FCC RF exposure guidelines. IV NCC警語： 根據NCC低功率電波輻射性電機管理辦法 規定: 第十二條 經型式認證 合格之低功率射頻電機，非經許可，公司、商號或使用者均 不得擅自變 更頻率、加大功率或變更原設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經 發現有干 擾現象時，應立即停用，並改善至無干擾時方得繼續使用。 前項合法通 信，指依電信法規定作業之無線電通信。 低功率射頻電機須 忍受合法通信或工業、科學及醫療用電波輻射性電機 設備之干擾。 「減少電磁波影響，請妥適使用」。 「SAR標準值2.0W/Kg；SAR實測值為：1.470W/Kg」。 「EMC品質符合CNS13438限制值，充電線組限用原廠含鐵粉芯、1米 長之隔離線_USB Cable」。 詳細功能說明書請參閱磐旭智能網站 amobile-solutions.com 1 Open Your Box 10.1” Rugged Android™ Handheld Device with Octa-core Processor Rechargeable Li-ion battery pack (Pre-installed) Universal power adapter Earphone User Manual 1 Power key * Press-and-hold to power on/off the device. * Press to turn on/off the display. 9HDMI jack with rubber cover 10USB connector with rubber cover 11Rear camera 2Volume rocker12Camera flash 3Front camera13 Barcode scanner 4Light sensor14Dual-SIM & microSD card slot (inside) 5Barcode scanner trigger button15Speaker 6Microphone16Battery chamber (inside) 7Touch screen 8Headset jack with rubber cover 16 3 6 5 7 8 15 15 14 4 9 10 11 12 13 2 1 2 Step 4: Locate the double-stacked SIM card slots and the microSD card slot. The above graphics illustrate the correct card orientation. To install the SIM card(s) or the microSD card, orient the card as indicated, and fully insert the card into the slot until it locks into place. Step 5: Restore the battery and then use a coin or flat-head screwdriver to secure the back cover with the six screws. Install SIM & microSD Cards Step 2: Insert a small flat-head screwdriver into the notch on the side of the cover and gently pry up the cover. Step 3: Use the clear plastic pull tab on the battery to lift the battery out of the battery chamber. Battery cover notch Plastic pull tab Dual SIM card slots microSD card slot Step 1: Place the device on a flat surface, with the rear side facing up. Loosen the six retaining screws on the back cover with a coin of flat-head screwdriver. 3 Charging the Battery Step 1: Connect the USB end of the power adapter to the USB port on the device.. Step 2: Connect the power adapter to a power outlet. Warning: Use only the power adapter that comes with your device. Using a different power adapter may damage your device and may result in poor performance. It may also invalidate warranty applying to the device. Step 3: When the battery is fully charged, unplug the USB cable from the device When the charging is in process, a battery indicator will appear in the status bar showing the charging status. To view the charge percentage, swipe down the Status Bar and you will see the charging percentage. 4 TITAN 10概覽 包裝內容: TITAN 10 強固式物連網裝置 抽換式鋰電池 (己安裝) 充電器 耳機 使用手冊 1 電源紐 * 長按關閉/開啟裝置 * 按一下關閉/開啟螢幕 9 HDMI插孔 (保護蓋內 10 USB插孔 (保護蓋內 11 後置相機 2 音量鍵 12 LED 閃光燈 3 前置相機 13 條碼掃描器 4 光度感測器 14 雙SIM 卡& microSD卡插槽 (保護蓋內) 5 條碼掃描鍵 15 喇叭 6 麥克風 16 電池 (背蓋內) 7 觸控螢幕 8 耳機插孔(含保護蓋） 16 3 6 5 7 8 15 15 14 4 9 10 11 12 13 2 1 5 步驟 4: 找到雙SIM卡插槽及microSD卡插槽，依照 圖示所指示方向將SIM卡/microSD卡插入插槽，插 卡時請確定將卡插到底。. 步驟 5: 將電池安裝回原位，蓋上背蓋，然後利用硬 幣或 一字螺絲起子將背蓋上的六顆螺絲鎖緊。 安裝 SIM & microSD 卡 步驟 1: 將產品置於平坦桌面上，背面朝上， 利用硬幣或一字螺絲起子將背蓋上的 六顆螺絲鬆開。 步驟 2: 利用一字螺絲起子插入背蓋側邊的溝 槽，將背蓋微微翹開，然後取下背蓋。 步驟 3: 利用電池的透明塑膠片將電池取出。 電池蓋 溝槽 透明塑膠片 雙SIM卡插槽 microSD 卡插槽 6 為裝置充電 步驟 1: 將充電器的USB端插 入裝置的USB插孔。 步驟 2: 將充電器插入電源 插座。 警告: 請使用裝置隨附的充電器為裝置進行充電，使用其它充 電器可能造成機器毀損，或是影響機器效能，也會造成產品保 固無效。 步驟 3: 裝置完成充電後，請將USB線拔除裝置。 充電進行時，您可以向下滑動狀態 列，即可查看充電圖示所顯示的目 前充電進度。 7 產品規格 產品額定電壓 / Rating Voltage: D.C. 5V 產品額定電流 / Rating Current: 2.0A 操作溫度範圍 / Operate temp.: -10~50°C 請注意以下要求!! 1.請更換相同型號之電池以免產生爆炸的風…

Text truncated - open the document above for the full version.

AMobile Intelligent Corp. 18F-1, No.150, Jian 1st Rd., Zhong He dist., New Taipei City,235 Taiwan October 30, 2015 Dear Sir or Madam, We, AMobile Intelligent Corp. hereby authorize Compliance Certification Services Inc / David. Wang to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 2016/04/28 Your Sincerely, _____________________________________ Signature Name/Title: Ken Tsai/ Project Manager Contact information / Address 18F-1, No.150, Jian 1st Rd., Zhong He dist.,New Taipei City, 235 Taiwan TEL: 886-2-8226-8558#603 FAX: +886-2-8226-8568 Email: [email protected]

AMobile Intelligent Corp. 18F-1, No.150, Jian 1st Rd., Zhong He dist., New Taipei City,235 Taiwan Date：October 30, 2015 BABT TCB Confidentiality Request FCC ID: 2ACC5-GT10 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, AMobile Intelligent Corp. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Common exhibits for which confidentiality is requested are: Schematics Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Your Sincerely, Name/Title: Ken Tsai/ Project Manager Contact information / Address 18F-1, No.150, Jian 1st Rd., Zhong He dist.,New Taipei City, 235 Taiwan TEL: 886-2-8226-8558#603 FAX: +886-2-8226-8568 Email: [email protected]

Date：October 30, 2015 AMobile Intelligent Corp. 18F-1, No.150, Jian 1st Rd., Zhong He dist., New Taipei City,235 Taiwan Subject:DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: 2ACC5-GT10, would like to declare that the composite Portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Brand Name & Model Name of the specified radio equipment: AMobile / GT1000 2D FCC ID: 2ACC5-GT10 Product Name: TITAN 10 Regards, Your Sincerely, Name/Title: Ken Tsai/ Project Manager Contact information / Address 18F-1, No.150, Jian 1st Rd., Zhong He dist.,New Taipei City, 235 Taiwan TEL: 886-2-8226-8558#603 FAX: +886-2-8226-8568 Email: [email protected]

Company Name Date: 2015/11/3 To whom it may concern: According to the internal photos, some modifications are made and we, AMobile Intelligent Corp declared that it will be implemented to the production. Sincerely Yours, AMobile Intelligent Corp Name/Title: Ken Tsai/ Project Manager Contact information / Address 18F-1, No.150, Jian 1st Rd., Zhong He dist.,New Taipei City, 235 Taiwan TEL: 886-2-8226-8558#603 FAX: +886-2-8226-8568 Email: [email protected]

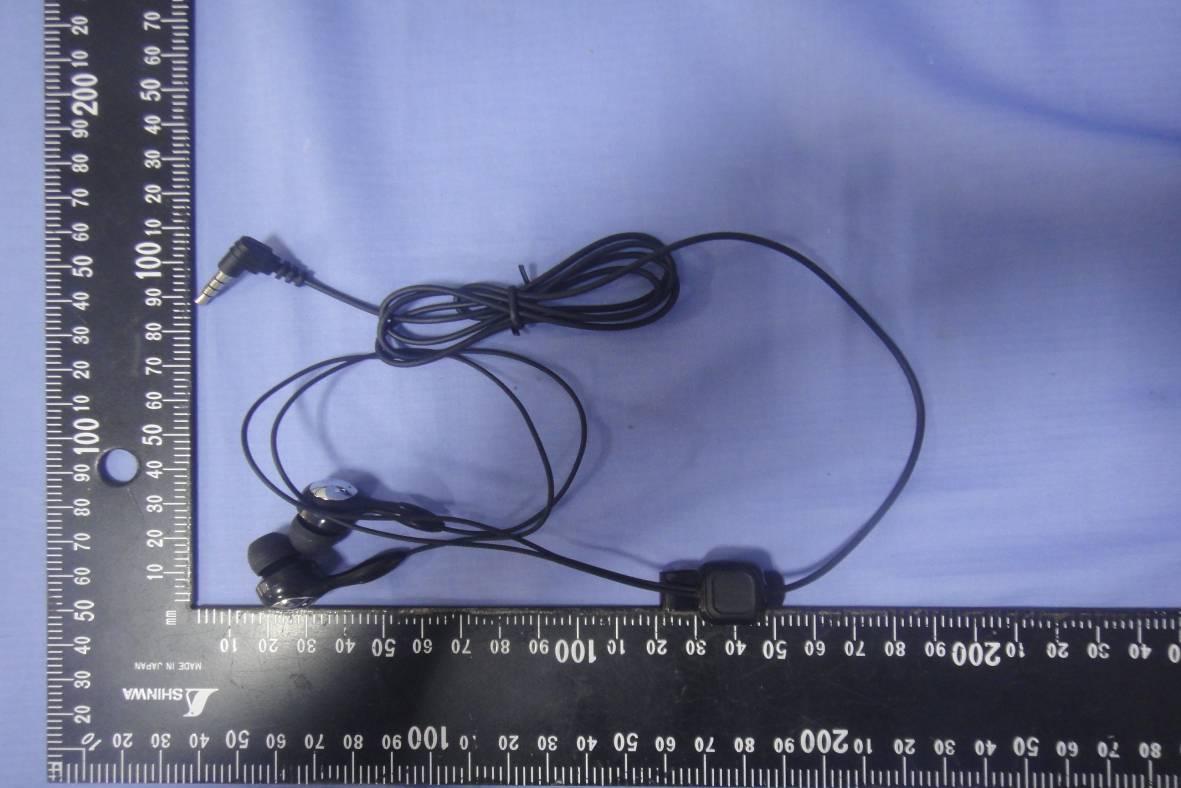

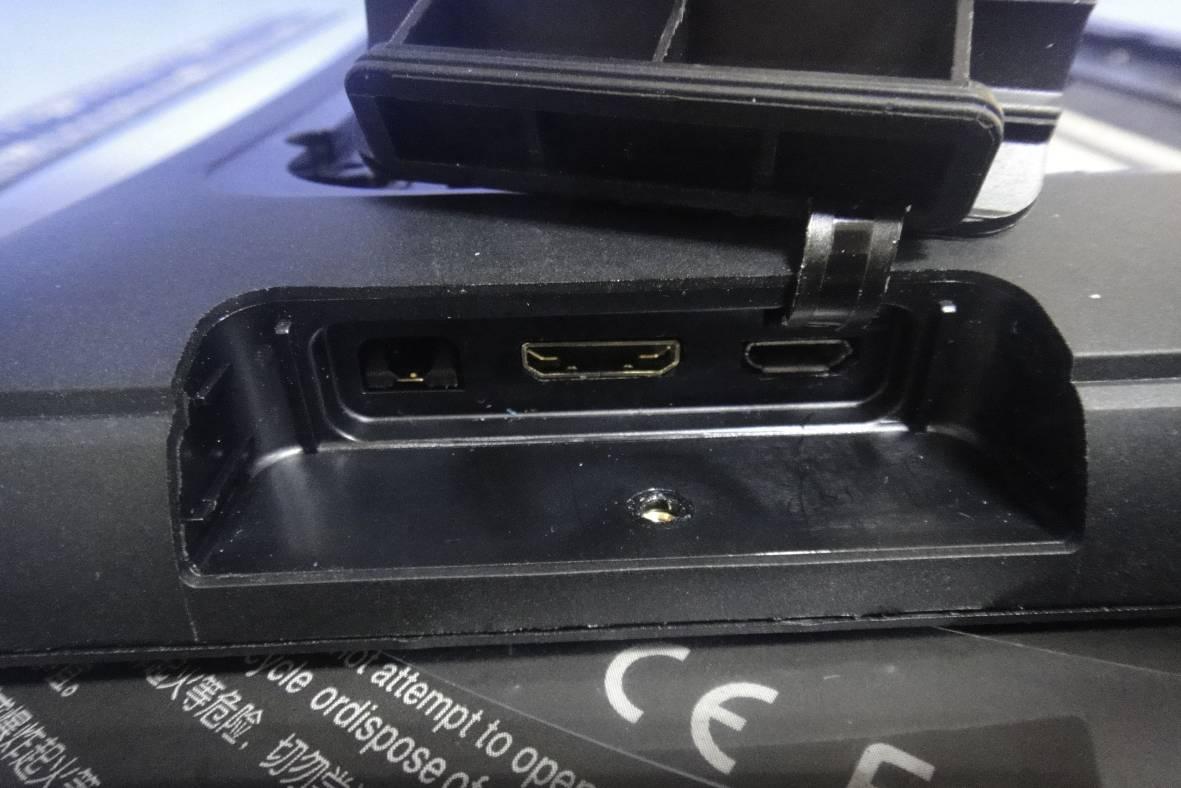

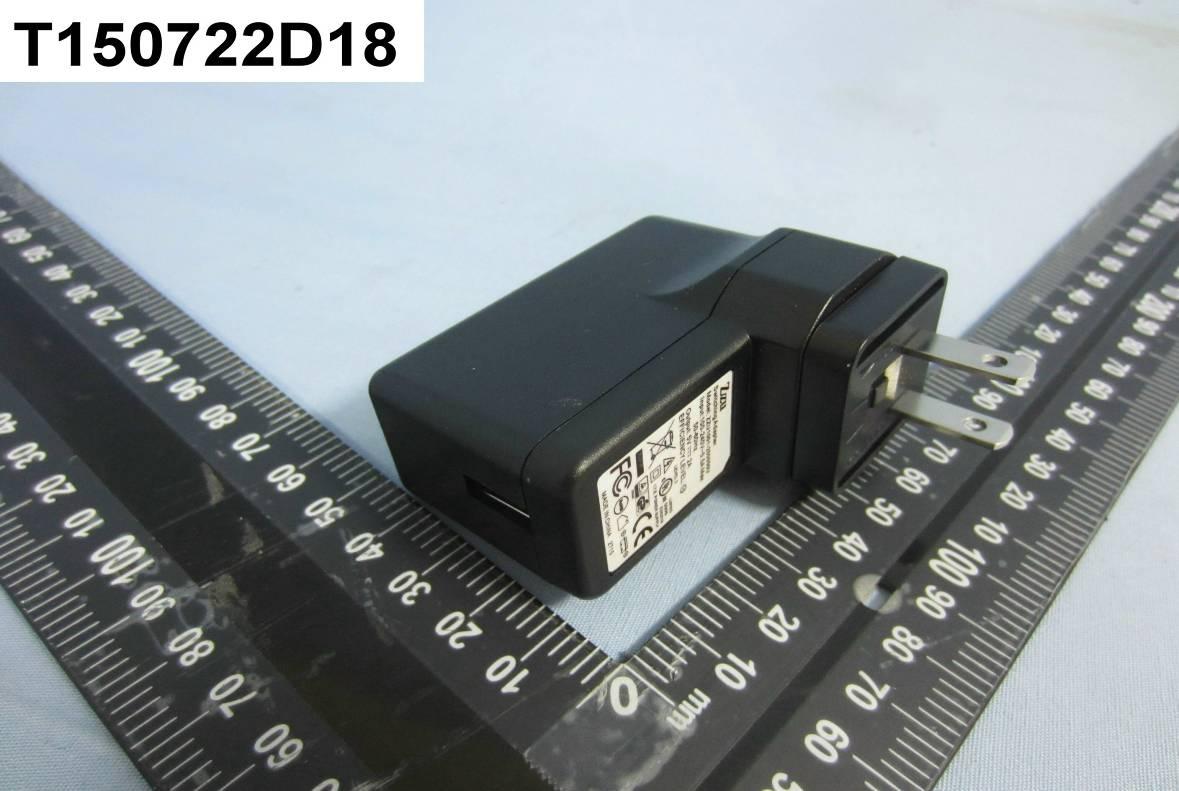

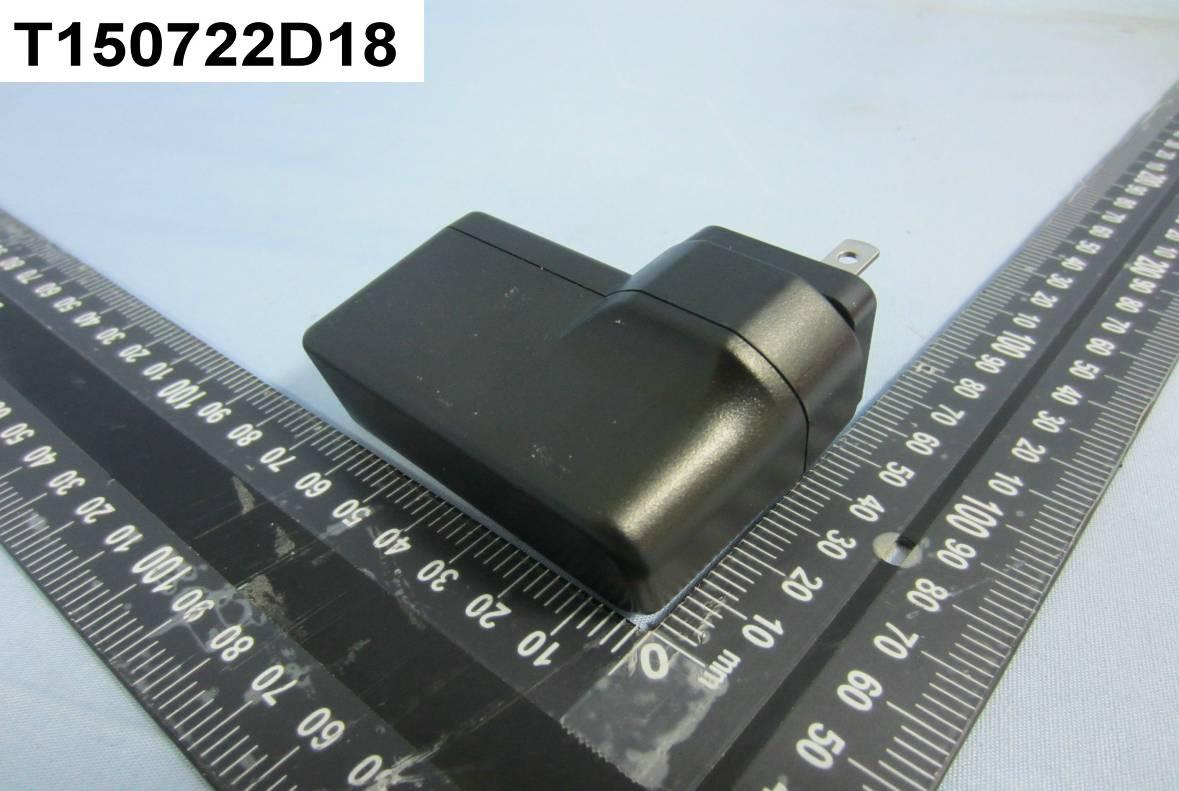

Compliance Certification Services Inc. Report No.: T150722D18 A1 - 1 / 17 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T150722D18 A1 - 2 Rev. 00 Compliance Certification Services Inc. Report No.: T150722D18 A1 - 3 Rev. 00 Compliance Certification Services Inc. Report No.: T150722D18 A1 - 4 Rev. 00 Compliance Certification Services Inc. Report No.: T150722D18 A1 - 5 Rev. 00 Compliance Certification Services Inc. Report No.: T150722D18 A1 - 6 Rev. 00 Adapter Compliance Certification Services Inc. Report No.: T150722D18 A1 - 7 Rev. 00

Compliance Certification Services Inc. Report No.: T150722D18 A1 - 8 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T150722D18 A1 - 9 Rev. 00 Compliance Certification Services Inc. Report No.: T150722D18 A1 - 10 Rev. 00 Compliance Certification Services Inc. Report No.: T150722D18 A1 - 11 Rev. 00 2G & 3G Module NFC Module Compliance Certification Services Inc. Report No.: T150722D18 A1 - 12 Rev. 00 2.4G Module Compliance Certification Services Inc. Report No.: T150722D18 A1 - 13 Rev. 00 2G & 3G Antenna 2.4G Antenna Compliance Certification Services Inc. Report No.: T150722D18 A1 - 14 Rev. 00 NFC Antenna NFC Antenna Compliance Certification Services Inc. Report No.: T150722D18 A1 - 15 Rev. 00 NFC Antenna NFC Antenna Compliance Certification Services Inc. Report No.: T150722D18 A1 - 16 Rev. 00 NFC Antenna Compliance Certification Services Inc. Report No.: T150722D18 A1 - 17 Rev. 00 Battery

Compliance Certification Services Inc. FCC ID: 2ACC5-GT10 Report No: T150722D18-SF Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 55 Rev. 00 ANSI/IEEE Std. C95.1-2005 in accordance with the requirements of FCC Report and Order: ET Docket 93-62 FCC TEST REPORT For TITAN 10 Trade Name: AMobile Model: GT1000 2D Issued to AMobile Intelligent Corp. 18F,-1, No.150, Jian 1st Rd., Zhong He Dist., New Taipei City 235, Taiwan Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: 2015/09/17 Compliance Certification Services Inc. FCC ID: 2ACC5-GT10 Report No: T150722D18-SF Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2015/09/17 Initial Issue ALL Peter Chen Compliance Certification Services Inc. FCC ID: 2ACC5-GT10 Report No: T150722D18-SF Page 3 Rev. 00 Table of Contents 1 Certificate of Compliance (SAR Evaluation) ............................................................... 5 2 Description of Equipment Under Test ...................................................................... 6 2.1 Summary of Highest SAR Values .......................................................................................................... 7 3 Requirements for Compliance Testing Defined .......................................................... 8 3.1 Requirements for Compliance Testing Defined by the FCC ................................................................. 8 4 Dosimetric Assessment System ................................................................................ 9 4.1 Measurement System Diagram ......................................................................................................... 10 4.2 System Components .......................................................................................................................... 11 5 Evaluation Procedures ........................................................................................... 14 6 SAR Measurement Procedures ............................................................................... 16 6.1 Normal SAR Test Procedure ............................................................................................................... 16 7 Measurement Uncertainty ..................................................................................... 18 8 Device Under Test ................................................................................................. 19 8.1 Wireless Technologies ....................................................................................................................... 19 8.2 Maximum Tune-up Power ................................................................................................................. 20 8.3 Simultaneous Transmission ............................................................................................................... 21 9 Summary of SAR Test Exclusion Configurations ....................................................... 22 9.1 Standalone SAR Test Exclusion Calculations ...................................................................................... 22 9.1.1 SAR Exclusion Calculations for Wi-Fi Antenna < 50mm from the User ............................................. 23 9.1.2 SAR Exclusion Calculations for Wi-Fi Antenna > 50mm from the User ............................................. 24 9.1.3 SAR Required Test Configuration ....................................................................................................... 25 10 Exposure Limit ...................................................................................................... 26 11 Tissue Dielectric Properties .................................................................................... 27 11.1 Test Liquid Confirmation ................................................................................................................... 27 11.2 Typical Composition of Ingredients for Liquid Tissue Phantoms ....................................................... 28 11.3 Simulating Liquids Parameter Check Results ..................................................................................... 29 12 System Performance Check .................................................................................... 30 12.1 System Performance Check Results ................................................................................................... 31 13 RF Output Power Measurement ............................................................................. 32 13.1 GPRS 850 ............................................................................................................................................ 33 13.2 GPRS 1900 .......................................................................................................................................... 34 13.3 WCDMA Band II ................................................................................................................................. 35 13.4 WCDMA Band V ................................................................................................................................. 39 13.5 Wi-Fi (2.4GHz Band) ........................................................................................................................... 43 13.6 Bluetooth ........................................................................................................................................... 44 Compliance Certification Services Inc. FCC ID: 2ACC5-GT10 Report No: T150722D18-SF Page 4 Rev. 00 14 SAR Measurements Results ....................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 8/7/2015 20150807_System Check_Dipole2450 sn728 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 2450 MHz; σ = 1.88 mho/m; ε r = 52.3; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn917; Calibrated: 12/29/2014 - Probe: EX3DV4 - SN3554; ConvF(6.15, 6.15, 6.15); Calibrated: 9/24/2014 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN: 1052 Body/Pin=100mW, d=10mm/Area Scan (8x9x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 5.73 mW/g Body/Pin=100mW, d=10mm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 63.4 V/m; Power Drift = 0.038 dB Peak SAR (extrapolated) = 10.3 W/kg SAR(1 g) = 5.12 mW/g; SAR(10 g) = 2.44 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 7.60 mW/g 0 dB = 7.60mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 8/7/2015 20150807_System Check_Dipole2450 sn728 Frequency: 2450 MHz; Duty Cycle: 1:1 Body/Pin=100mW, d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 5.71 mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 8/19/2015 20150819_System Check_Dipole835V2 SN4d015 Frequency: 835 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 835.3 MHz; σ = 0.963 mho/m; ε r = 53.6; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn558; Calibrated: 7/16/2015 - Probe: EX3DV4 - SN3554; ConvF(7.55, 7.55, 7.55); Calibrated: 9/24/2014 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN: 1052 Body/Pin=100mW, d=15mm/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.16 mW/g Body/Pin=100mW, d=15mm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 42.9 V/m; Power Drift = -0.073 dB Peak SAR (extrapolated) = 1.40 W/kg SAR(1 g) = 0.955 mW/g; SAR(10 g) = 0.633 mW/g Maximum value of SAR (measured) = 1.20 mW/g 0 dB = 1.20mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 8/19/2015 20150819_System Check_Dipole835V2 SN4d015 Frequency: 835 MHz; Duty Cycle: 1:1 Body/Pin=100mW, d=15mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 1.14 mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 8/19/2015 20150819_System Check_Dipole1900V2 SN5d056 Frequency: 1900 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 1900 MHz; σ = 1.52 mho/m; ε r = 52; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn558; Calibrated: 7/16/2015 - Probe: EX3DV4 - SN3554; ConvF(6.54, 6.54, 6.54); Calibrated: 9/24/2014 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN: 1052 Body/Pin=100mW, d=10mm/Area Scan (8x9x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 5.27 mW/g Body/Pin=100mW, d=10mm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 57.7 V/m; Power Drift = -0.052 dB Peak SAR (extrapolated) = 7.09 W/kg SAR(1 g) = 3.96 mW/g; SAR(10 g) = 2.08 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 5.66 mW/g 0 dB = 5.66mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 8/19/2015 20150819_System Check_Dipole1900V2 SN5d056 Frequency: 1900 MHz; Duty Cycle: 1:1 Body/Pin=100mW, d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 4.79 mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 9/8/2015 20150908_System Check_Dipole1900V2 SN5d056 Frequency: 1900 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 1900 MHz; σ = 1.54 mho/m; ε r = 54.2; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn558; Calibrated: 7/16/2015 - Probe: EX3DV4 - SN3554; ConvF(6.54, 6.54, 6.54); Calibrated: 9/24/2014 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN: 1052 Body/Pin=100mW, d=10mm/Area Scan (8x9x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 6.83 mW/g Body/Pin=100mW, d=10mm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 76.5 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 7.26 W/kg SAR(1 g) = 4.02 mW/g; SAR(10 g) = 2.17 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 5.76 mW/g 0 dB = 5.76mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 9/8/2015 20150908_System Check_Dipole1900V2 SN5d056 Frequency: 1900 MHz; Duty Cycle: 1:1 Body/Pin=100mW, d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, d…

Text truncated - open the document above for the full version.

Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 8/7/2015 2.4GHz Band Frequency: 2462 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2462.2 MHz; σ = 1.89 mho/m; ε r = 52.2; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn917; Calibrated: 12/29/2014 - Probe: EX3DV4 - SN3554; ConvF(6.15, 6.15, 6.15); Calibrated: 9/24/2014 - Sensor-Surface: 2mm (Mechanical Surface Detection (Locations From Previous Scan Used))Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN: 1052 Edge 1/Main Ant/802.11b/Ch11_Repeat/Area Scan (7x7x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 1.48 mW/g Edge 1/Main Ant/802.11b/Ch11_Repeat/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 1.37 V/m; Power Drift = -0.144 dB Peak SAR (extrapolated) = 2.17 W/kg SAR(1 g) = 0.984 mW/g; SAR(10 g) = 0.407 mW/g Maximum value of SAR (measured) = 1.54 mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 8/7/2015 2.4GHz Band Frequency: 2462 MHz; Duty Cycle: 1:1 Edge 1/Main Ant/802.11b/Ch11_Repeat/Z Scan (1x1x6): Measurement grid: dx=20mm, dy=20mm, dz=20mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.54 mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 8/19/2015 GPRS 850 Frequency: 848.8 MHz; Duty Cycle: 1:2; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.973 mho/m; ε r = 53.4; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn558; Calibrated: 7/16/2015 - Probe: EX3DV4 - SN3554; ConvF(7.55, 7.55, 7.55); Calibrated: 9/24/2014 - Sensor-Surface: 2mm (Mechanical Surface Detection (Locations From Previous Scan Used))Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN: 1052 Rear/GPRS850 Band_4Slot/Ch251_Repeat/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.34 mW/g Rear/GPRS850 Band_4Slot/Ch251_Repeat/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.21 V/m; Power Drift = -0.108 dB Peak SAR (extrapolated) = 1.86 W/kg SAR(1 g) = 1.07 mW/g; SAR(10 g) = 0.607 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.48 mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 8/19/2015 GPRS 850 Frequency: 848.8 MHz; Duty Cycle: 1:2 Rear/GPRS850 Band_4Slot/Ch251_Repeat/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.026 mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 8/19/2015 1900MHz Band Frequency: 1850.2 MHz; Duty Cycle: 1:2; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.47 mho/m; ε r = 52.2; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn558; Calibrated: 7/16/2015 - Probe: EX3DV4 - SN3554; ConvF(6.54, 6.54, 6.54); Calibrated: 9/24/2014 - Sensor-Surface: 2mm (Mechanical Surface Detection (Locations From Previous Scan Used))Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN: 1052 Edge 1/GPRS1900-4Slot/Ch512/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.729 mW/g Edge 1/GPRS1900-4Slot/Ch512/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.1 V/m; Power Drift = -0.041 dB Peak SAR (extrapolated) = 1.91 W/kg SAR(1 g) = 0.919 mW/g; SAR(10 g) = 0.382 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.48 mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 8/19/2015 1900MHz Band Frequency: 1850.2 MHz; Duty Cycle: 1:2 Edge 1/GPRS1900-4Slot/Ch512/Z Scan (1x1x6): Measurement grid: dx=20mm, dy=20mm, dz=20mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.242 mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 8/19/2015 WCDMA Band II Frequency: 1880 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 1880 MHz; σ = 1.52 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn558; Calibrated: 7/16/2015 - Probe: EX3DV4 - SN3554; ConvF(6.54, 6.54, 6.54); Calibrated: 9/24/2014 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN: 1052 Edge 1/WCDMA Band II/Ch9400/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.44 mW/g Edge 1/WCDMA Band II/Ch9400/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.4 V/m; Power Drift = -0.016 dB Peak SAR (extrapolated) = 2.50 W/kg SAR(1 g) = 1.19 mW/g; SAR(10 g) = 0.488 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.78 mW/g Test Laboratory: Compliance Certification Service Inc. SAR…

Text truncated - open the document above for the full version.

SAR Peak Location Separation Distance GPRS850+2.4G_Rear Peak SARXYZ mW/gmmm GPRS 850_4Slot_Ch2511.48000.0820-0.0500-0.1790 2.4GHz_802.11b_Ch60.78000.0845-0.1050-0.1780 Separation distance (cm) 5.51 Mode R i = 5.51 cm GPRS 850_4Slot_Ch251 2.4GHz_802.11b_Ch6 GPRS850+2.4G_Edge 1 Peak SARXYZ mW/gmmm GPRS 850_4Slot_Ch1900.8740-0.0130-0.0365-0.1810 2.4GHz_802.11b_Ch111.5400-0.0142-0.1030-0.1800 Separation distance (cm) 6.65 Mode R i = 6.65 cm GPRS 850_4Slot_Ch190 2.4GHz_802.11b_Ch11 GPRS 1900+2.4G_Edge 1 Peak SARXYZ mW/gmmm GPRS 1900_4Slot_Ch1901.4800-0.0055-0.0275-0.1800 2.4GHz_802.11b_Ch111.5400-0.0142-0.1030-0.1800 Separation distance (cm) 7.60 Mode R i = 7.60 cm GPRS 1900_4Slot_Ch512 2.4GHz_802.11b_Ch11 WCDMA Band II+2.4G_Edge 1 Peak SARXYZ mW/gmmm WCDMA Band II _Ch94001.6000-0.0085-0.0255-0.1790 2.4GHz_802.11b_Ch111.5400-0.0142-0.1030-0.1800 Separation distance (cm) 7.77 Mode R i = 7.77 cm WCDMA Band II _Ch9400 2.4GHz_802.11b_Ch11 WCDMA Band V+2.4G_Edge 1 Peak SARXYZ mW/gmmm WCDMA Band V_Ch41820.90400.0820-0.0500-0.1780 2.4GHz_802.11b_Ch111.5400-0.0142-0.1030-0.1800 Separation distance (cm) 10.99 Mode R i = 10.99 cm WCDMA Band V_Ch4182 2.4GHz_802.11b_Ch11

Compliance Certification Services Inc. FCC ID : 2ACC5-GT10 Report No.: T150722D18-RP5 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may…

Text truncated - open the document above for the full version.
