2ACC6GR-105Auto valve

GR-105 Operating Instructions Introduction Thanks for choosing the auto valve for your Z-Wave home automation. The GR-105 is a Z- Wave auto valve, it works with any Z-Wave compliant gateway or controller. It can open/close the water valve Specifications Type：GR-105 Power：DC 12V/1A Z-wave Frequency：868.42MHz (EU)/908.42 MHz (US) Operating Range：Up to 100 feet line of sight Twist pressure：1.6Mpa Resist twisting：30~60kg.cm Package content：DC 12V/1A、hardware fitting Installation： 1. Inclusion/ Exclusion Z-Wave network Put the Z-Wave interface controller into “inclusion or exclusion” mode, and press the red power button once, the distance between GR-105 and controller is suggested to be in one meter. 2. For pipeline valves, the original ball as far as possible the total households in the ease of design and installation manual position. The Valve control should be installed in the original total gas ball valve. The Case not close to the wall, the wall should be a palm distance (20mm) above the installation. 3. Due to power outages, testing, maintenance, security and other needs，It can be close the valve by manually：Robot with finger in ring-pull down the clutch, do not release your finger and hold, 90 degree turn the handle, manual open and close the valve, Until the handle on/off to the correct position. cautions： The sensor belongs to category 3 receiver, and the dutycycle is less than 0.01 in a period 1 hour. Operating ambient temperature range:-20°C to 40°C and the power supply by adapter. Adapter shall be installed near the equipment and shall be easily accessible. The plug considered as disconnect device of adapter, The adapter Manufacturer: Shenzhen CSEC Co.,Ltd. Model No.: CS12F120100FGF INPUT: 100V-~240V~ 50/60Hz 500mA OUPUT: 12V/1.0A DECLARATION OF CONFORMITY: Hereby, U-Fairy G.R. IOT Tech CO.,Ltd declares that this Auto valve product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. U-Fairy G.R. IOT Tech CO., Ltd

U-Fairy G.R. IOT Tech CO., Ltd. Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: Auto valve FCC ID : 2ACC6GR-105 FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type Description ☒ Schematics All circuitry of devices and component values ☒ Block Diagrams Details of device showing the frequency of all oscillators ☒ Operational Description Description of the circuit functions Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill Of Materials, (4) Operational Descriptions. Any exhibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely, Signatory Name Eric Zhou Position General Manger Company Name U-Fairy G.R. IOT Tech CO., Ltd. Address Baihuali Industry District, Changping Town, Dongguan City, Guangdong province Tel 0769-83396266 Fax 0769-83913708 Email [email protected]

U-Fairy G.R. IOT Tech CO., Ltd. Date: 16.05.2014 Authority to Act as an Agent We declare that the following representative (agent) Name Mark Zhu Position Manager Company Name Shenzhen Certification Technology Service Co., Ltd. Address 2F, Building B, East Area of Nanchang Second Industrial Zone, Gushu 2 nd Road, Bao’an District, Shenzhen 518126, P.R. China Tel / Fax 0755-86375541/0755-26736857 Email [email protected] to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Name Auto valve Model Name GR-105 Brand Name N/A . Yours sincerely, Signatory Name Eric Zhou Position General Manger Company Name U-Fairy G.R. IOT Tech CO., Ltd. Address Baihuali Industry District, Changping Town, Dongguan City, Guangdong province Tel 0769-83396266 Fax 0769-83913708 Email [email protected] In case of FCC, we certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance.

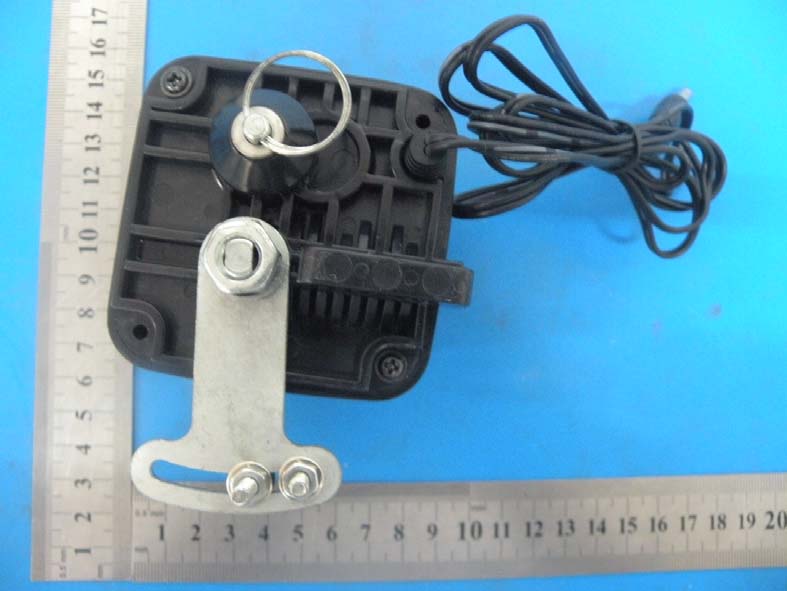

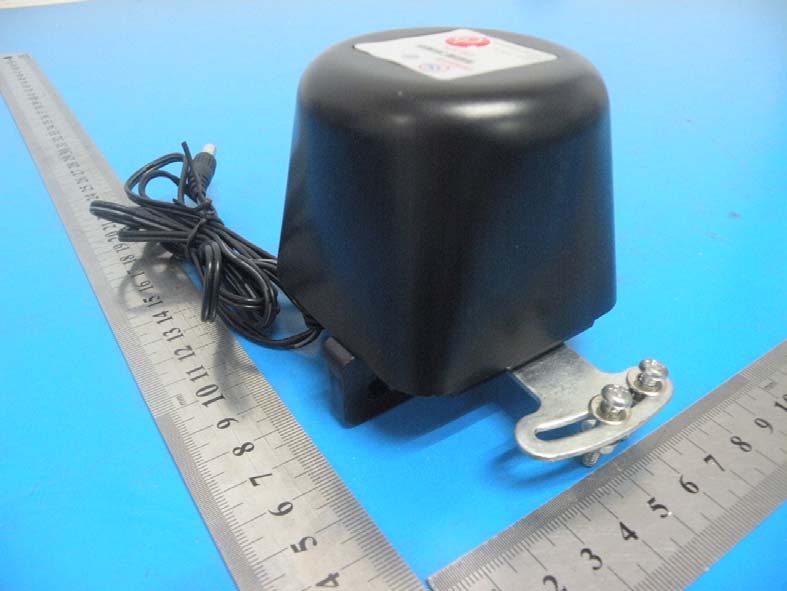

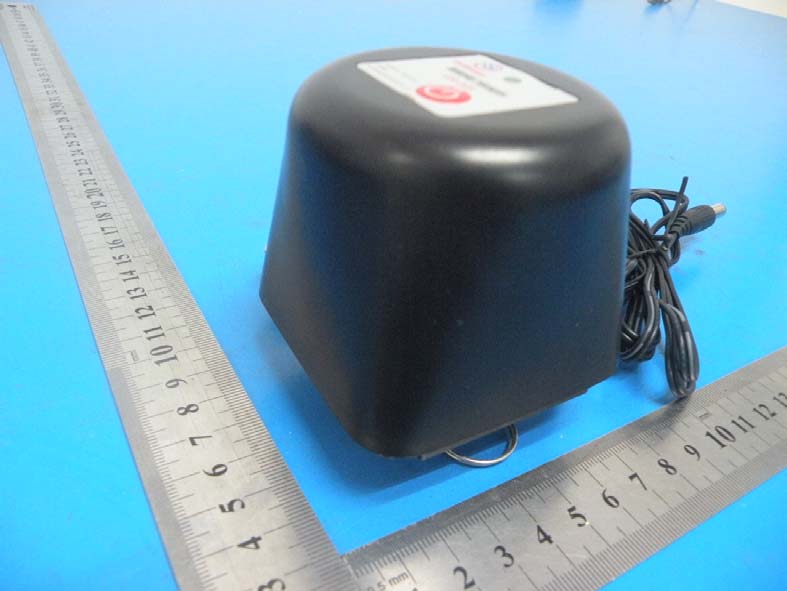

External photo

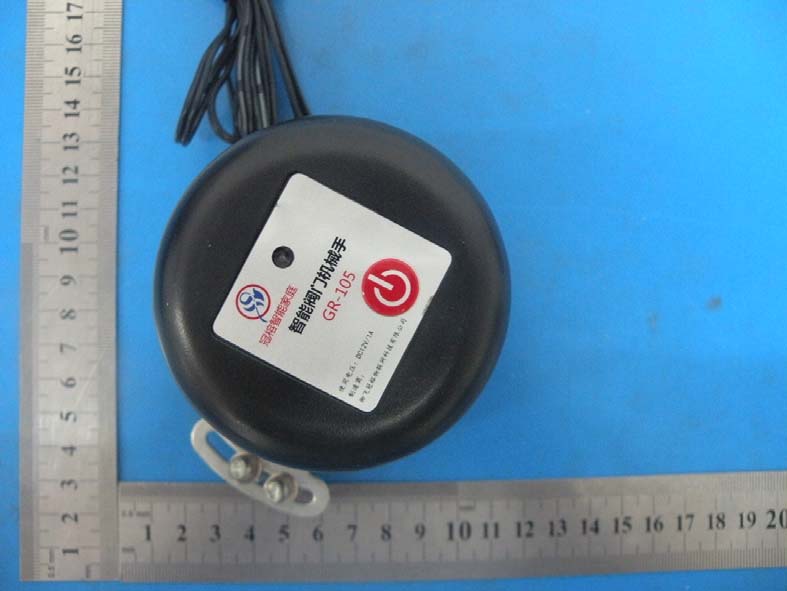

Label Location Auto valve FCC ID: 2ACC6GR-105 Model No.: GR-105 12V 1A U-Fairy G.R. IOT Tech CO., Ltd

Internal photo ANT

Shenzhen Certification Technology Service Co., Ltd 2F, Building B, East Area of Nanchang Second Industrial Zone, Gushu 2nd Road, Bao'an District, Shenzhen518126, P.R. China. FCC ID: 2ACC6GR-105 Page 1 of 28 TEST REPORT FCC ID: 2ACC6GR-105 Applicant : U-Fairy G.R. IOT Tech CO., Ltd Address : Baihuali Industry District, Changping Town, Don gguan City, Guangdong Province Equipment under Test (EUT): Name : Auto valve Model : GR-105 Standards : FCC PART 15, SUBPART C : 2013 (Section 15.249) Report No. : CST-TCB140418014 Date of Test : April 25, 2014 to May 14, 2014 Date of Issue : May 16, 2014 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above Authorized Signature (Mark Zhu) General Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Certification Technology Service Co., Ltd. Or test done by Shenzhen Certification Technology Service Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Certification Technology Service Co., Ltd. Approvals in writing. Report No.: CST-TCB140418014 FCCID: 2ACC6GR-105 Page 2 of 28 TABLE OF CONTENT Description Page 1 General Information------------------------------------------------------------------------------------- 3 1.1 Description of Device (EUT)---------------------------------------------------------------------3 1.2 Description of Test Facility -----------------------------------------------------------------------3 2 EMC Equipment List --------------------------------------------------------------------------------- 4 3 Test Procedure----------------------------------------------------------------------------------------- 5 4 Summary of Measurement ------------------------------------------------------------------------- 6 4.1 Summary of test result ----------------------------------------------------------------------------6 4.2 Test mode -------------------------------------------------------------------------------------------6 4.3 Block Diagram -------------------------------------------------------------------------------------6 4.4 Assistant equipment used for test ----------------------------------------------------------------6 4.5 Test Conditions -------------------------------------------------------------------------------------7 4.6 Measurement Uncertainty (95% confidence levels, k=2)-------------------------------------7 5 POWER LINE CONDUCTED EMISSION -------------------------------------------------------- 8 5.1 Conducted Emission Limits(15.209&249) -----------------------------------------------------8 5.2 Test Setup -------------------------------------------------------------------------------------------8 5.3 Test Procedure--------------------------------------------------------------------------------------9 5.4 Test Results -----------------------------------------------------------------------------------------9 6 Radiation Emission---------------------------------------------------------------------------------- 12 6.1 Radiation Emission Limits(15.209&249 (a)) ------------------------------------------------ 12 6.2 Test Setup ----------------------------------------------------------------------------------------- 13 6.3 Test Procedure------------------------------------------------------------------------------------ 14 6.4 Test Equipment Setting for emission test. ---------------------------------------------------- 15 6.5 Test Condition------------------------------------------------------------------------------------ 15 6.6 Test Result ---------------------------------------------------------------------------------------- 15 7 20dB bandwidth -------------------------------------------------------------------------------------- 17 7.1 Test limit ------------------------------------------------------------------------------------------ 17 7.2 Method of measurement ------------------------------------------------------------------------ 17 7.3 Test Setup ----------------------------------------------------------------------------------------- 17 7.4 Test Results --------------------------------------------------------------------------------------- 17 8 Antenna Requirement ------------------------------------------------------------------------------ 18 8.1 Standard Requirement --------------------------------------------------------------------------- 18 8.2 Antenna Connected Construction-------------------------------------------------------------- 18 8.3 Result ---------------------------------------------------------------------------------------------- 18 9 Photographs of Test Setup ----------------------------------------------------------------------- 19 10 Photographs of EUT--------------------------------------------------------------------------------- 21 Report No.: CST-TCB140418014 FCCID: 2ACC6GR-105 Page 3 of 28 1 General Information 1.1 Description of Device (EUT) Trade Name : N/A EUT : Auto valve Model No. : GR-105 Type of Antenna : Integral Antenna, Max. Gain: 1dBi Operation Frequency : 908.42MHz Channel number : 1 Modulation type : FSK Power Supply : DC 12V from adapter Adapter Manufacturer: Shenzhen CSEC Co., Ltd. Model No.: CS12F120100FUF Input: 100-240~50/60Hz 500mA Output: DC 12V/1A Test Power : AC 120V/60Hz Applicant : U-Fairy G.R. IOT Tech CO., Ltd Address : Baihuali Industry District, Changping Town, Dongguan City, Guangdong Province Manufacturer : U-Fairy G.R. IOT Tech CO., Ltd Address : Baihuali Industry District, Changping Town, Dongguan City, Guangdong Province 1.2 Description of Test Facility Shenzhen Certification Technology Service Co., Ltd. 2F, Building B, East Area of Nanchan…

Text truncated - open the document above for the full version.

Test setup photo 1.1. Photos of conducted emission 1.2. Photos of Radiated emission
