2ACCJA003UMTS Triband/GSM Quadband mobile phone

1 10 2 11 3 12 4 13 5 14 6 15 7 16 89 1817 1 Your mobile ................... 1.1 Keys and connectors • Navigation key (1) Press to go left/right/up/down Press to access function UP: Call log DOWN: Contacts LEFT (2) : Tools RIGHT (2) : Media • OK key Press to confirm an option • Pick up/Send a call • Enter Call log • Press: End a call Return to the Home screen • Press and hold: Power on/off • Press: Delete characters in Edit mode • Press: Dial "#" Press and hold: Vibrate alert • In Edit mode Press: Switch between ABC/Abc/abc Press and hold: Switch between Multi-Tap/Smart • Press: Dial "1" Press and hold: Access your voicemail • In Edit mode Press: Input "1" Input frequently-used symbols • Press: Dial "*" • In Edit mode Press: change input method Press and hold: Access the Symbols table • Press: Dial "0" Press and hold: Switch between "+/P/W" • In Edit mode Press: Enter a space Press and hold: Input "0" • Press: Take a picture • Press and hold: Access Camera • Press: Volume up/down • In Camera mode Press: Zoom in/out • In music playing mode Press and hold: Volume up/down • In Radio mode Press and hold: Volume up/down • In Calendar mode Press: Previous/Next month • Incoming call (Clamshell close) Press: Mute Press and hold: End • Alarm beep (Clamshell close) Press: Snooze Press and hold: Stop 1.2 Status bar icons (1) Battery charge level Vibrate alert: your phone vibrates, but does not ring or beep with the exception of the alarm. Bluetooth status (Activated). Bluetooth status (Connected to an audio device). Java status (Activated). Headset connected. Call forwarding activated: your calls are forwarded. Alarm or appointments programmed. Level of network reception. Voicemail message arrived. Missed calls. Call in progress. Stopwatch is active. Radio is on. Email unread. WAP messages. Roaming. microSD card scanning completed. GPRS connecting. GPRS attached. EDGE connecting. EDGE attached. 3G network connecting. 3G network attached. Music active. MMS receipt in progress. Silence mode: your phone does not ring, beep or vibrate with the exception of the alarm. Message unread. (Red) Message list is full: your phone cannot accept any new messages. You must access the message list and delete at least one message on your SIM card. Airplane mode. 1.3 Home screen 1.3.1 Shortcut bar Shortcuts are home screen icons for your frequently used items, like Calls or Messages. You can customise shortcut bar by selecting "Settings\Phone settings\Shortcut bar". Charging the battery Connect the battery charger to your phone and mains socket respectively. To reduce power consumption and energy waste, when battery is fully charged, disconnect your charger from the plug; switch off Bluetooth and background-running applications when not in use; reduce the backlight time, etc. 2.2 Power on your phone Hold down the key until the telephone powers on. 2.3 Power off your phone Hold down the key from the Home screen. 3 Making a call ................ Dial the desired number then press the key to place the call. The number you entered can be saved to Contacts by selecting "Save". If you make a mistake, you may press key to delete the incorrect digits one by one, or you may press and hold key to delete all. To hang up the call, press the key. 4 Messaging .............. 4.1 Access You may access this menu using the following options: • Access from the main menu by selecting "Messaging". • Select from shortcut bar, and then enter the sub-menu you require. When you access "Messaging", you can switch between SMS/MMS and Email by the navigation key. 4.2 Conversational On (Off) mode In conversational on mode, you can view chat history in chronological order. In conversational off mode, you may have access to the following folders: Inbox, Outbox, Sent, Drafts, Voicemail, Broadcast SMS, Empty folder, Archive, Templates and Settings. Conversational view mode is set as default. You may switch to conventional mode by selecting "Settings\Switch view mode". The following instructions are based on conversational mode. (1) The icons and illustrations in this guide are provided for informational purposes only. (1) The quality of the radio depends on the coverage of the radio station in that particular area. (2) Depending on your network operator and market. 2 Getting started .............. 2.1 Set-up Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your phone and remove battery before inserting or removing the SIM card. Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. Installing or removing the battery Insert and click the battery into place, then close the telephone cover. Unclip the cover, then remove the battery. 4.3 Write message You can select "Messaging\New message" from the main menu or access from shortcut to write text/multimedia message. One or more recipients can be added from contact list and you can remove a recipient by pressing the Delete key. Press the key and select "More" to multi-choice recipients from Contacts. An SMS will be converted to MMS automatically when images, videos, audio, slides or attachments are inserted; Subject, CC/BCC/email address is added; or the message contains more than 8 pages of text. An SMS message of more than a certain number of characters (the number of characters depends on your language) will be charged as several SMS. An MMS message containing photos and/or sounds may also be billed as more than one message. Specific letters (accent) will increase the size of the SMS. 4.4 Email Your phone has an email client with the settings pre-defined for a few popular email services like – Gmail, Yahoo, etc. Besides this, you can set up other POP3 or IMAP4 email accounts that you may be using. 5 Contacts ................. 5.1 Accessing your contacts You can access this function by selecting "Contact…

Text truncated - open the document above for the full version.

TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Te l : +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com 2014-12-23 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: 2ACCJA003 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Date 2015-01-19 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: CTTL-Terminals Test Lab of China Academy of Telecommunication Research of MIIT is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Zhizhou GONG Product Certification Manager TCT Mobile Limited

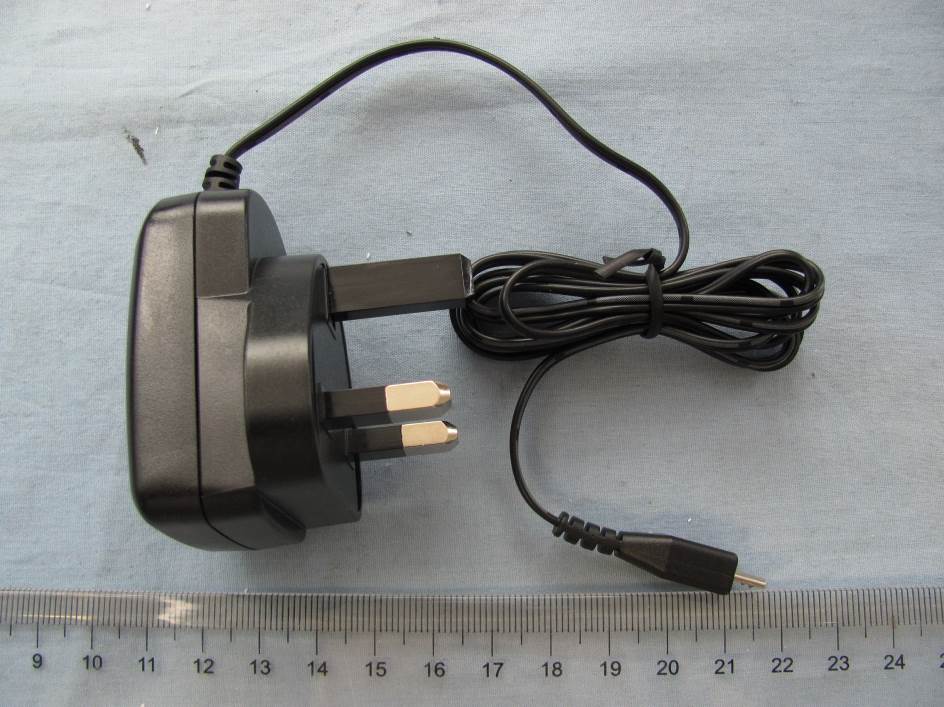

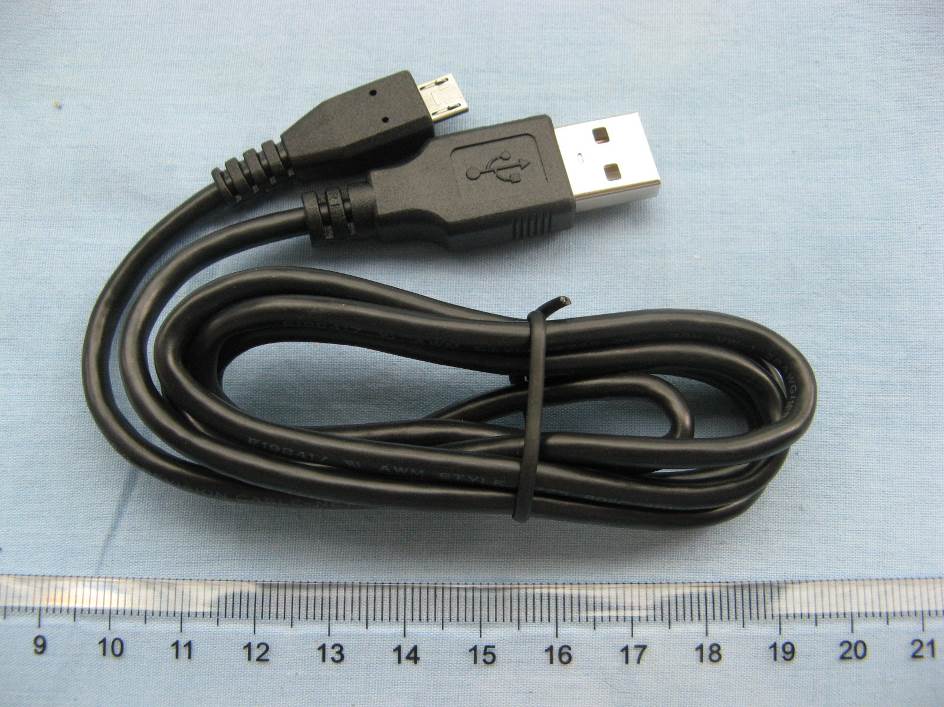

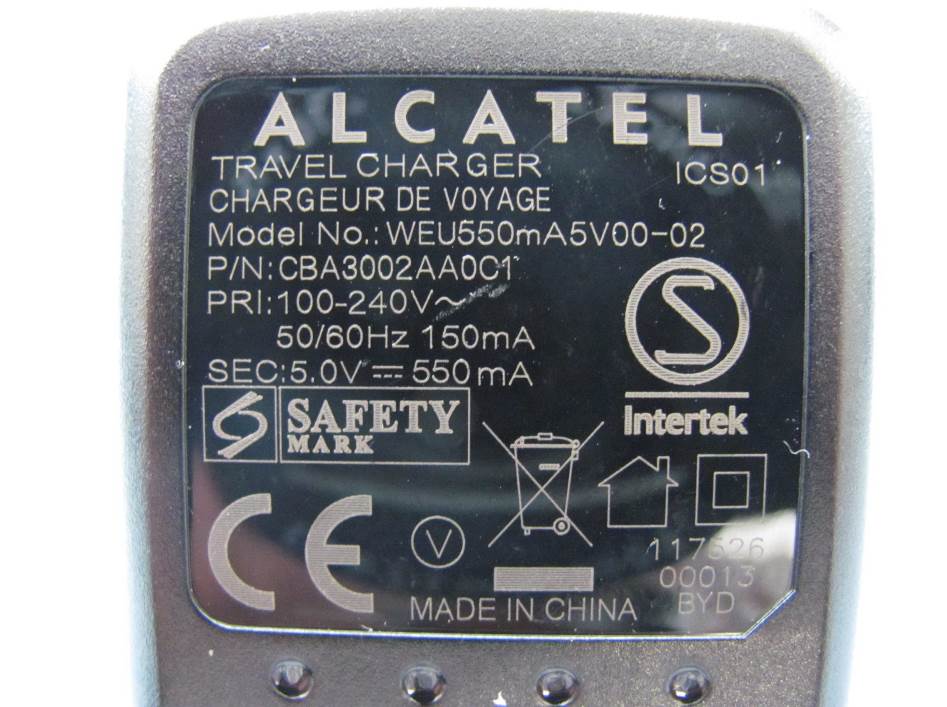

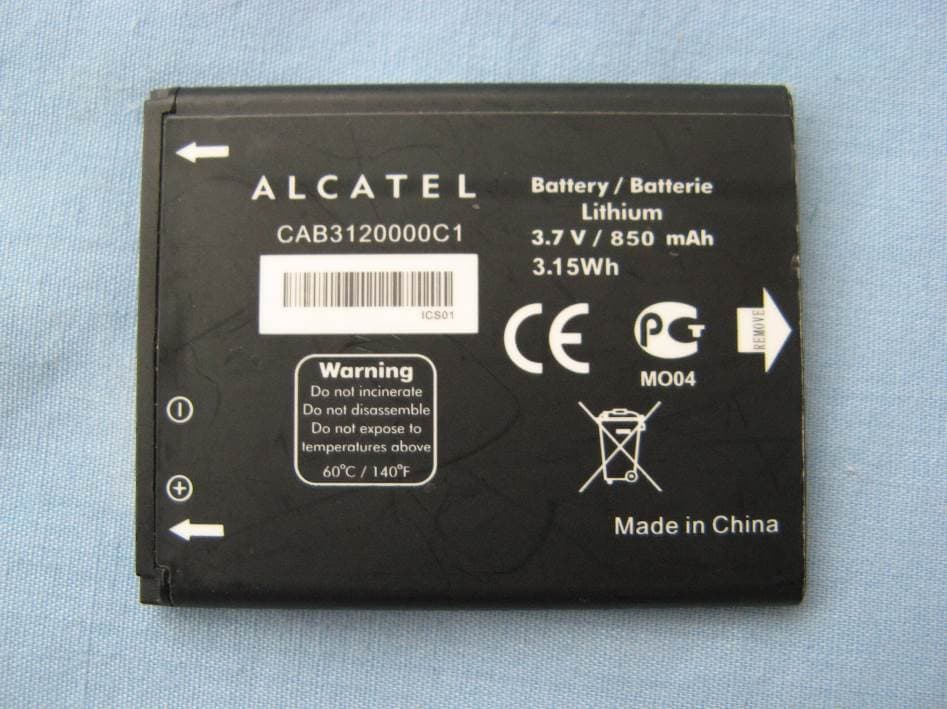

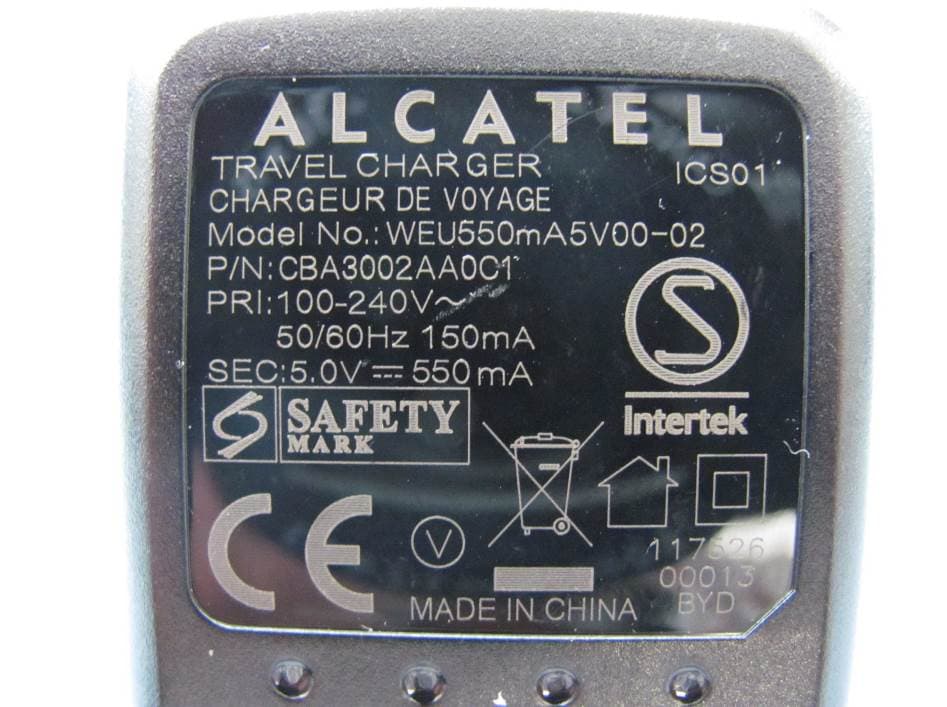

EUT photograph Mobile Phone Mobile Phone Mobile Phone Mobile Phone Disassembly Battery AE1 Battery AE1 Charger AE10 Label of Charger AE10 Charger AE14 Label of Charger AE14 USB Cable AE11 Headset AE13

EUT Interior photograph Mobile Phone Disassembly Mobile Phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly

©Copyright. All rights reserved by CTTL. FCC PART 15C TEST REPORT No. I14Z49111-SRD02 for TCL Communication Ltd UMTS Triband / GSM Quadband mobile phone Model Name: 2067X FCC ID: 2ACCJA003 with Hardware Version: 01 Software Version: C97 Issued Date: 2015-01-15 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL, Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No.52, HuayuanNorth Road, Haidian District, Beijing, P. R. China 100191. Te l:+86(0)10-62304633-2512,Fax:+86(0)10-62304633-2504 Email:[email protected], website:www.chinattl.com TESTING CNAS L0570 No. I14Z49111-SRD02 Page2 of 89 ©Copyright. All rights reserved by CTTL. REPORT HISTORY Report Number Revision Description Issue Date I14Z49111-SRD02 R ev.0 1st edition 2015-01-15 No. I14Z49111-SRD02 Page3 of 89 ©Copyright. All rights reserved by CTTL. CONTENTS 1. TEST LABORATORY ............................................................................................................... 4 1.1. TESTING LOCATION ........................................................................................................... 4 1.1. TESTING ENVIRONMENT ................................................................................................... 4 1.2. PROJECT DATA ................................................................................................................... 4 1.3. SIGNATURE .......................................................................................................................... 4 2. CLIENT INFORMATION ........................................................................................................... 5 2.1. APPLICANT INFORMATION ................................................................................................ 5 2.2. MANUFACTURER INFORMATION ...................................................................................... 5 3. EQUIPMENT UNDERTEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 6 3.1. ABOUT EUT .......................................................................................................................... 6 3.2. INTERNAL IDENTIFICATION OF EUT ................................................................................ 6 3.3. INTERNAL IDENTIFICATION OF AE ................................................................................... 6 3.4. N ORMAL ACCESSORY SETTING ............................................................................................. 6 3.5. G ENERAL DESCRIPTION ....................................................................................................... 6 4. REFERENCE DOCUMENTS .................................................................................................... 7 4.1. DOCUMENTS SUPPLIED BY APPLICANT ........................................................................ 7 4.2. REFERENCE DOCUMENTS FOR TESTING ...................................................................... 7 5. TEST RESULTS........................................................................................................................ 8 5.1. S UMMARY OF TEST RESULTS ................................................................................................ 8 5.2. S TATEMENTS........................................................................................................................ 8 6. TEST FACILITIES UTILIZED ................................................................................................... 9 ANNEX A: DETAILED TEST RESULTS ....................................................................................... 10 A.1. MEASUREMENT METHOD ....................................................................................................... 10 A.2. PEAK OUTPUT POWER – CONDUCTED ..................................................................................... 11 A.3. FREQUENCY BAND EDGES – CONDUCTED .............................................................................. 12 A.4. CONDUCTED EMISSION .......................................................................................................... 19 A.5. RADIATED EMISSION .............................................................................................................. 44 A.6. TIME OF OCCUPANCY (DWELL TIME) ....................................................................................... 63 A.7. 20DB BANDWIDTH ................................................................................................................. 73 A.8. CARRIER FREQUENCY SEPARATION ........................................................................................ 79 A.9. NUMBER OF HOPPING CHANNELS .......................................................................................... 82 A.10. AC POWERLINE CONDUCTED EMISSION ............................................................................... 86 ANNEX B: ACCREDITATION CERTIFICATE ............................................................................... 89 No. I14Z49111-SRD02 Page4 of 89 ©Copyright. All rights reserved by CTTL. 1. Test Laboratory 1.1. Testing Location Location 1:CTTL(huayuan North Road) Address: No. 52, Huayuan North Road, Haidian District, Beijing, P. R. China100191 Location 2:CTTL(Shouxiang) Address: No. 51 Shouxiang Science Building, Xueyuan Road, Haidian District, Beijing, P. R. China100191 1.2. Testing Environment Normal Temperature: 15-35°C Extreme Temperature: -10/+55°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: 2014-12-12 Testing End Date: 2015-01-09 1.4. Signature Xu Zhongfei (Prepared this test report) Li Zhibin (Reviewed this test report) Lv Songdong (Approvedthis test report) No. I14Z49111-SRD02 Page5 of 89 ©Copyright. All rights reserved by CTTL. 2. Client Information 2.1. Applicant Information Com…

Text truncated - open the document above for the full version.

FDD ID 2ACCJH003 Conducted emission Radiated Emission Radiated Spurious Emission
