2ACCJA008GSM Quad-band / UMTS Tri-band / LTE Tri-band mobile phone

1 English - CJB35HAALAAA Quick Start Guide ALCATEL ONETOUCH would like to thank you for your purchase. We hope you will enjoy your high-quality mobile communication experience. For more information about your phone or to download the complete user manual version, please visit www.alcatelonetouch.com. 5054N/W 23 PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. www.sar-tick.com This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found on page 38 of this user guide. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 10 mm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. Table of Contents 1 Your mobile ���������������������������������������������������������������������3 2 Text input ����������������������������������������������������������������������16 3 Phone call ����������������������������������������������������������������������17 4 Contacts ������������������������������������������������������������������������19 5 Messaging�����������������������������������������������������������������������20 6 Email ������������������������������������������������������������������������������21 7 Getting connected ��������������������������������������������������������22 8 Google Maps™ ��������������������������������������������������������������24 9 Google Play Store™ �����������������������������������������������������27 10 Data backup ������������������������������������������������������������������31 11 Factory data reset ��������������������������������������������������������32 12 Applications & Internal storage ����������������������������������32 13 Making the most of your phone ����������������������������������33 Safety and use �������������������������������������������������������������������������34 General information ��������������������������������������������������������������41 MetroPCS Information ����������������������������������������������������������42 12 Month Limited Warranty �������������������������������������������������47 Troubleshooting����������������������������������������������������������������������48 1 Your mobile ������������������ 1�1 Keys and connectors Micro-USB Connector Front-facing Camera Headset connector Proximity & Light Sensor Home key Touch screen Back key Menu key LED indicator Microphone 45 Camera Camera Flash/ Flashlight Power key Back key • Touch to go back to the previous screen, or to close a dialog box, options menu, the notification panel, etc. Home key • From any application or screen, touch to return to the Home screen. • Touch and hold to open Google Now. Menu key • Touch to view recently used applications. • Touch to close any appliaction. • Touch the brush icon on the bottom of the screen to close all applications. Power key • Press: Lock the screen/Light up the screen. • Press and hold: Show the pop-up menu to select from Power off/Restart/Airplane mode. • Press and hold the Power key and Volume down key to capture a screenshot. • Press and hold the power key for 8 seconds to power off or hold it for 10 seconds or more to force reboot. Volume Keys • In call mode, adjusts the earpiece or headset volume. • In Music/Video/Streaming mode, adjusts the media volume. • In general mode, adjusts the ringtone volume. • Mutes the ringtone of an incoming call. • In camera mode, press Volume up or down key to take a photo. Volume down key Volume up key 67 1�2 Getting started 1�2�1 Set up Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the SIM card, press and slide it out. Your phone only supports micro-SIM card. Do not attempt to insert other SIM types like mini and nano cards, otherwise you may damage your phone. Installing the microSD card Place the microSD card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the microSD card, press and slide it out. Charging the battery To charge the battery, connect the charger to your phone and mains socket. You can also charge your phone via a USB cable. To reduce power consumption and energy waste, when the battery is fully charged, disconnect your charger; switch off Wi-Fi, GPS, Bluetooth or background-running applications when not in use; reduce the backlight time, etc. 1�2�2 Power on your phone Hold down the Power key until the phone powers on, unlock your phone (Slide, PIN, password, pattern) if necessary, once unlocked, Home screen is displayed. If you don't know your PIN code or if you have forgotten it, contact your service provider. Do not store PIN code within your phone, instead store PIN in a location that is accessible without using phone. Set up your phone for the first time The first time you power on the phone, you should set the following options: • Scroll up or down to select the phone's language, then touch . • Select an enabled Wi-Fi, then touch NEXT, otherwise touch SKIP. • Set up date and time if needed, then touch NEXT. • Enter the name to allow the phone to personalize some applications, then touch NEXT. • Set up the screen lock by touching SET SCREEN LOCK NOW to make your phone more secure, otherwise touch SKIP. • Set up Google Services by marking the corresponding checkboxes, touch MORE to learn more about Google Services, then touch NEXT. 89 Even if no SIM card is installed, your phone will still power on and you will be able to connect to a Wi-Fi network and use some of the phone's features. 1�2�3 Power off y…

Text truncated - open the document above for the full version.

2829 Touch a category on Google Play Store screen to browse its contents. You can also select a subcategory if there is any. Within each category you can select to view items sorted by Top free, Top new free and Trending, etc. Touch to search in Play Store. Slide left and right to see all categories. Touch the Google Play Store icon on the top left of the screen or touch the Back key to return to the previous screen. 9�2 Download and install To download & install: • Navigate to the item you want to download, and select to enter the details screen from which you can read its description, overall rating or comments, view developer’s information, etc. • Touch Install to preview the functions and data the application can access on your phone if you install it. • Touch Accept. • The progress of the download will show on the details screen, touch to stop downloading the item. You can also access this screen through the Notification panel. • After download and installation have finished, you will see a notification icon on the status bar. Be especially cautious with applications that have access to many functions or to a significant amount of your data. Once you accept, you are responsible for the results of using this item on your phone. To open the application you have downloaded: • On the Google Play Store screen, touch and My Apps. • Touch the installed application in the list, then touch Open. To buy an application (1) On Google Play Store, some applications are labelled as free, while some of them are to be paid for before downloading and installing. • Touch the application you want to buy. • Touch the price on the upper-right of the screen to preview the functions and data the application can access on your phone if you install it. • Touch Continue to confirm. • When making your first purchase, you are required to input your credit card information and to log into the Google payment and billing service. • If your account has multiple credit card accounts, select one to proceed. • Select the Terms of service link and read the document. When finished, touch the Back key. • Mark the checkbox if you agree with the terms of service. • Touch the Buy now at the bottom of the screen. When finished, Android downloads the application. (1) Google Paid applications may not be available to users in some countries. 3031 To request a refund If you are not satisfied with the application, you can ask for a refund within 15 minutes of the purchase. Your credit card will not be charged and the application will be removed. If you change your mind, you can install the application again, but you will not be able to request a refund. • Touch and My apps from the Google Play Store screen. • Touch the application that you want to uninstall and refund. • Touch Refund to uninstall the application and refund. If the button becomes Uninstall, your trial period has expired. • In the survey form, select the answer that best matches your reason, and touch OK. 9�3 Manage your downloads After you have downloaded and installed an application, the following further operations are available for your selection. View On the Google Play Store screen, touch and My Apps. Uninstall On the Google Play Store screen, touch and My Apps. Touch the application you want to uninstall to enter the details screen, touch Uninstall, and finally touch OK to confirm. Refund On the Google Play Store screen, touch and My Apps. Touch the application you want to uninstall for a refund, touch Refund, and finally touch OK to confirm. Auto update Touch and Settings\Auto-update apps to enable this function. To auto update one specific application, mark the checkbox of Do not auto-update apps, Auto-Update apps at any time, o r Auto-update apps over Wi-Fi only from the details screen. Rate and review Open the details screen for an application, touch the stars under Rate this app to award and input comments, touch OK to confirm. Flag You can report an inappropriate application to the Google Play Store by flagging it. Open the details screen for the application, scroll to the bottom and touch Flag as inappropriate, enter the reason and finally touch Submit. 10 Data backup ������������ This phone enables you to back up your phone’s settings and other application data to Google Servers, with your Google Account. If you replace your phone, the settings and data you’ve backed up are restored onto the new phone the first time you sign in with your Google Account. To activate this function: • Touch Settings\Backup & reset • Touch the switch of Back up my data. When this function is activated, a wide variety of settings and data is backed up, including your Wi-Fi passwords, bookmarks, a list of the applications you’ve installed, the words you’ve added to the dictionary used by the onscreen keyboard, and most of the settings that you configure with the Settings application. If you deactivate this option, you stop backing up your settings, and any existing backups are deleted from Google Servers. 3233 11 Factory data reset To activate factory data reset: • Touch Settings\Backup & reset\Factory data reset� • Touch the RESET PHONE. Resetting the phone will erase all of your personal data from internal phone storage, including information about your Google Account, any other accounts, your system and application settings, and any downloaded applications. If you reset the phone in this way, you’re prompted to re-enter the same kind of information as when you first started Android. When you are unable to power on your cellphone, you can perform a factory data reset by pressing the Power key and the Volume up key at the same time until the screen lights up. 12 Applications & Internal storage ������ 12�1 Applications With this phone, some built-in Google applications and other third party applications are available for your convenience. With the built-in applications, you can • Communicate with friends. • Exchange messages or emails with friends. • Track your location, v…

Text truncated - open the document above for the full version.

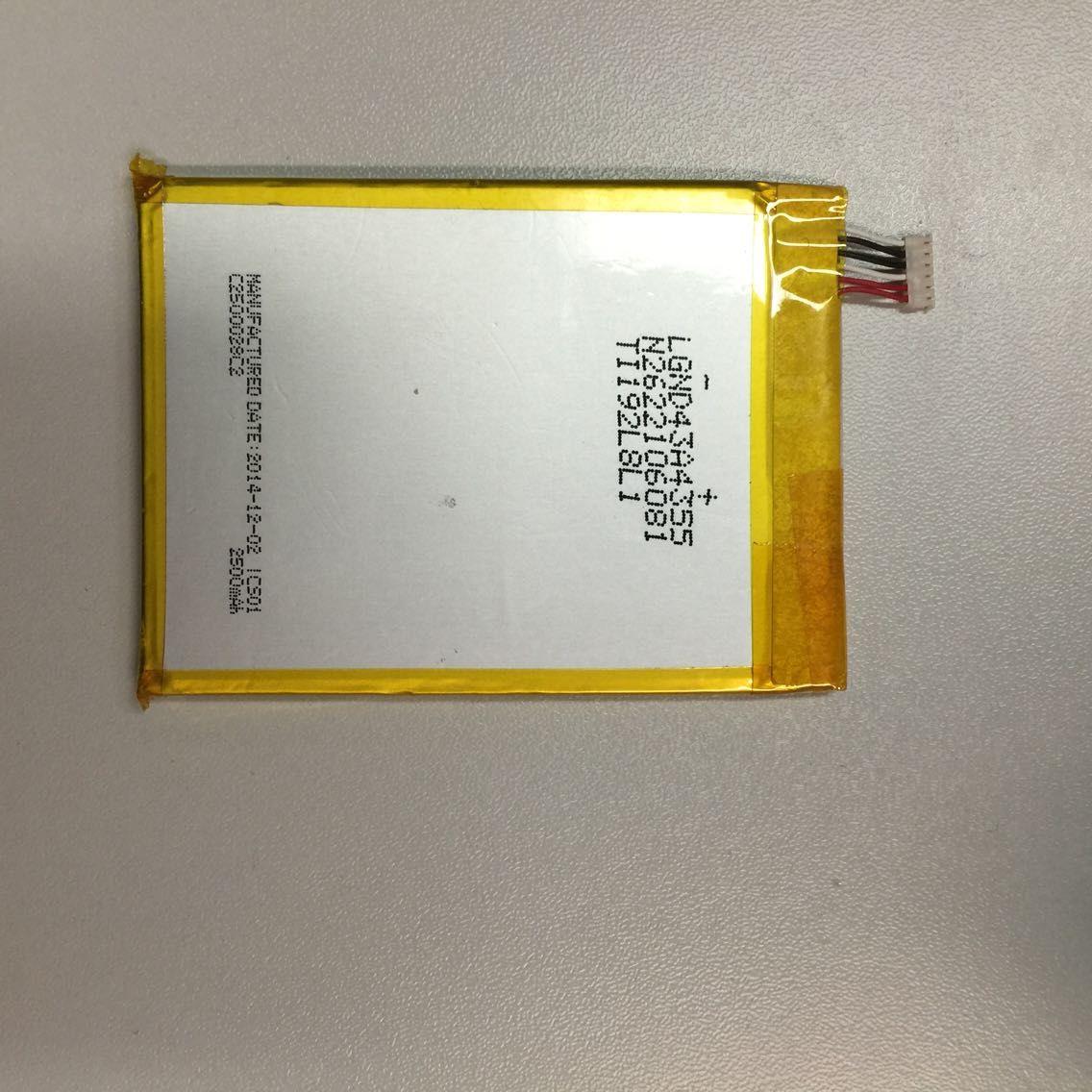

EUT photograph

EUT Interior photograph Mobile Phone Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly

©Copyright. All rights reserved by CTTL. SAR TEST REPORT No. I15Z41818-SEM01 For TCL Communication Ltd GSM Quad-band / UMTS Tri-band / LTE Tri-band mobile phone Model Name: 5054N/5054W With Hardware Version: 09 Software Version: SVN 01 FCC ID: 2ACCJA008 Issued Date: 2015-08-28 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL, Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No. 51 Shouxiang Science Building, Xueyuan Road, Haidian District, Beijing, P. R. China100191 Tel:+86(0)10-62304633-2512,Fax:+86(0)10-62304633-2504 Email:[email protected] , website:www.chinattl.com TESTING CNAS L0570 No.I15Z41818-SEM01 Page 2 of 171 ©Copyright. All rights reserved by CTTL. REPORT HISTORY Report Number Revision Issue Date Description I15Z41818-SEM01 Re v.0 2015-08-28 Initial creation of test report No.I15Z41818-SEM01 Page 3 of 171 ©Copyright. All rights reserved by CTTL. TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 5 1.1 TESTING LO C AT I O N ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE .................................................................................................. 6 3 CLIENT INFORMATION ................................................................................................................ 8 3.1 APPLICANT INFORMATION .............................................................................................................................. 8 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 8 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................. 9 4.1 ABOUT EUT ................................................................................................................................................... 9 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 9 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................ 9 5 TEST METHODOLOGY .............................................................................................................. 10 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 10 5.2 APPLICABLE MEASUREMENT STANDARDS .................................................................................................... 10 6 SPECIFIC ABSORPTION RATE (SAR) ...................................................................................... 11 6.1 INTRODUCTION ............................................................................................................................................. 11 6.2 SAR DEFINITION .......................................................................................................................................... 11 7 TISSUE SIMULATING LIQUIDS ................................................................................................. 12 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 12 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 12 8 SYSTEM VERIFIC AT I O N ............................................................................................................ 18 8.1 SYSTEM SETUP ............................................................................................................................................. 18 8.2SYSTEM VERIFICATION ................................................................................................................................. 19 9 MEASUREMENT PROCEDURES .............................................................................................. 20 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 20 9.2GENERAL MEASUREMENT PROCEDURE ......................................................................................................... 21 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 22 9.4 SAR MEASUREMENT FOR LT E ..................................................................................................................... 23 9.5 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 24 9.6 POWER DRIFT ............................................................................................................................................... 24 10 AREA SCAN BASED 1-G SAR ................................................................................................. 25 10.1 REQUIREMENT OF KDB .............................................................................................................................. 25 10.2 FAST SAR ALGOR…

Text truncated - open the document above for the full version.

No.I15Z41818-SEM01 Page 63 of 171 ©Copyright. All rights reserved by CTTL. Fig. 1-1 Z-Scan at power reference point (850 MHz) No.I15Z41818-SEM01 Page 64 of 171 ©Copyright. All rights reserved by CTTL. 850 Body Rear Low Date: 2015- 08-04 Electronics: DAE4 Sn777 Medium: Body 850 MHz Medium parameters used (interpolated): f = 824.2 MHz; σ = 0.938 S/m; ε r = 55.623; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: GSM 850 GPRS Frequency: 824.2 MHz Duty Cycle: 1:2 Probe: EX3DV4 - SN3846 ConvF(9.09, 9.09, 9.09) Area Scan (131x81x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.149 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.510 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.244 W/kg SAR(1 g) = 0.111 W/kg; SAR(10 g) = 0.053 W/kg Maximum value of SAR (measured) = 0.151 W/kg Fig.2 850 MHz No.I15Z41818-SEM01 Page 65 of 171 ©Copyright. All rights reserved by CTTL. Fig. 2-1 Z-Scan at power reference point (850 MHz) No.I15Z41818-SEM01 Page 66 of 171 ©Copyright. All rights reserved by CTTL. 1900 Left Cheek High Date: 2015- 08-06 Electronics: DAE4 Sn777 Medium: Head 1900 MHz Medium parameters used (interpolated): f = 1909.8 MHz; σ = 1.431 S/m; ε r = 40.384; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: GSM 1900MHz Frequency: 1909.8 MHz Duty Cycle: 1:8.3 Probe: EX3DV4 - SN3846 ConvF(7.26, 7.26, 7.26) Area Scan (71x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.209 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.114 V/m; Power Drift = 0.17 dB Peak SAR (extrapolated) = 0.251 W/kg SAR(1 g) = 0.175 W/kg; SAR(10 g) = 0.109 W/kg Maximum value of SAR (measured) = 0.218 W/kg Fig.3 1900 MHz No.I15Z41818-SEM01 Page 67 of 171 ©Copyright. All rights reserved by CTTL. Fig. 3-1 Z-Scan at power reference point (1900 MHz) No.I15Z41818-SEM01 Page 68 of 171 ©Copyright. All rights reserved by CTTL. 1900 Body Bottom High Date: 2015-08-06 Electronics: DAE4 Sn777 Medium: Body 1900 MHz Medium parameters used (interpolated): f = 1909.8 MHz; σ = 1.491 S/m; ε r = 52.958; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: GSM 1900MHz GPRS Frequency: 1909.8 MHz Duty Cycle: 1:2 Probe: EX3DV4 - SN3846 ConvF(7.15, 7.15, 7.15) Area Scan (131x81x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.02 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 23.24 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 2.07 W/kg SAR(1 g) = 0.772 W/kg; SAR(10 g) = 0.398 W/kg Maximum value of SAR (measured) = 0.942 W/kg Fig.4 1900 MHz No.I15Z41818-SEM01 Page 69 of 171 ©Copyright. All rights reserved by CTTL. Fig.4-1 Z-Scan at power reference point (1900 MHz) No.I15Z41818-SEM01 Page 70 of 171 ©Copyright. All rights reserved by CTTL. WCDMA 850 Right Cheek Low Date: 2015- 08-04 Electronics: DAE4 Sn777 Medium: Head 850 MHz Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.941 S/m; ε r = 43.219; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: WCDMA; Frequency: 826.4 MHz; Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF ( 9.18, 9.18, 9.18) Area Scan (81x131x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.0103 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 0 V/m; Power Drift = 0.19dB Peak SAR (extrapolated) = 0.00931 W/kg SAR(1 g) = 0.00736 W/kg; SAR(10 g) = 0.00589 W/kg Maximum value of SAR (measured) = 0.00828 W/kg Fig.5 WCDMA 850 No.I15Z41818-SEM01 Page 71 of 171 ©Copyright. All rights reserved by CTTL. Fig. 5-1 Z-Scan at power reference point (WCDMA 850) No.I15Z41818-SEM01 Page 72 of 171 ©Copyright. All rights reserved by CTTL. WCDMA 850 Body Rear Low Date: 2015-08-04 Electronics: DAE4 Sn777 Medium: Body 850 MHz Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.974 S/m; ε r = 54.724; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: WCDMA; Frequency: 826.4 MHz;Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(9.09, 9.09, 9.09) Area Scan (131x81x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.0646 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.535 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.111 W/kg SAR(1 g) = 0.051 W/kg; SAR(10 g) = 0.025 W/kg Maximum value of SAR (measured) = 0.0657 W/kg Fig.6 WCDMA 850 No.I15Z41818-SEM01 Page 73 of 171 ©Copyright. All rights reserved by CTTL. Fig. 6-1 Z-Scan at power reference point (WCDMA850) No.I15Z41818-SEM01 Page 74 of 171 ©Copyright. All rights reserved by CTTL. WCDMA 1700 Left Cheek Low Date: 2015-08-05 Electronics: DAE4 Sn777 Medium: Head 1750 MHz Medium parameters used (interpolated): f = 1712.4 MHz; σ = 1.334 S/m; ε r = 39.526; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: WCDMA 1700 Frequency: 1712.4 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(7.64, 7.64, 7.64) Area Scan (71x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.693 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.812 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.885 W/kg SAR(1 g) = 0.599 W/kg; SAR(10 g) = 0.381 W/kg Maximum value of SAR (measured) = 0.652 W/kg Fig.7 WCDMA1700 No.I15Z41818-SEM01 Page 75 of 171 ©Copyright. All rights reserved by CTTL. Fig. 7-1 Z-Scan at power reference point (WCDMA1700) No.I15Z41818-SEM01 Page 76 of 171 ©Copyright. All rights reserved by CTTL. WCDMA 1700 Body Rear Low Date: 2015-08-05 Electronics: DAE4 Sn777 Medium: Body 1900 MHz Medium parameters used(interpolated): f = 1712.4 MHz; σ = …

Text truncated - open the document above for the full version.

No.I15Z41818-SEM01 Page 94 of 171 ©Copyright. All rights reserved by CTTL. Wifi 802.11b Right Cheek Channel 6 Date: 2015- 08-07 Electronics: DAE4 Sn777 Medium: Head 2450 MHz Medium parameters used (interpolated): f = 2437 MHz; σ = 1.826 S/m; ε r = 40.17; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: WLan 2450 Frequency: 2437 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(6.56, 6.56, 6.56) Area Scan (81x151x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.29 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.813 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 2.65 W/kg SAR(1 g) = 1.16 W/kg; SAR(10 g) = 0.557 W/kg Maximum value of SAR (measured) = 1.27 W/kg Fig.17 2450 MHz No.I15Z41818-SEM01 Page 95 of 171 ©Copyright. All rights reserved by CTTL. Fig. 17-1 Z-Scan at power reference point (2450 MHz) No.I15Z41818-SEM01 Page 96 of 171 ©Copyright. All rights reserved by CTTL. Wifi 802.11b Body Rear Channel 1 Date: 2015- 08-07 Electronics: DAE4 Sn777 Medium: Body 2450 MHz Medium parameters used (interpolated): f = 2412 MHz; σ = 1.989 S/m; ε r = 50.864; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: WLan 2450 Frequency: 2412 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(6.90, 6.90, 6.90) Area Scan (131x81x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.441 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.697 V/m; Power Drift = 0.17 dB Peak SAR (extrapolated) = 0.816 W/kg SAR(1 g) = 0.375 W/kg; SAR(10 g) = 0.170 W/kg Maximum value of SAR (measured) = 0.501 W/kg Fig.18 2450 MHz No.I15Z41818-SEM01 Page 97 of 171 ©Copyright. All rights reserved by CTTL. Fig. 18-1 Z-Scan at power reference point (2450 MHz) No.I15Z41818-SEM01 Page 98 of 171 ©Copyright. All rights reserved by CTTL. ANNEX B SystemVerification Results 750MHz Date: 2015- 08-07 Electronics: DAE4 Sn777 Medium: Head 750 MHz Medium parameters used: f = 750 MHz; σ = 0.869 mho/m; ε r = 43.35; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: CW Frequency: 750 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(9.53, 9.53, 9.53) System Validation/Area Scan (81x191x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 50.371 V/m; Power Drift = 0.06 dB Fast SAR: SAR(1 g) = 2.18 W/kg; SAR(10 g) = 1.42 W/kg Maximum value of SAR (interpolated) = 2.32 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 50.371 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 3.01 W/kg SAR(1 g) = 2.14 W/kg; SAR(10 g) = 1.40 W/kg Maximum value of SAR (measured) = 2.30 W/kg 0 dB = 2.30W/kg = 3.62 dB W/kg Fig.B.1 validation 750MHz 250mW No.I15Z41818-SEM01 Page 99 of 171 ©Copyright. All rights reserved by CTTL. 750MHz Date: 2015- 08-07 Electronics: DAE4 Sn777 Medium: Body750 MHz Medium parameters used: f = 750 MHz; σ = 0.925 mho/m; ε r = 55.53; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: CW Frequency: 750 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(9.18, 9.18, 9.18) System Validation/Area Scan (81x191x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 51.774 V/m; Power Drift = 0.05 dB Fast SAR: SAR(1 g) = 2.26 W/kg; SAR(10 g) = 1.47 W/kg Maximum value of SAR (interpolated) = 2.40 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51.774 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 3.13 W/kg SAR(1 g) = 2.23 W/kg; SAR(10 g) = 1.45 W/kg Maximum value of SAR (measured) = 2.38 W/kg 0 dB = 2.38W/kg = 3.77 dB W/kg Fig.B.2 validation 750MHz 250mW No.I15Z41818-SEM01 Page 100 of 171 ©Copyright. All rights reserved by CTTL. 835MHz Date: 2015- 08-04 Electronics: DAE4 Sn777 Medium: Head 850 MHz Medium parameters used: f = 835 MHz; σ = 0.932 S/m; ε r = 43.1; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(9.18, 9.18, 9.18) System Validation/Area Scan (61x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 54.793 V/m; Power Drift = 0.02 dB Fast SAR: SAR(1 g) = 2.44 W/kg; SAR(10 g) = 1.61 W/kg Maximum value of SAR (interpolated) = 2.67 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.793 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 3.10 W/kg SAR(1 g) = 2.40 W/kg; SAR(10 g) = 1.58 W/kg Maximum value of SAR (measured) = 2.64 W/kg 0 dB = 2.64 W/kg = 4.22 dBW/kg Fig.B.3 validation 835MHz 250mW No.I15Z41818-SEM01 Page 101 of 171 ©Copyright. All rights reserved by CTTL. 835MHz Date: 2015- 08-04 Electronics: DAE4 Sn777 Medium: Body 850 MHz Medium parameters used: f = 835 MHz; σ = 0.963 S/m; ε r = 54.85; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(9.09, 9.09, 9.09) System Validation/Area Scan (61x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 53.088 V/m; Power Drift = 0.05 dB Fast SAR: SAR(1 g) = 2.39 W/kg; SAR(10 g) = 1.59 W/kg Maximum value of SAR (interpolated) = 2.66 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.088 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 3.16 W/kg SAR(1 g) = 2.44 W/kg; SAR(10 g) = 1.61 W/kg Maximum value of SAR (measured) = 2.68 W/kg 0 dB = 2.68 W/kg = 4.28 dBW/kg Fig.B.4 validation 835MHz 250mW No.I15Z41818-SEM01 Page 102 of 171 ©Copyright. Al…

Text truncated - open the document above for the full version.
