2ACCJA009GSM Quad-band / UMTS Tri-band / LTE Quad-band mobile phone

English - CJB35HFTLAAA Quick Start Guide Thank you for buying ALCATEL ONETOUCH A621BL. We hope you will enjoy your high-quality mobile communication experience. For more information about how to use your cellphone, please visit www.alcatelonetouch.com to download the complete user manual. From the website, you can consult the FAQ, perform software upgrades, etc. A621BL 1 1 Your mobile ���������������������������������������� 1�1 Keys and connectors Micro-USB Connector Front camera Headset connector Proximity & Light Sensor Home key Touch screen Back key Menu key Table of contents 1 Your mobile device �������������������������������������������������������������������������������������������������������������1 2 Text input���������������������������������������������������������������������������������������������������������������������������12 3 Phone call��������������������������������������������������������������������������������������������������������������������������14 4 Contacts ����������������������������������������������������������������������������������������������������������������������������16 5 Messaging �������������������������������������������������������������������������������������������������������������������������17 6 Email ����������������������������������������������������������������������������������������������������������������������������������18 7 Getting connected �������������������������������������������������������������������������������������������������������������19 8 Find my location using GPS satellites �����������������������������������������������������������������������������21 9 Data backup ����������������������������������������������������������������������������������������������������������������������22 10 Factory data reset �������������������������������������������������������������������������������������������������������������22 11 Applications & Internal storage ���������������������������������������������������������������������������������������23 12 Making the most of your phone���� �����������������������������������������������������������������������������������24 Safety and use �����������������������������������������������������������������������������������������������������������������������������25 www.sar-tick.com This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found on page 34 of this user guide. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 15 mm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. LED indicator 23 Camera Camera Flash/ Flashlight Power key Volume key Back key • Touch to go back to the previous screen, or to close a dialog box, options menu, the notification panel, etc. Home key • From any application or screen, touch to return to the Home screen. • Long press to pop up Google search icon. Slide your finger to the icon to open Google search. Menu key • Touch to view recently used applications� • Touch to close any application. • Touch the brush icon on the bottom of the screen to close all applications. Power key • Press: Lock the screen/Light up the screen. • Press and hold: Show the popup menu to select from Power off/Restart/Airplane mode. • Press and hold the Power key and Volume down key to capture a screenshot. • Press and hold the power key for 8 seconds to power off or hold it for 10 seconds or more to force reboot. Volume Keys • In call mode, adjusts the earpiece or headset volume. • In Music/Video/Streaming mode, adjusts the media volume. • In general mode, adjusts the ringtone volume. • Mutes the ringtone of an incoming call. 1�2 Getting started 1�2�1 Set-up Removing or installing the back cover 45 Installing the microSD card Place the microSD card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the microSD card, press and slide it out. Charging the battery To charge the battery, connect the charger to your phone and mains socket. You can also charge your phone via a USB cable. To reduce power consumption and energy waste, when the battery is fully charged, disconnect your charger; switch off Wi-Fi, GPS, Bluetooth or background-running applications when not in use; reduce the backlight time, etc. 1�2�2 Power on your phone Hold down the Power key until the phone powers on. It will take a few seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you should set the following options: Language, Date and time, etc. Even if no SIM card is installed, your phone will still power on and you will be able to connect to a Wi-Fi network, set up screen lock and use some of the phone's features. 1�2�3 Power off your phone Hold down the Power key from the Home screen until the phone options appear, select Power off. 1�3 Home screen You can move all of the items (applications, shortcuts, folders and widgets) you use most frequently to your Home screen for quick access. Touch the Home key to switch to the Home screen. Touch to enter application list. Status bar • Status/Notification indicators • Touch and drag down to open the notification panel. Touch an icon to open an application, folder, etc. Favorite tray applications • Touch to enter the application. • Long press to move or change applications. Search bar • Touch  to enter text search screen. • Touch  to enter voice search screen. The Home screen is provided in an extended format to allow more space for adding applications, shortcuts etc. Slide the Home screen horizonta…

Text truncated - open the document above for the full version.

TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Tel: +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com Date 2015-09-08 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: CTTL-Terminals Test Lab of China Academy of Telecommunication Research of MIIT is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Tel: +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com 2016-02-04 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Cover letter for A621BL The date of grant: 2015/10/22 To Whom It May Concern, The product has been published on the FCC website a while or two, but it is not on the market. As the customer’s requirement, we need to make a short-time confidentiality for this case, including external photos, internal photos, test setup photos and user manual. Yours Sincerely, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

2016-02-09 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: SHORT-TERM Confidentiality request for FCC ID: 2ACCJA009 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days: - External Photos - Internal Photos - Test Setup Photos - User manual We are aware that the exhibits were already made public. The applicant also acknowledges that they will also provide appropriate notice to ACB should either of the following occur: a) if the applicant requires additional 45 days extension periods they will notify ACB with a new request letter at least 7 days prior to the short-term confidentiality expiration date – [Note: up to a maximum of 3 extensions only are allowed], or b) Immediately notify ACB in the event the information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Yours Sincerely, Zhizhou GONG Product Certification Manager TCL Communication Ltd. TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Tel: +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com

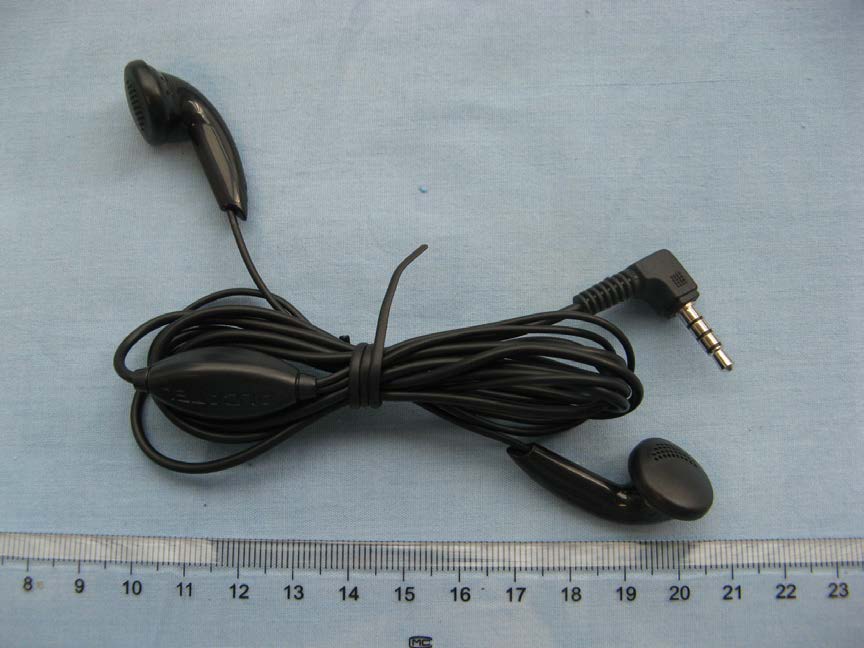

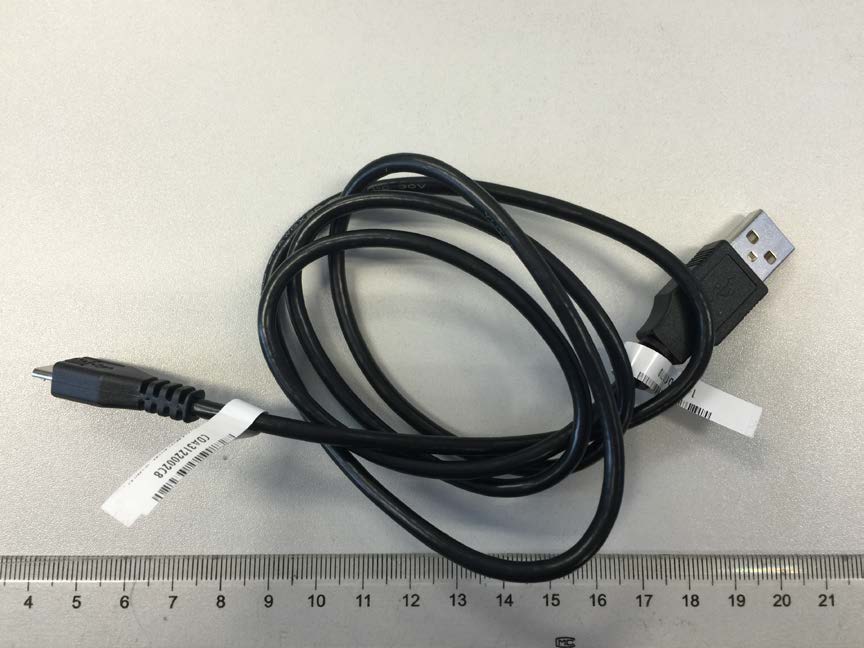

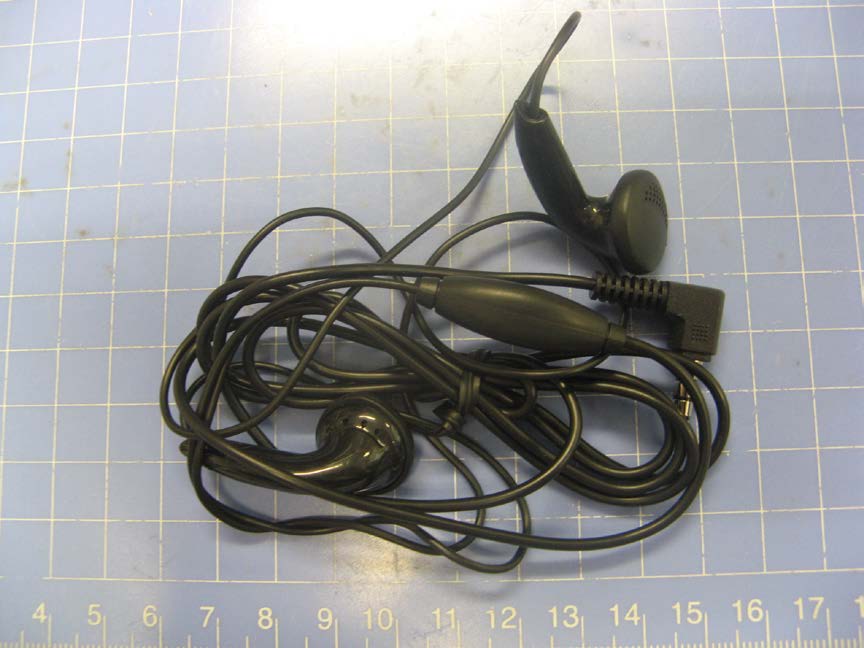

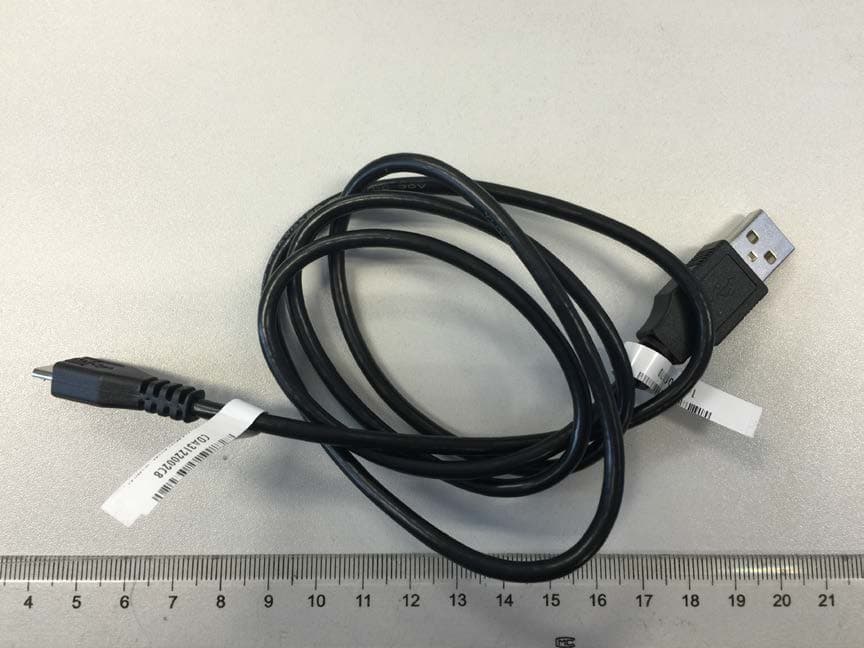

EUT photograph Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile phone Charger AE1 Label of Charger AE1 USB Cable AE2 USB Cable AE3 Battery AE4 Battery AE4-1 Headset AE5 Headset AE6

EUT Interior photograph Mobile Phone Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly

©Copyright. All rights reserved by CTTL. SAR TEST REPORT No. I15Z42203-SEM01 For TCL Communication Ltd. GSM Quad-band / UMTS Tri-band / LTE Quad-band mobile phone Model name: A621BL With Hardware Version: 06 Software Version: SVN01 FCC ID: 2ACCJA009 Issued Date: 2015-09-29 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL, Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No. 51 Shouxiang Science Building, Xueyuan Road, Haidian District, Beijing, P. R. China100191 Te l:+86(0)10-62304633-2512,Fax:+86(0)10-62304633-2504 Email: [email protected], website:www.chinattl.com TESTING CNAS L0570 No. I15Z42203-SEM01 Page 2 of 203 ©Copyright. All rights reserved by CTTL. REPORT HISTORY Report Number Revision Issue Date Description I15Z42203-SEM01 Re v.0 2015-09-29 Initial creation of test report No. I15Z42203-SEM01 Page 3 of 203 ©Copyright. All rights reserved by CTTL. TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 5 1.1 TESTING LO C AT I O N ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE .................................................................................................. 6 3 CLIENT INFORMATION ................................................................................................................ 8 3.1 APPLICANT INFORMATION .............................................................................................................................. 8 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 8 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................. 9 4.1 ABOUT EUT ................................................................................................................................................... 9 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 9 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................ 9 5 TEST METHODOLOGY .............................................................................................................. 10 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 10 5.2 APPLICABLE MEASUREMENT STANDARDS .................................................................................................... 10 6 SPECIFIC ABSORPTION RATE (SAR) ...................................................................................... 11 6.1 INTRODUCTION ............................................................................................................................................. 11 6.2 SAR DEFINITION .......................................................................................................................................... 11 7 TISSUE SIMULATING LIQUIDS ................................................................................................. 12 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 12 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 12 8 SYSTEM VERIFICATION ............................................................................................................ 18 8.1 SYSTEM SETUP ............................................................................................................................................. 18 8.2 SYSTEM VERIFICATION ................................................................................................................................. 19 9 MEASUREMENT PROCEDURES .............................................................................................. 20 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 20 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 22 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 23 9.4 SAR MEASUREMENT FOR LT E ..................................................................................................................... 24 9.5 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 24 9.6 POWER DRIFT ............................................................................................................................................... 25 10 AREA SCAN BASED 1-G SAR ................................................................................................. 25 10.1 REQUIREMENT OF KDB .............................................................................................................................. 25 10.2 FAST SAR ALGORITHM…

Text truncated - open the document above for the full version.

No. I15Z42203-SEM01 Page 31 of 203 ©Copyright. All rights reserved by CTTL. 11.2 Hotspot The conducted power is normal for all bands except PCS1900, WCDMA1700, WCDMA1900, LTE band 2 and LTE band 4. There is power reduction enabled for PCS1900, WCDMA1700, WCDMA1900, LTE band 2 and LTE band 4. The power reduction is enabled when the user enables hotspot mode via the manufacturer software. The tables below show the measured powers with hotspot. Table 11.11: The conducted power measurement results for GSM1900 GSM 1900MHz Conducted Power (dBm) Channel 810(1909.8MHz) Channel 661(1880MHz) Channel 512(1850.2MHz) 25.80 25.62 25.40 Table 11.12: The conducted power measurement results for GPRS and EGPRS PCS1900 GPRS (GMSK) Measured Power (dBm) calculation Averaged Power (dBm) 810 661 512 810 661 512 1 Txslot 25.80 25.62 25.40 -9.03dB 16.77 16.59 16.37 2 Txslots 23.57 23.54 23.33 -6.02dB 17.55 17.52 17.31 3Txslots 21.69 21.49 21.31 -4.26dB 17.43 17.23 17.05 4 Txslots 20.51 20.52 20.31 -3.01dB 17.50 17.51 17.30 PCS1900 EGPRS (GMSK) Measured Power (dBm) calculation Averaged Power (dBm) 810 661 512 810 661 512 1 Txslot 25.80 25.62 25.40 -9.03dB 16.77 16.59 16.37 2 Txslots 23.56 23.54 23.33 -6.02dB 17.54 17.52 17.31 3Txslots 21.69 21.48 21.30 -4.26dB 17.43 17.22 17.04 4 Txslots 20.51 20.51 20.31 -3.01dB 17.50 17.50 17.30 NOTES: 1) Division Factors To average the power, the division factor is as follows: 1TX-slot = 1 transmit time slot out of 8 time slots=> conducted power divided by (8/1) => -9.03dB 2TX-slots = 2 transmit time slots out of 8 time slots=> conducted power divided by (8/2) => -6.02dB 3TX-slots = 3 transmit time slots out of 8 time slots=> conducted power divided by (8/3) => -4.26dB 4TX-slots = 4 transmit time slots out of 8 time slots=> conducted power divided by (8/4) => -3.01dB According to the conducted power as above, the body measurements are performed with 2Txslot for GPRS and EGPRS. Table 11.13: The conducted Power for WCDMA Item band FDDIV result ARFCN 1513 (1752.6MHz) 1412 (1732.4MHz) 1312 (1712.4MHz) WCDMA \ 20.16 20.23 20.25 Item band FDDII result ARFCN 9538 (1907.6MHz) 9400 (1880MHz) 9262 (1852.4MHz) WCDMA \ 20.48 20.41 20.33 No. I15Z42203-SEM01 Page 32 of 203 ©Copyright. All rights reserved by CTTL. Table 11.14: The conducted Power for LTE Band 2 Bandwidth (MHz) RB allocation Frequency (MHz) Max. Target Power (dBm) QPSK 16QAM RB offset (Start RB) Actual output power (dBm) MPR Actual output power (dBm) MPR 1.4 MHz 1RB High (5) 1909.3 21 19.90 0 20.18 1 1880 21 19.82 0 19.70 1 1850.7 21 19.84 0 20.01 1 1RB Middle (3) 1909.3 21 19.93 0 20.20 1 1880 21 19.92 0 19.76 1 1850.7 21 20.01 0 19.96 1 1RB Low (0) 1909.3 21 19.91 0 20.05 1 1880 21 19.83 0 19.79 1 1850.7 21 19.93 0 19.83 1 3RB High (3) 1909.3 21 19.88 0 19.62 1 1880 21 19.80 0 19.90 1 1850.7 21 20.02 0 20.00 1 3RB Middle (1) 1909.3 21 19.87 0 19.74 1 1880 21 19.89 0 19.99 1 1850.7 21 20.10 0 20.20 1 3RB Low (0) 1909.3 21 19.81 0 19.75 1 1880 21 19.82 0 19.92 1 1850.7 21 20.04 0 20.14 1 6RB (0) 1909.3 21 19.85 1 19.99 2 1880 21 19.91 1 19.97 2 1850.7 21 19.97 1 19.93 2 3 MHz 1RB High (14) 1908.5 21 19.91 0 20.22 1 1880 21 19.83 0 19.78 1 1851.5 21 19.93 0 19.91 1 1RB Middle (7) 1908.5 21 19.87 0 20.19 1 1880 21 19.75 0 19.57 1 1851.5 21 19.95 0 19.94 1 1RB Low (0) 1908.5 21 19.97 0 20.30 1 1880 21 19.78 0 19.64 1 1851.5 21 20.14 0 20.02 1 8RB High (7) 1908.5 21 19.82 1 19.87 2 1880 21 19.92 1 20.02 2 1851.5 21 19.98 1 19.97 2 8RB Middle (4) 1908.5 21 19.87 1 19.91 2 1880 21 20.00 1 20.06 2 1851.5 21 20.01 1 20.04 2 No. I15Z42203-SEM01 Page 33 of 203 ©Copyright. All rights reserved by CTTL. 8RB Low (0) 1908.5 21 19.90 1 19.86 2 1880 21 19.93 1 20.07 2 1851.5 21 20.06 1 20.08 2 15RB (0) 1908.5 21 19.88 1 19.82 2 1880 21 19.97 1 19.84 2 1851.5 21 19.98 1 19.92 2 5 MHz 1RB High (24) 1907.5 21 20.10 0 20.03 1 1880 21 20.04 0 19.74 1 1852.5 21 19.67 0 19.43 1 1RB Middle (12) 1907.5 21 19.92 0 20.05 1 1880 21 19.96 0 19.95 1 1852.5 21 19.87 0 19.57 1 1RB Low (0) 1907.5 21 19.96 0 20.15 1 1880 21 20.13 0 20.06 1 1852.5 21 19.88 0 19.78 1 12RB High (13) 1907.5 21 19.86 1 19.85 2 1880 21 19.88 1 19.76 2 1852.5 21 19.91 1 20.02 2 12RB Middle (6) 1907.5 21 19.84 1 19.87 2 1880 21 19.86 1 19.65 2 1852.5 21 20.01 1 19.97 2 12RB Low (0) 1907.5 21 19.87 1 19.89 2 1880 21 19.92 1 19.60 2 1852.5 21 20.06 1 19.99 2 25RB (0) 1907.5 21 19.88 1 19.79 2 1880 21 19.92 1 19.87 2 1852.5 21 20.05 1 19.96 2 10 MHz 1RB High (49) 1905 21 20.05 0 20.06 1 1880 21 20.06 0 19.96 1 1855 21 19.87 0 19.94 1 1RB Middle (24) 1905 21 19.94 0 20.08 1 1880 21 20.26 0 20.07 1 1855 21 20.10 0 20.01 1 1RB Low (0) 1905 21 20.03 0 20.33 1 1880 21 19.97 0 19.73 1 1855 21 20.11 0 20.21 1 25RB High (25) 1905 21 19.93 1 20.12 2 1880 21 19.95 1 20.06 2 1855 21 19.90 1 19.70 2 25RB Middle (12) 1905 21 19.88 1 20.09 2 1880 21 19.97 1 20.13 2 1855 21 19.85 1 19.69 2 No. I15Z42203-SEM01 Page 34 of 203 ©Copyright. All rights reserved by CTTL. 25RB Low (0) 1905 21 19.96 1 19.97 2 1880 21 19.88 1 20.07 2 1855 21 20.13 1 19.98 2 50RB (0) 1905 21 19.95 1 19.91 2 1880 21 20.03 1 19.93 2 1855 21 20.00 1 20.10 2 15 MHz 1RB High (74) 1902.5 21 19.84 0 20.03 1 1880 21 20.09 0 20.29 1 1857.5 21 19.97 0 20.17 1 1RB Middle (37) 1902.5 21 19.85 0 20.27 1 1880 21 19.75 0 20.06 1 1857.5 21 19.85 0 20.07 1 1RB Low (0) 1902.5 21 20.10 0 20.08 1 1880 21 20.03 0 20.43 1 1857.5 21 20.21 0 20.36 1 36RB High (38) 1902.5 21 19.92 1 19.80 2 1880 21 20.06 1 20.14 2 1857.5 21 19.82 1 19.71 2 36RB Middle (19) 1902.5 21 20.08 1 19.86 2 1880 21 19.89 1 20.05 2 1857.5 21 19.88 1 19.77 2 36RB Low (0) 1902.5 21 19.95 1 19.85 2 1880 21 19.99 1 20.12 2 1857.5 21 19.97 1 19.90 2 75RB (0) 1902.5 21 19.95 1 19.94 2 1880 21 20.09 1 20.04 2 1857.5 21 20.01 1 20.07 2 20 MHz 1RB High (99) 1900 21 19.82 0 20.13 1 1880 21 19.86 0 20.16 1 1860 21 19.85 0 20.35 1 1RB Middle (50) 1900 21 19.94 0 20.12 1 1880 21 19.82 0 20.21 1 1860 21 20.00 0 20.29 1 1RB Low (0) 1900 21 20.05 0 20.27 1 1880 21 20.04 0 19.28 1 1860 21 20.26 0 …

Text truncated - open the document above for the full version.

No. I15Z42203-SEM01 Page 129 of 203 ©Copyright. All rights reserved by CTTL. Fig. 25-1 Z-Scan at power reference point (2450 MHz) No. I15Z42203-SEM01 Page 130 of 203 ©Copyright. All rights reserved by CTTL. ANNEX B System Verification Results 750MHz Date: 2015- 9- 17 Electronics: DAE4 Sn777 Medium: Head 750 MHz Medium parameters used: f = 750 MHz; σ = 0.923 mho/m; ε r = 41.01; ρ = 1000 kg/m 3 Ambient Temperature: 23.0 o C Liquid Temperature: 22.5 o C Communication System: CW Frequency: 750 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(9.53, 9.53, 9.53) System Validation /Area Scan (81x191x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 49.103 V/m; Power Drift = -0.09 dB Fast SAR: SAR(1 g) = 2.04 W/kg; SAR(10 g) = 1.32 W/kg Maximum value of SAR (interpolated) = 2.18 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 49.103 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 2.88 W/kg SAR(1 g) = 2.01 W/kg; SAR(10 g) = 1.3 W/kg Maximum value of SAR (measured) = 2.16 W/kg 0 dB = 2.16 W/kg = 3.34 dB W/kg Fig.B.1 validation 750MHz 250mW No. I15Z42203-SEM01 Page 131 of 203 ©Copyright. All rights reserved by CTTL. 750MHz Date: 2015- 9- 17 Electronics: DAE4 Sn777 Medium: Body750 MHz Medium parameters used: f = 750 MHz; σ = 0.968 mho/m; ε r = 56.37; ρ = 1000 kg/m 3 Ambient Temperature: 23.0 o C Liquid Temperature: 22.5 o C Communication System: CW Frequency: 750 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(9.18, 9.18, 9.18) System Validation/Area Scan (81x191x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 51.328 V/m; Power Drift = -0.06 dB Fast SAR: SAR(1 g) = 2.2 W/kg; SAR(10 g) = 1.45 W/kg Maximum value of SAR (interpolated) = 2.34 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51.328 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 3.06 W/kg SAR(1 g) = 2.17 W/kg; SAR(10 g) = 1.43 W/kg Maximum value of SAR (measured) = 2.32 W/kg 0 dB = 2.32 W/kg = 3.65 dB W/kg Fig.B.2 validation 750MHz 250mW No. I15Z42203-SEM01 Page 132 of 203 ©Copyright. All rights reserved by CTTL. 835MHz Date: 2015-9- 14 Electronics: DAE4 Sn777 Medium: Head 850 MHz Medium parameters used: f = 835 MHz; σ = 0.929 S/m; ε r = 41.64; ρ = 1000 kg/m 3 Ambient Temperature: 23.0 o C Liquid Temperature: 22.5 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(9.18, 9.18, 9.18) System Validation /Area Scan (81x161x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 53.281 V/m; Power Drift = 0.07 dB Fast SAR: SAR(1 g) = 2.29 W/kg; SAR(10 g) = 1.48 W/kg Maximum value of SAR (interpolated) = 2.51 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.281 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 3.58 W/kg SAR(1 g) = 2.33 W/kg; SAR(10 g) = 1.51 W/kg Maximum value of SAR (measured) = 2.54 W/kg 0 dB = 2.54 W/kg = 4.05 dBW/kg Fig.B.3 validation 835MHz 250mW No. I15Z42203-SEM01 Page 133 of 203 ©Copyright. All rights reserved by CTTL. 835MHz Date: 2015- 9- 14 Electronics: DAE4 Sn777 Medium: Body 850 MHz Medium parameters used: f = 835 MHz; σ = 0.99 S/m; ε r = 54.64; ρ = 1000 kg/m 3 Ambient Temperature: 23.0 o C Liquid Temperature: 22.5 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(9.09, 9.09, 9.09) System Validation /Area Scan (81x171x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 52.697 V/m; Power Drift = 0.05 dB Fast SAR: SAR(1 g) = 2.32 W/kg; SAR(10 g) = 1.53 W/kg Maximum value of SAR (interpolated) = 2.52 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.697 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 3.51 W/kg SAR(1 g) = 2.35 W/kg; SAR(10 g) = 1.55 W/kg Maximum value of SAR (measured) = 2.54 W/kg 0 dB = 2.54 W/kg = 4.05 dBW/kg Fig.B.4 validation 835MHz 250mW No. I15Z42203-SEM01 Page 134 of 203 ©Copyright. All rights reserved by CTTL. 1750MHz Date: 2015- 9- 16 Electronics: DAE4 Sn777 Medium: Head 1750 MHz Medium parameters used: f=1750 MHz; σ = 1.321 mho/m; εr = 41.31; ρ = 1000 kg/m 3 Ambient Temperature: 23.0 o C Liquid Temperature: 22.5 o C Communication System: CW Frequency: 1750 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(7.64, 7.64, 7.64) System Validation/Area Scan (81x121x1):Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 87.78 V/m; Power Drift = -0.05 dB Fast SAR: SAR(1 g) = 8.93 W/kg; SAR(10 g) = 4.74 W/kg Maximum value of SAR (interpolated) = 10.0 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 87.78 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 15.61 W/kg SAR(1 g) = 9.06 W/kg; SAR(10 g) = 4.84 W/kg Maximum value of SAR (measured) = 10.1 W/kg 0 dB = 10.1 W/kg = 10.04 dB W/kg Fig.B.5 validation 1750MHz 250mW No. I15Z42203-SEM01 Page 135 of 203 ©Copyright. All rights reserved by CTTL. 1750MHz Date: 2015- 9- 16 Electronics: DAE4 Sn777 Medium: Body 1750 MHz Medium parameters used: f=1750 MHz; σ = 1.549 mho/m; εr = 54.04; ρ = 1000 kg/m 3 Ambient Temperature: 23.0 o C Liquid Temperature: 22.5 o C Communication System: CW Frequency: 1750 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(7.43, 7.43, 7.43) System Validation/Area Scan (81x121x1):Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 94.477 V/m; Power Drift = -0.03 dB Fast SAR: SAR(1 g) = 9.41 W/kg; SAR(10 g) = 5.05 W/kg Maximum value of SAR (interpolated) = 10.3 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 94.477 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 16.25 W/kg SAR(1 g) = 9.3 W/kg; SAR(10 g) = 4.98 W/kg Maximum value of SAR (measured) = 10.2 W/kg 0 dB = 10.2 W/kg = 10.09 dB W/kg Fig.B.6 validation 1750MHz 250mW No. I15Z42203-SEM01 Page 136 of 203 ©Copyright. All rights reserved by CTT…

Text truncated - open the document above for the full version.

No. I15Z42203-SEM01 Page 172 of 203 ©Copyright. All rights reserved by CTTL. No. I15Z42203-SEM01 Page 173 of 203 ©Copyright. All rights reserved by CTTL. No. I15Z42203-SEM01 Page 174 of 203 ©Copyright. All rights reserved by CTTL. No. I15Z42203-SEM01 Page 175 of 203 ©Copyright. All rights reserved by CTTL. No. I15Z42203-SEM01 Page 176 of 203 ©Copyright. All rights reserved by CTTL. No. I15Z42203-SEM01 Page 177 of 203 ©Copyright. All rights reserved by CTTL. No. I15Z42203-SEM01 Page 178 of 203 ©Copyright. All rights reserved by CTTL. No. I15Z42203-SEM01 Page 179 of 203 ©Copyright. All rights reserved by CTTL. 1750 MHz Dipole Calibration Certificate No. I15Z42203-SEM01 Page 180 of 203 ©Copyright. All rights reserved by CTTL. No. I15Z42203-SEM01 Page 181 of 203 ©Copyright. All rights reserved by CTTL. No. I15Z42203-SEM01 Page 182 of 203 ©Copyright. All rights reserved by CTTL. No. I15Z42203-SEM01 Page 183 of 203 ©Copyright. All rights reserved by CTTL. No. I15Z42203-SEM01 Page 184 of 203 ©Copyright. All rights reserved by CTTL. No. I15Z42203-SEM01 Page 185 of 203 ©Copyright. All rights reserved by CTTL. No. I15Z42203-SEM01 Page 186 of 203 ©Copyright. All rights reserved by CTTL. No. I15Z42203-SEM01 Page 187 of 203 ©Copyright. All rights reserved by CTTL. 1900 MHz Dipole Calibration Certificate

No. I15Z42203-SEM01 Page 188 of 203 ©Copyright. All rights reserved by CTTL. No. I15Z42203-SEM01 Page 189 of 203 ©Copyright. All rights reserved by CTTL. No. I15Z42203-SEM01 Page 190 of 203 ©Copyright. All rights reserved by CTTL. No. I15Z42203-SEM01 Page 191 of 203 ©Copyright. All rights reserved by CTTL. No. I15Z42203-SEM01 Page 192 of 203 ©Copyright. All rights reserved by CTTL. No. I15Z42203-SEM01 Page 193 of 203 ©Copyright. All rights reserved by CTTL. No. I15Z42203-SEM01 Page 194 of 203 ©Copyright. All rights reserved by CTTL. No. I15Z42203-SEM01 Page 195 of 203 ©Copyright. All rights reserved by CTTL. 2450 MHz Dipole Calibration Certificate for 2015 No. I15Z42203-SEM01 Page 196 of 203 ©Copyright. All rights reserved by CTTL. No. I15Z42203-SEM01 Page 197 of 203 ©Copyright. All rights reserved by CTTL. No. I15Z42203-SEM01 Page 198 of 203 ©Copyright. All rights reser…
