2ACCJACC01Bluetooth keyboard

PIXI 10’’ Stand TypeFlip CJB1D6101AAA Quick Start Guide 10 23 Catalog Specification �����������������������������������������������������������������3 Getting started ������������������������������������������������������������4 Connecting Keyboard and Tablet �����������������������������5 Indicator Status ������������������������������������������������������������6 Keyboard Interface �����������������������������������������������������6 Hot Keys �����������������������������������������������������������������������7 Battery charging for keyboard ���������������������������������8 Certification �����������������������������������������������������������������8 Warranty ���������������������������������������������������������������������11 3 Specification Product NameStand TypeFlip Model NameKB10 BluetoothBluetooth 3�0 Compatible DevicePIXI 10 Dimension273 × 170 × 25�5 mm Weight350g Battery Capacity180mAh Standby Time>1700H Keyboard’s Using Time>72H Battery TypeLi-Po Available Distanceabout 10m Charging Time of Keyboard<2H Operating Temperature 0 - 40 °C 45 Getting started 1 . Follow the fold line to fold typefilp like a triangle, see figure as below: 2 . Put Tablet into frame and fix. 3 . Unfold the typefilp to near the Tablet, and then close the typefilp like a book to protect your device. 5 Connecting Keyboard and Tablet Keyboard connects with the Tablet through Bluetooth� When using it for the first time, please pair the Keyboard with the Tablet� 1. Make sure Tablet Bluetooth is open Touch Apps → Settings → Network connections section from home screen and turn on the Bluetooth switch� 2. Turn on the Keyboard When you turn on the Keyboard for the first time, please press Connect button to pair� When the power light blinking blue for 3 min, the Keyboard is discoverable and ready for pairing with your Tablet� 3. Pair Keyboard with Tablet i) In the Tablet’s Bluetooth settings page, select “ALCATEL ONETOUCH KB10” from available device’s list. ii) According to prompt, input the pairing code in the Keyboard and confirm to connect “ALCATEL ONETOUCH KB10” keyboard� When successfully connected, the light turns solid blue for 3S to indicate a stable status� iii) If unsuccessful, restart Keyboard and return to step 2� 67 Indicator Status LED LightNotes OrangeCharging Blinking Orangepower is equal to or less than 10% Solid Blue for 3S Connecting is successful Blinking Blue for 3 min The keyboard is discoverable, ready for pairing Keyboard Interface 7 KeysFunction Back Search Browser Email Brightness dark Brightness light play previous play/pause paly next KeysFunction Volume down Volume up PrtScn Lock Delete HOME Recent apps Menu Hot Keys 89 Battery charging for keyboard If the power light is blinking orange, the Keyboard folio battery needs to be charged� 1 . Plug one end of the USB cable supplied into the charging port of keyboard, and the other end into a USB port on Alcatel Onetouch charger. The status light is solid orange as the battery charges� 2 . Charge the battery until the charge light turns off. Certification The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc� and any use of such marks by TCL Communication Ltd� and its affiliates is under license� Other trademarks and trade names are those of their respective owners� KB10 Bluetooth Declaration ID D027953 Battery: Observe the following precautions for battery use: - Do not attempt to open the back cover and replace the inner rechargeable Li-polymer battery� Please contact the dealer to replace it� - Do not attempt to eject, replace and open battery� - Do not punctuate the back cover of your device� - Do not burn or dispose of your device in household rubbish or store it at temperature above 50°C� - Dispose of used batteries according to the instructions� Risk of explosion if battery replaced by an incorrect type� 9 This symbol on your device, the battery and the accessories means that these products must be taken to collection points at the end of their life: - Municipal waste disposal centers with specific bins for these items of equipment� - Collection bins at points of sale� They will then be recycled, preventing substances being disposed of in the environment, so that their components can be reused� Please make sure the temperature for device will not be higher than 40 ̊C for use in charging mode and not be higher than 45 ̊C for use in non-charge mode� In European Union countries: These collection points are accessible free of charge� All products with this sign must be brought to these collection points� In non-European Union jurisdictions: Items of equipment with this symbol are not to be thrown into ordinary bins if your jurisdiction or your region has suitable recycling and collection facilities; instead they are to be taken to collection points for them to be recycled� FCC Regulations: This device complies with part 15 of the FCC Rules� Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation� 1011 This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules� These limits are designed to provide reasonable protection against harmful interference in a residential installation� This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications� However, there is no guarantee that interference will not occur in a particular installation if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user, is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna� - Increase the separation betwe…

Text truncated - open the document above for the full version.

Rev. 1/1/03 TCL Communication Ltd. 5F, C-Tower, No.232, Liangjing Road, Zhangjiang High-tech Park, Pudong, Shanghai, China Tel: +86 21 51798260 ; Fax: +86 21 61460600 Date: August 25, 2015 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2ACCJACC01 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Parts List Operation Description Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Zhizhou Gong

TCL Communication Ltd. 5F, C-Tower, No.232, Liangjing Road, Zhangjiang High-tech Park, Pudong, Shanghai, China Tel: +86 21 51798260 ; Fax: +86 21 61460600 Date: August 25, 2015 Power of Attorney To whom it may concern, Please be notified that I, Zhizhou Gong, have designated Michael Lin in Sporton International Inc. as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: 2ACCJACC01 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Zhizhou Gong Company: TCL Communication Ltd. TEL: +86 21 51798260 FAX: +86 21 61460600 E-mail: [email protected]

1/1 TCL Communication Ltd. Date: August 25, 2015 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : 2ACCJACC01 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, Public Notice DA 04-1705 of the Commission’s policy and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which TCL Communication Ltd. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Zhizhou Gong Company: TCL Communication Ltd. TEL: +86 21 51798260 FAX: +86 21 61460600 E-mail: [email protected]

TCL Communication Ltd. 5F, C-Tower, No.232, Liangjing Road, Zhangjiang High-tech Park, Pudong, Shanghai, China Tel: +86 21 51798260 ; Fax: +86 21 61460600 Date: August 25, 2015 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: 2ACCJACC01 To Whom It May Concern: We, TCL Communication Ltd., declare that KB10 I/O connect can only support charging. It can’t support USB with PC for data transfer. Sincerely yours, Contact Person: Zhizhou Gong Company: TCL Communication Ltd. TEL: +86 21 51798260 FAX: +86 21 61460600 E-mail: [email protected]

Photographs of EUT Report No.: EP580801 Brand Name: ALCATEL ONETOUCH; Model Name: KB10; Marketing Name: Pixi3(10) Typecase SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 18 TEL : 86-755-8637-9589 Report Issued Date : Aug. 28, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ACCJACC01 1. External Photograph of EUT Photographs of EUT Report No.: EP580801 Brand Name: ALCATEL ONETOUCH; Model Name: KB10; Marketing Name: Pixi3(10) Typecase SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 18 TEL : 86-755-8637-9589 Report Issued Date : Aug. 28, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ACCJACC01 Photographs of EUT Report No.: EP580801 Brand Name: ALCATEL ONETOUCH; Model Name: KB10; Marketing Name: Pixi3(10) Typecase SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 3 of 18 TEL : 86-755-8637-9589 Report Issued Date : Aug. 28, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ACCJACC01 Photographs of EUT Report No.: EP580801 Brand Name: ALCATEL ONETOUCH; Model Name: KB10; Marketing Name: Pixi3(10) Typecase SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 4 of 18 TEL : 86-755-8637-9589 Report Issued Date : Aug. 28, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ACCJACC01 Photographs of EUT Report No.: EP580801 Brand Name: ALCATEL ONETOUCH; Model Name: KB10; Marketing Name: Pixi3(10) Typecase SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 5 of 18 TEL : 86-755-8637-9589 Report Issued Date : Aug. 28, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ACCJACC01 Photographs of EUT Report No.: EP580801 Brand Name: ALCATEL ONETOUCH; Model Name: KB10; Marketing Name: Pixi3(10) Typecase SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 6 of 18 TEL : 86-755-8637-9589 Report Issued Date : Aug. 28, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ACCJACC01 Photographs of EUT Report No.: EP580801 Brand Name: ALCATEL ONETOUCH; Model Name: KB10; Marketing Name: Pixi3(10) Typecase SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 7 of 18 TEL : 86-755-8637-9589 Report Issued Date : Aug. 28, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ACCJACC01 List of Accessory: Specification of Accessory Battery Brand Name TAIWOO Model Name TW301850 Power Rating 3.7V 180mAh Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP580801 Brand Name: ALCATEL ONETOUCH; Model Name: KB10; Marketing Name: Pixi3(10) Typecase SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 8 of 18 TEL : 86-755-8637-9589 Report Issued Date : Aug. 28, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ACCJACC01 720510 Photographs of EUT Report No.: EP580801 Brand Name: ALCATEL ONETOUCH; Model Name: KB10; Marketing Name: Pixi3(10) Typecase SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 9 of 18 TEL : 86-755-8637-9589 Report Issued Date : Aug. 28, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ACCJACC01 Battery Photographs of EUT Report No.: EP580801 Brand Name: ALCATEL ONETOUCH; Model Name: KB10; Marketing Name: Pixi3(10) Typecase SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 10 of 18 TEL : 86-755-8637-9589 Report Issued Date : Aug. 28, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ACCJACC01

20150828_PIXI3-10 BT Keyboard For Al/ONETOUCH Marking 1Black keyboard ,Marking printPT coolgray 4c 2: White keyboard, Marking print PT coolgray 7C 3: AlCATEl/ONETOUCH logo ,print PT877c : 1Black keyboard ,Marking printPT coolgray 4c 2: White keyboard, Marking print PT coolgray 7C : Made in China DID: D027953 DC0.5A FCC ID: 2ACCJACC01

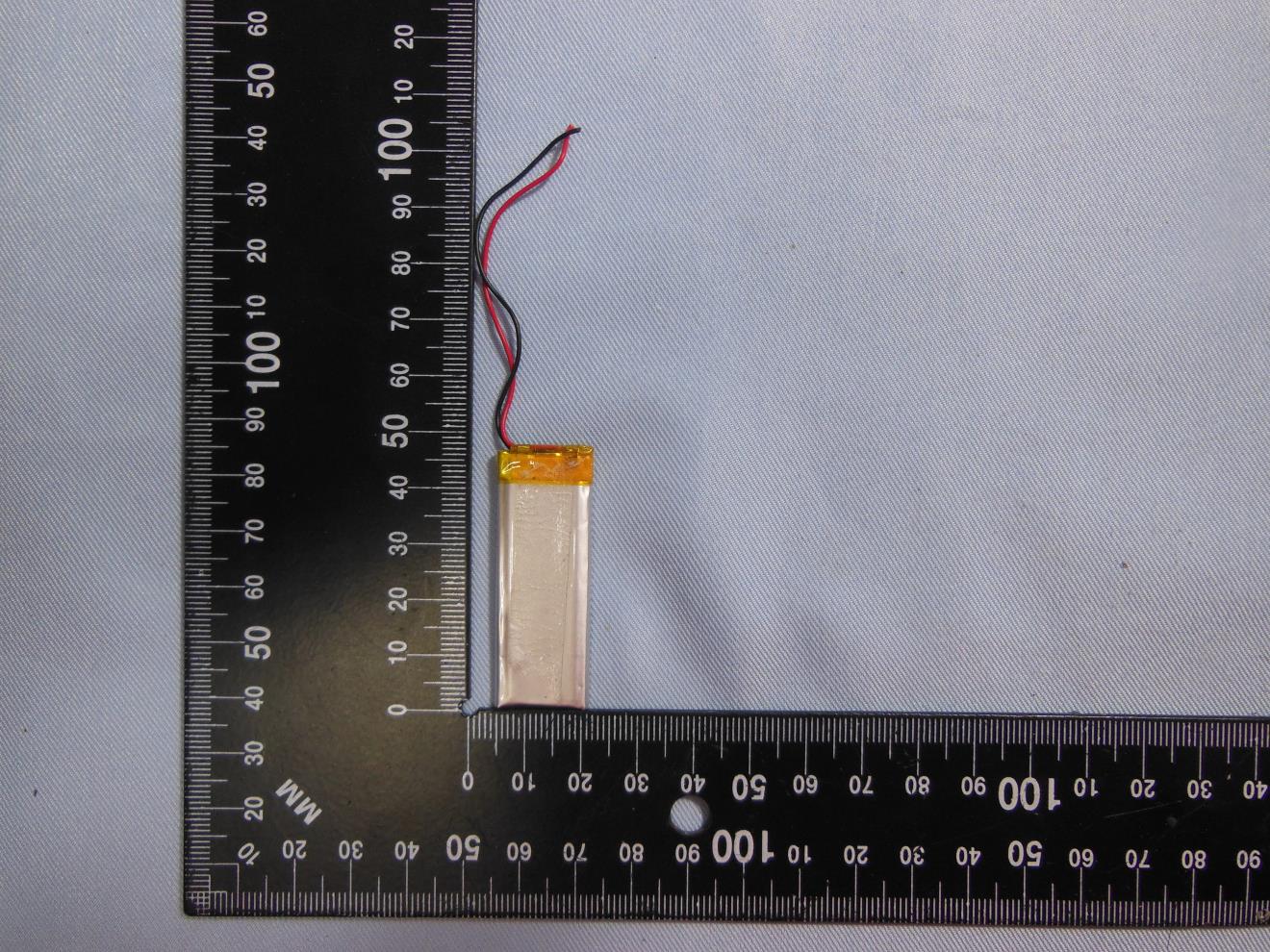

Photographs of EUT Report No.: EP580801 Brand Name: ALCATEL ONETOUCH; Model Name: KB10; Marketing Name: Pixi3(10) Typecase SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 11 of 18 TEL : 86-755-8637-9589 Report Issued Date : Aug. 28, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ACCJACC01 720510 3. Internal Photograph of EUT Bluetooth Antenna<Tx/Rx> Photographs of EUT Report No.: EP580801 Brand Name: ALCATEL ONETOUCH; Model Name: KB10; Marketing Name: Pixi3(10) Typecase SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 12 of 18 TEL : 86-755-8637-9589 Report Issued Date : Aug. 28, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ACCJACC01 Photographs of EUT Report No.: EP580801 Brand Name: ALCATEL ONETOUCH; Model Name: KB10; Marketing Name: Pixi3(10) Typecase SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 13 of 18 TEL : 86-755-8637-9589 Report Issued Date : Aug. 28, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ACCJACC01 Photographs of EUT Report No.: EP580801 Brand Name: ALCATEL ONETOUCH; Model Name: KB10; Marketing Name: Pixi3(10) Typecase SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 14 of 18 TEL : 86-755-8637-9589 Report Issued Date : Aug. 28, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ACCJACC01 Photographs of EUT Report No.: EP580801 Brand Name: ALCATEL ONETOUCH; Model Name: KB10; Marketing Name: Pixi3(10) Typecase SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 15 of 18 TEL : 86-755-8637-9589 Report Issued Date : Aug. 28, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ACCJACC01 Photographs of EUT Report No.: EP580801 Brand Name: ALCATEL ONETOUCH; Model Name: KB10; Marketing Name: Pixi3(10) Typecase SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 16 of 18 TEL : 86-755-8637-9589 Report Issued Date : Aug. 28, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ACCJACC01 Photographs of EUT Report No.: EP580801 Brand Name: ALCATEL ONETOUCH; Model Name: KB10; Marketing Name: Pixi3(10) Typecase SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 17 of 18 TEL : 86-755-8637-9589 Report Issued Date : Aug. 28, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ACCJACC01 Photographs of EUT Report No.: EP580801 Brand Name: ALCATEL ONETOUCH; Model Name: KB10; Marketing Name: Pixi3(10) Typecase SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 18 of 18 TEL : 86-755-8637-9589 Report Issued Date : Aug. 28, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ACCJACC01 Bluetooth Antenna <Tx / Rx>

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 7 TEL : 86-755-8637-9589 Report Issued Date : Aug. 28, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJACC01 RF Exposure Evaluation Report Report No. : FA580801 RF Exposure Evaluation Report APPLICANT : TCL Communication Ltd. EQUIPMENT : Bluetooth keyboard BRAND NAME : ALCATEL ONETOUCH MODEL NAME : KB10 MARKETING NAME : Pixi3(10) Typecase FCC ID : 2ACCJACC01 STANDARD : FCC 47 CFR Part 2 (2.1093) FCC KDB 447498 D01 v05r02 We, SPORTON INTERNATIONAL (SHENZHEN) INC., would like to declare that the device has been evaluated in accordance with 47 CFR Part 2.1093, and pass the limit. Without written approval of SPORTON INTERNATIONAL (SHENZHEN) INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL (SHENZHEN) INC. 1F & 2F, Building A, Morning Business Center, No. 4003 ShiGu Rd., Xili Town, Nanshan District, Shenzhen, Guangdong, P. R. China Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 7 TEL : 86-755-8637-9589 Report Issued Date : Aug. 28, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJACC01 RF Exposure Evaluation Report Report No. : FA580801 Table of Contents 1. ADMINISTRATION DATA ........................................................................................................................... 4 1.1. Testing Laboratory ............................................................................................................................. 4 2. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................. 5 3. MAXIMUM RF AVERAGE OUTPUT POWER AMONG PRODUCTION UNITS ........................................ 6 4. BLUETOOTH EXCLUSIONS APPLIED ...................................................................................................... 7 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 3 of 7 TEL : 86-755-8637-9589 Report Issued Date : Aug. 28, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJACC01 RF Exposure Evaluation Report Report No. : FA580801 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA580801 Rev. 01 Initial issue of report Aug. 28, 2015 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 4 of 7 TEL : 86-755-8637-9589 Report Issued Date : Aug. 28, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJACC01 RF Exposure Evaluation Report Report No. : FA580801 1. Administration Data 1.1. Testing Laboratory Testing Laboratory Test Site SPORTON INTERNATIONAL (SHENZHEN) INC. Test Site Location 1F & 2F,Building A, Morning Business Center, No. 4003 ShiGu Rd., Xili Town, Nanshan District, Shenzhen, Guangdong, P. R. China TEL: +86-755-8637-9589 FAX: +86-755-8637-9595 Applicant Company Name TCL Communication Ltd. Address 5F, C-Tower, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Area,Shanghai,201203,P.R.China Manufacturer Company Name TCL Communication Ltd. Address 5F, C-Tower, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Area,Shanghai,201203,P.R.China SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 5 of 7 TEL : 86-755-8637-9589 Report Issued Date : Aug. 28, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJACC01 RF Exposure Evaluation Report Report No. : FA580801 2. Description of Equipment Under Test (EUT) Product Feature & Specification EUT Type Bluetooth keyboard Brand Name ALCATEL ONETOUCH Model Name KB10 Marketing Name Pixi3(10) Typecase FCC ID 2ACCJACC01 Wireless Technology and Frequency Range Bluetooth: 2402 MHz ~ 2480 MHz Mode Bluetooth v3.0+EDR Antenna Type Bluetooth: PIFA Antenna HW Version V1.0 SW Version V2.0.0.0 EUT Stage Production Unit Remark: The above EUT's information was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description. SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 6 of 7 TEL : 86-755-8637-9589 Report Issued Date : Aug. 28, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJACC01 RF Exposure Evaluation Report Report No. : FA580801 3. Maximum RF average output power among production units Mode Maximum Average Power (dBm) Bluetooth v3.0+EDR 2.5 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 7 of 7 TEL : 86-755-8637-9589 Report Issued Date : Aug. 28, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJACC01 RF Exposure Evaluation Report Report No. : FA580801 4. Bluetooth Exclusions Applied Mode Average power(dBm) Bluetooth v3.0+EDR 2.4GHz Bluetooth 2.5 Note: 1. Per KDB 447498 D01v05r02, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison Bluetooth Max Power (dBm) Separation Distance (mm) Frequency (GHz) exclusion thresholds 2.5 < 5 2.48 0.6 Note: Per KDB 447498 D01v05r02, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. The test exclusion threshold is 0.6 which is <= 3, SAR testing is not required. Conclusion: Bluetooth SAR testing is not required

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 63 TEL : 86-755-8637-9589 Report Issued Date : Aug. 28, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJACC01 FCC RF Test Report Report No. : FR580801 FCC RF Test Report APPLICANT : TCL Communication Ltd. EQUIPMENT : Bluetooth keyboard BRAND NAME : ALCATEL ONETOUCH MODEL NAME : KB10 MARKETING NAME : Pixi3(10) Typecase FCC ID : 2ACCJACC01 STANDARD : FCC Part 15 Subpart C §15.247 CLASSIFICATION : (DSS) Spread Spectrum Transmitter The product was received on Aug. 08, 2015 and testing was completed on Aug. 21, 2015. We, SPORTON INTERNATIONAL (SHENZHEN) INC., would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (SHENZHEN) INC., the test report shall not be reproduced except in full. Reviewed by: Joseph Lin / Supervisor Approved by: Jones Tsai / Manager SPORTON INTERNATIONAL (SHENZHEN) INC. 1F & 2F, Building A, Morning Business Center, No. 4003 ShiGu Rd., Xili Town, Nanshan District, Shenzhen, Guangdong, P. R. China SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 63 TEL : 86-755-8637-9589 Report Issued Date : Aug. 28, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJACC01 FCC RF Test Report Report No. : FR580801 TABLE OF CONTENTS 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Product Feature of Equipment Under Test ........................................................................................ 5 1.4 Product Specification subjective to this standard .............................................................................. 5 1.5 Modification of EUT ........................................................................................................................... 6 1.6 Testing Location ................................................................................................................................ 6 1.7 Applicable Standards ......................................................................................................................... 7 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 8 2.1 Descriptions of Test Mode ................................................................................................................. 8 2.2 Test Mode .......................................................................................................................................... 9 2.3 Connection Diagram of Test System ............................................................................................... 10 2.4 Support Unit used in test configuration and system ........................................................................ 11 2.5 EUT Operation Test Setup .............................................................................................................. 11 2.6 Measurement Results Explanation Example ................................................................................... 12 3 TEST RESULT .......................................................................................................................................... 13 3.1 Number of Channel Measurement .................................................................................................. 13 3.2 Hopping Channel Separation Measurement ................................................................................... 15 3.3 Dwell Time Measurement ................................................................................................................ 22 3.4 20dB Bandwidth Measurement ....................................................................................................... 25 3.5 Peak Output Power Measurement .................................................................................................. 32 3.6 Conducted Band Edges Measurement ........................................................................................... 34 3.7 Conducted Spurious Emission Measurement ................................................................................. 41 3.8 Radiated Band Edges and Spurious Emission Measurement ........................................................ 51 3.9 AC Conducted Emission Measurement........................................................................................... 57 3.10 Antenna Requirements .................................................................................................................... 61 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 62 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 63 APPENDIX A. RADIATED TEST RESULTS APPENDIX B. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 3 of 63 TEL : 86-755-8637-9589 Report Issued Date : Aug. 28, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJACC01 FCC RF Test Report Report No. : FR580801 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FR580801 Rev. 01 Initial issue of report Aug. 28, 2015 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 4 of 63 TEL : 86-755-8637-9589 Report Issued Date : Aug. 28, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJACC01 …

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : B1 of B2 TEL : 86-755-8637-9589 Report Issued Date : Aug. 28, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJACC01 FCC RF Test Report Report No. : FR580801 Appendix B. Setup Photographs <Conducted Emission> Mode 1 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : B2 of B2 TEL : 86-755-8637-9589 Report Issued Date : Aug. 28, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJACC01 FCC RF Test Report Report No. : FR580801 <Radiated Emission> LF HF
