2ACCJB011Mobile phone with CDMA 800/1900, LTE Band 25, 26, 41, 802.11b/g/n, Bluetooth.

User Guide [UG template version 15a] [Boost_Alcatel_ONETOUCH Elevate_5017B_UG_EN_20150521_Draft3] TOC i Table of Contents Introduction.................................................................................................................................................... 1 About the User Guide............................................................................................................................ 1 How to Use This Guide [Prepaid Only] ................................................................................................. 1 Header and Toolbar Areas ............................................................................................................ 1 Search This Guide ........................................................................................................................ 1 Topic Area ..................................................................................................................................... 2 Contents and Index Area .............................................................................................................. 2 Resizing Areas .............................................................................................................................. 2 Access Instructions on Phone ............................................................................................................... 2 Launch the Guide .......................................................................................................................... 2 Launch the Guide from the Notifications Window ......................................................................... 2 Hide Status Bar Indicators ............................................................................................................ 2 Using the Phone Guide ................................................................................................................. 2 Check Basic Operations ............................................................................................................... 2 Screen Use for First-Time Users .................................................................................................. 2 Get Started .................................................................................................................................................... 3 Parts and Functions .............................................................................................................................. 3 SIM Card ............................................................................................................................................... 5 Handling a SIM Card ..................................................................................................................... 5 Insert SIM Card ............................................................................................................................. 5 Remove SIM Card ........................................................................................................................ 7 SD Card ................................................................................................................................................ 9 Insert SD Card .............................................................................................................................. 9 Unmount the SD Card ................................................................................................................. 11 Remove SD Card ........................................................................................................................ 11 Format SD Card .......................................................................................................................... 12 Battery Use ......................................................................................................................................... 13 Insert the battery ......................................................................................................................... 13 Remove the battery ..................................................................................................................... 13 Charge the Battery ...................................................................................................................... 14 Turn Your Phone On and Off .............................................................................................................. 15 Use the Touchscreen .......................................................................................................................... 16 TOC ii Activation and Service ........................................................................................................................ 17 Complete the Setup Screens .............................................................................................................. 18 Basic Operations ......................................................................................................................................... 22 Basics .................................................................................................................................................. 22 Home Screen and Applications (Apps) List ................................................................................ 22 Select Options and Navigate Screens ........................................................................................ 22 Recent Applications .................................................................................................................... 22 Phone Settings Menu .................................................................................................................. 22 Portrait and Landscape Screen Orientation ................................................................................ 22 Capture Screenshots ..............…

Text truncated - open the document above for the full version.

Date 2015-05-22 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL To Whom It May Concern: We, (TCL Communication Ltd.), hereby authorize (Ms. Li Wei from TÜV SÜD Certification and Testing (China) Co., Ltd. Beijing Branch, M Building, No. 7 Wangjing Zhonghuan Nanlu, Chaoyang District，Beijing 100102) to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. This authorization expires on 6 months from original date. If you have any question regarding the authorization, please don’t hesitate to contact with me. Thank you. Regards, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

2015-05-22 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Confidentiality request or FCC ID: 2ACCJB011 To Whom It May Concern: Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, (TCL Communication Ltd.) hereby requests permanent confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of (up to 180) days: - External Photos - Internal Photos - Test Setup Photos - User Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

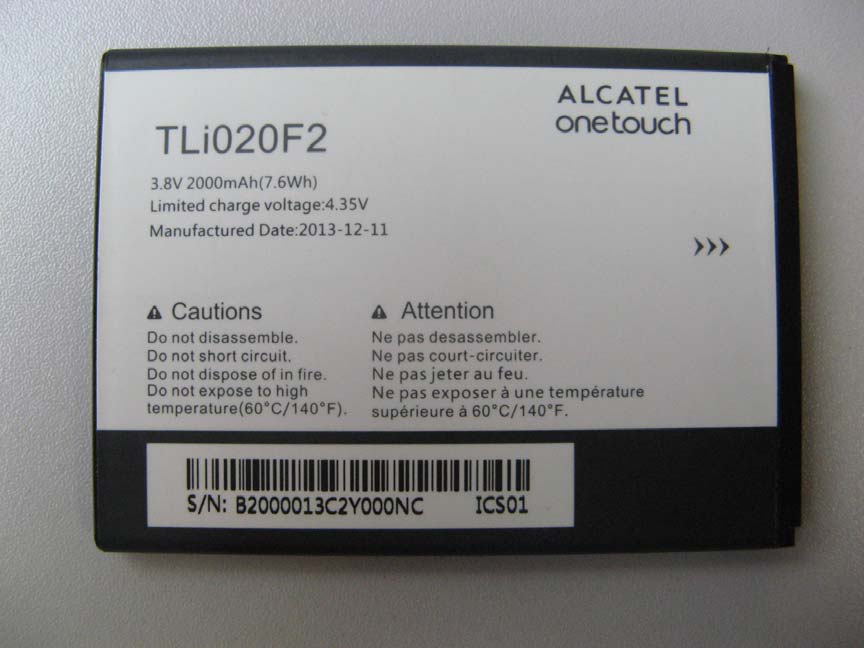

EUT photograph

EUT Interior photograph Mobile Phone Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly

©Copyright. All rights reserved by CTTL. SAR TEST REPORT No. I15Z40879-SEM01 For TCL Communication Ltd. CDMA+LTE mobile phone for Sprint Model Name: 5017B With Hardware Version: VE Software Version: 5017BA0B FCC ID: 2ACCJB011 Issued Date: 2015-06-11 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL, Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No. 51 Shouxiang Science Building, Xueyuan Road, Haidian District, Beijing, P. R. China100191 Te l:+86(0)10-62304633-2512,Fax:+86(0)10-62304633-2504 Email: [email protected], website:www.chinattl.com TESTING CNAS L0570 No. I15Z40879-SEM01 Page 2 of 149 ©Copyright. All rights reserved by CTTL. REPORT HISTORY Report Number Revision Issue Date Description I15Z40879-SEM01 Re v.0 2015-05-26 Initial creation of test report I15Z40879-SEM01 Re v.1 2015-05-29 Update on table14.26 and 14.27 I15Z40879-SEM01 Re v.2 2015-05-29 Update the results of Simultaneous for BT I15Z40879-SEM01 Re v.3 2015-06-11 1. Add the power results of more channels for LTE B41 in section 11.3 on page 31 2. Retest the LTE band41 with correct duty factor No. I15Z40879-SEM01 Page 3 of 149 ©Copyright. All rights reserved by CTTL. TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 5 1.1 TESTING LO C AT I O N ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE .................................................................................................. 6 3 CLIENT INFORMATION ................................................................................................................ 8 3.1 APPLICANT INFORMATION .............................................................................................................................. 8 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 8 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................. 9 4.1 ABOUT EUT ................................................................................................................................................... 9 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 9 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................ 9 5 TEST METHODOLOGY .............................................................................................................. 10 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 10 5.2 APPLICABLE MEASUREMENT STANDARDS .................................................................................................... 10 6 SPECIFIC ABSORPTION RATE (SAR) ...................................................................................... 11 6.1 INTRODUCTION ............................................................................................................................................. 11 6.2 SAR DEFINITION .......................................................................................................................................... 11 7 TISSUE SIMULATING LIQUIDS ................................................................................................. 12 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 12 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 12 8 SYSTEM VERIFICATION ............................................................................................................ 17 8.1 SYSTEM SETUP ............................................................................................................................................. 17 8.2 SYSTEM VERIFICATION ................................................................................................................................. 18 9 MEASUREMENT PROCEDURES .............................................................................................. 19 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 19 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 20 9.3 SAR MEASUREMENT FOR LT E ..................................................................................................................... 21 9.4 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 22 9.5 POWER DRIFT ............................................................................................................................................... 22 10 AREA SCAN BASED 1-G SAR ................................................................................................. 23 10.1 REQUIREMENT OF KDB ..…

Text truncated - open the document above for the full version.

No. I15Z40879-SEM01 Page 51 of 149 ©Copyright. All rights reserved by CTTL. 15 SAR Measurement Variability SAR measurement variability must be assessed for each frequency band, which is determined by the SAR probe calibration point and tissue-equivalent medium used for the device measurements. When both head and body tissue-equivalent media are required for SAR measurements in a frequency band, the variability measurement procedures should be applied to the tissue medium with the highest measured SAR, using the highest measured SAR configuration for that tissue-equivalent medium. The following procedures are applied to determine if repeated measurements are required. 1) Repeated measurement is not required when the original highest measured SAR is < 0.80 W/kg; steps 2) through 4) do not apply. 2) When the original highest measured SAR is ≥ 0.80 W/kg, repeat that measurement once. 3) Perform a second repeated measurement only if the ratio of largest to smallest SAR for the original and first repeated measurements is > 1.20 or when the original or repeated measurement is ≥ 1.45 W/kg (~ 10% from the 1-g SAR limit). 4) Perform a third repeated measurement only if the original, first or second repeated measurement is ≥ 1.5 W/kg and the ratio of largest to smallest SAR for the original, first and second repeated measurements is > 1.20. Table 15.1: SAR Measurement Variability for Body CDMA BC0 (1g) Frequency Test Position Spacing (mm) Original SAR (W/kg) First Repeated SAR (W/kg) The Ratio Second Repeated SAR (W/kg) MHz Ch. 824.7 1013 Rear 10 1.06 1.05 1.01 / Table 15.2: SAR Measurement Variability for Body CDMA BC1 (1g) Frequency Test Position Spacing (mm) Original SAR (W/kg) First Repeated SAR (W/kg) The Ratio Second Repeated SAR (W/kg) MHz Ch. 1908.75 1175 Bottom 10 1.15 1.14 1.01 / Table 15.3: SAR Measurement Variability for Body CDMA BC10 (1g) Frequency Test Position Spacing (mm) Original SAR (W/kg) First Repeated SAR (W/kg) The Ratio Second Repeated SAR (W/kg) MHz Ch. 823.1 684 Rear 10 1.08 1.07 1.01 / Table 15.4: SAR Measurement Variability for Body LTE Band 25 (1g) Frequency Mode Test Position Spacing (mm) Original SAR (W/kg) First Repeated SAR (W/kg) The Ratio Second Repeated SAR (W/kg) MHz Ch. 1905 26590 1RB_Mid Bottom 10 1.09 1.07 1.02 / No. I15Z40879-SEM01 Page 52 of 149 ©Copyright. All rights reserved by CTTL. Table 15.5: SAR Measurement Variability for Body LTE Band 26 (1g) Frequency Mode Test Position Spacing (mm) Original SAR (W/kg) First Repeated SAR (W/kg) The Ratio Second Repeated SAR (W/kg) MHz Ch. 831.5 26865 1RB_Low Rear 10 0.866 0.859 1.01 / Table 15.6: SAR Measurement Variability for Body LTE Band 41 (1g) Frequency Mode Test Position Spacing (mm) Original SAR (W/kg) First Repeated SAR (W/kg) The Ratio Second Repeated SAR (W/kg) MHz Ch. 2593 40620 1RB_Low Bottom 10 1.19 1.17 1.02 / Table 15.7: SAR Measurement Variability for Head WLAN (1g) Frequency Side Test Position Original SAR (W/kg) First Repeated SAR (W/kg) The Ratio Second Repeated SAR (W/kg) MHz Ch. 2462 11 Right Touch 0.838 0.832 1.01 / No. I15Z40879-SEM01 Page 53 of 149 ©Copyright. All rights reserved by CTTL. 16 Measurement Uncertainty 16.1 Measurement Uncertainty for Normal SAR Tests (300MHz~3GHz) No. Error Description Type Uncertainty value Probably Distribution D iv. (Ci) 1g (Ci) 10g Std. Unc. (1g) Std. Unc. (10g) Degree of freedo m Measurement system 1 Probe calibration B 5.5 N 1 1 1 5.5 5.5 ∞ 2 Isotropy B 4.7 R 3 0.7 0.7 1.9 1.9 ∞ 3 Boundary effect B 1.0 R 3 1 1 0.6 0.6 ∞ 4 Linearity B 4.7 R 3 1 1 2.7 2.7 ∞ 5 Detection limit B 1.0 R 3 1 1 0.6 0.6 ∞ 6 Readout electronics B 0.3 R 3 1 1 0.3 0.3 ∞ 7 Response time B 0.8 R 3 1 1 0.5 0.5 ∞ 8 Integration time B 2.6 R 3 1 1 1.5 1.5 ∞ 9 RF ambient conditions-noise B 0 R 3 1 1 0 0 ∞ 10 RF ambient conditions-reflection B 0 R 3 1 1 0 0 ∞ 11 Probe positioned mech. restrictions B 0.4 R 3 1 1 0.2 0.2 ∞ 12 Probe positioning with respect to phantom shell B 2.9 R 3 1 1 1.7 1.7 ∞ 13 Post-processing B 1.0 R 3 1 1 0.6 0.6 ∞ Test sample related 14 Test sample positioning A 3.3 N 1 1 1 3.3 3.3 71 15 Device holder uncertainty A 3.4 N 1 1 1 3.4 3.4 5 16 Drift of output power B 5.0 R 3 1 1 2.9 2.9 ∞ Phantom and set-up 17 Phantom uncertainty B 4.0 R 3 1 1 2.3 2.3 ∞ 18 Liquid conductivity (target) B 5.0 R 3 0.64 0.43 1.8 1.2 ∞ 19 Liquid conductivity (meas.) A 2.06 N 1 0.64 0.43 1.32 0.89 43 20 Liquid permittivity (target) B 5.0 R 3 0.6 0.49 1.7 1.4 ∞ 21 Liquid permittivity (meas.) A 1.6 N 1 0.6 0.49 1.0 0.8 521 No. I15Z40879-SEM01 Page 54 of 149 ©Copyright. All rights reserved by CTTL. Combined standard uncertainty ∑ = = 21 1 22' i iic ucu 9.25 9.12 257 Expanded uncertainty (confidence interval of 95 %) ce uu2= 18.5 18.2 16.2 Measurement Uncertainty for Normal SAR Tests (3~6GHz) No. Error Description Type Uncertainty value Probably Distribution D iv. (Ci) 1g (Ci) 10g Std. Unc. (1g) Std. Unc. (10g) Degree of freedo m Measurement system 1 Probe calibration B 6.5 N 1 1 1 6.5 6.5 ∞ 2 Isotropy B 4.7 R 3 0.7 0.7 1.9 1.9 ∞ 3 Boundary effect B 2.0 R 3 1 1 1.2 1.2 ∞ 4 Linearity B 4.7 R 3 1 1 2.7 2.7 ∞ 5 Detection limit B 1.0 R 3 1 1 0.6 0.6 ∞ 6 Readout electronics B 0.3 R 3 1 1 0.3 0.3 ∞ 7 Response time B 0.8 R 3 1 1 0.5 0.5 ∞ 8 Integration time B 2.6 R 3 1 1 1.5 1.5 ∞ 9 RF ambient conditions-noise B 0 R 3 1 1 0 0 ∞ 10 RF ambient conditions-reflection B 0 R 3 1 1 0 0 ∞ 11 Probe positioned mech. restrictions B 0.8 R 3 1 1 0.5 0.5 ∞ 12 Probe positioning with respect to phantom shell B 6.7 R 3 1 1 3.9 3.9 ∞ 13 Post-processing B 4.0 R 3 1 1 2.3 2.3 ∞ Test sample related 14 Test sample positioning A 3.3 N 1 1 1 3.3 3.3 71 15 Device holder uncertainty A 3.4 N 1 1 1 3.4 3.4 5 16 Drift of output power B 5.0 R 3 1 1 2.9 2.9 ∞ Phantom and set-up 17 Phantom uncertainty B 4.0 R 3 1 1 2.3 2.3 ∞ 18 Liquid conductivity (target) B 5.0 R 3 0.64 0.43 1.8 1.2 ∞ 19 Liquid conductivity (meas.) A 2.06 N 1 0.64 0.43 1.32 0.89 43 No. I15Z40879-SEM01 Page 55 of 149 ©Copyright. All rights reserved by CTTL. 20 Liquid pe…

Text truncated - open the document above for the full version.

No. I15Z40879-SEM01 Page 101 of 149 ©Copyright. All rights reserved by CTTL. ANNEX D Position of the wireless device in relation to the phantom D.1 General considerations This standard specifies two handset test positions against the head phantom – the “cheek” position and the “tilt” position. t w Width of the handset at the level of the acoustic b w Width of the bottom of the handset A Midpoint of the width t w of the handset at the level of the acoustic output B Midpoint of the width b w of the bottom of the handset Picture D.1-a Typical “fixed” case handset Picture D.1-b Typical “clam-shell” case handset Picture D.2 Cheek position of the wireless device on the left side of SAM No. I15Z40879-SEM01 Page 102 of 149 ©Copyright. All rights reserved by CTTL. Picture D.3 Tilt position of the wireless device on the left side of SAM D.2 Body-worn device A typical example of a body-worn device is a mobile phone, wireless enabled PDA or other battery operated wireless device with the ability to transmit while mounted on a person’s body using a carry accessory approved by the wireless device manufacturer. Picture D.4 Test positions for body-worn devices D.3 Desktop device A typical example of a desktop device is a wireless enabled desktop computer placed on a table or desk when used. The DUT shall be positioned at the distance and in the orientation to the phantom that corresponds to the intended use as specified by the manufacturer in the user instructions. For devices that employ an external antenna with variable positions, tests shall be performed for all antenna positions specified. Picture 8.5 show positions for desktop device SAR tests. If the intended use is not specified, the device shall be tested directly against the flat phantom. No. I15Z40879-SEM01 Page 103 of 149 ©Copyright. All rights reserved by CTTL. Picture D.5 Test positions for desktop devices D.4 DUT Setup Photos Picture D.6 No. I15Z40879-SEM01 Page 104 of 149 ©Copyright. All rights reserved by CTTL. ANNEX E Equivalent Media Recipes The liquid used for the frequency range of 800-3000 MHz consisted of water, sugar, salt, preventol, glycol monobutyl and Cellulose. The liquid has been previously proven to be suited for worst-case. The Table E.1 shows the detail solution. It’s satisfying the latest tissue dielectric parameters requirements proposed by the IEEE 1528 and IEC 62209. Table E.1: Composition of the Tissue Equivalent Matter Frequency (MHz) 835 Head 835 Body 1900 Head 1900 Body 2450 Head 2450 Body 5800 Head 5800 Body Ingredients (% by weight) Water 41.45 52.5 55.242 69.91 58.79 72.60 65.53 65.53 Sugar 56.0 45.0 \ \ \ \ \ \ Salt 1.45 1.4 0.306 0.13 0.06 0.18 \ \ Preventol 0.1 0.1 \ \ \ \ \ \ Cellulose 1.0 1.0 \ \ \ \ \ \ Glycol Monobutyl \ \ 44.452 29.96 41.15 27.22 \ \ Diethylenglycol monohexylether \ \ \ \ \ \ 17.24 17.24 Triton X-100 \ \ \ \ \ \ 17.24 17.24 Dielectric Parameters Target Value ε=41.5 σ=0.90 ε=55.2 σ=0.97 ε=40.0 σ=1.40 ε=53.3 σ=1.52 ε=39.2 σ=1.80 ε=52.7 σ=1.95 ε=35.3 σ=5.27 ε=48.2 σ=6.00 No. I15Z40879-SEM01 Page 105 of 149 ©Copyright. All rights reserved by CTTL. ANNEX F System Validation The SAR system must be validated against its performance specifications before it is deployed. When SAR probes, system components or software are changed, upgraded or recalibrated, these must be validated with the SAR system(s) that operates with such components. Table F.1: System Validation Probe SN. Liquid name Validation date Frequency point Status (OK or Not) 3846 Head 750MHz Oct.25,2014 750 MHz OK 3846 Head 850MHz Oct.25,2014 850 MHz OK 3846 Head 900MHz Oct.26,2014 900 MHz OK 3846 Head 1750MHz Oct.27,2014 1750 MHz OK 3846 Head 1810MHz Oct.27,2014 1810 MHz OK 3846 Head 1900MHz Oct.28,2014 1900 MHz OK 3846 Head 1950MHz Oct.28,2014 1950 MHz OK 3846 Head 2000MHz Oct.28,2014 2000 MHz OK 3846 Head 2100MHz Oct.28,2014 2100 MHz OK 3846 Head 2300MHz Oct.29,2014 2300 MHz OK 3846 Head 2450MHz Oct.29,2014 2450 MHz OK 3846 Head 2550MHz Oct.29,2014 2550 MHz OK 3846 Head 2600MHz Oct.29,2014 2600 MHz OK 3846 Head 3500MHz Oct.30,2014 3500 MHz OK 3846 Head 3700MHz Oct.30,2014 3700 MHz OK 3846 Head 5200MHz Oct.24,2014 5200 MHz OK 3846 Head 5500MHz Oct.24,2014 5500 MHz OK 3846 Head 5800MHz Oct.24,2014 5800 MHz OK 3846 Body 750MHz Oct.25,2014 750 MHz OK 3846 Body 850MHz Oct.25,2014 850 MHz OK 3846 Body 900MHz Oct.26,2014 900 MHz OK 3846 Body 1750MHz Oct.27,2014 1750 MHz OK 3846 Body 1810MHz Oct.27,2014 1810 MHz OK 3846 Body 1900MHz Oct.28,2014 1900 MHz OK 3846 Body 1950MHz Oct.28,2014 1950 MHz OK 3846 Body 2000MHz Oct.28,2014 2000 MHz OK 3846 Body 2100MHz Oct.28,2014 2100 MHz OK 3846 Body 2300MHz Oct.29,2014 2300 MHz OK 3846 Body 2450MHz Oct.29,2014 2450 MHz OK 3846 Body 2550MHz Oct.29,2014 2550 MHz OK 3846 Body 2600MHz Oct.29,2014 2600 MHz OK 3846 Body 3500MHz Oct.30,2014 3500 MHz OK 3846 Body 3700MHz Oct.30,2014 3700 MHz OK 3846 Body 5200MHz Oct.24,2014 5200 MHz OK 3846 Body 5500MHz Oct.24,2014 5500 MHz OK 3846 Body 5800MHz Oct.24,2014 5800 MHz OK No. I15Z40879-SEM01 Page 106 of 149 ©Copyright. All rights reserved by CTTL. ANNEX G Probe Calibration Certificate Probe 3846 Calibration Certificate No. I15Z40879-SEM01 Page 107 of 149 ©Copyright. All rights reserved by CTTL. No. I15Z40879-SEM01 Page 108 of 149 ©Copyright. All rights reserved by CTTL. No. I15Z40879-SEM01 Page 109 of 149 ©Copyright. All rights reserved by CTTL. No. I15Z40879-SEM01 Page 110 of 149 ©Copyright. All rights reserved by CTTL. No. I15Z40879-SEM01 Page 111 of 149 ©Copyright. All rights reserved by CTTL. No. I15Z40879-SEM01 Page 112 of 149 ©Copyright. All rights reserved by CTTL. No. I15Z40879-SEM01 Page 113 of 149 ©Copyright. All rights reserved by CTTL. No. I15Z40879-SEM01 Page 114 of 149 ©Copyright. All rights reserved by CTTL. No. I15Z40879-SEM01 Page 115 of 149 ©Copyright. All rights reserved by CTTL. No. I15Z40879-SEM01 Page 116 of 149 ©Copyright. All rights reserved by CTTL. No. I15Z40879-SEM01 Page 117 of 149 ©Copyright. All rights reserved by CTTL. ANNEX H Di…

Text truncated - open the document above for the full version.

©Copyright. All rights reserved by CTTL. FCC PART 15C TESTREPORT No. I15Z40879-SRD01 for TCL Communication Ltd. CDMA+LTE mobile phone for Sprint MODEL NAME: 5017B with FCC ID: 2ACCJB011 Hardware Version: VE Software Version: 5017BA0B Issued Date: 2015-05-21 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL, Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No.52, HuayuanNorth Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2512,Fax:+86(0)10-62304633-2504 Email:[email protected] , website:www.chinattl.com TESTING CNAS L0570 No. I15Z40879-SRD01 Page2 of 94 ©Copyright. All rights reserved by CTTL. REPORT HISTORY Report Number Revision Description Issue Date I15Z40879-SRD01 Rev.0 1st edition 2015-5-21 No. I15Z40879-SRD01 Page3 of 94 ©Copyright. All rights reserved by CTTL. CONTENTS 1. TEST LABORATORY .............................................................................................................. 5 1.1. TESTINGLOCATION ........................................................................................................... 5 1.2. TESTINGENVIRONMENT ................................................................................................... 5 1.3. PROJECT DATA .................................................................................................................. 5 1.4. SIGNATURE ........................................................................................................................ 5 2. CLIENTINFORMATION ........................................................................................................... 6 2.1. APPLICANT INFORMATION............................................................................................... 6 2.2. MANUFACTURER INFORMATION ..................................................................................... 6 3. EQUIPMENT UNDERTEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 7 3.1. ABOUT EUT ........................................................................................................................ 7 3.2. INTERNAL IDENTIFICATION OF EUT ............................................................................... 7 3.3. INTERNAL IDENTIFICATION OF AE .................................................................................. 7 3.4. GENERAL DESCRIPTION .................................................................................................. 8 3.5. INTERPRETATION OF THE TEST ENVIRONMENT .......................................................... 8 4. REFERENCE DOCUMENTS .................................................................................................. 8 4.1. DOCUMENTS SUPPLIED BY APPLICANT ........................................................................ 8 4.2. REFERENCE DOCUMENTS FOR TESTING ...................................................................... 8 5. TEST RESULTS ...................................................................................................................... 9 5.1. SUMMARY OF TEST RESULTS ......................................................................................... 9 5.2. STATEMENTS .......................................…

Text truncated - open the document above for the full version.
