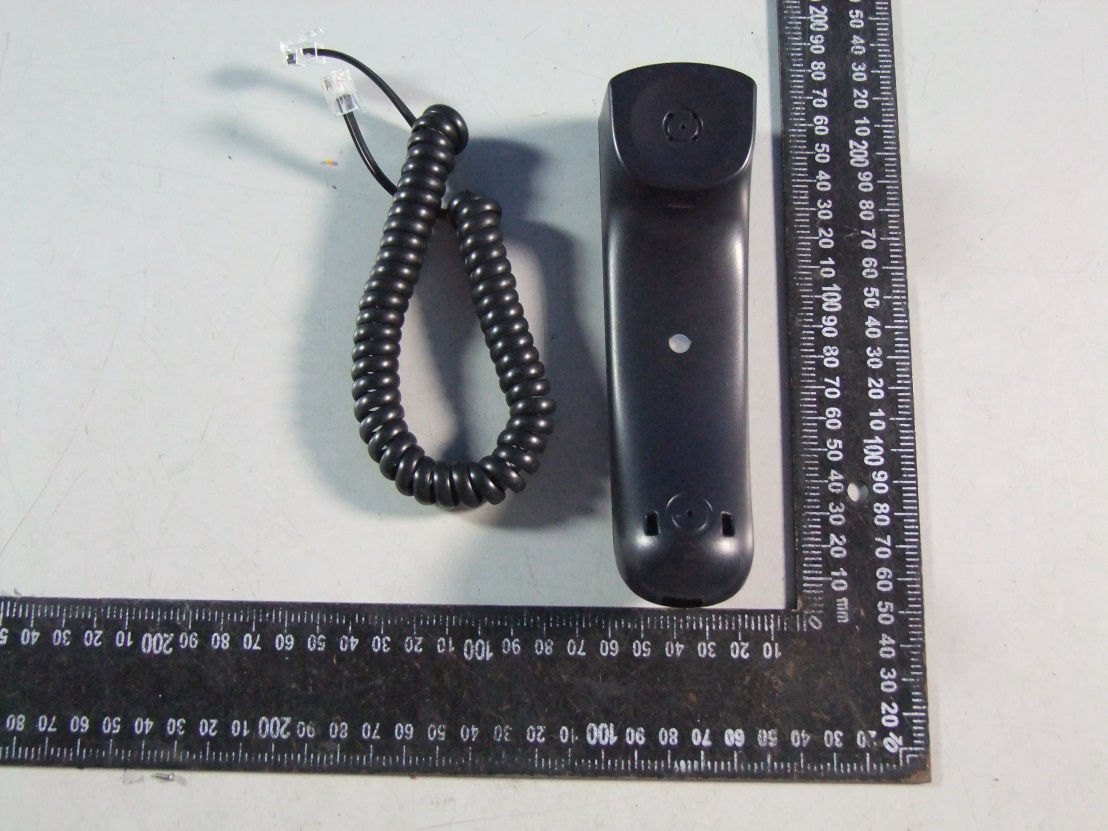

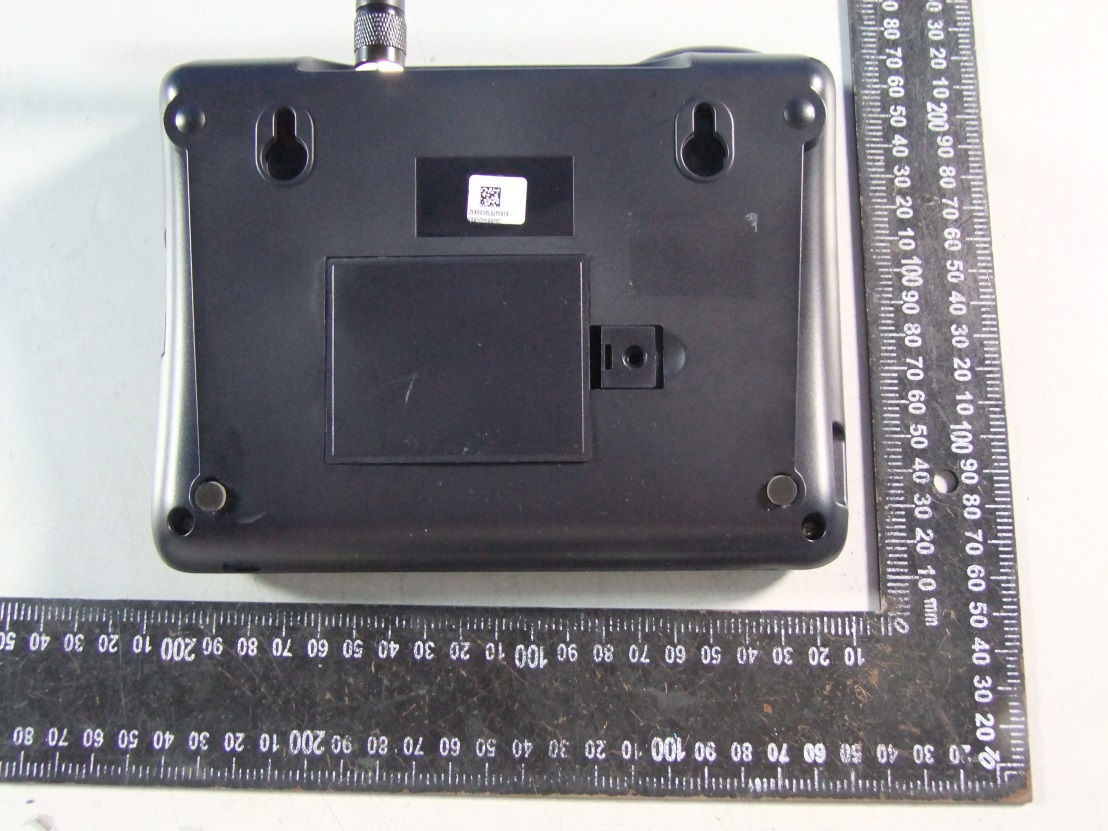

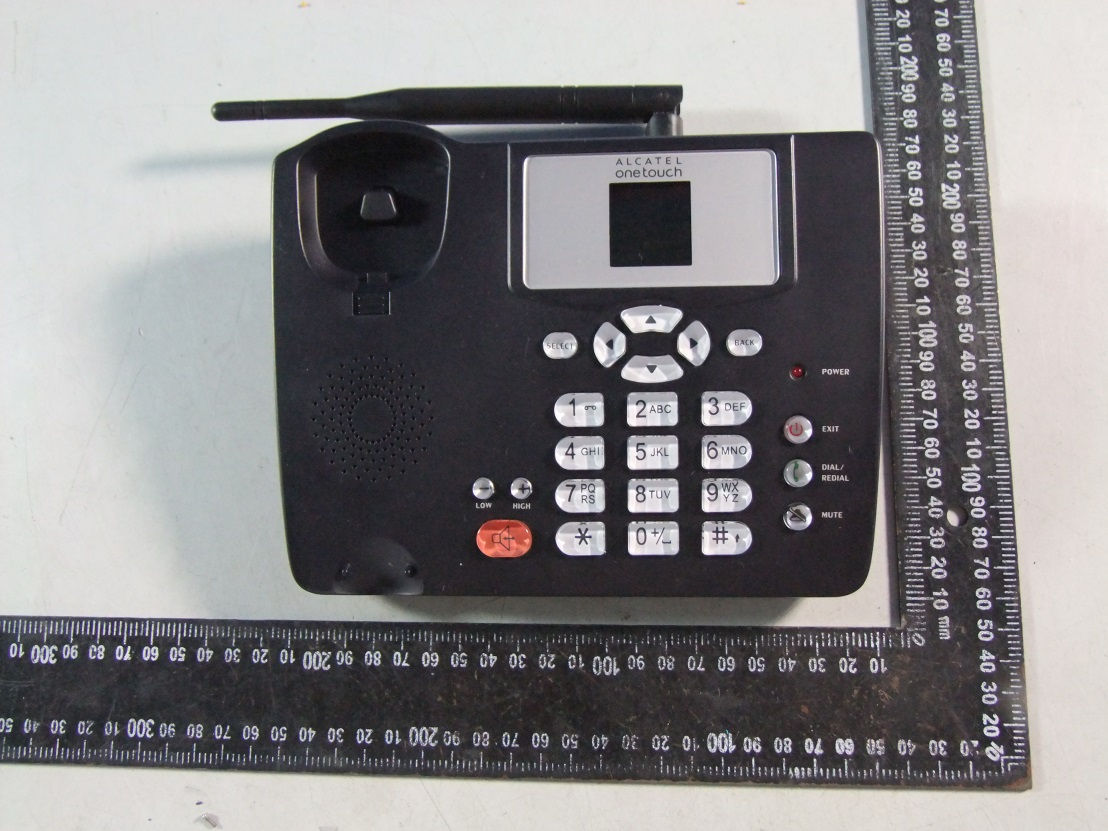

2ACCJB0202G HOME PHONE

1 XXXXXXXXX 0 Contents Contents ..................................................................................................... 0 1. Your mobile ............................................................................................... 1 2. Getting started ........................................................................................... 4 3. Basic functions ........................................................................................... 5 4. Contacts ................................................................................................... 7 5. Recent Calls .............................................................................................. 9 6. Messages ............................................................................................... 10 7. Settings ................................................................................................. 13 8. Entertainment .......................................................................................... 14 9. Tools ..................................................................................................... 15 10. FM Radio ............................................................................................ 16 FAQ ......................................................................................................... 16 Safety and use ............................................................................................ 18 Friendly reminder: This user manual applies to the one touch F112 phone. If there are minor differences in the description or illustrations between the manual and the actual product, the actual product shall take precedence. Customers will not be notified separately of any upgraded model of this phone. Please contact our Customer service. We reserve the right to revise anytime the contents of this manual without prior notice. 1 1. Your mobile 1.1 Basic specifications Item Specifications Phone Size: 200mm[L]×153.8mm[W]×48.7mm[Thickness] Weight: 574g (Battery included) Screen resolution 128*64 pixels Contacts 500 entries Recent calls 60 entries Messages 350 entries Operating temperature -20°C ~ 55°C Battery Ni-MH Capacity: 400mAh Talk time: 6.5 hours (approx.) Standby time: 180 hours (approx.) Charging time: 10 hours (approx.)  Explanation: Standby time refers to the time when the phone although in operating mode is not used for making calls or remains idle. Standby time and call time are both related to the conditions of use, the network situation and the environment. 1.2 Key pad indications 2 Number Item Function 1 SELECT Key Enter menu Confirm an option 2 BACK Key Contacts List In Menu: Back/Delete 3 Navigation Keys  Left: Alarm  Right: Recent Calls  Up: Messages  Down: Create message 4 EXIT Key Power on/Power off End a call Back to the idle screen 5 DIAL/REDIAL Key Recent Call Answer/Send a call 6 MUTE Key Mute/Unmute during the call, the other can hear/ not hear you during the call 3 7 Volume Key Change the volume during the call 8 Speaker Key You can select this key to activate or deactivate handsfree 9 1 Key When standby, holding [1] Key 2 seconds to call the voice mail number. 10 * Key When input numbers in standby, holding [*] Key 2 seconds to input P after main number and then extension number. 11 0 Key When input numbers in standby, holding [0] Key 2 seconds to input + before the numbers. When you edit a message, press this key to enter space. 12 # Key When input numbers in standby, holding [#] 2 seconds to input T after main numbers and then extension number. When you edit one message, press this key to change the input method. 1.3 Main Menu From the main menu, use the navigation key to select the item you want. After selection, press the left soft key to confirm. Contacts Delete All Phone Contacts List Messages Call Search Create Security Add New Inbox Sound Groups Outbox Entertainment Speed Dial Draft Tools Contacts Management Templates Stopwatch Recent Calls Delete Messages Alarm Missed Calls Settings Schedule Received Calls Memory Status Calculator Dialed Calls Voice Mail World Time Call Time Settings FM Radio Last Call Display 1.4 Screen Icons 4 Battery power indicator. More bars indicate a higher power level The more bars, the stronger signal You have received one or more text messages Indicate the message box is full You have received one or more voicemail messages Indicate the phone is making a call You have missed one or more calls Alarm or schedule has been set Indicate the phone have set Voice privacy Indicate the phone is roaming 2. Getting started 2.1 Removing and installing the back cover Close the back cover Open the back cover 2.2 Installing and removing the battery 5 Installing the battery Fixing the battery Closing the back cover 2.3 How to use the Wall Hook 3. Basic functions 3.1 Power on/off When power is sufficient, press and holds the EXIT key to power on. If you have activated a password, you will be prompted to enter it. Normally the phone is ready for use as soon as you enter the password, please refer to Menu/Settings/Security settings. When the phone is power on, press and holds the key EXIT to turn it off. 3.2 Making a call 6 3.2.1 Enter the number directly In the standby mode, use the number key to enter a phone number, and then press the Dial/Redial key to make the call. 3.2.2 Dial a number in the Call Memory In the standby mode, press the Dial/Redial key to access recent calls list, and press send key again to dial the selected number. 3.2.3 Speed dial In the standby mode, make a long key press on keys 2 to 9 to speed dial a number. You also can press the number keys and then press the Dial/Redial key to make a speed dial. For details regarding speed dial setting. Please refer to “Contacts/Speed dial”. Key 1 is a default setting for voice mail number. 3.2.4 Emergency call Enter emergency number, and then press the Dial/Redial key. In any situation, with or without phone lock activated, y…
