1 5022N Quick Reference Guide For more information about how to use your mobile phone, please visit www.alcatelonetouch.us to consult the FAQs. ALCATEL ONETOUCH would like to thank you for your purchase. Our goal is to provide you with a high-quality mobile communication experience. English - CJB1DH4ALAAA 2 www.sar-tick.com This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found in the RADIOWAVES section of this user guide. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 10 mm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. Indice 1 Your mobile ���������������������������������������������������������������������3 2 Text input ����������������������������������������������������������������������14 3 Phone call ����������������������������������������������������������������������16 4 Contacts ������������������������������������������������������������������������18 5 Messaging�����������������������������������������������������������������������18 6 Email ������������������������������������������������������������������������������20 7 Getting connected ��������������������������������������������������������21 8 Find my location using GPS satellites ������������������������24 9 Data backup ������������������������������������������������������������������25 10 Factory data reset ��������������������������������������������������������25 11 Applications & Internal storage ����������������������������������26 12 Upgrade �������������������������������������������������������������������������27 Safety and use �������������������������������������������������������������������������28 General information ��������������������������������������������������������������38 Troubleshooting ����������������������������������������������������������������������41 3 1 Your mobile ������������������ 1�1 Keys and connectors Headset connector Micro-USB connector Back key Home key Recents key Touch screen Front Camera 4 Volume up Volume down Camera Flash/Flashlight Power key Recents key • Recent apps� Touch to open a list of thumbnail images of apps you've worked with recently. Touch it to open an app. Swipe it left or right to remove a thumbnail from the list. Home key • From any application or screen, touch to return to the Home screen. • Touch and hold to open Google search. • Double-click the home button to access the camera application. Back key • Touch to go back to the previous screen, or to close a dialog box, options menu, the notification panel, etc. 5 Power key • Press: Lock the screen/Light up the screen. • Press and hold: Show the popup menu to select from Power off/Reboot/Airplane mode. • Press and hold the Power key and Volume down key to capture a screenshot. • Press and hold the power key for at least 8 seconds to force reboot or hold it longer to power off. Volume Keys • Under call mode, adjusts the earpiece or headset volume. • In Music/Video/Streaming mode, adjusts the media volume. • In general mode, adjusts the ringtone volume. • Mutes the ringtone of an incoming call. • In camera preview mode, press Volume up or down key to enter burst shoot. 6 1�2 Getting started 1�2�1 Set up Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Power off your phone before inserting or removing the SIM card. Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. For this phone, both SIM1 and SIM2 can support 2G and 3G networks. If both of them are 3G SIM cards, only one card can support 3G network. Your phone only supports micro- SIM card. Do not attempt to insert other SIM types like mini and nano cards, otherwise you may damage your phone. 7 Installing or removing the battery Please power off your phone before removing the battery. • Insert and click the battery into place, then close the cover. • Unclip the cover, then remove the battery. Installing or removing the microSD card To install, insert the microSD card first, and then place it into the slot with the gold contact facing down. To remove the external microSD card, slide and take it out from the slot. Charging the battery Connect battery charger to your phone and plug into the socket. If the battery is very low, there will be no indication that power is being received until the charge is sufficient to show the charging status bar. To reduce power consumption and energy waste, once the battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background-running applications when not in use; reduce the backlight time, etc. 8 1�2�2 Power on your phone Hold down the Power key until the phone powers on. It will take a few seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you should set the following options: Language, Google Account, etc. Even if no SIM card is installed, your phone will still power on and you will be able to connect to a Wi-Fi network. 1�2�3 Power off your phone Hold down the Power key from the Home screen until the phone options appear, select Power off. 1�3 Home screen You can move all of the items (applications, shortcuts, folders and widgets) you use most frequently to your Home screen for quick access. Touch the Home key to switch to the Home screen. Touch to enter application list. Status bar • Status/Notification indicators • Touch and drag down to open the notification panel. Touch a…

Text truncated - open the document above for the full version.

2015-11-03 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2ACCJB032 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Parts List Operation Description Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Zhizhou GONG Product Certification Manager TCL Communication Ltd. TCL Communication Ltd. 5F, C-Tower, No. 232, Liang Jing Road, ZhangJiang High- Tech Park, Pudong Shanghai, P.R. China. 201203 Tel: +86 21 5179 8260 Fax: +86 21 6146 0600 http://tclcom.tcl.com

Authorization Letter Date: November 3, 2015 To whom it may concern, Please be notified that I, Zhizhou Gong, have designated Michael Lin in Sporton International Inc. as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: 2ACCJB032 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Certification Manager TCL Communication Ltd. 5F, C-Tower, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Area,Shanghai,201203,P.R.China Tel: +86 21 5179 8260 Fax: +86 21 6146 0600

2015-11-03 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : 2ACCJB032 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, Public Notice DA 04-1705 of the Commission’s policy and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days: External Photos Internal Photos Test set-up photos Users Manual The application contains technical information, which TCL Communication Ltd. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Zhizhou GONG Product Certification Manager TCL Communication Ltd. TCL Communication Ltd. 5F, C-Tower, No. 232, Liang Jing Road, ZhangJiang High- Tech Park, Pudong Shanghai, P.R. China. 201203 Tel: +86 21 5179 8260 Fax: +86 21 6146 0600 http://tclcom.tcl.com

Statement We, TCL Communication Ltd., states that our device, FCC ID: 2ACCJB032. The label will put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, Certification Manager TCL Communication Ltd. 5F, C-Tower, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Area,Shanghai,201203,P.R.China Tel: +86 21 5179 8260 Fax: +86 21 6146 0600

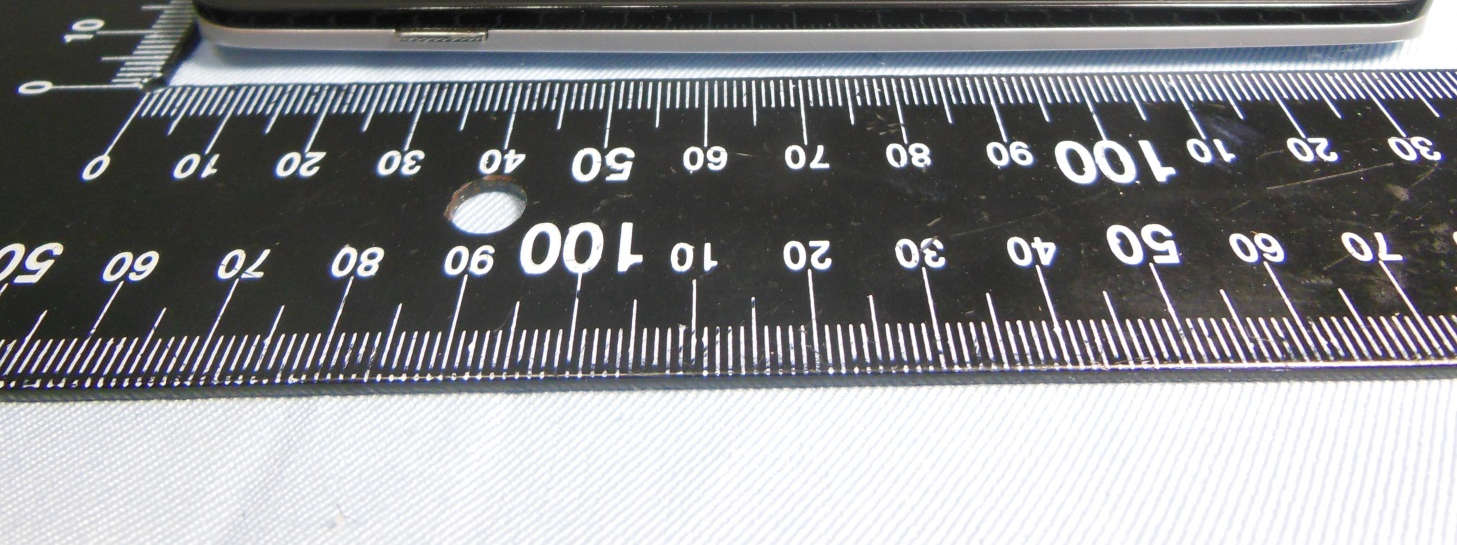

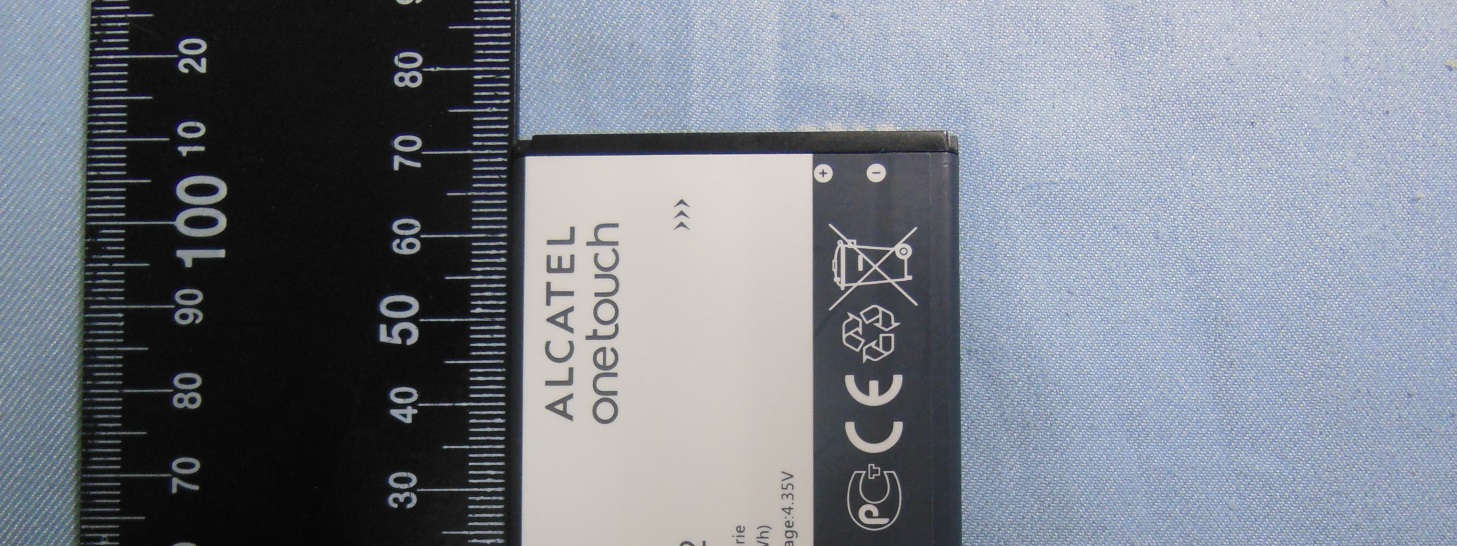

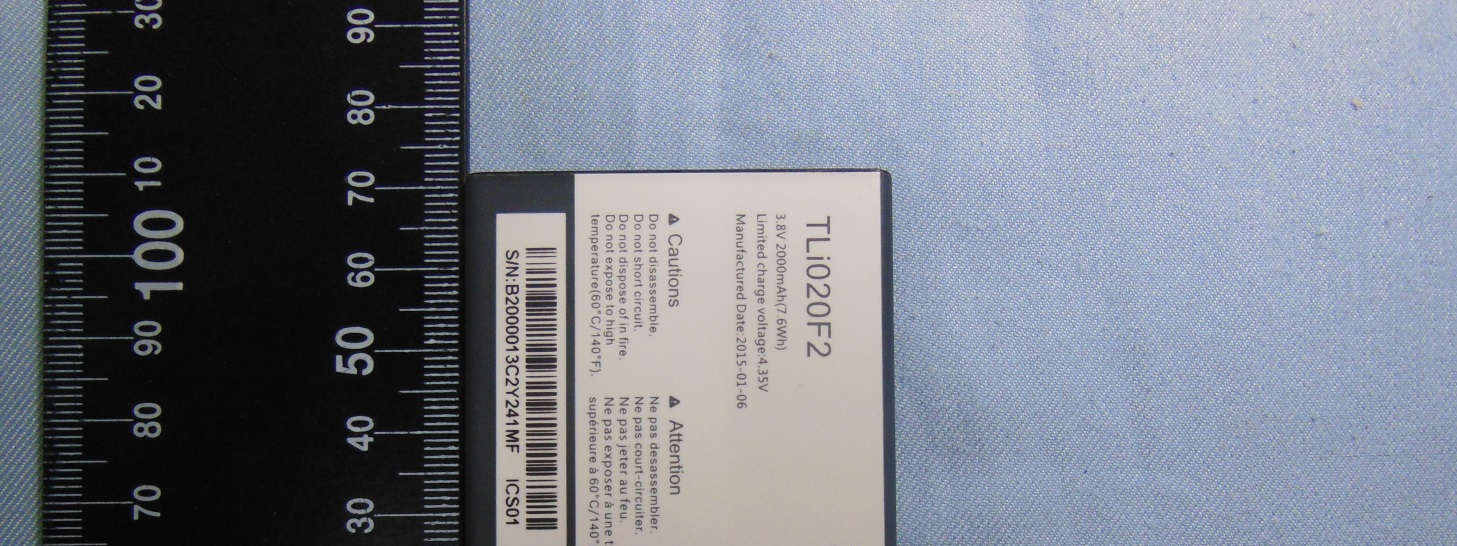

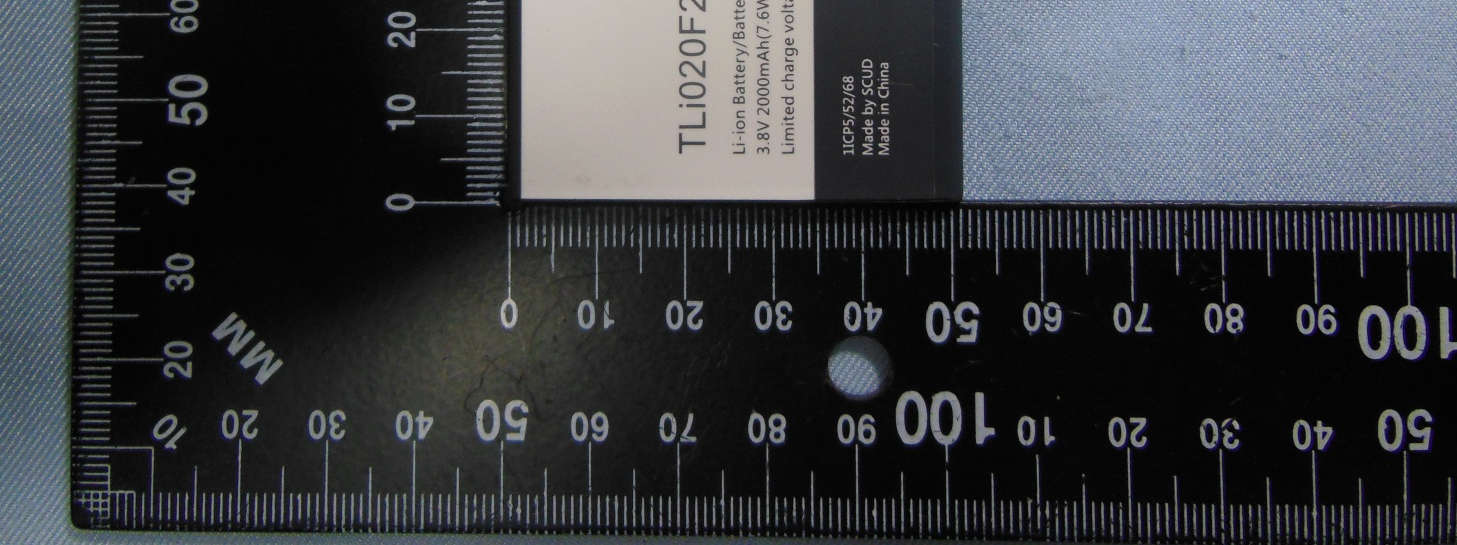

Photographs of EUT Report No.: EP592401 Model Name: 5022N SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 31 TEL: 86-755-8637-9589 Report Issued Date : Nov. 03, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJB032 1. External Photograph of EUT Photographs of EUT Report No.: EP592401 Model Name: 5022N SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 31 TEL: 86-755-8637-9589 Report Issued Date : Nov. 03, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJB032 Photographs of EUT Report No.: EP592401 Model Name: 5022N SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 3 of 31 TEL: 86-755-8637-9589 Report Issued Date : Nov. 03, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJB032 Photographs of EUT Report No.: EP592401 Model Name: 5022N SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 4 of 31 TEL: 86-755-8637-9589 Report Issued Date : Nov. 03, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJB032 Photographs of EUT Report No.: EP592401 Model Name: 5022N SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 5 of 31 TEL: 86-755-8637-9589 Report Issued Date : Nov. 03, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJB032 Photographs of EUT Report No.: EP592401 Model Name: 5022N SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 6 of 31 TEL: 86-755-8637-9589 Report Issued Date : Nov. 03, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJB032 Photographs of EUT Report No.: EP592401 Model Name: 5022N SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 7 of 31 TEL: 86-755-8637-9589 Report Issued Date : Nov. 03, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJB032 Specification of Accessory AC Adapter Brand Name TENPAO Model Name UC11US Power Rating I/P: 100-240Vac, 200mA, O/P: 5Vdc, 1000mA P/N CBA0057AG0C2 Battery Brand Name SCUD Model Name TLi020F2 Power Rating 3.8Vdc, 2000mAh S/N CAB2000013C2 USB Cable Brand Name JUWEI Model Name CDA3122002C1 Signal Line Type 1.0meter, shielded cable, without ferrite core Earphone Brand Name JUWEI Model Name CCB0005A10C1 Signal Line Type 1.2meter, non-shielded cable, without ferrite core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP592401 Model Name: 5022N SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 8 of 31 TEL: 86-755-8637-9589 Report Issued Date : Nov. 03, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJB032 Photographs of EUT Report No.: EP592401 Model Name: 5022N SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 9 of 31 TEL: 86-755-8637-9589 Report Issued Date : Nov. 03, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJB032 AC Adapter Photographs of EUT Report No.: EP592401 Model Name: 5022N SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 10 of 31 TEL: 86-755-8637-9589 Report Issued Date : Nov. 03, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJB032 Battery Photographs of EUT Report No.: EP592401 Model Name: 5022N SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 11 of 31 TEL: 86-755-8637-9589 Report Issued Date : Nov. 03, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJB032

Photographs of EUT Report No.: EP592401 Model Name: 5022N SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 12 of 31 TEL: 86-755-8637-9589 Report Issued Date : Nov. 03, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJB032 3. Internal Photograph of EUT WWAN Antenna <TX/RX> Bluetooth & WLAN Antenna <TX/RX> GPS Antenna <RX> Photographs of EUT Report No.: EP592401 Model Name: 5022N SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 13 of 31 TEL: 86-755-8637-9589 Report Issued Date : Nov. 03, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJB032 Photographs of EUT Report No.: EP592401 Model Name: 5022N SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 14 of 31 TEL: 86-755-8637-9589 Report Issued Date : Nov. 03, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJB032 Photographs of EUT Report No.: EP592401 Model Name: 5022N SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 15 of 31 TEL: 86-755-8637-9589 Report Issued Date : Nov. 03, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJB032 Photographs of EUT Report No.: EP592401 Model Name: 5022N SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 16 of 31 TEL: 86-755-8637-9589 Report Issued Date : Nov. 03, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJB032 Photographs of EUT Report No.: EP592401 Model Name: 5022N SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 17 of 31 TEL: 86-755-8637-9589 Report Issued Date : Nov. 03, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJB032 Photographs of EUT Report No.: EP592401 Model Name: 5022N SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 18 of 31 TEL: 86-755-8637-9589 Report Issued Date : Nov. 03, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJB032 Photographs of EUT Report No.: EP592401 Model Name: 5022N SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 19 of 31 TEL: 86-755-8637-9589 Report Issued Date : Nov. 03, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJB032 Photographs of EUT Report No.: EP592401 Model Name: 5022N SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 20 of 31 TEL: 86-755-8637-9589 Report Issued Date : Nov. 03, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJB032 Photographs of EUT Report No.: EP592401 Model Name: 5022N SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 21 of 31 TEL: 86-755-8637-9589 Report Issued Date : Nov. 03, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJB032 Photographs of EUT Report No.: EP592401 Model Name: 5022N SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 22 of 31 TEL: 86-755-8637-9589 Report Issued Date : Nov. 03, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJB032 Photographs of EUT Report No.: EP592401 Model Name: 5022N SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 23 of 31 TEL: 86-755-8637-9589 Report Issued Date : Nov. 03, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJB032 Photographs of EUT Report No.: EP592401 Model Name: 5022N SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 24 of 31 TEL: 86-755-8637-9589 Report Issued Date : Nov. 03, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJB032 Photographs of EUT Report No.: EP592401 Model Name: 5022N SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 25 of 31 TEL: 86-755-8637-9589 Report Issued Date : Nov. 03, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJB032 Photographs of EUT Report No.: EP592401 Model Name: 5022N SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 26 of 31 TEL: 86-755-8637-9589 Report Issued Date : Nov. 03, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJB032 Photographs of EUT Report No.: EP592401 Model Name: 5022N SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 27 of 31 TEL: 86-755-8637-9589 Report Issued Date : Nov. 03, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJB032 Photographs of EUT Report No.: EP592401 Model Name: 5022N SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 28 of 31 TEL: 86-755-8637-9589 Report Issued Date : Nov. 03, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJB032 Photographs of EUT Report No.: EP592401 Model Name: 5022N SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 29 of 31 TEL: 86-755-8637-9589 Report Issued Date : Nov. 03, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJB032 Photographs of EUT Report No.: EP592401 Model Name: 5022N SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 30 of 31 TEL: 86-755-8637-9589 Report Issued Date : Nov. 03, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJB032 WWAN Antenna <TX/RX> Photographs of EUT Report No.: EP592401 Model Name: 5022N SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 31 of 31 TEL: 86-755-8637-9589 Report Issued Date : Nov. 03, 2015 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ACCJB032 Bluetooth & WLAN Antenna <TX/RX> GPS Antenna <Rx>

SPORTON INTERNATIONAL (SHENZHEN) INC. TEL : 86-755-8637-9589/ FAX : 86-755-8637-9595 Issued Date : Nov. 03, 2015 FCC ID : 2ACCJB032 Page 1 of 47 Form version. : 150415 FCC SAR Test Report Report No. : FA592401 FCC SAR Test Report APPLICANT : TCL Communication Ltd. EQUIPMENT : GSM Quad Band / UMTS Mobile Phone MODEL NAME : 5022N FCC ID : 2ACCJB032 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2013 We, SPORTON INTERNATIONAL (SHENZHEN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and had been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (SHENZHEN) INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL (SHENZHEN) INC. 1F & 2F, Building A, Morning Business Center, No. 4003 ShiGu Rd., Xili Town, Nanshan District, Shenzhen, Guangdong, P. R. China Approved by: Jones Tsai / Manager Reviewed by: Mark Qu / Manager SPORTON INTERNATIONAL (SHENZHEN) INC. TEL : 86-755-8637-9589/ FAX : 86-755-8637-9595 Issued Date : Nov. 03, 2015 FCC ID : 2ACCJB032 Page 2 of 47 Form version. : 150415 FCC SAR Test Report Report No. : FA592401 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 3. Guidance Standard ....................................................................................................................................................... 5 4. Equipment Under Test (EUT) Information ................................................................................................................... 6 4.1 General Information ............................................................................................................................................... 6 4.2 Specification of Accessory ..................................................................................................................................... 7 5. RF Exposure Limits....................................................................................................................................................... 8 5.1 Uncontrolled Environment ...................................................................................................................................... 8 5.2 Controlled Environment .......................................................................................................................................... 8 6. Specific Absorption Rate (SAR) ................................................................................................................................... 9 6.1 Introduction ............................................................................................................................................................ 9 6.2 SAR Definition ........................................................................................................................................................ 9 7. System Description and Setup ...................................................................................................................................10 8. Measurement Procedures ...........................................................................................................................................11 8.1 Spatial Peak SAR Evaluation ................................................................................................................................ 11 8.2 Power Reference Measurement............................................................................................................................12 8.3 Area Scan .............................................................................................................................................................12 8.4 Zoom Scan ............................................................................................................................................................13 8.5 Volume Scan Procedures ......................................................................................................................................13 8.6 Power Drift Monitoring ...........................................................................................................................................13 9. Test Equipment List .....................................................................................................................................................14 10. System Verification ....................................................................................................................................................15 10.1 Tissue Verification ...............................................................................................................................................15 10.2 System Performance Check Results ...................................................................................................................16 11. RF Exposure Positions ..............................................................................................................................................17 11.1 Ear and handset reference point .........................................................................................................................17 11.2 Definition of the cheek position ............................................................................................................................18 11.3 Definition of the tilt position..................................................................................................................…

Text truncated - open the document above for the full version.

Test Laboratory:Sporton International Inc SAR Testing Lab Date: 2015.10.21 System Check_Head_1750MHz_151021 DUT: D1750V2-SN:1069 Communication System: UID 0, CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL_1800_151021 Medium parameters used: f = 1750 MHz; σ = 1.382 S/m; ε r = 41.56; ρ = 1000 kg/m 3 Ambient Temperature: 23.4 °C ; Liquid Temperature: 22.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(8.01, 8.01, 8.01); Calibrated: 2014.11.13; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 2014.12.11 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 13.6 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 99.67 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 17.4 W/kg SAR(1 g) = 9.54 W/kg; SAR(10 g) = 5.03 W/kg Maximum value of SAR (measured) = 13.7 W/kg 0 dB = 13.6 W/kg Test Laboratory:Sporton International Inc SAR Testing Lab Date: 2015.10.21 System Check_Head_1900MHz_151021 DUT: D1900V2-SN:5d118 Communication System: UID 0, CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_151021 Medium parameters used: f = 1900 MHz; σ = 1.417 S/m; ε r = 40.994; ρ = 1000 kg/m 3 Ambient Temperature: 23.2 °C ; Liquid Temperature: 22.9 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(7.66, 7.66, 7.66); Calibrated: 2014.11.13; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 2014.12.11 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 15.4 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 106.2 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 19.7 W/kg SAR(1 g) = 10.7 W/kg; SAR(10 g) = 5.51 W/kg Maximum value of SAR (measured) = 15.1 W/kg 0 dB = 15.4 W/kg Test Laboratory:Sporton International Inc SAR Testing Lab Date: 2015.10.22 System Check_Head_2450MHz_151022 DUT: D2450V2-SN:926 Communication System: UID 0, CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_151022 Medium parameters used: f = 2450 MHz; σ = 1.861 S/m; ε r = 39.575; ρ = 1000 kg/m 3 Ambient Temperature: 23.2 °C ; Liquid Temperature: 22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(7.01, 7.01, 7.01); Calibrated: 2014.11.13; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 2014.12.11 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (81x81x1): Interpolated grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 22.7 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 94.44 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 31.8 W/kg SAR(1 g) = 14.13 W/kg; SAR(10 g) = 6.08 W/kg Maximum value of SAR (measured) = 23.0 W/kg 0 dB = 22.7 W/kg Test Laboratory:Sporton International Inc SAR Testing Lab Date: 2015.10.19 System Check_Body_835MHz_151019 DUT: D835V2-SN:4d091 Communication System: UID 0, CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_835_151019 Medium parameters used: f = 835 MHz; σ = 0.967 S/m; ε r = 55.899; ρ = 1000 kg/m 3 Ambient Temperature: 23.3 °C ; Liquid Temperature: 22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(9.49, 9.49, 9.49); Calibrated: 2014.11.13; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 2014.12.11 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.59 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 51.63 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 3.56 W/kg SAR(1 g) = 2.4 W/kg; SAR(10 g) = 1.58 W/kg Maximum value of SAR (measured) = 2.58 W/kg 0 dB = 2.59 W/kg Test Laboratory:Sporton International Inc SAR Testing Lab Date: 2015.10.20 System Check_Body_1750MHz_151020 DUT: D1750V2-SN:1069 Communication System: UID 0, CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: MSL_1800_151020 Medium parameters used: f = 1750 MHz; σ = 1.526 S/m; ε r = 52.01; ρ = 1000 kg/m 3 Ambient Temperature: 23.5 °C ; Liquid Temperature: 22.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(7.74, 7.74, 7.74); Calibrated: 2014.11.13; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 2014.12.11 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 14.4 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 97.99 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 17.9 W/kg SAR(1 g) = 10.2 W/kg; SAR(10 g) = 5.44 W/kg Maximum value of SAR (measured) = 14.2 W/kg 0 dB = 14.4 W/kg Test Laboratory:Sporton International Inc SAR Testing Lab Date: 2015.10.20 System Check_Body_1900MHz_151020 DUT: D1900V2-SN:5d118 Communication System: UID 0, CW; Frequency: 1900 MHz;Duty Cycle…
