2ACCJB035Mobile WIFI Router

Quick Start Guide CJB1B3A01AAB 2 www.sar-tick.com This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found in the Radio Waves section of this user guide. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 10 mm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not surfing internet. Safety and use We recommend that you read this chapter carefully before using this device. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use of this device or of use contrary to the instructions contained herein. Do not switch on your device when its use is prohibited or when using the device may cause interference or danger. Follow rules or regulations in hospitals and health care facilities. Switch off your device near medical apparatus. 3 Switch off your device in an aircraft. The device may cause interference to aircraft control signals. Switch off your device near high-precision electronic devices. The device may affect the performance of these devices. Do not attempt to disassemble your device or its accessories. Only qualified personnel are allowed to service or repair the device. Do not place your device or its accessories in containers with a strong electromagnetic field. Do not place magnetic storage media near your device. Radiation from the device may erase the information stored on them. Do not subject your device to high temperatures or use it in a place with flammable gas such as a petrol station. Keep your device and its accessories away from children. Do not allow children to use your device without guidance. Only use approved batteries and chargers to avoid the risk of explosion. Observe the laws or regulations on device use. Respect others’ privacy and legal rights when using your device. It is recommended that the equipment only be used in an environment where the temperature is between -10°C and 50°C and humidity is between 10% to 90%. 4 CHARGERS Mains powered chargers will operate within the temperature range of: 0°C to 40°C. The chargers designed for your device meet with the standard for safety of information technology equipment and office equipment use. They are also compliant to the ecodesign directive 2009/125/EC. Due to different applicable electrical specifications, a charger you purchased in one jurisdiction may not work in another jurisdiction. They should be used for this purpose only. 1. Overview Y859 is a portable wireless router, providing a simple way to share 4G with any Wi-Fi embedded device. 1.1 Package contents Y859USB cable Quick start guideCharger 5 1.2 Application PC PAD Smart phone 1.3 Device overview      NumberDescription  Power on/off Key  WPS Key 6 NumberDescription  LED light  Micro USB Interface Use the device’s 2 buttons as follows: ButtonDescription Power On/Off Long press to turn on/off the device Short press to put the LED in either active or sleep mode. WPS Long press to turn on WPS Short press to put the LED in either active or sleep mode 1.4 Turning on the device Step 1: Open back cover from Bottom of right corner, then take out battery and put SIM card as remark. Step 2: Long Press the Power On/Off button. 7 1.5 LED Display The LED display is interpreted as follows: Network Indicator(Red or Blue LED) Wi-Fi indicator (Blue LED) SMS indicator (Blue LED) Battery indicator (Red or Blue LED) LED description: CategoryIcon Display Network Indicator Light Blue LED when connect to internet or flash when no internet service; Light Red LED when no Network/no service/no SIM card Wi-Fi indicator Light Blue LED when Wi-Fi active SMS indicator Light Blue LED when new message coming or flash when SMS full Battery indicator Light Red LED for low power alarm; Light Blue LED during charging 1.6 Connecting in Wi-Fi mode SSID: locate the SSID information on the sticker on Back Cover. 8 Step 1: Use the Wi-Fi manager on the Wi-Fi embedded device to select network name (SSID). r
From a Windows PC: Right-click Wireless network connection on the task bar, and select: View Available Networks. Choose SSID from the list of available networks. r
From a Mac computer: Select System Preferences -> Network -> Airport. Click “Advanced” to choose SSID from the list of available networks. r
From an iOS device: Settings -> Wi-Fi. Choose SSID from the available networks. r
From an android device: Settings -> Wireless controls -> Wi-Fi settings. Choose SSID from the available networks. Step 2: Enter the Wi-Fi key when prompted for a security key. 2. Quick Setup 2.1 Website Open your browser and enter http://192.168.1.1 to access the login page. Default login password: admin Login and click “Setting” to configure the basic settings. Admin Password: r
Login Password: Set the password for login. Wi-Fi Settings: r
SSID: Set the network name of this device. 9 r
Security: Configure the security mode for Wi-Fi connection. 2.2 LINK APP Download the “LINK APP” by scanning the QR code on App Leaflet. Open the LINK app by entering the password. The default password is: admin Set the Wi-Fi network name & Wi-Fi password. Save the settings & restart network connection. 3. Charging the device You have two ways to charge your device. Wall Charger charging: Connect USB cable with Charger head and device, then charging begin. When the device is powered off, charging will take a maximum of 3 hours. USB Charger charging You can also charge the device by connecting it to a PC with the USB cable. When the device is powered off, charging will take a maximum of 4 hours. Note: In order to protect the battery, when low power LED indicator flash, please charge the device. 10 4. Certification This symbol on device means that these products must be taken to collection points at the end of their life: - Municipal waste disposal centres…

Text truncated - open the document above for the full version.

Date:2015-11-02 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: TCL Communication Ltd. the undersigned, hereby authorizes Mrs Ivy Zhu from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of TCT Mobile Limited solely in matters relating to the application for an FCC equipment authorization for FCC ID:2ACCJB035 including the signing of documents in connection with this Application. Necessary acts carried out by Shenzhen Morlab Communications Technology Co., Ltd on our behalf of TCL Communication Ltd. in connection with the Application shall have the same effect as acts of TCL Communication Ltd.. TCL Communication Ltd. also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C. 853(a). Thank you for your attention to this matter. Signatory Gong ZhiZhou Validation Project Manager TCL Communication Ltd.

Date: 2015-11-02 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: TCT Mobile Limited FCC ID: 2ACCJB035 Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. TCL Communication Ltd. requests that the following documents regarding this submission for FCC ID: 2ACCJB035 be kept confidential: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematics Schematics.pdf Operational Description perational Description.pdf Part list BOM.pdf Tune-Up-Procedure Tune up procedure.pdf Those documents contain detailed system and equipment description and related information about the product which TCL Communication Ltd. considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, TCL Communication Ltd. considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Signatory Gong ZhiZhou TCL Communication Ltd.

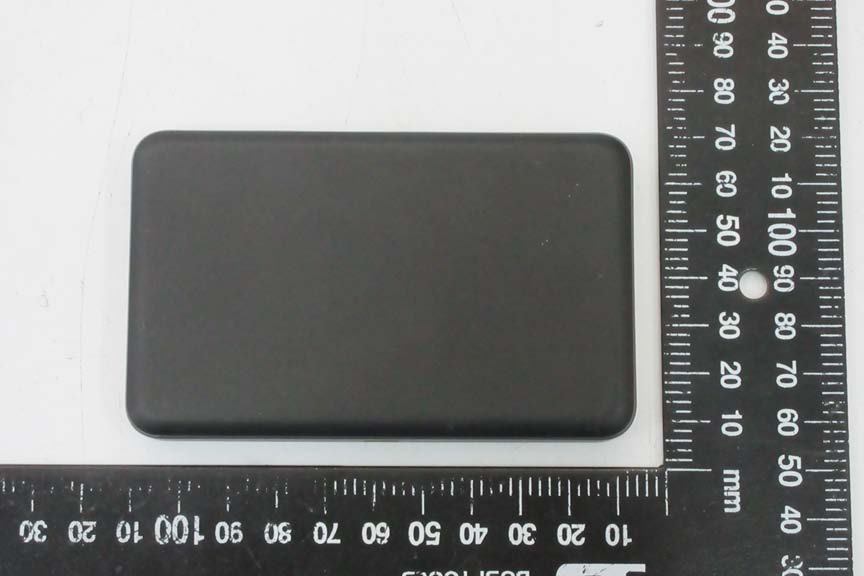

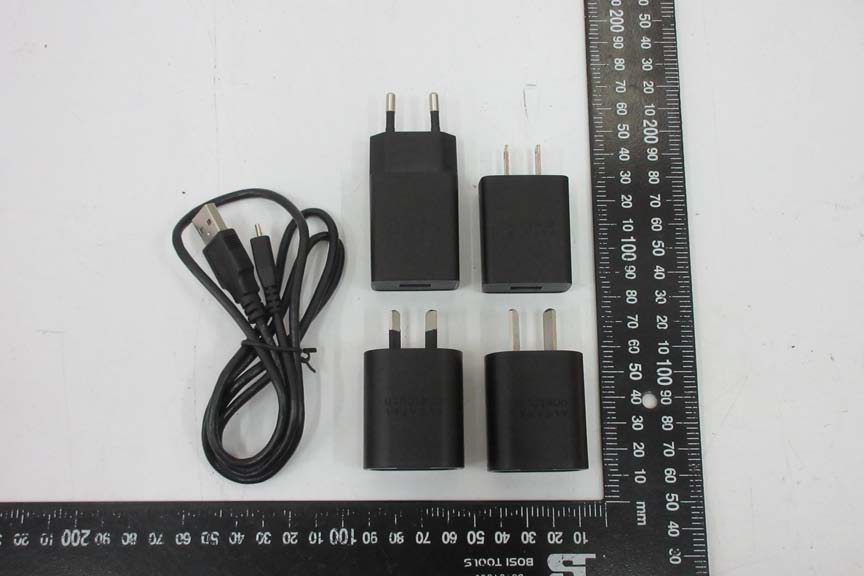

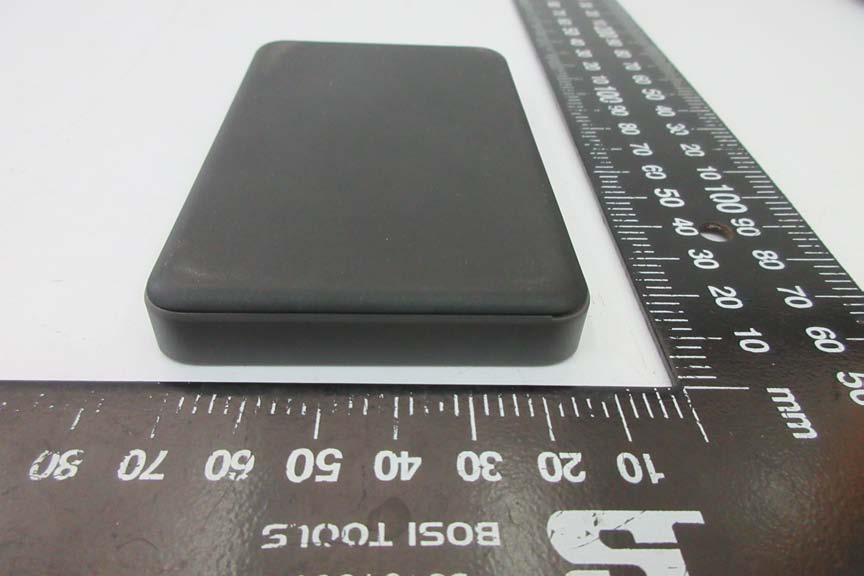

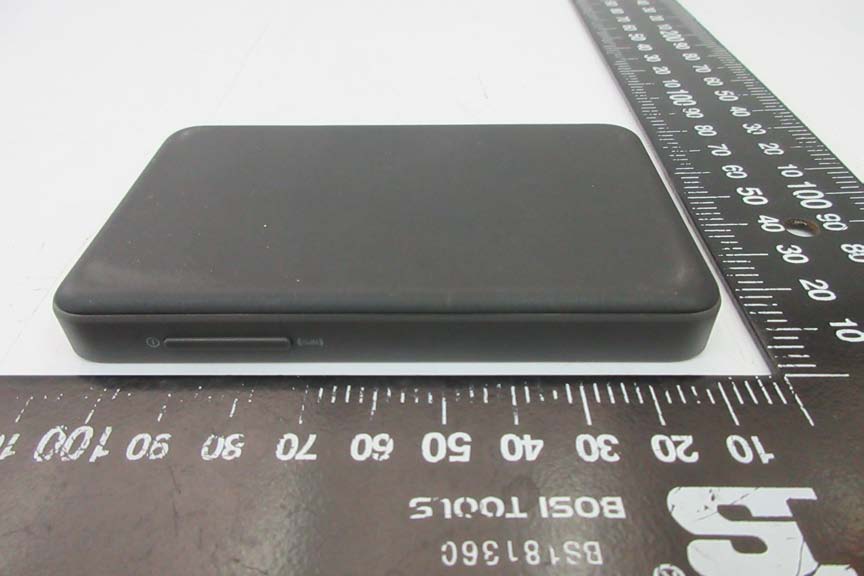

External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view 7. Accessories
