2ACCJB125LTE/UMTS/GSM Mobile Phone

English - CJB1S23ALAAA Quick Start Guide www.sar-tick.com This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found on Radio waves section. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or maintain a distance of 15 mm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. For more information about how to use your phone, please visit www.alcatelmobile.com to download the complete user manual. On our Website, you will also find our FAQ (Frequently Asked Questions) section. 1 1 Your Mobile ������������������ 1�1 Keys and connectors 2 3 1 4 1. Headset connector 2. Camera 3. Flash 4. USB port 2 1. Center soft key • Confirm an option (press the middle of the key) • Press: access to app list (Home screen) 2. Left soft key 3. Call key • Pick up/send a call • Press: enter call log (from Idle screen) 4. Right soft key 5. Back/End Key • Return to the previous screen, or close a dialog box, options menu • Press: End a call 1 2 3 4 5 6 7 89 3 6. Navigation key • Goes to up, down, left or right menu • Press (from Idle screen): • Up / Down key: access to volume adjustment • Right key: access to Profiles • Left key: access to Message 7. “5”key • In idle screen: • Press: dial “5” • Long press: switch on/off the torch 8. “*”key • In idle screen • Press: Input “*” • Long press: lock screen • In Edit mode: • Press: insert symbols 9. “#”key • Idle screen • Press to input # • Long press: Vibrate mode on/off • In edit mode • Press: change the input method 4 1�2 Status bar icons (1) New message or multimedia message Silent mode Level of network reception Airplane mode Headset connected No SIM card installed Alarm is set Bluetooth is on New voicemail Music activated. FM is on SD card installed (1) The icons and illustrations in this guide are provided for information purposes only. 5 2 Getting started ������������� 2�1 Set up Removing and installing the back cover Removing and installing the battery Inserting and removing microSD card Inserting and removing the SIM card Place the SIM card with the chip facing down and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press it and slide it out. This is a single SIM model which only supports a mini SIM card. Do not attempt to insert other SIM types like micro and nano cards, otherwise this may cause damage to your phone. 6 Charging the battery • Connect battery charger to your phone and plug it into the socket. • Charging may take about 20 minutes to start if the battery is out of power. • Be careful not to force the plug into the socket. • Make sure the battery is correctly inserted before connecting the charger. • The main socket must be near the phone and easily accessible (avoid electric extension cables). 7 • You are advised to charge the battery to its maximum when using the phone for the first time (approximately 3.5 hours) . • To reduce power consumption and energy waste, when battery is fully charged, disconnect your charger from the phone; reduce the backlight time, etc. The charge is complete when the animation stops. 2�2 Power on your phone Hold down the key until the phone powers on. 2�3 Power off your phone Hold down the key from the idle screen. 3 Calls Log ����������������� 3�1 Making a call Enter the desired number, then press the key to place the call. If you make a mistake, you can delete the incorrect digits by pressing the right soft key. To hang up the call, press the key. Making an emergency call If your phone is covered by the network, dial the emergency number and press the key to make an emergency call. This works even without a SIM card. Making an International call To dial an international call, press twice to enter “+”, then enter the international country prefix followed by the full phone number and finally press the key. 3�2 Calling your Voice mail (1) • To access your voicemail, hold down the key. • Long press to make a voicemail call. (1) Contact your service provider to check service availability. 8 3�3 Answer or decline a call When you receive an incoming call, press the key to answer and then hang up using the key. 4 Contacts ������������������ 4�1 Consulting your contacts Contacts enables quick and easy access to the contact you want to reach. You can access this function by pressing the Center Soft Key from the Home screen and select Contacts. 4�2 Adding a contact In contacts list screen, press the Left Soft Key to add new contacts with detailed information. When finished, press the Left Soft Key to save. 4�3 Editing your contacts In contacts list screen, press the Center Soft Key to access Options, select Edit and press the Center Soft Key to edit. 4�4 Deleting a contact In contacts list screen, press the Center Soft Key to view details, press the left Soft Key to select delete. 5 Calendar ������������������ Use the Calendar to keep track of important meetings, appointments, etc. To access this function, press the Center Soft Key from the Home screen and select Calendar. 9 6 Tools ������������������������� 6�1 Alarm Your phone has a built-in alarm clock with snooze feature. You can set five alarms with wake-up time and other customised options. 6�2 Calculator Press the up, down, left, right and Centre soft key to select +, -, ×, ÷ and = respectively. 6�3 Bluetooth You can exchange data, such as video, images, and audio, with other Bluetooth supported devices within a limited range after pairing. 6�4 Convert Convert support weight conversion and length conversion. 6�5 Fake call You can fack fake call through this function. It helps you to politely escape from social situations at any …

Text truncated - open the document above for the full version.

TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong 022818 – 11 Authority to Act as Agent Date: __25/4/2020_____ American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: _____ TCL Communication Ltd. _____ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: ____12 months_____ By: __________________________ _______Gong Zhizhou (Signature 1 ) (Print name) Title: _________ Product Certification Manager _________________ On behalf of: _______ TCL Communication Ltd. ___________________ (Company Name) Telephone: _______0086-755-36611722____________________ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead. TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong 022818 – 11 Request for Confidentiality Date: _25/4/2020_____ Subject: Confidentiality Request for: ____2ACCJ B125___ Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 9.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term ☒ Permanent Block Diagrams ☒ Short Term External Photos ☒ Short Term ☐ Permanent * 2 Internal Photos ☐ Short Term ☒ Permanent Operation Description/Theory of Operation ☐ Short Term ☒ Permanent Parts List & Placement/BOM ☐ Short Term ☒ Permanent Tune-Up Procedure ☐ Short Term ☒ Permanent Schematics ☒ Short Term Test Setup Photos ☒ Short Term ☐ Permanent * 3 User’s Manual _____ TCL Communication Ltd._____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, 2 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong 022818 – 11 By: __________________________ ________________________ (Signature/Title 3 ) Gong Zhizhou (Print name) 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

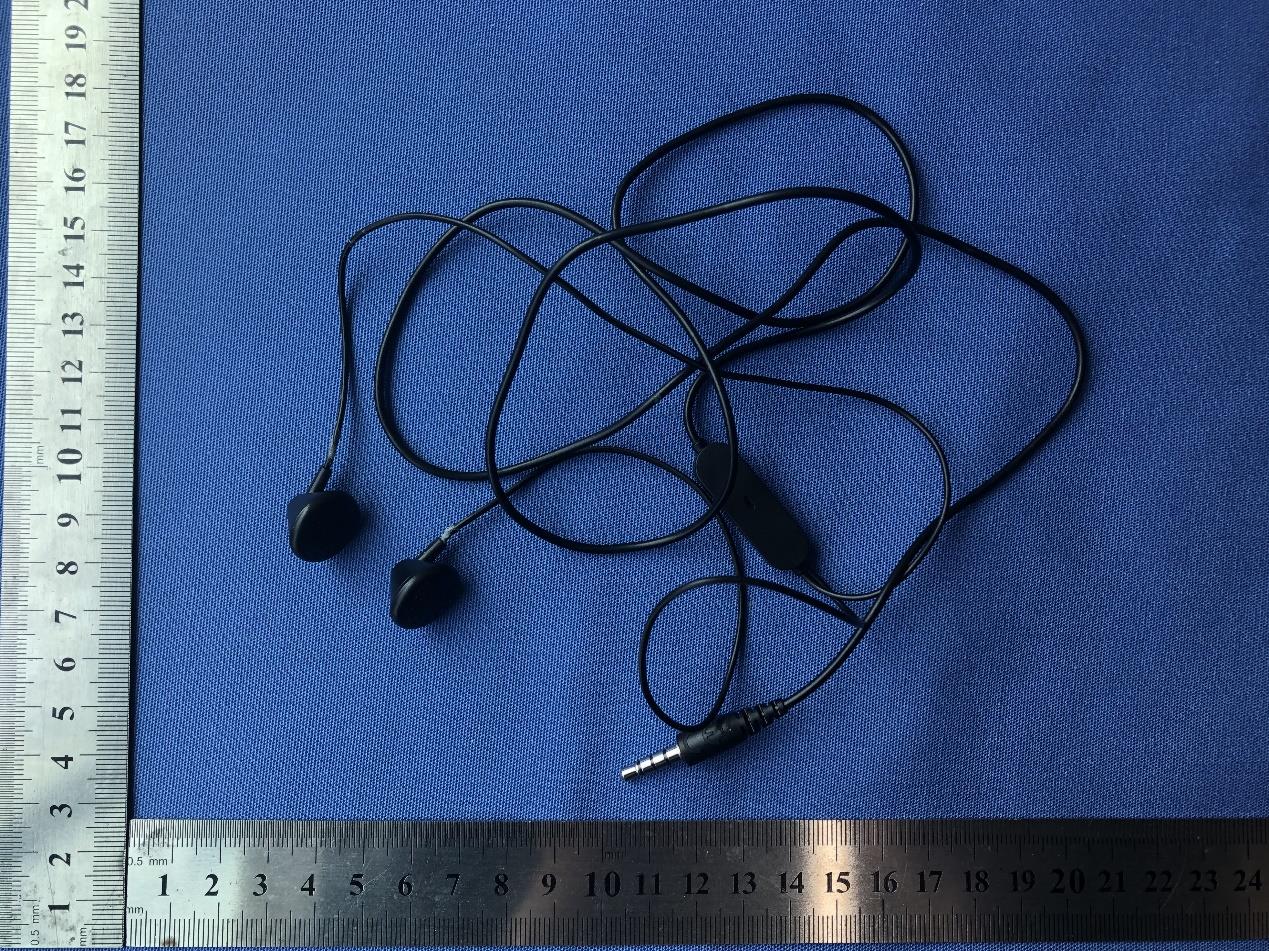

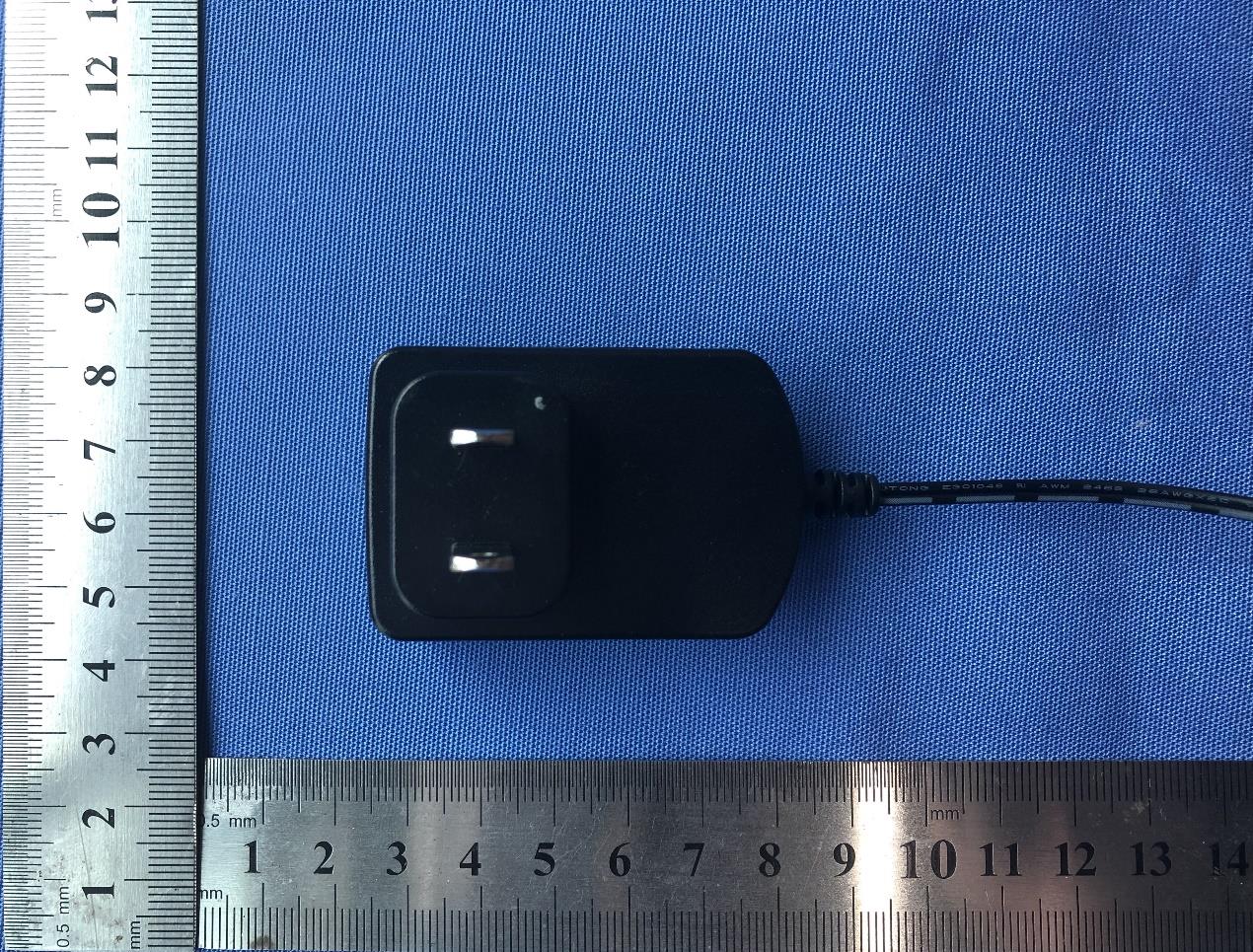

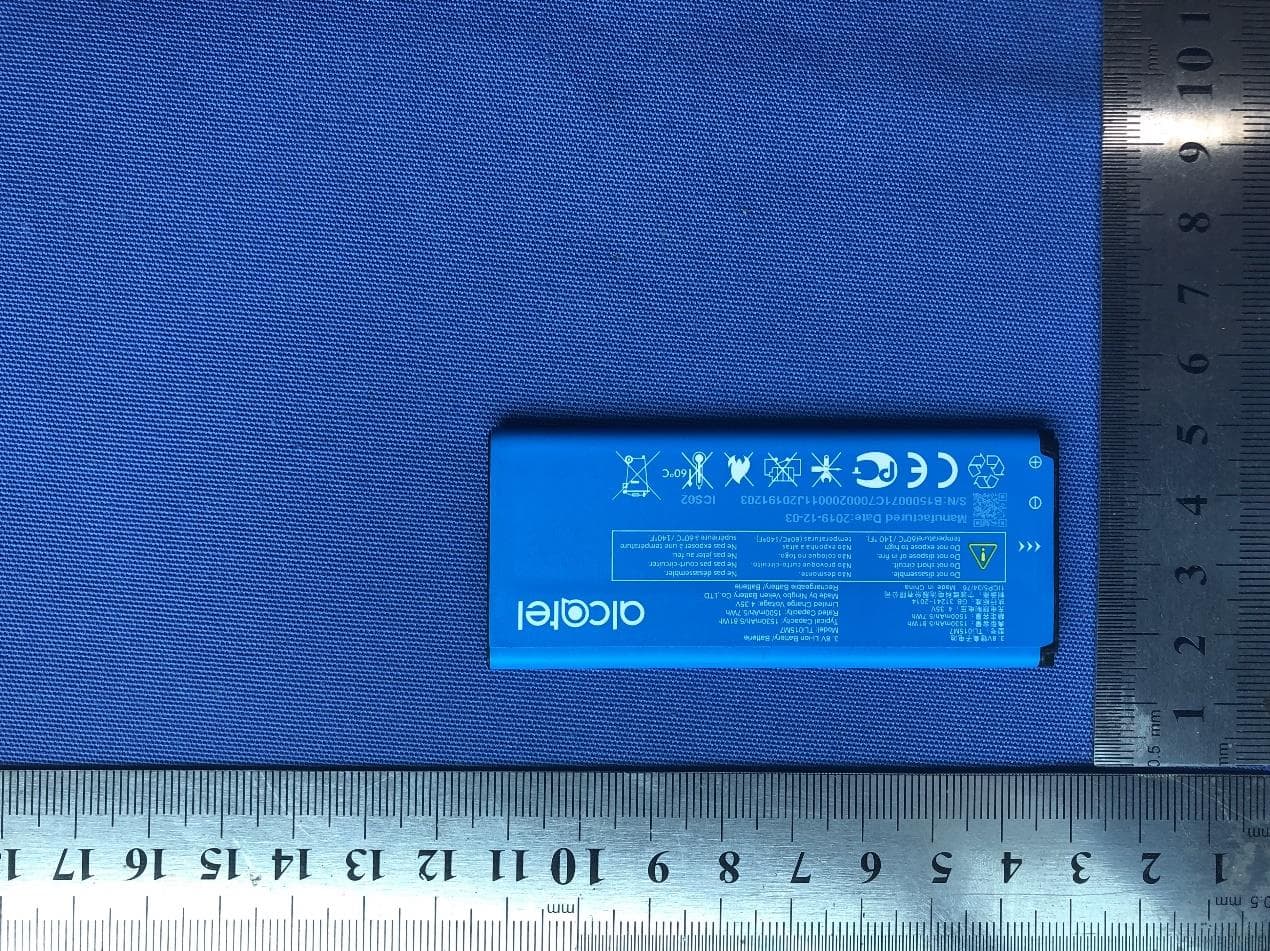

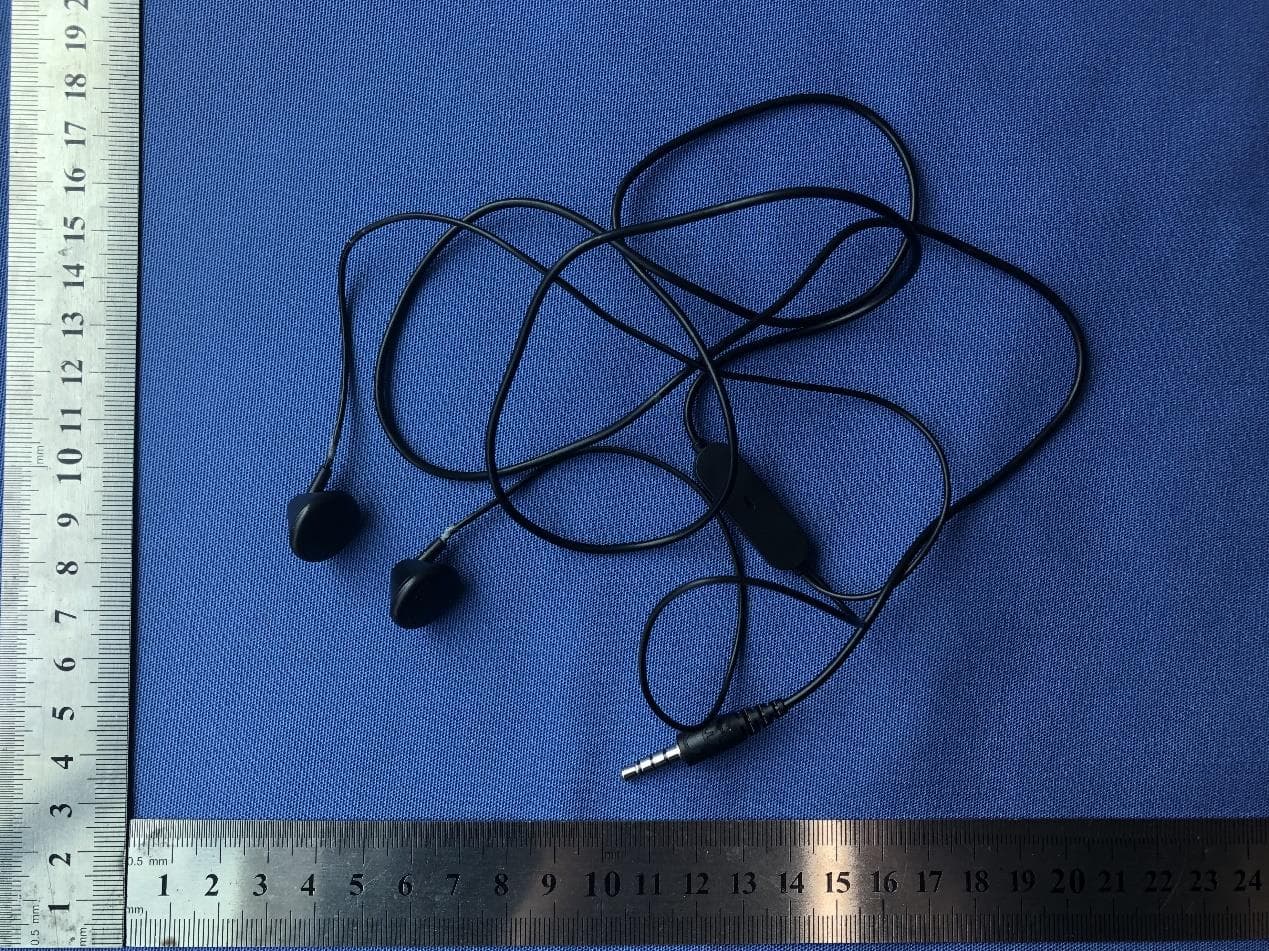

Front Back Bottom Side 1 Top Side 2 Charger1-1 Charger 1-2 Charger 2-1 Charger 2-2 Headset 1 Headset 2 Battery 1 Battery 2

Label Label location

TEST REPORT No.I20N00775-SAR For TCL Communication Ltd. LTE/UMTS/GSM Mobile Phone Model Name: 3080A With Hardware Version: PIO Software Version: V1.0 FCC ID: 2ACCJB125 Issued Date: 2020-04-15 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of SAICT. Test Laboratory: SAICT, Shenzhen Academy of Information and Communications Technology Building G, Shenzhen International Innovation Center, No.1006 Shennan Road, Futian District, Shenzhen, Guangdong, P. R. China 518026. Tel: +86(0)755-33322000, Fax: +86(0)755-33322001 Email: [email protected], www.saict.ac.cn No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 2 of 163 REPORT HISTORY Report Number Revision Description Issue Date I20N00775-SAR Rev.0 1st edition 2020-04-15 No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 3 of 163 TCONTENTS 1. SUMMARY OF TEST REPORT ................................................................................................... 5 1.1. TEST ITEMS ................................................................................................................................................... 5 1.2. TEST STANDARDS .......................................................................................................................................... 5 1.3. TEST RESULT ................................................................................................................................................. 5 1.4. TESTING LOCATION ....................................................................................................................................... 5 1.5. PROJECT DATA .............................................................................................................................................. 5 1.6. SIGNATURE .................................................................................................................................................... 5 2. STATEMENT OF COMPLIANCE ................................................................................................. 6 3. CLIENT INFORMATION ............................................................................................................... 8 3.1. APPLICANT INFORMATION ............................................................................................................................. 8 3.2. MANUFACTURER INFORMATION .................................................................................................................... 8 4. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................ 9 4.1. ABOUT EUT .................................................................................................................................................. 9 4.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ....................................................................... 10 4.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ......................................................................... 10 5. TEST METHODOLOGY ............................................................................................................. 11 5.1. APPLICABLE LIMIT REGULATIONS ............................................................................................................... 11 5.2. APPLICABLE MEASUREMENT STANDARDS ................................................................................................... 11 6. SPECIFIC ABSORPTION RATE (SAR) ..................................................................................... 12 6.1. INTRODUCTION ............................................................................................................................................ 12 6.2. SAR DEFINITION ......................................................................................................................................... 12 7. TISSUE SIMULATING LIQUIDS ................................................................................................ 13 7.1. TARGETS FOR TISSUE SIMULATING LIQUID ................................................................................................... 13 7.2. DIELECTRIC PERFORMANCE ........................................................................................................................ 13 8. SYSTEM VERIFICATION ........................................................................................................... 17 8.1. SYSTEM SETUP ............................................................................................................................................ 17 8.2. SYSTEM VERIFICATION ................................................................................................................................ 18 9. MEASUREMENT PROCEDURES ............................................................................................. 19 9.1. TESTS TO BE PERFORMED ............................................................................................................................ 19 9.2. GENERAL MEASUREMENT PROCEDURE ....................................................................................................... 21 9.3. WCDMA MEASUREMENT PROCEDURES FOR SAR ..................................................................................... 22 9.4. BLUETOOTH & WLAN MEASUREMENT PROCEDURES FOR SAR ................................................................. 23 9.5. LTE MEASUREMENT PROCEDURES FOR SAR .............................................................................................. 23 9.6. POWER DRIFT .............................................................................................................................................. 24 10. CONDUCTED OUTPUT POWER ............................................................................................ 25 10.1. GS…

Text truncated - open the document above for the full version.

No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 52 of 163 Table 13.11: SAR Values (LTE Band 2 - Head) Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Frequency Test Mode Test Position Figure No. / Note Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift(dB) MHz Ch. 1900 19100 1RB_99 Left Touch 11 22.54 23 0.882 0.98 0.02 1900 19100 50RB_50 Left Touch / 21.99 22.5 0.842 0.95 0.04 1900 19100 1RB_99 Left Tilt / 22.54 23 0.392 0.44 -0.09 1900 19100 50RB_50 Left Tilt / 21.99 22.5 0.341 0.38 0.08 1900 19100 1RB_99 Right Touch / 22.54 23 0.667 0.74 -0.03 1900 19100 50RB_50 Right Touch / 21.99 22.5 0.548 0.62 -0.02 1900 19100 1RB_99 Right Tilt / 22.54 23 0.367 0.41 0.01 1900 19100 50RB_50 Right Tilt / 21.99 22.5 0.323 0.36 -0.02 1880 18900 1RB_0 Left Touch / 22.22 23 0.694 0.83 0.13 1860 18700 1RB_0 Left Touch / 22.45 23 0.682 0.77 0.03 1880 18900 50RB_0 Left Touch / 21.78 22.5 0.693 0.82 0.02 1860 18700 50RB_0 Left Touch / 21.97 22.5 0.651 0.74 -0.05 1900 19100 100RB Left Touch / 21.93 22.5 0.786 0.90 0.08 1900 19100 1RB_99 Left Touch B2 22.54 23 0.766 0.85 0.11 Table 13.12: SAR Values (LTE Band 2 - Body) Ambient Temperature: 22.8 o C Liquid Temperature: 22.2 o C Frequency Test Mode Test Position Figure No. / Note Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift(dB) MHz Ch. Body-Worn Test Data (15mm) 1900 19100 1RB_99 Front / 22.54 23 0.604 0.67 0.03 1900 19100 50RB_50 Front / 21.99 22.5 0.564 0.63 0.10 1900 19100 1RB_99 Rear / 22.54 23 0.738 0.82 -0.01 1900 19100 50RB_50 Rear / 21.99 22.5 0.717 0.81 0.08 1880 18900 1RB_0 Rear / 22.22 23 0.641 0.77 -0.11 1860 18700 1RB_0 Rear / 22.45 23 0.658 0.75 -0.05 1880 18900 50RB_0 Rear / 21.78 22.5 0.609 0.72 0.05 1860 18700 50RB_0 Rear / 21.97 22.5 0.615 0.69 0.02 1900 19100 100RB Rear / 21.93 22.5 0.706 0.81 0.09 1900 19100 1RB_99 Rear 12 /B2 22.54 23 0.787 0.87 -0.05 No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 53 of 163 Table 13.13: SAR Values (LTE Band 4 - Head) Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Frequency Test Mode Test Position Figure No. / Note Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift(dB) MHz Ch. 1745 20300 1RB_99 Left Touch 13 23.68 24.5 0.971 1.17 0.09 1745 20300 50RB_0 Left Touch / 23.27 24 0.779 0.92 0.08 1745 20300 1RB_99 Left Tilt / 23.68 24.5 0.317 0.38 0.02 1745 20300 50RB_0 Left Tilt / 23.27 24 0.277 0.33 0.05 1745 20300 1RB_99 Right Touch / 23.68 24.5 0.834 1.01 0.10 1745 20300 50RB_0 Right Touch / 23.27 24 0.731 0.86 0.12 1745 20300 1RB_99 Right Tilt / 23.68 24.5 0.505 0.61 0.09 1745 20300 50RB_0 Right Tilt / 23.27 24 0.457 0.54 0.04 1732.5 20175 1RB_50 Left Touch / 23.67 24.5 0.792 0.96 0.17 1720 20050 1RB_99 Left Touch / 23.57 24.5 0.766 0.95 0.14 1732.5 20175 50RB_25 Left Touch / 23.24 24 0.715 0.85 0.05 1720 20050 50RB_0 Left Touch / 23.10 24 0.583 0.72 0.05 1745 20300 100RB Left Touch / 23.22 24 0.818 0.98 0.12 1732.5 20175 1RB_50 Right Touch / 23.67 24.5 0.814 0.99 0.10 1720 20050 1RB_99 Right Touch / 23.57 24.5 0.750 0.93 0.08 1732.5 20175 50RB_25 Right Touch / 23.24 24 0.638 0.76 0.09 1720 20050 50RB_0 Right Touch / 23.10 24 0.560 0.69 0.02 1745 20300 100RB Right Touch / 23.22 24 0.748 0.90 0.06 1745 20300 1RB_99 Left Touch B2 23.68 24.5 0.865 1.04 -0.02 No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 54 of 163 Table 13.14: SAR Values (LTE Band 4 - Body) Ambient Temperature: 22.8 o C Liquid Temperature: 22.2 o C Frequency Test Mode Test Position Figure No. / Note Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift(dB) MHz Ch. Body-Worn Test Data (15mm) 1745 20300 1RB_99 Front / 23.68 24.5 0.825 1.00 0.10 1745 20300 50RB_0 Front / 23.27 24 0.716 0.85 0.03 1745 20300 1RB_99 Rear 14 23.68 24.5 1.020 1.23 -0.14 1745 20300 50RB_0 Rear / 23.27 24 0.891 1.05 0.08 1732.5 20175 1RB_50 Front / 23.67 24.5 0.789 0.96 0.07 1720 20050 1RB_99 Front / 23.57 24.5 0.709 0.88 0.02 1732.5 20175 50RB_25 Front / 23.24 24 0.657 0.78 0.03 1720 20050 50RB_0 Front / 23.10 24 0.629 0.77 0.08 1745 20300 100RB Front / 23.22 24 0.664 0.79 0.05 1732.5 20175 1RB_50 Rear / 23.67 24.5 0.969 1.17 0.16 1720 20050 1RB_99 Rear / 23.57 24.5 0.911 1.13 0.12 1732.5 20175 50RB_25 Rear / 23.24 24 0.855 1.02 0.01 1720 20050 50RB_0 Rear / 23.10 24 0.812 1.00 0.15 1745 20300 100RB Rear / 23.22 24 0.882 1.06 0.01 1745 20300 1RB_99 Rear B2 23.68 24.5 0.981 1.18 0.05 1745 20300 1RB_99 Rear Headset 23.68 24.5 0.995 1.20 0.02 No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 55 of 163 Table 13.15: SAR Values (LTE Band 5 - Head) Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Frequency Test Mode Test Position Figure No. / Note Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift(dB) MHz Ch. 829 20450 1RB_49 Left Touch / 21.79 22.5 0.923 1.09 -0.02 829 20450 25RB_25 Left Touch / 21.45 22 0.829 0.94 0.03 829 20450 1RB_49 Left Tilt / 21.79 22.5 0.520 0.61 -0.04 829 20450 25RB_25 Left Tilt / 21.45 22 0.458 0.52 0.09 829 20450 1RB_49 Right Touch 15 21.79 22.5 0.969 1.14 0.06 829 20450 25RB_25 Right Touch / 21.45 22 0.855 0.97 0.08 829 20450 1RB_49 Right Tilt / 21.79 22.5 0.522 0.61 0.06 829 20450 25RB_25 Right Tilt / 21.45 22 0.484 0.55 0.02 844 20600 1RB_49 Left Touch / 21.68 22.5 0.748 0.90 0.06 836.5 20525 1RB_49 Left Touch / 21.69 22.5 0.862 1.04 0.10 844 20600 25RB_25 Left Touch / 21.44 22 0.847 0.96 0.07 836.5 20525 25RB_25 Left Touch / 21.30 22 0.784 0.92 -0.15 829 20450 50RB Left Touch / 21.42 22 0.815 0.93 0.11 844 20600 1RB_49 Right Touch / 21.68 22.5 0.811 0.98 0.01 836.5 20525 1RB_49 Right Touch / 21.69 22.5 0.889 1.07 0.14 844 20600 25RB_25 Right Touch / 21.44 22 0.735 0.84 0.06 836.5 20525 25RB_25 Right Touch / 21.30 22 0.824 0.97 0.02 829 20450 50RB Right Touch / 21.42 22 0.814…

Text truncated - open the document above for the full version.

No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 111 of 163 No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 112 of 163 No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 113 of 163 No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 114 of 163 ANNEX I: Dipole Calibration Certificate 750MHz Dipole Calibration Certificate No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 115 of 163 No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 116 of 163 No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 117 of 163 No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 118 of 163 No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 119 of 163 No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 120 of 163 No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 121 of 163 No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 122 of 163 835 MHz Dipole Calibration Certificate No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 123 of 163 No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 124 of 163 No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 125 of 163 No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 126 of 163 No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 127 of 163 No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 128 of 163 No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 129 of 163 No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 130 of 163 1750 MHz Dipole Calibration Certificate No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 131 of 163 No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 132 of 163 No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 133 of 163 No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 134 of 163 No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 135 of 163 No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 136 of 163 No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 137 of 163 No. I20N00775-SAR ©Copyright. All rights reserved by SAICT Page 138 of 163 1900 MHz Dipole Calibration Certificate

TEST REPORT No. I20N00775-RF-GSM for TCL Communication Ltd. LTE/UMTS/GSM Mobile Phone Model Name: 3080A FCC ID: 2ACCJB125 with Hardware Version: PIO Software Version: V1.0 Issued Date: 2020-04-23 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of SAICT. Test Laboratory: SAICT, Shenzhen Academy of Information and Communications Technology Building G, Shenzhen International Innovation Center, No.1006 Shennan Road, Futian District, Shenzhen, Guangdong, P. R. China 518026. Tel:+86(0)755-33322000, Fax:+86(0)755-33322001 Email: [email protected]. www.saict.ac.cn ©Copyright. All rights reserved by SAICT. No. I20N00775-RF-GSM REPORT HISTORY Report Number Revision Description Issue Date I20N00775-RF-GSM Rev.0 1st edition 2020-04-23 ©Copyright. All rights reserved by SAICT. Page 2 of 87 No. I20N00775-RF-GSM CONTENTS 1. SUMMARY OF TEST REPORT .............................................................................................. 4 1.1. TEST ITEMS ........................................................................................................................ 4 1.2. TEST STANDARDS ............................................................................................................. 4 1.3. TEST RESULT ..................................................................................................................... 4 1.4. TESTING LOCATION .......................................................................................................... 4 1.5. PROJECT DATA .................................................................................................................. 4 1.6. SIGNATURE ........................................................................................................................ 4 2. CLIENT INFORMATION .......................................................................................................... 5 2.1. APPLICANT INFORMATION............................................................................................... 5 2.2. MANUFACTURER INFORMATION ..................................................................................... 5 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 6 3.1. ABOUT EUT ........................................................................................................................ 6 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................... 6 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ...................................... 6 3.4. GENERAL DESCRIPTION .................................................................................................. 6 4. REFERENCE DOCUMENTS .................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ...................................................................... 7 5. LABORATORY ENVIRONMENT ............................................................................................ 8 6. SUMMARY OF TEST RESULTS ............................................................................................. 9 7. STATEMENT ......................................................................................................................... 10 8. TEST EQUIPMENTS UTILIZED ............................................................................................ 11 ANNEX A: MEASUREMENT RESULTS ...................................................................................... 12 A.1 OUTPUT POWER ............................................................................................................... 12 A.2 FIELD STRENGTH OF SPURIOUS RADIATION ................................................................ 18 A.3 FREQUENCY STABILITY ................................................................................................... 24 A.4 OCCUPIED BANDWIDTH ................................................................................................... 27 A.5 EMISSION BANDWIDTH .................................................................................................... 40 A.6 BAND EDGE COMPLIANCE ............................................................................................... 52 A.7 CONDUCTED SPURIOUS EMISSION ............................................................................... 59 A.8 PEAK-TO-AVERAGE POWER RATIO ................................................................................ 75 ©Copyright. All rights reserved by SAICT. Page 3 of 87 No. I20N00775-RF-GSM 1. SUMMARY OF TEST REPORT 1.1. Test Items Description LTE/UMTS/GSM Mobile Phone Model Name 3080A Applicant’s name TCL Communication Ltd. Manufacturer's Name TCL Communication Ltd. 1.2. Test Standards FCC Part 2/22/24 10-1-18 Edition ANSI C63.26 2015 KDB971168 D01 v03r01 1.3. Test Result All test items are pass. Please refer to "6 Summary of Test Results" for detail. 1.4…
