2ACCJB13310 inch wifi tablet

QUICK START GUIDE www.alcatelmobile.com User Manual and FAQ are available online CJB1SE1ALAAA CJB1SE1ALAAA 8092 1 Volume up/down Power key Front camera Rear Camera 2 Fully charge your device for the first time use. Open the slot and insert the SD card. 3 1 Home screen You can move frequently used items (applications, shortcuts, folders and widgets) to your Home screen for quick access. Touch the Home key to switch to the Home screen. Status bar • Status/Notification indicators • Touch and drag down to open the notification panel. Touch an icon to open an application, folder, etc. Favourites tray applications • Touch to enter the application. • Long press to move or change applications. The Home screen is provided in an extended format to allow more space for adding application icons, shortcuts etc. Slide the Home screen horizontally left and right to get additional view. 1.1 Status bar In the status bar, you can see the notifications on the left side and the connection service status on the right side. Swipe downward from the Status bar to access the Notification panel or the Quick Settings panel. To close the panel, touch and drag upward. Touch to clear all event-based notifications. On-going notifications will remain on the panel. 4 Notification panel When there are notifications, you can touch them to view more information. Quick settings panel Swipe down from the status bar twice to open the Quick settings panel. Then enable or disable functions or change modes by touching the icons. Touch to edit shortcut list. Touch to access settings, where you can make changes to more functions. 2 Contacts Contacts are stored in your tablet with the Contacts app. It allows you to add, delete, or edit your contacts. You can also import or export your contacts from different locations such as an external storage, your Gmail or other email account. 2.1 Adding a contact Open the Contacts app from applications list, then touch the Plus button on the bottom right of the screen to add a new contact. 2.2 Synchronising contacts in multiple accounts Contacts, data or other information can be synchronized from multiple accounts, depending on the applications installed on your tablet. 5 3 Gmail Gmail is a Google web-based email service. When you first set up your tablet, it is automatically synchronized with your Google account. With this app, you can receive and send email, manage your email, and archive your email, etc. To open Gmail From the Home screen, touch the Gmail icon in the Google folder. Gmail displays messages and conversations from one single Gmail account at a time. If you own more than one account, you can add an account by touching the Menu button , then touch Setting > Add account. When finished, you can switch to another account by touching the name of the account you want to view. To create and send emails 1 Touch the Edit button from the Inbox screen. 2 Enter the recipient(s)’s email address in "To" field. 3 To add Copy or Blind copy, touch the down arrow button and enter the email address in the Cc or Bcc line. 4 Enter the subject and the content of the message. 5 Touch the Attach button icon and select Attach file to add an attachment. 6 Finally, touch the Send button to send. 7 If you do not want to send the email out right away, you can touch the Menu overflow button and then touch Save draft. To view the draft later, touch the Menu button and select the Drafts folder. Touch the draft email and then the Edit button to open it. 6 4 Getting connected To connect to the Internet with this tablet, you will need to have an internet connection via Wi-Fi. Wi-Fi The tablet can be connected to a Wi-Fi internet service. To turn Wi-Fi on and connect to a Wi-Fi network • Go to Settings > Network& internet > Wi-Fi. • Touch the Off switch to turn on Wi-Fi. • Touch a Wi-Fi network to connect. If the network you selected is a secured network, you will need to enter a password or other credentials. When finished, touch CONNECT. • For hidden network, slide up the screen and select Add network. Enter the SSID of the network, password and its secured credentials. Then, touch SAVE. 7 5 Support 1. Enter from your Smartphone / Tablet to the application: SUPPORT CENTER 2. Check our frequently asked questions or chat with us through https://www.alcatelmobile.com in the Support section. 3. Call the Call Center Locate your number, below: Argentina- 0800-444-7361 Australia- 1-800-218-730 Canada- 1-855-844-6058 Chile- 123-002-09025 Colombia- 01-800-518-3882 Ecuador- 800-000-635 Mexico- 01-800-112-4682 Nueva Zealanda- 800-451-708 Peru- 0800-55-639 Rep. Dominicana- 1-800-203-9679 Uruguay- 000-401-90752 USA- 1-855-368-0829 Venezuela- 0800-136-2017

English - CQF1SE1ALAAA Safety and Precautions This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found on Radio waves section. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 0 mm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your phone near your ear while the loudspeaker is in use. www.sar-tick.com Printed in China CQF1SE1ALAAA 1 Safety and use ������������������������������������������������������������������������������������������������ We recommend that you read this chapter carefully before using your phone. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use or use contrary to the instructions contained herein. TRAFFIC SAFETY: Given that studies show that using a phone while driving a vehicle constitutes a real risk, even when the hands-free kit is used (car kit, headset...), drivers are requested to refrain from using their phone when the vehicle is not parked. Check the laws and regulations on the use of wireless phones and their accessories in the areas where you drive. Always obey them. The use of these devices may be prohibited or restricted in certain areas. CONDITIONS OF USE: • You are advised to switch off the phone from time to time to optimize its performance; • Remember to abide by local authority rules of mobile phone use on aircrafts; • If your phone is a unibody device, where the back cover and battery are not removable, dissembling the phone will void your warranty. Disassembling the phone can cause bodily injury if the battery is punctured; • Always handle your phone with care and keep it in a clean and dust-free place; • Do not allow your phone to be exposed to adverse weather or environmental conditions, such as moisture, humidity, rain, infiltration of liquids, dust, sea air, etc. The manufacturer’s recommended operating temperature range is 0°C (32°F) to +40°C (104°F). At over 40°C (104°F), the legibility of the phone’s display may be impaired, though this is temporary and not serious; • Do not open, dismantle, or attempt to repair your phone yourself; • Do not drop, throw, or bend your phone; • Use only batteries, battery chargers, and accessories which are recommended by TCL Communication Ltd. and its affiliates and are compatible with your phone model. TCL Communication Ltd. and its affiliates disclaim any liability for damage caused by the use of other chargers or batteries; 2 • Your phone should not be disposed of in a municipal waste. Please check local regulations for disposal of electronic products; • Remember to make backup copies or keep a written record of all important information stored on your phone; • Some people may suffer epileptic seizures or blackouts when exposed to flashing lights, or when playing video games. These seizures or blackouts may occur even if a person never had a previous seizure or blackout. If you have experienced seizures or blackouts, or if you have a family history of such occurrences, please consult your doctor before playing video games on your phone or enabling a flashing-lights feature on your phone; • Parents should monitor their children’s use of video games or other features that incorporate flashing lights on the phones. All persons should discontinue use and consult a doctor if any of the following symptoms occur: convulsion, eye or muscle twitching, loss of awareness, orientation, or movements. PRIVACY: Please note that you must respect the laws and regulations in force in your jurisdiction or other jurisdiction(s) where you will use your phone regarding taking photographs and recording sounds with your phone. Pursuant to such laws and regulations, it may be strictly forbidden to take photographs and/or to record the voices of other people or any of their personal attributes, and reproduce or distribute them, as this may be considered to be an invasion of privacy. It is the user's sole responsibility to ensure that prior authorization has been obtained, if necessary, in order to record private or confidential conversations or take a photograph of another person; the manufacturer, the seller or vendor of your phone (including the carrier) disclaim any liability which may result from improper use of the phone. BATTERY: For a non-unibody device: Observe the following precautions: • Do not attempt to open the battery (due to the risk of toxic fumes and burns); • Do not puncture, disassemble, or cause a short circuit in a battery; • Do not burn or dispose of a used battery in household rubbish or store it at temperatures above 60°C (140°F). 3 Batteries must be disposed of in accordance with locally applicable environmental regulations. Only use the battery for the purpose for which it was designed. Never use damaged batteries or those not recommended by TCL Communication Ltd. and/or its affiliates. For a non-unibody device with a non-removable battery: Observe the following precautions: • Do not attempt to eject, replace or open the battery; • Do not puncture, disassemble, or cause a short circuit in the battery; • Do not burn or dispose of your phone in household rubbish or store it at temperature above 60°C (140°F). Phone and battery must be disposed of in accordance with locally applicable environmental regulations. For a unibody device: Observe the following precautions: • Do not attempt to open the back cover; • Do not attempt to eject, replace, or open battery; • Do not puncture the back cover of your phone; • Do not burn or dispose of your phone in household rubbish or store it at temperature above 60°C (140°F); Phone and battery as a unibody device must be disposed of in…

Text truncated - open the document above for the full version.

THISMUSTBESIGNEDBYTHEAPPLICANTANDSHOULDBEPLACEDON APPLICANTSLETTERHEADONLYIFAGENTISSUBMITTINGAPPLICATION 022818–11 AuthoritytoActasAgent Date:_2020/08/25_ AmericanCertificationBody,Inc. 6731WhittierAvenue SuiteC110 McLean,VA22101 ToWhomItMayConcern: ______ShenzhenAcademyofInformationandCommunicationTechnology______isauthorizedtoact onourbehalf,untilotherwisenotified,forapplicationstoAmericanCertificationBody,Inc.(ACB). Wecertifythatwearenotsubjecttodenialoffederalbenefits,thatincludesFCCbenefits,pursuantto Section5301oftheAnti-DrugAbuseActof1988,21U.S.C.862.Further,noparty,asdefinedin47 CFR1.2002(b),totheapplicationissubjecttodenialoffederalbenefits,thatincludesFCCbenefits. Thankyou, AgencyAgreementExpirationDate:_____(Typically8–12months)_____ By:______GongZhizhou_____ (Signature 1 )(Printname) Title:____ProjectManager___ Onbehalfof:___TCLCommunicationLtd.___ (CompanyName) Telephone:__0086-755-36611722__ 1 -MustbesignedbyapplicantcontactgivenforapplicantontheFCCsite,orbytheauthorizedagentifanappropriate authorizedagentletterhasbeenprovided.Lettersshouldbeplacedonappropriateletterhead. THISMUSTBESIGNEDBYTHEAPPLICANT/AGENTANDSHOULDBE PLACEDONAPPROPRIATELETTERHEAD 022818–11 RequestforConfidentiality Date:_2020/08/25_ Subject:ConfidentialityRequestfor:______2ACCJB133_____ PursuanttoFCC47CFR0.457(d)and0.459andICRSP-100,Section9.4,theapplicantrequeststhatapartofthe subjectFCCapplicationbeheldconfidential. TypeofConfidentialityRequestedExhibit ☐ShortTerm☒PermanentBlockDiagrams ☒ShortTermExternalPhotos ☒ShortTerm☐Permanent* 2 InternalPhotos ☐ShortTerm☒PermanentOperationDescription/TheoryofOperation ☐ShortTerm☒PermanentPartsList&Placement/BOM ☐ShortTerm☒PermanentTune-UpProcedure ☐ShortTerm☒PermanentSchematics ☒ShortTermTestSetupPhotos ☒ShortTerm☐Permanent* 3 User’sManual ______2ACCJB133______hasspentsubstantialeffortindevelopingthisproductanditisoneofthefirstofitskind inindustry.Havingthesubjectinformationeasilyavailableto"competition"wouldnegatetheadvantagetheyhave achievedbydevelopingthisproduct.Notprotectingthedetailsofthedesignwillresultinfinancialhardship. PermanentConfidentiality: Theapplicantrequeststheexhibitslistedaboveaspermanentlyconfidentialbepermanentlywithheldfrompublic reviewduetomaterialsthatcontaintradesecretsandproprietaryinformationnotcustomarilyreleasedtothepublic. Short-TermConfidentiality: Theapplicantrequeststheexhibitsselectedaboveasshorttermconfidentialbewithheldfrompublicviewfora periodof180daysfromthedateoftheGrantofEquipmentAuthorizationandpriortomarketing.Thisistoavoid prematurereleaseofsensitiveinformationpriortomarketingorreleaseoftheproducttothepublic.Applicantisalso awarethattheyareresponsibletonotifyACBintheeventinformationregardingtheproductortheproductismade availabletothepublicbeforetherequestedperiodhasexpired.ACBwillthenreleasethedocumentslistedabovefor publicdisclosurepursuanttoFCCPublicNoticeDA04-1705. NOTEforIndustryCanadaApplications: ICcurrentlyonlydistinguishesPermanentConfidentialityexhibitsasshownabove.ShortTermconfidentialityisnot consideredapplicabletoICapplications. Sincerely, By:_______GongZhizhou_______ (Signature/Title 3 )(Printname) 2 -Theasteriskeditems(*)requirefurtherinformationtobeprovidedtoACBbeforepermanentconfidentialitywillbe extendedtotheseexhibits.PleaserefertoFCCKDB726920andthespecificDocumentlinkforD01foundat: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731andreviewsectionII,3)regarding specificinformationthatmustaccompanytheserequests. 3 -MustbesignedbyapplicantcontactgivenforapplicantontheFCCsite,orbytheauthorizedagentifanappropriate authorizedagentletterhasbeenprovided.Lettersshouldbeplacedonappropriateletterhead.

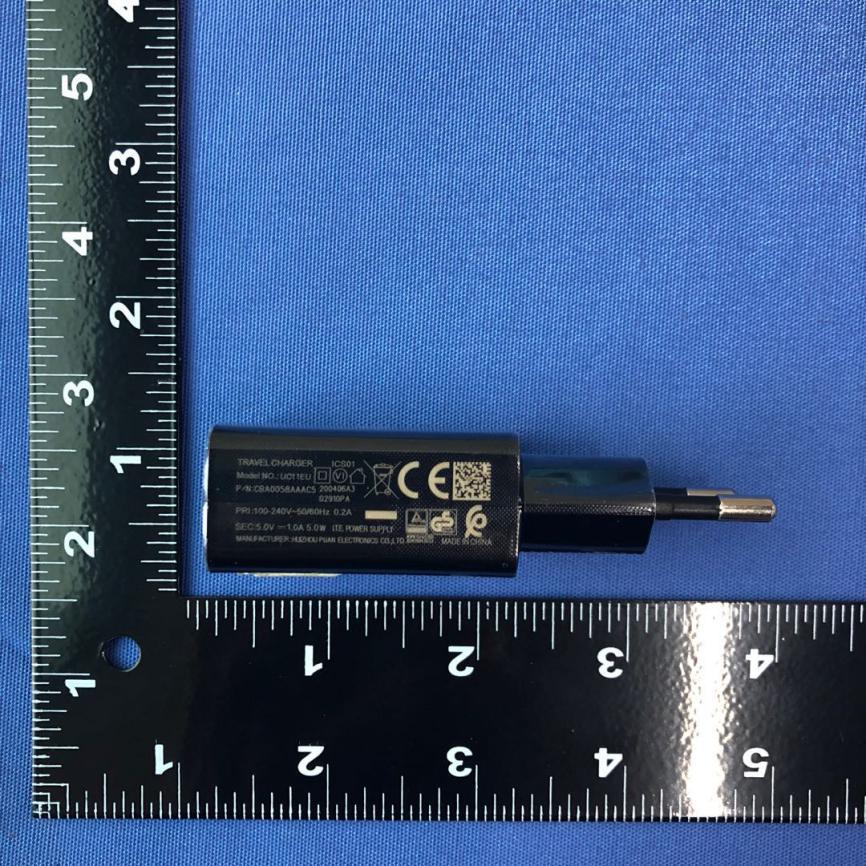

Front Back Bottom Top Side 1 Side 2 Charger1-1 Charger1-2 Charger2-1 Charger2-1 Cable 1 Cable 2
