EN-12 Safety and Precautions This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found on Radio waves section. PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. www.sar-tick.com EN-13 Safety and use ������������������������������������������������������������������������������������������������ We recommend that you read this chapter carefully before using your device. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use or use contrary to the instructions contained herein. TRAFFIC SAFETY: Given that studies show that using a device while driving a vehicle constitutes a real risk, drivers are requested to refrain from using their device when the vehicle is not parked. Check the laws and regulations on the use of wireless devices and their accessories in the areas where you drive. Always obey them. The use of these devices may be prohibited or restricted in certain areas. CONDITIONS OF USE: • You are advised to switch off the device from time to time to optimize its performance; • Remember to abide by local authority rules of mobile device use on aircrafts; • If your device is a unibody device, where the back cover and battery are not removable, dissembling the device will void your warranty. Disassembling the device can cause bodily injury if the battery is punctured; • Always handle your device with care and keep it in a clean and dust-free place; • Do not allow your device to be exposed to adverse weather or environmental conditions, such as moisture, humidity, rain, infiltration of liquids, dust, sea air, etc. The manufacturer’s recommended operating temperature range is 0°C (32°F) to +40°C (104°F). At over 40°C (104°F), the legibility of the device’s display may be impaired, though this is temporary and not serious; • Do not open, dismantle, or attempt to repair your device yourself; • Do not drop, throw, or bend your device; • Use only batteries, battery chargers, and accessories which are recommended by TCL Communication Ltd. and its affiliates and are compatible with your device model. TCL Communication Ltd. and its affiliates disclaim any liability for damage caused by the use of other chargers or batteries; EN-14 • Your device should not be disposed of in a municipal waste. Please check local regulations for disposal of electronic products; • Remember to make backup copies or keep a written record of all important information stored on your device; • Some people may suffer epileptic seizures or blackouts when exposed to flashing lights, or when playing video games. These seizures or blackouts may occur even if a person never had a previous seizure or blackout. If you have experienced seizures or blackouts, or if you have a family history of such occurrences, please consult your doctor before playing video games on your device or enabling a flashing-lights feature on your device; • Parents should monitor their children’s use of video games or other features that incorporate flashing lights on the devices. All persons should discontinue use and consult a doctor if any of the following symptoms occur: convulsion, eye or muscle twitching, loss of awareness, orientation, or movements. PRIVACY: Please note that you must respect the laws and regulations in force in your jurisdiction or other jurisdiction(s) where you will use your device regarding taking photographs and recording sounds with your device. Pursuant to such laws and regulations, it may be strictly forbidden to take photographs and/or to record the voices of other people or any of their personal attributes, and reproduce or distribute them, as this may be considered to be an invasion of privacy. It is the user's sole responsibility to ensure that prior authorization has been obtained, if necessary, in order to record private or confidential conversations or take a photograph of another person; the manufacturer, the seller or vendor of your device (including the carrier) disclaim any liability which may result from improper use of the device. BATTERY: For a non-unibody device: Observe the following precautions: • Do not attempt to open the battery (due to the risk of toxic fumes and burns); • Do not puncture, disassemble, or cause a short circuit in a battery; • Do not burn or dispose of a used battery in household rubbish or store it at temperatures above 60°C (140°F). EN-15 Batteries must be disposed of in accordance with locally applicable environmental regulations. Only use the battery for the purpose for which it was designed. Never use damaged batteries or those not recommended by TCL Communication Ltd. and/or its affiliates. For a non-unibody device with a non-removable battery: Observe the following precautions: • Do not attempt to eject, replace or open the battery; • Do not puncture, disassemble, or cause a short circuit in the battery; • Do not burn or dispose of your device in household rubbish or store it at temperature above 60°C (140°F). Device and battery must be disposed of in accordance with locally applicable environmental regulations. For a unibody device: Observe the following precautions: • Do not attempt to open the back cover; • Do not attempt to eject, replace, or open battery; • Do not puncture the back cover of your device; • Do not burn or dispose of your device in household rubbish or store it at temperature above 60°C (140°F); Device and battery as a unibody device must be disposed of in accordance with locally applicable environmental regulations. This symbol on your device, the battery, and the accessories means that these products must be taken to collection points at the end of their life: • Municipal waste disposal centers with specific bins for these items of equipment; • Collection bins at points of sale. They will then be recycled, preventin…

Text truncated - open the document above for the full version.

CJB1XJ001AAA English-CJB1XJ001AAA Quick Start Guide Printed in China 1 1 Appearance 23 8 1 7 4 5 6 NumberFunction 1 Power key: Hold down until the tablet powers on. Hold down until options appear, then select power off . 2 Volume key 3 4 Speaker 5 6 Microphone 7 USB port 8 Headset 9 SD slot 9 2 2 Insert SD card 3 Charging 3 4 Home screen 12 Back Recent apps Home NameFunction Google Search Touch 1 to enter text search screen. Touch 2 to enter voice search screen. BackTouch to go back to last screen. HomeTouch to return to the Home screen Recent appsTouch to view recent apps. All AppsSwipe upward from the Home screen to view the App list. 4 5 Kidomi To use Kidomi: 1. When you configur the setup wizard in the device for the first time, The Kidomi login screen will appear, If you are already connected to a Wi-Fi network, you can continue. Otherwise, you need to pull down the status bar twice to find Setting icon, and then connect to a Wi-Fi network. (Refer to section "7 Getting connected" Settings 2. From Kidomi login screen, Touch Get started to create an account or touch Sign in to access your account. 3. Customize your kids playlist by selecting your child’s categories of interest and age range. 4. Enter your kids first name and then set up a PIN for yourself. 5. After completing the setup. your kids can use the device while in the Kidomi learning and gaming environment. 6. To access the parent area press the menu key located at the top right of the home screen. Here you can access parent features and exit Kidomi by entering your PIN code. Please note: If there is network exception when you are in kidomi application, you need to exit kidomi to reconnect network 5 6 Stand 7 Getting connected To connect to the Internet with this device, you will need to have an internet connection via Wi-Fi. To turn Wi-Fi on and connect to a Wi-Fi network •Go to Settings > Network & Internet > Wi-Fi. •Touch a Wi-Fi network to connect. If the network you selected is a secured network, you will need to enter a password or other credentials. When finished, touch CONNECT. 6 8 Eye Comfort Mode Eye comfort mode: Decreases the level of blue light emitted from the screen to make viewing more comfortable for your eyes. Your device is compliant with the TÜV Rheinland's “Low Blue Light Content” standard when the Eye comfort mode is turned on. To turn Eye comfort mode on: • From the Home screen, touch Settings > Display > Eye comfort mode. • Touch TURN ON NOW, then slide the icon left or right to increase/decrease the level of the blue light. Or • From the Home screen, twice drag down the Status bar to open the Quick Settings panel, • Slide the Quick Settings panel screen left to find Eye comfort mode. • Touch Eye comfort mode to turn it on. To protect your eyes: • Break time Users should take some time away from the screen. It is recommended to take short breaks 5 mins after half of one hour. • Looking at Distant Objects Users often blink less when in front of monitor screen. To minimize eye strain and dryness, users should rest the eye periodically by focusing on objects that are far away. • Eye and Neck Exercises Certain exercise reduces eye strain and prevent early onset of musculo-skeletal disorders. • Exercises for the eye: 1. Alternate looking up and looking down while keeping the body and head upright. 2. Slowly roll your eyes to look to the left and right. 3. Roll eyes to look at objects on the upper right corner and then on lower right. Do same thing to look at objects on the upper left and lower left.

TCL Communication Ltd. 022818 – 11 Authority to Act as Agent Date: _2021/03/11_ American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ______Shenzhen Academy of Information and Communication Technology______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____(Typically 8 – 12 months)_____ By: ______Gong Zhizhou_____ (Signature 1 ) (Print name) Title: ____Project Manager___ On behalf of: ___TCL Communication Ltd.___ (Company Name) Telephone: __0086-755-36611722__ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead. TCL Communication Ltd. THIS MUST BE SIGNED BY THE APPLICANT/AGENT AND SHOULD BE PLACED ON APPROPRIATE LETTERHEAD 022818 – 11 Request for Confidentiality Date: _2021/03/11_ Subject: Confidentiality Request for: _____2ACCJB150_____ Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 9.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐Short Term☒PermanentBlock Diagrams ☒Short TermExternal Photos ☒Short Term☐Permanent * 2 Internal Photos ☐Short Term☒PermanentOperation Description/Theory of Operation ☐Short Term☒PermanentTune-Up Procedure ☐Short Term☒PermanentSchematics ☒Short Term Test Setup Photos ☒Short Term☐Permanent * 3 User’s Manual ______TCL Communication Ltd._____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: _______Gong Zhizhou_______ (Signature/Title 3 ) (Print name) 2 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

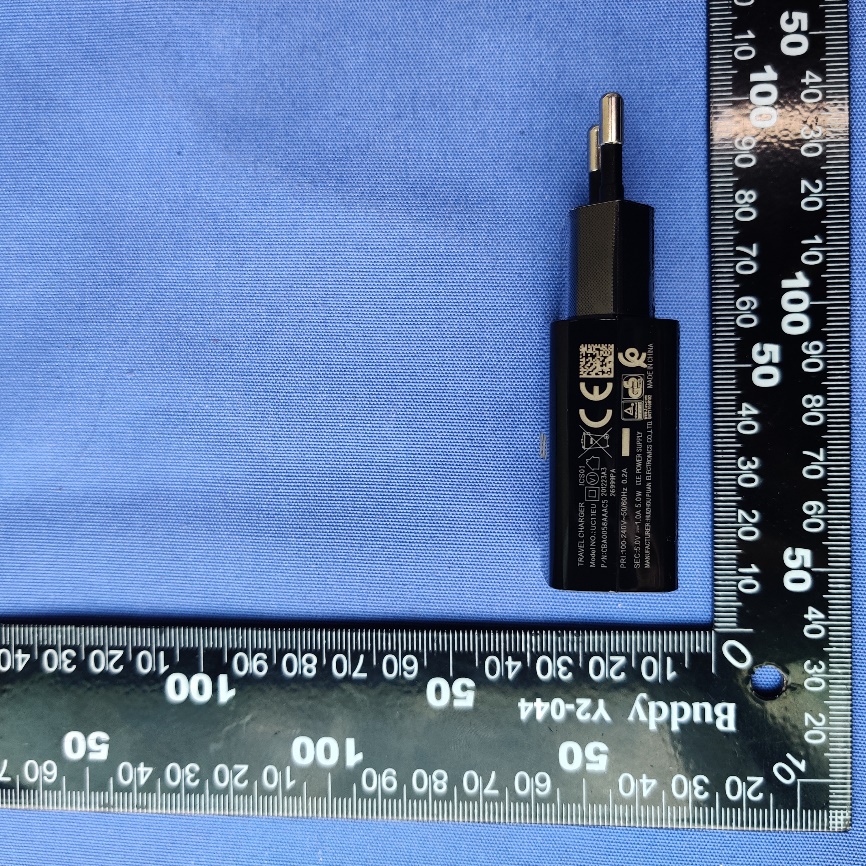

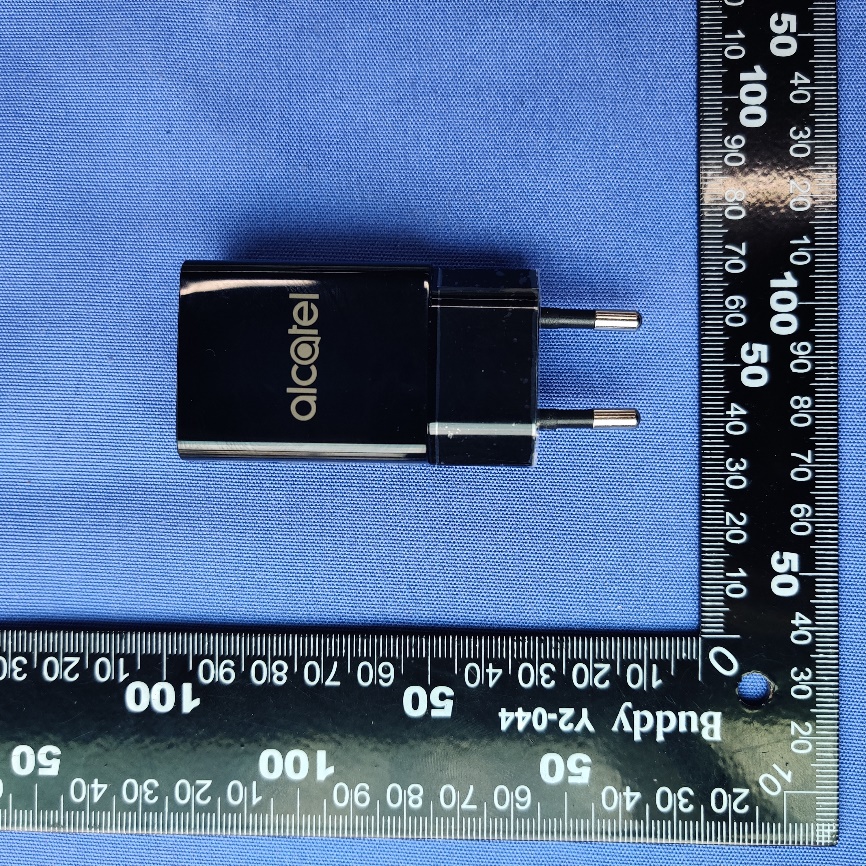

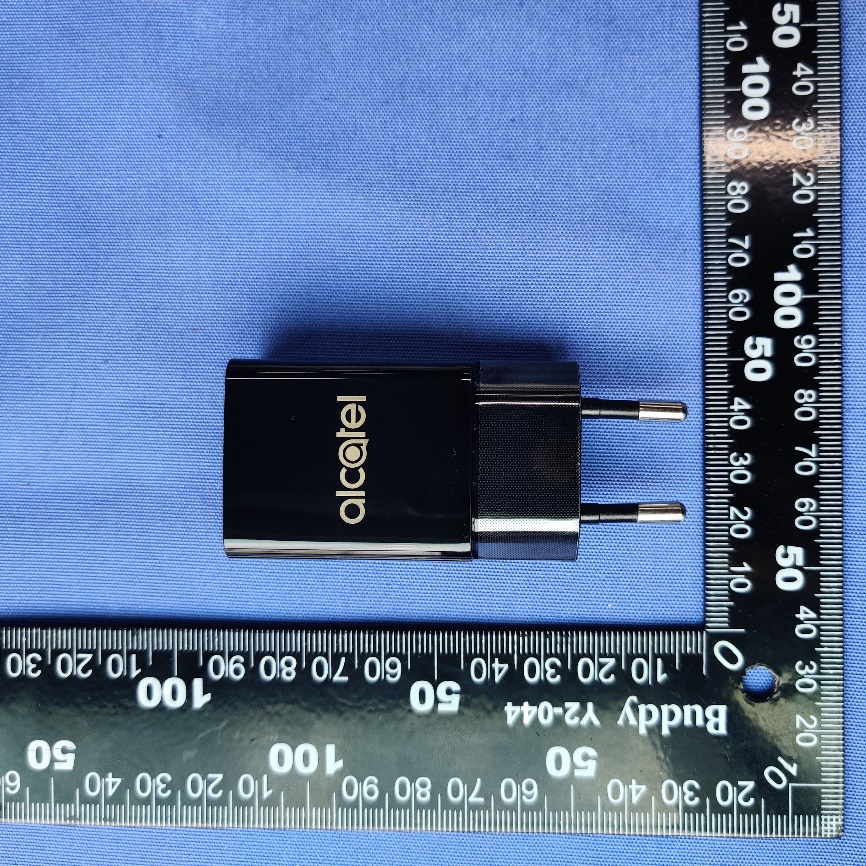

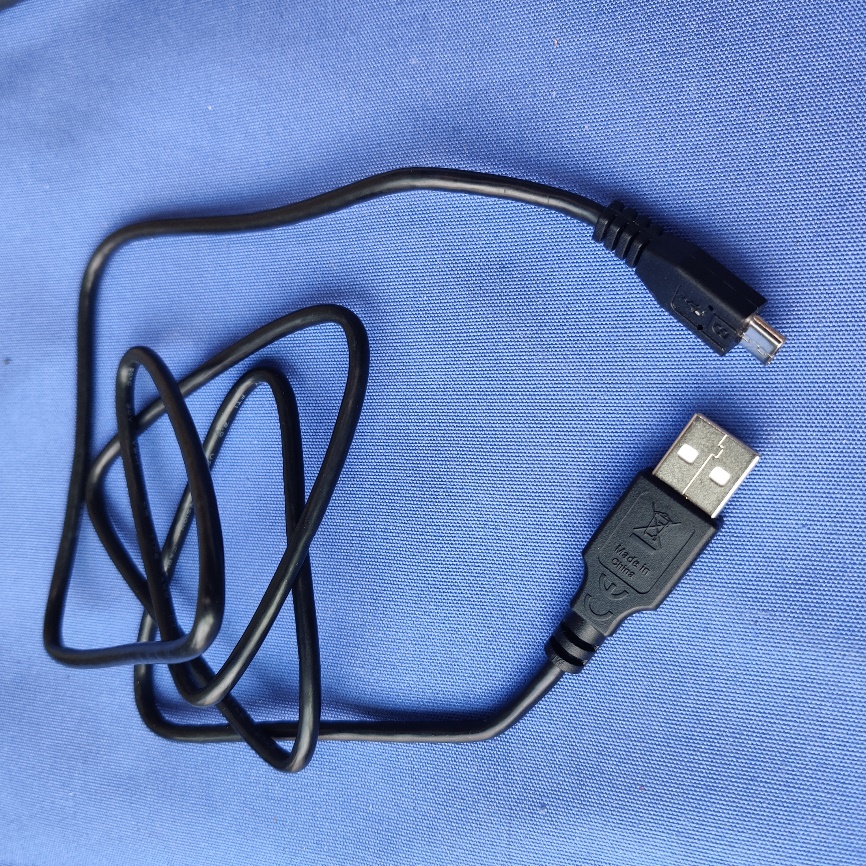

Front Back Side Side To p Bottom Charger1 Charger1-1 Charger2 Charger2-1 Cable1 Cable2

12.5mm 21.9mm 22.7mm 长度 24mm 8.0mm6mm 4.5mm 13mm 5 1 . 6 m m 内径3.2mm 线条0.1mm 间距0.12mm TP：背面丝印白色 侧面纹理分线 A壳拉丝区域 A壳高光区域 P-sense 黑色半透明 Phoenix7_TKEE_Marking(V0.1a)_20201214 1:1 纹理凸起0.04MM Camera Lens: CD Spin Texture Printed Dark Chrome (Printed on 2nd surface) Frame Mask: Pantone Black C (Printed on 2nd surface) 摄像头镜片： 丝印颜色(参考样板) LOGO

Phoenix 7 KIDS Commercial Sticker and CU Sticker ABSTRACT: The purpose of this document is to define all the information on commercial sticker and CU sticker for Phoenix 7 KIDS HISTORY NameDateVersionComments 2021/2/3 12:14:20v01Creation of draft minglu.zho ng 2021/3/22 15:01:53v02Update FCC ID and BT information BandCu Ref PrefixTACFACSNMEIDCertification CECertification FCC3CBluetooth QD ID 9317G/MAC address (12 bytes)+3 bytes random code /CE//Bluetooth Declaration ID D047838 9317G/MAC address (12 bytes)+3 bytes random code //FCC ID:2ACCJB150 /Bluetooth Declaration ID D047838 9317G1/MAC address (12 bytes)+3 bytes random code /CE//Bluetooth Declaration ID D047838 9317G1/MAC address (12 bytes)+3 bytes random code //FCC ID:2ACCJB150 /Bluetooth Declaration ID D047838 1.COMMERCIAL LABEL MARKING (IMEI sticker) 1.1 Printing Zone definition (CPE000268AC0--------For general 38×15+11×1.5+27×1.5 mm) SignificationRemark Bluetooth DID PTSsoft’ techn. Release PTM Logos Model Address Made in Manufacturer address DATAMATRIX Code IMEI No. / INDUS. REF. / PTH(PTM) / PTS / CU REF. FCC ID CU Ref. SN Text Company Date SN Barcode 1.2 Samples for Commercial Label 9317G-2AALEU0 IMEI Sample V02 9317G-2AALMX0 IMEI Sample V02FCC ID 9317G1-2AALEU0 IMEI Sample V02 9317G1-2AALMX0 IMEI Sample V02FCC ID 2 UNIT BOX LABEL MARKING (CU sticker) 2.1 Printing Zone definition (CPG30W0001C0--------55×33 mm) 2.2 Blank Label Size SignificationRemark Importer address Alcatel Log Made In FCC ID Model CU Ref. CE/NOMLogos ColorRefer to ERP EAN CodeText+1D Code SN Text WEEE SN Barcode 2.3 Samples for CU Label 9317G-2AALEU0 CU Sample V02 9317G-2AALMX0 CU Sample V02FCC ID 9317G1-2AALEU0 CU Sample V02 9317G1-2AALMX0 CU Sample V02FCC ID Appendix 1: Location of PCBA label. PCBA Location is NONE Appendix 2: Location of IMEI label. IMEI label is NONE Appendix 3: Specail Image Specail Image is NONE

©Copyright. All rights reserved by SAICT. TEST REPORT No. I21N00294-BT TCL Communication Ltd. Tablet Model Name: 9317G with Hardware Version: PIO Software Version: EN1 FCC ID: 2ACCJB150 Issued Date: 2021-03-02 Designation Number: CN1210 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of SAICT. Test Laboratory: Shenzhen Academy of Information and Communications Technology Building G, Shenzhen International Innovation Center, No.1006 Shennan Road, Futian District, Shenzhen, Guangdong, P. R. China 518000. Tel: +86(0)755-33322000, Fax: +86(0)755-33322001 Email: [email protected], website: www.cszit.com No. I21N00294-BT Page 2 of 71 ©Copyright. All rights reserved by SAICT. CONTENTS 1. SUMMARY OF TEST REPORT .........................................................................................................4 1.1. TEST ITEMS ......................................................................................................................................... 4 1.2. TEST STANDARDS ................................................................................................................................. 4 1.3. TEST RESULT ....................................................................................................................................... 4 1.4. TESTING LOCATION ............................................................................................................................... 4 1.5. PROJECT DATA ..................................................................................................................................... 4 1.6. SIGNATURE ......................................................................................................................................... 4 2. CLIENT INFORMATION ..................................................................................................................5 2.1. APPLICANT INFORMATION ..................................................................................................................... 5 2.2. MANUFACTURER INFORMATION ............................................................................................................. 5 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................................6 3.1. ABOUT EUT ....................................................................................................................................... 6 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST.......................................................................... 6 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................ 6 3.4. GENERAL DESCRIPTION ......................................................................................................................... 7 4. REFERENCE DOCUMENTS ..............................................................................................................8 4.1. DOCUMENTS SUPPLIED BY APPLICANT ...................................................................................................... 8 4.2. REFERENCE DOCUMENTS FOR TESTING ..................................................................................................... 8 5. TEST RESULTS ...............................................................................................................................9 5.1. TESTING ENVIRONMENT ........................................................................................................................ 9 5.2. TEST RESULTS ...................................................................................................................................... 9 5.3. STATEMENTS ....................................................................................................................................... 9 6. TEST EQUIPMENTS UTILIZED ....................................................................................................... 10 7. LABORATORY ENVIRONMENT ..................................................................................................... 11 8. MEASUREMENT UNCERTAINTY ................................................................................................... 12 ANNEX A: DETAILED TEST RESULTS ...................................................................................................... 13 A.0 ANTENNA REQUIREMENT .......................................................................................................................... 13 A.1 MAXIMUM PEAK OUTPUT POWER.............................................................................................................. 14 A.2 BAND EDGES COMPLIANCE ........................................................................................................................ 15 A.3 CONDUCTED EMISSION ............................................................................................................................. 22 A.4 RADIATED EMISSION ................................................................................................................................ 38 A.5 20DB BANDWIDTH .................................................................................................................................. 51 A.6 TIME OF OCCUPANCY (DWELL TIME) ........................................................................................................... 56 A.7 NUMBER OF HOPPING CHANNELS............................................................................................................... 60 A.8 CARRIER FREQUENCY SEPARATION .............................................................................................................. 64 No. I21N00294-BT Page 3 of 71 ©Copyright. All rights reserved by SAICT. A.9 AC POWER LINE CONDUCTED EMISSION .....................…
