2ACCJB151Tablet PC

CQF1S8101AGB Safety and Precautions This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found on Radio waves section. PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. www.sar-tick.com Printed in China CQF1S8101AGB 1 Safety and use ������������������������������������������������������������������������������������������������ We recommend that you read this chapter carefully before using your device. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use or use contrary to the instructions contained herein. TRAFFIC SAFETY: Given that studies show that using a device while driving a vehicle constitutes a real risk, even when the hands-free kit is used (car kit, headset...), drivers are requested to refrain from using their device when the vehicle is not parked. Check the laws and regulations on the use of wireless devices and their accessories in the areas where you drive. Always obey them. The use of these devices may be prohibited or restricted in certain areas. CONDITIONS OF USE: • You are advised to switch off the device from time to time to optimize its performance; • Remember to abide by local authority rules of mobile device use on aircrafts; • If your device is a unibody device, where the back cover and battery are not removable, dissembling the device will void your warranty. Disassembling the device can cause bodily injury if the battery is punctured; • Always handle your device with care and keep it in a clean and dust-free place; • Do not allow your device to be exposed to adverse weather or environmental conditions, such as moisture, humidity, rain, infiltration of liquids, dust, sea air, etc. The manufacturer’s recommended operating temperature range is 0°C (32°F) to +40°C (104°F). At over 40°C (104°F), the legibility of the device’s display may be impaired, though this is temporary and not serious; • Do not open, dismantle, or attempt to repair your device yourself; • Do not drop, throw, or bend your device; • Use only batteries, battery chargers, and accessories which are recommended by TCL Communication Ltd. and its affiliates and are compatible with your device model. TCL Communication Ltd. and its affiliates disclaim any liability for damage caused by the use of other chargers or batteries; 2 • Your device should not be disposed of in a municipal waste. Please check local regulations for disposal of electronic products; • Remember to make backup copies or keep a written record of all important information stored on your device; • Some people may suffer epileptic seizures or blackouts when exposed to flashing lights, or when playing video games. These seizures or blackouts may occur even if a person never had a previous seizure or blackout. If you have experienced seizures or blackouts, or if you have a family history of such occurrences, please consult your doctor before playing video games on your device or enabling a flashing-lights feature on your device; • Parents should monitor their children’s use of video games or other features that incorporate flashing lights on the devices. All persons should discontinue use and consult a doctor if any of the following symptoms occur: convulsion, eye or muscle twitching, loss of awareness, orientation, or movements. PRIVACY: Please note that you must respect the laws and regulations in force in your jurisdiction or other jurisdiction(s) where you will use your device regarding taking photographs and recording sounds with your device. Pursuant to such laws and regulations, it may be strictly forbidden to take photographs and/or to record the voices of other people or any of their personal attributes, and reproduce or distribute them, as this may be considered to be an invasion of privacy. It is the user's sole responsibility to ensure that prior authorization has been obtained, if necessary, in order to record private or confidential conversations or take a photograph of another person; the manufacturer, the seller or vendor of your device (including the carrier) disclaim any liability which may result from improper use of the device. BATTERY: For a non-unibody device: Observe the following precautions: • Do not attempt to open the battery (due to the risk of toxic fumes and burns); • Do not puncture, disassemble, or cause a short circuit in a battery; • Do not burn or dispose of a used battery in household rubbish or store it at temperatures above 60°C (140°F). 3 Batteries must be disposed of in accordance with locally applicable environmental regulations. Only use the battery for the purpose for which it was designed. Never use damaged batteries or those not recommended by TCL Communication Ltd. and/or its affiliates. For a non-unibody device with a non-removable battery: Observe the following precautions: • Do not attempt to eject, replace or open the battery; • Do not puncture, disassemble, or cause a short circuit in the battery; • Do not burn or dispose of your device in household rubbish or store it at temperature above 60°C (140°F). Device and battery must be disposed of in accordance with locally applicable environmental regulations. For a unibody device: Observe the following precautions: • Do not attempt to open the back cover; • Do not attempt to eject, replace, or open battery; • Do not puncture the back cover of your device; • Do not burn or dispose of your device in household rubbish or store it at temperature above 60°C (140°F); Device and battery as a unibody device must be disposed of in accordance with locally applicable environmental regulations. This symbol on your device, the battery, and the accessories means that these products must be taken to collection points at the end of their life: • Municipal waste disposal centers with specific bins for these items of …

Text truncated - open the document above for the full version.

QUICK START GUIDE www.alcatelmobile.com User Manual and FAQ are available online 9032T CJB1S81ALAAB CJB1S81ALAAB 1 Rear Camera Volume up/down Power key Front camera 2 Fully charge your device for the first time use. Open the slot and insert the SD & SIM cards. SIM SD 3 1 Home screen You can move frequently used items (applications, shortcuts, folders and widgets) to your Home screen for quick access. Touch the Home key to switch to the Home screen. Status bar • Status/Notification indicators • Touch and drag down to open the notification panel. Touch an icon to open an application, folder, etc. Favourites tray applications • Touch to enter the application. • Long press to move or change applications. The Home screen is provided in an extended format to allow more space for adding application icons, shortcuts etc. Slide the Home screen horizontally left and right to get additional view. 1.1 Status bar In the status bar, you can see the notifications on the left side and the connection service status on the right side. Swipe downward from the Status bar to access the Notification panel or the Quick Settings panel. To close the panel, touch and drag upward. Touch to clear all event- based notifications. On-going notifications will remain on the panel. 4 Notification panel When there are notifications, you can touch them to view more information. Quick settings panel Swipe down from the status bar twice to open the Quick settings panel. Then enable or disable functions or change modes by touching the icons. Touch to edit shortcut list. Touch to access settings, where you can make changes to more functions. 5 2 Phone call 2.1 Placing a call You can easily place a call using the Phone application. Touch the Phone icon on your Favourites Tray. Call screen Enter the desired number from the dial pad directly and touch to place the call or select a contact from Favorites or Contacts by touching tabs, then make the call Touch to display dial pad. Contacts Favorites RECENT Dial pad Enter the desired number from the dial pad and touch the Call icon to place the call. If you make a mistake, you can delete the incorrect digits by touching the Delete button . Display the suggested numbers. Long press to access voicemail. 6 Answering or rejecting a call When you receive a call: Slide up the icon to answer; Slide down the icon to to reject; Touch to reject the call by sending a preset message. To mute the ringtone volume of an incoming call, press the Volume Up/Down key Call history You can access your call history by touching the Recents tab from the Call screen to view missed calls, outgoing calls, and incoming calls. 3 Contacts Contacts are stored in your tablet with the Contacts app. It allows you to add, delete, or edit your contacts. You can also import or export your contacts from different locations such as a SIM card, an external storage, your Gmail or other email account. 3.1 Adding a contact Open the Contacts app from applications list, then touch the Plus button on the bottom right of the screen to add a new contact. 7 3.2 Synchronising contacts in multiple accounts Contacts, data or other information can be synchronized from multiple accounts, depending on the applications installed on your tablet. 4 Messaging This tablet comes with a pre-installed Messaging app that allows you to send and receive SMS (Short Message Service) or MMS (Multimedia Messaging Service) with your wireless service provider. To open your Messaging app, go to the Home screen and touch the Messaging icon in the Favourites tray or from the application list. To check messages stored in your SIM card, touch the button from the Messaging screen, then touch Settings > Advanced > SIM card messages. 4.1 Write message On the Messaging app screen, touch in the bottom right of the screen to begin. Touch to create a new message. • Touch to see the whole message thread. • Touch and hold to activate delete mode. Sending a text message Enter the mobile phone number of the recipient in the "To" bar and touch the Text message bar to enter the text of the message. Touch the Smiley Face button to insert emoticons. When finished, touch the Send button to send the text message. 8 An SMS of more than 160 characters (Actually maybe little less than 160) will be charged as several SMS. Specific letters (accent) will also increase the size of the SMS. This may cause multiple SMS to be sent to your recipient. Sending a multimedia message MMS enables you to send video clips, images, photos, animations, slides, and sounds to other compatible phones and email addresses. An SMS will be converted to MMS automatically when media files (images, videos, audio, documents, etc.) are attached. 5 Gmail Gmail is a Google web-based email service. When you first set up your tablet, it is automatically synchronized with your Google account. With this app, you can receive and send email, manage your email, and archive your email, etc. To open Gmail From the Home screen, touch the Gmail icon in the Google folder. Gmail displays messages and conversations from one single Gmail account at a time. If you own more than one account, you can add an account by touching the Menu button , then touch Setting > Add account. When finished, you can switch to another account by touching the name of the account you want to view. To create and send emails 1 Touch the Edit button from the Inbox screen. 2 Enter the recipient(s)’s email address in "To" field. 3 To add Copy or Blind copy, touch the down arrow button and enter the email address in the Cc or Bcc line. 4 Enter the subject and the content of the message. 5 Touch the Attach button icon and select Attach file to add an attachment. 6 Finally, touch the Send button to send. 7 If you do not want to send the email out right away, you can touch the Menu overflow button and then touch Save draft. To view the draft later, touch the Menu button and select the Drafts folder. Touch the draft email and then the Edit button to open i…

Text truncated - open the document above for the full version.

TCLCommunicationLtd. DFSClientDeclarationLetter Date:April7,2021 Wehavedeclaredbelowfeaturedfordevice, FCCID:2ACCJB151 (1)DFSDevice Master ClientwithRadardetectioncapability Clientwithoutradardetectioncapability (2)Active/PassiveScanning,adhocmodeaccesspointcapability Frequency Band(MHz) ScanningPlanAdHocMode Capability Accesspoint Capability WiFiDirect GroupOwner WiFiDirect GroupClient 2412-2462ActiveYesYesYesYes 5180–5240ActiveYesYesYesYes 5260–5320PassiveNoNoNoYes 5745-5825ActiveYesYesYesYes (3)Countrycodeselectioncapabilitytoenduser-Yes,No Ifyes,pleaseexplainhowitwasimplemented:(pleasealsohelptoprovidedetailof optionsforeachcountryselection) (4)MeetPart15.202requirement-Yes,No Amasterdeviceisdefinedasadeviceoperatinginamodeinwhichithasthecapabilityto transmitwithoutreceivinganenablingsignal.Inthismodeitisabletoselectachannel andinitiateanetworkbysendingenablingsignalstootherdevices. Aclientdeviceisdefinedasadeviceoperatinginamodeinwhichthetransmissionsof thedeviceareundercontrolofthemaster.Adeviceinclientmodeisnotabletoinitiatea network. （5）Forclientdevicesthathavesoftwareconfigurationcontroltooperateindifferent modes(activescanninginsomeandpassivescanninginothers)indifferentbands (deviceswithmultipleequipmentclassesorthosethatoperateonnon-DFSfrequencies) ormodulardeviceswhichconfigurethemodesofoperationsthroughsoftware,the applicationmustprovidesoftwareandoperationsdescriptiononhowthesoftwareand/or hardwareisimplementedtoensurethatproperoperationsmodescannotbemodifiedby enduseroraninstaller. Apply,NotApply,(Ifapply,pleasehelptoprovideexplanationonitwas implement,andhowsoftwarewascontrolled). Signature PrintedName:_GongZhizhou Position:ProductCertificationManager Company:TCLCommunicationLtd.

TCLCommunicationLtd. 022818–11 AuthoritytoActasAgent Date:_2021/03/30_ AmericanCertificationBody,Inc. 6731WhittierAvenue SuiteC110 McLean,VA22101 ToWhomItMayConcern: ______ShenzhenAcademyofInformationandCommunicationTechnology______isauthorizedtoact onourbehalf,untilotherwisenotified,forapplicationstoAmericanCertificationBody,Inc.(ACB). Wecertifythatwearenotsubjecttodenialoffederalbenefits,thatincludesFCCbenefits,pursuantto Section5301oftheAnti-DrugAbuseActof1988,21U.S.C.862.Further,noparty,asdefinedin47 CFR1.2002(b),totheapplicationissubjecttodenialoffederalbenefits,thatincludesFCCbenefits. Thankyou, AgencyAgreementExpirationDate:_____(Typically8–12months)_____ By:______GongZhizhou_____ (Signature 1 )(Printname) Title:____ProjectManager___ Onbehalfof:___TCLCommunicationLtd.___ (CompanyName) Telephone:__0086-755-36611722__ 1 -MustbesignedbyapplicantcontactgivenforapplicantontheFCCsite,orbytheauthorizedagentifanappropriate authorizedagentletterhasbeenprovided.Lettersshouldbeplacedonappropriateletterhead. TCLCommunicationLtd. 022818–11 RequestforConfidentiality Date:_2021/03/30_ Subject:ConfidentialityRequestfor:_____2ACCJB151_____ PursuanttoFCC47CFR0.457(d)and0.459andICRSP-100,Section9.4,theapplicantrequeststhatapartofthe subjectFCCapplicationbeheldconfidential. TypeofConfidentialityRequestedExhibit ☐ShortTerm☒PermanentBlockDiagrams ☒ShortTermExternalPhotos ☒ShortTerm☐Permanent* 2 InternalPhotos ☐ShortTerm☒PermanentOperationDescription/TheoryofOperation ☐ShortTerm☒PermanentTune-UpProcedure ☐ShortTerm☒PermanentSchematics ☒ShortTermTestSetupPhotos ☒ShortTerm☐Permanent* 3 User’sManual ______TCLCommunicationLtd._____hasspentsubstantialeffortindevelopingthisproductanditisoneofthefirst ofitskindinindustry.Havingthesubjectinformationeasilyavailableto"competition"wouldnegatetheadvantage theyhaveachievedbydevelopingthisproduct.Notprotectingthedetailsofthedesignwillresultinfinancial hardship. PermanentConfidentiality: Theapplicantrequeststheexhibitslistedaboveaspermanentlyconfidentialbepermanentlywithheldfrompublic reviewduetomaterialsthatcontaintradesecretsandproprietaryinformationnotcustomarilyreleasedtothepublic. Short-TermConfidentiality: Theapplicantrequeststheexhibitsselectedaboveasshorttermconfidentialbewithheldfrompublicviewfora periodof180daysfromthedateoftheGrantofEquipmentAuthorizationandpriortomarketing.Thisistoavoid prematurereleaseofsensitiveinformationpriortomarketingorreleaseoftheproducttothepublic.Applicantisalso awarethattheyareresponsibletonotifyACBintheeventinformationregardingtheproductortheproductismade availabletothepublicbeforetherequestedperiodhasexpired.ACBwillthenreleasethedocumentslistedabovefor publicdisclosurepursuanttoFCCPublicNoticeDA04-1705. NOTEforIndustryCanadaApplications: ICcurrentlyonlydistinguishesPermanentConfidentialityexhibitsasshownabove.ShortTermconfidentialityisnot consideredapplicabletoICapplications. Sincerely, By:_______GongZhizhou_______ (Signature/Title 3 )(Printname) 2 -Theasteriskeditems(*)requirefurtherinformationtobeprovidedtoACBbeforepermanentconfidentialitywillbe extendedtotheseexhibits.PleaserefertoFCCKDB726920andthespecificDocumentlinkforD01foundat: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731andreviewsectionII,3)regarding specificinformationthatmustaccompanytheserequests. 3 -MustbesignedbyapplicantcontactgivenforapplicantontheFCCsite,orbytheauthorizedagentifanappropriate authorizedagentletterhasbeenprovided.Lettersshouldbeplacedonappropriateletterhead.

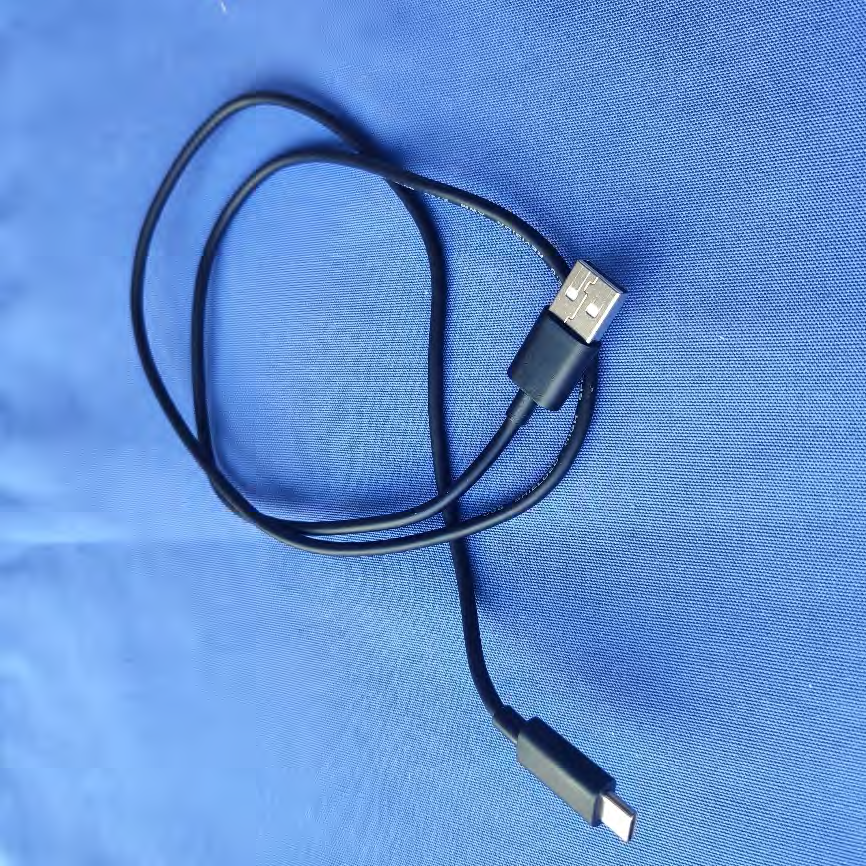

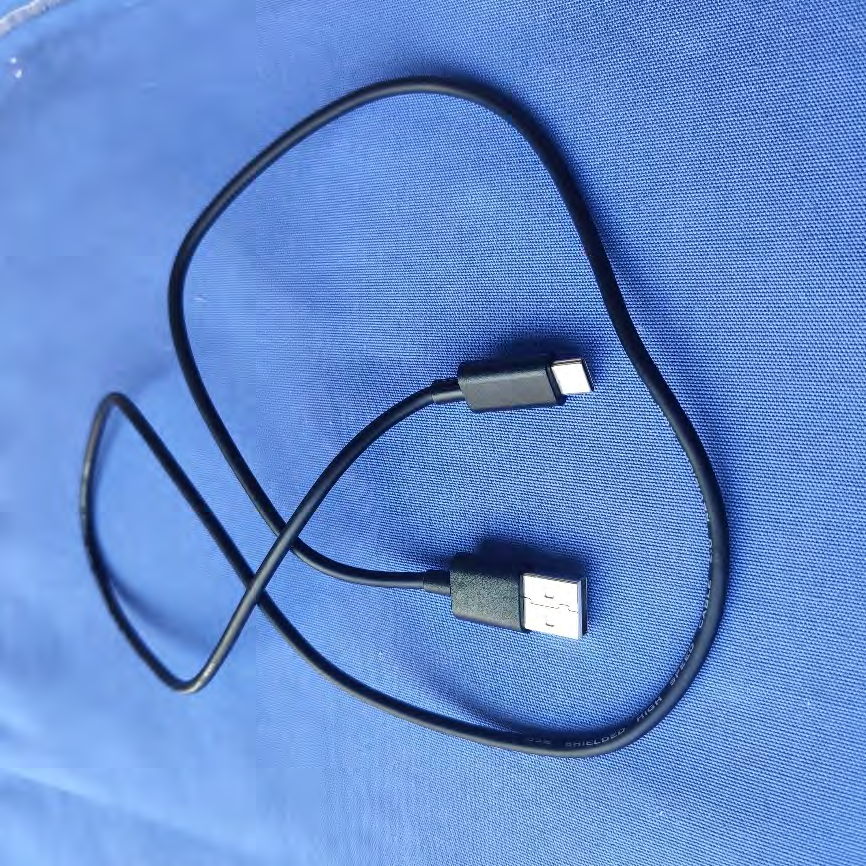

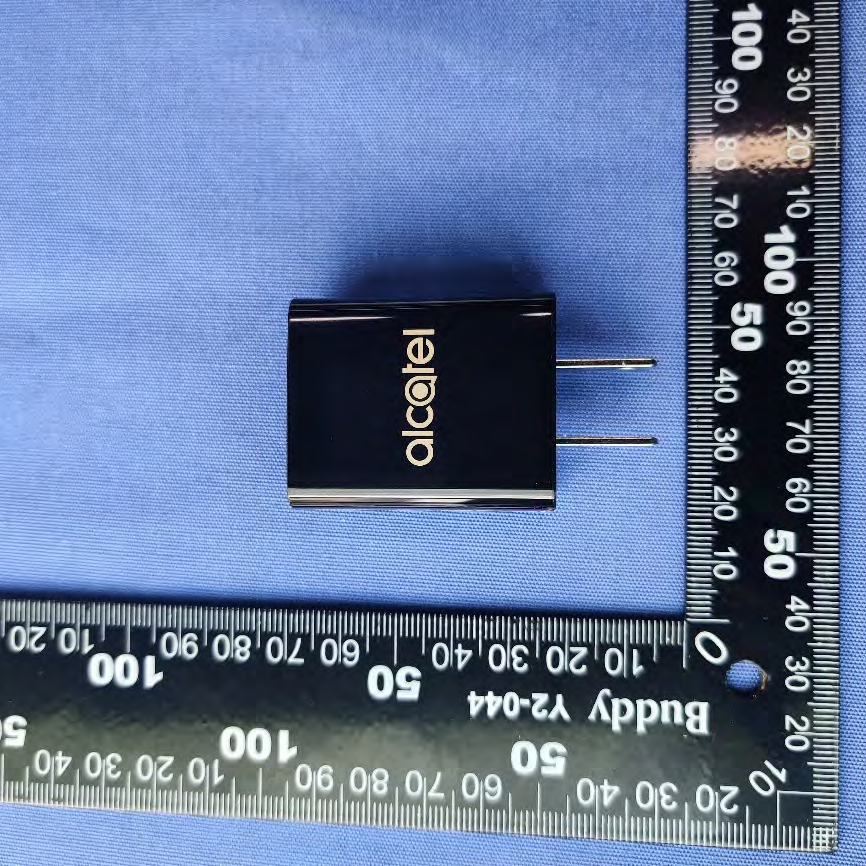

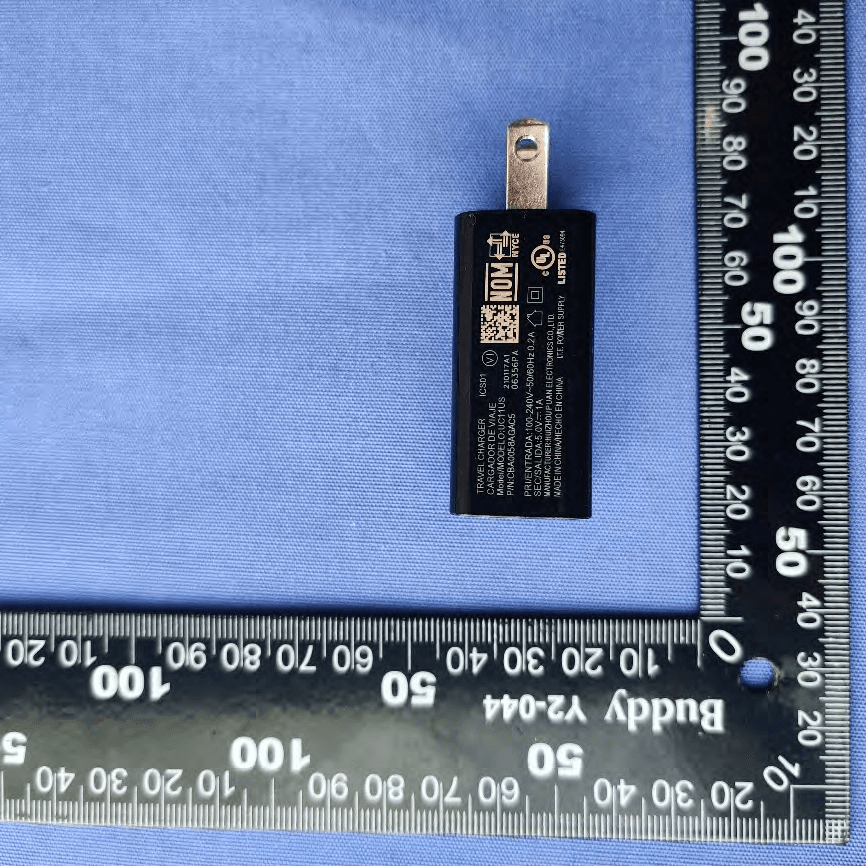

Front Back Top Bottom Side Side Charger1 Charger1-1 Charger2 Charger2-1 Cable1 Cable2

Label LabelLocation

TEST REPORT No.I21N00537-SAR For TCL Communication Ltd. Tablet PC Model Name: 9032T With Hardware Version: PIO Software Version: 1E50 FCC ID: 2ACCJB151 Issued Date: 2021-03-22 Designation Number: CN1210 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of SAICT. Test Laboratory: SAICT, Shenzhen Academy of Information and Communications Technology Building G, Shenzhen International Innovation Center, No.1006 Shennan Road, Futian District, Shenzhen, Guangdong, P. R. China 518000. Tel:+86(0)755-33322000, Fax:+86(0)755-33322001 Email: [email protected]. www.saict.ac.cn No. I21N00537-SAR ©Copyright. All rights reserved by SAICT Page 2 of 210 REPORT HISTORY Report Number Revision Description Issue Date I21N00537-SAR Rev.0 1st edition 2021-03-22 No. I21N00537-SAR ©Copyright. All rights reserved by SAICT Page 3 of 210 TCONTENTS 1. SUMMARY OF TEST REPORT ................................................................................................... 5 1.1. TEST ITEMS .................................................................................................................................... 5 1.2. TEST STANDARDS ........................................................................................................................... 5 1.3. TEST RESULT .................................................................................................................................. 5 1.4. TESTING LOCATION ......................................................................................................................... 5 1.5. PROJECT DATA ............................................................................................................................... 5 1.6. SIGNATURE ..................................................................................................................................... 5 2. STATEMENT OF COMPLIANCE ................................................................................................. 6 3. CLIENT INFORMATION ............................................................................................................... 8 3.1. APPLICANT INFORMATION ................................................................................................................. 8 3.2. MANUFACTURER INFORMATION ........................................................................................................ 8 4. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................ 9 4.1. ABOUT EUT .................................................................................................................................... 9 4.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ............................................................... 9 4.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST .................................................................. 9 5. TEST METHODOLOGY ............................................................................................................. 10 5.1. APPLICABLE LIMIT REGULATIONS.................................................................................................... 10 5.2. APPLICABLE MEASUREMENT STANDARDS ....................................................................................... 10 6. SPECIFIC ABSORPTION RATE (SAR) ..................................................................................... 11 6.1. INTRODUCTION ............................................................................................................................... 11 6.2. SAR DEFINITION ............................................................................................................................ 11 7. TISSUE SIMULATING LIQUIDS ................................................................................................ 12 7.1. TARGETS FOR TISSUE SIMULATING LIQUID ....................................................................................... 12 7.2. DIELECTRIC PERFORMANCE .......................................................................................................... 12 8. SYSTEM VERIFICATION ........................................................................................................... 17 8.1. SYSTEM SETUP ............................................................................................................................. 17 8.2. SYSTEM VERIFICATION .................................................................................................................. 18 9. MEASUREMENT PROCEDURES ............................................................................................. 19 9.1. TESTS TO BE PERFORMED .............................................................................................................. 19 9.2. GENERAL MEASUREMENT PROCEDURE .......................................................................................... 21 9.3. WCDMA MEASUREMENT PROCEDURES FOR SAR ......................................................................... 22 9.4. LTE MEASUREMENT PROCEDURES FOR SAR ................................................................................. 23 9.5. BLUETOOTH & WLAN MEASUREMENT PROCEDURES FOR SAR ....................................................... 23 9.6. POWER DRIFT ............................................................................................................................... 24 9.7. PROXIMITY SENSOR CONSIDERATIONS ........................................................................................... 24 No. I21N00537-SAR ©Copyright. All rights reserved by SAICT Page 4 of 210 10. CONDUCTED OUTPUT POWER ............................................................................................ 25 10.1. GSM MEASUREMENT RESULT ...........................................................................................…

Text truncated - open the document above for the full version.

No. I21N00537-SAR ©Copyright. All rights reserved by SAICT Page 59 of 210 Full Power LTE Band 12 Actual output Power (dBm) Tune up Band -width RB No. / RB offset Frequency Modulation Modulation QPSK 16QAM 64QAM QPSK 16QAM 64QAM 3 MHz 1RB_14 714.5MHz 23.25 22.53 / 24.5 23.5 / 707.5MHz 23.24 22.42 / 24.5 23.5 / 700.5MHz 23.26 22.39 / 24.5 23.5 / 1RB_7 714.5MHz 23.39 22.44 / 24.5 23.5 / 707.5MHz 23.38 22.53 / 24.5 23.5 / 700.5MHz 23.44 22.54 / 24.5 23.5 / 1RB_0 714.5MHz 23.27 22.53 / 24.5 23.5 / 707.5MHz 23.21 22.41 / 24.5 23.5 / 700.5MHz 23.22 22.44 / 24.5 23.5 / 8RB_7 714.5MHz 22.30 21.25 / 23.5 22.5 / 707.5MHz 22.29 21.36 / 23.5 22.5 / 700.5MHz 22.30 21.31 / 23.5 22.5 / 8RB_4 714.5MHz 22.27 21.31 / 23.5 22.5 / 707.5MHz 22.37 21.41 / 23.5 22.5 / 700.5MHz 22.32 21.37 / 23.5 22.5 / 8RB_0 714.5MHz 22.27 21.31 / 23.5 22.5 / 707.5MHz 22.28 21.33 / 23.5 22.5 / 700.5MHz 22.21 21.32 / 23.5 22.5 / 15RB_0 714.5MHz 22.27 21.27 / 23.5 22.5 / 707.5MHz 22.30 21.27 / 23.5 22.5 / 700.5MHz 22.30 21.29 / 23.5 22.5 / No. I21N00537-SAR ©Copyright. All rights reserved by SAICT Page 60 of 210 Full Power LTE Band 12 Actual output Power (dBm) Tune up Band -width RB No. / RB offset Frequency Modulation Modulation QPSK 16QAM 64QAM QPSK 16QAM 64QAM 5 MHz 1RB_24 713.5MHz 23.17 22.35 / 24.5 23.5 / 707.5MHz 23.17 22.39 / 24.5 23.5 / 701.5MHz 23.14 22.36 / 24.5 23.5 / 1RB_12 713.5MHz 23.44 22.66 / 24.5 23.5 / 707.5MHz 23.44 22.60 / 24.5 23.5 / 701.5MHz 23.47 22.53 / 24.5 23.5 / 1RB_0 713.5MHz 23.13 22.35 / 24.5 23.5 / 707.5MHz 23.09 22.28 / 24.5 23.5 / 701.5MHz 23.08 22.34 / 24.5 23.5 / 12RB_13 713.5MHz 22.26 21.24 / 23.5 22.5 / 707.5MHz 22.28 21.26 / 23.5 22.5 / 701.5MHz 22.32 21.30 / 23.5 22.5 / 12RB_6 713.5MHz 22.33 21.31 / 23.5 22.5 / 707.5MHz 22.31 21.29 / 23.5 22.5 / 701.5MHz 22.36 21.31 / 23.5 22.5 / 12RB_0 713.5MHz 22.32 21.27 / 23.5 22.5 / 707.5MHz 22.28 21.29 / 23.5 22.5 / 701.5MHz 22.27 21.24 / 23.5 22.5 / 25RB_0 713.5MHz 22.32 21.28 / 23.5 22.5 / 707.5MHz 22.25 21.30 / 23.5 22.5 / 701.5MHz 22.28 21.31 / 23.5 22.5 / No. I21N00537-SAR ©Copyright. All rights reserved by SAICT Page 61 of 210 Full Power LTE Band 12 Actual output Power (dBm) Tune up Band -width RB No. / RB offset Frequency Modulation Modulation QPSK 16QAM 64QAM QPSK 16QAM 64QAM 10 MHz 1RB_49 711MHz 23.28 22.46 / 24.5 23.5 / 707.5MHz 23.31 22.63 / 24.5 23.5 / 704MHz 23.29 22.56 / 24.5 23.5 / 1RB_24 711MHz 23.36 22.60 / 24.5 23.5 / 707.5MHz 23.30 22.47 / 24.5 23.5 / 704MHz 23.35 22.53 / 24.5 23.5 / 1RB_0 711MHz 23.18 22.36 / 24.5 23.5 / 707.5MHz 23.14 22.35 / 24.5 23.5 / 704MHz 23.14 22.67 / 24.5 23.5 / 25RB_25 711MHz 22.36 21.35 / 23.5 22.5 / 707.5MHz 22.32 21.35 / 23.5 22.5 / 704MHz 22.34 21.37 / 23.5 22.5 / 25RB_12 711MHz 22.39 21.33 / 23.5 22.5 / 707.5MHz 22.33 21.30 / 23.5 22.5 / 704MHz 22.32 21.30 / 23.5 22.5 / 25RB_0 711MHz 22.37 21.34 / 23.5 22.5 / 707.5MHz 22.30 21.28 / 23.5 22.5 / 704MHz 22.25 21.24 / 23.5 22.5 / 50RB_0 711MHz 22.42 21.35 / 23.5 22.5 / 707.5MHz 22.36 21.30 / 23.5 22.5 / 704MHz 22.32 21.32 / 23.5 22.5 / No. I21N00537-SAR ©Copyright. All rights reserved by SAICT Page 62 of 210 Sensor on LTE Band 12 Actual output Power (dBm) Tune up Band -width RB No. / RB offset Frequency Modulation Modulation QPSK 16QAM 64QAM QPSK 16QAM 64QAM 1.4 MHz 1RB_5 715.3MHz 16.25 16.43 / 17.5 17.5 / 707.5MHz 16.27 16.49 / 17.5 17.5 / 699.7MHz 16.18 16.50 / 17.5 17.5 / 1RB_3 715.3MHz 16.33 16.57 / 17.5 17.5 / 707.5MHz 16.32 16.65 / 17.5 17.5 / 699.7MHz 16.32 16.64 / 17.5 17.5 / 1RB_0 715.3MHz 16.13 16.42 / 17.5 17.5 / 707.5MHz 16.24 16.55 / 17.5 17.5 / 699.7MHz 16.26 16.47 / 17.5 17.5 / 3RB_3 715.3MHz 16.30 16.36 / 17.5 17.5 / 707.5MHz 16.30 16.35 / 17.5 17.5 / 699.7MHz 16.30 16.26 / 17.5 17.5 / 3RB_1 715.3MHz 16.36 16.36 / 17.5 17.5 / 707.5MHz 16.37 16.38 / 17.5 17.5 / 699.7MHz 16.37 16.34 / 17.5 17.5 / 3RB_0 715.3MHz 16.33 16.31 / 17.5 17.5 / 707.5MHz 16.31 16.29 / 17.5 17.5 / 699.7MHz 16.35 16.27 / 17.5 17.5 / 6RB_0 715.3MHz 16.34 16.36 / 17.5 17.5 / 707.5MHz 16.31 16.36 / 17.5 17.5 / 699.7MHz 16.27 16.35 / 17.5 17.5 / No. I21N00537-SAR ©Copyright. All rights reserved by SAICT Page 63 of 210 Sensor on LTE Band 12 Actual output Power (dBm) Tune up Band -width RB No. / RB offset Frequency Modulation Modulation QPSK 16QAM 64QAM QPSK 16QAM 64QAM 3 MHz 1RB_14 714.5MHz 16.32 16.59 / 17.5 17.5 / 707.5MHz 16.29 16.59 / 17.5 17.5 / 700.5MHz 16.30 16.54 / 17.5 17.5 / 1RB_7 714.5MHz 16.38 16.67 / 17.5 17.5 / 707.5MHz 16.59 16.74 / 17.5 17.5 / 700.5MHz 16.50 16.70 / 17.5 17.5 / 1RB_0 714.5MHz 16.25 16.55 / 17.5 17.5 / 707.5MHz 16.25 16.49 / 17.5 17.5 / 700.5MHz 16.30 16.46 / 17.5 17.5 / 8RB_7 714.5MHz 16.35 16.41 / 17.5 17.5 / 707.5MHz 16.32 16.42 / 17.5 17.5 / 700.5MHz 16.34 16.41 / 17.5 17.5 / 8RB_4 714.5MHz 16.33 16.41 / 17.5 17.5 / 707.5MHz 16.37 16.42 / 17.5 17.5 / 700.5MHz 16.28 16.41 / 17.5 17.5 / 8RB_0 714.5MHz 16.37 16.33 / 17.5 17.5 / 707.5MHz 16.30 16.40 / 17.5 17.5 / 700.5MHz 16.33 16.34 / 17.5 17.5 / 15RB_0 714.5MHz 16.30 16.31 / 17.5 17.5 / 707.5MHz 16.36 16.40 / 17.5 17.5 / 700.5MHz 16.32 16.36 / 17.5 17.5 / No. I21N00537-SAR ©Copyright. All rights reserved by SAICT Page 64 of 210 Sensor on LTE Band 12 Actual output Power (dBm) Tune up Band -width RB No. / RB offset Frequency Modulation Modulation QPSK 16QAM 64QAM QPSK 16QAM 64QAM 5 MHz 1RB_24 713.5MHz 16.24 16.50 / 17.5 17.5 / 707.5MHz 16.22 16.52 / 17.5 17.5 / 701.5MHz 16.26 16.54 / 17.5 17.5 / 1RB_12 713.5MHz 16.53 16.82 / 17.5 17.5 / 707.5MHz 16.49 16.85 / 17.5 17.5 / 701.5MHz 16.47 16.87 / 17.5 17.5 / 1RB_0 713.5MHz 16.18 16.45 / 17.5 17.5 / 707.5MHz 16.14 16.47 / 17.5 17.5 / 701.5MHz 16.18 16.44 / 17.5 17.5 / 12RB_13 713.5MHz 16.30 16.26 / 17.5 17.5 / 707.5MHz 16.32 16.32 / 17.5 17.5 / 701.5MHz 16.38 16.34 / 17.5 17.5 / 12RB_6 713.5MHz 16.39 16.34 / 17.5 17.5 / 707.5MHz 16.34 16.37 / 17.5 17.5 / 701.5MHz 16.40 16.35 / 17.5 17.5 / 12RB_0 713.5MHz 16.37 16.35 / 17.5 17.5 / 707.5MHz 16.28 16.32 / 17.5 17.5 / 701.5MHz 16.33 16.27 / 17.5 17.5 / 25RB_0 713.5MHz 16.35 16.31 / 17.5 17.5 / 707.5M…

Text truncated - open the document above for the full version.

No. I21N00537-SAR ©Copyright. All rights reserved by SAICT Page 124 of 210 C.4. Other Test Equipment C.4.1. Data Acquisition Electronics (DAE) The data acquisition electronics consist of a highly sensitive electrometer-grade preamplifier with auto-zeroing, a channel and gain-switching multiplexer, a fast 16 bit AD-converter and a command decoder with a control logic unit. Transmission to the measurement server is accomplished through an optical downlink for data and status information, as well as an optical uplink for commands and the clock. The mechanical probe mounting device includes two different sensor systems for frontal and sideways probe contacts. They are use…
