EN-12 Safety and Precautions This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found on Radio waves section. PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. www.sar-tick.com EN-13 Safety and use ������������������������������� We recommend that you read this chapter carefully before using your device. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use or use contrary to the instructions contained herein. TRAFFIC SAFETY: Given that studies show that using a device while driving a vehicle constitutes a real risk, drivers are requested to refrain from using their device when the vehicle is not parked. Check the laws and regulations on the use of wireless devices and their accessories in the areas where you drive. Always obey them. The use of these devices may be prohibited or restricted in certain areas. CONDITIONS OF USE: • You are advised to switch off the device from time to time to optimize its performance; • Remember to abide by local authority rules of mobile device use on aircrafts; • If your device is a unibody device, where the back cover and battery are not removable, dissembling the device will void your warranty. Disassembling the device can cause bodily injury if the battery is punctured; • Always handle your device with care and keep it in a clean and dust-free place; • Do not allow your device to be exposed to adverse weather or environmental conditions, such as moisture, humidity, rain, infiltration of liquids, dust, sea air, etc. The manufacturer’s recommended operating temperature range is 0°C (32°F) to +40°C (104°F). At over 40°C (104°F), the legibility of the device’s display may be impaired, though this is temporary and not serious; • Do not open, dismantle, or attempt to repair your device yourself; • Do not drop, throw, or bend your device; • Use only batteries, battery chargers, and accessories which are recommended by TCL Communication Ltd. and its affiliates and are compatible with your device model. TCL Communication Ltd. and its affiliates disclaim any liability for damage caused by the use of other chargers or batteries; • Your device should not be disposed of in a municipal waste. Please check local regulations for disposal of electronic products; • Remember to make backup copies or keep a written record of all important information stored on your device; EN-14 • Some people may suffer epileptic seizures or blackouts when exposed to flashing lights, or when playing video games. These seizures or blackouts may occur even if a person never had a previous seizure or blackout. If you have experienced seizures or blackouts, or if you have a family history of such occurrences, please consult your doctor before playing video games on your device or enabling a flashing-lights feature on your device; • Parents should monitor their children’s use of video games or other features that incorporate flashing lights on the devices. All persons should discontinue use and consult a doctor if any of the following symptoms occur: convulsion, eye or muscle twitching, loss of awareness, orientation, or movements. PRIVACY: Please note that you must respect the laws and regulations in force in your jurisdiction or other jurisdiction(s) where you will use your device regarding taking photographs and recording sounds with your device. Pursuant to such laws and regulations, it may be strictly forbidden to take photographs and/or to record the voices of other people or any of their personal attributes, and reproduce or distribute them, as this may be considered to be an invasion of privacy. It is the user's sole responsibility to ensure that prior authorization has been obtained, if necessary, in order to record private or confidential conversations or take a photograph of another person; the manufacturer, the seller or vendor of your device (including the carrier) disclaim any liability which may result from improper use of the device. BATTERY: For a non-unibody device: Observe the following precautions: • Do not attempt to open the battery (due to the risk of toxic fumes and burns); • Do not puncture, disassemble, or cause a short circuit in a battery; • Do not burn or dispose of a used battery in household rubbish or store it at temperatures above 60°C (140°F). Batteries must be disposed of in accordance with locally applicable environmental regulations. Only use the battery for the purpose for which it was designed. Never use damaged batteries or those not recommended by TCL Communication Ltd. and/or its affiliates. For a non-unibody device with a non-removable battery: Observe the following precautions: • Do not attempt to eject, replace or open the battery; • Do not puncture, disassemble, or cause a short circuit in the battery; • Do not burn or dispose of your device in household rubbish or store it at temperature above 60°C (140°F). Device and battery must be disposed of in accordance with locally applicable environmental regulations. For a unibody device: Observe the following precautions: EN-15 • Do not attempt to open the back cover; • Do not attempt to eject, replace, or open battery; • Do not puncture the back cover of your device; • Do not burn or dispose of your device in household rubbish or store it at temperature above 60°C (140°F); Device and battery as a unibody device must be disposed of in accordance with locally applicable environmental regulations. This symbol on your device, the battery, and the accessories means that these products must be taken to collection points at the end of their life: • Municipal waste disposal centers with specific bins for these items of equipment; • Collection bins at points of sale. They will then be recycled, preventing substances being disposed of in the environment, so that their …

Text truncated - open the document above for the full version.

QUICK START GUIDE www.alcatelmobile.com User Manual and FAQ are available online 9032 CJB1SE1ALAAB CJB1SE1ALAAA 1 Volume up/down Power key Front camera Rear Camera Headset connector 2 Fully charge your device for the first time use. Open the slot and insert the SD card. SD 3 1 Home screen You can move frequently used items (applications, shortcuts, folders and widgets) to your Home screen for quick access. Touch the Home key to switch to the Home screen. Status bar • Status/Notification indicators • Touch and drag down to open the notification panel. Touch an icon to open an application, folder, etc. Favourites tray applications • Touch to enter the application. • Long press to move or change applications. The Home screen is provided in an extended format to allow more space for adding application icons, shortcuts etc. Slide the Home screen horizontally left and right to get additional view. 1.1 Status bar In the status bar, you can see the notifications on the left side and the connection service status on the right side. Swipe downward from the Status bar to access the Notification panel or the Quick Settings panel. To close the panel, touch and drag upward. Touch to clear all event-based notifications. On-going notifications will remain on the panel. 4 Notification panel When there are notifications, you can touch them to view more information. Quick settings panel Swipe down from the status bar twice to open the Quick settings panel. Then enable or disable functions or change modes by touching the icons. Touch to edit shortcut list. Touch to access settings, where you can make changes to more functions. 2 Contacts Contacts are stored in your tablet with the Contacts app. It allows you to add, delete, or edit your contacts. You can also import or export your contacts from different locations such as an external storage, your Gmail or other email account. 2.1 Adding a contact Open the Contacts app from applications list, then touch the Plus button on the bottom right of the screen to add a new contact. 2.2 Synchronising contacts in multiple accounts Contacts, data or other information can be synchronized from multiple accounts, depending on the applications installed on your tablet. 5 3 Gmail Gmail is a Google web-based email service. When you first set up your tablet, it is automatically synchronized with your Google account. With this app, you can receive and send email, manage your email, and archive your email, etc. To open Gmail From the Home screen, touch the Gmail icon in the Google folder. Gmail displays messages and conversations from one single Gmail account at a time. If you own more than one account, you can add an account by touching the Menu button , then touch Setting > Add account. When finished, you can switch to another account by touching the name of the account you want to view. To create and send emails 1 Touch the Edit button from the Inbox screen. 2 Enter the recipient(s)’s email address in "To" field. 3 To add Copy or Blind copy, touch the down arrow button and enter the email address in the Cc or Bcc line. 4 Enter the subject and the content of the message. 5 Touch the Attach button icon and select Attach file to add an attachment. 6 Finally, touch the Send button to send. 7 If you do not want to send the email out right away, you can touch the Menu overflow button and then touch Save draft. To view the draft later, touch the Menu button and select the Drafts folder. Touch the draft email and then the Edit button to open it. 6 4 Getting connected To connect to the Internet with this tablet, you will need to have an internet connection via Wi-Fi. Wi-Fi The tablet can be connected to a Wi-Fi internet service. To turn Wi-Fi on and connect to a Wi-Fi network • Go to Settings > Network& internet > Wi-Fi. • Touch the Off switch to turn on Wi-Fi. • Touch a Wi-Fi network to connect. If the network you selected is a secured network, you will need to enter a password or other credentials. When finished, touch CONNECT. • For hidden network, slide up the screen and select Add network. Enter the SSID of the network, password and its secured credentials. Then, touch SAVE. 7 5 Support 1. Enter from your Smartphone / Tablet to the application: SUPPORT CENTER 2. Check our frequently asked questions or chat with us through https://www.alcatelmobile.com in the Support section. 3. Call the Call Center Locate your number, below: Argentina- 0800-444-7361 Australia- 1-800-218-730 Canada- 1-855-844-6058 Chile- 123-002-09025 Colombia- 01-800-518-3882 Ecuador- 800-000-635 Mexico- 01-800-112-4682 Nueva Zealanda- 800-451-708 Peru- 0800-55-639 Rep. Dominicana- 1-800-203-9552 Uruguay- 000-401-90752 USA- 1-855-368-0829 Venezuela- 0800-136-2017

TCLCommunicationLtd. 5/F,Building22E,22ScienceParkEast Avenue,HongKongSciencePark,Shatin, NT,HongKong 022818–11 AuthoritytoActasAgent Date:__25/4/2021_____ AmericanCertificationBody,Inc. 6731WhittierAvenue SuiteC110 McLean,VA22101 ToWhomItMayConcern: _____TCLCommunicationLtd._____isauthorizedtoactonourbehalf,untilotherwisenotified,for applicationstoAmericanCertificationBody,Inc.(ACB). Wecertifythatwearenotsubjecttodenialoffederalbenefits,thatincludesFCCbenefits,pursuantto Section5301oftheAnti-DrugAbuseActof1988,21U.S.C.862.Further,noparty,asdefinedin47 CFR1.2002(b),totheapplicationissubjecttodenialoffederalbenefits,thatincludesFCCbenefits. Thankyou, AgencyAgreementExpirationDate:____12months_____ By:_________________________________GongZhizhou (Signature 1 )(Printname) Title:_________ProductCertificationManager_________________ Onbehalfof:_______TCLCommunicationLtd.___________________ (CompanyName) Telephone:_______0086-755-36611722____________________ 1 -MustbesignedbyapplicantcontactgivenforapplicantontheFCCsite,orbytheauthorizedagentifanappropriate authorizedagentletterhasbeenprovided.Lettersshouldbeplacedonappropriateletterhead. TCLCommunicationLtd. 5/F,Building22E,22ScienceParkEast Avenue,HongKongSciencePark,Shatin, NT,HongKong 022818–11 RequestforConfidentiality Date:_25/4/2021_____ Subject:ConfidentialityRequestfor:____2ACCJB154___ PursuanttoFCC47CFR0.457(d)and0.459andICRSP-100,Section9.4,theapplicantrequeststhatapartofthe subjectFCCapplicationbeheldconfidential. TypeofConfidentialityRequestedExhibit ☐ShortTerm☒PermanentBlockDiagrams ☒ShortTermExternalPhotos ☒ShortTerm☐Permanent* 2 InternalPhotos ☐ShortTerm☒PermanentOperationDescription/TheoryofOperation ☐ShortTerm☐PermanentPartsList&Placement/BOM ☐ShortTerm☒PermanentTune-UpProcedure ☐ShortTerm☒PermanentSchematics ☒ShortTermTestSetupPhotos ☒ShortTerm☐Permanent* 3 User’sManual _____TCLCommunicationLtd._____hasspentsubstantialeffortindevelopingthisproductanditisoneofthefirst ofitskindinindustry.Havingthesubjectinformationeasilyavailableto"competition"wouldnegatetheadvantage theyhaveachievedbydevelopingthisproduct.Notprotectingthedetailsofthedesignwillresultinfinancial hardship. PermanentConfidentiality: Theapplicantrequeststheexhibitslistedaboveaspermanentlyconfidentialbepermanentlywithheldfrompublic reviewduetomaterialsthatcontaintradesecretsandproprietaryinformationnotcustomarilyreleasedtothepublic. Short-TermConfidentiality: Theapplicantrequeststheexhibitsselectedaboveasshorttermconfidentialbewithheldfrompublicviewfora periodof180daysfromthedateoftheGrantofEquipmentAuthorizationandpriortomarketing.Thisistoavoid prematurereleaseofsensitiveinformationpriortomarketingorreleaseoftheproducttothepublic.Applicantisalso awarethattheyareresponsibletonotifyACBintheeventinformationregardingtheproductortheproductismade availabletothepublicbeforetherequestedperiodhasexpired.ACBwillthenreleasethedocumentslistedabovefor publicdisclosurepursuanttoFCCPublicNoticeDA04-1705. NOTEforIndustryCanadaApplications: ICcurrentlyonlydistinguishesPermanentConfidentialityexhibitsasshownabove.ShortTermconfidentialityisnot consideredapplicabletoICapplications. Sincerely, 2 -Theasteriskeditems(*)requirefurtherinformationtobeprovidedtoACBbeforepermanentconfidentialitywillbe extendedtotheseexhibits.PleaserefertoFCCKDB726920andthespecificDocumentlinkforD01foundat: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731andreviewsectionII,3)regarding specificinformationthatmustaccompanytheserequests. TCL CommunicationLtd. 5/F, Building22E, 22 SciencePark East Avenue,Hong Kong SciencePark, Shatin, NT, Hong Kong 022818– 11 By:______________________________________GongZhizhou ____________ (Signature/Title 3 )(Printname) 3 - Mustbe signedby applicantcontactgivenfor applicanton the FCC site, or by the authorizedagentif an appropriate authorizedagentletterhas been provided.Lettersshouldbe placedon appropriateletterhead.

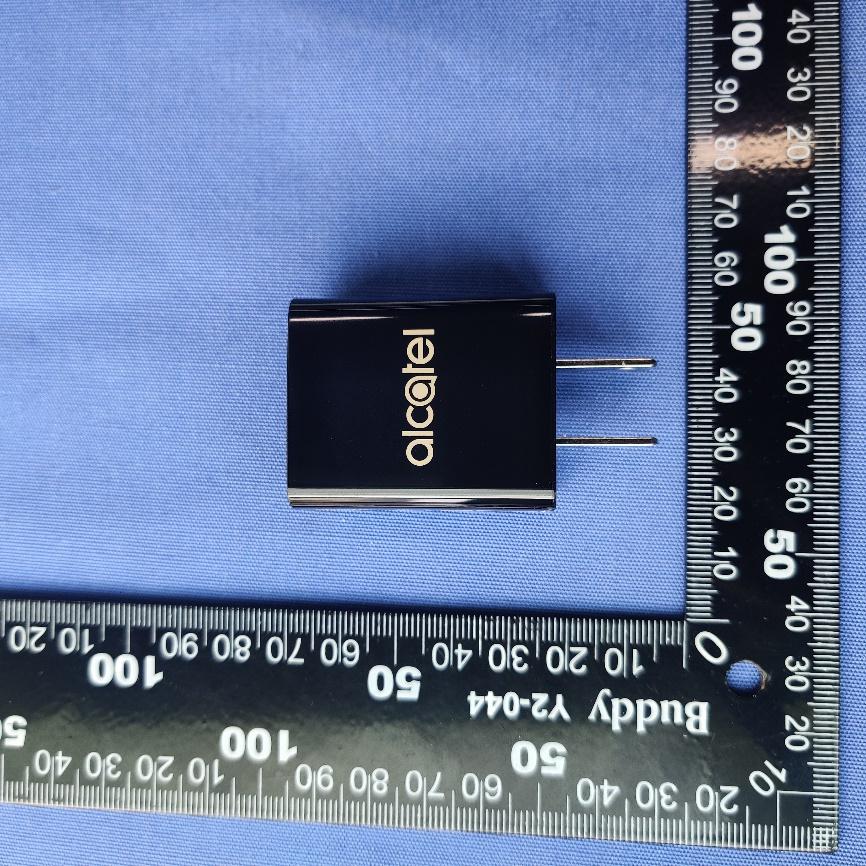

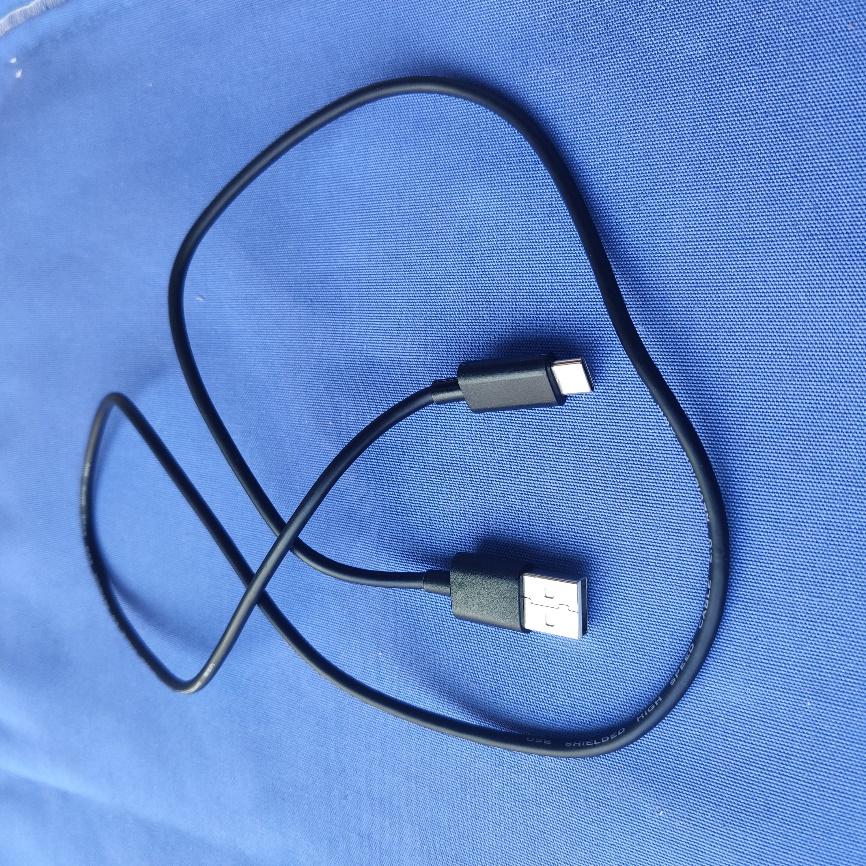

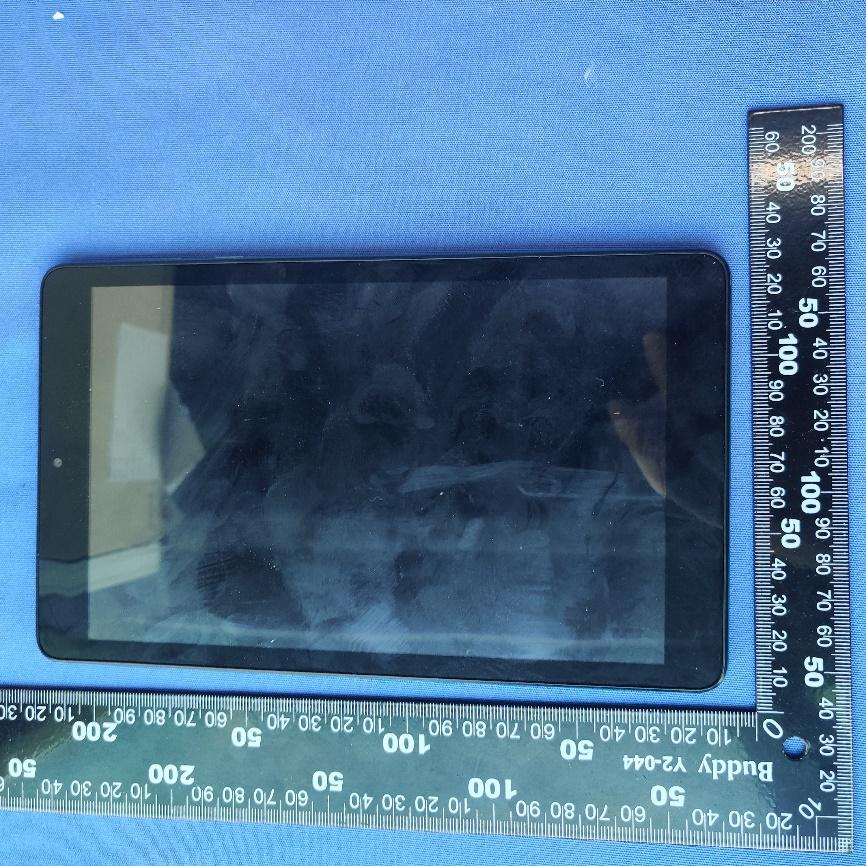

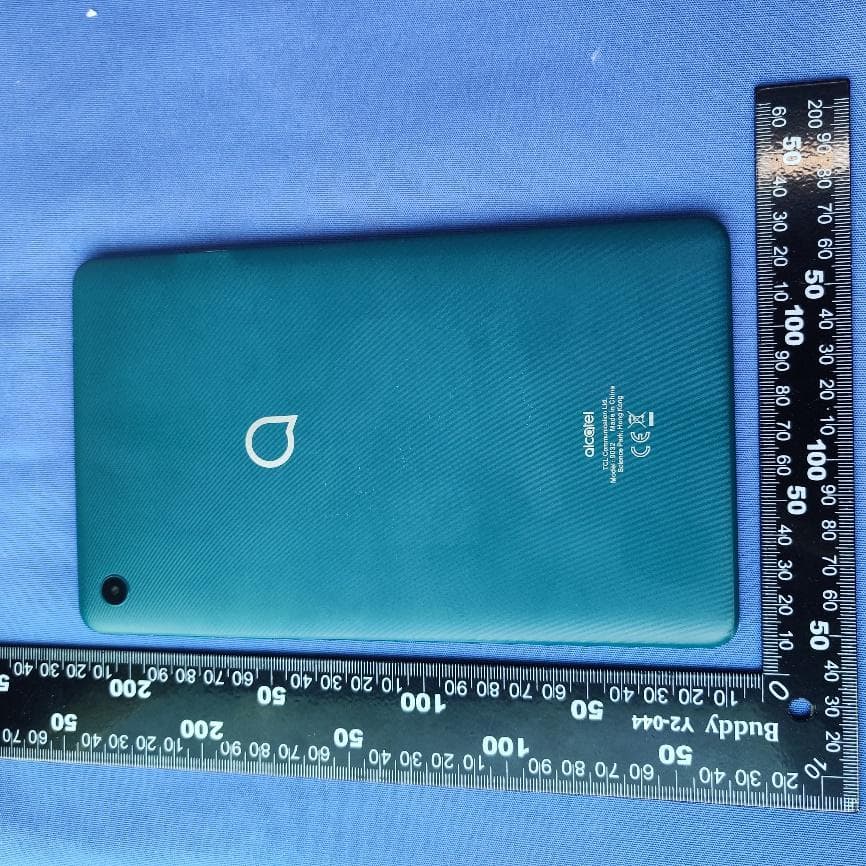

Front Front Side Top Bottom Side Charger1 Charger1-1 Charger2 Charger2-1 Cable1 Cable2

Label 5.92mm '，本本 二 。 从此线渐消 具体按CMF标 准 摄像头避空直径10. 5mm 5.35mm E E石 2.41 mm 7.11 mm (} 1/3 1/9 : 16mm : 4, I>, '' '' '' '' '' '' '' '' '' ， ＿ ＿ ＿ ：＿ ＿ ＿ ＿ ＿ ＿ ＿ ＿ ＿ l l l ------------------------------,' I I I I I EE oo · os c2 : 0 O 4 g 8 oT _ p 扩印“ 么 一 么 I - l D : ························ ; ························ : IMEI贴纸 size:SOx40 1 ; 三 EE 总蕊 纹理区域： o (l 1 /2 长度 二 00000000 亡 5.92mm 0 0 0'i'J O O O 0 二 TCL Communication Ltd Model: 9032X Made in China Science Park, Hong Kong 20.65mm 27.88mm 21.98mm 纹 理 PX-1 268 (0.1 版本） 以品夏调试最终版本为准

TESTREPORT No.I21N00677-EMC TCL Communication Ltd. Tablet PC Model Name：9032 With Hardware Version: PIO Software Version:v1E63 FCC ID: 2ACCJB154 Issued Date: 2021-04-12 Designation Number: CN1210 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of SAICT. Test Laboratory: SAICT, Shenzhen Academy of Information and Communications Technology Building G, Shenzhen International Innovation Center, No.1006 Shennan Road, Futian District, Shenzhen, Guangdong, P. R. China 518000. Tel:+86(0)755-33322000, Fax:+86(0)755-33322001 Email: [email protected] No.I21N00677-EMC ©Copyright. All rights reserved by SAICT. Page 2 of 65 REPORT HISTORY Report Number Revision Description Issue Date I21N00677-EMC Rev.0 1st edition 2021-04-12 Note: the latest revision of the test report supersedes all previous version. No.I21N00677-EMC ©Copyright. All rights reserved by SAICT. Page 3 of 65 CONTENTS 1. SUMMARY OF TEST REPORT ............................................................................................... 4 1.1. TEST ITEMS ............................................................................................................................. 4 1.2. TEST STANDARDS .................................................................................................................. 4 1.3. TEST RESULT .......................................................................................................................... 4 1.4. TESTING LOCATION ............................................................................................................... 4 1.5. PROJECT DATA ....................................................................................................................... 4 1.6. SIGNATURE.............................................................................................................................. 4 2. CLIENT INFORMATION ........................................................................................................... 5 2.1. APPLICANT INFORMATION ................................................................................................... 5 2.2. MANUFACTURER INFORMATION ......................................................................................... 5 3. EQUIPMENT UNDERTEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 6 3.1. ABOUT EUT ............................................................................................................................. 6 3.2. INTERNAL IDENTIFICATION OF EUT .................................................................................... 6 3.3. INTERNAL IDENTIFICATION OF AE ...................................................................................... 6 3.4. EUT SET-UPS ........................................................................................................................... 8 3.5. GENERAL DESCRIPTION ....................................................................................................... 9 4. REFERENCE DOCUMENTS .................................................................................................. 10 4.1. REFERENCE DOCUMENTS FOR TESTING ........................................................................ 10 5. LABORATORY ENVIRONMENT.............................................................................................11 6. SUMMARY OF TEST RESULTS ............................................................................................ 12 6.1. TESTING ENVIRONMENT ..................................................................................................... 12 6.2. SUMMARY OF MEASUREMENT RESULTS ......................................................................... 12 6.3. STATEMENT ........................................................................................................................... 12 7. MEASUREMENT UNCERTAINTY ......................................................................................... 13 8. TEST FACILITIES UTILIZED ................................................................................................. 13 9. TEST ACCESSORY UTILIZED .............................................................................................. 13 ANNEX A: MEASUREMENT RESULTS ....................................................................................... 14 A.1 RADIATED EMISSION (§15.109(A)) ...................................................................................... 14 A.2 CONDUCTED EMISSION (§15.107(A)).................................................................................. 49 No.I21N00677-EMC ©Copyright. All rights reserved by SAICT. Page 5 of 65 2. Client Information 2.1. Applicant Information Company Name: TCL Communication Ltd. Address: 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong Contact Gong Zhizhou Email [email protected] Tel. 0086-755-36611722 Fax 0086-755-36612000-81722 2.2. Manufacturer Information Company Name: TCL Communication Ltd. Address: 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong Contact Gong Zhizhou Email [email protected] Tel. 0086-755-36611722 Fax 0086-755-36612000-81722 No.I21N00677-EMC ©Copyright. All rights reserved by SAICT. Page 6 of 65 3. Equipment UnderTest (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description Tablet PC Model Name 9032 FCC ID 2ACCJB154 Antenna Type Internal Antenna Condition of EUT as received No obvious damage in appearance Note: Components list, please refer to documents of the manufacturer; it is also included in the original test record of Shenzhen Academy of Information and Communications Technology. 3.2. Internal Identification of EUT EUT ID* SN or IMEI HW Version SW Version Receive Date UT04aa 6409ACCE7B78287 PIO v1E63 2021-03-02 UT5aa 6409ACCE7B78288 PIO v1…
