User manual www.tcl.com/mx Quick Start Guide XXXX Printed in China 1    6.75" 2 Help • Update your device's software Go to Settings > System > System Update to check software updates. • Back up your personal data Go to Settings > System > Backup > Back up to Google Drive and turn it on. • Reset your device Go to Settings > System > Reset > Erase all data (factory reset), and then touch to reset your Device. • Electronic labeling path Touch Settings > Regulatory & safety or press *#07# to find more information about labeling (1) , such as FCC ID. General Information • Manufacturer: TCL Communication Ltd. • Address: 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong • Visit the TCL website at https://www.tcl.com/mx for tutorials and answers to frequently asked questions, and to download the User Manual. • To get support for your device, visit the TCL website (https://www.tcl.com/mx/es/service-support-mobile.html), or dial the number listed below: Argentina: 0810-999-1099 Chile: +56 22 958 96 94 Colombia: 18009520823 Ecuador: 800000635 Mexico: 8008909908 Peru: 080000698 The Dominican Republic: 8887600164 Uruguay: 405296624 Venezuela: 08001005368 (1) This may vary depending on country. 3 Safety and use Please read this chapter carefully before using your device. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use or use contrary to the instructions contained herein. • Do not use your device when the vehicle is not safely parked. Using a hand-held device while driving is illegal in many countries. • Comply with restrictions on use specific to certain places (hospitals, planes, gas stations, schools, etc.). • Switch the device off before boarding an aircraft. • Switch the device off when you are in health care facilities, except in designated areas. • Switch the device off when you are near gas or flammable liquids. Strictly obey all signs and instructions posted in a fuel depot, petrol station, or chemical plant, or in any potentially explosive atmosphere when operate your device. • Turn off your mobile device or wireless device when in a blasting area or in areas posted with notifications requesting "two-way radios" or "electronic devices" are turned off to avoid interfering with blasting operations. Please consult your doctor and the device manufacturer to determine if operation of your device may interfere with the operation of your medical device. When the device is switched on, it should be kept at least 15 cm from any medical device such as a pacemaker, a hearing aid, or an insulin pump, etc. • Do not let children use the device and/or play with the device and accessories without supervision. • To reduce exposure to radio waves, it is recommended: - To use the device under good signal reception conditions as indicated on its screen (four or five bars); - To use a hands-free kit; - To make reasonable use of the device, particularly for children and adolescents, for example by avoiding night calls and limiting the frequency and duration of calls; - Keep the device away from the belly of pregnant women or the lower abdomen of adolescents. • Do not allow your device to be exposed to adverse weather or environmental conditions (moisture, humidity, rain, infiltration of liquids, dust, sea air, etc.). The manufacturer’s recommended operating temperature range is 0°C (32°F) to 40°C (104°F). At over 40°C (104°F) the legibility of the device’s display may be impaired, though this is temporary and not serious. • Use only batteries, battery chargers, and accessories which are compatible with your device model. • Do not use a damaged device, such as a device with a cracked display or badly dented back cover, as it may cause injury or harm. • Do not keep device connected to charger with battery fully charged for a long period of time as it can cause overheating and shorten battery life. • Do not sleep with the device on your person or in your bed. Do not place the device under a blanket, pillow, or under your body, specially when connected to the charger, as this may cause the device to overheat. PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. 4 Battery: In accordance with air regulations, the battery of your product is not fully charged. Please charge it first. - Do not attempt to open the battery (due to the risk of toxic fumes and burns). - For a device with a non-removable battery, do not attempt to eject or replace the battery. - Do not puncture, disassemble, or cause a short circuit in a battery. - For a unibody device, do not attempt to open or puncture the back cover. - Do not burn or dispose of a used battery or device in household rubbish or store it at temperatures above 60°C (140°F), this can result in an explosion or the leakage of flammable liquid or gas. Similarly, subjecting the battery to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas. Only use the battery for the purpose for which it was designed and recommended. Never use damaged batteries. CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. Device, accessory and battery must be disposed of in accordance with locally applicable environmental regulations. This symbol on your device, the battery, and the accessories means that these products must be taken to collection points at the end of their life: • Municipal waste disposal centers with specific bins for these types of equipment; • Collection bins at points of sale. They will then be recycled, preventing substances being disposed of in the environment, so that their components can be reused. Chargers: Home A.C./ Travel chargers will operate within the temperature range of: 0°C (32°F) to 40°C (104°F). The charger…

Text truncated - open the document above for the full version.

TCT Mobile, Inc. 189 Technology Drive, Irvine, California USA 92618 TCT Mobile, Inc. 189 Technology Drive, Irvine, CA 92618 U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: TCT Mobile (US) Inc. Contact Name: Yao Dai Street Address: 189 Technology Drive City/Province/Zip: Irvine, CA 92618 Telephone No: 1-855-368-0829 Email: [email protected] FRN#: 0033429465 This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: Signed by (Printed Name/Title): The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. DocuSign Envelope ID: 988543A9-E4AE-4188-B1BF-74A6C860EF4B Technical Acceptance Manager June 2, 2023 Yao Dai TCT Mobile, Inc. 189 Technology Drive, Irvine, California USA 92618 TCT Mobile, Inc. 189 Technology Drive, Irvine, CA 92618 Applicant Company name: TCL Communication Ltd Grantee Code: 2ACCJ Contact Name: Annie Jiang Street Address: 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong City/Province/Zip: Hongkong Telephone No: +86 755 36611621 Applicant Signature 1 : Date: Signed by (Printed Name/Title): 1 - Letters should be placed on appropriate letterhead. DocuSign Envelope ID: 988543A9-E4AE-4188-B1BF-74A6C860EF4B Annie Jiang 2023年6月2日 Minister of R&D Platform Dept.

TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong 012423-17 rev2 Certification Application Attestation Statements Date: February 10, 2023 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: Statement for 47 CFR section 2.911(d)(5)(i) ___ TCL Communication Ltd.___ certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) ___ TCL Communication Ltd.___ (“the applicant”) certifies that, as of the date of the filing of this application, the applicant ☐ - is / □ √ - is not identified on the Covered List as an entity producing “covered” equipment. Thank you, By: __Annie Jiang__ (Signature 2 ) (Print name) Title: Product Certification Manager _ Company: TCL Communication Ltd. Telephone: _ +86 755 36611621 _ 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . 2 - Letters should be placed on appropriate letterhead.

TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong Tel: +86 755 3664 5759 Fax: +86 755 3661 2000-81722 http://tclcom.tcl.com Date 2022-12-13 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: CTTL-Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Annie Jiang Product Certification Manager TCL Communication Ltd.

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Declaration of changes from Initial (T610E-Single SIM) to Variant (T610E-Dual SIM) General: T610E- Dual SIM is a variant product of T610E-Single SIM:  SOFTWARE MODIFICATIONS:  Protocol Stack changes: NO  MMS/STK/USAT/USIM changes: NO  DM/SUPL/VT/FUMO/SWP/HCI: NO  Other changes detail: NO  HARDWARE MODIFICATIONS:  Baseband changes:NO  Band changes: NO product GSM UMTS LTE 5G NR SA 5G NR NSA T610E-Single SIM 850/900/1800/1900 B1/2/4/5/8 B1/2/3/4/5/7/8/12/13/17/28/38/40/66 NA NA T610E-Dual SIM 850/900/1800/1900 B1/2/4/5/8 B1/2/3/4/5/7/8/12/13/17/28/38/40/66 NA NA   PCB Layout changes: NO  Main RF components changes: NO 2G Antenna Base Band Transceiver ASM Power Amplifier Tx SAW Filter Rx SAW Filter（SAW Duplexer） GSM850 NO NO NO NONO NO NO GSM900 NO NO NO NONONONO GSM1800 NO NO NO NONO NO NO GSM1900 NO NO NO NONONONO 3G Antenna Base Band Transceiver ASM Power Amplifier Tx SAW Filter Rx SAW Filter（SAW Duplexer） B1 NO NO NO NONO NONO B2 NO NO NO NONO NONO B4 NO NO NO NONONONO B5 NO NO NO NONO NO NO B8 NO NO NO NONO NO NO 4G Antenna Base Band Transceiver ASM Power Amplifier Tx SAW Filter Rx SAW Filter（SAW Duplexer） B1 NO NO NO NO NO NONO B2 NO NO NO NO NO NONO B3 NO NO NO NO NO NO NO B4 NO NO NO NONONO NO B5 NO NO NO NO NO NO NO B7 NO NO NO NO NO NO NO B8 NO NO NO NO NO NO NO B12 NO NO NO NO NO NO NO B13 NO NO NO NO NO NO NO B17 NO NO NO NO NO NO NO B28 NO NO NO NO NO NO NO B38 NO NO NO NO NO NO NO B40 NO NO NO NO NO NO NO B66 NO NO NO NO NO NO NO Antanna APMODEM TransceiverBalunBand pass filter Triplexer Bluetooth NO NO NO NO NO NO NO wifi NO NO NO NO NO NO NO GPS(GNSS) NO NO NO NO NO NO NO NFC NA NA NA NA NA NA NA Accessory changes: NO Accessory T610E-Single SIM T610E-Dual SIM Charger YJC018R-US YJC018R-US battery TLp049C8 TLp049C8 headset JWEP1247-M01R JWEP1247-M01R USB cable JWUB1520-M01R JWUB1520-M01R others NO NO  FM changes: NO  GPS changes: NO  Other components changes: Yes, SIM slot is not same. TP/LCD/ Camera changes: NO  Other changes detailed:  MECHANICAL MODIFICATIONS:  Use new metal front/back cover or keypad: NO  Mechanical shell changes: NO Whole size of EUT: NO Distance of Ear reference point to bottom of handset:NO Other trinkets to change the surface of handset: NO  Other changes detailed:There are two card trays for both T610E-Single SIM and T610E-Dual SIM, one is 1 card slots and another is 2 card slot. APPROVED BY: Project Manager: liu wei Signature: Date: 2022-12-19

TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong Tel: +86 755 3664 5759 Fax: +86 755 3661 2000-81722 http://tclcom.tcl.com 2022-12-13 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: 2ACCJB193 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Annie Jiang Product Certification Manager TCL Communication Ltd.

TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong Tel: +86 755 3664 5759 Fax: +86 755 3661 2000-81722 http://tclcom.tcl.com 2022-12-13 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: SHORT-TERM Confidentiality request for FCC ID: 2ACCJB193 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days: - External Photos - Internal Photos - Test Setup Photos - User manual The applicant also acknowledges that they will also provide appropriate notice to ACB should either of the following occur: a) if the applicant requires additional 45 days extension periods they will notify ACB with a new request letter at least 7 days prior to the short-term confidentiality expiration date – [Note: up to a maximum of 3 extensions only are allowed], or b) Immediately notify ACB in the event the information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Yours Sincerely, Annie Jiang Product Certification Manager TCL Communication Ltd.

TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong V1.0 DFS Client Declaration Letter Date: 2022/12/13 We have declared below featured for device, FCC ID: 2ACCJB193 (1) DFS Device Master Client with Radar detection capability Client without radar detection capability (2) Active / Passive Scanning, ad hoc mode access point capability Frequency Band (MHz) Scanning Plan Ad Hoc Mode Capability Access point Capability WiFi Direct Group Owner WiFi Direct Group Client 2412 - 2462 Active Yes Yes Yes Yes 5180 – 5240 Active Yes Yes Yes Yes 5260 – 5320 Passive No No No Yes 5500 – 5720 Passive No No No Yes 5745 - 5825 Active Yes Yes Yes Yes (3) Country code selection capability to end user- Yes, No If yes, please explain how it was implemented: (please also help to provide detail of options for each country selection) (4) Transmission in 5600 MHz to 5650 MHz is notched - Yes, No (5) Meet Part 15.202 requirement - Yes, No A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices. A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (6) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes cannot be TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong V1.0 modified by end user or an installer. Apply, Not Apply, (If apply, please help to provide explanation on it was implement, and how software was controlled). Signature ____________________________ Printed Name: Annie Jiang Position: Product Certification Manager Company: TCL Communication Ltd.

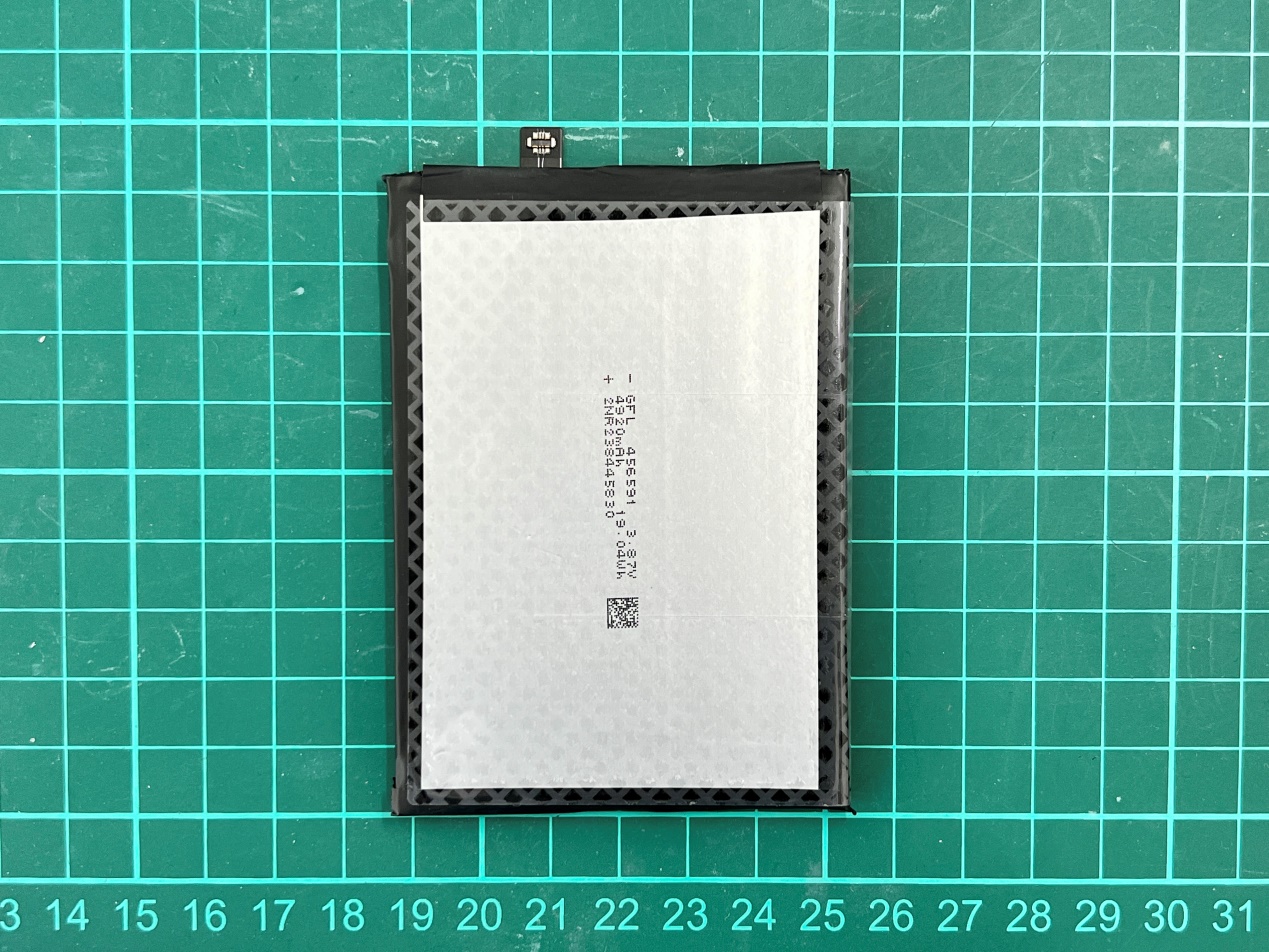

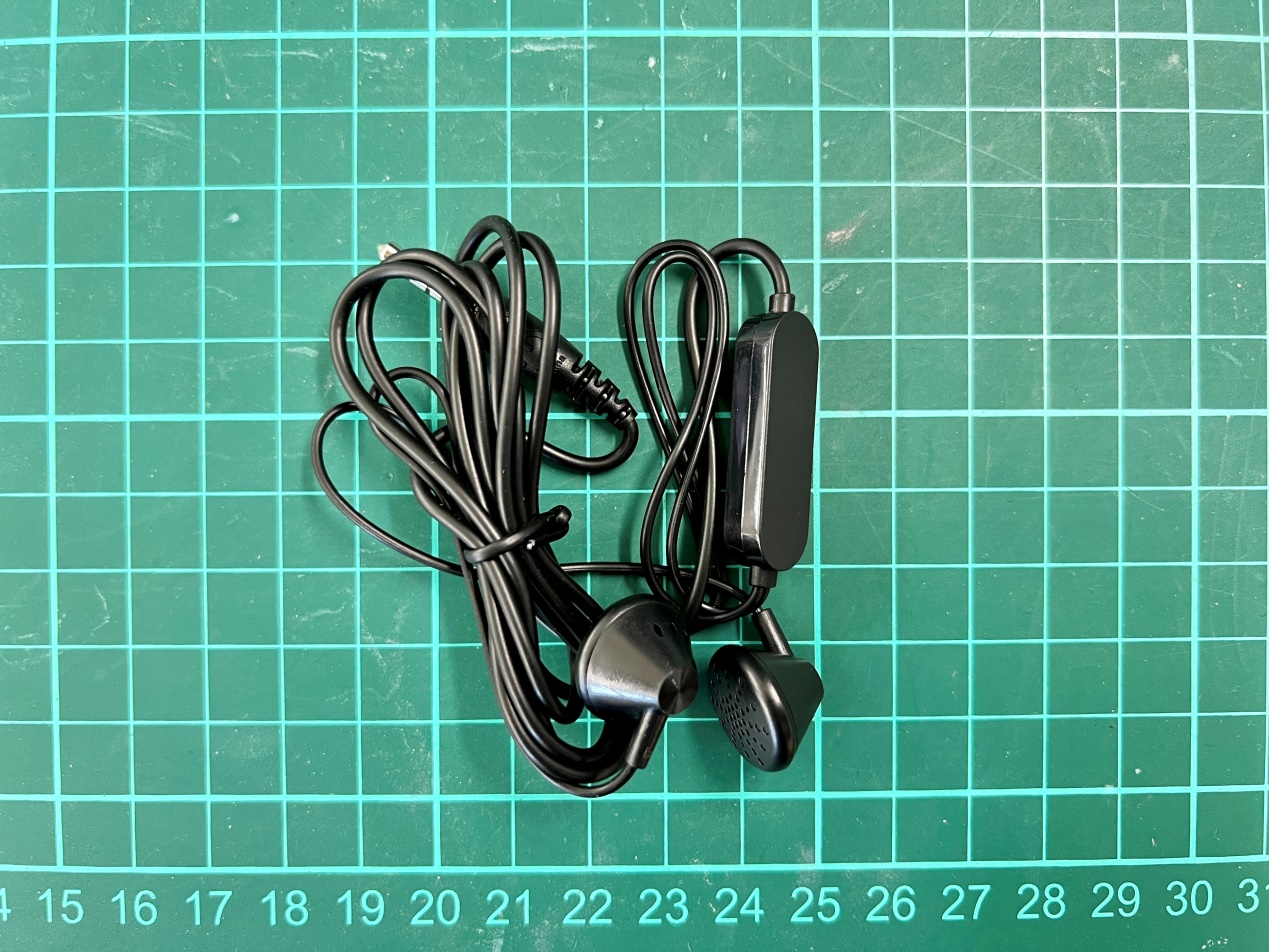

T610E TLp049C8 TLp049C8 YJC018R-US YJC018R-US_label YJC018R-AR YJC018R-AR_label QC13US QC13US_label USB Cable(JWUB1520-M01R) Headset(JWEP1247-M01R)

Label Placement Label(Nano SIM) Label(Dual SIM)

T610E

No.I22Z62079-SEM01 ©Copyright. All rights reserved by CTTL. Page 1 of 205 SAR TEST REPORT No. I22Z62079-SEM01 For TCL Communication Ltd. GSM/UMTS/LTE mobile phone Model Name: T610E With Hardware Version: 05 Software Version: 7GS9 FCC ID: 2ACCJB193 Issued Date: 2022-12-7 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S.Government. Test Laboratory: CTTL, Telecommunication Technology Labs, CAICT No. 52, Huayuan North Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2512, Fax:+86(0)10-62304633-2504 Email: [email protected], website: www.caict.ac.cn No.I22Z62079-SEM01 ©Copyright. All rights reserved by CTTL. Page 2 of 205 REPORT HISTORY Report Number Revision Issue Date Description I22Z62079-SEM01 Rev.0 2022-12-7 Initial creation of test report No.I22Z62079-SEM01 ©Copyright. All rights reserved by CTTL. Page 3 of 205 TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 5 1.1 TESTING LOCATION ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE .................................................................................................. 6 3 CLIENT INFORMATION ................................................................................................................ 8 3.1 APPLICANT INFORMATION .............................................................................................................................. 8 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 8 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................. 9 4.1 ABOUT EUT ................................................................................................................................................... 9 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ........................................................................ 10 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST .......................................................................... 10 5 TEST METHODOLOGY .............................................................................................................. 11 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 11 5.2 APPLICABLE MEASUREMENT STANDARDS .................................................................................................... 11 6 SPECIFIC ABSORPTION RATE (SAR) ...................................................................................... 12 6.1 INTRODUCTION ............................................................................................................................................. 12 6.2 SAR DEFINITION .......................................................................................................................................... 12 7 TISSUE SIMULATING LIQUIDS ................................................................................................. 13 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 13 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 13 8 SYSTEM VERIFICATION ............................................................................................................ 15 8.1 SYSTEM SETUP ............................................................................................................................................. 15 8.2 SYSTEM VERIFICATION ................................................................................................................................. 16 9 MEASUREMENT PROCEDURES .............................................................................................. 17 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 17 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 19 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 20 9.4 SAR MEASUREMENT FOR LTE ..................................................................................................................... 21 9.5 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 23 9.6 POWER DRIFT ............................................................................................................................................... 23 10 AREA SCAN BASED 1-G SAR ................................................................................................. 24 10.1 REQUIREMENT OF KDB ........................................................................................…

Text truncated - open the document above for the full version.

No.I22Z62079-SEM01 ©Copyright. All rights reserved by CTTL. Page 104 of 205 BT Body Date: 11/24/2022 Electronics: DAE4 Sn1588 Medium: H700-6000M Medium parameters used: f = 2480 MHz; σ = 1.861 S/m; εr = 38.849; ρ = 1000 kg/m3 Ambient Temperature:23.3°C Liquid Temperature: 22.5°C Communication System: UID 0, Bluetooth (0) Frequency: 2480 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3617 ConvF(7.55, 7.55, 7.55) Area Scan (81x141x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.109 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 0 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 0.150 W/kg SAR(1 g) = 0.029 W/kg; SAR(10 g) = 0.0081 W/kg Maximum value of SAR (measured) = 0.0413 W/kg No.I22Z62079-SEM01 ©Copyright. All rights reserved by CTTL. Page 105 of 205 ANNEX B System Verification Results 750 MHz Date: 11/17/2022 Electronics: DAE4 Sn1331 Medium: 750 Head Medium parameters used: f = 750 MHz; σ = 0.872 S/m; εr = 43.32; ρ = 1000 kg/m3 Ambient Temperature:23.3°C Liquid Temperature: 22.5°C Communication System: UID 0, CW (0) Frequency: 750 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN7548 ConvF(10.3, 10.3, 10.3) Area Scan (131x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.62 W/kg Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 56.09 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 3.17 W/kg SAR(1 g) = 2.21 W/kg; SAR(10 g) = 1.49 W/kg Maximum value of SAR (measured) = 2.84 W/kg 0 dB = 2.84 W/kg = 4.53 dBW/kg No.I22Z62079-SEM01 ©Copyright. All rights reserved by CTTL. Page 106 of 205 835 MHz Date: 11/16/2022 Electronics: DAE4 Sn1331 Medium: 835 Head Medium parameters used: f = 835 MHz; σ = 0.913 S/m; εr = 43.02; ρ = 1000 kg/m3 Ambient Temperature:23.3°C Liquid Temperature: 22.5°C Communication System: UID 0, CW (0) Frequency: 835 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN7548 ConvF(10.3, 10.3, 10.3) Area Scan (131x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.32 W/kg Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 60.07 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 3.75 W/kg SAR(1 g) = 2.53 W/kg; SAR(10 g) = 1.65 W/kg Maximum value of SAR (measured) = 3.31 W/kg 0 dB = 3.31 W/kg = 5.20 dBW/kg No.I22Z62079-SEM01 ©Copyright. All rights reserved by CTTL. Page 107 of 205 1750 MHz Date: 11/14/2022 Electronics: DAE4 Sn1331 Medium: HSL1750 Medium parameters used: f = 1750 MHz; σ = 1.395 S/m; εr = 40.54; ρ = 1000 kg/m3 Ambient Temperature:23.3°C Liquid Temperature: 22.5°C Communication System: UID 0, CW (0) Frequency: 1750 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN7548 ConvF(8.13, 8.13, 8.13) Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 14.3 W/kg Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 98.52 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 16.8 W/kg SAR(1 g) = 9.07 W/kg; SAR(10 g) = 4.83 W/kg Maximum value of SAR (measured) = 14.0 W/kg 0 dB = 14.0 W/kg = 11.46 dBW/kg No.I22Z62079-SEM01 ©Copyright. All rights reserved by CTTL. Page 108 of 205 1900 MHz Date: 11/15/2022 Electronics: DAE4 Sn1331 Medium: HSL1900 Medium parameters used: f = 1900 MHz; σ = 1.428 S/m; εr = 40.28; ρ = 1000 kg/m3 Ambient Temperature:23.3°C Liquid Temperature: 22.5°C Communication System: UID 0, CW (0) Frequency: 1900 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN7548 ConvF(7.8, 7.8, 7.8) Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 15.9 W/kg Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 103.1 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 18.1 W/kg SAR(1 g) = 9.88 W/kg; SAR(10 g) = 5.21 W/kg Maximum value of SAR (measured) = 15.3 W/kg 0 dB = 15.3 W/kg = 11.85 dBW/kg No.I22Z62079-SEM01 ©Copyright. All rights reserved by CTTL. Page 109 of 205 2450 MHz Date: 11/24/2022 Electronics: DAE4 Sn1588 Medium: 2450 Head Medium parameters used: f = 2450 MHz; σ = 1.838 S/m; εr = 39.17; ρ = 1000 kg/m3 Ambient Temperature:23.3°C Liquid Temperature: 22.5°C Communication System: UID 0, CW (0) Frequency: 2450 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3617 ConvF(7.55, 7.55, 7.55) Area Scan (61x61x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 21.9 W/kg Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 107.1 V/m; Power Drift = 0.17 dB Peak SAR (extrapolated) = 26.7 W/kg SAR(1 g) = 13.4 W/kg; SAR(10 g) = 6.35 W/kg Maximum value of SAR (measured) = 21.8 W/kg 0 dB = 21.8 W/kg = 13.38 dBW/kg No.I22Z62079-SEM01 ©Copyright. All rights reserved by CTTL. Page 110 of 205 2600 MHz Date: 11/20/2022 Electronics: DAE4 Sn1331 Medium: 2600 Head Medium parameters used: f = 2600 MHz; σ = 1.961 S/m; εr = 38.83; ρ = 1000 kg/m3 Ambient Temperature:23.3°C Liquid Temperature: 22.5°C Communication System: UID 0, CW (0) Frequency: 2600 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN7548 ConvF(7.12, 7.12, 7.12) Area Scan (61x61x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 23.3 W/kg Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 106.5 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 29.8 W/kg SAR(1 g) = 14 W/kg; SAR(10 g) = 6.31 W/kg Maximum value of SAR (measured) = 23.9 W/kg 0 dB = 23.9 W/kg = 13.78 dBW/kg No.I22Z62079-S…
