2ACCJB194GSM/UMTS/LTE mobile phone

User manual www.tcl.com/mx Quick Start Guide XXXX Printed in China 1    1 SIM  2 SIM 6.75" 2 Help • Update your device's software Go to Settings > System > System Update to check software updates. • Back up your personal data Go to Settings > System > Backup > Back up to Google Drive and turn it on. • Reset your device Go to Settings > System > Reset > Erase all data (factory reset), and then touch to reset your Device. • Electronic labeling path Touch Settings > Regulatory & safety or press *#07# to find more information about labeling (1) , such as FCC ID. General Information • Manufacturer: TCL Communication Ltd. • Address: 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong • Visit the TCL website at https://www.tcl.com/mx for tutorials and answers to frequently asked questions, and to download the User Manual. • To get support for your device, visit the TCL website (https://www.tcl.com/mx/es/service-support-mobile.html), or dial the number listed below: Argentina: 0810-999-1099 Chile: +56 22 958 96 94 Colombia: 18009520823 Ecuador: 800000635 Mexico: 8008909908 Peru: 080000698 The Dominican Republic: 8887600164 Uruguay: 405296624 Venezuela: 08001005368 (1) This may vary depending on country. 3 Safety and use Please read this chapter carefully before using your device. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use or use contrary to the instructions contained herein. • Do not use your device when the vehicle is not safely parked. Using a hand-held device while driving is illegal in many countries. • Comply with restrictions on use specific to certain places (hospitals, planes, gas stations, schools, etc.). • Switch the device off before boarding an aircraft. • Switch the device off when you are in health care facilities, except in designated areas. • Switch the device off when you are near gas or flammable liquids. Strictly obey all signs and instructions posted in a fuel depot, petrol station, or chemical plant, or in any potentially explosive atmosphere when operate your device. • Turn off your mobile device or wireless device when in a blasting area or in areas posted with notifications requesting "two-way radios" or "electronic devices" are turned off to avoid interfering with blasting operations. Please consult your doctor and the device manufacturer to determine if operation of your device may interfere with the operation of your medical device. When the device is switched on, it should be kept at least 15 cm from any medical device such as a pacemaker, a hearing aid, or an insulin pump, etc. • Do not let children use the device and/or play with the device and accessories without supervision. • To reduce exposure to radio waves, it is recommended: - To use the device under good signal reception conditions as indicated on its screen (four or five bars); - To use a hands-free kit; - To make reasonable use of the device, particularly for children and adolescents, for example by avoiding night calls and limiting the frequency and duration of calls; - Keep the device away from the belly of pregnant women or the lower abdomen of adolescents. • Do not allow your device to be exposed to adverse weather or environmental conditions (moisture, humidity, rain, infiltration of liquids, dust, sea air, etc.). The manufacturer’s recommended operating temperature range is 0°C (32°F) to 40°C (104°F). At over 40°C (104°F) the legibility of the device’s display may be impaired, though this is temporary and not serious. • Use only batteries, battery chargers, and accessories which are compatible with your device model. • Do not use a damaged device, such as a device with a cracked display or badly dented back cover, as it may cause injury or harm. • Do not keep device connected to charger with battery fully charged for a long period of time as it can cause overheating and shorten battery life. • Do not sleep with the device on your person or in your bed. Do not place the device under a blanket, pillow, or under your body, specially when connected to the charger, as this may cause the device to overheat. PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. 4 Battery: In accordance with air regulations, the battery of your product is not fully charged. Please charge it first. - Do not attempt to open the battery (due to the risk of toxic fumes and burns). - For a device with a non-removable battery, do not attempt to eject or replace the battery. - Do not puncture, disassemble, or cause a short circuit in a battery. - For a unibody device, do not attempt to open or puncture the back cover. - Do not burn or dispose of a used battery or device in household rubbish or store it at temperatures above 60°C (140°F), this can result in an explosion or the leakage of flammable liquid or gas. Similarly, subjecting the battery to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas. Only use the battery for the purpose for which it was designed and recommended. Never use damaged batteries. CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. Device, accessory and battery must be disposed of in accordance with locally applicable environmental regulations. This symbol on your device, the battery, and the accessories means that these products must be taken to collection points at the end of their life: • Municipal waste disposal centers with specific bins for these types of equipment; • Collection bins at points of sale. They will then be recycled, preventing substances being disposed of in the environment, so that their components can be reused. Chargers: Home A.C./ Travel chargers will operate within the temperature range of: 0°C (32°F) to 40°C (104°F…

Text truncated - open the document above for the full version.

TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong Tel: +86 755 3664 5759 Fax: +86 755 3661 2000-81722 http://tclcom.tcl.com Date 2022-12-13 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: CTTL-Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Annie Jiang Product Certification Manager TCL Communication Ltd.

TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong Declaration of changes from Initial (T610K-Dual SIM) to Variant (T610K-single SIM) General: T610K single SIM is a variant product of T610K Dual SIM ⚫ SOFTWARE MODIFICATIONS: ➢ Protocol Stack changes: NO ➢ MMS/STK/USAT/USIM changes: NO ➢ DM/SUPL/VT/FUMO/SWP/HCI: NO ➢ Other changes detail: NO ⚫ HARDWARE MODIFICATIONS: ➢ Baseband changes:NO ➢ Band changes: NO product GSM UMTS LTE 5G NR SA 5G NR NSA T610K-Dual SIM 850/900/1800/1900 B1/2/5/8 B1/3/5/7/8/13/20/28/38/40/41 (2496-2690MHz ) NA NA T610K-Single SIM 850/900/1800/1900 B1/2/5/8 B1/3/5/7/8/13/20/28/38/40/41 (2496-2690MHz ) NA NA ➢ ➢ PCB Layout changes: NO ➢ Main components changes: NO 2G Antenna Base Band Transceiver ASM Power Amplifier Tx SAW Filter Rx SAW Filter（SAW Duplexer） GSM850 NO NO NO NO NO NO NO GSM900 NO NO NO NO NO NO NO GSM1800 NO NO NO NO NO NO NO GSM1900 NO NO NO NO NO NO NO 3G Antenna Base Band Transceiver ASM Power Amplifier Tx SAW Filter Rx SAW Filter（SAW Duplexer） B1 NO NO NO NO NO NO NO B2 NO NO NO NO NO NO NO B5 NO NO NO NO NO NO NO B8 NO NO NO NO NO NO NO 4G Antenna Base Band Transceiver ASM Power Amplifier Tx SAW Filter Rx SAW Filter（SAW Duplexer） B1 NO NO NO NO NO NO NO B3 NO NO NO NO NO NO NO B5 NO NO NO NO NO NO NO B7 NO NO NO NO NO NO NO B8 NO NO NO NO NO NO NO B13 NO NO NO NO NO NO NO B20 NO NO NO NO NO NO NO B28 NO NO NO NO NO NO NO B38 NO NO NO NO NO NO NO B40 NO NO NO NO NO NO NO B41 (2496- 2690MHz ) NO NO NO NO NO NO NO Antanna AP MODEM Transceiver Balun Band pass filter Triplexer Bluetooth NO NO NO NO NO NO NO wifi NO NO NO NO NO NO NO GPS(GNSS) NO NO NO NO NO NO NO NFC NO NO NO NO NO NO NO Accessory changes: NO Accessory T610K T610K Charger 1 YJC018R-EU YJC018R-EU Charger 2 YJC018R-UK YJC018R-UK Charger 3 QC13EU QC13EU Charger 4 QC13US QC13US Charger 5 QC13UK QC13UK Charger 6 QC13AU QC13AU battery TLp049C8 TLp049C8 headset JWEP1247-M01R JWEP1247-M01R USB cable JWUB1520-M01R JWUB1520-M01R others NO NO ➢ FM changes: NO ➢ GPS changes: NO ➢ Other components changes: SIM slot is not same, TP/LCD/ Camera changes: NO ➢ Other changes detailed: NO ⚫ MECHANICAL MODIFICATIONS: ➢ Use new metal front/back cover or keypad: NO ➢ Mechanical shell changes: NO Whole size of EUT: NO Distance of Ear reference point to bottom of handset: NO Other trinkets to change the surface of handset: NO ➢ Other changes detailed: There are two card trays for both T610K and T610K, one is 2 card slots and another is 1 card slot. APPROVED BY: Project Manager: liu wei Signature: Date: 2022-12-05

TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong Declaration of Frequency Stability We [TCL Communication Ltd.] ensure that the product [2ACCJB194] meets e-CFR Title 47 section 15.407(g) and KDB 789033 D02v02r01 frequency stability such that the emissions are maintained within the band of operation under all conditions of normal operation as specified in the user's manual. Sincerely Yours, Print Name: Annie Jiang Title: Product Certification Manager Company Name: TCL Communication Ltd. Tel: +86 755 3661 1621 Email: [email protected]

TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong Tel: +86 755 3664 5759 Fax: +86 755 3661 2000-81722 http://tclcom.tcl.com 2023-01-03 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: 2ACCJB194 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Annie Jiang Product Certification Manager TCL Communication Ltd.

TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong Tel: +86 755 3664 5759 Fax: +86 755 3661 2000-81722 http://tclcom.tcl.com 2023-01-03 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: SHORT-TERM Confidentiality request for FCC ID: 2ACCJB194 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days: - External Photos - Internal Photos - Test Setup Photos - User manual The applicant also acknowledges that they will also provide appropriate notice to ACB should either of the following occur: a) if the applicant requires additional 45 days extension periods they will notify ACB with a new request letter at least 7 days prior to the short-term confidentiality expiration date – [Note: up to a maximum of 3 extensions only are allowed], or b) Immediately notify ACB in the event the information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Yours Sincerely, Annie Jiang Product Certification Manager TCL Communication Ltd.

Date: 2023.01.04 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request permission to use BT/WIFI/GSM/WCDMA/LTE B5/7/13 test results from model T610E in our applications for model T610K. FCC ID: 2ACCJB194 To whom it may concern: We request permission to use BT/WIFI/GSM/WCDMA/LTE B5/7/13 test results from model T610E (FCC ID: 2ACCJB193) in our applications for model T610K(FCC ID: 2ACCJ194). Changes: you can find details of changes in “Declaration of changes” attached in this document. For the above, we performed some test as below:  Full test for SAR, including the power for all bands(BT/WIFI/GSM/WCDMA/ LTE B5/7/13).  Full test for LTE B41.  Full test of conducted power for BT/WIFI.  Full test of conducted power for GSM/WCDMA/ LTE B5/7/13.  Radiated worst cases for GSM, WCMDA and LTE(except B41).  Full test for DFS.  Full test for Part15B. You can find more detailed data in our reports. Sincerely yours, Zi Xiaogang TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong Declaration of changes from Initial model 3 LATAM （T610E）to Variant Model 3 EU（T610K） General: T610K is a variant product of T610E:  SOFTWARE MODIFICATIONS:  Protocol Stack changes: NO  MMS/STK/USAT/USIM changes: NO  DM/SUPL/VT/FUMO/SWP/HCI: NO  Other changes detail: NO  HARDWARE MODIFICATIONS:  Baseband changes: NO  Band changes: YES product GSM UMTS LTE 5G NR SA 5G NR NSA T610E 850/900/1800/1900 B1/2/4/5/8 B1/2/3/4/5/7/8/12/13/17/28/38/40/66 NA NA T610K 850/900/1800/1900 B1/2/5/8 B1/3/5/7/8/13/20/28/38/40/41 (2496- 2690MHz ) NA NA  PCB Layout changes: NO  Main components changes: 2G Antenna Base Band Transceiver ASM Power Amplifier Tx SAW Filter Rx SAW Filter（SAW Duplexer） GSM850 NO NO NO NO NO NO NO GSM900 NO NO NO NO NO NO NO GSM1800 NO NO NO NO NO NO NO GSM1900 NO NO NO NO NO NO NO 3G Antenna Base Band Transceiver ASM Power Amplifier Tx SAW Filter Rx SAW Filter（SAW Duplexer） B1 NO NO NO NO NO NO NO B2 NO NO NO NO NO NO NO B5 NO NO NO NO NO NO NO B8 NO NO NO NO NO NO NO 4G Antenna Base Band Transceiver ASM Power Amplifier Tx SAW Filter Rx SAW Filter（SAW Duplexer） B1 NO NO NO NO NO NO NO B3 NO NO NO NO NO NO NO B5 NO NO NO NO NO NO NO B7 NO NO NO NO NO NO NO B8 NO NO NO NO NO NO NO B13 NO NO NO NO NO NO NO B20 NO NO NO NO NO NO NEW B28 NO NO NO NO NO NO NO B38 NO NO NO NO NO NO NO B40 NO NO NO NO NO NO NO B41 (2496- 2690MHz ) NO NO NO NO NO NEW NO 5G SA Antenna Base Band Transceiver ASM Power Amplifier Tx SAW Filter Rx SAW Filter（SAW Duplexer） NA NA NA NA NA NA NA NA 5G NSA Antenna Base Band Transceiver ASM Power Amplifier Tx SAW Filter Rx SAW Filter（SAW Duplexer） NR n2 NA NA NA NA NA NA NA NR n5 NA NA NA NA NA NA NA NR n7 NA NA NA NA NA NA NA NR n25 NA NA NA NA NA NA NA NR n41 NA NA NA NA NA NA NA NR n66 NA NA NA NA NA NA NA NR n71 NA NA NA NA NA NA NA NR n77 NA NA NA NA NA NA NA NR n78 NA NA NA NA NA NA NA NR n28 NA NA NA NA NA NA NA Antanna AP MODEM Transceiver Balun Band pass filter Triplexer Bluetooth NO NO NO NO NO NO NO wifi NO NO NO NO NO NO NO GPS(GNSS) NO NO NO NO NO NO NO NFC NEW NO NO NO NO NO Accessory T610E T610K Charger YJC018R-US QC13US YJC018R-EU；YJC018R-UK； YJC018R-AU；YJC018R-US QC13EU，QC13US，QC13UK，QC13AU battery TLp049C8 TLp049C8 headset JWEP1247-M01R JWEP1247-M01R USB cable JWUB1520-M01R JWUB1520-M01R others NO NO  FM changes:NO  GPS changes: NO  Other components changes: NO TP/LCD/ Camera changes: NO  Other changes detailed: T610E does not have NFC, T610K has NFC.  MECHANICAL MODIFICATIONS:  Use new metal front/back cover or keypad: NO  Mechanical shell changes: NO Whole size of EUT: NO Distance of Ear reference point to bottom of handset: NO Other trinkets to change the surface of handset: NO  Other changes detailed: same mechanical design APPROVED BY: Project Manager: liu wei Signature: Date: 2022-09-19

Company letterhead Statement We, TCL Communication Ltd, state that our devices model name: T610K with FCC ID: 2ACCJB194 is a multi-band terminal which supports GSM 850/900/1800/1900, WCDMA Band 1/2/5/8 and LTE Band 1/3/5/7/8/13/20/28/38/40//41 (2496-2690MHz ) However, LTE band 40 is not available in US market and Canada market as it will be disabled by software. Signature: Contact Person: Annie Jiang E-mail: [email protected]

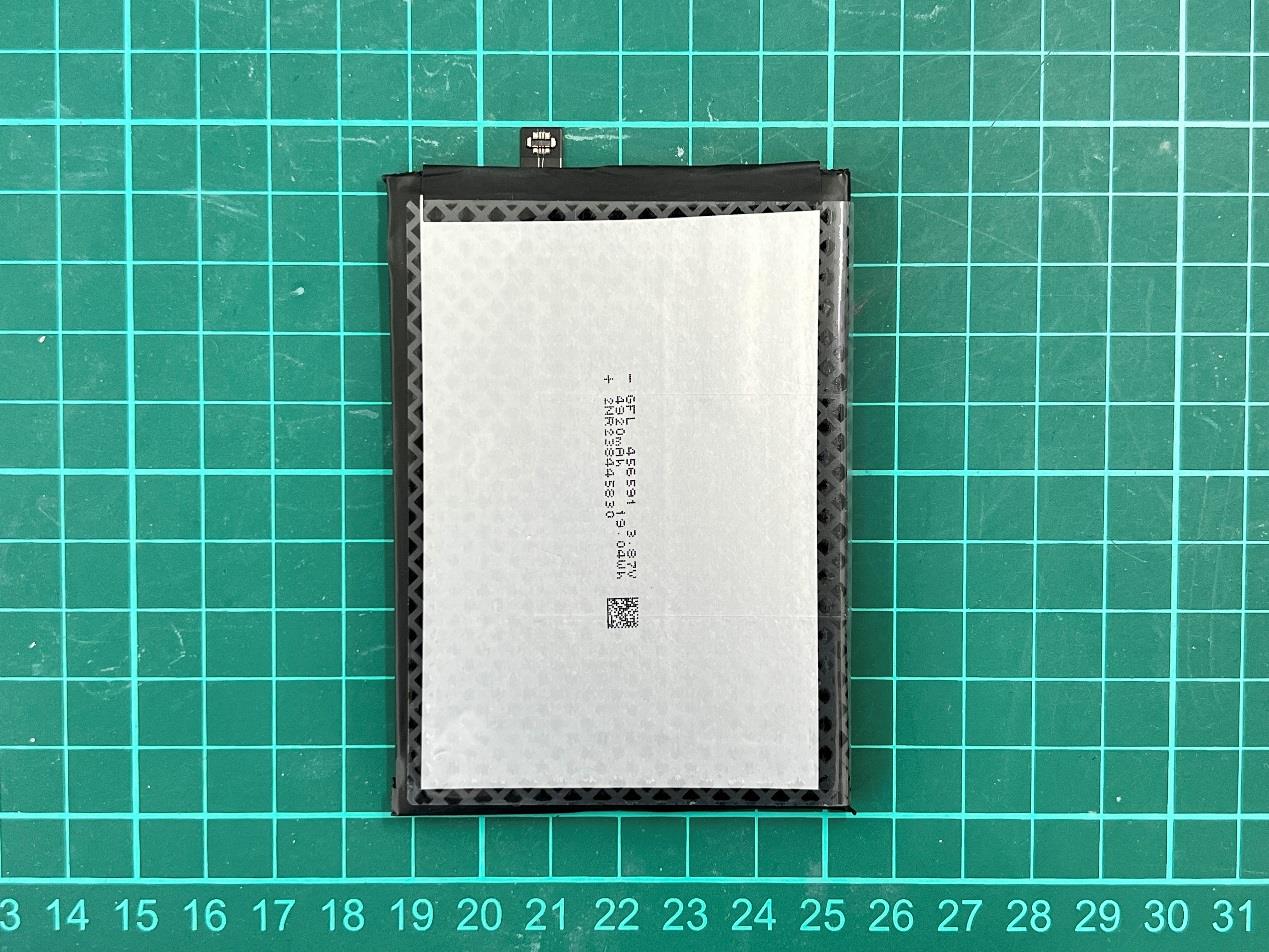

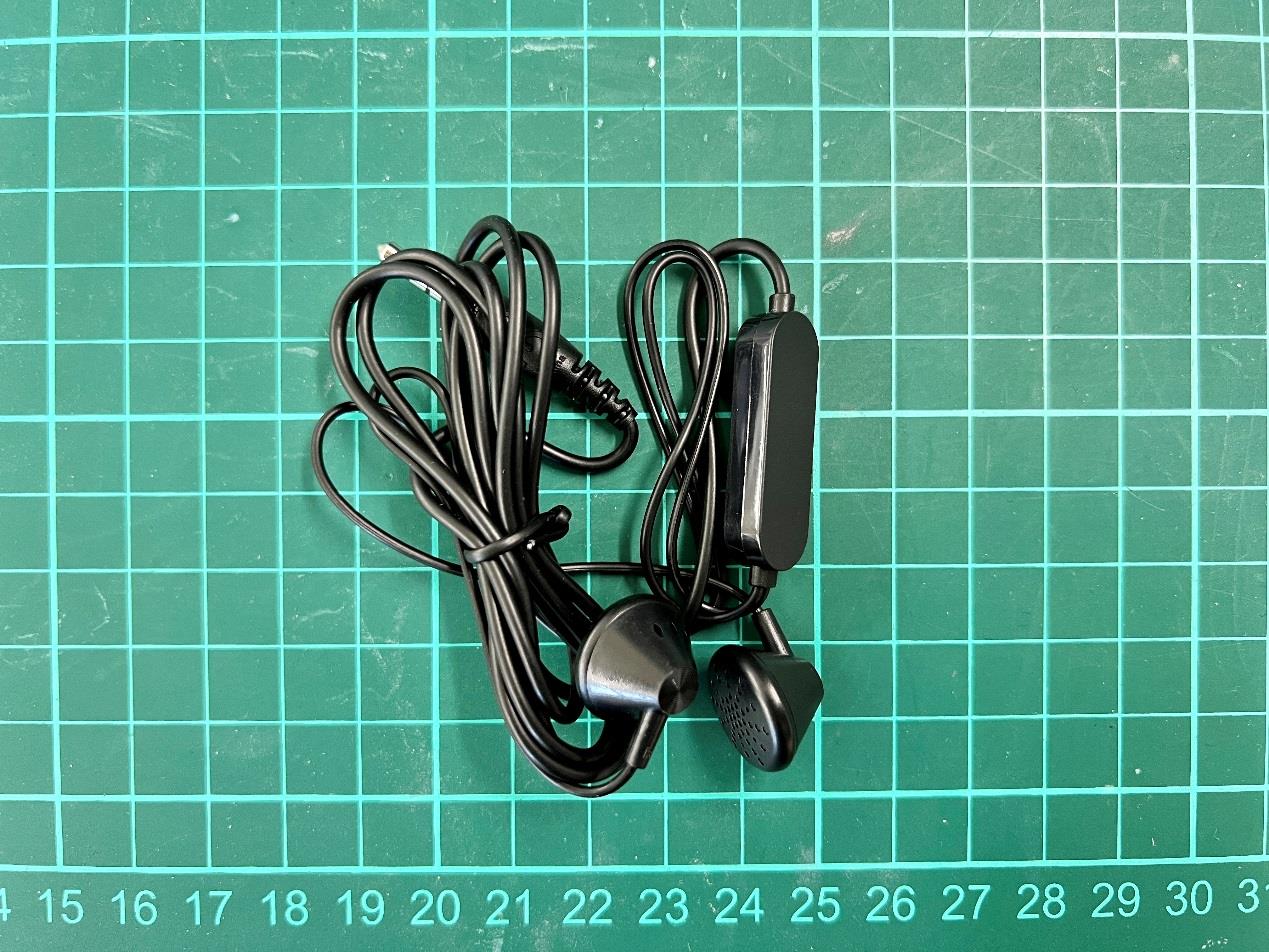

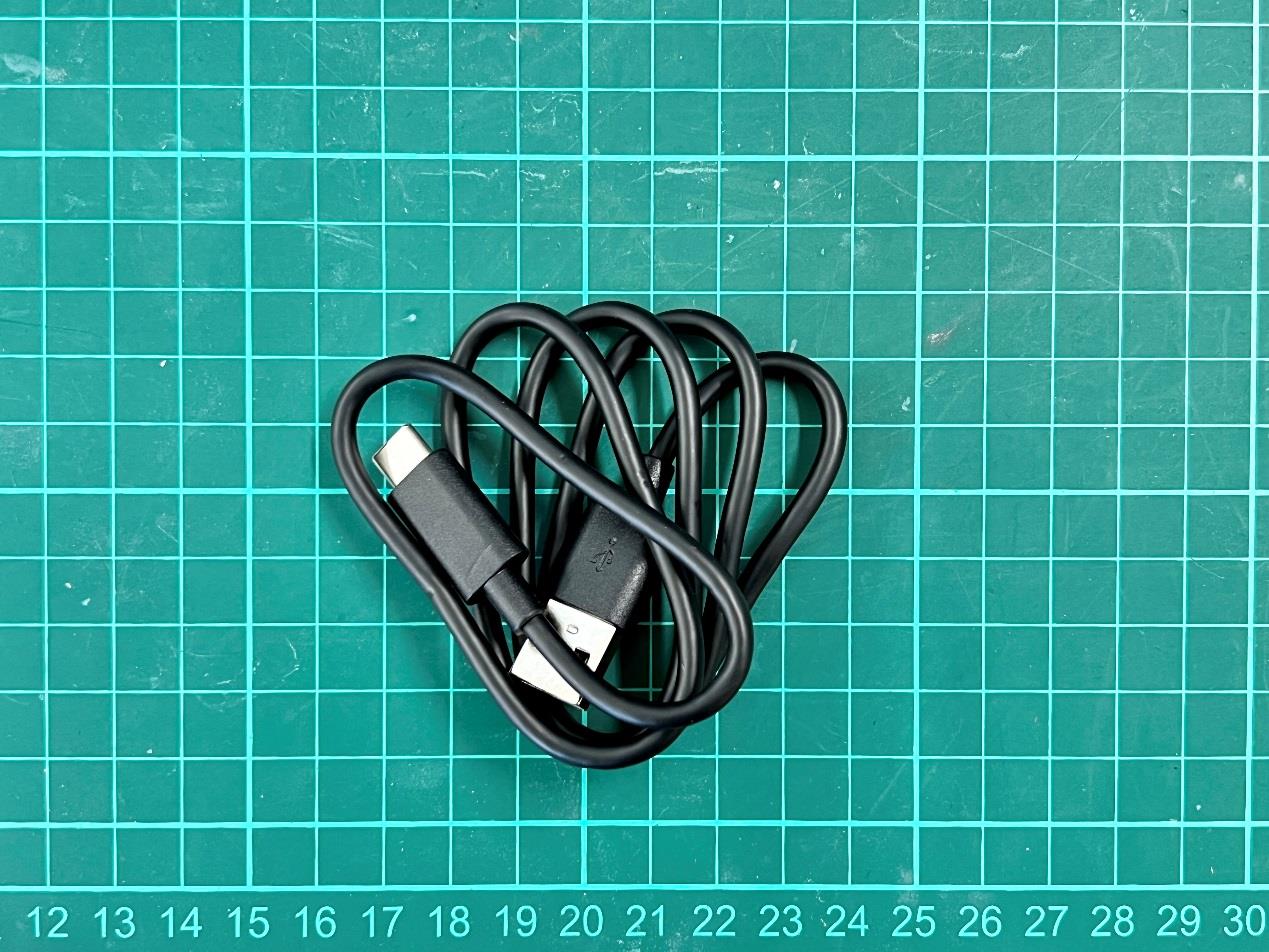

T610K Battery TLp049C8 Battery TLp049C8 Headset JWEP1247-M01R USB Cable JWUB1520-M01R Charger YJC018R-EU Charger YJC018R-EU label Charger YJC018R-UK Charger YJC018R-UK label Charger YJC018R-US Charger YJC018R-US label Charger QC13EU Charger QC13EU-label Charger QC13UK Charger QC13UK-label Charger QC13US Charger QC13US-label Charger QC13AU Charger QC13AU-label

Dual SIM Single SIM Label Placement

T610K

No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 1 of 164 SAR TEST REPORT No. I22Z62035-SEM05 For TCL Communication Ltd. GSM/UMTS/LTE mobile phone Model Name: T610K with Hardware Version: 05 Software Version: 7GS8 FCC ID: 2ACCJB194 Issued Date: 2023-1-9 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S.Government. Test Laboratory: CTTL, Telecommunication Technology Labs, CAICT No. 52, Huayuan North Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2512, Fax:+86(0)10-62304633-2504 Email: [email protected], website: www.caict.ac.cn No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 2 of 164 REPORT HISTORY Report Number Revision Issue Date Description I22Z62035-SEM05 Rev.0 2022-12-30 Initial creation of test report I22Z62035-SEM05 Rev.1 2023-1-9 1. Revise the tune up of LTE B13 power level A1&B1 and LTE B7 power level B1 on page30 . 2. Revise SAR results of LTE B7 on page54, LTE B13 on page55. 3. Revise the tune up of WIFI2.4G 802.11n-20M on page45. No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 3 of 164 TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 5 1.1 TESTING LOCATION ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE .................................................................................................. 6 3 CLIENT INFORMATION ................................................................................................................ 8 3.1 APPLICANT INFORMATION .............................................................................................................................. 8 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 8 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................. 9 4.1 ABOUT EUT ................................................................................................................................................... 9 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ........................................................................ 10 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST .......................................................................... 10 5 TEST METHODOLOGY .............................................................................................................. 11 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 11 5.2 APPLICABLE MEASUREMENT STANDARDS ................................................................................................... 11 6 SPECIFIC ABSORPTION RATE (SAR) ...................................................................................... 12 6.1 INTRODUCTION ............................................................................................................................................. 12 6.2 SAR DEFINITION .......................................................................................................................................... 12 7 TISSUE SIMULATING LIQUIDS ................................................................................................. 13 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 13 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 13 8 SYSTEM VERIFICATION ............................................................................................................ 15 8.1 SYSTEM SETUP ............................................................................................................................................. 15 8.2 SYSTEM VERIFICATION ................................................................................................................................. 16 9 MEASUREMENT PROCEDURES .............................................................................................. 17 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 17 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 19 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 20 9.4 SAR MEASUREMENT FOR LTE ..................................................................................................................... 21 9.5 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 23 9.6 POWER DRIFT ............................................................................................................................................... 23 10 …

Text truncated - open the document above for the full version.

No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 115 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 116 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 117 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 118 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 119 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 120 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 121 of 164 ANNEX H Dipole Calibration Certificate 750 MHz Dipole Calibration Certificate No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 122 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 123 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 124 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 125 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 126 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 127 of 164 835 MHz Dipole Calibration Certificate No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 128 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 129 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 130 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 131 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 132 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 133 of 164 1900 MHz Dipole Calibration Certificate No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 134 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 135 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 136 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 137 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 138 of 164

No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 139 of 164 2450 MHz Dipole Calibration Certificate No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 140 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 141 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 142 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 143 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 144 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 145 of 164 2600 MHz Dipole Calibration Certificate No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 146 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 147 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 148 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 149 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 150 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 151 of 164 5 GHz Dipole Calibration Certificate No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 152 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 153 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 154 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 155 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 156 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 157 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 158 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 159 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 160 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 161 of 164

No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 162 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 163 of 164 No.I22Z62035-SEM05 ©Copyright. All rights reserved by CTTL. Page 164 of 164 ANNEX I Accreditation Certificate

NFCAntennasize UPAntenna WIFI-5G GPS/BT/2.4WIFI DownAntenna Overviewdataofevaluation Antenna TYPESIZE UPAntenna FPC 73.4x10.6mm DownAntennaFPC1.85x31mm GPS/BT/2.4GWIFIAntennaeFPC22.35x6mm 5GWIFIAntennaFPC7.5x7.8mm NFCAntenna FPC 35x32mm DownAntenna BandGainaverage(dBi)GainPeak(dBi) GSM900/UMTSB8/LTEB8-9.9-6 GSM850/UMTSB5/LTEB5/B20-10.4 -6.7 LTEB13/28 -9.9-6.2 LTEB12/17 -10.2-6.3 GSM1800/B3-3.80.3 GSM1900/UMTSB2/LTEB2-4.10.3 UMTSB1/LTEB1-6.2-1.6 UMTSB4/LTEB4/66 -6.1-1.7 LTEB40 -3.71.5 LTEB7/38/41 -4.6-1.7 UPAntenna BandGainaverage(dBi)GainPeak(dBi) GSM900/UMTSB8/LTEB8-7.9-3.3 GSM850/UMTSB5/LTEB5/B20-7.3 -3.8 LTEB13/28 -7.2-3.4 LTEB12/17 -6.4-2.6 GSM1800/B3-8.1-5.2 GSM1900/UMTSB2/LTEB2-7.9-5 UMTSB1/LTEB1/4/66-5.3-0.6 LTEB40 -7.7-3.8 LTEB7/38/41 -6.7-3 NFCantennagaindescription: ThedevicedoesnotsupportthetestofNFCgain.Inaddition,allmeasurementswereperformedradiatedand thereforeadditionalantennagaindocumentationisnotrequired. GPS/2.4GWIFIAntennae BandGainaverage(dBi)GainPeak(dBi) GPS-5.3-1 2.4GWIFI-5.1 -1.5 BT-5.1 -1.5 5GWIFIAntennae BandGainaverage(dBi)GainPeak(dBi) 5GWIFI -5.6 1.5

品名 : B.1.01.Y.1016工规 History List 版本 REV. 修訂者 EDITOR 修訂頁次 PAGE 修訂內容 ITEMS OF CHANGE 申請日期 DATE 生效日期 VALID DATE ECN 编号 ECN NO A0 郑由强 ALL 发行正式 2022/10/28 2022/10/28 N/A UNLESS OTHER SPECIFIED TOLERANCES ON： 浙江海通通讯电子股份有限公司 X＝±2 X.X＝±0.1 X.XX＝±0.05 ANGLES＝± HOLEDIA＝± SCALE： UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：曾传新 CHECKED BY： 郑由强 DESIGNED BY： 谢广权 APPROVED BY： 周振邦 TITLE： Specification DOCUMENT PAGE REV. NO. A0 PAGE 1 OF 5 B.1.01.Y.1016 Specification 1. Explanation of part number : B.1 . 01 . Y . 1016 (1) (2) (3) (4) (1) Product Type：Wireless Antenna (2) Material : FPC (3) State : DVT (4) Serial number:1016 2. Electrical Specification : 2-1. Frequency Band: Frequency Band MHz GPS,WIFI 1575.42Mhz , 2400-2500Mhz,5150-5850Mhz 2-2. Impedance 50 ohm nominal UNLESS OTHER SPECIFIED TOLERANCES ON： 浙江海通通讯电子股份有限公司 X＝±2 X.X＝±0.1 X.XX＝±0.05 ANGLES＝± HOLEDIA＝± SCALE： UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT …

Text truncated - open the document above for the full version.
