2ACCJB197GSM mobile phone

User manual www.tcl.com/mx Quick Start Guide XXX Printed in China 1 T301Q:T301P: 2 Help • Update your device's software Go to Settings > Check for update to check software updates. • Reset your device Go to Settings > Phone settings > Restore factory Settings to reset your device. • Electronic labeling path Go to Settings > Regulatory & Safety or press *#07# to find more information about labeling (1) , such as FCC ID. General Information • Manufacturer: TCL Communication Ltd. • Address: 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong • Visit the TCL website at https://www.tcl.com/mx for tutorials and answers to frequently asked questions, and to download the User Manual. • To get support for your device, visit the TCL website (https://www.tcl.com/mx/es/service-support-mobile.html), or dial the number listed below: Argentina: 0810-999-1099 Chile: +56 22 958 96 94 Colombia: 18009520823 Ecuador: 800000635 Mexico: 8008909908 Peru: 080000698 The Dominican Republic: 8887600164 Uruguay: 405296624 Venezuela: 08001005368 (1) This may vary depending on country. 3 Safety and use Please read this chapter carefully before using your device. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use or use contrary to the instructions contained herein. • Do not use your device when the vehicle is not safely parked. Using a hand-held device while driving is illegal in many countries. • Comply with restrictions on use specific to certain places (hospitals, planes, gas stations, schools, etc.). • Switch the device off before boarding an aircraft. • Switch the device off when you are in health care facilities, except in designated areas. • Switch the device off when you are near gas or flammable liquids. Strictly obey all signs and instructions posted in a fuel depot, petrol station, or chemical plant, or in any potentially explosive atmosphere when operate your device. • Turn off your mobile device or wireless device when in a blasting area or in areas posted with notifications requesting "two-way radios" or "electronic devices" are turned off to avoid interfering with blasting operations. Please consult your doctor and the device manufacturer to determine if operation of your device may interfere with the operation of your medical device. When the device is switched on, it should be kept at least 15 cm from any medical device such as a pacemaker, a hearing aid, or an insulin pump, etc. • Do not let children use the device and/or play with the device and accessories without supervision. • To reduce exposure to radio waves, it is recommended: - To use the device under good signal reception conditions as indicated on its screen (four or five bars); - To use a hands-free kit; - To make reasonable use of the device, particularly for children and adolescents, for example by avoiding night calls and limiting the frequency and duration of calls; - Keep the device away from the belly of pregnant women or the lower abdomen of adolescents. • Do not allow your device to be exposed to adverse weather or environmental conditions (moisture, humidity, rain, infiltration of liquids, dust, sea air, etc.). The manufacturer’s recommended operating temperature range is 0°C (32°F) to 40°C (104°F). At over 40°C (104°F) the legibility of the device’s display may be impaired, though this is temporary and not serious. 4 • Use only batteries, battery chargers, and accessories which are compatible with your device model. • Do not use a damaged device, such as a device with a cracked display or badly dented back cover, as it may cause injury or harm. • Do not keep device connected to charger with battery fully charged for a long period of time as it can cause overheating and shorten battery life. • Do not sleep with the device on your person or in your bed. Do not place the device under a blanket, pillow, or under your body, specially when connected to the charger, as this may cause the device to overheat. PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. Battery: In accordance with air regulations, the battery of your product is not fully charged. Please charge it first. - Do not attempt to open the battery (due to the risk of toxic fumes and burns). - For a device with a non-removable battery, do not attempt to eject or replace the battery. - Do not puncture, disassemble, or cause a short circuit in a battery. - For a unibody device, do not attempt to open or puncture the back cover. - Do not burn or dispose of a used battery or device in household rubbish or store it at temperatures above 60°C (140°F), this can result in an explosion or the leakage of flammable liquid or gas. Similarly, subjecting the battery to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas. Only use the battery for the purpose for which it was designed and recommended. Never use damaged batteries. CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. Device, accessory and battery must be disposed of in accordance with locally applicable environmental regulations. 5 This symbol on your device, the battery, and the accessories means that these products must be taken to collection points at the end of their life: • Municipal waste disposal centers with specific bins for these types of equipment; • Collection bins at points of sale. They will then be recycled, preventing substances being disposed of in the environment, so that their components can be reused. Chargers: Home A.C./ Travel chargers will operate within the temperature range of: 0°C (32°F) to 40°C (104°F). The chargers designed for your device meet the standard for safety of information technology equipment and office equipment use. Due to diffe…

Text truncated - open the document above for the full version.

TO: American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: TCT Mobile (US) Inc. Contact Name: Yao Dai Street Address: 189 Technology Drive City/Province/Zip: Irvine, CA 92618 Telephone No: 1-855-368-0829 Email: [email protected] FRN#: 0033429465 This letter is to confirm that we (the “Designated U.S. Agent”) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: Signed by (Printed Name/Title): Yao Dai / Technical Acceptance Manager The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: TCL Communication Ltd Grantee Code: 2ACCJ Contact Name: Annie Jiang Street Address: 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong City/Province/Zip: Hongkong Telephone No: +86 755 36611621 Email: [email protected] Applicant Signature: Date: Signed by (Printed Name/Title): Annie Jiang / Product Certification Manager DocuSign Envelope ID: 56EF55FD-2FB6-4742-A859-52263717FFFD 2023年2月22日 February 21, 2023

021423-17 rev 4 Certification Application Attestation Statements Date: February 23, 2023 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: FCC ID: 2ACCJB197 Statement for 47 CFR section 2.911(d)(5)(i) TCL Communication Ltd. certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) TCL Communication Ltd. (“the applicant”) certifies that, as of the date of the filing of this application, the applicant ☐ - is / - is not identified on the Covered List as an entity producing “covered” equipment. Thank you, By: Annie Jiang (Signature 2 ) (Print name) Title: Product Certification Manager Company: __ TCL Communication Ltd. Telephone: +86 755 36611621 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . 2 - Letters should be placed on appropriate letterhead.

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Declaration of changes from Initial (T301P-Dual SIM) to Variant (T301Q-Single SIM) ⚫ SOFTWARE MODIFICATIONS: ➢ Protocol Stack changes: NO ➢ MMS/STK/USAT/USIM changes: NO ➢ DM/SUPL/VT/FUMO/SWP/HCI: NO ➢ Other changes detailed: NO ⚫ HARDWARE MODIFICATIONS: ➢ Baseband changes: NO ➢ Band changes: No Product GSM UMTS LTE T301P 850//900/1800/1900 / / T301Q 850//900/1800/1900 / / ➢ Antenna changes: NO ➢ PCB Layout changes: NO ➢ Main components changes: Base Band Transceiver ASM Power Amplifier Tx SAW Filter Rx SAW Filter（SAW Duplexer） GSM 850 No No No No No No GSM 900 No No No No No No GSM 1800 No No No No No No GSM 1900 No No No No No No ➢ WiFi changes: NO ➢ Other components changes: NO ➢ Other changes detailed: No ➢ MECHANICAL MODIFICATIONS: ⚫ Use new metal front/back cover or keypad: NO ⚫ Mechanical shell changes: NO Whole size of EUT: NO Distance of Ear reference point to bottom of handset: NO Other trinkets to change the surface of handset: NO ⚫ Other changes detailed: T301P is dual sim card, and T301Q is single sim card. APPROVED BY: Project Manager: Hexianming Signature: Date: 2022.12.05

TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong Tel: +86 755 3664 5759 Fax: +86 755 3661 2000-81722 http://tclcom.tcl.com Date 2023-02-17 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: CTTL-Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Annie Jiang Product Certification Manager TCL Communication Ltd.

TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong Tel: +86 755 3664 5759 Fax: +86 755 3661 2000-81722 http://tclcom.tcl.com 2023-02-17 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: 2ACCJB197 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Annie Jiang Product Certification Manager TCL Communication Ltd.

TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong Tel: +86 755 3664 5759 Fax: +86 755 3661 2000-81722 http://tclcom.tcl.com 2023-02-17 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: SHORT-TERM Confidentiality request for FCC ID: 2ACCJB197 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days: - External Photos - Internal Photos - Test Setup Photos - User manual The applicant also acknowledges that they will also provide appropriate notice to ACB should either of the following occur: a) if the applicant requires additional 45 days extension periods they will notify ACB with a new request letter at least 7 days prior to the short-term confidentiality expiration date – [Note: up to a maximum of 3 extensions only are allowed], or b) Immediately notify ACB in the event the information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Yours Sincerely, Annie Jiang Product Certification Manager TCL Communication Ltd.

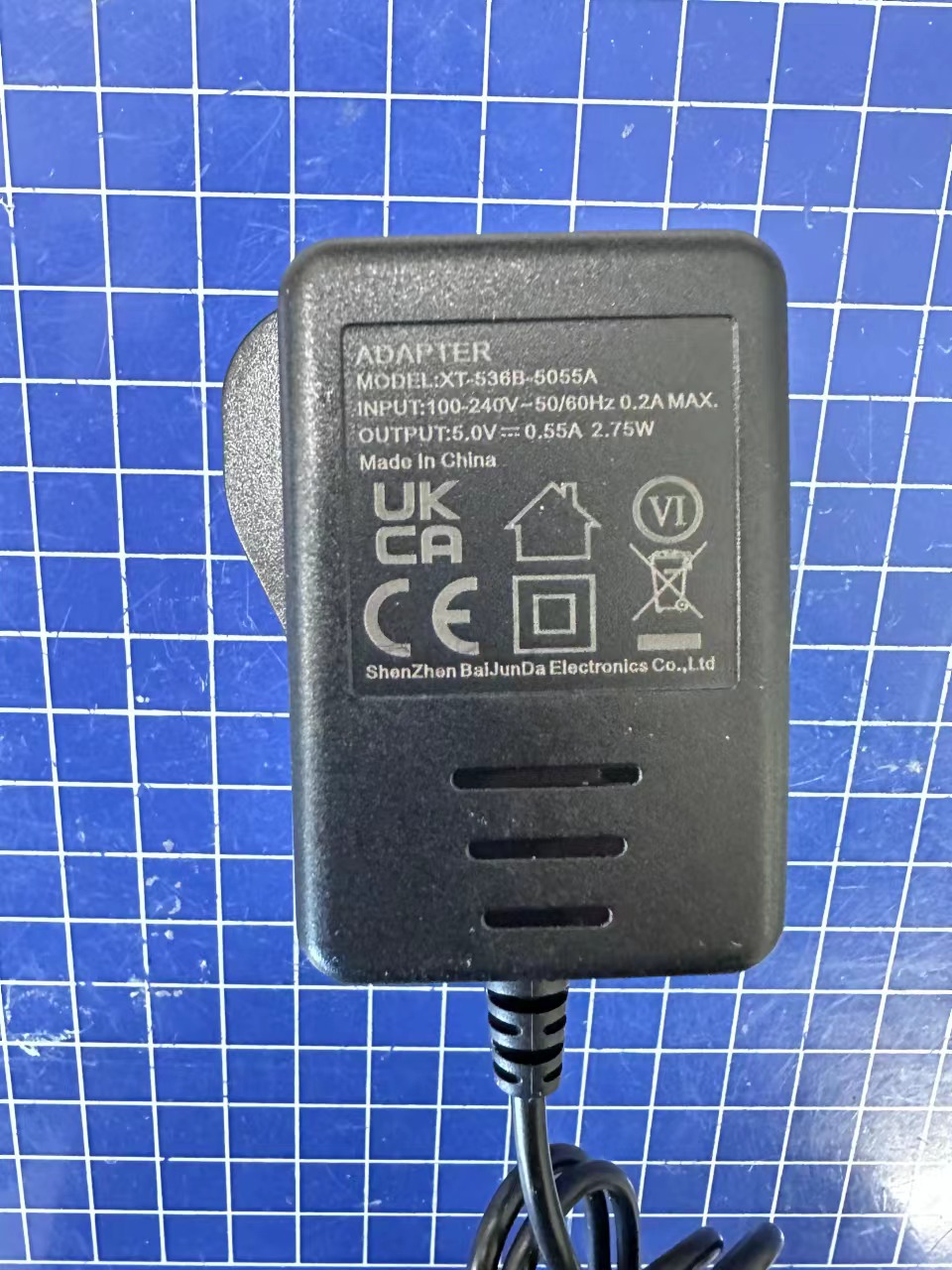

EUT photograph T301P TLi010CA TLi010CA TLi010CA TLi010CA XT-252E-5055 XT-252E-5055 XT-536B-5055A XT-536B-5055A JWEP0968-T01 CDA3122005C2

EUT photograph T301Q TLi010CA TLi010CA TLi010CA TLi010CA XT-252E-5055 XT-252E-5055 XT-536B-5055A XT-536B-5055A JWEP0968-T01 CDA3122005C2

EUT photograph T301P

EUT photograph T301Q

粤讯科技 Antenna Test Report 粤讯科技 1.Project brief introduction 2.Project team key responsible INFO. 3.RF test environment 4.Antenna circuit treatment and layout 5.Antenna active data: OTA 粤讯科技 CustomerSYMSONICProject Type1881 Project NamePHONEAntenna typestainless steel Antenna detail Main Antenna Band Antenna status Antenna area Antenna category Antenna match circuit change or not 2GGSM 850/1900NO Other antenna 粤讯科技 Sales Kent [email protected] RF Engineer Zhou Hao [email protected] Mechanical Engineer [email protected] 粤讯科技 Main test equipment CMW500 Antenna ChamberAtenlab M3 Test EngineerYi Wei Temp.25°C Humidity65%（RH） 粤讯科技 粤讯科技 As the figure shown, we can promote the power and sensitivity of the low frequency through adding the length of GND by the means of attaching conductive material from the top and bottom of PCBA. 粤讯科技 YoSong ANT TRP&TIS parameter Summary Band GSM850PCS1900 Channel 128192251512661810 TRP (dBm) 27.4327.8928.0525.3625.4325.6 TIS（dBm） -103.87-103.51 粤讯科技

©Copyright. All rights reserved by CTTL. TEST REPORT No. I22Z62236-EMC03 for TCL Communication Ltd. GSM mobile phone Model Name: T301P, T301Q FCC ID: 2ACCJB197 with Hardware Version: C685_MB_V1.0 Software Version: T301P_CE_V1.0_20221108/ T301Q_CE_V1.1_20221128 Issued Date: 2023-02-22 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S.Government. Test Laboratory: CTTL-Telecommunication Technology Labs, CAICT No. 52, Huayuan North Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2512, Fax:+86(0)10-62304633-2504 Email: [email protected], website: www.caict.ac.cn No.I23Z62236-EMC03 ©Copyright. All rights reserved by CTTL. Page 2 of 24 REPORT HISTORY Report Number Revision Description Issue Date I22Z62236-EMC03 Rev.0 1 st edition 2023-01-06 I22Z62236-EMC03 Rev.1 2 nd edition 2023-01-12 I22Z62236-EMC03 Rev.2 3 rd edition 2023-02-17 I22Z62236-EMC03 Rev.3 4 th edition 2023-02-22 Note: the latest revision of the test report supersedes all previous version. No.I23Z62236-EMC03 ©Copyright. All rights reserved by CTTL. Page 3 of 24 CONTENTS 1. TEST LABORATORY ............................................................................................................... 4 1.1. TESTING LOCATION ........................................................................................................... 4 1.2. TESTING ENVIRONMENT ................................................................................................... 4 1.3. PROJECT DATA ................................................................................................................... 4 1.4. SIGNATURE .......................................................................................................................... 4 2. CLIENT INFORMATION ........................................................................................................... 5 2.1. APPLICANT INFORMATION ................................................................................................ 5 2.2. MANUFACTURER INFORMATION ...................................................................................... 5 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 6 3.1. ABOUT EUT .......................................................................................................................... 6 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................... 6 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ...................................... 6 3.4. EUT SET-UPS ....................................................................................................................... 6 4. REFERENCE DOCUMENTS .................................................................................................... 7 4.1. REFERENCE DOCUMENTS FOR TESTING....................................................................... 7 5. LABORATORY ENVIRONMENT .............................................................................................. 8 6. SUMMARY OF TEST RESULTS .............................................................................................. 9 7. TEST EQUIPMENTS UTILIZED ............................................................................................. 10 ANNEX A: MEASUREMENT RESULTS ....................................................................................... 11 No.I23Z62236-EMC03 ©Copyright. All rights reserved by CTTL. Page 4 of 24 1. Test Laboratory 1.1. Testing Location CTTL (huayuan North Road) Address: No. 52, Huayuan North Road, Haidian District, Beijing, P. R. China 100191 1.2. Testing Environment Normal Temperature: 15-35ºC Relative Humidity: 20-75% 1.3. Project data Testing Start Date: 2022-12-04 Testing End Date: 2022-12-05 1.4. Signature Wang Xue (Prepared this test report) Zhang Ying (Reviewed this test report) Zhang Xia (Approved this test report) No.I23Z62236-EMC03 ©Copyright. All rights reserved by CTTL. Page 5 of 24 2. Client Information 2.1. Applicant Information Company Name: TCL Communication Ltd. Address /Post: 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong Contact: nianxiang.jiang Email: [email protected] Telephone: +86 755 36611621 Fax: +86 755 3661 2000-81722 2.2. Manufacturer Information Company Name: TCL Communication Ltd. Address /Post: 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong Contact: nianxiang.jiang Email: [email protected] Telephone: +86 755 36611621 Fax: +86 755 3661 2000-81722 No.I23Z62236-EMC03 ©Copyright. All rights reserved by CTTL. Page 6 of 24 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description GSM mobile phone Model Name T301P, T301Q FCC ID: 2ACCJB197 Note: Components list, please refer to documents of the manufacturer; it is also included in the original test record of CTTL, Telecommunication Technology Labs, CAICT. 3.2. Internal Identification of EUT used during the test EUT ID* SN or IMEI HW Version SW Version UT44a 358894697410706/ 358894697414708 C685_MB_V1.0 T301P_CE_V1.0_20221108 *EUT ID: is used to identify the test sample in the lab internally. 3.3. Internal Identification of AE used during the test AE1 Battery TLi010CA TMB AE2 Battery TLi010CB Guihang AE3 Charger1 XT-252A-5055 Baijunda AE4 Charger2 XT-536B-5055 Baijunda AE5 Charger3 XT-252E-5055 Baijunda AE6 Headset WH15 DALIN *AE ID: is used to identify the test sample in the lab internally. 3.4. EUT set-ups EUT set-up No. Combination of EUT and AE Remarks Set.1 EUT1 + AE1/2 + AE3 Charger1+REAR Camera+GSM 850 idle Set.2 EUT1 + AE1/2 + AE3 Charger1+MP3 Set.3 EUT1 + AE1/2 + AE6+ Cable USB No…
