2ACCJB205Tablet PC

User manual www.tcl.com/mx Quick Start Guide Printed in China XXX 1 2 Help • Update your device's software Go to Settings > System > System Update to check software updates. • Back up your personal data Go to Settings > System > Backup > Back up to Google Drive and turn it on. • Reset your device Go to Settings > System > Reset options > Erase all data (factory reset), and then touch to reset your Device. • Electronic labeling path Touch Settings > System > Regulatory & safety to find more information about labeling (1) , such as FCC ID. General Information • Manufacturer: TCL Communication Ltd. • Address: Av. Adolfo López Mateos Sur 4175, La Giralda, 45088 Zapopan, Jal. • Visit the TCL website at https://www.tcl.com/mx for tutorials and answers to frequently asked questions, and to download the User Manual. • To get support for your device, visit the TCL website (https://www.tcl.com/mx/es/service-support-mobile.html), or dial the number listed below: Argentina: 0810-999-1099 Canada: 18552244228 Chile: +56 22 958 96 94 Colombia: 18009520823 Costa Rica: 8000521692 Ecuador: 800000635 Guatemala: 18009995298 Honduras: 80027916102 Mexico: 8008909908 Paraguay: 98005210103 Peru: 080000698 Republic Dominican: 8887600164 Uruguay: 405296624 USA: 18552244228 Venezuela: 08001005368 WhatsApp: +52 1 3312418458 (1) This may vary depending on country. 3 Safety and use Please read this chapter carefully before using your device. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use or use contrary to the instructions contained herein. • Do not use your device when the vehicle is not safely parked. Using a hand-held device while driving is illegal in many countries. • Comply with restrictions on use specific to certain places (hospitals, planes, gas stations, schools, etc.). • Switch the device off before boarding an aircraft. • Switch the device off when you are in health care facilities, except in designated areas. • Switch the device off when you are near gas or flammable liquids. Strictly obey all signs and instructions posted in a fuel depot, petrol station, or chemical plant, or in any potentially explosive atmosphere when operate your device. • Turn off your mobile device or wireless device when in a blasting area or in areas posted with notifications requesting "two-way radios" or "electronic devices" are turned off to avoid interfering with blasting operations. Please consult your doctor and the device manufacturer to determine if operation of your device may interfere with the operation of your medical device. When the device is switched on, it should be kept at least 15 cm from any medical device such as a pacemaker, a hearing aid, or an insulin pump, etc. • Do not let children use the device and/or play with the device and accessories without supervision. • To reduce exposure to radio waves, it is recommended: - To use a hands-free kit; - Keep the device away from the belly of pregnant women or the lower abdomen of adolescents. • Do not allow your device to be exposed to adverse weather or environmental conditions (moisture, humidity, rain, infiltration of liquids, dust, sea air, etc.). The manufacturer’s recommended operating temperature range is 0°C (32°F) to 40°C (104°F). At over 40°C (104°F) the legibility of the device’s display may be impaired, though this is temporary and not serious. • Use only batteries, battery chargers, and accessories which are compatible with your device model. • Do not use a damaged device, such as a device with a cracked display or badly dented back cover, as it may cause injury or harm. • Do not keep device connected to charger with battery fully charged for a long period of time as it can cause overheating and shorten battery life. • Do not sleep with the device on your person or in your bed. Do not place the device under a blanket, pillow, or under your body, specially when connected to the charger, as this may cause the device to overheat. 4 PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. Battery: In accordance with air regulations, the battery of your product is not fully charged. Please charge it first. - Do not attempt to open the battery (due to the risk of toxic fumes and burns). - For a device with a non-removable battery, do not attempt to eject or replace the battery. - Do not puncture, disassemble, or cause a short circuit in a battery. - For a unibody device, do not attempt to open or puncture the back cover. - Do not burn or dispose of a used battery or device in household rubbish or store it at temperatures above 60°C (140°F), this can result in an explosion or the leakage of flammable liquid or gas. Similarly, subjecting the battery to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas. Only use the battery for the purpose for which it was designed and recommended. Never use damaged batteries. CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. Device, accessory and battery must be disposed of in accordance with locally applicable environmental regulations. This symbol on your device, the battery, and the accessories means that these products must be taken to collection points at the end of their life: • Municipal waste disposal centers with specific bins for these types of equipment; • Collection bins at points of sale. They will then be recycled, preventing substances being disposed of in the environment, so that their components can be reused. Chargers: Home A.C./ Travel chargers will operate within the temperature range of: 0°C (32°F) to 40°C (104°F). The chargers designed for your device meet the standard for safety of information technology equipment and office equipment use. Due to different applicable electrical specific…

Text truncated - open the document above for the full version.

021423-17 rev 4 Certification Application Attestation Statements Date: August 28, 2023 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: FCC ID: 2ACCJB205 Statement for 47 CFR section 2.911(d)(5)(i) _TCL Communication Ltd._ certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) __TCL Communication Ltd.__ (“the applicant”) certifies that, as of the date of the filing of this application, the applicant ☐ - is / ☑- is not identified on the Covered List as an entity producing “covered” equipment. Thank you, By: __________________________ _Annie Jiang__ (Signature 2 ) (Print name) Title: __Product Certification Manager_ Company: ____ TCL Communication Ltd._ Telephone: __+8675536611621_____ 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . 2 - Letters should be placed on appropriate letterhead.

TCT Mobile, Inc. 189 Technology Drive, Irvine, California USA 92618 TCT Mobile, Inc. 189 Technology Drive, Irvine, CA 92618 U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: TCT Mobile (US) Inc. Contact Name: Yao Dai Street Address: 189 Technology Drive City/Province/Zip: Irvine, CA 92618 Telephone No: 1-855-368-0829 Email: [email protected] FRN#: 0033429465 This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: Signed by (Printed Name/Title): The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. DocuSign Envelope ID: 988543A9-E4AE-4188-B1BF-74A6C860EF4B Technical Acceptance Manager June 2, 2023 Yao Dai TCT Mobile, Inc. 189 Technology Drive, Irvine, California USA 92618 TCT Mobile, Inc. 189 Technology Drive, Irvine, CA 92618 Applicant Company name: TCL Communication Ltd Grantee Code: 2ACCJ Contact Name: Annie Jiang Street Address: 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong City/Province/Zip: Hongkong Telephone No: +86 755 36611621 Applicant Signature 1 : Date: Signed by (Printed Name/Title): 1 - Letters should be placed on appropriate letterhead. DocuSign Envelope ID: 988543A9-E4AE-4188-B1BF-74A6C860EF4B Annie Jiang 2023年6月2日 Minister of R&D Platform Dept.

TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong Tel: 0086-755-36611722; Fax: 0086-755-36612000-81722 Statement We, TCL Communication Ltd., states that our device with FCC ID: 2ACCJB205 is a multi-band tablet which supports GSM 850/900/1800/1900, WCDMA B1/2/4/5/8, LTE B1/2/3/4/5/7/8/12/13/17/20/28/38/40/41/66, for cellular network. For connectivity functions, it is capable of 2.4 GHz Wi-Fi 11b, 11g, 11n-20M/11n-40M, 5GHz Wi-Fi 11a/11n-HT20/11n-HT40, 11ac-HT20/11ac-HT40/11ac-HT80 However, LTE band 40 is not available in US market and Canada market, and will be disabled by software. Contact Person: Annie Jiang E-mail: [email protected]

TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong Declaration of Frequency Stability We [TCL Communication Ltd.] ensure that the product [2ACCJB205] meets e-CFR Title 47 section 15.407(g) and KDB 789033 D02v02r01 frequency stability such that the emissions are maintained within the band of operation under all conditions of normal operation as specified in the user's manual. Sincerely Yours, Print Name: Annie Jiang Title: Product Certification Manager Company Name: TCL Communication Ltd. Tel: +86 755 3661 1621 Email: [email protected]

TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong Tel: +86 755 3664 5759 Fax: +86 755 3661 2000-81722 http://tclcom.tcl.com 2023-08-28 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: 2ACCJB205 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Annie Jiang Product Certification Manager TCL Communication Ltd.

TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong Tel: +86 755 3664 5759 Fax: +86 755 3661 2000-81722 http://tclcom.tcl.com 2023-08-28 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: SHORT-TERM Confidentiality request for FCC ID: 2ACCJB205 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days: - External Photos - Internal Photos - Test Setup Photos - User manual The applicant also acknowledges that they will also provide appropriate notice to ACB should either of the following occur: a) if the applicant requires additional 45 days extension periods they will notify ACB with a new request letter at least 7 days prior to the short-term confidentiality expiration date – [Note: up to a maximum of 3 extensions only are allowed], or b) Immediately notify ACB in the event the information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Yours Sincerely, Annie Jiang Product Certification Manager TCL Communication Ltd.

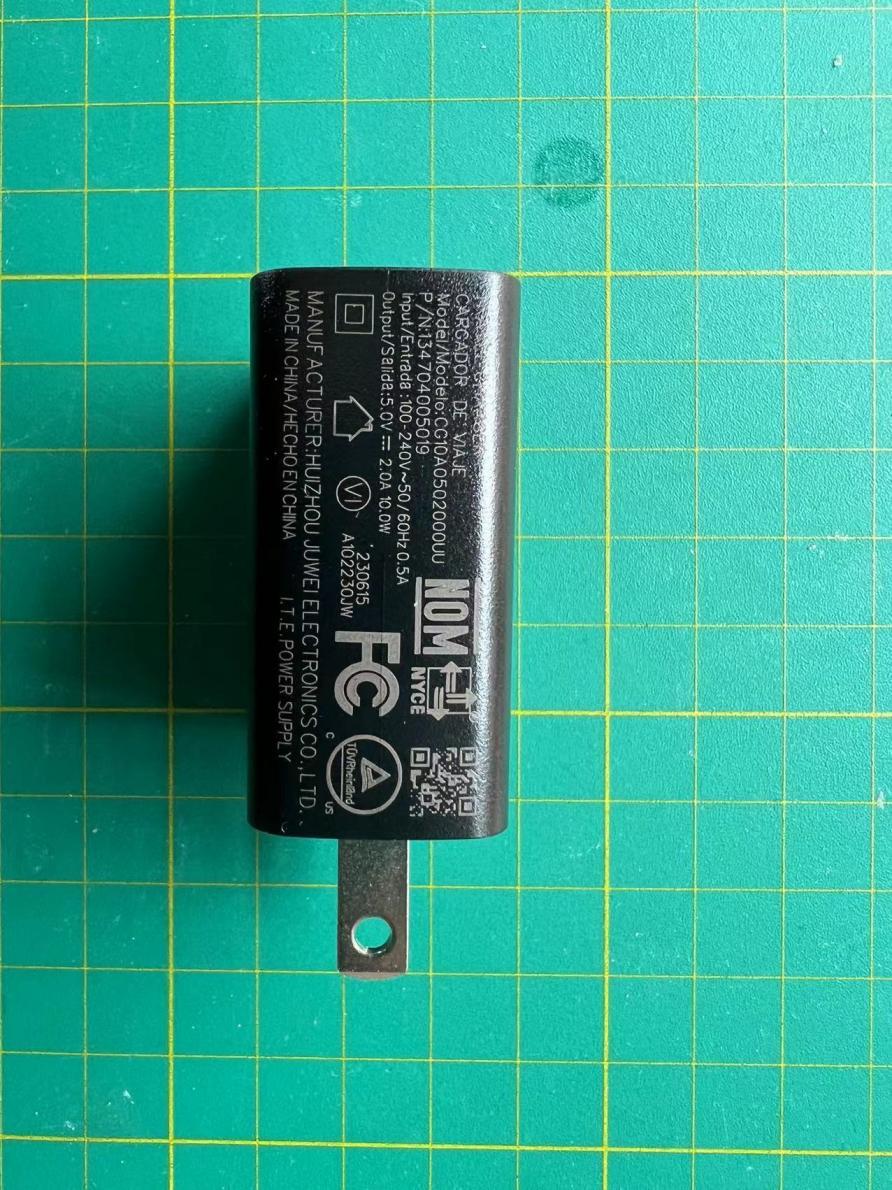

8192A DataCable ： JWUB1591-J51R Charger:CG10A0502000UU Charger:CG10A0502000EU Battery：2853B7PL-2P

Label area 50X40mm Freyr_label area_2D_20230625 1 3 . 4 m m 95.6 mm

8192AInternalphotos

ANNEX of No. I23Z61433-SEM01 For TCL Communication Ltd. Tablet PC Model Name: 8192A with Hardware Version: 05 Software Version: KY14 FCC ID: 2ACCJB205 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S.Government. Test Laboratory: CTTL, Telecommunication Technology Labs, CAICT No. 52, Huayuan North Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2512, Fax:+86(0)10-62304633-2504 Email: [email protected], website: www.caict.ac.cn ANNEX A Graph Results GSM 850 Body Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Duty Cycle Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, HSL BACK, 0.00 GSM 850 1:4 824.200, 128 10.31 0.906 42.31 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 2114 HBBL-600-10000 EX3DV4 - SN7727, 2023-06-05 DAE4 Sn1745, 2022-08-31 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 120.0 x 210.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 15.0 x 15.0 3.5 x 3.5 x 1.4 Sensor Surface [mm] 3.0 1.4 Graded Grid N/A Yes Grading Ratio N/A 1.4 MAIA N/A N/A Surface Detection VMS + 6p VMS + 6p Scan Method Measured Measured Measurement Results Area Scan Zoom Scan Date 2023-08-07 2023-08-07 psSAR1g [W/kg] 0.306 0.474 psSAR10g [W/kg] 0.197 0.191 Power Drift [dB] -0.09 -0.14 Power Scaling Disabled Disabled Scaling Factor [dB] TSL Correction No correction No correction M2/M1 [%] 44.0 Dist 3dB Peak [mm] 3.6 . GSM 1900 Body Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Duty Cycle Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, HSL BACK, 0.00 PCS 1900 1:1 1880.000, 661 8.47 1.417 39.432 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 2114 HBBL-600-10000 EX3DV4 - SN7727, 2023-06-05 DAE4 Sn1745, 2022-08-31 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 120.0 x 210.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 15.0 x 15.0 4.3 x 4.3 x 1.4 Sensor Surface [mm] 3.0 1.4 Graded Grid N/A Yes Grading Ratio N/A 1.4 MAIA N/A N/A Surface Detection VMS + 6p VMS + 6p Scan Method Measured Measured Measurement Results Area Scan Zoom Scan Date 2023-08-09 2023-08-09 psSAR1g [W/kg] 0.460 0.462 psSAR10g [W/kg] 0.260 0.226 Power Drift [dB] 0.02 -0.01 Power Scaling Disabled Disabled Scaling Factor [dB] TSL Correction No correction No correction M2/M1 [%] 63.7 Dist 3dB Peak [mm] 4.7 . WCDMA B2 Body Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Duty Cycle Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, HSL BACK, 0.00 Band 2 1:1 1907.600, 9538 8.47 1.398 39.319 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 2114 HBBL-600-10000 EX3DV4 - SN7727, 2023-06-05 DAE4 Sn1745, 2022-08-31 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 120.0 x 210.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 15.0 x 15.0 2.6 x 2.6 x 1.2 Sensor Surface [mm] 3.0 1.4 Graded Grid N/A Yes Grading Ratio N/A 1.2 MAIA N/A N/A Surface Detection VMS + 6p VMS + 6p Scan Method Measured Measured Measurement Results Area Scan Zoom Scan Date 2023-08-12 2023-08-21 psSAR1g [W/kg] 0.555 0.481 psSAR10g [W/kg] 0.289 0.225 Power Drift [dB] -0.17 -0.14 Power Scaling Disabled Disabled Scaling Factor [dB] TSL Correction No correction No correction M2/M1 [%] 63.7 Dist 3dB Peak [mm] 4.5 . WCDMA B4 Body Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Duty Cycle Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, HSL BACK, 0.00 Band 4 1:1 1712.400, 1312 8.65 1.309 39.506 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 2114 HBBL-600-10000 EX3DV4 - SN7727, 2023-06-05 DAE4 Sn1745, 2022-08-31 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 120.0 x 210.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 15.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Graded Grid N/A Yes Grading Ratio N/A 1.5 MAIA N/A N/A Surface Detection VMS + 6p VMS + 6p Scan Method Measured Measured Measurement Results Area Scan Zoom Scan Date 2023-08-09 2023-08-09 psSAR1g [W/kg] 0.449 0.482 psSAR10g [W/kg] 0.260 0.244 Power Drift [dB] -0.11 -0.08 Power Scaling Disabled Disabled Scaling Factor [dB] TSL Correction No correction No correction M2/M1 [%] 58.4 Dist 3dB Peak [mm] 4.8 . WCDMA B5 Body Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Duty Cycle Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, HSL BACK, 0.00 Band 5 1:1 836.600, 4183 10.31 0.911 42.31 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 2114 HBBL-600-10000 EX3DV4 - SN7727, 2023-06-05 DAE4 Sn1745, 2022-08-31 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 120.0 x 210.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 15.0 x 15.0 2.9 x 2.9 x 1.2 Sensor Surface [mm] 3.0 1.4 Graded Grid N/A Yes Grading Ratio N/A 1.2 MAIA N/A N/A Surface Detection VMS + 6p VMS + 6p Scan Method Measured Measured Measurement Results Area Scan Zoom Scan Date 2023-08-07 2023-08-07 psSAR1g [W/kg] 0.405 0.469 psSAR10g [W/kg] 0.237 0.188 Power Drift [dB] -0.12 0.06 Power Scaling Disabled Disabled Scaling Factor [dB] TSL Correction No correction No correction M2/M1 [%] 49.7 Dist 3dB Peak [mm] 4.1 . LTE B2 Body Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Duty Cycle Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivi…

Text truncated - open the document above for the full version.

ANNEX H Dipole Calibration Certificate 750 MHz Dipole Calibration Certificate 835 MHz Dipole Calibration Certificate

1800 MHz Dipole Calibration Certificate 1900 MHz Dipole Calibration Certificate 2450 MHz Dipole Calibration Certificate

2550 MHz Dipole Calibration Certificate 5 GHz Dipole Calibration Certificate ANNEX I Sensor Triggering Data Summary SAR sensor trigger Distance definition ANT P-Sensor Detect Near Far Main Antenna Front <=12mm >12mm Left <=12mm >12mm Top <=12mm >12mm Rear <=18mm >18mm ANT P-Sensor Detect Near Far WIFI ANT Rear <=0mm >0mm Left <=6mm >6mm front <=6mm >6mm Per FCC KDB Publication 616217 D04v01r02, this device was tested by the manufacturer to determine the proximity sensor triggering distances for some positions. The measured output power within ±5mm of the triggering points (or until touching the phantom) is included for front, rear and each applicable edge. To ensure all production units are compliant it is necessary to test SAR at a distance 1mm less than the smallest distance from the device and SAR phantom (determined from these triggering tests according to the KDB 616217 D04v01r02) with the device at maximum output power without power reduction. These SAR tests are included in addition to the SAR tests for the device touching the SAR phantom, with reduced power. MAIN Ant： Front Moving device toward the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 17 16 15 14 13 12 11 10 9 8 7 Main antenna Far Far Far Far Far Near Near Near Near Near Near Moving device away from the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 7 8 9 10 11 12 13 14 15 16 17 Main antenna Near Near Near Near Near Near Far Far Far Far Far Rear Moving device toward the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 23 22 21 20 19 18 17 16 15 14 13 Main antenna Far Far Far Far Far Near Near Near Near Near Near Moving device away from the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 13 14 15 16 17 18 19 20 21 22 23 Main antenna Near Near Near Near Near Near Far Far Far Far Far Top Edge Moving device toward the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 17 16 15 14 13 12 11 10 9 8 7 Main antenna Far Far Far Far Far Near Near Near Near Near Near Moving device away from the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 7 8 9 10 11 12 13 14 15 16 17 Main antenna Near Near Near Near Near Near Far Far Far Far Far Left Edge Moving device toward the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 17 16 15 14 13 12 11 10 9 8 7 Main antenna Far Far Far Far Far Near Near Near Near Near Near Moving device away from the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 7 8 9 10 11 12 13 14 15 16 17 Main antenna Near Near Near Near Near Near Far Far Far Far Far WIFI Ant： Front Edge Moving device toward the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 11 10 9 8 7 6 5 4 3 2 1 Main antenna Far Far Far Far Far Near Near Near Near Near Near Moving device away from the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 1 2 3 4 5 6 17 18 19 20 21 Main antenna Near Near Near Near Near Near Far Far Far Far Far Left Edge Moving device toward the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 11 10 9 8 7 6 5 4 3 2 1 Main antenna Far Far Far Far Far Near Near Near Near Near Near Moving device away from the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 1 2 3 4 5 6 17 18 19 20 21 Main antenna Near Near Near Near Near Near Far Far Far Far Far Main Ant: Rear Moving device toward the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 23 22 21 20 19 18 17 16 15 14 13 Main antenna Far Far Far Far Far Near Near Near Near Near Near Moving device away from the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 13 14 15 16 17 18 19 20 21 22 23 Main antenna Near Near Near Near Near Near Far Far Far Far Far Right Edge Moving device toward the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 23 22 21 20 19 18 17 16 15 14 13 Main antenna Far Far Far Far Far Near Near Near Near Near Near Moving device away from the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 13 14 15 16 17 18 19 20 21 22 23 Main antenna Near Near Near Near Near Near Far Far Far Far Far Bottom Edge Moving device toward the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 20 19 18 17 16 15 14 13 12 11 10 Main antenna Far Far Far Far Far Near Near Near Near Near Near Moving device away from the phantom: sensor near or far(KDB 616217 6.2.6) Distance [mm] 10 11 12 13 14 15 16 17 18 19 20 Main antenna Near Near Near Near Near Near Far Far Far Far Far Per FCC KDB Publication 616217 D04v01r02, the influence of table tilt angles to proximity sensor triggering is determined by positioning each edge that contains a transmitting antenna, perpendicular to the flat phantom, at the smallest sensor triggering test distance by rotating the device around the edge next to the phantom in ≤ 10° increments until the tablet is ±45° or more from the vertical position at 0°. The front/rear evaluation The top edge evaluation The Left edge evaluation Based on the above evaluation, we come to the conclusion that the sensor triggering is not released and normal maximum output power is not restored within the ±45°range at the smallest sensor triggering test distance declared by manufacturer. ANNEX J Accreditation Certificate

No.I23Z61433-SEM01 ©Copyright. All rights reserved by CTTL. Page 1 of 130 SAR TEST REPORT No. I23Z61433-SEM01 For TCL Communication Ltd. Tablet PC Model Name: 8192A with Hardware Version: 05 Software Version: KY14 FCC ID: 2ACCJB205 Issued Date: 2023-9-1 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S.Government. Test Laboratory: CTTL, Telecommunication Technology Labs, CAICT No. 52, Huayuan North Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2512, Fax:+86(0)10-62304633-2504 Email: [email protected], website: www.caict.ac.cn No.I23Z61433-SEM01 ©Copyright. All rights reserved by CTTL. Page 2 of 130 REPORT HISTORY Report Number Revision Issue Date Description I23Z61433-SEM01 Rev.0 2023-8-30 Initial creation of test report I23Z61433-SEM01 Rev.1 2023-9-1 1. Revise the tune up power for WIFI5G 802.11n on page80. No.I23Z61433-SEM01 ©Copyright. All rights reserved by CTTL. Page 3 of 130 TABLE OF CONTENT 1 TEST LABORATORY ................................................................................................................. 5 1.1 INTRODUCTION & ACCREDITATION ................................................................................................................ 5 1.2 TESTING LOCATION ........................................................................................................................................ 5 1.3 TESTING ENVIRONMENT ................................................................................................................................. 6 1.4 PROJECT DATA ............................................................................................................................................... 6 1.5 SIGNATURE ..................................................................................................................................................... 6 2 STATEMENT OF COMPLIANCE ................................................................................................ 7 3 CLIENT INFORMATION.............................................................................................................. 9 3.1 APPLICANT INFORMATION .............................................................................................................................. 9 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 9 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) .............................. 10 4.1 ABOUT EUT ................................................................................................................................................. 10 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ........................................................................ 11 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST .......................................................................... 11 5 TEST METHODOLOGY ............................................................................................................ 12 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 12 5.2 APPLICABLE MEASUREMENT STANDARDS ................................................................................................... 12 6 SPECIFIC ABSORPTION RATE (SAR) .................................................................................... 13 6.1 INTRODUCTION ............................................................................................................................................. 13 6.2 SAR DEFINITION .......................................................................................................................................... 13 7 TISSUE SIMULATING LIQUIDS ............................................................................................... 14 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 14 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 14 8 SYSTEM VERIFICATION .......................................................................................................... 16 8.1 SYSTEM SETUP ............................................................................................................................................. 16 8.2 SYSTEM VERIFICATION ......................................…
