2ACCJBT18Tablet PC

1 QUICK START GUIDE User Manual and FAQ are available online 9013A https://www.alcatelmobile.com/ CJB1SB1ALAAA CJB1SB1ALAAA 2 Rear Camera Volume up/down Power key Front camera 3 Fully charge your device for the first time use. Open the slot and insert the SIM & SD cards. 4 1 Home screen You can move frequently used items (applications, shortcuts, folders and widgets) to your Home screen for quick access. Touch the Home key to switch to the Home screen. Status bar • Status/Notification indicators • Touch and drag down to open the notification panel. Touch an icon to open an application, folder, etc. Favourites tray applications • Touch to enter the application. • Long press to move or change applications. Search bar • Touch Google search bar  to enter text search screen. • Touch microphone icon  to enter voice search screen. The Home screen is provided in an extended format to allow more space for adding application icons, shortcuts etc. Slide the Home screen horizontally left and right to get additional view. 1.1 Status bar In the status bar, you can see the notifications on the left side and the connection service status on the right side. Swipe downward from the Status bar to access the Notification panel or the Quick Settings panel. To close the panel, touch and drag upward. Touch to clear all event- based notifications. On-going notifications will remain on the panel. 5 Notification panel When there are notifications, you can touch them to view more information. Quick settings panel Swipe down from the status bar twice to open the Quick settings panel. Then enable or disable functions or change modes by touching the icons. Touch to edit shortcut list. Touch to access phone settings, where you can make changes to more functions. 6 2 Phone call 2.1 Placing a call You can easily place a call using the Phone application. Touch the Phone icon on your Favourites Tray. Call screen Enter the desired number from the dial pad directly and touch to place the call or select a contact from Favorites or Contacts by touching tabs, then make the call Touch to display dial pad. Contacts Recents Favorites Dial pad Enter the desired number from the dial pad and touch the Call icon to place the call. If you make a mistake, you can delete the incorrect digits by touching the Delete button . Display the suggested numbers. Long press to access voicemail. 7 Answering or rejecting a call When you receive a call: Slide up the icon to answer; Slide down the icon to to reject; Touch to reject the call by sending a preset message. To mute the ringtone volume of an incoming call, press the Volume Up/Down key Call history You can access your call history by touching the Recents tab from the Call screen to view missed calls, outgoing calls, and incoming calls. 3 Contacts Contacts are stored in your phone with the Contacts app. It allows you to add, delete, or edit your contacts. You can also import or export your contacts from different locations such as a SIM card, an external storage, your Gmail or other email account. 3.1 Adding a contact Open the Contacts app from applications list, then touch the Plus button on the bottom right of the screen to add a new contact. 8 3.2 Synchronising contacts in multiple accounts Contacts, data or other information can be synchronized from multiple accounts, depending on the applications installed on your tablet. 4 Messaging This tablet comes with a pre-installed Messaging app that allows you to send and receive SMS (Short Message Service) or MMS (Multimedia Messaging Service) with your wireless service provider. To open your Messaging app, go to the Home screen and touch the Messaging icon in the Favourites tray or from the application list. To check messages stored in your SIM card, touch the button from the Messaging screen, then touch Settings > Advanced > SIM card messages. 4.1 Write message On the Messaging app screen, touch the new message in the bottom right of the screen to begin. Touch to create a new message. • Touch to see the whole message thread. • Touch and hold to activate delete mode. Sending a text message Enter the mobile phone number of the recipient in the "To" bar and touch the Text message bar to enter the text of the message. Touch to attach a picture, video, audio, or insert emoticons. When finished, touch the Send button to send the text message. 9 An SMS of more than 160 characters will be charged as several SMS. although the recipient only receive one SMS. Specific letters (accent) will also increase the size of the SMS. Sending a multimedia message MMS enables you to send video clips, images, photos, animations, slides, and sounds to other compatible phones and email addresses. An SMS will be converted to MMS automatically when media files (image, video, audio, slides, etc.) are attached. 5 Gmail Gmail is a Google web-based email service. When you first set up your tablet, it is automatically synchronized with your Gmail account. With this app, you can receive and send email, manage your email, and archive your email, etc. To open Gmail From the Home screen, touch the Gmail icon in the Google folder. Gmail displays messages and conversations from one single Gmail account at a time. If you own more than one account, you can add an account by touching the Menu button , then touch Setting > Add account. When finished, you can switch to another account by touching the name of the account you want to view. To create and send emails 1 Touch the Edit button from the Inbox screen. 2 Enter the recipient(s)’s email address in "To" field. 3 To add Copy or Blind copy, touch the down arrow button and enter the email address in the Cc or Bcc line. 4 Enter the subject and the content of the message. 5 Touch the Attach button icon and select Attach file to add an attachment. 6 Finally, touch the Send button to send. 7 If you do not want to send the email out right away, you can touch the Menu overflow button and then touch Save draft. To view the draft later, tou…

Text truncated - open the document above for the full version.

Safety and Precautions This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found on Radio waves section. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 0 mm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your phone near your ear while the loudspeaker is in use. www.sar-tick.com Printed in China CQF1SB1ALAAB 1 Safety and use ������������������������������� We recommend that you read this chapter carefully before using your phone. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use or use contrary to the instructions contained herein. TRAFFIC SAFETY: Given that studies show that using a phone while driving a vehicle constitutes a real risk, even when the hands-free kit is used (car kit, headset...), drivers are requested to refrain from using their phone when the vehicle is not parked. Check the laws and regulations on the use of wireless phones and their accessories in the areas where you drive. Always obey them. The use of these devices may be prohibited or restricted in certain areas. CONDITIONS OF USE: • You are advised to switch off the phone from time to time to optimize its performance; • Remember to abide by local authority rules of mobile phone use on aircrafts; • If your phone is a unibody device, where the back cover and battery are not removable, dissembling the phone will void your warranty. Disassembling the phone can cause bodily injury if the battery is punctured; • Always handle your phone with care and keep it in a clean and dust-free place; • Do not allow your phone to be exposed to adverse weather or environmental conditions, such as moisture, humidity, rain, infiltration of liquids, dust, sea air, etc. The manufacturer’s recommended operating temperature range is 0°C (32°F) to +40°C (104°F). At over 40°C (104°F), the legibility of the phone’s display may be impaired, though this is temporary and not serious; • Do not open, dismantle, or attempt to repair your phone yourself; • Do not drop, throw, or bend your phone; • Use only batteries, battery chargers, and accessories which are recommended by TCL Communication Ltd. and its affiliates and are compatible with your phone model. TCL Communication Ltd. and its affiliates disclaim any liability for damage caused by the use of other chargers or batteries; • Your phone should not be disposed of in a municipal waste. Please check local regulations for disposal of electronic products; • Remember to make backup copies or keep a written record of all important information stored on your phone; 2 • Some people may suffer epileptic seizures or blackouts when exposed to flashing lights, or when playing video games. These seizures or blackouts may occur even if a person never had a previous seizure or blackout. If you have experienced seizures or blackouts, or if you have a family history of such occurrences, please consult your doctor before playing video games on your phone or enabling a flashing-lights feature on your phone; • Parents should monitor their children’s use of video games or other features that incorporate flashing lights on the phones. All persons should discontinue use and consult a doctor if any of the following symptoms occur: convulsion, eye or muscle twitching, loss of awareness, orientation, or movements. PRIVACY: Please note that you must respect the laws and regulations in force in your jurisdiction or other jurisdiction(s) where you will use your phone regarding taking photographs and recording sounds with your phone. Pursuant to such laws and regulations, it may be strictly forbidden to take photographs and/or to record the voices of other people or any of their personal attributes, and reproduce or distribute them, as this may be considered to be an invasion of privacy. It is the user's sole responsibility to ensure that prior authorization has been obtained, if necessary, in order to record private or confidential conversations or take a photograph of another person; the manufacturer, the seller or vendor of your phone (including the carrier) disclaim any liability which may result from improper use of the phone. BATTERY: For a non-unibody device: Observe the following precautions: • Do not attempt to open the battery (due to the risk of toxic fumes and burns); • Do not puncture, disassemble, or cause a short circuit in a battery; • Do not burn or dispose of a used battery in household rubbish or store it at temperatures above 60°C (140°F). Batteries must be disposed of in accordance with locally applicable environmental regulations. Only use the battery for the purpose for which it was designed. Never use damaged batteries or those not recommended by TCL Communication Ltd. and/or its affiliates. For a non-unibody device with a non-removable battery: Observe the following precautions: • Do not attempt to eject, replace or open the battery; • Do not puncture, disassemble, or cause a short circuit in the battery; • Do not burn or dispose of your phone in household rubbish or store it at temperature above 60°C (140°F). Phone and battery must be disposed of in accordance with locally applicable environmental regulations. For a unibody device: Observe the following precautions: • Do not attempt to open the back cover; 3 • Do not attempt to eject, replace, or open battery; • Do not puncture the back cover of your phone; • Do not burn or dispose of your phone in household rubbish or store it at temperature above 60°C (140°F); Phone and battery as a unibody device must be disposed of in accordance with locally applicable environmental regulations. This symbol on your phone…

Text truncated - open the document above for the full version.

TCLCommunicationLtd.SciencePark,HongKong,China Tel:0086-755-36611722 Email:[email protected]:0086-755-36612000-81722 V1.0 AttestationLetter Date:July7,2020 FederalCommunicationsCommissionAuthorizationandEvaluationDivision FCCID:2ACCJBT18 We,TCLCommunicationLtd.,declarethatthedevicedoesnotsupportchannel 12~13in2.4GHzbandandanynon-USchannelsinalltheoperationalmode(s) forthefollowingproduct. Product:TabletPC Model:9013A FCCID:2ACCJBT18 Ifyoushouldhaveanyquestion(s)regardingthisdeclaration,pleasedon’t hesitatetocontactus.Thankyou! Sincerely, __________________ Name:GongZhizhou Position:Manager TCLCommunicationLtd.

TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Tel: +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com Date 2020-09-04 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: CTTL-Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Zhizhou GONG Product Certification Manager TCL Communication Ltd. TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Tel: +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com 2020-09-05 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: 2ACCJBT18 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou GONG Product Certification Manager TCL Communication Ltd. TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Tel: +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com 2020-09-05 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: SHORT-TERM Confidentiality request for FCC ID: 2ACCJBT18 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days: - External Photos - Internal Photos - Test Setup Photos - User manual The applicant also acknowledges that they will also provide appropriate notice to ACB should either of the following occur: a) if the applicant requires additional 45 days extension periods they will notify ACB with a new request letter at least 7 days prior to the short-term confidentiality expiration date – [Note: up to a maximum of 3 extensions only are allowed], or b) Immediately notify ACB in the event the information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Yours Sincerely, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

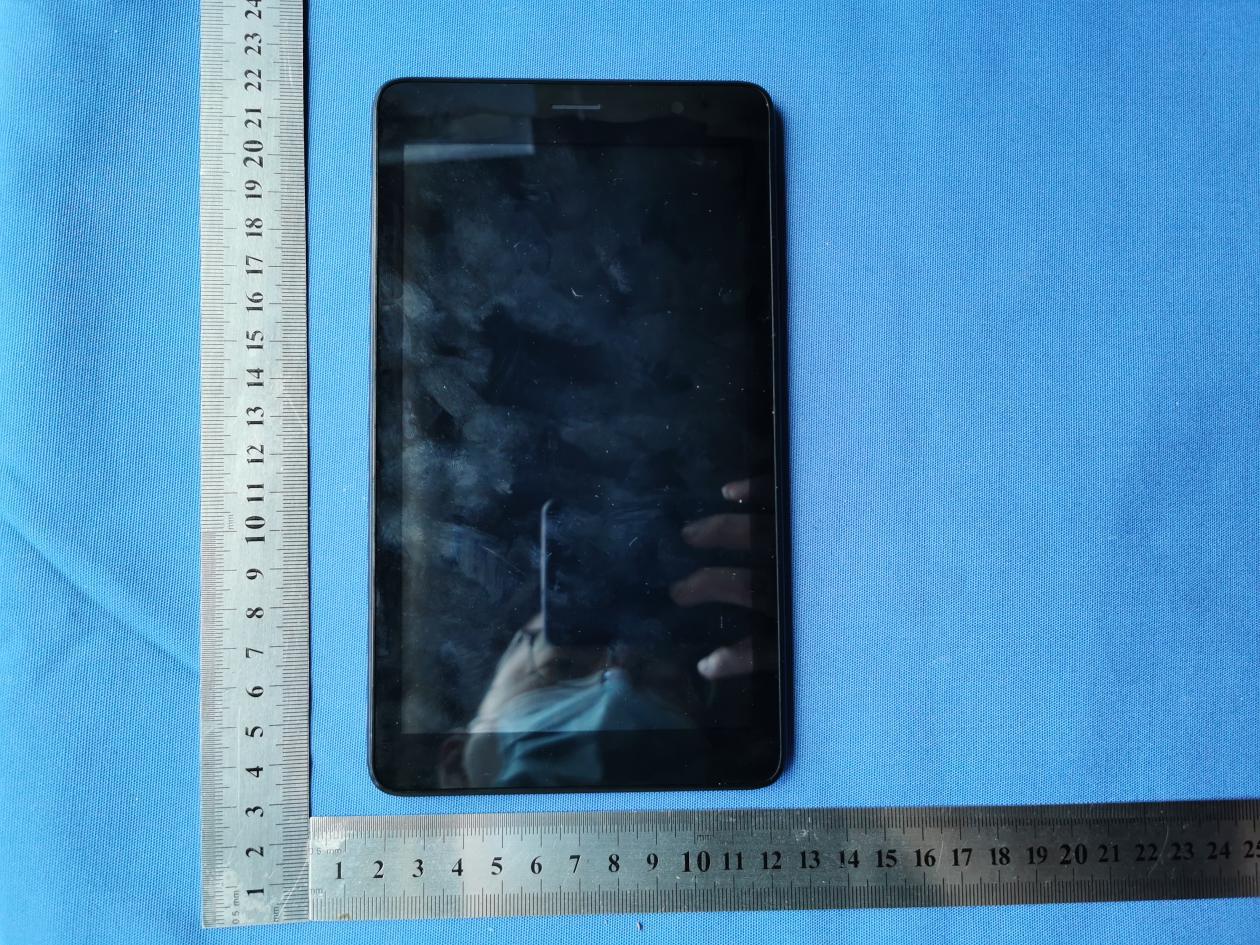

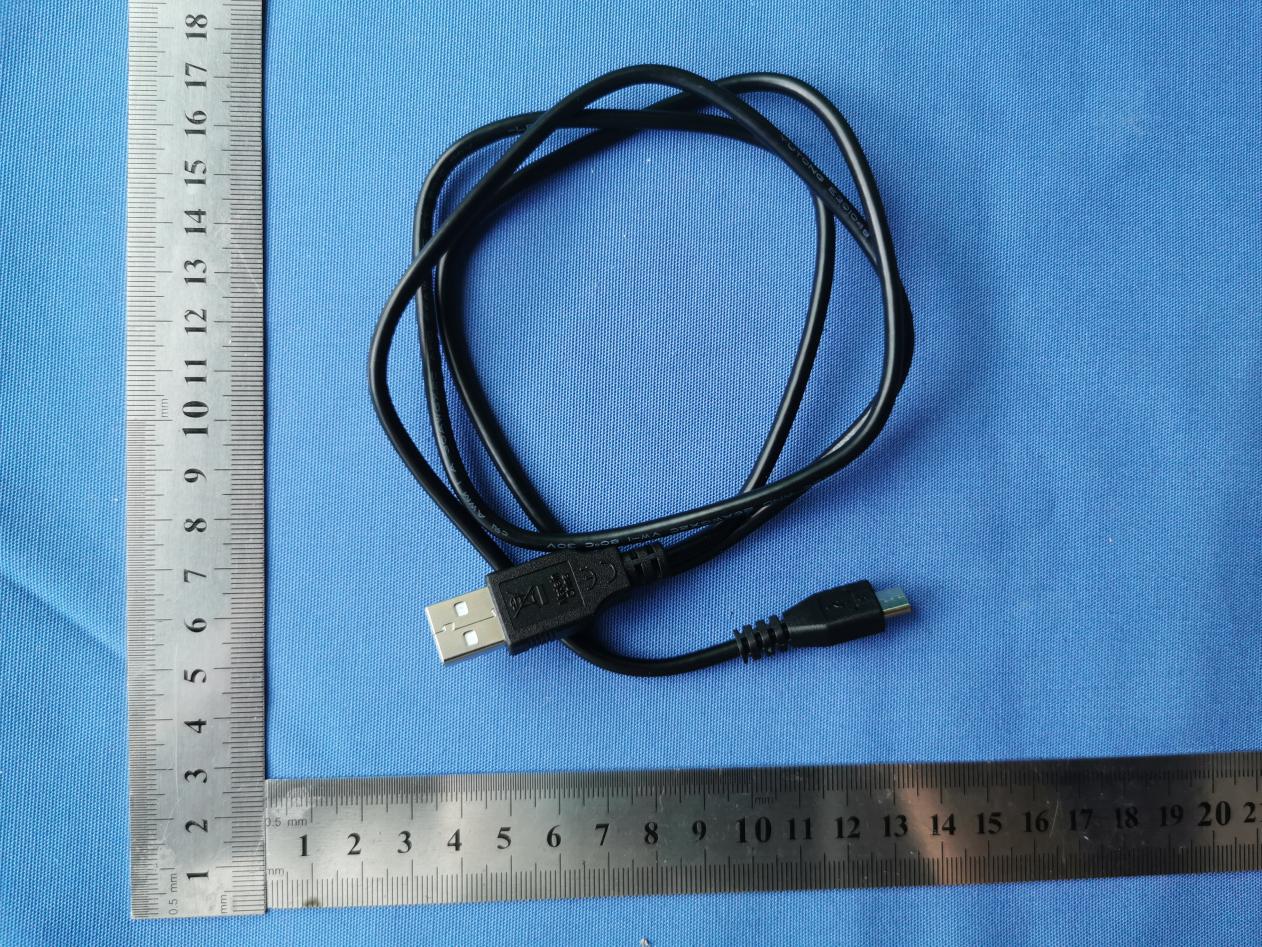

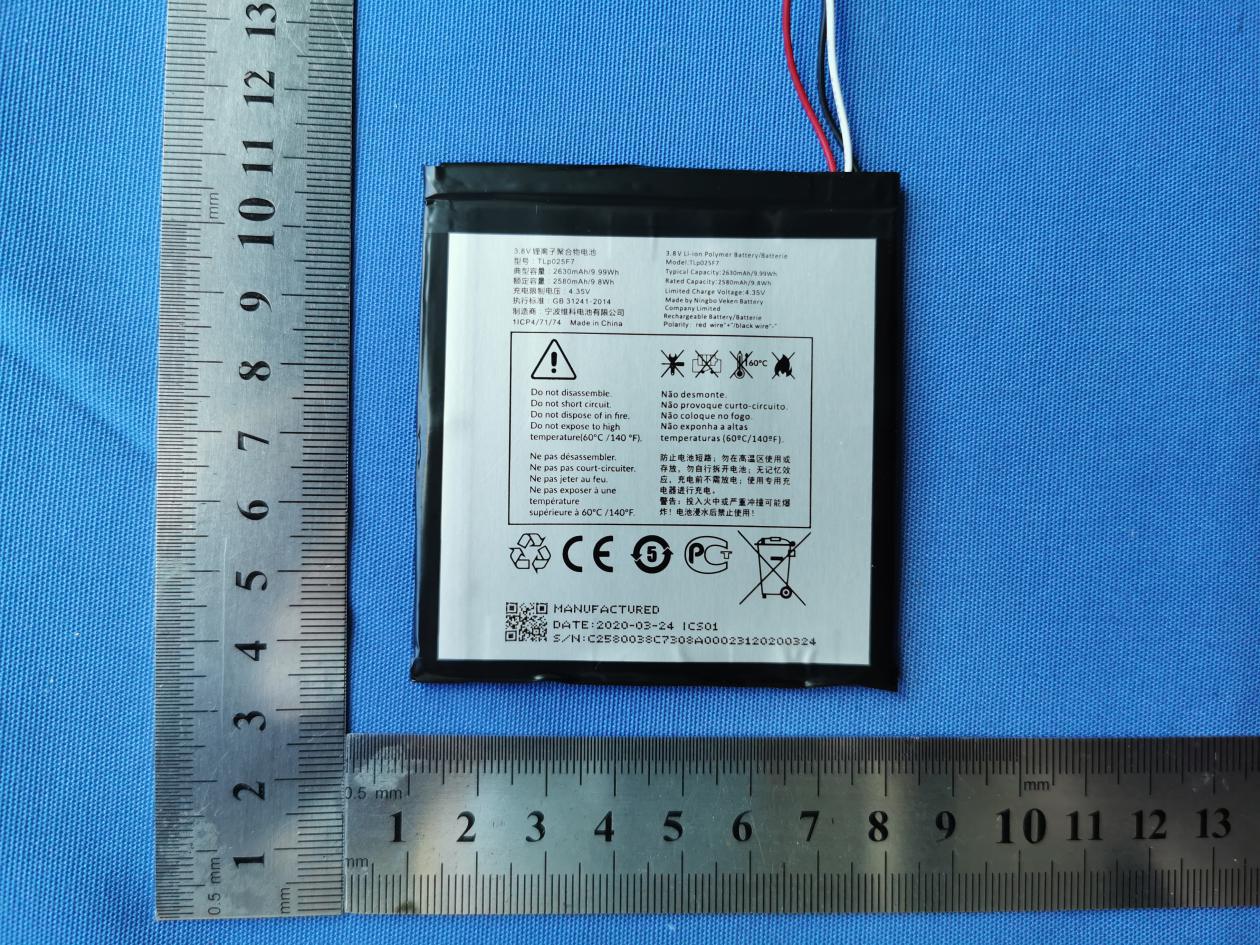

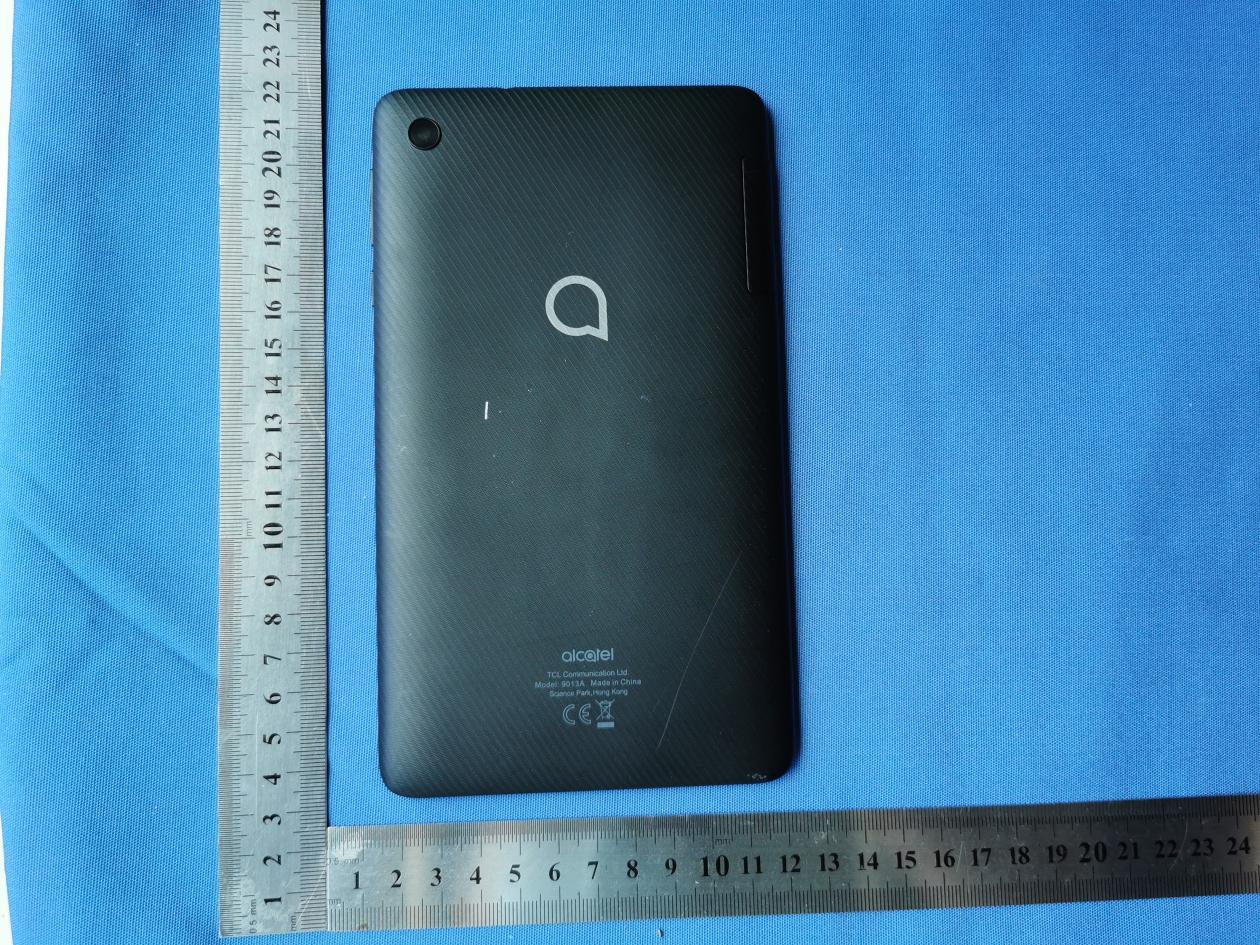

Front Back Bottom Side1 Top Side2 Charger1-1 Charger1-2 Charger2-1 Charger2-2 DataCable1 DataCable2 Battery

Label Labellocation

TEST REPORT No.I20N01092-SAR For TCL Communication Ltd. Tablet PC Model Name: 9013A With Hardware Version: PIO Software Version: 1F12 FCC ID: 2ACCJBT18 Issued Date: 2020-06-09 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of SAICT. Test Laboratory: SAICT, Shenzhen Academy of Information and Communications Technology Building G, Shenzhen International Innovation Center, No.1006 Shennan Road, Futian District, Shenzhen, Guangdong, P. R. China 518026. Tel: +86(0)755-33322000, Fax: +86(0)755-33322001 Email: [email protected], www.saict.ac.cn No. I20N01092-SAR ©Copyright. All rights reserved by SAICT Page 2 of 213 REPORT HISTORY Report Number Revision Description Issue Date I20N01092-SAR Rev.0 1st edition 2020-06-09 No. I20N01092-SAR ©Copyright. All rights reserved by SAICT Page 3 of 213 TCONTENTS 1. SUMMARY OF TEST REPORT ................................................................................................... 5 1.1. TEST ITEMS .................................................................................................................................... 5 1.2. TEST STANDARDS ........................................................................................................................... 5 1.3. TEST RESULT .................................................................................................................................. 5 1.4. TESTING LOCATION ......................................................................................................................... 5 1.5. PROJECT DATA ............................................................................................................................... 5 1.6. SIGNATURE ..................................................................................................................................... 5 2. STATEMENT OF COMPLIANCE ................................................................................................. 6 3. CLIENT INFORMATION ............................................................................................................... 8 3.1. APPLICANT INFORMATION ................................................................................................................. 8 3.2. MANUFACTURER INFORMATION ........................................................................................................ 8 4. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................ 9 4.1. ABOUT EUT .................................................................................................................................... 9 4.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ............................................................. 10 4.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ................................................................ 10 5. TEST METHODOLOGY ............................................................................................................. 11 5.1. APPLICABLE LIMIT REGULATIONS..................................................................................................... 11 5.2. APPLICABLE MEASUREMENT STANDARDS ........................................................................................ 11 6. SPECIFIC ABSORPTION RATE (SAR) ..................................................................................... 12 6.1. INTRODUCTION .............................................................................................................................. 12 6.2. SAR DEFINITION ........................................................................................................................... 12 7. TISSUE SIMULATING LIQUIDS ................................................................................................ 13 7.1. TARGETS FOR TISSUE SIMULATING LIQUID ....................................................................................... 13 7.2. DIELECTRIC PERFORMANCE .......................................................................................................... 13 8. SYSTEM VERIFICATION ........................................................................................................... 17 8.1. SYSTEM SETUP ............................................................................................................................. 17 8.2. SYSTEM VERIFICATION .................................................................................................................. 18 9. MEASUREMENT PROCEDURES ............................................................................................. 19 9.1. TESTS TO BE PERFORMED .............................................................................................................. 19 9.2. GENERAL MEASUREMENT PROCEDURE .......................................................................................... 21 9.3. WCDMA MEASUREMENT PROCEDURES FOR SAR ......................................................................... 22 9.4. LTE MEASUREMENT PROCEDURES FOR SAR ................................................................................. 23 9.5. BLUETOOTH & WLAN MEASUREMENT PROCEDURES FOR SAR ....................................................... 23 9.6. POWER DRIFT ............................................................................................................................... 24 10. CONDUCTED OUTPUT POWER ............................................................................................ 25 10.1. GSM MEASUREMENT RESULT ...................................................................................................... 25 10.2. WCDMA MEASUREMENT RESULT ................................................................................................ 28 10.3. LTE MEASUREMENT RESULT .........................................................…
