2ACCJH005HSUPA/HSDPA/UMTS Tri band/GSM Quad band mobile phone

12 English - CJB2873ALAAA Quick Start Guide For more information about how to use the phone, please go to www.alcatelonetouch.com to download the complete user manual. From the website you can also consult the FAQ, upgrade software, etc. www.sar-tick.com This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found in the RADIOWAVES section of this user guide. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 10 mm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. 1 Your mobile ����������������� 1�1 Keys and connectors Headset connector Micro-USB connector Back key Home key Menu key Touch screen Front Camera


 34 Volume up Volume down Camera Flash/Torch Power key Menu key • Option menu. Touch to access Manage Home- screen, Add widgets, Manage applications, Wallpaper and Settings. • Recent apps. Touch and hold to open a list of thumbnail images of apps you've worked with recently. Touch it to open an app. Swipe it upwards or downwards to remove a thumbnail from the list. Home key • While on any application or screen, touch to return to the Home screen. Back key • Touch to go back to the previous screen, or to close a dialog box, options menu, the notification panel, etc. Power key • Press: Lock the screen/Light up the screen. • Press and hold: Power on or generate a pop up menu selecting from Power off/Restart/Airplane mode or icons of Ringer mode. • Press to mute the ringtone when there’s an incoming call. • Press and hold for more than 10 seconds to restart the phone when the system halted. • Press and hold Power key and Volume down key to capture a screenshot. • Press and hold Power key and Volume up key under power off mode to restore factory set. Volume keys • Under call mode, adjust the earpiece or headset volume. • In Music/Video/Streaming mode, adjust the media volume. • In general mode, adjust the ring tone volume. • Mute the ringtone of an incoming call. • In Camera mode, using it as the capture key allows you to take a photo. 56 1�2 Getting started 1�2�1 Set-up Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your phone before inserting or removing the SIM card. Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. Both SIM1 and SIM2 can support 2G and 3G networks. If both of them are 3G SIM cards, only one card can support 3G network. Your phone only supports mini-SIM card. Do not attempt to insert other SIM types like micro and nano cards, otherwise you may damage your phone. Installing or removing the battery Please power off your phone before removing the battery. • Insert and click the battery into place, then close the cover. • Unclip the cover, then remove the battery. Installing or removing the microSD card To install, please open microSD card lock first, and then place the external microSD card into the slot with the gold contact facing down. To remove the external microSD card, please open microSD card lock and take it out from the slot. Charging the battery Connect battery charger to your phone and plug into the socket. If the battery is very low, there will be no indication that power is being received until the charge is sufficient to show the charging status bar. To reduce power consumption and energy waste, once the battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background-running applications when not in use; reduce the backlight time, etc. 78 1�2�2 Power on your phone Hold down the Power key until the phone powers on. It will take a few seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you should set the following options: language, input method, Google account, etc. If you power on your phone with no SIM card inserted, you can connect to a Wi-Fi network to sign into your Google account and to use some features. 1�2�3 Power off your phone Hold down the Power key until the Phone options appear, select Power off. 1�3 Home screen You can bring all the items (applications, shortcuts, folders and widgets) you love or use most frequently to your Home screen for quick access. Touch the Home key to switch to Home screen. Status bar • Status/Notification indicators • Touch and drag down to open the notification panel. Application tab • Touch to open main menu. Search bar • Touch  to enter text search screen. • Touch  to enter voice search screen. Favorite applications tray • Touch to enter the application. • Touch and hold to move or change applications. Add a location to display local weather. Home screen is provided in an extended format to allow more space for adding applications, shortcuts etc. Slide the Home screen horizontally left and right to get a complete view of the Home screen. The row of small squares at the lower part of the screen indicates which screen you are viewing. 1�3�1 Using the touchscreen Touch To access an application, touch it with your finger. Touch and Hold Touch and hold the home screen to access the available options for setting the home screens. Drag Place your finger on any item to drag it to another location. Slide/Swipe Slide the screen to scroll up and down the applications, images, web pages... at your convenience. Flick Similar to swiping, but flicking makes it move quicker. Pinch/Spread Place your fingers of one hand on the screen surface and draw them apart or together to sc…

Text truncated - open the document above for the full version.

TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Tel: +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com Date 2014-07-27 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Te l : +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com 2014-12-29 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: 2ACCJH005 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Declaration of changes from 4013M to 4013E General: 4013E(FCC ID: 2ACCJH005) is a variant product of 4013M(FCC ID: 2ACCJH007)  SOFTWARE MODIFICATIONS:  Protocol Stack changes: No  MMS/STK/USAT/USIM changes: No  DM/SUPL/VT/FUMO/SWP/HCI: No  Other changes detailed: 4013E(FCC ID: 2ACCJH005) support dual SIM, 4013M(FCC ID: 2ACCJH007) support one SIM. Bands support change from UMTS 850/1900 to UMTS 850/1900/2100.  HARDWARE MODIFICATIONS:  Band changes: Yes, 4013E(FCC ID: 2ACCJH005) add UMTS2100  PCB Layout changes: No  Main components changes: Antenna Base Band Transceiver ASM Power Amplifier Tx SAW Filter Rx SAW Filter GSM850 NO NO NO NO NO NO NO GSM900 NO NO NO NO NO NO NO GSM1800 NO NO NO NO NO NO NO GSM1900 NO NO NO NO NO NO NO UMTS2100 NO NO NO NO Yes Yes Yes UMTS1900 NO NO NO NO NO NO NO UMTS1700 N/A N/A N/A N/A N/A N/A N/A UMTS900 N/A N/A N/A N/A N/A N/A N/A UMTS850 NO NO NO NO NO NO NO LTE N/A N/A N/A N/A N/A N/A N/A Bluetooth NO NO NO NO NO NO NO WiFi NO NO NO NO NO NO NO  FM changes: No  Other components changes: LCD/ Speaker/ Camera / Vibrator changes: No  Other changes detailed: Add one card slot in 4013E(FCC ID: 2ACCJH005)  MECHANICAL MODIFICATIONS:  Use new metal front/back cover or keypad: No  Mechanical shell changes: Whole size of EUT: No Distance of Ear reference point to bottom of handset: No Other trinkets to change the surface of handset: No  Other changes detailed: APPROVED BY: Project Manager: 王婷 Signature : Date: 2014-10-30

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Date: January 20, 2015 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd. Columbia MD 21046 Subject: Request permission to use Wi-Fi Conducted and Radiated/ Bluetooth Conducted and Radiated/ GSM Conducted/ WCDMA Conducted test r esults from model 4013M in our applications for model 4013E FCC ID: 2ACCJH005 To whom it may concern: We request permission to use Wi-Fi Conducted and Radiated/ Bluetooth Conducted and Radiated/ GSM Conducted/ WCDMA Conducted test r esults from model 4013M(FCC ID: 2ACCJH007) in our applications for model 4013E(FCC ID: 2ACCJH005). Models 4013E and 4013M share the same enclosure, main logic board, display, battery and I/O design. All two models use the same Wi-Fi / Bluetooth chipset/module and antennas, and operate using the same transmit power levels. Also, all two models run the same iOS software. Model 4013E is a mobile phone device that only add UMTS2100. Model 4013E sup port dual SIM, model 4013M support single SIM. Sincerely, Project Manager: Ting Wang Si gnature : Date: 2015-1-20

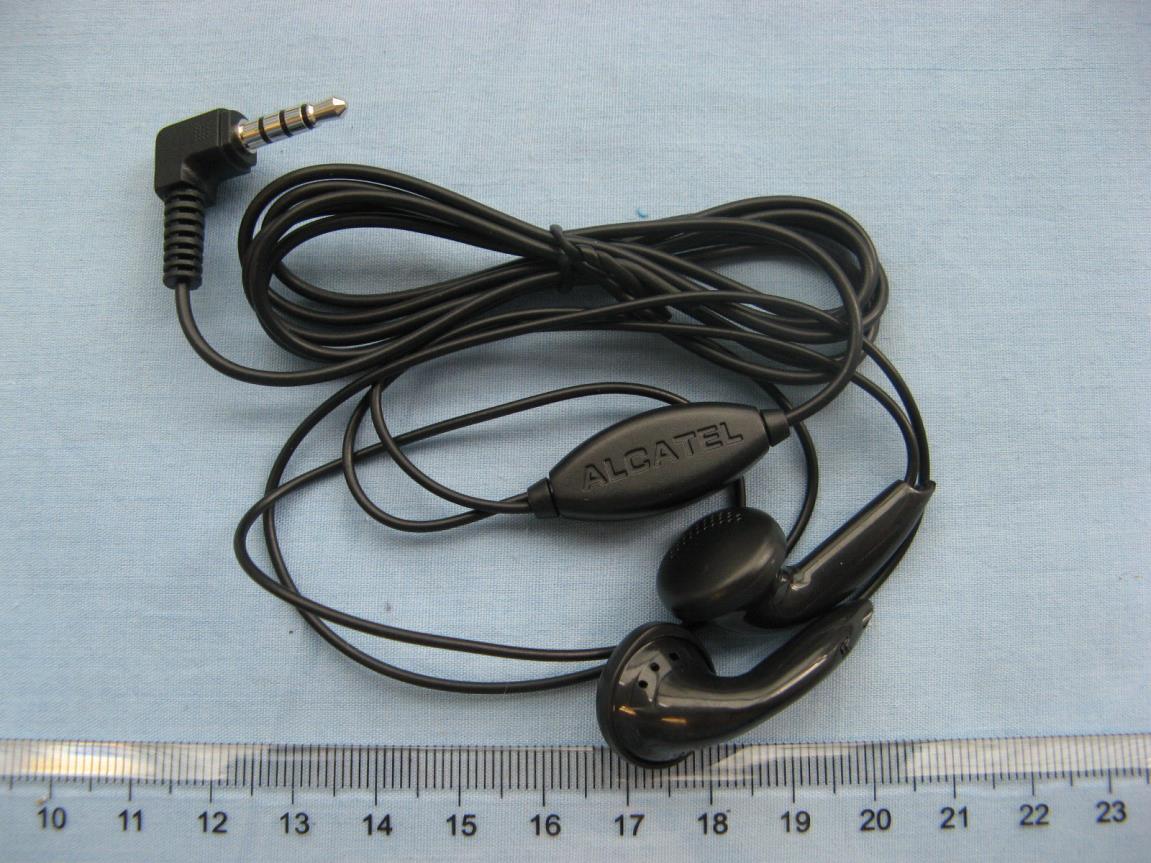

EUT photograph Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone

EUT Interior photograph Mobile Phone Mobile Phone Mobile Phone Mobile Phone

©Copyright. All rights reserved by CTTL. TEST REPORT No. I14Z48975-EMC01 for TCL Communication Ltd HSUPA/HSDPA/UMTS Tri band/GSM Quad band mobile phone Model Name: 4013E FCC ID: 2ACCJH005 with Hardware Version: PIO Software Version: v5B4 Issued Date: 2014-12-17 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: FCC 2.948 Listed: No. 525429 CTTL, Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No. 52, Huayuan North Road, Haidian District, Beijing, P. R. China 100191. Tel: +86(0)10-62304633-2512, Fax: +86(0)10-62304633-2504 Email: [email protected], website: www.chinattl.com No.I14Z48975-EMC01 Page 2 of 30 ©Copyright. All rights reserved by CTTL. REPORT HISTORY Report Number Revision Description Issue Date I14Z48975-EMC01 Rev.0 1st edition 2014-12-17 No.I14Z48975-EMC01 Page 3 of 30 ©Copyright. All rights reserved by CTTL. CONTENTS 1. TEST LABORATORY ............................................................................................................... 4 1.1. TESTING LOCATION ........................................................................................................... 4 1.2. TESTING ENVIRONMENT ................................................................................................... 4 1.3. PROJECT DATA ................................................................................................................... 4 1.4. SIGNATURE .......................................................................................................................... 4 2. CLIENT INFORMATION ........................................................................................................... 5 2.1. APPLICANT INFORMATION ................................................................................................ 5 2.2. MANUFACTURER INFORMATION ...................................................................................... 5 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 6 3.1. ABOUT EUT .......................................................................................................................... 6 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................... 6 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ...................................... 6 3.4. EUT SET-UPS ....................................................................................................................... 8 4. REFERENCE DOCUMENTS .................................................................................................... 9 4.1. REFERENCE DOCUMENTS FOR TESTING....................................................................... 9 5. LABORATORY ENVIRONMENT ............................................................................................ 10 6. SUMMARY OF TEST RESULTS ............................................................................................ 11 7. TEST EQUIPMENTS UTILIZED ............................................................................................. 12 ANNEX A: MEASUREMENT RESULTS ....................................................................................... 13 No.I14Z48975-EMC01 Page 4 of 30 ©Copyright. All rights reserved by CTTL. 1. Test Laboratory 1.1. Testing Location Location 1: CTTL(huayuan North Road) Address: No. 52, Huayuan North Road, Haidian District, Beijing, P. R. China 100191 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: 2014-12-09 Testing End Date: 2014-12-10 1.4. Signature Qu Pengfei (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Director of the laboratory (Approved this test report) No.I14Z48975-EMC01 Page 5 of 30 ©Copyright. All rights reserved by CTTL. 2. Client Information 2.1. Applicant Information Company Name: TCL Communication Ltd Address /Post: 5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. City: Shanghai Postal Code: 201203 Country: China Contact Person: Gong Zhizhou Contact Email [email protected] Telephone: 0086-21-61460890 Fax: 0086-21-61460602 2.2. Manufacturer Information Company Name: TCL Communication Ltd Address /Post: 5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. City: Shanghai Postal Code: 201203 Country: China Telephone: 0086-21-61460890 Fax: 0086-21-61460602 No.I14Z48975-EMC01 Page 6 of 30 ©Copyright. All rights reserved by CTTL. 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description HSUPA/HSDPA/UMTS Tri band/GSM Quad band mobile phone Model Name 4013E FCC ID 2ACCJH005 Extreme vol. Limits 3.5VDC to 4.2VDC (nominal: 3.8VDC) Note: Components list, please refer to documents of the manufacturer; it is also included in the original test record of Telecommunication Metrology Center of MIIT of People’s Republic of China. 3.2. Internal Identification of EUT used during the test EUT ID* SN or IMEI HW Version SW Version EUT3 357018060000297 PIO v5B4 *EUT ID: is used to identify the test sample in the lab internally. 3.3. Internal Identification of AE used during the test AE ID* Description SN Remarks AE1 Battery / 14TCT-BA-2126 AE2 Battery / 14TCT-BA-1933 AE3 Battery / 14TCT-BA-0234 AE4 Battery / 14TCT-BA-0221 AE5 Battery / 14TCT-BA-2115 AE6 Battery / 14TCT-BA-1922 AE7 Battery / 14TCT-BA-1934 AE8 Travel charger / 14TCT-CH-2034 AE9 Travel charger / 14TCT-CH-1455 AE10 Travel charger / 14TCT-CH-0359 AE11 Travel charger / 14TCT-CH-1918 AE12 Travel charger / 14TCT-CH-2189 AE13 USB cable / 14TCT-DC-0612 AE14 USB cable / 14TCT-DC-0590 AE15 USB cable / 14TCT-DC-0721 AE16 USB cable / / AE17 USB cable / / AE18 USB cable / / AE19 Battery / 14TCT-BA-1591 AE20 Travel charger / 14TCT-CH-20…
