2ACCJH007HSUPA/HSDPA/UMTS Dual band/GSM Quad band mobile phone

1 English - CJB2875ALAAA Quick Start Guide For more information about how to use the phone, please go to www.alcatelonetouch.com to download the complete user manual. From the website you can also consult the FAQ, upgrade software, etc. www.sar-tick.com This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found in the RADIOWAVES section of this user guide. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 10 mm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use.


 2 1 Your mobile ����������������� 1�1 Keys and connectors Headset connector Micro-USB connector Back key Home key Menu key Touch screen Front Camera 3 Volume up Volume down Camera Flash/Torch Power key Menu key • Option menu. Touch to access Manage Home- screen, Add widgets, Manage applications, Wallpaper and Settings. • Recent apps. Touch and hold to open a list of thumbnail images of apps you've worked with recently. Touch it to open an app. Swipe it upwards or downwards to remove a thumbnail from the list. Home key • While on any application or screen, touch to return to the Home screen. Back key • Touch to go back to the previous screen, or to close a dialog box, options menu, the notification panel, etc. 4 Power key • Press: Lock the screen/Light up the screen. • Press and hold: Power on or generate a pop up menu selecting from Power off/Restart/Airplane mode or icons of Ringer mode. • Press to mute the ringtone when there’s an incoming call. • Press and hold for more than 10 seconds to restart the phone when the system halted. • Press and hold Power key and Volume down key to capture a screenshot. • Press and hold Power key and Volume up key under power off mode to restore factory set. Volume keys • Under call mode, adjust the earpiece or headset volume. • In Music/Video/Streaming mode, adjust the media volume. • In general mode, adjust the ring tone volume. • Mute the ringtone of an incoming call. • In Camera mode, using it as the capture key allows you to take a photo. 5 1�2 Getting started 1�2�1 Set-up Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your phone before inserting or removing the SIM card. Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. Your phone only supports mini-SIM card. Do not attempt to insert other SIM types like micro and nano cards, otherwise you may damage your phone. Installing or removing the battery Please power off your phone before removing the battery. • Insert and click the battery into place, then close the cover. • Unclip the cover, then remove the battery. 6 Installing or removing the microSD card To install, please open microSD card lock first, and then place the external microSD card into the slot with the gold contact facing down. To remove the external microSD card, please open microSD card lock and take it out from the slot. Charging the battery Connect battery charger to your phone and plug into the socket. If the battery is very low, there will be no indication that power is being received until the charge is sufficient to show the charging status bar. To reduce power consumption and energy waste, once the battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background-running applications when not in use; reduce the backlight time, etc. 7 1�2�2 Power on your phone Hold down the Power key until the phone powers on. It will take a few seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you should set the following options: language, input method, Google account, etc. If you power on your phone with no SIM card inserted, you can connect to a Wi-Fi network to sign into your Google account and to use some features. 1�2�3 Power off your phone Hold down the Power key until the Phone options appear, select Power off. 1�3 Home screen You can bring all the items (applications, shortcuts, folders and widgets) you love or use most frequently to your Home screen for quick access. Touch the Home key to switch to Home screen. Status bar • Status/Notification indicators • Touch and drag down to open the notification panel. Application tab • Touch to open main menu. Search bar • Touch  to enter text search screen. • Touch  to enter voice search screen. Favorite applications tray • Touch to enter the application. • Touch and hold to move or change applications. Add a location to display local weather. Home screen is provided in an extended format to allow more space for adding applications, shortcuts etc. Slide the Home screen horizontally left and right to get a complete view of the Home screen. The row of small squares at the lower part of the screen indicates which screen you are viewing. 8 1�3�1 Using the touchscreen Touch To access an application, touch it with your finger. Touch and Hold Touch and hold the home screen to access the available options for setting the home screens. Drag Place your finger on any item to drag it to another location. Slide/Swipe Slide the screen to scroll up and down the applications, images, web pages... at your convenience. Flick Similar to swiping, but flicking makes it move quicker. Pinch/Spread Place your fingers of one hand on the screen surface and draw them apart or together to scale an element on the screen. Rotate Automatically change the screen orientation from portrait to landscape by turning …

Text truncated - open the document above for the full version.

TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Tel: +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com Date 2014-07-27 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Te l : +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com 2014-12-23 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: 2ACCJH007 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

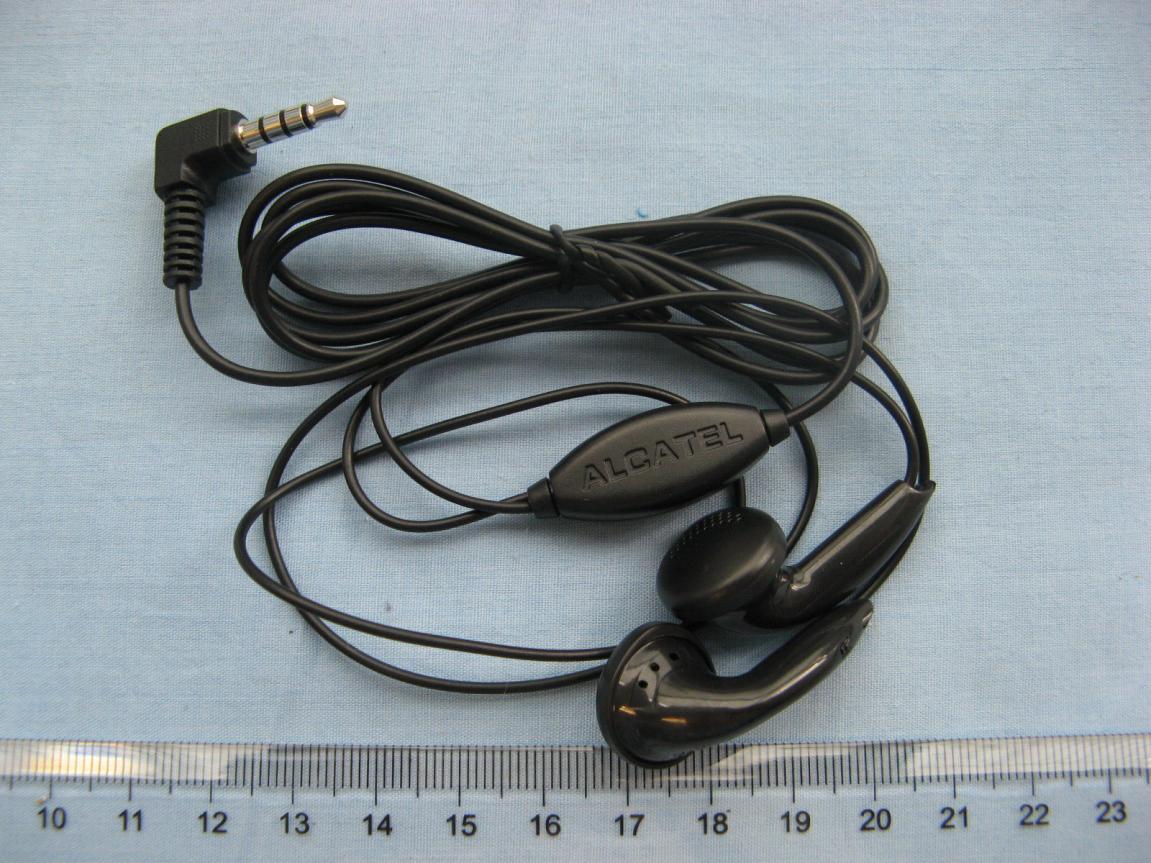

EUT photograph Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone

EUT Interior photograph Mobile Phone Mobile Phone Disassembly Mobile Phone Disassembly

No. I14Z48855-SEM01 Page 61 of 119 ©Copyright. All rights reserved by CTTL. Fig. 8-1 Z-Scan at power reference point (WCDMA1900 CH9400) No. I14Z48855-SEM01 Page 62 of 119 ©Copyright. All rights reserved by CTTL. Wifi 802.11b Left Cheek Channel 6 Date: 2014-12-19 Electronics: DAE4 Sn777 Medium: Head 2450 MHz Medium parameters used (interpolated): f = 2437 MHz; σ = 1.864 S/m; ε r = 38.58; ρ = 1000 kg/m 3 Ambient Temperature: 22.0 o C Liquid Temperature: 21.8 o C Communication System: WLan 2450 Frequency: 2437 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(6.56, 6.56, 6.56) Cheek Middle/Area Scan (71x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.524 W/kg Cheek Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.28 V/m; Power Drift = -0.16 dB Peak SAR (extrapolated) = 1.00 W/kg SAR(1 g) = 0.418 W/kg; SAR(10 g) = 0.196 W/kg Maximum value of SAR (measured) = 0.455 W/kg Fig.9 2450 MHz CH6 No. I14Z48855-SEM01 Page 63 of 119 ©Copyright. All rights reserved by CTTL. Fig. 9-1 Z-Scan at power reference point (2450 MHz CH6) No. I14Z48855-SEM01 Page 64 of 119 ©Copyright. All rights reserved by CTTL. Wifi 802.11b Body Rear Channel 6 Date: 2014-12-19 Electronics: DAE4 Sn777 Medium: Body 2450 MHz Medium parameters used (interpolated): f = 2437 MHz; σ = 1.923 S/m; ε r = 53.053; ρ = 1000 kg/m 3 Ambient Temperature: 22.0 o C Liquid Temperature: 21.8 o C Communication System: WLan 2450 Frequency: 2437 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(6.90, 6.90, 6.90) Rear Middle/Area Scan (121x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.750 W/kg Rear Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.136 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 1.08 W/kg SAR(1 g) = 0.507 W/kg; SAR(10 g) = 0.227 W/kg Maximum value of SAR (measured) = 0.659 W/kg Fig.10 2450 MHz CH6 No. I14Z48855-SEM01 Page 65 of 119 ©Copyright. All rights reserved by CTTL. Fig. 10-1 Z-Scan at power reference point (2450 MHz CH6) No. I14Z48855-SEM01 Page 66 of 119 ©Copyright. All rights reserved by CTTL. ANNEX B SystemVerification Results 835MHz Date: 2014-12-22 Electronics: DAE4 Sn777 Medium: Head 850 MHz Medium parameters used: f = 835 MHz; σ = 0.911 S/m; ε r = 41.02; ρ = 1000 kg/m 3 Ambient Temperature: 22.0 o C Liquid Temperature: 21.8 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(9.18, 9.18, 9.18) System Validation/Area Scan (61x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 54.151 V/m; Power Drift = -0.09 dB Fast SAR: SAR(1 g) = 2.38 W/kg; SAR(10 g) = 1.60 W/kg Maximum value of SAR (interpolated) = 2.62 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.151 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 3.05 W/kg SAR(1 g) = 2.36 W/kg; SAR(10 g) = 1.58 W/kg Maximum value of SAR (measured) = 2.60 W/kg 0 dB = 2.60 W/kg = 4.15 dBW/kg Fig.B.1 validation 835MHz 250mW No. I14Z48855-SEM01 Page 67 of 119 ©Copyright. All rights reserved by CTTL. 835MHz Date: 2014-12-22 Electronics: DAE4 Sn777 Medium: Body 850 MHz Medium parameters used: f = 835 MHz; σ = 0.962 S/m; ε r = 56.13; ρ = 1000 kg/m 3 Ambient Temperature: 22.0 o C Liquid Temperature: 21.8 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(9.09, 9.09, 9.09) System Validation /Area Scan (61x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 52.428 V/m; Power Drift = 0.04 dB Fast SAR: SAR(1 g) = 2.32 W/kg; SAR(10 g) = 1.67 W/kg Maximum value of SAR (interpolated) = 2.59 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.428 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 3.10 W/kg SAR(1 g) = 2.37 W/kg; SAR(10 g) = 1.55 W/kg Maximum value of SAR (measured) = 2.61 W/kg 0 dB = 2.61 W/kg = 4.17 dBW/kg Fig.B.2 validation 835MHz 250mW No. I14Z48855-SEM01 Page 68 of 119 ©Copyright. All rights reserved by CTTL. 1900MHz Date: 2014-12-11 Electronics: DAE4 Sn777 Medium: Head 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.398 S/m; ε r = 40.44; ρ = 1000 kg/m 3 Ambient Temperature: 22.0 o C Liquid Temperature: 21.8 o C Communication System: CW Frequency: 1900 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(7.26, 7.26, 7.26) System Validation/Area Scan (81x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 97.901 V/m; Power Drift = -0.01 dB Fast SAR: SAR(1 g) = 10.02 W/kg; SAR(10 g) = 5.25 W/kg Maximum value of SAR (interpolated) = 11.80 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 97.901 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 18.52 W/kg SAR(1 g) = 10.18 W/kg; SAR(10 g) = 5.35 W/kg Maximum value of SAR (measured) = 11.98 W/kg 0 dB = 11.98W/kg = 10.78 dB W/kg Fig.B.3 validation 1900MHz 250mW No. I14Z48855-SEM01 Page 69 of 119 ©Copyright. All rights reserved by CTTL. 1900MHz Date: 2014-12-11 Electronics: DAE4 Sn777 Medium: Body 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.547 S/m; ε r = 52.83; ρ = 1000 kg/m 3 Ambient Temperature: 22.0 o C Liquid Temperature: 21.8 o C Communication System: CW Frequency: 1900 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(7.15, 7.15, 7.15) System Validation/Area Scan (81x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 79.412 V/m; Power Drift = -0.02 dB Fast SAR: SAR(1 g) = 10.0 W/kg; SAR(10 g) = 5.21 W/kg Maximum value of SAR (interpolated) = 11.6 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 79.412 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 16.79 W/kg SAR(1 g) = 10.3 W/kg; SAR(10 g) = 5.35 W/kg Maximum value of SAR (measured) = 11.8 W/kg 0 dB = 11.8W/kg = 10.72 dB W/kg Fig.B.4validation 1900MHz 250mW No. I14Z48855-SEM01 Pag…

Text truncated - open the document above for the full version.

No. I14Z48855-SEM01 Page 91 of 119 ©Copyright. All rights reserved by CTTL. No. I14Z48855-SEM01 Page 92 of 119 ©Copyright. All rights reserved by CTTL. No. I14Z48855-SEM01 Page 93 of 119 ©Copyright. All rights reserved by CTTL. No. I14Z48855-SEM01 Page 94 of 119 ©Copyright. All rights reserved by CTTL. No. I14Z48855-SEM01 Page 95 of 119 ©Copyright. All rights reserved by CTTL. ANNEX H Dipole Calibration Certificate 835 MHz Dipole Calibration Certificate No. I14Z48855-SEM01 Page 96 of 119 ©Copyright. All rights reserved by CTTL. No. I14Z48855-SEM01 Page 97 of 119 ©Copyright. All rights reserved by CTTL. No. I14Z48855-SEM01 Page 98 of 119 ©Copyright. All rights reserved by CTTL. No. I14Z48855-SEM01 Page 99 of 119 ©Copyright. All rights reserved by CTTL. No. I14Z48855-SEM01 Page 100 of 119 ©Copyright. All rights reserved by CTTL. No. I14Z48855-SEM01 Page 101 of 119 ©Copyright. All rights reserved by CTTL. No. I14Z48855-SEM01 Page 102 of 119 ©Copyright. All rights reserved by CTTL. No. I14Z48855-SEM01 Page 103 of 119 ©Copyright. All rights reserved by CTTL. 1900 MHz Dipole Calibration Certificate No. I14Z48855-SEM01 Page 104 of 119 ©Copyright. All rights reserved by CTTL. No. I14Z48855-SEM01 Page 105 of 119 ©Copyright. All rights reserved by CTTL.

No. I14Z48855-SEM01 Page 106 of 119 ©Copyright. All rights reserved by CTTL. No. I14Z48855-SEM01 Page 107 of 119 ©Copyright. All rights reserved by CTTL. No. I14Z48855-SEM01 Page 108 of 119 ©Copyright. All rights reserved by CTTL. No. I14Z48855-SEM01 Page 109 of 119 ©Copyright. All rights reserved by CTTL. No. I14Z48855-SEM01 Page 110 of 119 ©Copyright. All rights reserved by CTTL. No. I14Z48855-SEM01 Page 111 of 119 ©Copyright. All rights reserved by CTTL. 2450 MHz Dipole Calibration Certificate No. I14Z48855-SEM01 Page 112 of 119 ©Copyright. All rights reserved by CTTL. No. I14Z48855-SEM01 Page 113 of 119 ©Copyright. All rights reserved by CTTL. No. I14Z48855-SEM01 Page 114 of 119 ©Copyright. All rights reserved by CTTL. No. I14Z48855-SEM01 Page 115 of 119 ©Copyright. All rights reserved by CTTL. No. I14Z48855-SEM01 Page 116 of 119 ©Copyright. All rights reserved by CTTL. No. I14Z48855-SEM01 Page 117 of 119 ©Copyright. All rights reserved by CTTL. No. I14Z48855-SEM01 Page 118 of 119 ©Copyright. All rights reserved by CTTL. No. I14Z48855-SEM01 Page 119 of 119 ©Copyright. All rights reserved by CTTL. ANNEX I Accreditation Certificate

©Copyright. All rights reserved by CTTL. SAR TEST REPORT No. I14Z48855-SEM01 For TCL Communication Ltd HSUPA/HSDPA/UMTS Dual band/GSM Quad band mobile phone Model Name: 4013M With Hardware Version:PIO Software Version: v5B4 FCC ID: 2ACCJH007 Issued Date: 2014-12-25 Note: The test results in this test report relate only to the devices specified in this report.This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL, Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No.52, HuayuanNorth Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2512,Fax:+86(0)10-62304633-2504 Email:[email protected], website:www.chinattl.com TESTING CNAS L0570 No. I14Z48855-SEM01 Page 2 of 119 ©Copyright. All rights reserved by CTTL. Revision Version Report Number Revision Issue Date Description I14Z48855-SEM01 Rev.0 2014-12-25 Initial creation of test report No. I14Z48855-SEM01 Page 3 of 119 ©Copyright. All rights reserved by CTTL. TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 5 1.1 TESTING LOCATION ................................................................................................................................. 5 1.2 T ESTING E NVIRONMENT .......................................................................................................................... 5 1.3 P ROJECT D ATA ......................................................................................................................................... 5 1.4 S IGNATURE .............................................................................................................................................. 5 2 STATEMENT OF COMPLIANCE .................................................................................................. 6 3 CLIENT INFORMATION ................................................................................................................ 8 3.1 A PPLICANT I NFORMATION ........................................................................................................................ 8 3.2 M ANUFACTURER I NFORMATION ............................................................................................................... 8 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................. 9 4.1 A BOUT EUT ............................................................................................................................................ 9 4.2 I NTERNAL I DENTIFICATION OF EUT USED DURING THE TEST ...................................................................... 9 4.3 I NTERNAL I DENTIFICATION OF AE USED DURING THE TEST ........................................................................10 5 TEST METHODOLOGY .............................................................................................................. 10 5.1 A PPLICABLE L IMIT R EGULATIONS ...........................................................................................................10 5.2 A PPLICABLE M EASUREMENT S TANDARDS ................................................................................................10 6 SPECIFIC ABSORPTION RATE(SAR) ....................................................................................... 11 6.1 I NTRODUCTION ....................................................................................................................................... 11 6.2 SAR D EFINITION .................................................................................................................................... 11 7 TISSUE SIMULATING LIQUIDS ................................................................................................. 12 7.1 T ARGETS FOR TISSUE SIMULATING LIQUID ................................................................................................12 7.2 D IELECTRIC P ERFORMANCE ....................................................................................................................12 8 SYSTEM VERIFICATION ............................................................................................................ 16 8.1 S YSTEM S ETUP .......................................................................................................................................16 8.2 S YSTEM V ERIFICATION ...........................................................................................................................17 9 MEASUREMENT PROCEDURES .............................................................................................. 18 9.1 TESTS TO BE PERFORMED ........................................................................................................................18 9.2 G ENERAL M EASUREMENT P ROCEDURE ....................................................................................................19 9.3 WCDMA M EASUREMENT P ROCEDURES FOR SAR ...................................................................................20 9.4 B LUETOOTH &W I -F I M EASUREMENT P ROCEDURES FOR SAR ..................................................................21 9.5 P OWER D RIFT .........................................................................................................................................21 10 AREA SCAN BASED 1-G SAR ................................................................................................. 22 10.1 R EQUIREMENT OF KDB ........................................................................................................................22 10.2 F AST SAR A LGORITHMS .......................................................................................................................22 11 CONDUCTED OUTPUT POWER .............................................................................................. 23 No. I14Z48855-SEM01 Page 4 o…

Text truncated - open the document above for the full version.

No. I14Z48855-SEM01 Page 31 of 119 ©Copyright. All rights reserved by CTTL. 13 Evaluation of Simultaneous Table 13.1: The sum of reported SAR values for main antenna and WiFi Position Main antenna WiFi Sum Highest reported SAR value for Head Left hand, Touch cheek 1.09 0.46 1.55 Highest reported SAR value for Body Rear 0.96 0.56 1.52 Table 13.2: The sum of reported SAR values for main antenna and Bluetooth Position Main antenna BT* Sum Highest reported SAR value for Head Left hand, Touch cheek 1.09 0.26 1.35 Highest reported SAR value for Body Rear 0.96 0.13 1.09 BT* - Estimated SAR for Bluetooth (see the table 13.3) Table 13.3: Estimated SAR for Bluetooth Position F (GHz) Distance (mm) Upper limit of power * Estimated 1g (W/kg) dBm mW Head 2.441 5 8.0 6.31 0.26 Body 2.441 10 8.0 6.31 0.13 * - Maximum possible output power declared by manufacturer When standalone SAR test exclusion applies to an antenna that transmits simultaneously with other antennas, the standalone SAR must be estimated according to following to determine simultaneous transmission SAR test exclusion: (max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)]·[√f(GHz)/x] W/kg for test separation distances ≤ 50 mm; where x = 7.5 for 1-g SAR. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion Conclusion: According to the above tables, the sum of reported SAR values is<1.6W/kg. So the simultaneous transmission SAR with volume scans is not required. No. I14Z48855-SEM01 Page 32 of 119 ©Copyright. All rights reserved by CTTL. 14 SAR Test Result It is determined by user manual for the distance between the EUT and the phantom bottom. The distance is 10mm and just applied to the condition of body worn accessory. It is performed for all SAR measurementswith area scan based 1-g SAR estimation (Fast SAR). A zoom scan measurement is addedwhen the estimated 1-gSAR is the highest measured SAR in each exposure configuration, wireless mode and frequency band combination or >1.2W/kg. The calculated SAR is obtained by the following formula: Reported SAR = Measured SAR × 10 ⁄ Where P Target is the power of manufacturing upper limit; P Measured is the measured power in chapter 11. Table 14.1: Duty Cycle Mode Duty Cycle Speech for GSM850/1900 1:8.3 GPRS&EGPRS for GSM850 1:4 GPRS&EGPRS for PCS1900 1:2 WCDMA850/1900 &WiFi 1:1 14.1 The evaluation of multi-batteries We’ll perform the head measurement in all bands with the primary battery depending on the evaluation of multi-batteries and retest on highest value point with other batteries. Then, repeat the measurement in the Body test. Table 14.2: The evaluation of multi-batteries for Head Test Frequency Mode/Band Side Test Position Battery Type SAR(1g) Power Drift(dB) MHz Ch. (W/kg) 1880 9400 WCDMA1900 Left Touch CAB31P0000CB 0.874 -0.08 1880 9400 WCDMA1900 Left Touch CAB1300015C2 0.891 -0.06 1880 9400 WCDMA1900 Left Touch CAB31P0000C1 0.906 0.15 Note: According to the values in the above table, the battery, CAB31P0000C1, is the primary battery. We’ll perform the head measurement with this battery and retest on highest value point with others. Table 14.3: The evaluation of multi-batteries for Body Test Frequency Mode/Band Test Position Spacing (mm) Battery Type SAR(1g) Power Drift(dB) MHz Ch. (W/kg) 1880 9400 WCDMA1900 Rear 10 CAB31P0000CB 0.711 -0.08 1880 9400 WCDMA1900 Rear 10 CAB1300015C2 0.728 -0.12 1880 9400 WCDMA1900 Rear 10 CAB31P0000C1 0.737 0.02 Note: According to the values in the above table, the battery, CAB31P0000C1, is the primary battery. We’ll perform the Body measurement with this battery and retest on highest value point with others. No. I14Z48855-SEM01 Page 33 of 119 ©Copyright. All rights reserved by CTTL. 14.2 SAR results for Fast SAR Table 14.4: SAR Values (GSM 850 MHz Band - Head)– CAB31P0000C1 Ambient Temperature: 22.0 o C Liquid Temperature: 21.8 o C Frequency Side Test Position Figure No. Conducted Power (dBm) Max. tune-upPow er (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g)( W/kg) Power Drift (dB) MHz Ch. 848.8 251 Left Touch Fig.1 32.46 33.3 0.460 0.56 0.602 0.73 -0.05 836.6 190 Left Touch / 32.34 33.3 0.311 0.39 0.447 0.56 -0.02 824.2 128 Left Touch / 32.37 33.3 0.245 0.30 0.353 0.44 0.02 848.8 251 Left Tilt / 32.46 33.3 0.217 0.26 0.308 0.37 -0.08 836.6 190 Left Tilt / 32.34 33.3 0.176 0.22 0.250 0.31 -0.04 824.2 128 Left Tilt / 32.37 33.3 0.151 0.19 0.214 0.27 0.13 848.8 251 Right Touch / 32.46 33.3 0.346 0.42 0.462 0.56 -0.06 836.6 190 Right Touch / 32.34 33.3 0.252 0.31 0.360 0.45 0.10 824.2 128 Right Touch / 32.37 33.3 0.198 0.25 0.283 0.35 -0.09 848.8 251 Right Tilt / 32.46 33.3 0.200 0.24 0.282 0.34 -0.07 836.6 190 Right Tilt / 32.34 33.3 0.166 0.21 0.233 0.29 -0.03 824.2 128 Right Tilt / 32.37 33.3 0.135 0.17 0.189 0.23 0.06 Table 14.5: SAR Values (GSM 850 MHz Band-Body)–CAB31P0000C1 Ambient Temperature: 22.0 o C Liquid Temperature: 21.8 o C Frequency Mode (number of timeslots) Test Position Figure No. Conducted Power (dBm) Max. tune-upPow er (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g)( W/kg) Power Drift (dB) MHz Ch. 836.6 190 GPRS (2) Front / 29.42 30 0.346 0.40 0.494 0.56 -0.04 848.8 251 GPRS (2) Rear Fig.2 29.54 30 0.511 0.57 0.687 0.76 -0.16 836.6 190 GPRS (2) Rear / 29.42 30 0.419 0.48 0.602 0.69 -0.05 824.2 128 GPRS (2) Rear / 29.53 30 0.439 0.49 0.635 0.71 -0.01 836.6 190 GPRS (2) Left / 29.42 30 0.317 0.36 0.469 0.54 0.00 836.6 190 GPRS (2) Right / 29.42 30 0.297 0.34 0.439 0.50 -0.01 836.6 190 GPRS (2) Bottom / 29.42 30 0.045 0.05 0.074 0.08 -0.12 824.2 128 EGPRS (2) Rear / 29.51 30 0.501 0.56 0.669 0.75 0.01 848.8 251 Speech Rear Headset1 / 32.46 33.3 0.457 0.55 0.621 0.75 0.08 848.8 251 Speech Rear Headset2 / 32.46 33.3 0.485 0.59 0.32 0.39 -0.12 Note1: The distance between the EUT and the phantom bottom is 10mm. Note2: The…

Text truncated - open the document above for the full version.

©Copyright. All rights reserved by CTTL. FCC PART 15C TESTREPORT No.I14Z48855-SRD01 for TCL Communication Ltd HSUPA/HSDPA/UMTS Dual band/GSM Quad band mobile phone MODEL NAME:4013M with FCC ID:2ACCJH007 Hardware Version: PIO Software Version: v5B4 Issued Date: 2014-12-23 Note: The test results in this test report relate only to the devices specified in this report.This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL, Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No.52, HuayuanNorth Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2512,Fax:+86(0)10-62304633-2504 Email:[email protected], website:www.chinattl.com TESTING CNAS L0570 No.I14Z48855-SRD01 Page2of119 ©Copyright. All rights reserved by CTTL. REPORT HISTORY Report Number Revision Description Issue Date I14Z48855-SRD01 Rev.0 1st edition 2014-12-23 No.I14Z48855-SRD01 Page3of119 ©Copyright. All rights reserved by CTTL. CONTENTS 1. TEST LABORATORY ............................................................................................................... 5 1.1. TESTING LOCATION ........................................................................................................... 5 1.2. TESTING ENVIRONMENT ......................................................................…

Text truncated - open the document above for the full version.
