2ACCJH008HSUPA/HSDPA/UMTS tri-band/GSM quad-band mobile phone

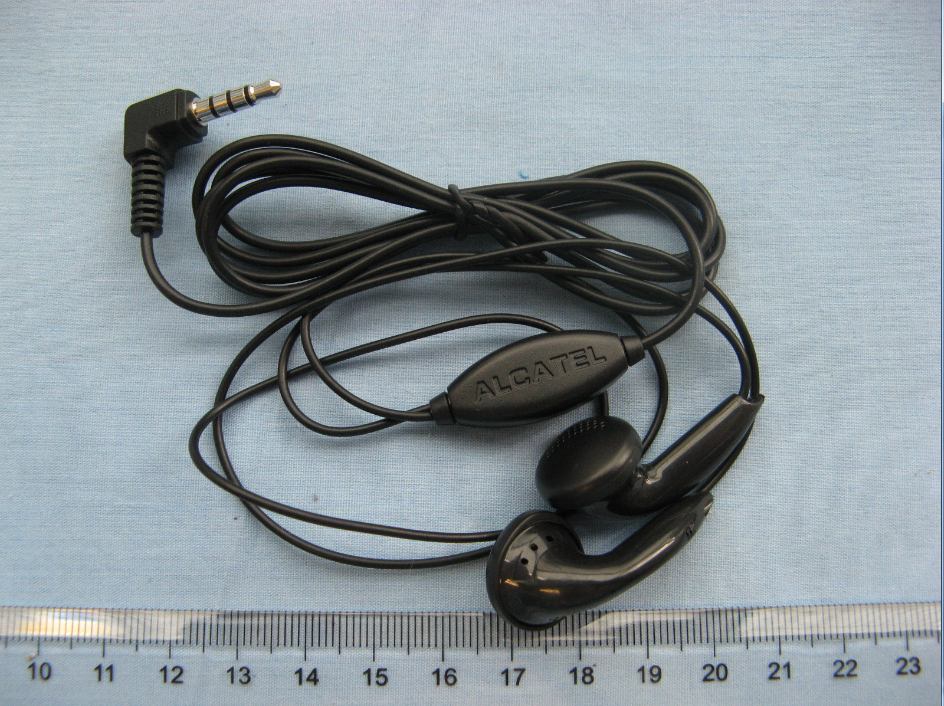

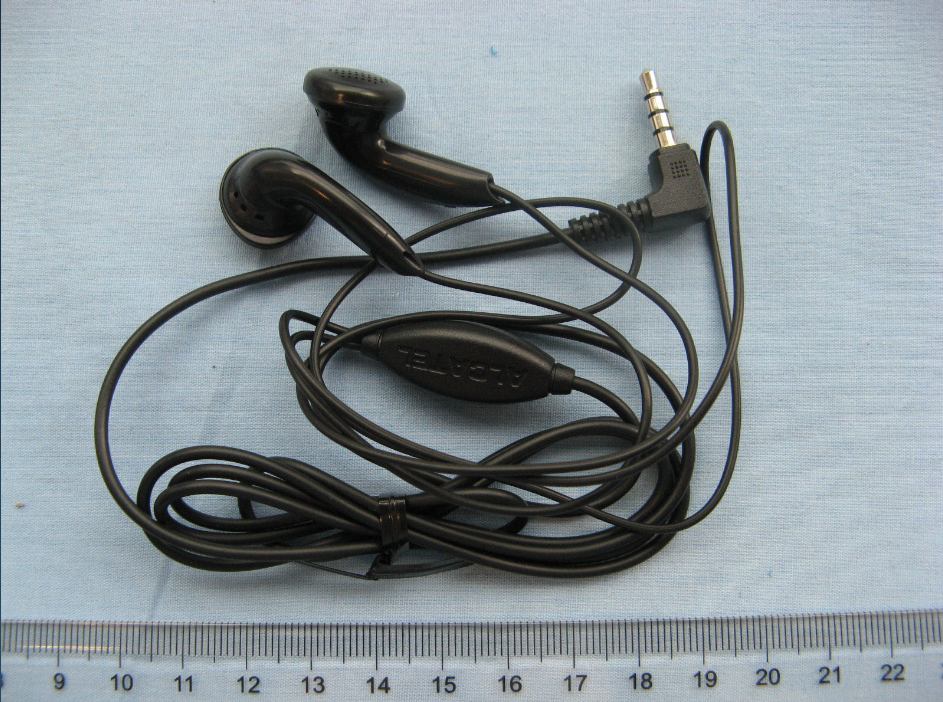

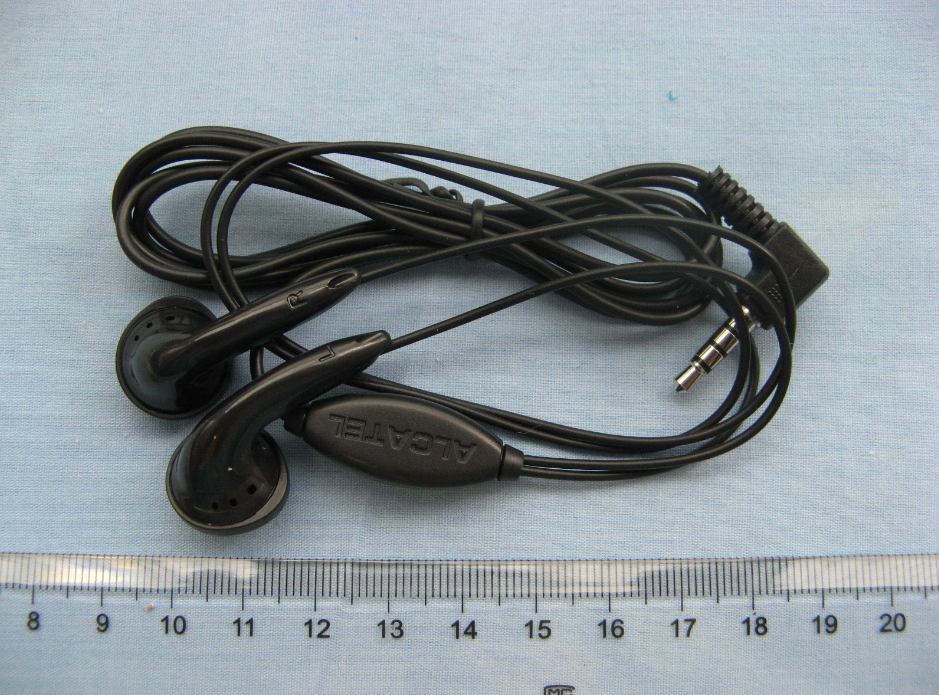

1 English - CJB2851ALAAA Quick Start Guide Thank you for buying 4023A. We hope you will enjoy your high- quality mobile communication experience. For more information about how to use the cellphone, please go to www.alcatelonetouch.com to download the complete user manual. From the website you can also consult the FAQ. 3A 23 www.sar-tick.com This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found in the RADIOWAVES section of this user guide. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 10 mm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. 1 Your mobile ������������������ 1�1 Keys and connectors Headset connector micro-USB connector Home key Touch screen Front camera PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. Table of contents 1 Your mobile ���������������������������������������������������������������������3 2 Text input ����������������������������������������������������������������������12 3 Phone call ����������������������������������������������������������������������12 4 Contacts ������������������������������������������������������������������������13 5 Messaging�����������������������������������������������������������������������13 6 Email ������������������������������������������������������������������������������15 7 Getting connected ��������������������������������������������������������15 8 Applications & Internal storage ����������������������������������17 9 Making the most of your phone ����������������������������������18 Safety and use �������������������������������������������������������������������������19 TCL Communication (US), Inc� Warranty ��������������������������27 Troubleshooting����������������������������������������������������������������������29 45 Volume down Volume up Camera Power key Home key • While on any application or screen, touch to return to the Home screen. Touch and hold to finish the application running. Power key • Press: Lock the screen/Light up the screen • Press and hold: Power on or generate a pop up menu providing more options, such as Turn on airplane mode,Silence incoming calls,Restart,Power off� • Press and hold Power key and Home key to capture a screenshot. • Press to mute the ringtone when there’s an incoming call. Volume keys • In call mode, adjust the earpiece or headset volume. • In Music/Video/Streaming mode, adjust the media volume. • Mute the ringtone of an incoming call. 1�2 Getting started 1�2�1 Set-up Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your phone before inserting or removing the SIM card. Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. Your phone only supports mini SIM card. Do not attempt to insert other SIM types like micro and nano cards, otherwise you may damage your phone. Installing or removing the battery Please power off your phone before removing the battery. • Insert and click the battery into place, then close the cover. • Unclip the cover, then remove the battery. 67 Installing and removing the microSD card To install, please open microSD card lock first, and then place the external microSD card into the slot with the gold contact facing down. To remove the external microSD card, please open microSD card lock and take it out from the slot. Before removing the microSD card, you should ensure the phone is off, to protect it from corruption or damage. In addition, regularly removing or inserting the SD card may cause the phone to restart. Charging the battery Connect the battery charger to your phone and mains socket respectively. The charging status bar will not float if your battery is extendly consumed. To reduce power consumption and energy waste, once the battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi and Bluetooth or background- running applications when not in use; reduce the backlight time, etc. 1�2�2 Power on your phone Hold down the Power key until the phone powers on. It will take a few seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you should set the following options: language, date & time, etc. 1�2�3 Power off your phone Hold down the Power key until the Phone options appear, select Power off. 1�3 Home screen You can bring all the items (applications, shortcuts, folders and widgets) you love or use most frequently to your Home screen for quick access. Slide the Home screen horizontally left and right to view all the applications. Touch the Home key to switch to Home screen. Status bar • Status/Notification indicators Favourite applications tray • Touch to enter the application. • Touch and hold to move applications. Adaptive app search • Enter a single word and search for related mobile apps. 89 1�3�1 Using the touchscreen Touch To access an application, touch it with your finger. Touch and Hold Touch and hold the home screen to change the wallpaper. Drag Place your finger on any item to drag it to another location. Pinch/Spread Place your fingers of one hand on the screen surface and draw them apart or together to scale an element on the screen. Rotate Automatically change the screen orientation from portrait to landscape by turning the phone sideways to have a better view. 1�3�2 Status bar From status bar, you can view both phone status and notification information. Status icons 2G connectedVibrate mode EDGE connectedRinger is silenced 3G connectedBattery is ve…

Text truncated - open the document above for the full version.

TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Tel: +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com Date: January 22, 2015 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd. Columbia MD 21046 Subject: Request permission to use Wi-Fi / Bluetooth/ GSM/ WCDMA test results from model 4008A in our applications for model 4023A FCC ID: 2ACCJH008 To whom it may concern: We request permission to use Wi-Fi / Bluetooth/ GSM/ WCDMA test results from model 4008A(FCC ID: 2ACCJH013) in our applications for model 4023A(FCC ID: 2ACCJH008). Models 4008A and 4023A share the same enclosure, main logic board, display, battery and I/O design. All two models use the same Wi-Fi / Bluetooth chipset/module and antennas, and operate using the same transmit power levels. Model 4023A is a mobile phone device that add front camera and add UMTS The memory chip have changed;4023A memory is Nand+LPDDR2, 4008A is eMMC+LPDDR3, they have the different pin ball and size. Also, all two models run the different OS software, 4023A run the Firefox OS. Sincerely, Lihuasheng Project Manager TCL Communication Ltd.

TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Tel: +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com 2015-01-07 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: 2ACCJH008 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Tel: +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com Date 2015-01-15 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: CTTL (Telecommunication Technology Labs,Academy of Telecommunication Research,MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

CAB1300015C2 CAB1300015C2

©Copyright. All rights reserved by CTTL. SAR TEST REPORT No. I14N01535-SAR For TCL Communication Ltd. HSUPA/HSDPA/UMTS Dual band/GSM Quad band mobile phone Model Name: 4023A With Hardware Version: PIO Software Version: v7G1D FCC ID: 2ACCJH008 Issued Date: 2015-01-05 Note: The test results in this test report relate only to the devices specified in this report.This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL, Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No.52, HuayuanNorth Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2512,Fax:+86(0)10-62304633-2504 Email:[email protected] , website:www.chinattl.com TESTING CNAS L0570 No.I14N01535-SAR Page 2 of 155 ©Copyright. All rights reserved by CTTL. REPORT HISTORY Report Number RevisionIssue Date Description I14N01535-SAR Rev.0 2015-01-05 Initial creation of test report No.I14N01535-SAR Page 3 of 155 ©Copyright. All rights reserved by CTTL. TABLE OF CONTENT 1 TEST LABORATORY ................................................................................................................. 5 1.1 TESTING LOCATION ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE ................................................................................................ 6 3 CLIENT INFORMATION.............................................................................................................. 8 3.1 APPLICANT INFORMATION .............................................................................................................................. 8 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 8 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................ 9 4.1 ABOUT EUT ................................................................................................................................................... 9 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 9 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ........................................................................... 10 5 TEST METHODOLOGY ............................................................................................................ 10 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 10 5.2 APPLICABLE MEASUREMENT STANDARDS .................................................................................................... 10 6 SPECIFIC ABSORPTION RATE (SAR) .................................................................................... 11 6.1 INTRODUCTION ............................................................................................................................................. 11 6.2 SAR DEFINITION .......................................................................................................................................... 11 7 TISSUE SIMULATING LIQUIDS ............................................................................................... 12 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 12 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 12 8 SYSTEM VERIFICATION .......................................................................................................... 16 8.1 SYSTEM SETUP ............................................................................................................................................. 16 8.2 SYSTEM VERIFICATION ................................................................................................................................. 17 9 MEASUREMENT PROCEDURES ............................................................................................ 18 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 18 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 19 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 20 9.4 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 21 9.5 POWER DRIFT ............................................................................................................................................... 21 10 AREA SCAN BASED 1-G SAR .............................................................................................. 22 10.1 REQUIREMENT OF KDB .............................................................................................................................. 22 10.2 FAST SAR ALGORITHMS ............................................................................................................................ 22 11 CONDUCTED OUTPUT POWER .............................................................…

Text truncated - open the document above for the full version.

No.I14N01535-SAR Page 53 of 155 ©Copyright. All rights reserved by CTTL. Fig. 5-1 Z-Scan at power reference point (WCDMA 850 CH4233) No.I14N01535-SAR Page 54 of 155 ©Copyright. All rights reserved by CTTL. WCDMA 850 Body Rear High Date: 2014-12-13 Electronics: DAE4 Sn786 Medium: Body 900 MHz Medium parameters used (interpolated): f = 846.6 MHz; σ = 0.976 S/m; ε r = 55.684; ρ = 1000 kg/m 3 Ambient Temperature:21.7 o C Liquid Temperature:21.2 o C Communication System: WCDMA Frequency: 846.6 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF(6.14, 6.14, 6.14); Rear side High/Area Scan (51x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.00 W/kg Rear side High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 29.111 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 1.27 W/kg SAR(1 g) = 0.967 W/kg; SAR(10 g) = 0.697 W/kg Maximum value of SAR (measured) = 1.02 W/kg Fig.6 WCDMA 850 CH4233 No.I14N01535-SAR Page 55 of 155 ©Copyright. All rights reserved by CTTL. Fig. 6-1 Z-Scan at power reference point (WCDMA850 CH4233) No.I14N01535-SAR Page 56 of 155 ©Copyright. All rights reserved by CTTL. WCDMA 1900 Right Cheek High Date: 2014-12-14 Electronics: DAE4 Sn786 Medium: Head 1900 MHz Medium parameters used: f = 1908 MHz; σ = 1.454 S/m; ε r = 41.033; ρ = 1000 kg/m 3 Ambient Temperature:21.7 o C Liquid Temperature:21.2 o C Communication System: WCDMA Frequency: 1908 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF(5.16, 5.16, 5.16); Right Cheek High/Area Scan (51x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.985 W/kg Right Cheek High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.807 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 1.43 W/kg SAR(1 g) = 0.864 W/kg; SAR(10 g) = 0.489 W/kg Maximum value of SAR (measured) = 0.967 W/kg Fig.7 WCDMA1900 CH9538 No.I14N01535-SAR Page 57 of 155 ©Copyright. All rights reserved by CTTL. Fig. 7-1 Z-Scan at power reference point (WCDMA1900 CH9538) No.I14N01535-SAR Page 58 of 155 ©Copyright. All rights reserved by CTTL. WCDMA 1900 Body Rear High Date: 2014-12-14 Electronics: DAE4 Sn786 Medium: Body 1900MHz Medium parameters used: f = 1908 MHz; σ = 1.520 S/m; ε r = 52.572; ρ = 1000 kg/m 3 Ambient Temperature:21.7 o C Liquid Temperature:21.2 o C Communication System: WCDMA Frequency: 1908 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF(4.77, 4.77, 4.77); Rear side High/Area Scan (51x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.29 W/kg Rear side High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.477 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 1.82 W/kg SAR(1 g) = 1.1 W/kg; SAR(10 g) = 0.645 W/kg Maximum value of SAR (measured) = 1.18 W/kg Fig.8 WCDMA1900 CH9538 No.I14N01535-SAR Page 59 of 155 ©Copyright. All rights reserved by CTTL. Fig. 8-1 Z-Scan at power reference point (WCDMA1900 CH9538) No.I14N01535-SAR Page 60 of 155 ©Copyright. All rights reserved by CTTL. Wifi 802.11b left Cheek Channel 1 Date: 2014-12-19 Electronics: DAE4 Sn786 Medium: Head 2450 MHz Medium parameters used: f = 2412 MHz; σ = 1.772 S/m; ε r = 39.391; ρ = 1000 kg/m 3 Ambient Temperature:21.7 o C Liquid Temperature:21.2 o C Communication System: WiFi Frequency: 2412 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF(4.71, 4.71, 4.71); left/Cheek Low/Area Scan (51x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.423 W/kg left/Cheek Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.143 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 0.779 W/kg SAR(1 g) = 0.332 W/kg; SAR(10 g) = 0.152 W/kg Maximum value of SAR (measured) = 0.376 W/kg Fig.9 2450 MHz CH1 No.I14N01535-SAR Page 61 of 155 ©Copyright. All rights reserved by CTTL. Fig. 9-1 Z-Scan at power reference point (2450 MHz CH1) No.I14N01535-SAR Page 62 of 155 ©Copyright. All rights reserved by CTTL. Wifi 802.11b Body Rear Channel 11 Date: 2014-12-17 Electronics: DAE4 Sn786 Medium: Body 2450 MHz Medium parameters used: f = 2462 MHz; σ = 1.953 S/m; ε r = 52.567; ρ = 1000 kg/m 3 Ambient Temperature:21.7 o C Liquid Temperature:21.2 o C Communication System: WiFi Frequency: 2462 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF(4.42, 4.42, 4.42); Rear side High/Area Scan (51x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.0776 W/kg Rear side High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.981 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.165 W/kg SAR(1 g) = 0.078 W/kg; SAR(10 g) = 0.037 W/kg Maximum value of SAR (measured) = 0.0883 W/kg Fig.10 2450 MHz CH11 No.I14N01535-SAR Page 63 of 155 ©Copyright. All rights reserved by CTTL. Fig. 10-1 Z-Scan at power reference point (2450 MHz CH11) No.I14N01535-SAR Page 64 of 155 ©Copyright. All rights reserved by CTTL. ANNEX B System Verification Results 835MHz Date: 2014-12-13 Electronics: DAE4 Sn786 Medium: Head 900 MHz Medium parameters used: f = 835 MHz; σ = 0.938 S/m; ε r = 41.87; ρ = 1000 kg/m 3 Ambient Temperature: 22.0 o C Liquid Temperature: 21.5 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF(6.04, 6.04, 6.04); System Validation /Area Scan (81x161x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 54.722 V/m; Power Drift = 0.02 dB Fast SAR: SAR(1 g) = 2.42 W/kg; SAR(10 g) = 1.58 W/kg Maximum value of SAR (interpolated) = 2.62 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.722 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 3.69 W/kg SAR(1 g) = 2.43 W/kg; SAR(10 g) = 1.61 W/kg Maximum value of SAR (measured) = 2.64 W/kg 0 dB = 2.64 W/kg = 1.84 dBW/kg Fig.B.1 validation 835MHz 250mW No.I14N01535-SAR Page 65 of 155 ©Copyright. All rights reser…

Text truncated - open the document above for the full version.

No.I14N01535-SAR Page 105 of 155 ©Copyright. All rights reserved by CTTL. 900 MHz Dipole Calibration Certificate No.I14N01535-SAR Page 106 of 155 ©Copyright. All rights reserved by CTTL. No.I14N01535-SAR Page 107 of 155 ©Copyright. All rights reserved by CTTL. No.I14N01535-SAR Page 108 of 155 ©Copyright. All rights reserved by CTTL. No.I14N01535-SAR Page 109 of 155 ©Copyright. All rights reserved by CTTL. No.I14N01535-SAR Page 110 of 155 ©Copyright. All rights reserved by CTTL. No.I14N01535-SAR Page 111 of 155 ©Copyright. All rights reserved by CTTL. No.I14N01535-SAR Page 112 of 155 ©Copyright. All rights reserved by CTTL. No.I14N01535-SAR Page 113 of 155 ©Copyright. All rights reserved by CTTL. 1800 MHz Dipole Calibration Certificate No.I14N01535-SAR Page 114 of 155 ©Copyright. All rights reserved by CTTL. No.I14N01535-SAR Page 115 of 155 ©Copyright. All rights reserved by CTTL. No.I14N01535-SAR Page 116 of 155 ©Copyright. All rights reserved by CTTL. No.I14N01535-SAR Page 117 of 155 ©Copyright. All rights reserved by CTTL. No.I14N01535-SAR Page 118 of 155 ©Copyright. All rights reserved by CTTL. No.I14N01535-SAR Page 119 of 155 ©Copyright. All rights reserved by CTTL. No.I14N01535-SAR Page 120 of 155 ©Copyright. All rights reserved by CTTL. No.I14N01535-SAR Page 121 of 155 ©Copyright. All rights reserved by CTTL. 1900 MHz Dipole Calibration Certificate No.I14N01535-SAR Page 122 of 155 ©Copyright. All rights reserved by CTTL. No.I14N01535-SAR Page 123 of 155 ©Copyright. All rights reserved by CTTL. No.I14N01535-SAR Page 124 of 155 ©Copyright. All rights reserved by CTTL. No.I14N01535-SAR Page 125 of 155 ©Copyright. All rights reserved by CTTL. No.I14N01535-SAR Page 126 of 155 ©Copyright. All rights reserved by CTTL. No.I14N01535-SAR Page 127 of 155 ©Copyright. All rights reserved by CTTL. No.I14N01535-SAR Page 128 of 155 ©Copyright. All rights reserved by CTTL. No.I14N01535-SAR Page 129 of 155 ©Copyright. All rights reserved by CTTL. 2450 MHz Dipole Calibration Certificate No.I14N01535-SAR Page 130 of 155 ©Copyright. All rights reserved by CTTL.

No.I14N01535-SAR Page 131 of 155 ©Copyright. All rights reserved by CTTL. No.I14N01535-SAR Page 132 of 155 ©Copyright. All rights reserved by CTTL. No.I14N01535-SAR Page 133 of 155 ©Copyright. All rights reserved by CTTL. No.I14N01535-SAR Page 134 of 155 ©Copyright. All rights reserved by CTTL. No.I14N01535-SAR Page 135 of 155 ©Copyright. All rights reserved by CTTL. No.I14N01535-SAR Page 136 of 155 ©Copyright. All rights reserved by CTTL. No.I14N01535-SAR Page 137 of 155 ©Copyright. All rights reserved by CTTL. ANNEX I SPOT CHECK TEST As the test lab for 4023A from TCL Communication Ltd., we, CTTL Shenzhen, declare on our sole responsibility that, according to “Declaration of changes” provided by applicant, only the Spot check test should be performed. The test results are as below. I.1 Internal Identification of EUT used during the spot check test EUT ID* IMEI HW Version SW Version EUT1 014257000100156 PIO v7G1D *EUT ID: is used to identify the test sample in the lab internally. I.2 Conducted power of selected case Table I.1: The conducted power results for GSM850/1900 GSM 850MHz Conducted Power (dBm) Channel 251(848.8MHz) Channel 190(836.6MHz) Channel 128(824.2MHz) 32.93 / / GSM 1900MHz Conducted Power (dBm) Channel 810(1909.8MHz) Channel 661(1880MHz) Channel 512(1850.2MHz) 29.75 / / Table I.2: The conducted power results for GPRS GSM 850 GPRS (GMSK) Measured Power (dBm) 251 190 128 4 Txslots 26.99 / / PCS1900 GPRS (GMSK) Measured Power (dBm) 810 661 512 4 Txslots 24.31 / / Table I.3: The conducted power results for WCDMA Item band FDD V result ARFCN 4233 (846.6MHz) 4182 (836.4MHz) 4132 (826.4MHz) WCDMA \ 23.44 / / Item band FDD II result ARFCN 9538 (1907.6MHz) 9400 (1880MHz) 9262 (1852.4MHz) WCDMA \ 23.42 / / No.I14N01535-SAR Page 138 of 155 ©Copyright. All rights reserved by CTTL. I.3 Measurement results SAR Values (GSM 850 MHz Band - Head) Frequency Side Test Position Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 848.8 251 Left Touch CAB31P0000C1 0.793 0.766 SAR Values (GSM 850 MHz Band - Body) Frequency Mode/Band Test Position Spacing (mm) Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 848.8 251 GPRS Rear 10 CAB31P0000C10.924 0.852 SAR Values (PCS 1900 MHz Band - Head) Frequency Side Test Position Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 1909.8 810 Left Touch CAB31P0000C1 0.543 0.342 SAR Values (PCS 1900 MHz Band - Body) Frequency Mode/Band Test Position Spacing (mm) Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 1909.8 810 GPRS Front 10 CAB31P0000C10.572 0.489 SAR Values (WCDMA 850 MHz Band - Head) Frequency Side Test Position Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 846.6 4233 Left Touch CAB31P0000C1 0.720 0.549 SAR Values (WCDMA 850 MHz Band - Body) Frequency Test Position Spacing (mm) Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 846.6 4233 Rear 10 CAB31P0000C1 0.967 0.856 SAR Values (WCDMA 1900 MHz Band - Head) Frequency Side Test Position Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 1907.6 9538 Right Touch CAB31P0000C1 0.864 0.643 SAR Values (WCDMA 1900 MHz Band - Body) Frequency Test Position Spacing (mm) Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 1907.6 9538 Rear 10 CAB31P0000C1 1.10 0.904 No.I14N01535-SAR Page 139 of 155 ©Copyright. All rights reserved by CTTL. I.4 Reported SAR Comparison Exposure Configuration Technology Band Reported SAR 1g (W/Kg): original Reported SAR 1g (W/Kg): spot check Head (Separation Distance 0mm) GSM 850 0.90 0.83 PCS 1900 0.62 0.39 UMTS FDD 2 0.92 0.62 UMTS FDD 5 0.99 0.73 Body-worn (Separation Distance 10mm) GSM 850 1.09 0.96 PCS 1900 0.67 0.57 UMTS FDD 2 1.23 0.97 UMTS FDD 5 1.27 1.03 No.I14N01535-SAR Page 140 of 155 ©Copyright. All rights reserved by CTTL. 850 Left Cheek High Date/Time: 2014-12-25 Electronics: DAE4 Sn786 Medium: Head 900 MHz Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.937 S/m; ε r = 41.723; ρ = 1000 kg/m 3 Ambient Temperature:22.7 o C Liquid Temperature:22.2 o C Communication System: GSM Frequency: 848.8 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3151 ConvF(6.04, 6.04, 6.04); Calibrated: 2014-9-1 Left Cheek High/Area Scan (51x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.833 W/kg Left Cheek High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.922 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.939 W/kg SAR(1 g) = 0.766 W/kg; SAR(10 g) = 0.584 W/kg Maximum value of SAR (measured) = 0.804 W/kg Fig.1 850MHz CH251 No.I14N01535-SAR Page 141 of 155 ©Copyright. All rights reserved by CTTL. Fig. 1-1 Z-Scan at power reference point (850 MHz CH251) No.I14N01535-SAR Page 142 of 155 ©Copyright. All rights reserved by CTTL. 850 Body Rear High Date/Time: 2014-12-25 Electronics: DAE4 Sn786 Medium: Body 900 MHz Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.987 S/m; ε r = 52.246; ρ = 1000 kg/m 3 Ambient Temperature:22.9 o C Liquid Temperature:22.4 o C Communication System: 4 slot GPRS Frequency: 848.8 MHz Duty Cycle: 1:2.08018 Probe: ES3DV3 - SN3151 ConvF(6.14, 6.14, 6.14); Calibrated: 2014-9-1 Rear side High/Area Scan (51x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.891 W/kg Rear side High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 28.134 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 1.11 W/kg SAR(1 g) = 0.852 W/kg; SAR(10 g) = 0.620 W/kg Maximum value of SAR (measured) = 0.902 W/kg Fig.2 850 MHz CH251 No.I14N01535-SAR Page 143 of 155 ©Copyright. All rights reserved by CTTL. Fig. 2-1 Z-Scan at power reference point (850 MHz CH251) No.I14N01535-SAR Page 144 of 155 ©Copyright. All rights reserved by CTTL. GSM1900 Right Cheek High Date/Time: 2014-12-25 Electronics: DAE4 Sn786 Medium: Head 1900 MHz Medium parameters used: f = 1910 MHz; σ = 1.45 S/m; ε r = 41.032; …

Text truncated - open the document above for the full version.

©Copyright. All rights reserved by CTTL. TEST REPORT No. I14Z49154-GTE01 for TCL Communication Ltd HSUPA/HSDPA/UMTS tri-band/GSM quad-band mobile phone Model Name: 4023A FCC ID: 2ACCJH008 with Hardware Version: PIO Software Version: v7G1D Issued Date: 2014-12-31 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. D-PL-12123-01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629B CTTL,Telecomm…
