2ACCJH011HSUPA/HSDPA/UMTS triple band/GSM Quad band mobile phone

12 English - CJB2867ALAAA Quick Start Guide For more information about how to use the phone, please go to www.alcatelonetouch.com to download the complete user manual. Also on our website you can find helpful FAQs, perform software upgrades, etc. www.sar-tick.com This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found in the RADIOWAVES section of this user guide. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 10 mm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. 1 Your mobile .................. 1.1 Keys and connectors Headset connector micro-USB connector Back key Home key Menu key Touch screen Front camera 34 Volume up Volume down Camera Flash/Torch Power key Menu key • Option menu. Touch to access Manage Home- screen, Add widgets, Manage applications, Wallpaper and Settings. • Recent apps. Touch and hold to open a list of thumbnail images of apps you've worked with recently. Touch it to open an app. Swipe it up or down to remove a thumbnail from the list. Home key • While on any application or screen, touch to return to the Home screen. • While on lock screen (the screen is lighted up), touch and hold the Home key to turn on the torch. Back key • Touch to go back to the previous screen, or to close a dialog box, options menu, the notification panel, etc. Power key • Press: Lock the screen/Light up the screen. • Press and hold: Power on or generate a pop up menu selecting from Power off/Restart/Airplane mode or icons of Ringer mode. • Press to mute the ringtone when there’s an incoming call. • Press and hold for more than 7 seconds to restart the phone when the system halted. • Press and hold Power key and Volume down key to capture a screenshot. • Press and hold Power key and Volume up key under power off mode to restore factory set. Volume keys • Under call mode, adjust the earpiece or headset volume. • In Music/Video/Streaming mode, adjust the media volume. • In general mode, adjust the ring tone volume. • Mute the ringtone of an incoming call. 56 1.2 Getting started 1.2.1 Set-up Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your phone before inserting or removing the SIM card. 4009A 4009E SIM1 SIM2 Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. For dual SIM models, both SIM1 and SIM2 can support 2G and 3G networks. If both of them are 3G SIM cards, only one card can support 3G network (1) . Your phone only supports mini-SIM card. Do not attempt to insert other SIM types like micro and nano cards, otherwise you may damage your phone. (1) 4009E only. Installing or removing the battery Please power off your phone before removing the battery. • Insert and click the battery into place, then close the cover. • Unclip the cover, then remove the battery. Installing the microSD card To install, please open microSD card lock first, and then place the external microSD card into the slot with the gold contact facing down. To remove the external microSD card, please open microSD card lock and take it out from the slot. Charging the battery Connect the battery charger to your phone and outlet respectively. If the battery is very low, there will be no indication that power is being received until the charge is sufficient enough to show the charging status bar. To reduce power consumption and energy waste, once the battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or applications running in the background when not in use; reduce the backlight time, etc. 78 1.2.2 Power on your phone Hold down the Power key until the phone powers on. It will take a few seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you should set the following options: language, input method, date & time, Google account, etc. If you power on your phone with no SIM card inserted, you can connect to a Wi-Fi network to sign into your Google account and to use some features. For dual SIM mode, you should select a SIM card or choose Always ask for voice call, messaging, etc. (1) 1.2.3 Power off your phone Hold down the Power key until the Phone options appear, select Power off. 1.3 Home screen You can bring all the items (applications, shortcuts, folders and widgets) you love or use most frequently to your Home screen for quick access. Touch the Home key to switch to Home screen. Status bar • Status/Notification indicators • Touch and drag down to open the notification panel. Application tab • Touch to open main menu. Search bar (2) • Touch  to enter text search screen. • Touch  to enter voice search screen. Favorite applications tray • Touch to enter the application. • Touch and hold to move or change applications. Add a location to display local weather. Home screen is provided in an extended format to allow more space for adding applications, shortcuts etc. Slide the Home screen horizontally left and right to get a complete view of the Home screen. The row of small circles at the lower part of the screen indicates which screen you are viewing. (1) 4009E only. (2) Depends on software version. 1.3.1 Using the touchscreen Touch To access an application, touch it with your finger. Touch and Hold Touch and hold the home screen to access the available options for setting the home screens. Drag Place your finger on any item to drag it to another location. Slide/Swipe Slid…

Text truncated - open the document above for the full version.

TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Tel: +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com Date 2014-07-27 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Te l : +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com 2014-12-12 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: 2ACCJH011 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Declaration of changes from 4008A（2ACCJH013） to 4009E （2ACCJH011） General: 4009E（2ACCJH011） is a variant product of 4008A（2ACCJH013）  SOFTWARE MODIFICATIONS:  Protocol Stack changes: No  MMS/STK/USAT/USIM changes: No  DM/SUPL/VT/FUMO/SWP/HCI: Yes,4008A （2ACCJH013）doesn’t support video telephone,4009E （2ACCJH011）supports video telephone.  Other changes detailed:No  HARDWARE MODIFICATIONS:  Band changes: Yes,4009E（2ACCJH011） add UMTS2100  PCB Layout changes: No  Main components changes: Antenna Base Band Transceiver ASM Power Amplifier Tx SAW Filter Rx SAW Filter GSM850 NO NO NO N/A NO N/A NO GSM900 NO NO NO N/A NO N/A NO GSM1800 NO NO NO N/A NO N/A NO GSM1900 NO NO NO N/A NO N/A NO UMTS2100 NO NO NO N/A Yes N/A N/A UMTS1900 NO NO NO N/A NO N/A N/A UMTS1700 N/A N/A N/A N/A N/A N/A N/A UMTS900 N/A N/A N/A N/A N/A N/A N/A UMTS850 NO NO NO N/A NO N/A N/A LTE N/A N/A N/A N/A N/A N/A N/A Bluetooth NO NO N/A N/A N/A N/A N/A WiFi NO NO N/A N/A N/A N/A N/A  FM changes: No  Other components changes: LCD/ Speaker/ Camera/ Vibrator changes: Yes, 4009E（2ACCJH011） add front camera  Other changes detailed:4009E （2ACCJH011）supports dual SIM.  MECHANICAL MODIFICATIONS:  Use new metal front/back cover or keypad: No  Mechanical shell changes: Whole size of EUT: No Distance of Ear reference point to bottom of handset: No Other trinkets to change the surface of handset: No  Other changes detailed: 4008A（2ACCJH013） is 1SIM,4009E（2ACCJH011） is 2SIM APPROVED BY: Project Manager: 黄正仙 Signature: Date: 2014-11-26

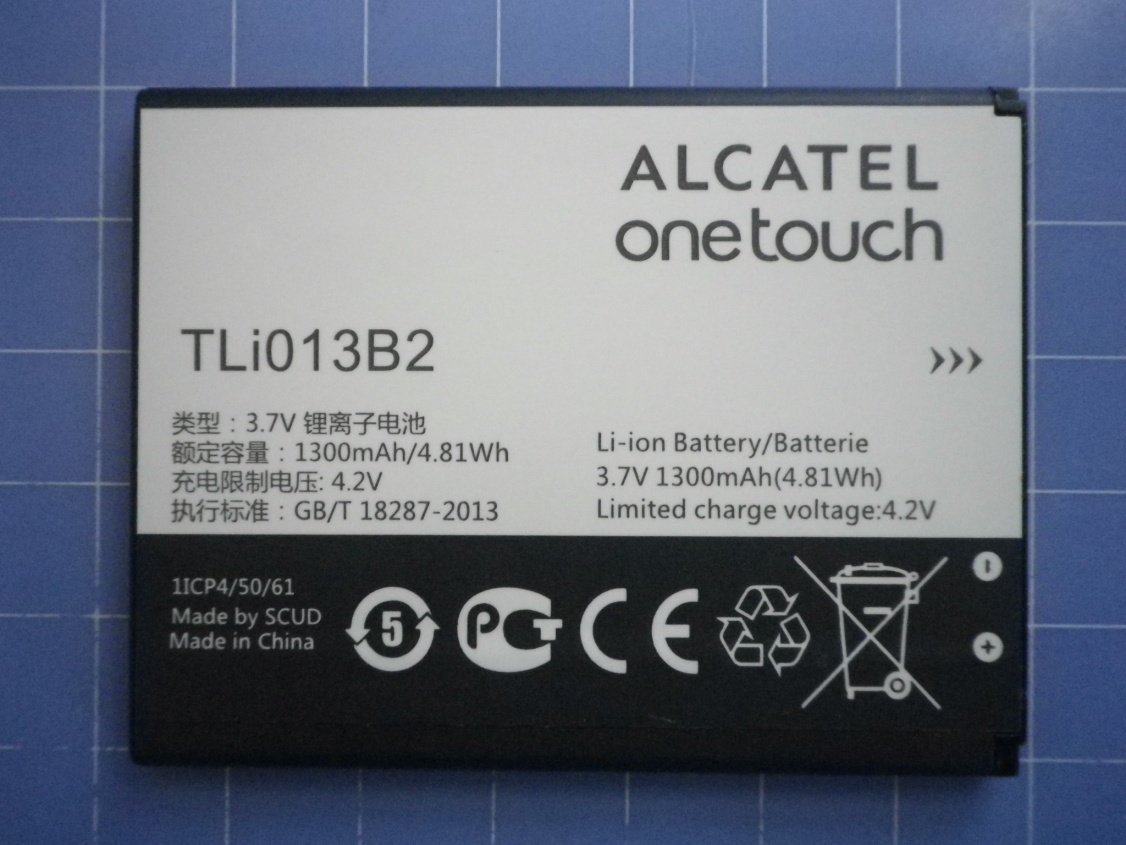

EUT photograph Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone

©Copyright. All rights reserved by CTTL. SAR TEST REPORT No. I14N01486-SAR For TCL Communication Ltd. HSUPA/HSDPA/UMTS Triple band/GSM Quad band mobile phone Model Name: 4009E With Hardware Version: PIO Software Version: v4B2D FCC ID: 2ACCJH011 Issued Date: 2014-12-26 Note: The test results in this test report relate only to the devices specified in this report.This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL, Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No.52, HuayuanNorth Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2512,Fax:+86(0)10-62304633-2504 Email:[email protected] , website:www.chinattl.com TESTING CNAS L0570 No .I14N01486-SAR Page 2 of 152 ©Copy right. All rights reserved by CTTL. REPORT HISTORY Report Number Revision Issue Date Description I14N01486-SAR Re v.0 2014-12-26 Initial creation of test report No .I14N01486-SAR Page 3 of 152 ©Copy right. All rights reserved by CTTL. T ABLE OF CONTENT 1 TE ST LABORATORY .................................................................................................................... 6 1 .1 T ESTI NG L OC ATION .. ...................................................................................................................................... 6 1 .2 T ESTI NG E NV IRONMENT .. ............................................................................................................................... 6 1 .3 P ROJ ECT D A TA .. ............................................................................................................................................. 6 1 .4 S I GNATURE .. ................................................................................................................................................... 6 2 S TATEMENT OF COMPLIANCE .................................................................................................. 7 3 CLIENT INFORMATION ................................................................................................................ 9 3 .1 A PPLI CANT I NF ORMATION .. ............................................................................................................................ 9 3 .2 M A NUFACTURER I NF ORMATION .. ................................................................................................................... 9 4 EQ UIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................... 10 4 .1 A BOUT EUT .. ............................................................................................................................................... 10 4 .2 I NT ERNAL I DEN TIFICATION OF EUT US ED DURING THE TEST .. ...................................................................... 10 4 .3 I NT ERNAL I DEN TIFICATION OF A E US ED DURING THE TEST .. ........................................................................ 11 5 TE ST METHODOLOGY .............................................................................................................. 11 5 .1 A PPLI CABLE L I MIT R E GULATIONS .. .............................................................................................................. 11 5 .2 A PPLI CABLE M E ASUREMENT S T ANDARDS .. .................................................................................................. 11 6 SP ECIFIC ABSORPTION RATE (SAR) ...................................................................................... 12 6.1 I NT RODUCTION ............................................................................................................................................. 12 6 .2 SA R D E FINITION .. ........................................................................................................................................ 12 7 TI SSUE SIMULATING LIQUIDS ................................................................................................. 13 7 .1 T A RGETS FOR TISSUE SIMULATING LIQUID .. .................................................................................................. 13 7 .2 D I ELECTRIC P ERF ORMANCE .. ....................................................................................................................... 13 8 SY STEM VERIFICATION ............................................................................................................ 17 8 .1 S YS TEM S ET UP .. ........................................................................................................................................... 17 8 .2 S YS TEM V E RIFICATION .. ............................................................................................................................... 18 9 MEASUREMENT PROCEDURES .............................................................................................. 19 9 .1 T EST S TO BE PERFORMED .. ........................................................................................................................... 19 9 .2 G ENE RAL M E ASUREMENT P RO CEDURE .. ...................................................................................................... 20 9 .3 W CDMA M EA SUREMENT P ROCEDURES FOR SAR .. .................................................................................... 21 9.4 B L UETOOTH & W I -F I M EAS UREMENT P RO CEDURES FOR SAR .................................................................... 22 9 .5 P OW ER D RI FT .. ............................................................................................................................................. 22 10 AREA SCAN BASED 1-G SAR ................................................................................................. 23 1 0.1 R EQU IREMENT OF KDB .. ............................................................................................................................ 23 1 0.2 F A ST S AR A L GORITHMS .. ......................................…

Text truncated - open the document above for the full version.

No.I14N01486-SAR Page 105 of 152 ©Copyright. All rights reserved by CTTL. No.I14N01486-SAR Page 106 of 152 ©Copyright. All rights reserved by CTTL. No.I14N01486-SAR Page 107 of 152 ©Copyright. All rights reserved by CTTL. No.I14N01486-SAR Page 108 of 152 ©Copyright. All rights reserved by CTTL. No.I14N01486-SAR Page 109 of 152 ©Copyright. All rights reserved by CTTL. No.I14N01486-SAR Page 110 of 152 ©Copyright. All rights reserved by CTTL. 1800 MHz Dipole Calibration Certificate No.I14N01486-SAR Page 111 of 152 ©Copyright. All rights reserved by CTTL. No.I14N01486-SAR Page 112 of 152 ©Copyright. All rights reserved by CTTL. No.I14N01486-SAR Page 113 of 152 ©Copyright. All rights reserved by CTTL. No.I14N01486-SAR Page 114 of 152 ©Copyright. All rights reserved by CTTL. No.I14N01486-SAR Page 115 of 152 ©Copyright. All rights reserved by CTTL. No.I14N01486-SAR Page 116 of 152 ©Copyright. All rights reserved by CTTL. No.I14N01486-SAR Page 117 of 152 ©Copyright. All rights reserved by CTTL. No.I14N01486-SAR Page 118 of 152 ©Copyright. All rights reserved by CTTL. 1900 MHz Dipole Calibration Certificate No.I14N01486-SAR Page 119 of 152 ©Copyright. All rights reserved by CTTL. No.I14N01486-SAR Page 120 of 152 ©Copyright. All rights reserved by CTTL. No.I14N01486-SAR Page 121 of 152 ©Copyright. All rights reserved by CTTL. No.I14N01486-SAR Page 122 of 152 ©Copyright. All rights reserved by CTTL. No.I14N01486-SAR Page 123 of 152 ©Copyright. All rights reserved by CTTL. No.I14N01486-SAR Page 124 of 152 ©Copyright. All rights reserved by CTTL. No.I14N01486-SAR Page 125 of 152 ©Copyright. All rights reserved by CTTL. No.I14N01486-SAR Page 126 of 152 ©Copyright. All rights reserved by CTTL. 2450 MHz Dipole Calibration Certificate

No.I14N01486-SAR Page 127 of 152 ©Copyright. All rights reserved by CTTL. No.I14N01486-SAR Page 128 of 152 ©Copyright. All rights reserved by CTTL. No.I14N01486-SAR Page 129 of 152 ©Copyright. All rights reserved by CTTL. No.I14N01486-SAR Page 130 of 152 ©Copyright. All rights reserved by CTTL. No.I14N01486-SAR Page 131 of 152 ©Copyright. All rights reserved by CTTL. No.I14N01486-SAR Page 132 of 152 ©Copyright. All rights reserved by CTTL. No.I14N01486-SAR Page 133 of 152 ©Copyright. All rights reserved by CTTL. No.I14N01486-SAR Page 134 of 152 ©Copyright. All rights reserved by CTTL. ANNEX I SPOT CHECK TEST As the test lab for 4009E from TCL Communication Ltd., we, CTTL Shenzhen, declare on our sole responsibility that, according to “Declaration of changes” provided by applicant, only the Spot check test should be performed. The test results are as below. I.1 Internal Identification of EUT used during the spot check test EUT ID* IMEI HW Version SW Version EUT1 IMEI 1：356870060100027 IMEI 2：356870060100266 PIO v4B2A *EUT ID: is used to identify the test sample in the lab internally. I.2 Conducted power of selected case Table I.1: The conducted power results for GSM850/1900 GSM 850MHz Conducted Power (dBm) Channel 251(848.8MHz) Channel 190(836.6MHz) Channel 128(824.2MHz) 32.65 / / GSM 1900MHz Conducted Power (dBm) Channel 810(1909.8MHz) Channel 661(1880MHz) Channel 512(1850.2MHz) 29.72 / / Table I.2: The conducted power results for GPRS GSM 850 GPRS (GMSK) Measured Power (dBm) 251 190 128 4 Txslots 26.62 / / PCS1900 GPRS (GMSK) Measured Power (dBm) 810 661 512 4 Txslots 24.28 / / Table I.3: The conducted power results for WCDMA Item band FDD V result ARFCN 4233 (846.6MHz) 4182 (836.4MHz) 4132 (826.4MHz) WCDMA / 22.94 / / Item band FDD II result ARFCN 9538 (1907.6MHz) 9400 (1880MHz) 9262 (1852.4MHz) WCDMA / 23.36 / / No.I14N01486-SAR Page 135 of 152 ©Copyright. All rights reserved by CTTL. I.3 Measurement results SAR Values (GSM 850 MHz Band - Head) Frequency Side Test Position Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 848.8 251 Left Touch CAB31P0000C1 0.793 0.551 SAR Values (GSM 850 MHz Band - Body) Frequency Mode/Band Test Position Spacing (mm) Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 848.8 251 GPRS Rear 10 CAB31P0000C1 0.924 0.684 SAR Values (PCS 1900 MHz Band - Head) Frequency Side Test Position Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 1909.8 810 Right Touch CAB31P0000C1 0.543 0.438 SAR Values (PCS 1900 MHz Band - Body) Frequency Mode/Band Test Position Spacing (mm) Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 1909.8 810 GPRS Rear 10 CAB31P0000C1 0.572 0.532 SAR Values (WCDMA 850 MHz Band - Head) Frequency Side Test Position Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 846.6 4233 Left Touch CAB31P0000C1 0.720 0.605 SAR Values (WCDMA 850 MHz Band - Body) Frequency Test Position Spacing (mm) Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 846.6 4233 Rear 10 CAB31P0000C1 0.967 0.872 SAR Values (WCDMA 1900 MHz Band - Head) Frequency Side Test Position Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 1907.6 9538 Right Touch CAB31P0000C1 0.864 0.826 SAR Values (WCDMA 1900 MHz Band - Body) Frequency Test Position Spacing (mm) Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 1907.6 9538 Rear 10 CAB31P0000C1 1.100 0.935 No.I14N01486-SAR Page 136 of 152 ©Copyright. All rights reserved by CTTL. I.4 Reported SAR Comparison Exposure Configuration Technology Band Reported SAR 1g (W/Kg): original Reported SAR 1g (W/Kg): spot check Head (Separation Distance 0mm) GSM 850 0.90 0.64 PCS 1900 0.62 0.50 UMTS FDD 2 0.83 0.77 UMTS FDD 5 0.99 0.96 Body-worn (Separation Distance 10mm) GSM 850 1.09 0.84 PCS 1900 0.67 0.63 UMTS FDD 2 1.11 1.11 UMTS FDD 5 1.27 1.08 No.I14N01486-SAR Page 137 of 152 ©Copyright. All rights reserved by CTTL. GSM 850 Left Cheek High Date: 2014-12-13 Electronics: DAE4 Sn786 Medium: Head 900 MHz Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.939 S/m; ε r = 41.723; ρ = 1000 kg/m 3 Ambient Temperature:21.7 o C Liquid Temperature:21.2 o C Communication System: GSM Frequency: 848.8 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3151 ConvF(6.04, 6.04, 6.04); Left Cheek High/Area Scan (51x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.581 W/kg Left Cheek High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.342 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 0.701 W/kg SAR(1 g) = 0.551 W/kg; SAR(10 g) = 0.406 W/kg Maximum value of SAR (measured) = 0.581 W/kg Fig. E.1 Left Hand Touch Cheek GSM 850MHz CH251 No.I14N01486-SAR Page 138 of 152 ©Copyright. All rights reserved by CTTL. Z-Scan at power reference point (850 MHz CH251) No.I14N01486-SAR Page 139 of 152 ©Copyright. All rights reserved by CTTL. GSM 850 Rear side High Date: 2014-12-13 Electronics: DAE4 Sn786 Medium: Body 900 MHz Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.977 S/m; ε r = 55.686; ρ = 1000 kg/m 3 Ambient Temperature:21.7 o C Liquid Temperature:21.2 o C Communication System: 4 slot GPRS Frequency: 848.8 MHz Duty Cycle: 1:2.08018 Probe: ES3DV3 - SN3151 ConvF(6.14, 6.14, 6.14); Rear side High/Area Scan (51x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.749 W/kg Rear side High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 20.085 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 1.05 W/kg SAR(1 g) = 0.684 W/kg; SAR(10 g) = 0.452 W/kg Maximum value of SAR (measured) = 0.739 W/kg Fig. E.1 GSM 850 MHz CH251 No.I14N01486-SAR Page 140 of 152 ©Copyright. All rights reserved by CTTL. Z-Scan at power reference point (850 MHz CH251) No.I14N01486-SAR Page 141 of 152 ©Copyright. All rights reserved by CTTL. PCS1900 head Right Cheek High Date: 2014-12-14 Electronics: DAE4 Sn786 Medium: …

Text truncated - open the document above for the full version.

©Copyright. All rights reserved by CTTL. FCC PART 15C TEST REPORT BLUETOOTH LOW ENERGY (BLE) PART No. I14Z48817-SRD02 for TCL Communication Ltd HSUPA/HSDPA/UMTS triple band /GSM quad band mobile phone Model Name: 4009E FCC ID: 2ACCJH011 with Hardware Version: PIO Software Version: v4B2D Issued Date: 2014-12-23 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL, Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT. No.52, HuayuanNorth Road, Haidian District, Beijing, P. R. China 100191. Te l:+86(0)10-62304633-2512,Fax:+86(0)10-62304633-2504 Email: [email protected], website:www.chinattl.com TESTING CNAS L0570 No. I14Z48817-SRD02 Page2 of 42 ©Copyright. All rights reserved by CTTL. REPORT HISTORY Report Number Revision Description Issue Date I14Z48817-SRD02 R ev.0 1st edition 2014-12-23 No. I14Z48817-SRD02 Page3 of 42 ©Copyright. All rights reserved by CTTL. CONTENTS 1. TEST LABORATORY ............................................................................................................... 4 1.1. TESTING LOCATION ........................................................................................................... 4 1.2. TESTING ENVIRONMENT ................................................................................................... 5 1.3. PROJECT DATA ................................................................................................................... 5 1.4. SIGNATURE .......................................................................................................................... 5 2. CLIENT INFORMATION ........................................................................................................... 6 2.1. APPLICANT INFORMATION ................................................................................................ 6 2.2. MANUFACTURER INFORMATION ...................................................................................... 6 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 7 3.1. ABOUT EUT .......................................................................................................................... 7 3.2. INTERNAL IDENTIFICATION OF EUT ................................................................................ 7 3.3. INTERNAL IDENTIFICATION OF AE ................................................................................... 7 3.4. N ORMAL ACCESSORY SETTING ............................................................................................. 7 3.5. G ENERAL DESCRIPTION ....................................................................................................... 7 4. REFERENCE DOCUMENTS .................................................................................................... 8 4.1. DOCUMENTS SUPPLIED BY APPLICANT......................................................................... 8 4.2. REFERENCE DOCUMENTS FOR TESTING....................................................................... 8 5. TEST RESULTS ........................................................................................................................ 9 5.1. S UMMARY OF TEST RESULTS ................................................................................................ 9 5.2. S TATEMENTS........................................................................................................................ 9 6. TEST FACILITIES UTILIZED ................................................................................................... 9 ANNEX A: DETAILED TEST RESULTS ....................................................................................... 11 A.1. MEASUREMENT METHOD ........................................................................................................ 11 A.2. PEAK OUTPUT POWER - CONDUCTED ..................................................................................... 12 A. 3. FREQUENCY BAND EDGES - CONDUCTED ............................................................................... 13 A.4. TRANSMITTER SPURIOUS EMISSION - CONDUCTED ................................................................. 15 A.5. TRANSMITTER SPURIOUS EMISSION - RADIATED ..................................................................... 24 A.6. 6DB BANDWIDTH ................................................................................................................... 32 A.7. MAXIMUM POWER SPECTRAL DENSITY LEVEL ........................................................................ 35 A.8. AC POWERLINE CONDUCTED EMISSION ................................................................................. 38 ANNEX B: ACCREDITATION CERTIFICATE ............................................................................... 42 No. I14Z48817-SRD02 Page4 of 42 ©Copyright. All rights reserved by CTTL. 1. Test Laboratory 1.1. Testing Location Location 1:CTTL(huayuan North Road) Address: No. 52, Huayuan North Road, Haidian District, Beijing, P. R. China100191 Location 2:CTTL(Shouxiang) Address: No. 51 Shouxiang Science Building, Xueyuan Road, Haidian District, Beijing, P. R. China100191 No. I14Z48817-SRD02 Page5 of 42 ©Copyright. All rights reserved by CTTL. 1.2. Testing Environment Normal Temperature: 15-35°C Extreme Temperature: -10/+55°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: 2014-12-01 Testing End Date: 2014-12-18 1.4. Signature Xu Zhongfei (Prepared this test report) Li Zhibin (Reviewed this test report) Lv Songdong (Approvedthis test report) No. I14Z48817-SRD02 Page6 of 42 ©Copyright. All rights reserved by CTTL. 2. Client Information 2.1. Applicant Information Company Name: TCL Communication Ltd Address /Post: 5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 City: Sh…

Text truncated - open the document above for the full version.

©Copyright. All rights reserved by CTTL. FCC PART 15C TESTREPORT No. I14Z48817-SRD03 for TCL Communication Ltd HSUPA/HSDPA/UMTS triple band /GSM quad band mobile phone Model Name: 4009E FCC ID: 2ACCJH011 with Hardware Version: PIO Software Version: v4B2D Issued Date: 2014-12-23 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written ap…

Text truncated - open the document above for the full version.
