2ACCJH012HSUPA/HSDPA/UMTS Dual band/GSM Quad band mobile phone

12 English - CJB2861ALAAA Quick Start Guide For more information about how to use the phone, please go to www.alcatelonetouch.com to download the complete user manual. Also on our website you can find helpful FAQs, perform software upgrades, etc. www.sar-tick.com This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found in the RADIOWAVES section of this user guide. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 10 mm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. 1 Your mobile .................. 1.1 Keys and connectors Headset connector micro-USB connector Back key Home key Menu key Touch screen Front camera (1) (1) 4009F only. 34 Volume up Volume down Camera Flash/Torch Power key Menu key • Option menu. Touch to access Manage Home- screen, Add widgets, Manage applications, Wallpaper and Settings. • Recent apps. Touch and hold to open a list of thumbnail images of apps you've worked with recently. Touch it to open an app. Swipe it up or down to remove a thumbnail from the list. Home key • While on any application or screen, touch to return to the Home screen. • While on lock screen (the screen is lighted up), touch and hold the Home key to turn on the torch. Back key • Touch to go back to the previous screen, or to close a dialog box, options menu, the notification panel, etc. Power key • Press: Lock the screen/Light up the screen. • Press and hold: Power on or generate a pop up menu selecting from Power off/Restart/Airplane mode or icons of Ringer mode. • Press to mute the ringtone when there’s an incoming call. • Press and hold for more than 7 seconds to restart the phone when the system halted. • Press and hold Power key and Volume down key to capture a screenshot. • Press and hold Power key and Volume up key under power off mode to restore factory set. Volume keys • Under call mode, adjust the earpiece or headset volume. • In Music/Video/Streaming mode, adjust the media volume. • In general mode, adjust the ring tone volume. • Mute the ringtone of an incoming call. 56 1.2 Getting started 1.2.1 Set-up Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your phone before inserting or removing the SIM card. Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. Your phone only supports mini-SIM card. Do not attempt to insert other SIM types like micro and nano cards, otherwise you may damage your phone. Installing or removing the battery Please power off your phone before removing the battery. • Insert and click the battery into place, then close the cover. • Unclip the cover, then remove the battery. Installing the microSD card To install, please open microSD card lock first, and then place the external microSD card into the slot with the gold contact facing down. To remove the external microSD card, please open microSD card lock and take it out from the slot. Charging the battery Connect the battery charger to your phone and outlet respectively. If the battery is very low, there will be no indication that power is being received until the charge is sufficient enough to show the charging status bar. To reduce power consumption and energy waste, once the battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or applications running in the background when not in use; reduce the backlight time, etc. 78 1.2.2 Power on your phone Hold down the Power key until the phone powers on. It will take a few seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you should set the following options: language, input method, date & time, Google account, etc. If you power on your phone with no SIM card inserted, you can connect to a Wi-Fi network to sign into your Google account and to use some features. 1.2.3 Power off your phone Hold down the Power key until the Phone options appear, select Power off. 1.3 Home screen You can bring all the items (applications, shortcuts, folders and widgets) you love or use most frequently to your Home screen for quick access. Touch the Home key to switch to Home screen. Status bar • Status/Notification indicators • Touch and drag down to open the notification panel. Application tab • Touch to open main menu. Search bar (1) • Touch  to enter text search screen. • Touch  to enter voice search screen. Favorite applications tray • Touch to enter the application. • Touch and hold to move or change applications. Add a location to display local weather. Home screen is provided in an extended format to allow more space for adding applications, shortcuts etc. Slide the Home screen horizontally left and right to get a complete view of the Home screen. The row of small circles at the lower part of the screen indicates which screen you are viewing. (1) Depends on software version. 1.3.1 Using the touchscreen Touch To access an application, touch it with your finger. Touch and Hold Touch and hold the home screen to access the available options for setting the home screens. Drag Place your finger on any item to drag it to another location. Slide/Swipe Slide the screen to scroll up and down the applications, images, web pages... at your convenience. Flick Similar to swiping, but flicking makes it move quicker. Pinch/Spread Place your fingers of one hand on the screen surface and draw them apart or together to scale an element on the screen…

Text truncated - open the document above for the full version.

TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Tel: +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com Date 2014-07-27 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Te l : +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com 2014-12-12 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: 2ACCJH012 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Declaration of changes from 4008A（2ACCJH013） to 4009F （2ACCJH012） General: 4009F （2ACCJH012）is a variant product of 4008A（2ACCJH013）  SOFTWARE MODIFICATIONS:  Protocol Stack changes: No  MMS/STK/USAT/USIM changes: No  DM/SUPL/VT/FUMO/SWP/HCI: Yes,4008A（2ACCJH013）doesn’t support video telephone;4009F（2ACCJH012）supports video telephone.  Other changes detailed:No  HARDWARE MODIFICATIONS:  Band changes: No  PCB Layout changes: No  Main components changes: Antenna Base Band Transceiver ASM Power Amplifier Tx SAW Filter Rx SAW Filter GSM850 NO NO NO N/A NO N/A NO GSM900 NO NO NO N/A NO N/A NO GSM1800 NO NO NO N/A NO N/A NO GSM1900 NO NO NO N/A NO N/A NO UMTS2100 N/A N/A N/A N/A N/A N/A N/A UMTS1900 NO NO NO N/A NO N/A N/A UMTS1700 N/A N/A N/A N/A N/A N/A N/A UMTS900 N/A N/A N/A N/A N/A N/A N/A UMTS850 NO NO NO N/A NO N/A N/A LTE N/A N/A N/A N/A N/A N/A N/A Bluetooth NO NO N/A N/A N/A N/A N/A WiFi NO NO N/A N/A N/A N/A N/A  FM changes:No  Other components changes: LCD/ Speaker/ Camera/ Vibrator changes: Yes,4009F（2ACCJH012）add front camera.  Other changes detailed:No  MECHANICAL MODIFICATIONS:  Use new metal front/back cover or keypad: No  Mechanical shell changes: Whole size of EUT: No Distance of Ear reference point to bottom of handset: No Other trinkets to change the surface of handset: No  Other changes detailed: No APPROVED BY: Project Manager: 黄正仙 Signature : Date: 2014-11-26

Date: January 14, 2015 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd. Columbia MD 21046 Subject: Request permission to use Wi-Fi / Bluetooth/ GSM/ WCDMA test results from model 4008A in our applications for model 4009F FCC ID: 2ACCJH012 To whom it may concern: We request permission to use Wi-Fi / Bluetooth/ GSM/ WCDMA test results from model 4008A(FCC ID: 2ACCJH013) in our applications for model 4009F(FCC ID: 2ACCJH012). Models 4008A and 4009F share the same enclosure, main logic board, display, battery and I/O design. All two models use the same Wi-Fi / Bluetooth chipset/module and antennas, and operate using the same transmit power levels. Also, all two models run the same iOS software. Model 4009F is a mobile phone device that only add front camera. Sincerely, Project Manager: 黄正仙 Signature : Date: 201 5- 01-14

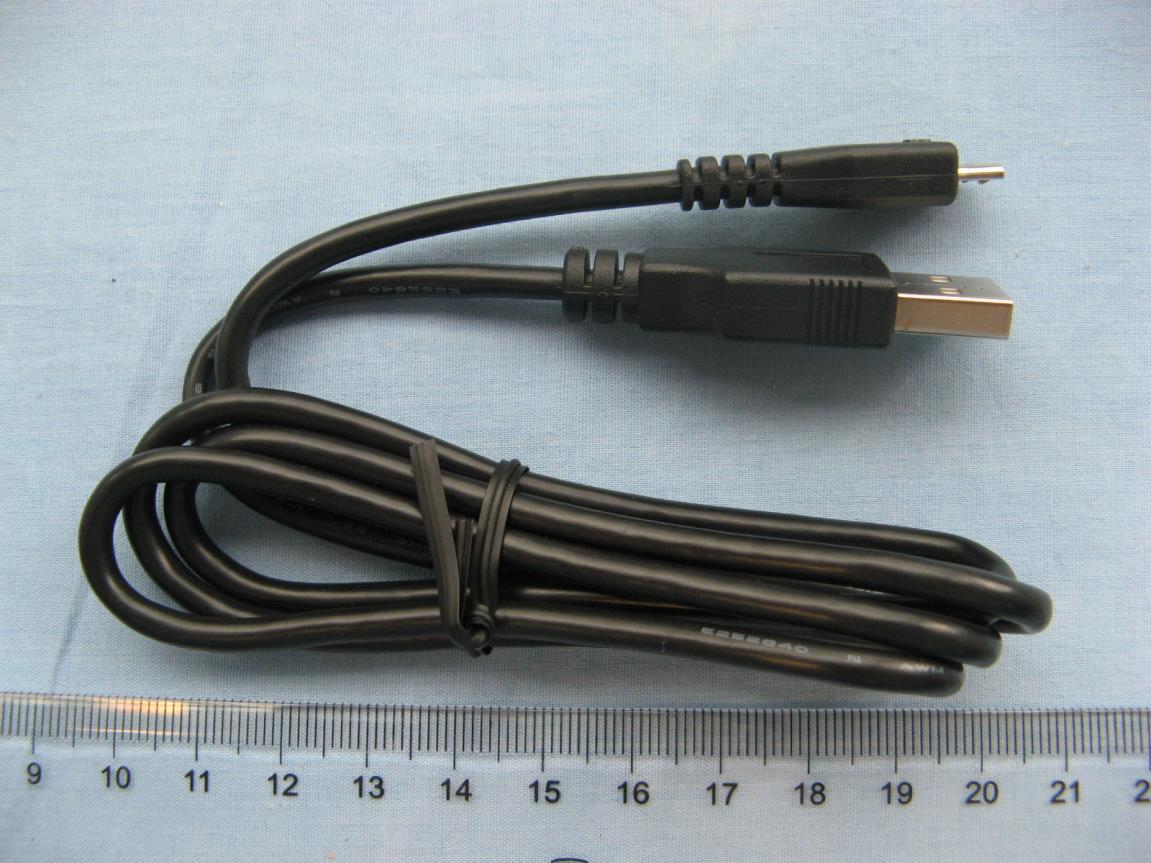

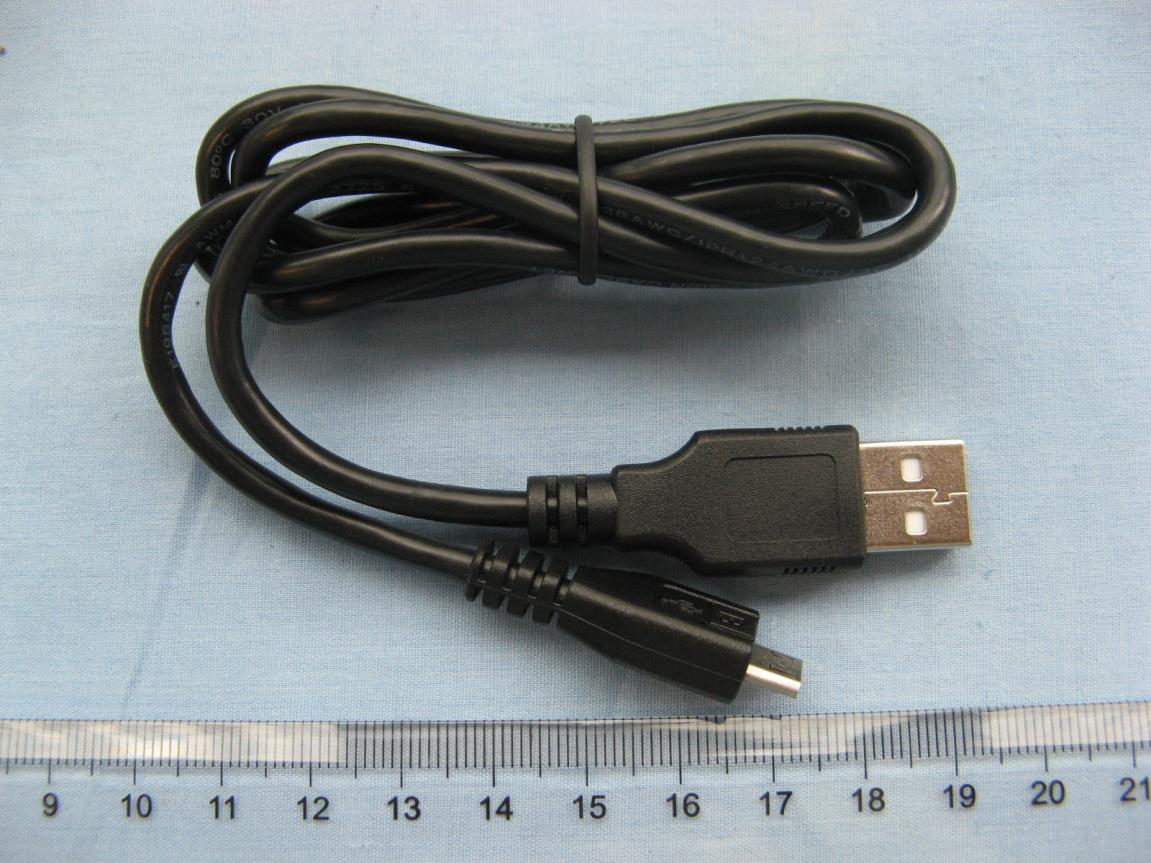

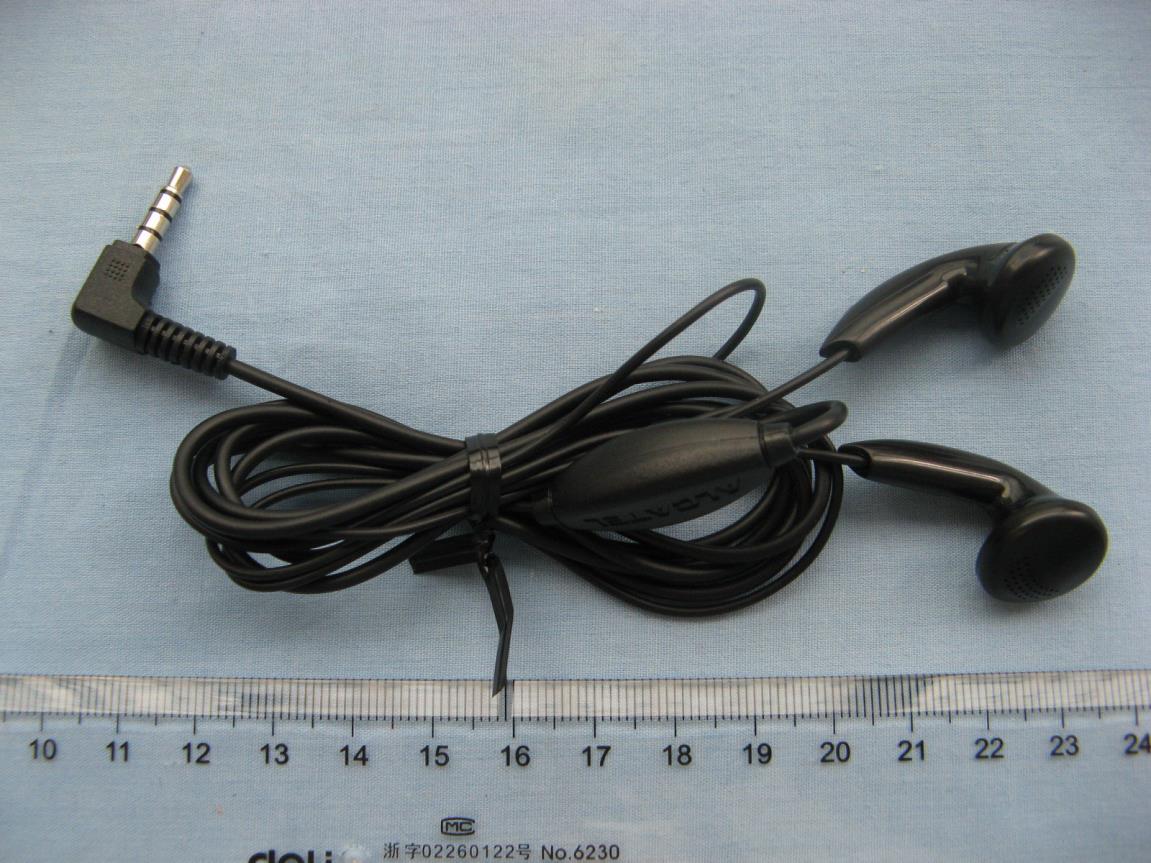

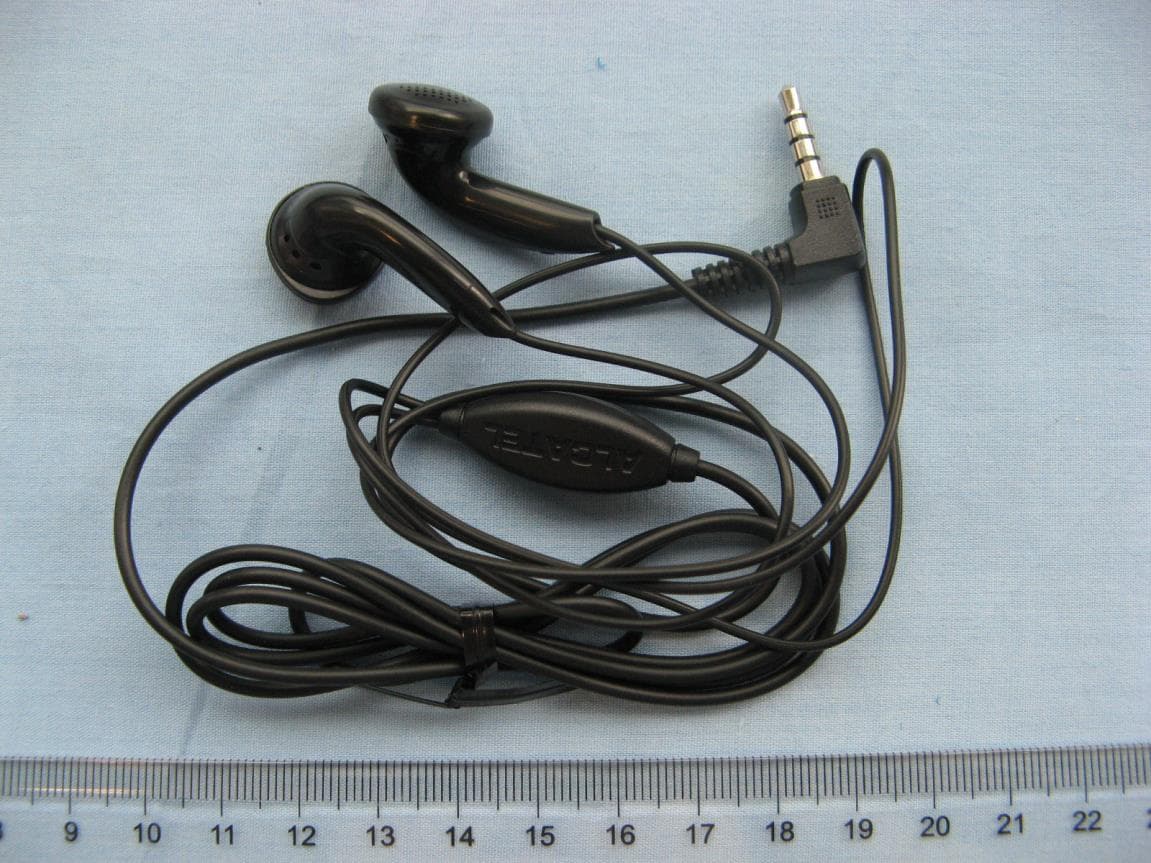

EUT photograph Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone

Internal Photo Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly

©Copyright. All rights reserved by CTTL. SAR TEST REPORT No. I14N01488-SAR For TCL Communication Ltd. HSUPA/HSDPA/UMTS Dual band/GSM Quad band mobile phone Model Name: 4009F With Hardware Version: PIO Software Version: v4B2A FCC ID: 2ACCJH012 Issued Date: 2014-12-29 Note: The test results in this test report relate only to the devices specified in this report.This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL, Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No.52, HuayuanNorth Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2512,Fax:+86(0)10-62304633-2504 Email:[email protected] , website:www.chinattl.com TESTING CNAS L0570 No.I14N01488-SAR Page 2 of 151 ©Copyright. All rights reserved by CTTL. REPORT HISTORY Report Number RevisionIssue Date Description I14N01488-SAR Rev.0 2014-12-29 Initial creation of test report No.I14N01488-SAR Page 3 of 151 ©Copyright. All rights reserved by CTTL. TABLE OF CONTENT 1 TEST LABORATORY ................................................................................................................. 5 1.1 TESTING LOCATION ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE ................................................................................................ 6 3 CLIENT INFORMATION.............................................................................................................. 8 3.1 APPLICANT INFORMATION .............................................................................................................................. 8 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 8 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................ 9 4.1 ABOUT EUT ................................................................................................................................................... 9 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 9 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ........................................................................... 10 5 TEST METHODOLOGY ............................................................................................................ 10 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 10 5.2 APPLICABLE MEASUREMENT STANDARDS .................................................................................................... 10 6 SPECIFIC ABSORPTION RATE (SAR) .................................................................................... 11 6.1 INTRODUCTION ............................................................................................................................................. 11 6.2 SAR DEFINITION .......................................................................................................................................... 11 7 TISSUE SIMULATING LIQUIDS ............................................................................................... 12 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 12 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 12 8 SYSTEM VERIFICATION .......................................................................................................... 16 8.1 SYSTEM SETUP ............................................................................................................................................. 16 8.2 SYSTEM VERIFICATION ................................................................................................................................. 17 9 MEASUREMENT PROCEDURES ............................................................................................ 18 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 18 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 19 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 20 9.4 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 21 9.5 POWER DRIFT ............................................................................................................................................... 21 10 AREA SCAN BASED 1-G SAR .............................................................................................. 22 10.1 REQUIREMENT OF KDB .............................................................................................................................. 22 10.2 FAST SAR ALGORITHMS ............................................................................................................................ 22 11 CONDUCTED OUTPUT POWER .............................................................…

Text truncated - open the document above for the full version.

No.I14N01488-SAR Page 38 of 151 ©Copyright. All rights reserved by CTTL. 14.2 SAR results for Standard procedure There is zoom scan measurement to be added for the highest measured SAR in each exposure configuration/band. Table 14.16: SAR Values (GSM 850 MHz Band - Head) – CAB31P0000C1 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Frequency Side Test Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 848.8 251 Left Touch Fig.1 32.73 33.3 0.576 0.66 0.793 0.90 0.11 Table 14.17: SAR Values (GSM 850 MHz Band - Body) – CAB31P0000C1 Frequency Test Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 848.8 251 Rear Fig.2 26.79 27.5 0.639 0.75 0.924 1.09 0.18 Note1: The distance between the EUT and the phantom bottom is 10mm. Table 14.18: SAR Values (GSM 1900 MHz Band - Head) – CAB31P0000C1 Ambient Temperature: 22.4 o C Liquid Temperature: 21.9 o C Frequency Side Test Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 1909.8 810 Right Touch Fig.3 29.74 30.3 0.298 0.34 0.543 0.62 0.18 Table 14.19: SAR Values (GSM 1900 MHz Band - Body) – CAB31P0000C1 Frequency Test Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 1909.8 810 Rear Fig.4 24.32 25 0.331 0.39 0.572 0.67 0.03 Note1: The distance between the EUT and the phantom bottom is 10mm. Table 14.20: SAR Values (WCDMA 850 MHz Band - Head) – CAB31P0000C1 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Frequency Side Test Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 846.6 4233 Left Touch Fig.5 22.95 24 0.534 0.68 0.720 0.92 -0.04 Table 14.21: SAR Values (WCDMA 850 MHz Band - Body) – CAB31P0000C1 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Frequency Test Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 846.6 4233 Rear Fig.6 22.95 24 0.697 0.89 0.967 1.23 0.10 Note1: The distance between the EUT and the phantom bottom is 10mm. No.I14N01488-SAR Page 39 of 151 ©Copyright. All rights reserved by CTTL. Table 14.22: SAR Values (WCDMA 1900 MHz Band - Head) – CAB31P0000C1 Ambient Temperature: 22.4 o C Liquid Temperature: 21.9 o C Frequency Side Test Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 1907.6 9538 Right Touch Fig.7 23.39 24 0.489 0.56 0.864 0.99 -0.02 Table 14.23: SAR Values (WCDMA 1900 MHz Band - Body) – CAB31P0000C1 Ambient Temperature: 22.4 o C Liquid Temperature: 21.9 o C Frequency Test Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 1907.6 9538 Rear Fig.8 23.39 24 0.645 0.74 1.100 1.27 0.05 Note1: The distance between the EUT and the phantom bottom is 0.49210mm. Table 14.24: SAR Values (Wi-Fi 802.11b - Head) – CAB31P0000C1 Ambient Temperature: 22.6 o C Liquid Temperature: 22.1 o C Frequency Side Test Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 2412 1 Left Touch / 17.57 18.5 0.152 0.19 0.332 0.41 0.19 Table 14.25: SAR Values (Wi-Fi 802.11b - Body) – CAB31P0000C1 Ambient Temperature: 22.6 o C Liquid Temperature: 22.1 o C Frequency Test Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 2462 11 Rear / 16.21 18.5 0.037 0.06 0.078 0.13 0.06 Note1: The distance between the EUT and the phantom bottom is 10mm. No.I14N01488-SAR Page 40 of 151 ©Copyright. All rights reserved by CTTL. 15 SAR Measurement Variability SAR measurement variability must be assessed for each frequency band, which is determined by the SAR probe calibration point and tissue-equivalent medium used for the device measurements. When both head and body tissue-equivalent media are required for SAR measurements in a frequency band, the variability measurement procedures should be applied to the tissue medium with the highest measured SAR, using the highest measured SAR configuration for that tissue-equivalent medium. The following procedures are applied to determine if repeated measurements are required. 1) Repeated measurement is not required when the original highest measured SAR is < 0.80 W/kg; steps 2) through 4) do not apply. 2) When the original highest measured SAR is ≥ 0.80 W/kg, repeat that measurement once. 3) Perform a second repeated measurement only if the ratio of largest to smallest SAR for the original and first repeated measurements is > 1.20 or when the original or repeated measurement is ≥ 1.45 W/kg (~ 10% from the 1-g SAR limit). 4) Perform a third repeated measurement only if the original, first or second repeated measurement is ≥ 1.5 W/kg and the ratio of largest to smallest SAR for the original, first and second repeated measurements is > 1.20. Table 15.1: SAR Measurement Variability for Body GSM 850 (1g) Frequency Test Position Spacing (mm) Original SAR (W/kg) First Repeated SAR (W/kg) The Ratio Second Repeated SAR (W/kg) MHz Ch. 848.8 251…

Text truncated - open the document above for the full version.

No.I14N01488-SAR Page 75 of 151 ©Copyright. All rights reserved by CTTL. Picture C.7 Server for DASY 4 Picture C.8 Server for DASY 5 C.4.4 Device Holder for Phantom The SAR in the phantom is approximately inversely proportional to the square of the distance between the source and the liquid surface. For a source at 5mm distance, a positioning uncertainty of ±0.5mm would produce a SAR uncertainty of ±20%. Accurate device positioning is therefore crucial for accurate and repeatable measurements. The positions in which the devices must be measured are defined by the standards. The DASY device holder is designed to cope with the different positions given in the standard. It has two scales for device rotation (with respect to the body axis) and device inclination (with respect to the line between the ear reference points). The rotation centers for both scales is the ear reference point (ERP). Thus the device needs no repositioning when changing the angles. The DASY device holder is constructed of low-loss POM material having the following dielectric parameters: relative permittivity ε =3 and loss tangent δ =0.02. The amount of dielectric material has been reduced in the closest vicinity of the device, since measurements have suggested that the influence of the clamp on the test results could thus be lowered. <Laptop Extension Kit> The extension is lightweight and made of POM, acrylic glass and foam. It fits easily on the upper part of the Mounting Device in place of the phone positioner. The extension is fully compatible with the Twin-SAM and ELI phantoms. Picture C.9-1: Device Holder Picture C.9-2: Laptop Extension Kit C.4.5 Phantom The SAM Twin Phantom V4.0 is constructed of a fiberglass shell integrated in a table. The shape of the shell is based on data from an anatomical study designed to No.I14N01488-SAR Page 76 of 151 ©Copyright. All rights reserved by CTTL. Represent the 90 th percentile of the population. The phantom enables the dissymmetric evaluation of SAR for both left and right handed handset usage, as well as body-worn usage using the flat phantom region. Reference markings on the Phantom allow the complete setup of all predefined phantom positions and measurement grids by manually teaching three points in the robot. The shell phantom has a 2mm shell thickness (except the ear region where shell thickness increases to 6 mm). Shell Thickness: 2 ± 0. 2 mm Filling Volume: Approx. 25 liters Dimensions: 810 x l000 x 500 mm (H x L x W) Available: Special Picture C.10: SAM Twin Phantom No.I14N01488-SAR Page 77 of 151 ©Copyright. All rights reserved by CTTL. ANNEX D Position of the wireless device in relation to the phantom D.1 General considerations This standard specifies two handset test positions against the head phantom – the “cheek” position and the “tilt” position. t w Width of the handset at the level of the acoustic b w Width of the bottom of the handset A Midpoint of the width t w of the handset at the level of the acoustic output B Midpoint of the width b w of the bottom of the handset Picture D.1-a Typical “fixed” case handset Picture D.1-b Typical “clam-shell” case handset Picture D.2 Cheek position of the wireless device on the left side of SAM No.I14N01488-SAR Page 78 of 151 ©Copyright. All rights reserved by CTTL. Picture D.3 Tilt position of the wireless device on the left side of SAM D.2 Body-worn device A typical example of a body-worn device is a mobile phone, wireless enabled PDA or other battery operated wireless device with the ability to transmit while mounted on a person’s body using a carry accessory approved by the wireless device manufacturer. Picture D.4 Test positions for body-worn devices D.3 Desktop device A typical example of a desktop device is a wireless enabled desktop computer placed on a table or desk when used. The DUT shall be positioned at the distance and in the orientation to the phantom that corresponds to the intended use as specified by the manufacturer in the user instructions. For devices that employ an external antenna with variable positions, tests shall be performed for all antenna positions specified. Picture 8.5 show positions for desktop device SAR tests. If the intended use is not specified, the device shall be tested directly against the flat phantom. No.I14N01488-SAR Page 79 of 151 ©Copyright. All rights reserved by CTTL. Picture D.5 Test positions for desktop devices D.4 DUT Setup Photos Picture D.6 No.I14N01488-SAR Page 80 of 151 ©Copyright. All rights reserved by CTTL. ANNEX E Equivalent Media Recipes The liquid used for the frequency range of 800-3000 MHz consisted of water, sugar, salt, preventol, glycol monobutyl and Cellulose. The liquid has been previously proven to be suited for worst-case. The Table E.1 shows the detail solution. It’s satisfying the latest tissue dielectric parameters requirements proposed by the IEEE 1528 and IEC 62209. Table E.1: Composition of the Tissue Equivalent Matter Frequency (MHz) 835 Head 835 Body 1900 Head 1900 Body 2450 Head 2450 Body 5800 Head 5800 Body Ingredients (% by weight) Water 41.45 52.5 55.24269.91 58.79 72.60 65.53 65.53 Sugar 56.0 45.0 \ \ \ \ \ \ Salt 1.45 1.4 0.306 0.13 0.06 0.18 \ \ Preventol 0.1 0.1 \ \ \ \ \ \ Cellulose 1.0 1.0 \ \ \ \ \ \ Glycol Monobutyl \ \ 44.45229.96 41.15 27.22 \ \ Diethylenglycol monohexylether \ \ \ \ \ \ 17.24 17.24 Triton X-100 \ \ \ \ \ \ 17.24 17.24 Dielectric Parameters Target Value ε=41.5 σ=0.90 ε=55.2 σ=0.97 ε=40.0 σ=1.40 ε=53.3 σ=1.52 ε=39.2 σ=1.80 ε=52.7 σ=1.95 ε=35.3 σ=5.27 ε=48.2 σ=6.00 No.I14N01488-SAR Page 81 of 151 ©Copyright. All rights reserved by CTTL. ANNEX F System Validation The SAR system must be validated against its performance specifications before it is deployed. When SAR probes, system components or software are changed, upgraded or recalibrated, these must be validated with the SAR system(s) that operates with such components. Table F.1: System Validation Probe SN. Liquid name Validation date Frequency point Status (OK or N…

Text truncated - open the document above for the full version.

No.I14N01488-SAR Page 112 of 151 ©Copyright. All rights reserved by CTTL. No.I14N01488-SAR Page 113 of 151 ©Copyright. All rights reserved by CTTL. No.I14N01488-SAR Page 114 of 151 ©Copyright. All rights reserved by CTTL. No.I14N01488-SAR Page 115 of 151 ©Copyright. All rights reserved by CTTL. No.I14N01488-SAR Page 116 of 151 ©Copyright. All rights reserved by CTTL. No.I14N01488-SAR Page 117 of 151 ©Copyright. All rights reserved by CTTL. 1900 MHz Dipole Calibration Certificate No.I14N01488-SAR Page 118 of 151 ©Copyright. All rights reserved by CTTL. No.I14N01488-SAR Page 119 of 151 ©Copyright. All rights reserved by CTTL. No.I14N01488-SAR Page 120 of 151 ©Copyright. All rights reserved by CTTL. No.I14N01488-SAR Page 121 of 151 ©Copyright. All rights reserved by CTTL. No.I14N01488-SAR Page 122 of 151 ©Copyright. All rights reserved by CTTL. No.I14N01488-SAR Page 123 of 151 ©Copyright. All rights reserved by CTTL. No.I14N01488-SAR Page 124 of 151 ©Copyright. All rights reserved by CTTL. No.I14N01488-SAR Page 125 of 151 ©Copyright. All rights reserved by CTTL. 2450 MHz Dipole Calibration Certificate No.I14N01488-SAR Page 126 of 151 ©Copyright. All rights reserved by CTTL. No.I14N01488-SAR Page 127 of 151 ©Copyright. All rights reserved by CTTL. No.I14N01488-SAR Page 128 of 151 ©Copyright. All …
