2ACCJH013HSUPA/HSDPA/UMTS Dual band/GSM Quad band mobile phone

TCL Communication Ltd.

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Jan 05, 2015
Application Purpose: Original Equipment
Date of Application: Jan 04, 2015
Equipment Note: HSUPA/HSDPA/UMTS Dual band/GSM Quad band mobile phone
Frequency Range: 1852.40000000 - 1907.60000000
Company: TCL Communication Ltd.
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

12 English - CJB2861ALAAA Quick Start Guide For more information about how to use the phone, please go to www.alcatelonetouch.com to download the complete user manual. Also on our website you can find helpful FAQs, perform software upgrades, etc. www.sar-tick.com This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found in the RADIOWAVES section of this user guide. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 10 mm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. 1 Your mobile .................. 1.1 Keys and connectors Headset connector micro-USB connector Back key Home key Menu key Touch screen Front camera (1) (1) 4009F only. 34 Volume up Volume down Camera Flash/Torch Power key Menu key • Option menu. Touch to access Manage Home- screen, Add widgets, Manage applications, Wallpaper and Settings. • Recent apps. Touch and hold to open a list of thumbnail images of apps you've worked with recently. Touch it to open an app. Swipe it up or down to remove a thumbnail from the list. Home key • While on any application or screen, touch to return to the Home screen. • While on lock screen (the screen is lighted up), touch and hold the Home key to turn on the torch. Back key • Touch to go back to the previous screen, or to close a dialog box, options menu, the notification panel, etc. Power key • Press: Lock the screen/Light up the screen. • Press and hold: Power on or generate a pop up menu selecting from Power off/Restart/Airplane mode or icons of Ringer mode. • Press to mute the ringtone when there’s an incoming call. • Press and hold for more than 7 seconds to restart the phone when the system halted. • Press and hold Power key and Volume down key to capture a screenshot. • Press and hold Power key and Volume up key under power off mode to restore factory set. Volume keys • Under call mode, adjust the earpiece or headset volume. • In Music/Video/Streaming mode, adjust the media volume. • In general mode, adjust the ring tone volume. • Mute the ringtone of an incoming call. 56 1.2 Getting started 1.2.1 Set-up Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your phone before inserting or removing the SIM card. Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. Your phone only supports mini-SIM card. Do not attempt to insert other SIM types like micro and nano cards, otherwise you may damage your phone. Installing or removing the battery Please power off your phone before removing the battery. • Insert and click the battery into place, then close the cover. • Unclip the cover, then remove the battery. Installing the microSD card To install, please open microSD card lock first, and then place the external microSD card into the slot with the gold contact facing down. To remove the external microSD card, please open microSD card lock and take it out from the slot. Charging the battery Connect the battery charger to your phone and outlet respectively. If the battery is very low, there will be no indication that power is being received until the charge is sufficient enough to show the charging status bar. To reduce power consumption and energy waste, once the battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or applications running in the background when not in use; reduce the backlight time, etc. 78 1.2.2 Power on your phone Hold down the Power key until the phone powers on. It will take a few seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you should set the following options: language, input method, date & time, Google account, etc. If you power on your phone with no SIM card inserted, you can connect to a Wi-Fi network to sign into your Google account and to use some features. 1.2.3 Power off your phone Hold down the Power key until the Phone options appear, select Power off. 1.3 Home screen You can bring all the items (applications, shortcuts, folders and widgets) you love or use most frequently to your Home screen for quick access. Touch the Home key to switch to Home screen. Status bar • Status/Notification indicators • Touch and drag down to open the notification panel. Application tab • Touch to open main menu. Search bar (1) • Touch  to enter text search screen. • Touch  to enter voice search screen. Favorite applications tray • Touch to enter the application. • Touch and hold to move or change applications. Add a location to display local weather. Home screen is provided in an extended format to allow more space for adding applications, shortcuts etc. Slide the Home screen horizontally left and right to get a complete view of the Home screen. The row of small circles at the lower part of the screen indicates which screen you are viewing. (1) Depends on software version. 1.3.1 Using the touchscreen Touch To access an application, touch it with your finger. Touch and Hold Touch and hold the home screen to access the available options for setting the home screens. Drag Place your finger on any item to drag it to another location. Slide/Swipe Slide the screen to scroll up and down the applications, images, web pages... at your convenience. Flick Similar to swiping, but flicking makes it move quicker. Pinch/Spread Place your fingers of one hand on the screen surface and draw them apart or together to scale an element on the screen…

Text truncated - open the document above for the full version.

Cover Letter(s)

TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Tel: +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com Date 2014-07-27 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

Cover Letter(s)

TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Te l : +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com 2014-12-12 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: 2ACCJH013 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

External Photos

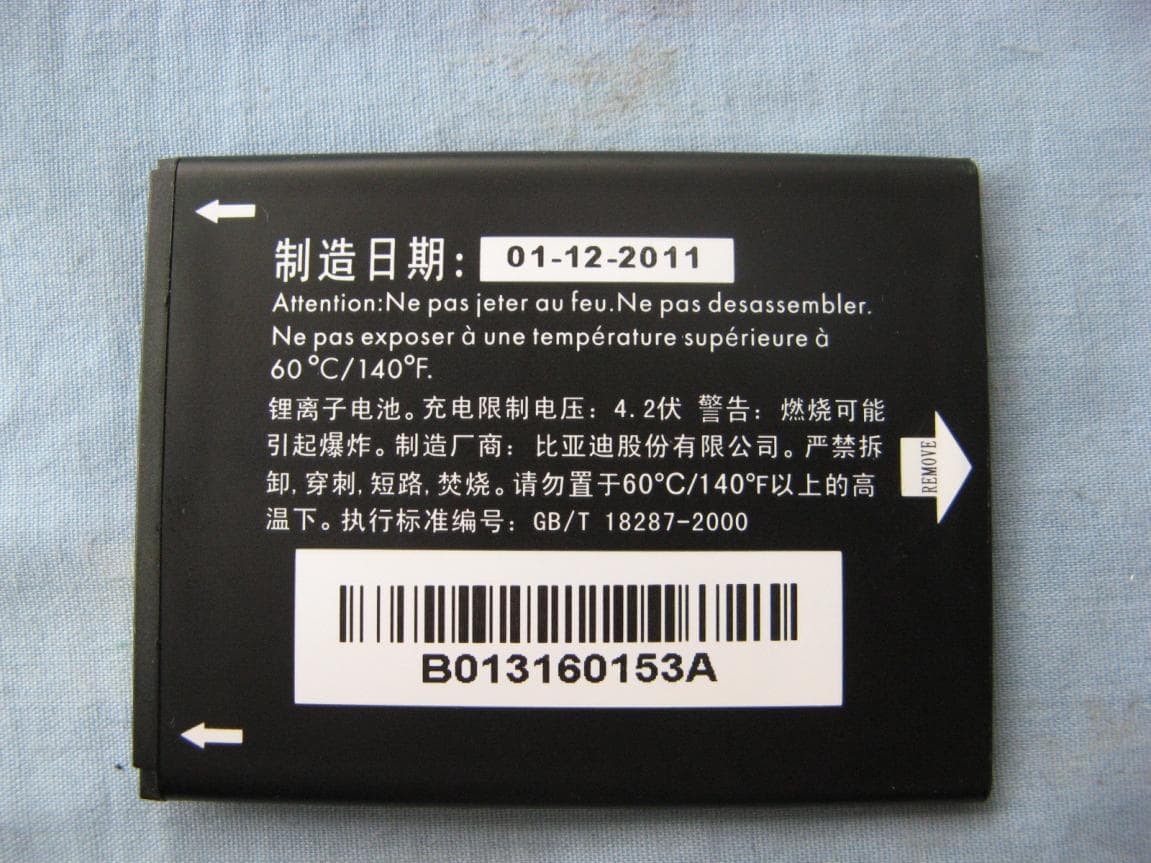

EUT photograph Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone

Internal Photos

EUT Interior photograph Mobile Phone Mobile Phone Disassembly Mobile Phone Disassembly

RF Exposure Info

©Copyright. All rights reserved by CTTL. SAR TEST REPORT No. I14N01487-SAR For TCL Communication Ltd. HSUPA/HSDPA/UMTS Dual band/GSM Quad band mobile phone Model Name: 4008A With Hardware Version: PIO Software Version: v4B2A FCC ID: 2ACCJH013 Issued Date: 2014-12-26 Note: The test results in this test report relate only to the devices specified in this report.This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL, Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No.52, HuayuanNorth Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2512,Fax:+86(0)10-62304633-2504 Email:[email protected] , website:www.chinattl.com TESTING CNAS L0570 No.I14N01487-SAR Page 2 of 135 ©Copyright. All rights reserved by CTTL. REPORT HISTORY Report Number RevisionIssue Date Description I14N01487-SAR Rev.0 2014-12-26 Initial creation of test report No.I14N01487-SAR Page 3 of 135 ©Copyright. All rights reserved by CTTL. TABLE OF CONTENT 1 TEST LABORATORY ................................................................................................................. 6 1.1 TESTING LOCATION ........................................................................................................................................ 6 1.2 TESTING ENVIRONMENT ................................................................................................................................. 6 1.3 PROJECT DATA ............................................................................................................................................... 6 1.4 SIGNATURE ..................................................................................................................................................... 6 2 STATEMENT OF COMPLIANCE ................................................................................................ 7 3 CLIENT INFORMATION.............................................................................................................. 9 3.1 APPLICANT INFORMATION .............................................................................................................................. 9 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 9 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) .............................. 10 4.1 ABOUT EUT ................................................................................................................................................. 10 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ........................................................................ 10 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ........................................................................... 11 5 TEST METHODOLOGY ............................................................................................................ 12 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 12 5.2 APPLICABLE MEASUREMENT STANDARDS .................................................................................................... 12 6 SPECIFIC ABSORPTION RATE (SAR) .................................................................................... 13 6.1 INTRODUCTION ............................................................................................................................................. 13 6.2 SAR DEFINITION .......................................................................................................................................... 13 7 TISSUE SIMULATING LIQUIDS ............................................................................................... 14 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 14 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 14 8 SYSTEM VERIFICATION .......................................................................................................... 18 8.1 SYSTEM SETUP ............................................................................................................................................. 18 8.2 SYSTEM VERIFICATION ................................................................................................................................. 19 9 MEASUREMENT PROCEDURES ............................................................................................ 20 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 20 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 21 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 22 9.4 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 23 9.5 POWER DRIFT ............................................................................................................................................... 23 10 AREA SCAN BASED 1-G SAR .............................................................................................. 24 10.1 REQUIREMENT OF KDB .............................................................................................................................. 24 10.2 FAST SAR ALGORITHMS ............................................................................................................................ 24 11 CONDUCTED OUTPUT POWER ................................................................…

Text truncated - open the document above for the full version.

RF Exposure Info

No.I14N01487-SAR Page 81 of 135 ©Copyright. All rights reserved by CTTL. Picture D.3 Tilt position of the wireless device on the left side of SAM D.2 Body-worn device A typical example of a body-worn device is a mobile phone, wireless enabled PDA or other battery operated wireless device with the ability to transmit while mounted on a person’s body using a carry accessory approved by the wireless device manufacturer. Picture D.4 Test positions for body-worn devices D.3 Desktop device A typical example of a desktop device is a wireless enabled desktop computer placed on a table or desk when used. The DUT shall be positioned at the distance and in the orientation to the phantom that corresponds to the intended use as specified by the manufacturer in the user instructions. For devices that employ an external antenna with variable positions, tests shall be performed for all antenna positions specified. Picture 8.5 show positions for desktop device SAR tests. If the intended use is not specified, the device shall be tested directly against the flat phantom. No.I14N01487-SAR Page 82 of 135 ©Copyright. All rights reserved by CTTL. Picture D.5 Test positions for desktop devices D.4 DUT Setup Photos Picture D.6 ANNEX E Equivalent Media Recipes The liquid used for the frequency range of 800-3000 MHz consisted of water, sugar, salt, preventol, No.I14N01487-SAR Page 83 of 135 ©Copyright. All rights reserved by CTTL. glycol monobutyl and Cellulose. The liquid has been previously proven to be suited for worst-case. The Table E.1 shows the detail solution. It’s satisfying the latest tissue dielectric parameters requirements proposed by the IEEE 1528 and IEC 62209. Table E.1: Composition of the Tissue Equivalent Matter Frequency (MHz) 835 Head 835 Body 1900 Head 1900 Body 2450 Head 2450 Body 5800 Head 5800 Body Ingredients (% by weight) Water 41.45 52.5 55.24269.91 58.79 72.60 65.53 65.53 Sugar 56.0 45.0 \ \ \ \ \ \ Salt 1.45 1.4 0.306 0.13 0.06 0.18 \ \ Preventol 0.1 0.1 \ \ \ \ \ \ Cellulose 1.0 1.0 \ \ \ \ \ \ Glycol Monobutyl \ \ 44.45229.96 41.15 27.22 \ \ Diethylenglycol monohexylether \ \ \ \ \ \ 17.24 17.24 Triton X-100 \ \ \ \ \ \ 17.24 17.24 Dielectric Parameters Target Value ε=41.5 σ=0.90 ε=55.2 σ=0.97 ε=40.0 σ=1.40 ε=53.3 σ=1.52 ε=39.2 σ=1.80 ε=52.7 σ=1.95 ε=35.3 σ=5.27 ε=48.2 σ=6.00 ANNEX F System Validation The SAR system must be validated against its performance specifications before it is deployed. No.I14N01487-SAR Page 84 of 135 ©Copyright. All rights reserved by CTTL. When SAR probes, system components or software are changed, upgraded or recalibrated, these must be validated with the SAR system(s) that operates with such components. Table F.1: System Validation Probe SN. Liquid name Validation date Frequency point Status (OK or Not) 3151 Head 850MHz Dec. 06, 2014 850 MHz OK 3151 Head 1750MHz Dec. 03, 2014 1750 MHz OK 3151 Head 1810MHz Dec. 03, 2014 1810 MHz OK 3151 Head 1900MHz Dec. 07, 2014 1900 MHz OK 3151 Head 2450MHz Dec. 02, 2014 2450 MHz OK 3151 Head 2550MHz Dec. 08, 2014 2550 MHz OK 3151 Body 850MHz Dec. 06, 2014 850 MHz OK 3151 Body 1750MHz Dec. 03, 2014 1750 MHz OK 3151 Body 1810MHz Dec. 03, 2014 1810 MHz OK 3151 Body 1900MHz Dec. 07, 2014 1900 MHz OK 3151 Body 2450MHz Dec. 02, 2014 2450 MHz OK 3151 Body 2550MHz Dec. 08, 2014 2550 MHz OK No.I14N01487-SAR Page 85 of 135 ©Copyright. All rights reserved by CTTL. ANNEX G Probe Calibration Certificate Probe ES3DV3-SN:3151 Calibration Certificate No.I14N01487-SAR Page 86 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 87 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 88 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 89 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 90 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 91 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 92 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 93 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 94 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 95 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 96 of 135 ©Copyright. All rights reserved by CTTL. ANNEX H DIPOLE CALIBRATION CERTIFICATE 850 MHz Dipole Calibration Certificate No.I14N01487-SAR Page 97 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 98 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 99 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 100 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 101 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 102 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 103 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 104 of 135 ©Copyright. All rights reserved by CTTL. 900 MHz Dipole Calibration Certificate No.I14N01487-SAR Page 105 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 106 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 107 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 108 of 135 ©Copyright. All rights reserved by CTTL.

RF Exposure Info

No.I14N01487-SAR Page 109 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 110 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 111 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 112 of 135 ©Copyright. All rights reserved by CTTL. 1800 MHz Dipole Calibration Certificate No.I14N01487-SAR Page 113 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 114 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 115 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 116 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 117 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 118 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 119 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 120 of 135 ©Copyright. All rights reserved by CTTL. 1900 MHz Dipole Calibration Certificate No.I14N01487-SAR Page 121 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 122 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 123 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 124 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 125 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 126 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 127 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 128 of 135 ©Copyright. All rights reserved by CTTL. 2450 MHz Dipole Calibration Certificate No.I14N01487-SAR Page 129 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 130 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 131 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 132 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 133 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 134 of 135 ©Copyright. All rights reserved by CTTL. No.I14N01487-SAR Page 135 of 135 ©Copyright. All rights reserved by CTTL.

Test Report

©Copyright. All rights reserved by CTTL. TEST REPORT No. I14Z48856-GTE01 for TCL Communication Ltd. HSUPA/HSDPA/UMTS Dual band/GSM Quad band mobile phone Model Name: 4008A FCC ID: 2ACCJH013 with Hardware Version: PIO Software Version: v4B2A Issued Date: 2014-12-19 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. D-PL-12123-01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629B CTTL,Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China Tel:+86(0)10-62304633-2512, Fax:+86(0)10-62304633-2504 Email: [email protected], website: www.chinattl.com No. I14Z48856-GTE01 Page2 of 72 ©Copyright. All rights reserved by CTTL. CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ....................................... 5 3.4. NORMAL ACCESSORY SETTING ............................................................................................... 6 3.5. GENERAL DESCRIPTION ............................................................................................................ 6 4. REFERENCE DOCUMENTS ............................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 7 5. LABORATORY ENVIRONMENT ..................................................................................................... 8 6. SUMMARY OF TEST RESULTS ....................................................................................................... 9 7. TEST EQUIPMENTS UTILIZED .................................................................................................... 10 ANNEX A: MEASUREMENT RESULTS ................................................................................................. 11 A.1 OUTPUT POWER ............................................................................................................................11 A.2 EMISSION LIMIT ........................................................................................................................... 17 A.3 FREQUENCY STABILITY ............................................................................................................ 23 A.4 OCCUPIED BANDWIDTH .............................................................................................................. 25 A.5 EMISSION BANDWIDTH................................................................................................................ 38 A.6 BAND EDGE COMPLIANCE .......................................................................................................... 50 A.7 CONDUCTED SPURIOUS EMISSION ........................................................................................... 57 No. I14Z48856-GTE01 Page3 of 72 ©Copyright. All rights reserved by CTTL. 1. Test Laboratory 1.1. Testing Location Company Name: CTTL,Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT Address: 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: 2014-12-01 Testing End Date: 2014-12-18 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No. I14Z48856-GTE01 Page4 of 72 ©Copyright. All rights reserved by CTTL. 2. Client Information 2.1. Applicant Information Company Name: TCL Communication Ltd. Address /Post: 5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 Contact Person: Gong Zhizhou Contact Email [email protected] Telephone: 0086-21-51798260 Fax: 0086-21-61460602 2.2. Manufacturer Information Company Name: TCL Communication Ltd. Address /Post: 5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 Contact Person: Gong Zhizhou Contact Email [email protected] Telephone: 0086-21-51798260 Fax: 0086-21-61460602 No. I14Z48856-GTE01 Page5 of 72 ©Copyright. All rights reserved by CTTL.…

Text truncated - open the document above for the full version.

Test Report

Text truncated - open the document above for the full version.

Contact Information

Applicant

Annie Jiang

[email protected]+8675536611621Fax: +8675536612000-81722

Technical Contact

TMCXue Zhen

[email protected]

China

Test Firm

TMC-Telecommunication Metrology Center of M.I.I.TChongwen Song

[email protected]0086-10-62303288Fax: 0086-10-62304793

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
4	24E	1.85 GHz - 1.91 GHz	280.00 mW	4M50F9W	0.1 ppm

Confidentiality

Long Term

Grant Notes

Power Output is ERP for Part 22 and EIRP for Part 24. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and which provide at least 1.0 cm separation between the device and the users body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR for head, body-worn accessory and simultaneous transmission exposure conditions are 0.99 W/kg, 1.27 W/kg and 1.44 W/kg, respectively. This device contains GSM function that are not operational in U.S. Territories. This filing is only applicable for 850 MHz Cell and 1900 MHz PCS operations. This device contains Bluetooth and WLAN transmitters.
