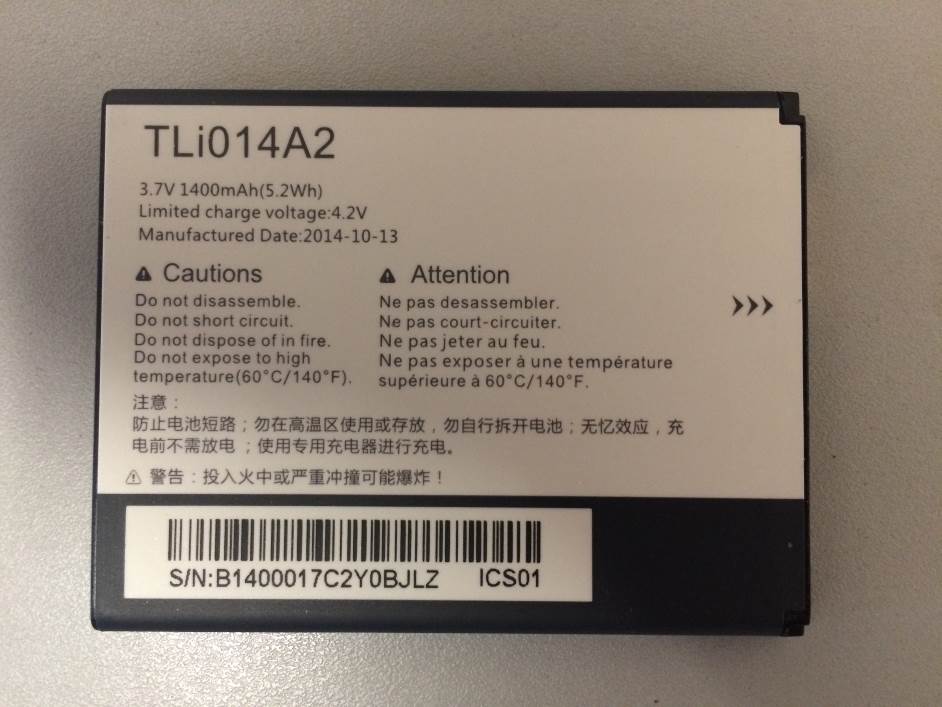

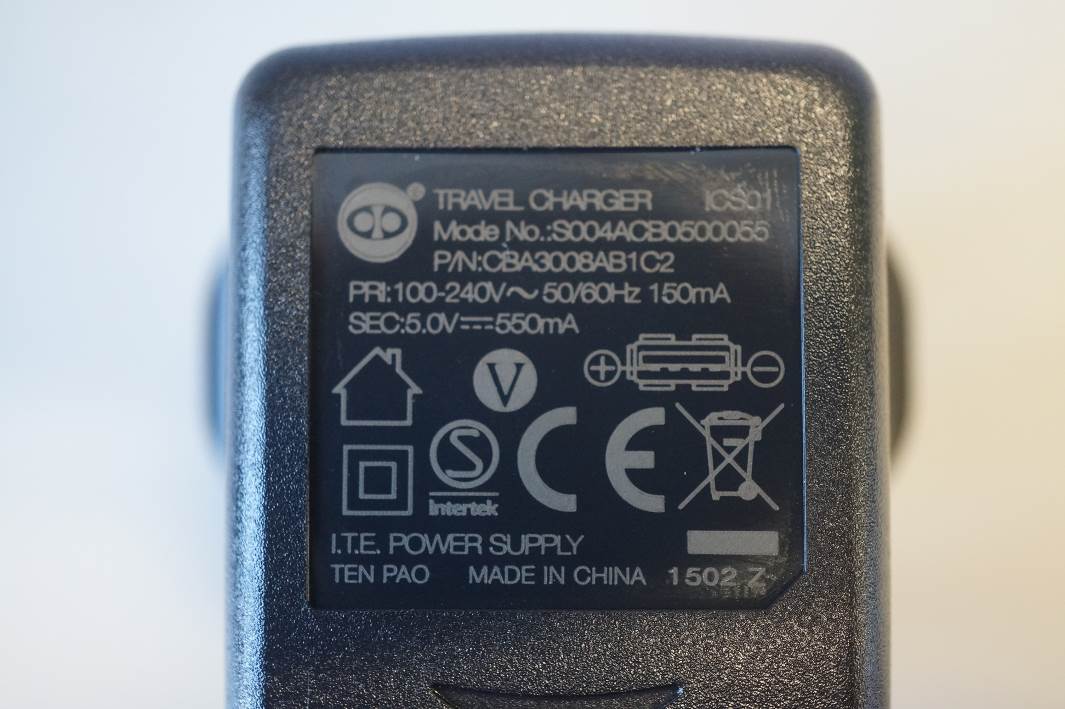

EUT photograph Pic A-1 Mobile Phone Pic A-2 Mobile Phone Pic A-7 Battery AE1 Pic A-8 Battery AE1 Pic A-9 Battery AE2 Pic A-10 Battery AE2 Pic A-11 Charger AE3 Pic A-12 Label of Charger AE3 Pic A-13 Charger AE4 Pic A-14 Label of Charger AE4 Pic A-15 Charger AE9 Pic A-16 Label of Charger AE9 Pic A-17 Charger AE10 Pic A-18 Label of Charger AE10 Pic A-19 Charger AE11 Pic A-20 Label of Charger AE11 Pic A-21 Headset AE5 Pic A-22 Headset AE6 Pic A-23 USB Cable AE7 Pic A-24 USB Cable AE8

Label Location

EUT Interior photograph Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly

©Copyright. All rights reserved by CTTL. TEST REPORT No. I15Z40087-EMC03 for TCL Communication Ltd. HSUPA/HSDPA/UMTS Dual band/GSM Quad band mobile phone Model Name: VF695 FCC ID: 2ACCJH014 with Hardware Version: PIO Software Version: v8I1C Issued Date: 2015-02-09 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: FCC 2.948 Listed: No. 525429 CTTL, Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No. 52, Huayuan North Road, Haidian District, Beijing, P. R. China 100191. Te l: +86(0)10-62304633-2512, Fax: +86(0)10-62304633-2504 Email: [email protected], website: www.chinattl.com No.I15Z40087-EMC03 Page 2 of 22 ©Copyright. All rights reserved by CTTL. REPORT HISTORY Report Number Revision Description Issue Date I15Z40087-EMC03 R ev.0 1st edition 2015-02-09 No.I15Z40087-EMC03 Page 3 of 22 ©Copyright. All rights reserved by CTTL. CONTENTS 1. TEST LABORATORY ............................................................................................................... 4 1.1. TESTING LOCATION ........................................................................................................... 4 1.2. TESTING ENVIRONMENT ................................................................................................... 4 1.3. PROJECT DATA ................................................................................................................... 4 1.4. SIGNATURE .......................................................................................................................... 4 2. CLIENT INFORMATION ........................................................................................................... 5 2.1. APPLICANT INFORMATION ................................................................................................ 5 2.2. MANUFACTURER INFORMATION ...................................................................................... 5 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 6 3.1. ABOUT EUT .......................................................................................................................... 6 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................... 6 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ...................................... 6 3.4. EUT SET-UPS ....................................................................................................................... 8 4. REFERENCE DOCUMENTS .................................................................................................... 9 4.1. REFERENCE DOCUMENTS FOR TESTING....................................................................... 9 5. LABORATORY ENVIRONMENT ............................................................................................ 10 6. SUMMARY OF TEST RESULTS ............................................................................................ 11 7. TEST EQUIPMENTS UTILIZED ............................................................................................. 12 ANNEX A: MEASUREMENT RESULTS ....................................................................................... 13 No.I15Z40087-EMC03 Page 4 of 22 ©Copyright. All rights reserved by CTTL. 1. Test Laboratory 1.1. Testing Location Location 1: CTTL(huayuan North Road) Address: No. 52, Huayuan North Road, Haidian District, Beijing, P. R. China 100191 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: 2015-01-23 Testing End Date: 2015-02-04 1.4. Signature Qu Pengfei (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Director of the laboratory (Approved this test report) No.I15Z40087-EMC03 Page 5 of 22 ©Copyright. All rights reserved by CTTL. 2. Client Information 2.1. Applicant Information Company Name: TCL Communication Ltd. Address /Post: 5 F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. City: Shanghai Postal Code: 201203 Country: China Contact Person: Gong Zhizhou Contact Email [email protected] Telephone: 0086-21-61460890 Fax: 0086-21-61460602 2.2. Manufacturer Information Company Name: TCL Communication Ltd. Address /Post: 5 F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. City: Shanghai Postal Code: 201203 Country: China Telephone: 0086-21-61460890 Fax: 0086-21-61460602 No.I15Z40087-EMC03 Page 6 of 22 ©Copyright. All rights reserved by CTTL. 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description HSUPA/HSDPA/UMTS Dual band/GSM Quad band mobile phone Model Name VF695 FCC ID 2ACCJH014 Extreme vol. Limits 3.5VDC to 4.2VDC (nominal: 3.8VDC) Note: Components list, please refer to documents of the manufacturer; it is also included in the original test record of Telecommunication Metrology Center of MIIT of People’s Republic of China. 3.2. Internal Identification of EUT used during the test EUT ID* SN or IMEI HW Version SW Version EUT3 357773060002517 PIO v8I1C *EUT ID: is used to identify the test sample in the lab internally. 3.3. Internal Identification of AE used during the test AE ID* Description SN Remarks AE1 Battery / 14TCT-BA-2359 AE2 Battery / / AE3 Travel charger / 14TCT-CH-0713 AE4 Travel charger / 14TCT-CH-0786 AE5 Headset / 14TCT-HS-0958 AE6 Headset / 14TCT-HS-1362 AE7 USB cable / 14TCT-DC-0382 AE8 USB cable / 14TCT-DC-0072 AE9 Travel charger / / AE10 Travel charger / / AE11 Travel charger / / AE12 Battery / 14TCT-BA-2343 AE13 Battery / 14TCT-BA-2345 AE14 Battery / 14TCT-BA-2344 AE15 Headset / 14TCT-HS-0469 AE16 Headset / 14TCT-HS-0951 AE1, AE12, AE13, AE14 Model CAB1400017C2 Manufacturer SCUD Capacitance 1400mAh Nominal voltage 3.7V No.I15Z40087-EMC03 Page 7 of …
