2ACCJH019HSDPA/HSUPA/UMTS quad band/GSM quad band/LTE Penta band mobile phone

Safety and warranty information VF-795 Product safety information Pictograms and graphic symbols Read the Safety & warranty information guide Do not use while re-fuelling Do not use hand-held while driving This device may produce a bright or flashing light When using the phone, make sure it is kept at least 10 mm away from your head or body Do not dispose of in a fire Small parts may cause a choking hazard Avoid contact with magnetic media This device may produce a loud sound Avoid extreme temperatures Keep away from pacemakers and other personal medical devices Avoid contact with liquid, keep dry Switch off when instructed in hospitals and medical facilities Do not try to disassemble Switch off when instructed in aircraft and airports Do not rely on this device for emergency communications Switch off in explosive environments Only use approved accessories Product safety information RADIO WAVES: THIS MOBILE PHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your mobile phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio-frequency (RF) energy. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. These guidelines include a substantial safety margin designed to ensure the safety of all persons, regardless of age and health. The exposure standard for mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by public authorities such as the Federal Communications Commission of the US Government (FCC), or by Industry Canada, is 1.6 W/kg averaged over 1 gram of body tissue. Tests for SAR are conducted using standard operating positions with the mobile phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the mobile phone while operating can be well below the maximum value. This is because the mobile phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output of the mobile phone. Before a mobile phone model is available for sale to the public, compliance with national regulations and standards must be shown. The highest SAR value for this model mobile phone when tested is 0.67 W/Kg for use at the ear and 1.30 W/Kg for use close to the body. While there may be differences between the SAR levels of various mobile phones and at various positions, they all meet the government requirement for RF exposure. For body-worn operation, the mobile phone meets FCC RF exposure guidelines provided that it is used with a non-metallic accessory with the handset at least 10 mm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Additional information on SAR can be found on the Cellular Telecommunications & Internet Association (CTIA) Web site: http://www.ctia.org/ The World Health Organization (WHO) considers that present scientific information does not indicate the need for any special precautions for use of mobile phones. If individuals are concerned, they might choose to limit their own or their children’s RF exposure by limiting the length of calls, or using “hands-free” devices to keep mobile phones away from the head and body. (fact sheet n°193). Additional WHO information about electromagnetic fields and public health are available on the following website: http://www.who.int/peh-emf. Note: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/ TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. For the receiver devices associated with the operation of a licensed radio service (e.g. FM broadcast), they bear the following statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. For other devices, they bear the following statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference (2) this device must accept any interference received, including interference that may cause undesired operation. Your mobile phone is equipped with a built-in antenna. For optimal operation, you should avoid touching it or degrading it. As mobile devices offer a range of functions, they can be used in positions other than against your ear. In such circumstances the device will be compliant with the guidelines when used with headset or usb data cable. If you are using another accessory ensure that whatever product is used is free of any metal and…

Text truncated - open the document above for the full version.

TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Tel: +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com Date 2015-06-10 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: CTTL (Telecommunication Technology Labs,Academy of Telecommunication Research,MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Tel: +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com 2015-06-09 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: 2ACCJH019 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

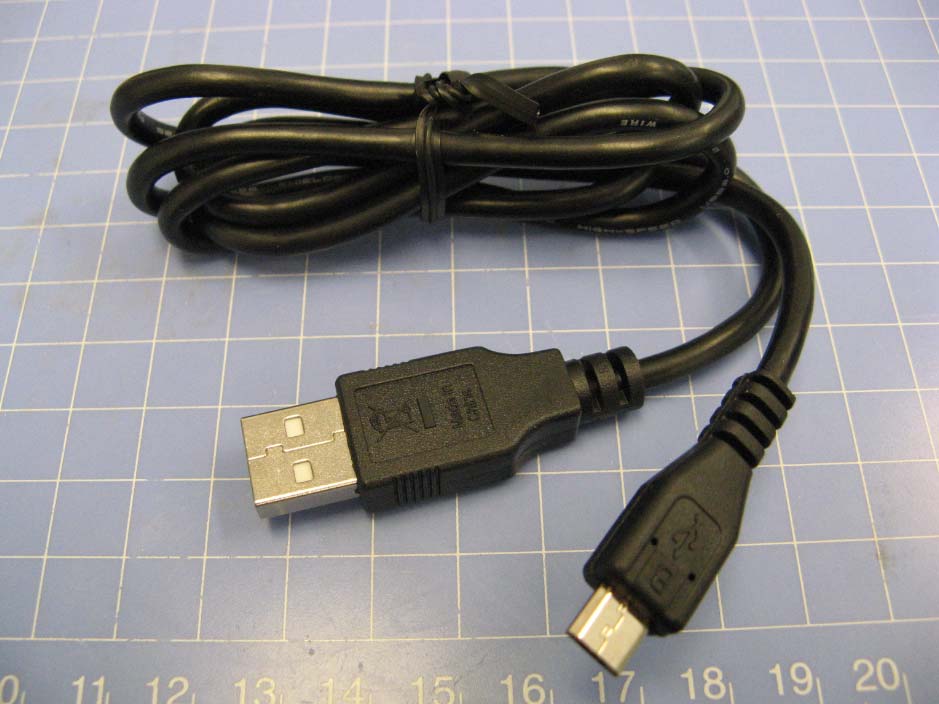

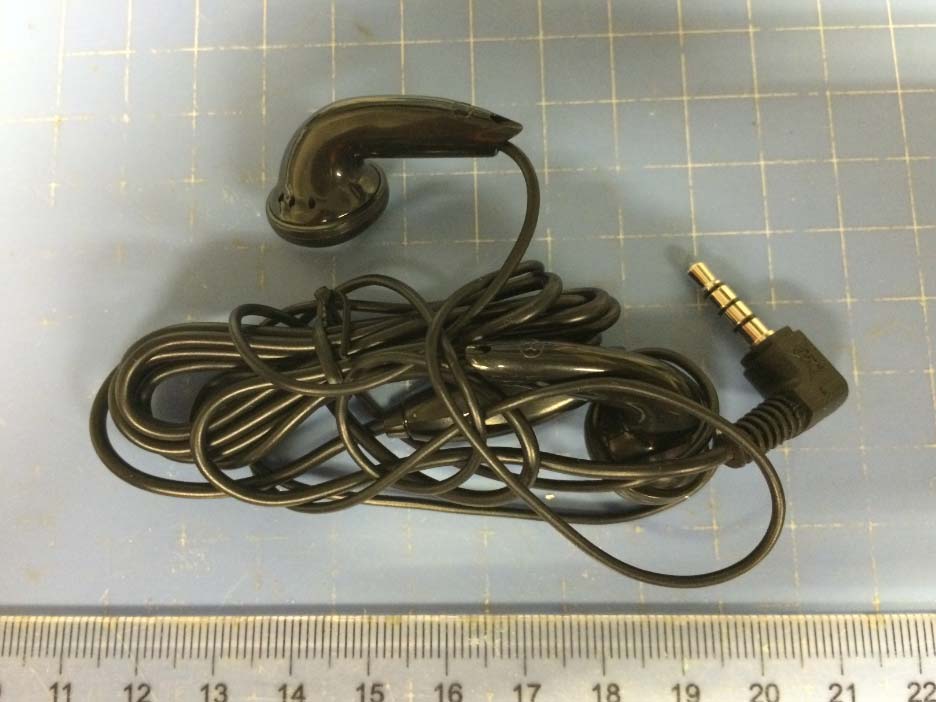

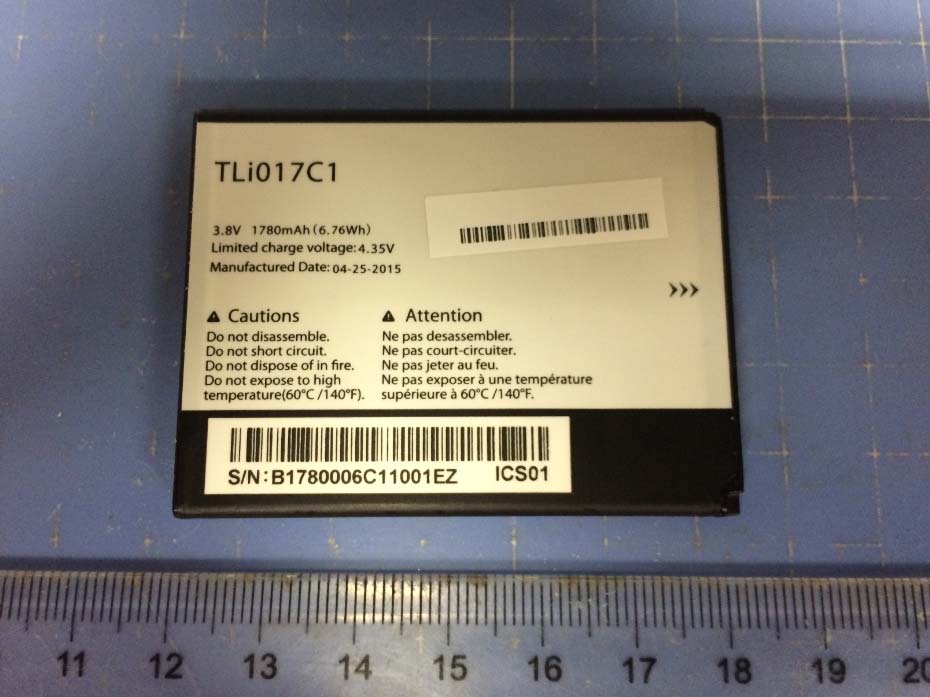

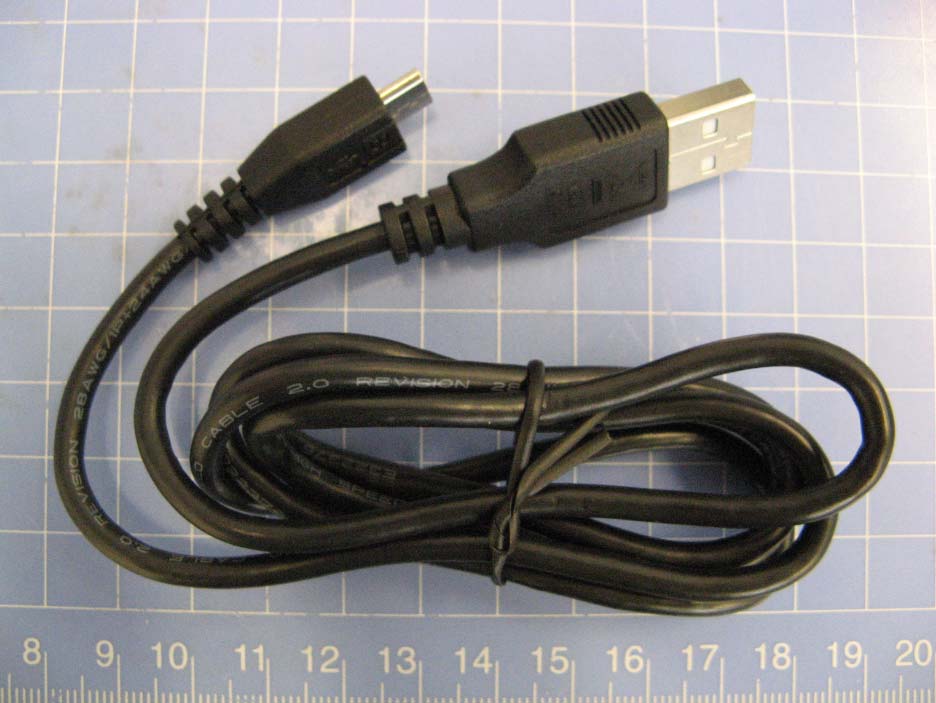

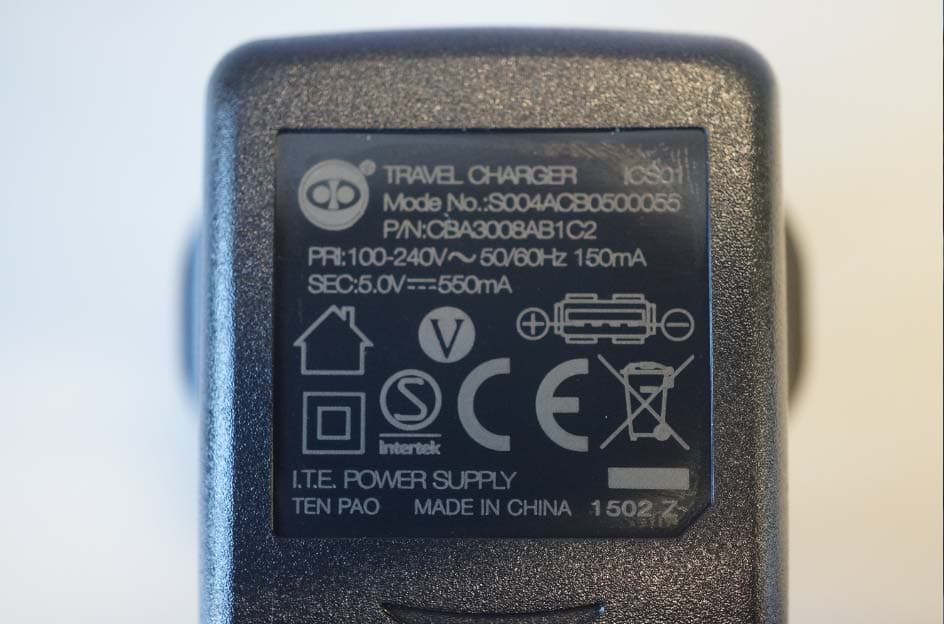

EUT photograph

EUT Interior photograph

©Copyright. All rights reserved by CTTL. SAR TEST REPORT No. I15Z41327-SEM03 For TCL Communication Ltd. HSDPA/HSUPA/UMTS quad band / GSM quad band / LTE penta band mobile phone Model Name: VF-795 With Hardware Version: PIO Software Version: SVN01 FCC ID: 2ACCJH019 Issued Date: 2015-06-26 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL, Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No. 51 Shouxiang Science Building, Xueyuan Road, Haidian District, Beijing, P. R. China100191 Te l:+86(0)10-62304633-2512,Fax:+86(0)10-62304633-2504 Email: [email protected], website:www.chinattl.com TESTING CNAS L0570 No. I15Z41327-SEM03 Page 2 of 139 ©Copyright. All rights reserved by CTTL. REPORT HISTORY Report Number Revision Issue Date Description I15Z41327-SEM03 Rev.0 2015-06-26 Initial creation of test report No. I15Z41327-SEM03 Page 3 of 139 ©Copyright. All rights reserved by CTTL. TABLE OF CONTENT 1 TEST LABORATORY ................................................................................................................. 5 1.1 TESTING LOCATION ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE ................................................................................................ 6 3 CLIENT INFORMATION.............................................................................................................. 8 3.1 APPLICANT INFORMATION .............................................................................................................................. 8 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 8 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................ 9 4.1 ABOUT EUT ................................................................................................................................................... 9 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 9 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................. 9 5 TEST METHODOLOGY ............................................................................................................ 10 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 10 5.2 APPLICABLE MEASUREMENT STANDARDS .................................................................................................... 10 6 SPECIFIC ABSORPTION RATE (SAR) .................................................................................... 11 6.1 INTRODUCTION ............................................................................................................................................. 11 6.2 SAR DEFINITION .......................................................................................................................................... 11 7 TISSUE SIMULATING LIQUIDS ............................................................................................... 12 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 12 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 12 8 SYSTEM VERIFICATION .......................................................................................................... 17 8.1 SYSTEM SETUP ............................................................................................................................................. 17 8.2 SYSTEM VERIFICATION ................................................................................................................................. 18 9 MEASUREMENT PROCEDURES ............................................................................................ 19 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 19 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 20 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 21 9.4 SAR MEASUREMENT FOR LT E ..................................................................................................................... 22 9.5 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 23 9.6 POWER DRIFT ............................................................................................................................................... 23 10 AREA SCAN BASED 1-G SAR .............................................................................................. 24 10.1 REQUIREMENT OF KDB .............................................................................................................................. 24 10.2 FAST SAR ALGORITHMS ..........…

Text truncated - open the document above for the full version.

No. I15Z41327-SEM03 Page 47 of 139 ©Copyright. All rights reserved by CTTL. 16 Measurement Uncertainty 16.1 Measurement Uncertainty for Normal SAR Tests (300MHz~3GHz) No. Error Description Type Uncertainty value Probably Distribution Div. (Ci) 1g (Ci) 10g Std. Unc. (1g) Std. Unc. (10g) Degree of freedo m Measurement system 1 Probe calibration B 5.5 N 1 1 1 5.5 5.5 ∞ 2 Isotropy B 4.7 R 3 0.7 0.7 1.9 1.9 ∞ 3 Boundary effect B 1.0 R 3 1 1 0.6 0.6 ∞ 4 Linearity B 4.7 R 3 1 1 2.7 2.7 ∞ 5 Detection limit B 1.0 R 3 1 1 0.6 0.6 ∞ 6 Readout electronics B 0.3 R 3 1 1 0.3 0.3 ∞ 7 Response time B 0.8 R 3 1 1 0.5 0.5 ∞ 8 Integration time B 2.6 R 3 1 1 1.5 1.5 ∞ 9 RF ambient conditions-noise B 0 R 3 1 1 0 0 ∞ 10 RF ambient conditions-reflection B 0 R 3 1 1 0 0 ∞ 11 Probe positioned mech. restrictions B 0.4 R 3 1 1 0.2 0.2 ∞ 12 Probe positioning with respect to phantom shell B 2.9 R 3 1 1 1.7 1.7 ∞ 13 Post-processing B 1.0 R 3 1 1 0.6 0.6 ∞ Test sample related 14 Test sample positioning A 3.3 N 1 1 1 3.3 3.3 71 15 Device holder uncertainty A 3.4 N 1 1 1 3.4 3.4 5 16 Drift of output power B 5.0 R 3 1 1 2.9 2.9 ∞ Phantom and set-up 17 Phantom uncertainty B 4.0 R 3 1 1 2.3 2.3 ∞ 18 Liquid conductivity (target) B 5.0 R 3 0.64 0.43 1.8 1.2 ∞ 19 Liquid conductivity (meas.) A 2.06 N 1 0.64 0.43 1.32 0.89 43 20 Liquid permittivity (target) B 5.0 R 3 0.6 0.49 1.7 1.4 ∞ 21 Liquid permittivity (meas.) A 1.6 N 1 0.6 0.49 1.0 0.8 521 No. I15Z41327-SEM03 Page 48 of 139 ©Copyright. All rights reserved by CTTL. Combined standard uncertainty ∑ = = 21 1 22' i iic ucu 9.25 9.12 257 Expanded uncertainty (confidence interval of 95 %) ce uu2= 18.5 18.2 16.2 Measurement Uncertainty for Normal SAR Tests (3~6GHz) No. Error Description Type Uncertainty value Probably Distribution Div. (Ci) 1g (Ci) 10g Std. Unc. (1g) Std. Unc. (10g) Degree of freedo m Measurement system 1 Probe calibration B 6.5 N 1 1 1 6.5 6.5 ∞ 2 Isotropy B 4.7 R 3 0.7 0.7 1.9 1.9 ∞ 3 Boundary effect B 2.0 R 3 1 1 1.2 1.2 ∞ 4 Linearity B 4.7 R 3 1 1 2.7 2.7 ∞ 5 Detection limit B 1.0 R 3 1 1 0.6 0.6 ∞ 6 Readout electronics B 0.3 R 3 1 1 0.3 0.3 ∞ 7 Response time B 0.8 R 3 1 1 0.5 0.5 ∞ 8 Integration time B 2.6 R 3 1 1 1.5 1.5 ∞ 9 RF ambient conditions-noise B 0 R 3 1 1 0 0 ∞ 10 RF ambient conditions-reflection B 0 R 3 1 1 0 0 ∞ 11 Probe positioned mech. restrictions B 0.8 R 3 1 1 0.5 0.5 ∞ 12 Probe positioning with respect to phantom shell B 6.7 R 3 1 1 3.9 3.9 ∞ 13 Post-processing B 4.0 R 3 1 1 2.3 2.3 ∞ Test sample related 14 Test sample positioning A 3.3 N 1 1 1 3.3 3.3 71 15 Device holder uncertainty A 3.4 N 1 1 1 3.4 3.4 5 16 Drift of output power B 5.0 R 3 1 1 2.9 2.9 ∞ Phantom and set-up 17 Phantom uncertainty B 4.0 R 3 1 1 2.3 2.3 ∞ 18 Liquid conductivity (target) B 5.0 R 3 0.64 0.43 1.8 1.2 ∞ 19 Liquid conductivity (meas.) A 2.06 N 1 0.64 0.43 1.32 0.89 43 No. I15Z41327-SEM03 Page 49 of 139 ©Copyright. All rights reserved by CTTL. 20 Liquid permittivity (target) B 5.0 R 3 0.6 0.49 1.7 1.4 ∞ 21 Liquid permittivity (meas.) A 1.6 N 1 0.6 0.49 1.0 0.8 521 Combined standard uncertainty ∑ = = 21 1 22' i iic ucu 10.8 10.7 257 Expanded uncertainty (confidence interval of 95 %) ce uu2= 21.6 21.4 16.3 Measurement Uncertainty for Fast SAR Tests (300MHz~3GHz) No. Error Description Type Uncertainty value Probably Distribution Div. (Ci) 1g (Ci) 10g Std. Unc. (1g) Std. Unc. (10g) Degree of freedo m Measurement system 1 Probe calibration B 5.5 N 1 1 1 5.5 5.5 ∞ 2 Isotropy B 4.7 R 3 0.7 0.7 1.9 1.9 ∞ 3 Boundary effect B 1.0 R 3 1 1 0.6 0.6 ∞ 4 Linearity B 4.7 R 3 1 1 2.7 2.7 ∞ 5 Detection limit B 1.0 R 3 1 1 0.6 0.6 ∞ 6 Readout electronics B 0.3 R 3 1 1 0.3 0.3 ∞ 7 Response time B 0.8 R 3 1 1 0.5 0.5 ∞ 8 Integration time B 2.6 R 3 1 1 1.5 1.5 ∞ 9 RF ambient conditions-noise B 0 R 3 1 1 0 0 ∞ 10 RF ambient conditions-reflection B 0 R 3 1 1 0 0 ∞ 11 Probe positioned mech. Restrictions B 0.4 R 3 1 1 0.2 0.2 ∞ 12 Probe positioning with respect to phantom shell B 2.9 R 3 1 1 1.7 1.7 ∞ 13 Post-processing B 1.0 R 3 1 1 0.6 0.6 ∞ 14 Fast SAR z-Approximation B 7.0 R 3 1 1 4.0 4.0 ∞ Test sample related 15 Test sample positioning A 3.3 N 1 1 1 3.3 3.3 71 16 Device holder uncertainty A 3.4 N 1 1 1 3.4 3.4 5 17 Drift of output power B 5.0 R 3 1 1 2.9 2.9 ∞ No. I15Z41327-SEM03 Page 50 of 139 ©Copyright. All rights reserved by CTTL. Phantom and set-up 18 Phantom uncertainty B 4.0 R 3 1 1 2.3 2.3 ∞ 19 Liquid conductivity (target) B 5.0 R 3 0.64 0.43 1.8 1.2 ∞ 20 Liquid conductivity (meas.) A 2.06 N 1 0.64 0.43 1.32 0.89 43 21 Liquid permittivity (target) B 5.0 R 3 0.6 0.49 1.7 1.4 ∞ 22 Liquid permittivity (meas.) A 1.6 N 1 0.6 0.49 1.0 0.8 521 Combined standard uncertainty ∑ = = 22 1 22' i iic ucu 10.1 9.95 257 Expanded uncertainty (confidence interval of 95 %) ce uu2= 20.2 19.9 16.4 Measurement Uncertainty for Fast SAR Tests (3~6GHz) No. Error Description Type Uncertainty value Probably Distribution Div. (Ci) 1g (Ci) 10g Std. Unc. (1g) Std. Unc. (10g) Degree of freedo m Measurement system 1 Probe calibration B 6.5 N 1 1 1 6.5 6.5 ∞ 2 Isotropy B 4.7 R 3 0.7 0.7 1.9 1.9 ∞ 3 Boundary effect B 2.0 R 3 1 1 1.2 1.2 ∞ 4 Linearity B 4.7 R 3 1 1 2.7 2.7 ∞ 5 Detection limit B 1.0 R 3 1 1 0.6 0.6 ∞ 6 Readout electronics B 0.3 R 3 1 1 0.3 0.3 ∞ 7 Response time B 0.8 R 3 1 1 0.5 0.5 ∞ 8 Integration time B 2.6 R 3 1 1 1.5 1.5 ∞ 9 RF ambient conditions-noise B 0 R 3 1 1 0 0 ∞ 10 RF ambient conditions-reflection B 0 R 3 1 1 0 0 ∞ 11 Probe positioned mech. Restrictions B 0.8 R 3 1 1 0.5 0.5 ∞ 12 Probe positioning with respect to phantom shell B 6.7 R 3 1 1 3.9 3.9 ∞ 13 Post-processing B 1.0 R 3 1 1 0.6 0.6 ∞ 14 Fast SAR z-Approximation B 14.0 R 3 1 1 8.1 8.1 ∞ Test sample related No. I15Z41327-SEM03 Page 51 of 139 ©Copyright. All rights reserved by CTTL. 15 Test sample positioning A 3.3 N 1 1 1 3.3 3.3 71 16 Device holder uncertainty A 3.4 N 1 1 1 3.4 3.4 5 17 Drift of output power B 5.0 R 3 1 1 2.9 2.9 ∞ Phantom and set-up 18 Phantom uncertainty B 4.0 R 3 1 1 2.3 2.3 ∞ 19 Liquid conductivity (target…

Text truncated - open the document above for the full version.

No. I15Z41327-SEM03 Page 93 of 139 ©Copyright. All rights reserved by CTTL. Picture D.5 Test positions for desktop devices D.4 DUT Setup Photos Picture D.6 No. I15Z41327-SEM03 Page 94 of 139 ©Copyright. All rights reserved by CTTL. ANNEX E Equivalent Media Recipes The liquid used for the frequency range of 800-3000 MHz consisted of water, sugar, salt, preventol, glycol monobutyl and Cellulose. The liquid has been previously proven to be suited for worst-case. The Table E.1 shows the detail solution. It’s satisfying the latest tissue dielectric parameters requirements proposed by the IEEE 1528 and IEC 62209. Table E.1: Composition of the Tissue Equivalent Matter Frequency (MHz) 835 Head 835 Body 1900 Head 1900 Body 2450 Head 2450 Body 5800 Head 5800 Body Ingredients (% by weight) Water 41.45 52.5 55.242 69.91 58.79 72.60 65.53 65.53 Sugar 56.0 45.0 \ \ \ \ \ \ Salt 1.45 1.4 0.306 0.13 0.06 0.18 \ \ Preventol 0.1 0.1 \ \ \ \ \ \ Cellulose 1.0 1.0 \ \ \ \ \ \ Glycol Monobutyl \ \ 44.452 29.96 41.15 27.22 \ \ Diethylenglycol monohexylether \ \ \ \ \ \ 17.24 17.24 Triton X-100 \ \ \ \ \ \ 17.24 17.24 Dielectric Parameters Target Value ε=41.5 σ=0.90 ε=55.2 σ=0.97 ε=40.0 σ=1.40 ε=53.3 σ=1.52 ε=39.2 σ=1.80 ε=52.7 σ=1.95 ε=35.3 σ=5.27 ε=48.2 σ=6.00 Note: There are a little adjustment respectively for 750, 1750, 2600, 5200, 5300 and 5600 based on the recipe of closest frequency in table E.1. No. I15Z41327-SEM03 Page 95 of 139 ©Copyright. All rights reserved by CTTL. ANNEX F System Validation The SAR system must be validated against its performance specifications before it is deployed. When SAR probes, system components or software are changed, upgraded or recalibrated, these must be validated with the SAR system(s) that operates with such components. Table F.1: System Validation Probe SN. Liquid name Validation date Frequency point Status (OK or Not) 3846 Head 750MHz Oct.25,2014 750 MHz OK 3846 Head 850MHz Oct.25,2014 850 MHz OK 3846 Head 900MHz Oct.26,2014 900 MHz OK 3846 Head 1750MHz Oct.27,2014 1750 MHz OK 3846 Head 1810MHz Oct.27,2014 1810 MHz OK 3846 Head 1900MHz Oct.28,2014 1900 MHz OK 3846 Head 1950MHz Oct.28,2014 1950 MHz OK 3846 Head 2000MHz Oct.28,2014 2000 MHz OK 3846 Head 2100MHz Oct.28,2014 2100 MHz OK 3846 Head 2300MHz Oct.29,2014 2300 MHz OK 3846 Head 2450MHz Oct.29,2014 2450 MHz OK 3846 Head 2550MHz Oct.29,2014 2550 MHz OK 3846 Head 2600MHz Oct.29,2014 2600 MHz OK 3846 Head 3500MHz Oct.30,2014 3500 MHz OK 3846 Head 3700MHz Oct.30,2014 3700 MHz OK 3846 Head 5200MHz Oct.24,2014 5200 MHz OK 3846 Head 5500MHz Oct.24,2014 5500 MHz OK 3846 Head 5800MHz Oct.24,2014 5800 MHz OK 3846 Body 750MHz Oct.25,2014 750 MHz OK 3846 Body 850MHz Oct.25,2014 850 MHz OK 3846 Body 900MHz Oct.26,2014 900 MHz OK 3846 Body 1750MHz Oct.27,2014 1750 MHz OK 3846 Body 1810MHz Oct.27,2014 1810 MHz OK 3846 Body 1900MHz Oct.28,2014 1900 MHz OK 3846 Body 1950MHz Oct.28,2014 1950 MHz OK 3846 Body 2000MHz Oct.28,2014 2000 MHz OK 3846 Body 2100MHz Oct.28,2014 2100 MHz OK 3846 Body 2300MHz Oct.29,2014 2300 MHz OK 3846 Body 2450MHz Oct.29,2014 2450 MHz OK 3846 Body 2550MHz Oct.29,2014 2550 MHz OK 3846 Body 2600MHz Oct.29,2014 2600 MHz OK 3846 Body 3500MHz Oct.30,2014 3500 MHz OK 3846 Body 3700MHz Oct.30,2014 3700 MHz OK 3846 Body 5200MHz Oct.24,2014 5200 MHz OK 3846 Body 5500MHz Oct.24,2014 5500 MHz OK 3846 Body 5800MHz Oct.24,2014 5800 MHz OK No. I15Z41327-SEM03 Page 96 of 139 ©Copyright. All rights reserved by CTTL. ANNEX G Probe Calibration Certificate Probe 3846 Calibration Certificate No. I15Z41327-SEM03 Page 97 of 139 ©Copyright. All rights reserved by CTTL. No. I15Z41327-SEM03 Page 98 of 139 ©Copyright. All rights reserved by CTTL. No. I15Z41327-SEM03 Page 99 of 139 ©Copyright. All rights reserved by CTTL. No. I15Z41327-SEM03 Page 100 of 139 ©Copyright. All rights reserved by CTTL. No. I15Z41327-SEM03 Page 101 of 139 ©Copyright. All rights reserved by CTTL. No. I15Z41327-SEM03 Page 102 of 139 ©Copyright. All rights reserved by CTTL. No. I15Z41327-SEM03 Page 103 of 139 ©Copyright. All rights reserved by CTTL. No. I15Z41327-SEM03 Page 104 of 139 ©Copyright. All rights reserved by CTTL. No. I15Z41327-SEM03 Page 105 of 139 ©Copyright. All rights reserved by CTTL. No. I15Z41327-SEM03 Page 106 of 139 ©Copyright. All rights reserved by CTTL. No. I15Z41327-SEM03 Page 107 of 139 ©Copyright. All rights reserved by CTTL. ANNEX H Dipole Calibration Certificate 835 MHz Dipole Calibration Certificate No. I15Z41327-SEM03 Page 108 of 139 ©Copyright. All rights reserved by CTTL. No. I15Z41327-SEM03 Page 109 of 139 ©Copyright. All rights reserved by CTTL. No. I15Z41327-SEM03 Page 110 of 139 ©Copyright. All rights reserved by CTTL. No. I15Z41327-SEM03 Page 111 of 139 ©Copyright. All rights reserved by CTTL. No. I15Z41327-SEM03 Page 112 of 139 ©Copyright. All rights reserved by CTTL. No. I15Z41327-SEM03 Page 113 of 139 ©Copyright. All rights reserved by CTTL. No. I15Z41327-SEM03 Page 114 of 139 ©Copyright. All rights reserved by CTTL. No. I15Z41327-SEM03 Page 115 of 139 ©Copyright. All rights reserved by CTTL. 1900 MHz Dipole Calibration Certificate No. I15Z41327-SEM03 Page 116 of 139 ©Copyright. All rights reserved by CTTL. No. I15Z41327-SEM03 Page 117 of 139 ©Copyright. All rights reserved by CTTL. No. I15Z41327-SEM03 Page 118 of 139 ©Copyright. All rights reserved by CTTL. No. I15Z41327-SEM03 Page 119 of 139 ©Copyright. All rights reserved by CTTL. No. I15Z41327-SEM03 Page 120 of 139 ©Copyright. All rights reserved by CTTL. No. I15Z41327-SEM03 Page 121 of 139 ©Copyright. All rights reserved by CTTL. No. I15Z41327-SEM03 Page 122 of 139 ©Copyright. All rights reserved by CTTL. No. I15Z41327-SEM03 Page 123 of 139 ©Copyright. All rights reserved by CTTL. 2450 MHz Dipole Calibration Certificate No. I15Z41327-SEM03 Page 124 of 139 ©Copyright. All rights reserved by CTTL. No. I15Z41327-SEM03 Page 125 of 139 ©Copyright. All rights reserved by CTTL. No. I15Z41327-SEM03 Page 126 of 139 ©Copyright. All rights reserved by CTTL. No. I15Z41327…
