2ACCJH023HSUPA/HSDPA/UMTS Quad-band/GSM Quad-band mobile phone

12 www.sar-tick.com This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found in the RADIOWAVES section of this user guide. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 10 mm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. English - CJB28D1ALAAA Quick Start Guide For more information about how to use your phone, please visit www.alcatelonetouch.com to download the complete user manual. From the website, you can consult the FAQ, perform software upgrades, etc.


 PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. 1 Your mobile ������������������ 1�1 Keys and connectors Headset connector Micro-USB connector Back key Home key Recents key Touch screen Front Camera Pop 35_5015A_5015E US QG_Eng_EN_03_150701.indd 1-22015/7/2 8:51:50 34 Power key • Press: Lock the screen/Light up the screen. • Press and hold: Show the popup menu to select from Restart/ Power off/Aeroplane mode� • Press and hold the Power key and Volume down key to capture a screenshot. • Press and hold the power key for at least 10 seconds to force reboot or hold it longer to power off. Volume Keys • In call mode, adjusts the earpiece or headset volume. • In Music/Video/Streaming mode, adjusts the media volume. • In general mode, adjusts the ringtone volume. • Mutes the ringtone of an incoming call. Volume up Volume down Camera Flash/Torch Power key Recents key • Recent apps� Touch to open a list of thumbnail images of apps you've worked with recently. Touch it to open an app. Swipe it left or right to remove a thumbnail from the list. Home key • From any application or screen, touch to return to the Home screen. • Long press to open Google search. Back key • Touch to go back to the previous screen, or to close a dialog box, options menu, the notification panel, etc. Pop 35_5015A_5015E US QG_Eng_EN_03_150701.indd 3-42015/7/2 8:51:50 56 Installing or removing the battery Power off your phone before removing the battery. • Insert and click the battery into place, then close the cover. • Unclip the cover, then remove the battery. Installing or removing the microSD card To install, insert the microSD card first, and then place it into the slot with the gold contact facing down. To remove the external microSD card, slide and take it out from the slot. Charging the battery Connect battery charger to your phone and plug into the socket. If the battery is very low, there will be no indication that power is being received until the charge is sufficient to show the charging status bar. To reduce power consumption and energy waste, once the battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background-running applications when not in use; reduce the backlight time, etc. 1�2 Getting started 1�2�1 Set up Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Power off your phone before inserting or removing the SIM card. SIM1 Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. SIM2 (1) Release the SIM card holder by sliding it in the direction of the arrow and lift it. Insert the SIM card with the gold contacts facing down and make sure the SIM card is put flatly. Lower the SIM card holder and slide it in the opposite direction to lock it. For dual SIM models, both SIM1 and SIM2 can support 2G and 3G networks. If both of them are 3G SIM cards, only one card can support 3G network (1) . Your phone only supports micro-SIM card. Do not attempt to insert other SIM types like mini and nano cards, otherwise you may damage your phone. (1) 5015E only. Pop 35_5015A_5015E US QG_Eng_EN_03_150701.indd 5-62015/7/2 8:51:55 78 1�3�1 Using the touchscreen Touch To access an application, touch it with your finger. Long press Long press the item to enter the available options. Drag Place your finger on the screen to drag an object to another location. Slide/Swipe Slide the screen up and down to scroll through the applications, images, web pages, etc. Flick Similar to swiping, but flicking makes it move quicker. Pinch/Spread Place your fingers of one hand on the screen surface and draw them apart or together to scale an element on the screen. Rotate Automatically change the screen orientation from portrait to landscape by turning the phone sideways to have a better view. 1�3�2 Status bar From the status bar, you can see both phone status (to the right side) and notification information (to the left side). 1�2�2 Power on your phone Hold down the Power key until the phone powers on. It will take a few seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you should set the following options: Language, Google account, etc. Even if no SIM card is installed, your phone will still power on and you will be able to connect to a Wi-Fi network, sign into your Google account and use some of the phone's features. 1�2�3 Power off your phone Hold down the Power key from the Home screen until the phone options appear, select Power off. 1�3 Home screen You can move all of the items (applications, shortcuts, folders and widgets) you use most frequently to your Home screen for quick access. Touch the Home key to switch to the Home screen. Touch to enter application list. Status bar • Status/Notification indicators • Touch and drag down to open the notification panel. Touch an icon to open an application, folder, etc. Favourite tray applications • Touch to enter the application. • Long …

Text truncated - open the document above for the full version.

5 Z S TCL Communic 5F, C building, N ZhangJiang Hig Shanghai, P.R. Tel: +86 21 61 4 201 Fe d Offi Equ 734 Colu Sub To W Purs con - Bl - Sc - Op - BO The rele app Yo u Zhiz Prod TCL cation Ltd. No. 232, Liang J gh-Tech Park, P China. 201203 46 0666 Fax: + 5-07-01 deral Comm fice of Engin uipment Aut 45 Oakland M umbia, Mar bject: Perma Whom It M suant to sec fidential tre lock Diagra chematics perational D OM list/Tun e above mat eased to the licant and p urs Sincerel zhou GONG duct Certifi L Commun Jing Road, udong +86 21 6146 06 munications C neering and thorization Mills Road ryland 2104 anent Confid May Concern ctions 0.457 eatment of th am Description ne-Up-Proce erials conta public. The provide unju ly, G cation Ma n nication Lt 02 Commission d Technolog Division 46 dentiality re n, 7 and 0.459 he followin edure ain trade sec e public disc ustified ben nager td. n gy equest for F of CFR 47, ng informati crets and pro closure of th efits to its c FCC ID: 2AC the applica ion accompa oprietary in hese matter competitors CCJH023 ant requests anying this nformation n s might be h . htt permanent applicatio n not customa harmful to t p://tclcom.tcl.co n: arily the om

TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Tel: +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com Date 2015-07-01 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: CTTL-Terminals Test Lab of China Academy of Telecommunication Research of MIIT is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

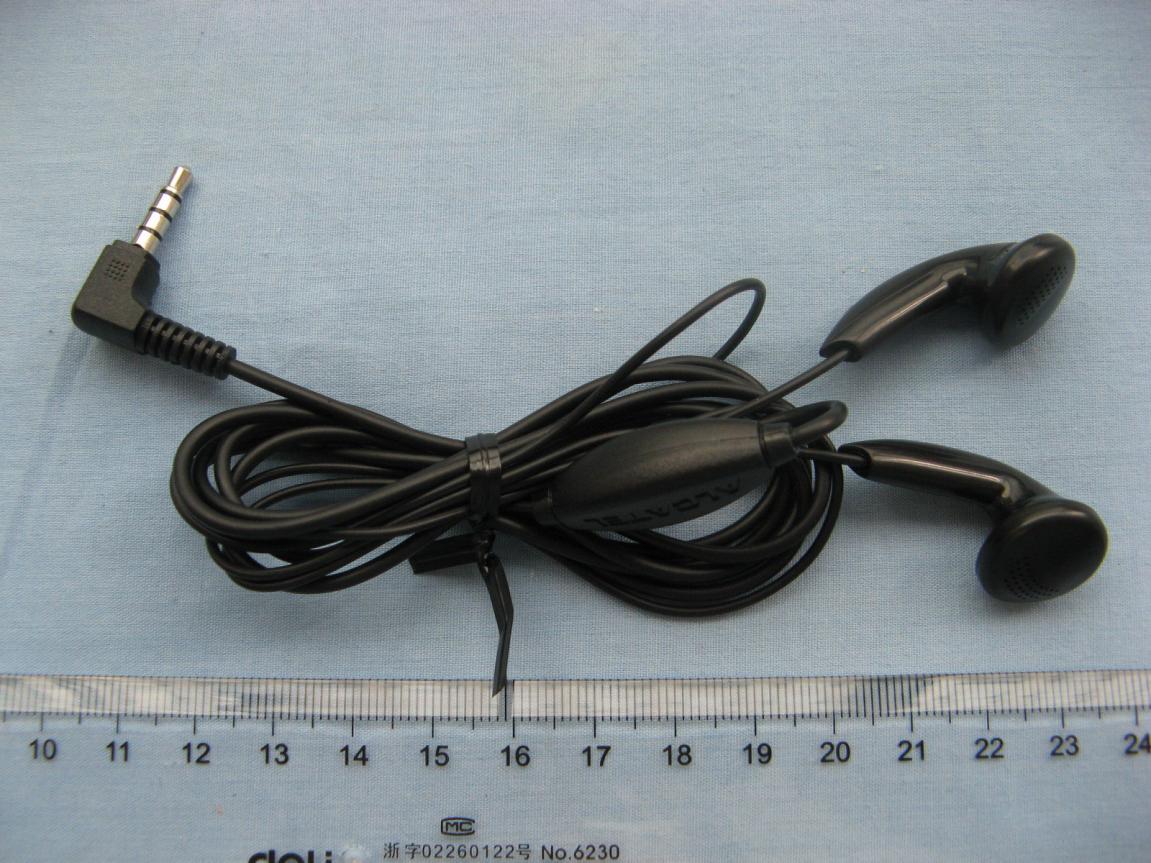

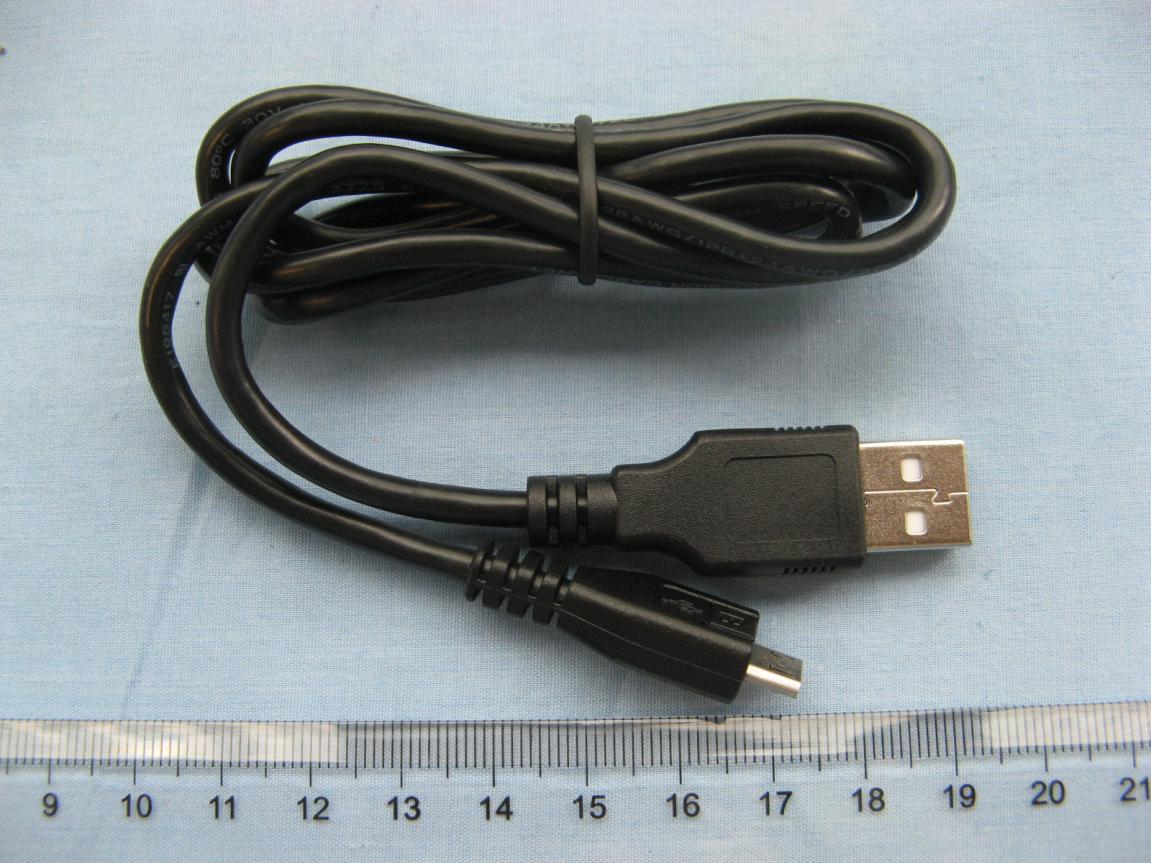

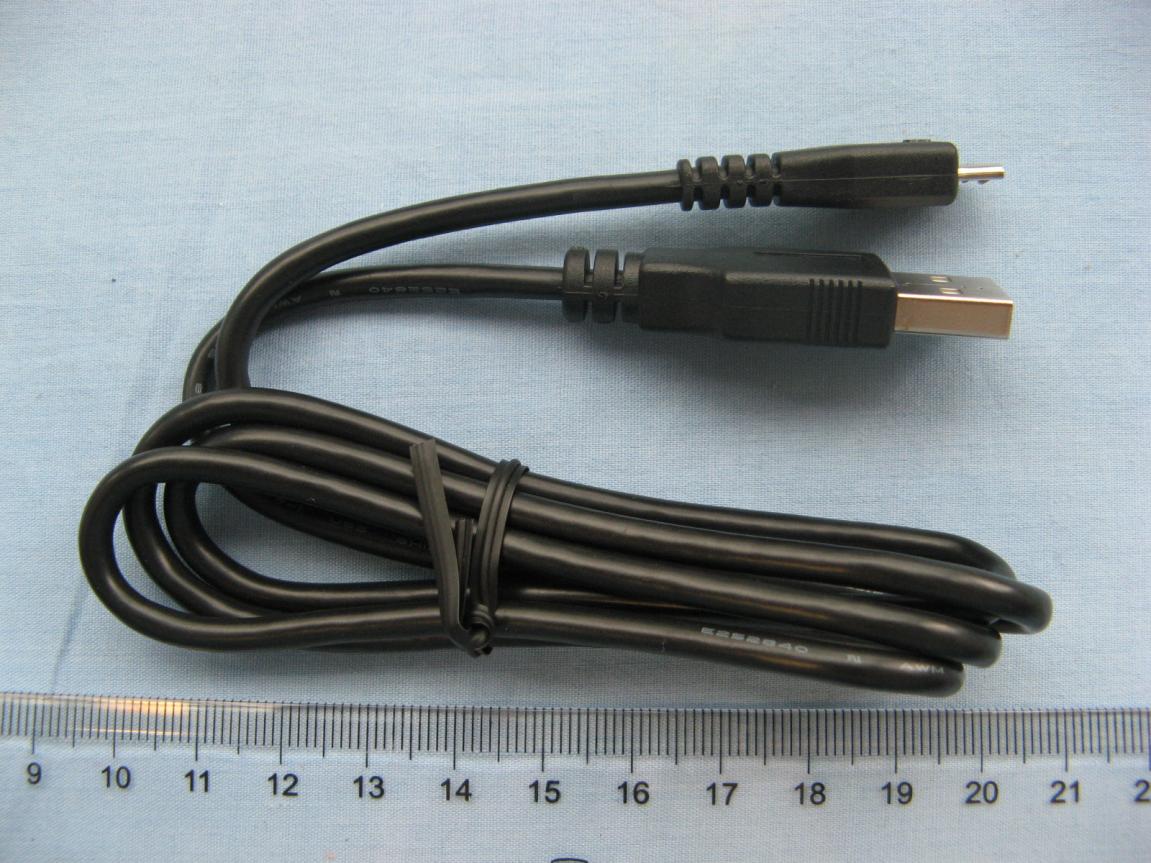

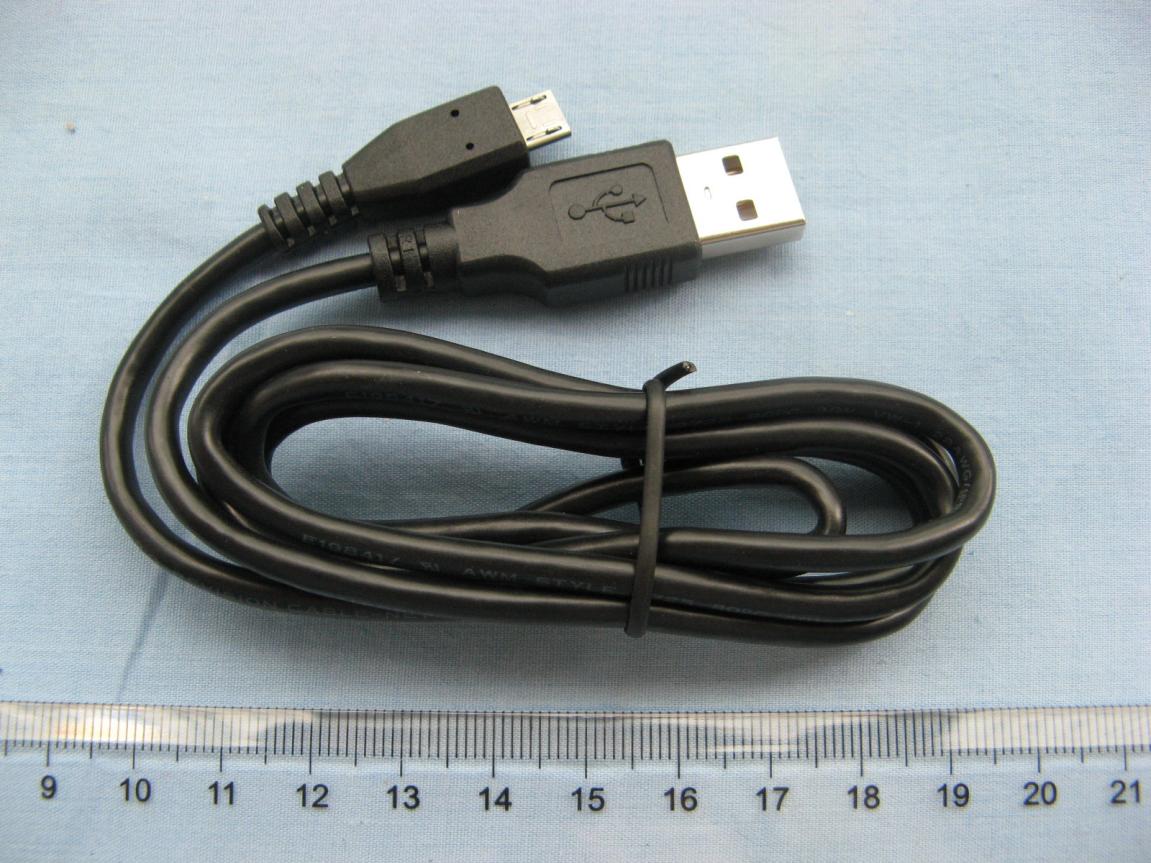

EUT photograph Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile phone Charger AE1 Label of Charger AE1 Charger AE2 Label of Charger AE2 USB Cable AE3 USB Cable AE4 USB Cable AE5 USB Cable AE6 Headset AE7 Headset AE8 Headset AE9 Headset AE10 Headset AE11 Headset AE12 Headset AE13 Headset AE14 Battery AE15 Battery AE15-1 Battery AE16 Battery AE16-1

Label Placement

EUT Interior photograph Mobile Phone Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly

©Copyright. All rights reserved by CTTL. SAR TEST REPORT No. I15Z41294-SEM01 For TCL Communication Ltd HSUPA/HSDPA/UMTS Quad-band/GSM Quad-band mobile phone Model Name: 5015A With Hardware Version: PIO Software Version: v1A1D FCC ID: 2ACCJH023 Issued Date: 2015-07-01 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL, Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No. 51 Shouxiang Science Building, Xueyuan Road, Haidian District, Beijing, P. R. China100191 Te l:+86(0)10-62304633-2512,Fax:+86(0)10-62304633-2504 Email: [email protected], website:www.chinattl.com TESTING CNAS L0570 No. I15Z41294-SEM01 Page 2 of 118 ©Copyright. All rights reserved by CTTL. REPORT HISTORY Report Number Revision Issue Date Description I15Z41294-SEM01 Re v.0 2015-07-01 Initial creation of test report No. I15Z41294-SEM01 Page 3 of 118 ©Copyright. All rights reserved by CTTL. TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 5 1.1 TESTING LO C AT I O N ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE .................................................................................................. 6 3 CLIENT INFORMATION ................................................................................................................ 8 3.1 APPLICANT INFORMATION .............................................................................................................................. 8 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 8 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................. 9 4.1 ABOUT EUT ................................................................................................................................................... 9 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 9 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................ 9 5 TEST METHODOLOGY .............................................................................................................. 10 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 10 5.2 APPLICABLE MEASUREMENT STANDARDS .................................................................................................... 10 6 SPECIFIC ABSORPTION RATE(SAR) ....................................................................................... 11 6.1 INTRODUCTION ............................................................................................................................................. 11 6.2 SAR DEFINITION .......................................................................................................................................... 11 7 TISSUE SIMULATING LIQUIDS ................................................................................................. 12 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 12 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 12 8 SYSTEM VERIFICATION ............................................................................................................ 16 8.1 SYSTEM SETUP ............................................................................................................................................. 16 8.2 SYSTEM VERIFICATION ................................................................................................................................. 17 9 MEASUREMENT PROCEDURES .............................................................................................. 18 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 18 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 19 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 20 9.4 BLUETOOTH &WI-FI MEASUREMENT PROCEDURES FOR SAR ..................................................................... 21 9.5 POWER DRIFT ............................................................................................................................................... 21 10 AREA SCAN BASED 1-G SAR ................................................................................................. 22 10.1 REQUIREMENT OF KDB .............................................................................................................................. 22 10.2 FAST SAR ALGORITHMS ............................................................................................................................ 22 11 CONDUCTED OUTPUT POWER …

Text truncated - open the document above for the full version.

No. I15Z41294-SEM01 Page 60 of 118 ©Copyright. All rights reserved by CTTL. Fig. 8-1 Z-Scan at power reference point (WCDMA1900) No. I15Z41294-SEM01 Page 61 of 118 ©Copyright. All rights reserved by CTTL. Wifi 802.11b Right Cheek Channel 1 Date: 2015-06-15 Electronics: DAE4 Sn777 Medium: Head 2450 MHz Medium parameters used (interpolated): f = 2412 MHz; σ = 1.865 S/m; ε r = 38.54; ρ = 1000 kg/m 3 Ambient Temperature: 22.0 o C Liquid Temperature: 21.8 o C Communication System: WLan 2450 Frequency: 2412 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(6.56, 6.56, 6.56) Area Scan (81x141x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.114 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.313 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 0.211 W/kg SAR(1 g) = 0.102 W/kg; SAR(10 g) = 0.050 W/kg Maximum value of SAR (measured) = 0.114 W/kg Fig.9 2450 MHz No. I15Z41294-SEM01 Page 62 of 118 ©Copyright. All rights reserved by CTTL. Fig. 9-1 Z-Scan at power reference point (2450 MHz) No. I15Z41294-SEM01 Page 63 of 118 ©Copyright. All rights reserved by CTTL. Wifi 802.11b Body Rear Channel 1 Date: 2015-06-15 Electronics: DAE4 Sn777 Medium: Body 2450 MHz Medium parameters used (interpolated): f = 2412 MHz; σ = 1.942 S/m; ε r = 53.129; ρ = 1000 kg/m 3 Ambient Temperature: 22.0 o C Liquid Temperature: 21.8 o C Communication System: WLan 2450 Frequency: 2412 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(6.90, 6.90, 6.90) Area Scan (121x81x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.232 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.442 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.428 W/kg SAR(1 g) = 0.213 W/kg; SAR(10 g) = 0.098 W/kg Maximum value of SAR (measured) = 0.244 W/kg Fig.10 2450 MHz No. I15Z41294-SEM01 Page 64 of 118 ©Copyright. All rights reserved by CTTL. Fig. 10-1 Z-Scan at power reference point (2450 MHz) No. I15Z41294-SEM01 Page 65 of 118 ©Copyright. All rights reserved by CTTL. ANNEX B SystemVerification Results 835MHz Date: 2015-06-13 Electronics: DAE4 Sn777 Medium: Head 850 MHz Medium parameters used: f = 835 MHz; σ = 0.921 S/m; ε r = 41.12; ρ = 1000 kg/m 3 Ambient Temperature: 22.0 o C Liquid Temperature: 21.8 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(9.18, 9.18, 9.18) System Validation/Area Scan (61x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 54.162 V /m; Power Drift = -0.08 dB Fast SAR: SAR(1 g) = 2.39 W/kg; SAR(10 g) = 1.61 W/kg Maximum value of SAR (interpolated) = 2.63 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.162 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 3.07 W/kg SAR(1 g) = 2.37 W/kg; SAR(10 g) = 1.59 W/kg Maximum value of SAR (measured) = 2.61 W/kg 0 dB = 2.61 W/kg = 4.17 dBW/kg Fig.B.1 validation 835MHz 250mW No. I15Z41294-SEM01 Page 66 of 118 ©Copyright. All rights reserved by CTTL. 835MHz Date: 2015- 06-13 Electronics: DAE4 Sn777 Medium: Body 850 MHz Medium parameters used: f = 835 MHz; σ = 0.972 S/m; ε r = 56.23; ρ = 1000 kg/m 3 Ambient Temperature: 22.0 o C Liquid Temperature: 21.8 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(9.09, 9.09, 9.09) System Validation /Area Scan (61x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 52.431 V/m; Power Drift = 0.04 dB Fast SAR: SAR(1 g) = 2.33 W/kg; SAR(10 g) = 1.68 W/kg Maximum value of SAR (interpolated) = 2.61 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.431 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 3.12 W/kg SAR(1 g) = 2.38 W/kg; SAR(10 g) = 1.56 W/kg Maximum value of SAR (measured) = 2.62 W/kg 0 dB = 2.62 W/kg = 4.18 dBW/kg Fig.B.2 validation 835MHz 250mW No. I15Z41294-SEM01 Page 67 of 118 ©Copyright. All rights reserved by CTTL. 1900MHz Date: 2015-06-14 Electronics: DAE4 Sn777 Medium: Head 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.408 S/m; ε r = 40.54; ρ = 1000 kg/m 3 Ambient Temperature: 22.0 o C Liquid Temperature: 21.8 o C Communication System: CW Frequency: 1900 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(7.26, 7.26, 7.26) System Validation/Area Scan (81x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 97.921 V/m; Power Drift = -0.03 dB Fast SAR: SAR(1 g) = 10.03 W/kg; SAR(10 g) = 5.26 W/kg Maximum value of SAR (interpolated) = 11.82 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 97.921 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 18.54 W/kg SAR(1 g) = 10.19 W/kg; SAR(10 g) = 5.36 W/kg Maximum value of SAR (measured) = 12.00 W/kg 0 dB = 12.00W/kg = 10.79 dB W/kg Fig.B.3 validation 1900MHz 250mW No. I15Z41294-SEM01 Page 68 of 118 ©Copyright. All rights reserved by CTTL. 1900MHz Date: 2015- 06-14 Electronics: DAE4 Sn777 Medium: Body 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.557 S/m; ε r = 52.93; ρ = 1000 kg/m 3 Ambient Temperature: 22.0 o C Liquid Temperature: 21.8 o C Communication System: CW Frequency: 1900 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(7.15, 7.15, 7.15) System Validation/Area Scan (81x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 79.431V/m; Power Drift = -0.04 dB Fast SAR: SAR(1 g) = 10.1 W/kg; SAR(10 g) = 5.23 W/kg Maximum value of SAR (interpolated) = 11.7 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 79.431V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 16.81 W/kg SAR(1 g) = 10.4 W/kg; SAR(10 g) = 5.38 W/kg Maximum value of SAR (measured) = 11.9 W/kg 0 dB = 11.9W/kg = 10.76 dB W/kg Fig.B.4validation 1900MHz 250mW No. I15Z41294-SEM01 Page 69 of 118 ©Copyright. All rights reserved by CTTL. 2450MHz Date: 2015…

Text truncated - open the document above for the full version.

©Copyright. All rights reserved by CTTL. TEST REPORT No. I15Z41294-GTE01 for TCL Communication Ltd. HSUPA/HSDPA/UMTS Quad-band/GSM Quad-band mobile phone Model Name: 5015A FCC ID: 2ACCJH023 with Hardware Version: PIO Software Version: v1A1D Issued Date: 2015-06-30 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: FCC 2.948 Listed: No.525429 CTTL,Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No. 52, Huayuan North Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2512, Fax:+86(0)10-62304633-2504 Email: [email protected] , website: www.chinattl.com ©Copyright. All rights reserved by CTTL. REPORT HISTORY Report Number Revision Description Issue Date I15Z41294-GTE01 Rev.0 1st edition 2015-06-30 No. I15Z41294-GTE01 Page3 of 75 ©Copyright. All rights reserved by CTTL. CONTENTS 1. TEST LABORATORY ......................................................................................................................... 4 1.1. TESTING LOCATION .................................................................................................................... 4 1.2. TESTING ENVIRONMENT ........................................................................................................... 4 1.3. PROJECT DATA .............................................................................................................................. 4 1.4. SIGNATURE ..................................................................................................................................... 4 2. CLIENT INFORMATION ................................................................................................................... 5 2.1. APPLICANT INFORMATION ....................................................................................................... 5 2.2. MANUFACTURER INFORMATION ............................................................................................ 5 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 6 3.1. ABOUT EUT ..................................................................................................................................... 6 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 6 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ....................................... 6 3.4. NORMAL ACCESSORY SETTING ............................................................................................... 8 3.5. GENERAL DESCRIPTION ............................................................................................................ 8 4. REFERENCE DOCUMENTS ............................................................................................................. 9 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 9 5. LABORATORY ENVIRONMENT ................................................................................................... 10 6. SUMMARY OF TEST RESULTS ...................................................................................................... 11 7. TEST EQUIPMENTS UTILIZED .................................................................................................... 12 ANNEX A: MEASUREMENT RESULTS ................................................................................................ 13 A.1 OUTPUT POWER ........................................................................................................................... 13 A.2 EMISSION LIMIT ........................................................................................................................... 19 A.3 FREQUENCY STABILITY ............................................................................................................ 25 A.4 OCCUPIED BANDWIDTH .............................................................................................................. 28 A.5 EMISSION BANDWIDTH ................................................................................................................ 41 A.6 BAND EDGE COMPLIANCE .......................................................................................................... 53 A.7 CONDUCTED SPURIOUS EMISSION............................................................................................ 60 No. I15Z41294-GTE01 Page4 of 75 ©Copyright. All rights reserved by CTTL. 1. Test Laboratory 1.1. Testing Location Company Name: CTTL,Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT Address: No. 52, Huayuan North Road, Haidian District, Beijing, P. R. China 100191 Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: 2015-06-16 Testing End Date: 2015-06-30 1.4. Signature Shen Yi (Prepared this test report) Zhong Nan (Reviewed this test report) Sun Xiang Qian Deputy Director of the laboratory (Approved this test report) No. I15Z41294-GTE01 Page5 of 75 ©Copyright. All rights reserved by CTTL. 2. Client Information 2.1. Applicant Information Company Name: TCL Communication Ltd. Address /Post: 5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 Contact Person: Gong Zhizhou Contact Email [email protected] Telephone: 0086-21-51798260 Fax: 0086-21-61460602 2.2. Manufacturer Information Company Name: TCL Communication Ltd. Address /Post: 5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 Contact Person: Gong Zhizhou Contact Email [email protected] Telephone: 0086-21-51798260 Fax: 0086-21-61460602 No. I15Z41294-GTE01 Page6 of 75 ©Copyright. All rights reserved …

Text truncated - open the document above for the full version.

©Copyright. All rights reserved by CTTL. TEST REPORT No. I15Z41294-GTE02 for TCL Communication Ltd. HSUPA/HSDPA/UMTS Quad-band/GSM Quad-band mobile phone Model Name: 5015A FCC ID: 2ACCJH023 with Hardware Version: PIO Software Version: v1A1D Issued Date: 2015-06-30 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: FCC 2.948 Listed: No. 525429 CTTL,Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No. 52, Huayuan North Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2512, Fax:+86(0)10-62304633-2504 Email: [email protected] , website: www.chinattl.com No. I15Z41294-GTE02 Page2 of 52 ©Copyright. All rights reserved by CTTL. REPORT HISTORY Report Number Revision Description Issue Date I15Z41294-GTE01 Rev.0 1st edition 2015-06-30 No. I15Z41294-GTE02 Page3 of 52 ©Copyright. All rights reserved by CTTL. CONTENTS 1. TEST LABORATORY ......................................................................................................................... 4 1.1. TESTING LOCATION .................................................................................................................... 4 1.1. TESTING ENVIRONMENT ........................................................................................................... 4 1.2. PROJECT DATA .............................................................................................................................. 4 1.3. SIGNATURE ..................................................................................................................................... 4 2. CLIENT INFORMATION ................................................................................................................... 5 2.1. APPLICANT INFORMATION ....................................................................................................... 5 2.2. MANUFACTURER INFORMATION ............................................................................................ 5 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 6 3.1. ABOUT EUT ..................................................................................................................................... 6 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 6 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ....................................... 6 3.4. GENERAL DESCRIPTION ............................................................................................................ 7 4. REFERENCE DOCUMENTS ............................................................................................................. 8 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 8 5. LABORATORY ENVIRONMENT ..................................................................................................... 9 6. SUMMARY OF TEST RESULTS ..................................................................................................... 10 7. TEST EQUIPMENT…

Text truncated - open the document above for the full version.
