2ACCJH031HSDPA/HSUPA/UMTS quad band / GSM quad band /LTE 6 bands mobile phone

12 www.sar-tick.com This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found on page 31 of this user guide. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 10 mm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. English - CJB28B4B6AAA Quick Start Guide For more information about how to use your cellphone, please visit www.alcatelonetouch.com to download the complete user manual. From the website, you can also consult the FAQs. 5017O PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. 1 Your device ������������������� 1�1 Keys and connectors Headset connector Micro-USB connector Back key Home key Recents key Touch screen Front Camera Pixi 3-4.5 4G_5017O_QG for Bell_Eng_EN_02_150814.indd 1-22015/8/14 15:39:18 34 Power key • Press: Lock the screen/Light up the screen. • Press and hold: Show the pop-up menu to select from Restart/ Power off/Airplane mode� • Press and hold the Power key and Volume down key to capture a screenshot. Volume Keys • In call mode, adjusts the earpiece or headset volume. • In Music/Video/Streaming mode, adjusts the media volume. • In general mode, adjusts the ringtone volume. • Mutes the ringtone of an incoming call. Volume up Volume down Camera Flash/Torch Power key Recents key • Recent apps� Touch and hold to open a list of thumbnail images of apps you've worked with recently. Touch it to open an app. Swipe it left or right to remove a thumbnail from the list. Home key • From any application or screen, touch to return to the Home screen. • Touch and hold to open Google search. Back key • Touch to go back to the previous screen, or to close a dialog box, options menu, the notification panel, etc. Pixi 3-4.5 4G_5017O_QG for Bell_Eng_EN_02_150814.indd 3-42015/8/14 15:39:18 56 Installing or removing the microSD card To install, insert the microSD card first, and then place it into the slot with the gold contact facing down. To remove the external microSD card, slide and take it out from the slot. Charging the battery Connect battery charger to your phone and plug into the socket. If the battery is very low, there will be no indication that power is being received until the charge is sufficient to show the charging status bar. To reduce power consumption and energy waste, once the battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background-running applications when not in use; reduce the backlight time, etc. 1�2 Getting started 1�2�1 Set up Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Power off your phone before inserting or removing the SIM card. Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. Installing or removing the battery Power off your phone before removing the battery. • Insert and click the battery into place, then close the cover. • Unclip the cover, then remove the battery. Pixi 3-4.5 4G_5017O_QG for Bell_Eng_EN_02_150814.indd 5-62015/8/14 15:39:19 78 1�3�1 Using the touchscreen Touch To access an application, touch it with your finger. Touch and Hold Touch and hold the item to enter the available options. Drag Place and hold your finger on the screen to drag an object to another location. Slide/Swipe Slide the screen up and down to scroll through the applications, images, web pages, etc. Flick Similar to swiping, but flicking is faster. Pinch/Spread Place your fingers of one hand on the screen surface and draw them apart or together to scale an element on the screen. Rotate Automatically change the screen orientation from portrait to landscape by turning the phone sideways to have a better view. 1�3�2 Status bar From the status bar, you can view both phone status (to the right side) and notification information (to the left side). 1�2�2 Power on your phone Hold down the Power key until the phone powers on. It will take a few seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you should set the following options: Language, Google account, etc. Even if no SIM card is installed, your phone will still power on and you will be able to connect to a Wi-Fi network, sign into your Google account and use some of the phone's features. 1�2�3 Power off your phone Hold down the Power key from the Home screen until the phone options appear, select Power off. 1�3 Home screen You can move all of the items (applications, shortcuts, folders and widgets) you use most frequently to your Home screen for quick access. Touch the Home key to switch to the Home screen. Touch to enter application list. Status bar • Status/Notification indicators • Touch and drag down to open the notification panel. Touch an icon to open an application, folder, etc. Favorite tray applications • Touch to enter the application. • Touch and hold to move or change applications. Search bar • Touch  to enter text search screen. • Touch  to enter voice search screen. The Home screen is provided in an extended format to allow more space for adding applications, shortcuts etc. Slide the Home screen horizontally left and right to get a complete view. Pixi 3-4.5 4G_5017O_QG for Bell_Eng_EN_02_150814.indd 7-82015/8/14 15:39:19 910 Notification icons New Gmail messageMissed call New Email messageCall forwarding is on New text or multimedia message Song is playing Problem with SMS or MMS delivery Connected to VPN New Google Hangouts message Radio is on New voicemailUploading data Upcoming eventDownload finished Scr…

Text truncated - open the document above for the full version.

TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Tel: +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com Date 2015-01-19 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: CTTL-Terminals Test Lab of China Academy of Telecommunication Research of MIIT is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Te l : +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com 2015-07-29 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: 2ACCJH031 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

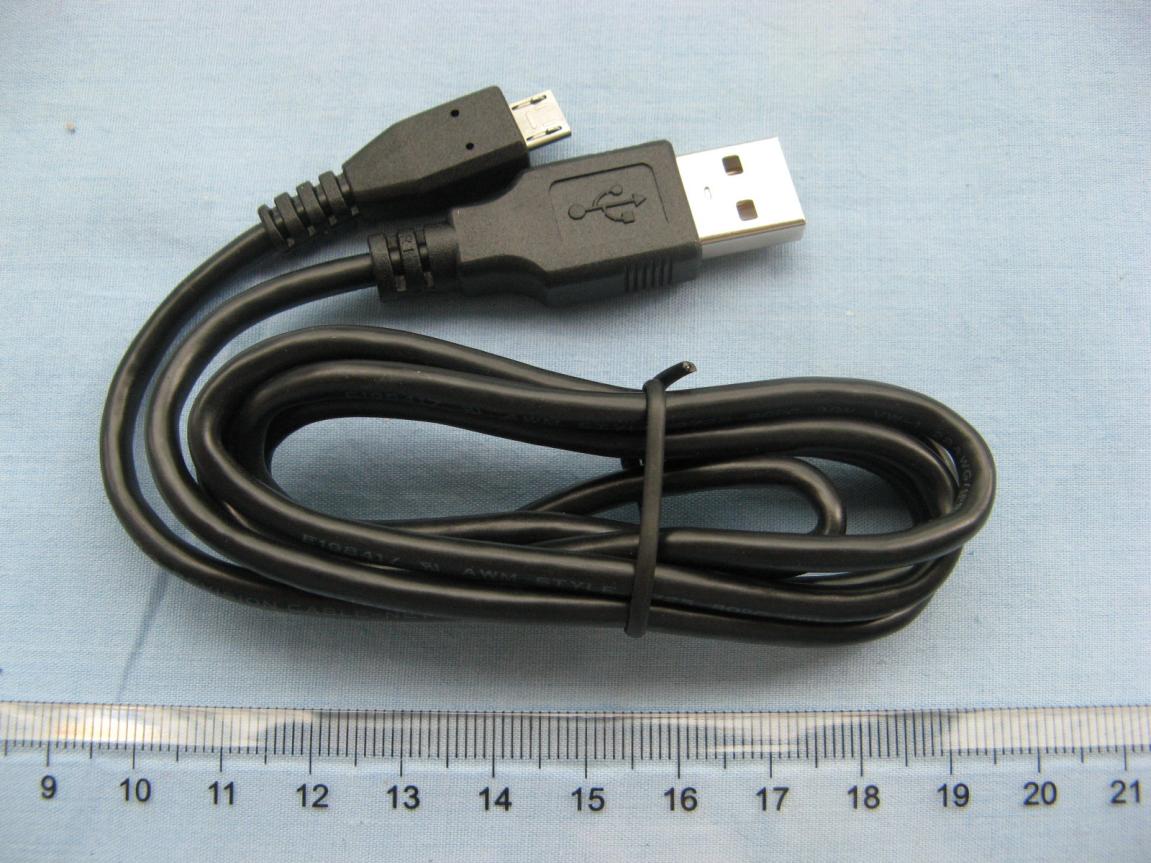

EUT photograph Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Charger AE1 Label of Charger AE1 Charger AE2 Label of Charger AE2 Charger AE3 Label of Charger AE3 USB Cable AE4 USB Cable AE5 USB Cable AE6 USB Cable AE7 Battery AE8 Battery AE8-1

Label Placement

EUT Interior photograph Mobile Phone Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly

No. I15Z41844-SEM03 Page 189 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 190 of 206 ©Copyright. All rights reserved by CTTL. 2450 MHz Dipole Calibration Certificate No. I15Z41844-SEM03 Page 191 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 192 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 193 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 194 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 195 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 196 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 197 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 198 of 206 ©Copyright. All rights reserved by CTTL. 2600 MHz Dipole Calibration Certificate No. I15Z41844-SEM03 Page 199 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 200 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 201 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 202 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 203 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 204 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 205 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 206 of 206 ©Copyright. All rights reserved by CTTL. ANNEX I Accreditation Certificate

No. I15Z41844-SEM03 Page 156 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 157 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 158 of 206 ©Copyright. All rights reserved by CTTL. ANNEX H Dipole Calibration Certificate 750 MHz Dipole Calibration Certificate No. I15Z41844-SEM03 Page 159 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 160 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 161 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 162 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 163 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 164 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 165 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 166 of 206 ©Copyright. All rights reserved by CTTL. 835 MHz Dipole Calibration Certificate No. I15Z41844-SEM03 Page 167 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 168 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 169 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 170 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 171 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 172 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 173 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 174 of 206 ©Copyright. All rights reserved by CTTL. 1750 MHz Dipole Calibration Certificate No. I15Z41844-SEM03 Page 175 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 176 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 177 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 178 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 179 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 180 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 181 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 182 of 206 ©Copyright. All rights reserved by CTTL. 1900 MHz Dipole Calibration Certificate No. I15Z41844-SEM03 Page 183 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 184 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 185 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 186 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 187 of 206 ©Copyright. All rights reserved by CTTL. No. I15Z41844-SEM03 Page 188 of 206 ©Copyright. All rights reserved by CTTL.

No. I15Z41844-SEM03 Page 103 of 206 ©Copyright. All rights reserved by CTTL. LTE Band5 Left Cheek High with QPSK_10M_1RB_Middle Date: 2015- 7- 28 Electronics: DAE4 Sn777 Medium: Head 850 MHz Medium parameters used (interpolated): f = 844 MHz; σ = 0.924 mho/m; εr = 41.891; ρ = 1000 kg/m 3 Ambient Temperature: 22.9 o C Liquid Temperature: 22.5 o C Communication System: LTE Band5 Frequency: 844 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(9.18, 9.18, 9.18) Area Scan (71x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.467 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.496 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 0.540 W/kg SAR(1 g) = 0.420 W/kg; SAR(10 g) = 0.316 W/kg Maximum value of SAR (measured) = 0.464 W/kg Fig.15 LTE Band5 No. I15Z41844-SEM03 Page 104 of 206 ©Copyright. All rights reserved by CTTL. Fig. 15-1 Z-Scan at power reference point (LTE Band5) No. I15Z41844-SEM03 Page 105 of 206 ©Copyright. All rights reserved by CTTL. LTE Band5 Body Rear High with QPSK_10M_1RB_Middle Date: 2015- 7- 28 Electronics: DAE4 Sn777 Medium: Body 850 MHz Medium parameters used (interpolated): f = 844 MHz; σ = 0.979 mho/m; εr = 56.211; ρ = 1000 kg/m 3 Ambient Temperature: 22.9 o C Liquid Temperature: 22.5 o C Communication System: LTE Band5 Frequency: 844 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(9.09, 9.09, 9.09) Area Scan (111x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.898 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 28.61 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 0.990 W/kg SAR(1 g) = 0.779 W/kg; SAR(10 g) = 0.585 W/kg Maximum value of SAR (measured) = 0.899 W/kg Fig.16 LTE Band5 No. I15Z41844-SEM03 Page 106 of 206 ©Copyright. All rights reserved by CTTL. Fig. 16-1 Z-Scan at power reference point (LTE Band5) No. I15Z41844-SEM03 Page 107 of 206 ©Copyright. All rights reserved by CTTL. LTE Band7 Right Cheek High with QPSK_20M_1RB_Low Date: 2015- 8- 1 Electronics: DAE4 Sn777 Medium: Head 2600 MHz Medium parameters used: f = 2560 MHz; σ = 1.931 mho/m; εr = 39.401; ρ = 1000 kg/m 3 Ambient Temperature: 22.9 o C Liquid Temperature: 22.5 o C Communication System: LTE Band7 Frequency: 2560 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(6.50, 6.50, 6.50) Area Scan (71x131x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.995 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.840 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 1.50 W/kg SAR(1 g) = 0.821 W/kg; SAR(10 g) = 0.445 W/kg Maximum value of SAR (measured) = 0.892 W/kg Fig.17 LTE Band7 No. I15Z41844-SEM03 Page 108 of 206 ©Copyright. All rights reserved by CTTL. Fig. 17-1 Z-Scan at power reference point (LTE Band7) No. I15Z41844-SEM03 Page 109 of 206 ©Copyright. All rights reserved by CTTL. LTE Band7 Body Rear Low with QPSK_20M_1RB_Low Date: 2015- 8- 1 Electronics: DAE4 Sn777 Medium: Body 2600 MHz Medium parameters used: f = 2510 MHz; σ = 2.1 mho/m; εr = 51.361; ρ = 1000 kg/m 3 Ambient Temperature: 22.9 o C Liquid Temperature: 22.5 o C Communication System: LT E Band7 Frequency: 2510 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(6.68, 6.68, 6.68) Area Scan (111x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.50 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.124 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 2.22 W/kg SAR(1 g) = 1.05 W/kg; SAR(10 g) = 0.479 W/kg Maximum value of SAR (measured) = 1.55 W/kg Fig.18 LTE Band7 No. I15Z41844-SEM03 Page 110 of 206 ©Copyright. All rights reserved by CTTL. Fig. 18-1 Z-Scan at power reference point (LTE Band7) No. I15Z41844-SEM03 Page 111 of 206 ©Copyright. All rights reserved by CTTL. LTE Band12 Left Cheek Low with QPSK_10M_1RB_Low Date: 2015- 7- 31 Electronics: DAE4 Sn777 Medium: Head 750 MHz Medium parameters used (interpolated): f = 704 MHz; σ = 0.876 mho/m; εr = 43.054; ρ = 1000 kg/m 3 Ambient Temperature: 22.9 o C Liquid Temperature: 22.5 o C Communication System: LTE Band12 Frequency: 704 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(9.53, 9.53, 9.53) Area Scan (71x111x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.133 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.863 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 0.150 W/kg SAR(1 g) = 0.126 W/kg; SAR(10 g) = 0.100 W/kg Maximum value of SAR (measured) = 0.135 W/kg Fig.19 LTE Band12 No. I15Z41844-SEM03 Page 112 of 206 ©Copyright. All rights reserved by CTTL. Fig. 19-1 Z-Scan at power reference point (LTE Band12) No. I15Z41844-SEM03 Page 113 of 206 ©Copyright. All rights reserved by CTTL. LTE Band12 Body Rear Low with QPSK_10M_1RB_Low Date: 2015- 7- 31 Electronics: DAE4 Sn777 Medium: Body 750 MHz Medium parameters used (interpolated): f = 704 MHz; σ = 0.907 mho/m; εr = 56.738; ρ = 1000 kg/m 3 Ambient Temperature: 22.9 o C Liquid Temperature: 22.5 o C Communication System: LTE Band12 Frequency: 704 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(9.18, 9.18, 9.18) Area Scan (111x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.303 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.16 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.329 W/kg SAR(1 g) = 0.264 W/kg; SAR(10 g) = 0.204 W/kg Maximum value of SAR (measured) = 0.303 W/kg Fig.20 LTE Band12 No. I15Z41844-SEM03 Page 114 of 206 ©Copyright. All rights reserved by CTTL. Fig. 20-1 Z-Scan at power reference point (LTE Band12) No. I15Z41844-SEM03 Page 115 of 206 ©Copyright. All rights reserved by CTTL. LTE Band17 Left Cheek Low with QPSK_10M_1RB_Low Date: 2015- 7- 31 Electronics: DAE4 Sn777 Medium: Head 750 MHz Medium parameters used (i…

Text truncated - open the document above for the full version.

No. I15Z41844-SEM03 Page 61 of 206 ©Copyright. All rights reserved by CTTL. Table 14.22: SAR Values (LTE Band17 - Head) Ambient Temperature: 22.9 o C Liquid Temperature: 22.5 o C Frequency Mode Side Te s t Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 709 23780 1RB_Low Left Touch Fig.21 23.91 24.5 0.097 0.11 0.125 0.14 -0.13 709 23780 1RB_Low Left Tilt / 23.91 24.5 0.055 0.06 0.078 0.09 0.17 709 23780 1RB_Low Right Touch / 23.91 24.5 0.066 0.08 0.093 0.11 -0.16 709 23780 1RB_Low Right Tilt / 23.91 24.5 0.061 0.07 0.087 0.10 0.14 709 23780 25RB_Low Left Touch / 22.58 23.5 0.064 0.08 0.091 0.11 0.16 709 23780 25RB_Low Left Tilt / 22.58 23.5 0.044 0.05 0.062 0.08 0.14 709 23780 25RB_Low Right Touch / 22.58 23.5 0.056 0.07 0.081 0.10 0.15 709 23780 25RB_Low Right Tilt / 22.58 23.5 0.048 0.06 0.069 0.09 0.15 Note1: The LTE mode is QPSK_10MHz. Table 14.23: SAR Values (LTE Band17 - Body) Ambient Temperature: 22.9 o C Liquid Temperature: 22.5 o C Frequency Mode Te s t Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 709 23780 1RB_Low Front / 23.91 24.5 0.076 0.09 0.105 0.12 0.07 709 23780 1RB_Low Rear Fig.22 23.91 24.5 0.193 0.22 0.251 0.29 -0.01 709 23780 1RB_Low Left / 23.91 24.5 0.037 0.04 0.052 0.06 0.07 709 23780 1RB_Low Right / 23.91 24.5 0.024 0.03 0.035 0.04 0.06 709 23780 1RB_Low Bottom / 23.91 24.5 0.014 0.02 0.022 0.02 0.06 709 23780 25RB_Low Front / 22.58 23.5 0.060 0.07 0.083 0.10 0.00 709 23780 25RB_Low Rear / 22.58 23.5 0.139 0.17 0.193 0.24 0.04 709 23780 25RB_Low Left / 22.58 23.5 0.030 0.04 0.043 0.05 0.04 709 23780 25RB_Low Right / 22.58 23.5 0.020 0.02 0.029 0.04 0.12 709 23780 25RB_Low Bottom / 22.58 23.5 0.011 0.01 0.017 0.02 0.11 Note1: The distance between the EUT and the phantom bottom is 10mm. Note2: The LTE mode is QPSK_10MHz. No. I15Z41844-SEM03 Page 62 of 206 ©Copyright. All rights reserved by CTTL. 14.2 SAR results for Standard procedure There is zoom scan measurement to be added for the highest measured SAR in each exposure configuration/band. Table 14.24: SAR Values (GSM 850 MHz Band - Head) Ambient Temperature: 22.9 o C Liquid Temperature: 22.5 o C Frequency Side Te s t Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 848.8 251 Left Touch Fig.1 32.84 33.3 0.305 0.34 0.409 0.45 0.12 Table 14.25: SAR Values (GSM 850 MHz Band - Body) Ambient Temperature: 22.9 o C Liquid Temperature: 22.5 o C Frequency Mode (number of timeslots) Te s t Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 848.8 251 GPRS (2) Rear Fig.2 30.34 30.5 0.615 0.64 0.815 0.85 0.02 Note1: The distance between the EUT and the phantom bottom is 10mm. Table 14.26: SAR Values (GSM 1900 MHz Band - Head) Ambient Temperature: 22.9 o C Liquid Temperature: 22.5 o C Frequency Side Te s t Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 1880 661 Left Touch Fig.3 29.77 30.3 0.132 0.15 0.216 0.24 0.04 Table 14.27: SAR Values (GSM 1900 MHz Band - Body) Ambient Temperature: 22.9 o C Liquid Temperature: 22.5 o C Frequency Mode (number of timeslots) Te s t Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 1850.2 512 GPRS (4) Rear Fig.4 26.17 27 0.387 0.47 0.614 0.74 0.01 Note1: The distance between the EUT and the phantom bottom is 10mm. Table 14.28: SAR Values (WCDMA 850 MHz Band - Head) Ambient Temperature: 22.9 o C Liquid Temperature: 22.5 o C Frequency Side Te s t Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 826.4 4132 Left Touch Fig.5 23.09 24 0.381 0.47 0.506 0.62 0.04 Table 14.29: SAR Values (WCDMA 850 MHz Band - Body) Ambient Temperature: 22.9 o C Liquid Temperature: 22.5 o C Frequency Te s t Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 826.4 4132 Rear Fig.6 23.09 24 0.594 0.73 0.793 0.98 -0.01 Note1: The distance between the EUT and the phantom bottom is 10mm. No. I15Z41844-SEM03 Page 63 of 206 ©Copyright. All rights reserved by CTTL. Table 14.30: SAR Values (WCDMA 1700 MHz Band - Head) Ambient Temperature: 22.9 o C Liquid Temperature: 22.5 o C Frequency Side Te s t Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 1752.6 1513 Left Touch Fig.7 22.92 23.5 0.282 0.32 0.451 0.52 0.14 Table 14.31: SAR Values (WCDMA 1700 MHz Band - Body) Ambient Temperature: 22.9 o C Liquid Temperature: 22.5 o C Frequency Te s t Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 1752.6 1513 Rear Fig.8 22.92 23.5 0.504 0.58 0.860 0.98 0.01 Note1: The distance between the EUT and the phantom bottom is 10mm. Table 14.32: SAR Values (WCDMA 1900 MHz Band - Head) Ambient Temperature: 22.9 o C Liquid Temperature: 22.5 o C Frequency Side Te s t Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SA…

Text truncated - open the document above for the full version.

No. I15Z41844-SEM03 Page 61 of 206 ©Copyright. All rights reserved by CTTL. Table 14.22: SAR Values (LTE Band17 - Head) Ambient Temperature: 22.9 o C Liquid Temperature: 22.5 o C Frequency Mode Side Te s t Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 709 23780 1RB_Low Left Touch Fig.21 23.91 24.5 0.097 0.11 0.125 0.14 -0.13 709 23780 1RB_Low Left Tilt / 23.91 24.5 0.055 0.06 0.078 0.09 0.17 709 23780 1RB_Low Right Touch / 23.91 24.5 0.066 0.08 0.093 0.11 -0.16 709 23780 1RB_Low Right Tilt / 23.91 24.5 0.061 0.07 0.087 0.10 0.14 709 23780 25RB_Low Left Touch / 22.58 23.5 0.064 0.08 0.091 0.11 0.16 709 23780 25RB_Low Left Tilt / 22.58 23.5 0.044 0.05 0.062 0.08 0.14 709 23780 25RB_Low Right Touch / 22.58 23.5 0.056 0.07 0.081 0.10 0.15 709 23780 25RB_Low Right Tilt / 22.58 23.5 0.048 0.06 0.069 0.09 0.15 Note1: The LTE mode is QPSK_10MHz. Table 14.23: SAR Values (LTE Band17 - Body) Ambient Temperature: 22.9 o C Liquid Temperature: 22.5 o C Frequency Mode Te s t Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 709 23780 1RB_Low Front / 23.91 24.5 0.076 0.09 0.105 0.12 0.07 709 23780 1RB_Low Rear Fig.22 23.91 24.5 0.193 0.22 0.251 0.29 -0.01 709 23780 1RB_Low Left / 23.91 24.5 0.037 0.04 0.052 0.06 0.07 709 23780 1RB_Low Right / 23.91 24.5 0.024 0.03 0.035 0.04 0.06 709 23780 1RB_Low Bottom / 23.91 24.5 0.014 0.02 0.022 0.02 0.06 709 23780 25RB_Low Front / 22.58 23.5 0.060 0.07 0.083 0.10 0.00 709 23780 25RB_Low Rear / 22.58 23.5 0.139 0.17 0.193 0.24 0.04 709 23780 25RB_Low Left / 22.58 23.5 0.030 0.04 0.043 0.05 0.04 709 23780 25RB_Low Right / 22.58 23.5 0.020 0.02 0.029 0.04 0.12 709 23780 25RB_Low Bottom / 22.58 23.5 0.011 0.01 0.017 0.02 0.11 Note1: The distance between the EUT and the phantom bottom is 10mm. Note2: The LTE mode is QPSK_10MHz. No. I15Z41844-SEM03 Page 62 of 206 ©Copyright. All rights reserved by CTTL. 14.2 SAR results for Standard procedure There is zoom scan measurement to be added for the highest measured SAR in each exposure configuration/band. Table 14.24: SAR Values (GSM 850 MHz Band - Head) Ambient Temperature: 22.9 o C Liquid Temperature: 22.5 o C Frequency Side Te s t Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 848.8 251 Left Touch Fig.1 32.84 33.3 0.305 0.34 0.409 0.45 0.12 Table 14.25: SAR Values (GSM 850 MHz Band - Body) Ambient Temperature: 22.9 o C Liquid Temperature: 22.5 o C Frequency Mode (number of timeslots) Te s t Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 848.8 251 GPRS (2) Rear Fig.2 30.34 30.5 0.615 0.64 0.815 0.85 0.02 Note1: The distance between the EUT and the phantom bottom is 10mm. Table 14.26: SAR Values (GSM 1900 MHz Band - Head) Ambient Temperature: 22.9 o C Liquid Temperature: 22.5 o C Frequency Side Te s t Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 1880 661 Left Touch Fig.3 29.77 30.3 0.132 0.15 0.216 0.24 0.04 Table 14.27: SAR Values (GSM 1900 MHz Band - Body) Ambient Temperature: 22.9 o C Liquid Temperature: 22.5 o C Frequency Mode (number of timeslots) Te s t Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 1850.2 512 GPRS (4) Rear Fig.4 26.17 27 0.387 0.47 0.614 0.74 0.01 Note1: The distance between the EUT and the phantom bottom is 10mm. Table 14.28: SAR Values (WCDMA 850 MHz Band - Head) Ambient Temperature: 22.9 o C Liquid Temperature: 22.5 o C Frequency Side Te s t Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 826.4 4132 Left Touch Fig.5 23.09 24 0.381 0.47 0.506 0.62 0.04 Table 14.29: SAR Values (WCDMA 850 MHz Band - Body) Ambient Temperature: 22.9 o C Liquid Temperature: 22.5 o C Frequency Te s t Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 826.4 4132 Rear Fig.6 23.09 24 0.594 0.73 0.793 0.98 -0.01 Note1: The distance between the EUT and the phantom bottom is 10mm. No. I15Z41844-SEM03 Page 63 of 206 ©Copyright. All rights reserved by CTTL. Table 14.30: SAR Values (WCDMA 1700 MHz Band - Head) Ambient Temperature: 22.9 o C Liquid Temperature: 22.5 o C Frequency Side Te s t Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 1752.6 1513 Left T…

Text truncated - open the document above for the full version.
