2ACCJH033HSUPA/HSDPA/UMTS triple band /GSM quad band mobile phone

12 English - CJB286BALAAA Quick Start Guide For more information about how to use the phone, please go to www.alcatelonetouch.com to download the complete user manual. Also on our website you can find helpful FAQs, perform software upgrades, etc. www.sar-tick.com This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found in the RADIOWAVES section of this user guide. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 10 mm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. 1 Your mobile .................. 1.1 Keys and connectors Headset connector micro-USB connector Back key Home key Menu key Touch screen Front camera Pixi3-3.5_4009I_US_QG_Eng_USA_03_150817.indd 1-22015/8/17 15:19:36 34 Volume up Volume down Camera Flash/Torch Power key Menu key • Option menu. Touch to access Manage Home- screen, Add widgets, Manage applications, Wallpaper and Settings. • Recent apps. Touch and hold to open a list of thumbnail images of apps you've worked with recently. Touch it to open an app. Swipe it up or down to remove a thumbnail from the list. Home key • While on any application or screen, touch to return to the Home screen. • While on lock screen (the screen is lighted up), touch and hold the Home key to turn on the torch. Back key • Touch to go back to the previous screen, or to close a dialog box, options menu, the notification panel, etc. Power key • Press: Lock the screen/Light up the screen. • Press and hold: Power on or generate a pop up menu selecting from Power off/Restart/Airplane mode or icons of Ringer mode. • Press to mute the ringtone when there’s an incoming call. • Press and hold for more than 7 seconds to restart the phone when the system has halted. • Press and hold Power key and Volume down key to capture a screenshot. • Press and hold Power key and Volume up key while powered off to restore to factory settings. Volume keys • Under call mode, adjust the earpiece or headset volume. • In Music/Video/Streaming mode, adjust the media volume. • In general mode, adjust the ring tone volume. • Mute the ringtone of an incoming call. Pixi3-3.5_4009I_US_QG_Eng_USA_03_150817.indd 3-42015/8/17 15:19:36 56 1.2 Getting started 1.2.1 Set-up Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your phone before inserting or removing the SIM card. SIM1 SIM2 Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. For dual SIM models, both SIM1 and SIM2 can support 2G and 3G networks. If both of them are 3G SIM cards, only one card can support 3G network. Your phone only supports mini-SIM card. Do not attempt to insert other SIM types like micro and nano cards, otherwise you may damage your phone. Installing or removing the battery Please power off your phone before removing the battery. • Insert and click the battery into place, then close the cover. • Unclip the cover, then remove the battery. Installing the microSD card To install, please open microSD card lock first, and then place the external microSD card into the slot with the gold contact facing down. To remove the external microSD card, please open microSD card lock and take it out from the slot. Charging the battery Connect the battery charger to your phone and outlet respectively. If the battery is very low, there will be no indication that power is being received until the charge is sufficient enough to show the charging status bar. To reduce power consumption and energy waste, once the battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or applications running in the background when not in use; reduce the backlight time, etc. Pixi3-3.5_4009I_US_QG_Eng_USA_03_150817.indd 5-62015/8/17 15:19:37 78 1.2.2 Power on your phone Hold down the Power key until the phone powers on. It will take a few seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you should set the following options: language, input method, date & time, Google account, etc. If you power on your phone with no SIM card inserted, you can connect to a Wi-Fi network to sign into your Google account and to use some features. For dual SIM mode, you should select a SIM card or choose Always ask for voice call, messaging, etc. 1.2.3 Power off your phone Hold down the Power key until the Phone options appear, select Power off. 1.3 Home screen You can bring all the items (applications, shortcuts, folders and widgets) you love or use most frequently to your Home screen for quick access. Touch the Home key to switch to Home screen. Status bar • Status/Notification indicators • Touch and drag down to open the notification panel. Application tab • Touch to open main menu. Search bar (1) • Touch  to enter text search screen. • Touch  to enter voice search screen. Favorite applications tray • Touch to enter the application. • Touch and hold to move or change applications. Add a location to display local weather. Home screen is provided in an extended format to allow more space for adding applications, shortcuts etc. Slide the Home screen horizontally left and right to get a complete view of the Home screen. The row of small circles at the lower part of the screen indicates which screen you are viewing. (1) Depends on software version. 1.3.1 Using the touchscreen Touch To access an application, touch it with your finger. Touch and Hold Touch and hold the …

Text truncated - open the document above for the full version.

TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Tel: +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com Date 2015-01-19 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: CTTL-Terminals Test Lab of China Academy of Telecommunication Research of MIIT is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Te l : +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com 2015-08-11 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: 2ACCJH033 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

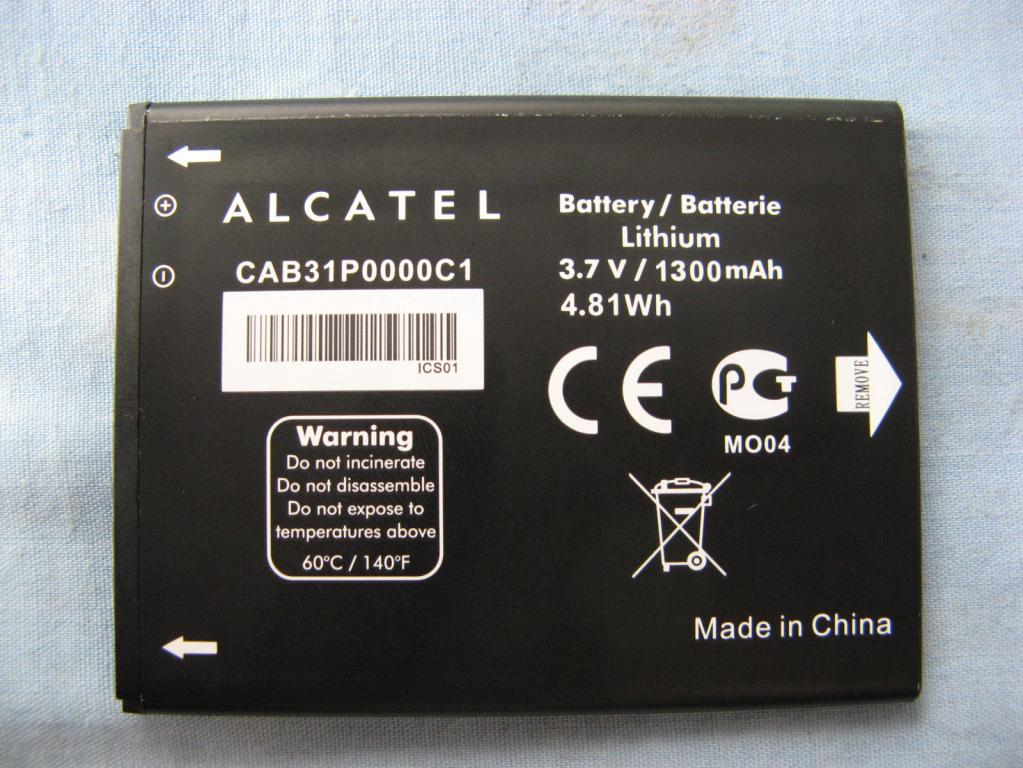

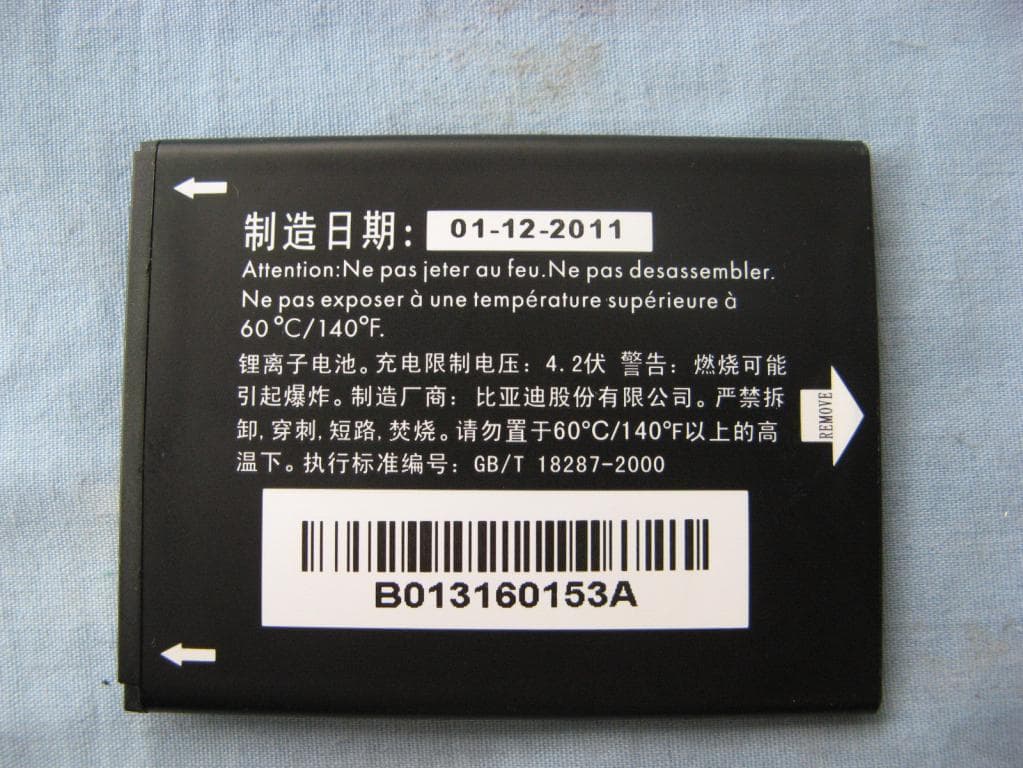

EUT photograph Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone

©Copyright. All rights reserved by CTTL. SAR TEST REPORT No. I15Z41994-SEM01 For TCL Communication Ltd. HSUPA/HSDPA/UMTS triple band /GSM quad band mobile phone Model Name: 4009I Brand Name: ALCATEL ONETOUCH With Hardware Version: PIO Software Version: v4B42 FCC ID: 2ACCJH033 Issued Date: 2015-08-10 Note: The test results in this test report relate only to the devices specified in this report.This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL, Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No.52, HuayuanNorth Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2512,Fax:+86(0)10-62304633-2504 Email:[email protected] , website:www.chinattl.com TESTING CNAS L0570 No. I15Z41994-SEM01 Page 2 of 147 ©Copyright. All rights reserved by CTTL. REPORT HISTORY Report Number RevisionIssue Date Description I15Z41994-SEM01 Rev.0 2015-08-10 Initial creation of test report No. I15Z41994-SEM01 Page 3 of 147 ©Copyright. All rights reserved by CTTL. TABLE OF CONTENT 1 TEST LABORATORY ................................................................................................................. 5 1.1 TESTING LOCATION ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE ................................................................................................ 6 3 CLIENT INFORMATION.............................................................................................................. 8 3.1 APPLICANT INFORMATION .............................................................................................................................. 8 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 8 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................ 9 4.1 ABOUT EUT ................................................................................................................................................... 9 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 9 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................. 9 5 TEST METHODOLOGY ............................................................................................................ 10 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 10 5.2 APPLICABLE MEASUREMENT STANDARDS .................................................................................................... 10 6 SPECIFIC ABSORPTION RATE (SAR) .................................................................................... 11 6.1 INTRODUCTION ............................................................................................................................................. 11 6.2 SAR DEFINITION .......................................................................................................................................... 11 7 TISSUE SIMULATING LIQUIDS ............................................................................................... 12 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 12 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 12 8 SYSTEM VERIFICATION .......................................................................................................... 16 8.1 SYSTEM SETUP ............................................................................................................................................. 16 8.2 SYSTEM VERIFICATION ................................................................................................................................. 17 9 MEASUREMENT PROCEDURES ............................................................................................ 18 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 18 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 19 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 20 9.4 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 21 9.5 POWER DRIFT ............................................................................................................................................... 21 10 AREA SCAN BASED 1-G SAR .............................................................................................. 22 10.1 REQUIREMENT OF KDB .............................................................................................................................. 22 10.2 FAST SAR ALGORITHMS ............................................................................................................................ 22 11 CONDUCTED OUTPUT POWER ..................…

Text truncated - open the document above for the full version.

No. I15Z41994-SEM01 Page 56 of 147 ©Copyright. All rights reserved by CTTL. Wifi 802.11b left Cheek Channel 1 Date: 2014-12-19 Electronics: DAE4 Sn786 Medium: Head 2450 MHz Medium parameters used: f = 2412 MHz; σ = 1.772 S/m; ε r = 39.391; ρ = 1000 kg/m 3 Ambient Temperature:21.7 o C Liquid Temperature:21.2 o C Communication System: WiFi Frequency: 2412 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF(4.71, 4.71, 4.71); left/Cheek Low/Area Scan (51x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.423 W/kg left/Cheek Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.143 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 0.779 W/kg SAR(1 g) = 0.332 W/kg; SAR(10 g) = 0.152 W/kg Maximum value of SAR (measured) = 0.376 W/kg Fig.9 2450 MHz CH1 No. I15Z41994-SEM01 Page 57 of 147 ©Copyright. All rights reserved by CTTL. Fig. 9-1 Z-Scan at power reference point (2450 MHz CH1) No. I15Z41994-SEM01 Page 58 of 147 ©Copyright. All rights reserved by CTTL. Wifi 802.11b Body Rear Channel 11 Date: 2014-12-17 Electronics: DAE4 Sn786 Medium: Body 2450 MHz Medium parameters used: f = 2462 MHz; σ = 1.953 S/m; ε r = 52.567; ρ = 1000 kg/m 3 Ambient Temperature:21.7 o C Liquid Temperature:21.2 o C Communication System: WiFi Frequency: 2462 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF(4.42, 4.42, 4.42); Rear side High/Area Scan (51x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.0776 W/kg Rear side High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.981 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.165 W/kg SAR(1 g) = 0.078 W/kg; SAR(10 g) = 0.037 W/kg Maximum value of SAR (measured) = 0.0883 W/kg Fig.10 2450 MHz CH11 No. I15Z41994-SEM01 Page 59 of 147 ©Copyright. All rights reserved by CTTL. Fig. 10-1 Z-Scan at power reference point (2450 MHz CH11) No. I15Z41994-SEM01 Page 60 of 147 ©Copyright. All rights reserved by CTTL. ANNEX B System Verification Results 835MHz Date: 2014-12-13 Electronics: DAE4 Sn786 Medium: Head 900 MHz Medium parameters used: f = 835 MHz; σ = 0.938 S/m; ε r = 41.87; ρ = 1000 kg/m 3 Ambient Temperature: 22.0 o C Liquid Temperature: 21.5 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF(6.04, 6.04, 6.04); System Validation /Area Scan (81x161x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 54.722 V/m; Power Drift = 0.02 dB Fast SAR: SAR(1 g) = 2.42 W/kg; SAR(10 g) = 1.58 W/kg Maximum value of SAR (interpolated) = 2.62 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.722 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 3.69 W/kg SAR(1 g) = 2.43 W/kg; SAR(10 g) = 1.61 W/kg Maximum value of SAR (measured) = 2.64 W/kg 0 dB = 2.64 W/kg = 1.84 dBW/kg Fig.B.1 validation 835MHz 250mW No. I15Z41994-SEM01 Page 61 of 147 ©Copyright. All rights reserved by CTTL. 835MHz Date: 2014-12-13 Electronics: DAE4 Sn786 Medium: Body 900 MHz Medium parameters used: f = 835 MHz; σ = 0.969 S/m; ε r = 55.562; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF(6.14, 6.14, 6.14); System Validation /Area Scan (81x171x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 53.566 V/m; Power Drift = -0.02 dB Fast SAR: SAR(1 g) = 2.41 W/kg; SAR(10 g) = 1.56 W/kg Maximum value of SAR (interpolated) = 2.61 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.566 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 3.58 W/kg SAR(1 g) = 2.42 W/kg; SAR(10 g) = 1.58 W/kg Maximum value of SAR (measured) = 2.61 W/kg 0 dB = 2.61 W/kg = 1.82 dBW/kg Fig.B.2 validation 835MHz 250mW No. I15Z41994-SEM01 Page 62 of 147 ©Copyright. All rights reserved by CTTL. 1900MHz Date: 2014-12-14 Electronics: DAE4 Sn786 Medium: Head 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.453 S/m; ε r = 41.061; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: CW Frequency: 1900 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF(5.16, 5.16, 5.16); System Validation /Area Scan (81x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 86.259 V/m; Power Drift = -0.09 dB Fast SAR: SAR(1 g) = 9.88 W/kg; SAR(10 g) = 5.18 W/kg Maximum value of SAR (interpolated) = 13.5 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 86.259 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 18.4 W/kg SAR(1 g) = 9.89 W/kg; SAR(10 g) = 5.25 W/kg Maximum value of SAR (measured) = 11.3 W/kg 0 dB = 11.3 W/kg = 13.49 dBW/kg Fig.B.3 validation 1900MHz 250mW No. I15Z41994-SEM01 Page 63 of 147 ©Copyright. All rights reserved by CTTL. 1900MHz Date: 2014-12-14 Electronics: DAE4 Sn786 Medium: Body 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.513 S/m; ε r = 52.586; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: CW Frequency: 1900 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF(4.77, 4.77, 4.77); System validation /Area Scan (81x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 60.339 V/m; Power Drift = 0.08 dB Fast SAR: SAR(1 g) = 10.1 W/kg; SAR(10 g) = 5.40 W/kg Maximum value of SAR (interpolated) = 13.5 W/kg System validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 60.339 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 19.3 W/kg SAR(1 g) = 10.2 W/kg; SAR(10 g) = 5.43 W/kg Maximum value of SAR (measured) = 12.2 W/kg 0 dB = 12.4 W/kg = 16.60 dBW/kg Fig.B.4 validation 1900MHz 250mW No. I15Z41994-SEM01 Page 64 of 147 ©Copyright. All rights reserved by CTTL. 2450MHz Date: 2014-12-19 Electronics: DAE4 Sn786 Medium: Head 2450 MHz Medium parameters used: f = 2450 M…

Text truncated - open the document above for the full version.

No. I15Z41994-SEM01 Page 101 of 147 ©Copyright. All rights reserved by CTTL. No. I15Z41994-SEM01 Page 102 of 147 ©Copyright. All rights reserved by CTTL. No. I15Z41994-SEM01 Page 103 of 147 ©Copyright. All rights reserved by CTTL. No. I15Z41994-SEM01 Page 104 of 147 ©Copyright. All rights reserved by CTTL. No. I15Z41994-SEM01 Page 105 of 147 ©Copyright. All rights reserved by CTTL. 1800 MHz Dipole Calibration Certificate No. I15Z41994-SEM01 Page 106 of 147 ©Copyright. All rights reserved by CTTL. No. I15Z41994-SEM01 Page 107 of 147 ©Copyright. All rights reserved by CTTL. No. I15Z41994-SEM01 Page 108 of 147 ©Copyright. All rights reserved by CTTL. No. I15Z41994-SEM01 Page 109 of 147 ©Copyright. All rights reserved by CTTL. No. I15Z41994-SEM01 Page 110 of 147 ©Copyright. All rights reserved by CTTL. No. I15Z41994-SEM01 Page 111 of 147 ©Copyright. All rights reserved by CTTL. No. I15Z41994-SEM01 Page 112 of 147 ©Copyright. All rights reserved by CTTL. No. I15Z41994-SEM01 Page 113 of 147 ©Copyright. All rights reserved by CTTL. 1900 MHz Dipole Calibration Certificate No. I15Z41994-SEM01 Page 114 of 147 ©Copyright. All rights reserved by CTTL. No. I15Z41994-SEM01 Page 115 of 147 ©Copyright. All rights reserved by CTTL. No. I15Z41994-SEM01 Page 116 of 147 ©Copyright. All rights reserved by CTTL. No. I15Z41994-SEM01 Page 117 of 147 ©Copyright. All rights reserved by CTTL. No. I15Z41994-SEM01 Page 118 of 147 ©Copyright. All rights reserved by CTTL. No. I15Z41994-SEM01 Page 119 of 147 ©Copyright. All rights reserved by CTTL. No. I15Z41994-SEM01 Page 120 of 147 ©Copyright. All rights reserved by CTTL. No. I15Z41994-SEM01 Page 121 of 147 ©Copyright. All rights reserved by CTTL. 2450 MHz Dipole Calibration Certificate No. I15Z41994-SEM01 Page 122 of 147 ©Copyright. All rights reserved by CTTL. No. I15Z41994-SEM01 Page 123 of 147 ©Copyright. All rights reserved by CTTL. No. I15Z41994-SEM01 Page 124 of 147 ©Copyright. All rights reserved by CTTL. No. I15Z41994-SEM01 Page 125 of 147 ©Copyright. All rights reserved by CTTL. No. I15Z41994-SEM01 Page 126 of 147 ©Copyright. All rights reserved by CTTL. No. I15Z41994-SEM01 Page 127 of 147 ©Copyright. All rights reserved by CTTL. No. I15Z41994-SEM01 Page 128 of 147 ©Copyright. All rights reserved by CTTL. No. I15Z41994-SEM01 Page 129 of 147 ©Copyright. All rights reserved by CTTL. ANNEX I SPOT CHECK TEST As the test lab for 4009I from TCL Communication Ltd, we, CTTL Shenzhen, declare on our sole responsibility that, according to “Declaration of changes” provided by applicant, only the Spot check test should be performed. The test results are as below. I.1 Internal Identification of EUT used during the spot check test EUT ID* IMEI HW Version SW Version EUT1 IMEI1:354251070000014 IMEI2:354251070000022 PIO v4B42 EUT2 IMEI1:354251070000030 IMEI2:354251070000048 PIO v4B42 EUT3 IMEI1:354251070000055 IMEI2:354251070000063 PIO v4B42 *EUT ID: is used to identify the test sample in the lab internally. Note: It is performed to test SAR with the EUT2 and EUT3, and to test the conducted power with the EUT 1 I.2 Conducted power of selected case Table I.1: The conducted power results for GSM850/1900 GSM 850MHz Conducted Power (dBm) Channel 251(848.8MHz) Channel 190(836.6MHz) Channel 128(824.2MHz) 32.65 / / GSM 1900MHz Conducted Power (dBm) Channel 810(1909.8MHz) Channel 661(1880MHz) Channel 512(1850.2MHz) 29.70 / / Table I.2: The conducted power results for GPRS GSM 850 GPRS (GMSK) Measured Power (dBm) 251 190 128 4 Txslots 26.60 / / PCS1900 GPRS (GMSK) Measured Power (dBm) 810 661 512 4 Txslots 24.30 / / Table I.3: The conducted power results for WCDMA Item band FDD V result ARFCN 4233 (846.6MHz) 4182 (836.4MHz) 4132 (826.4MHz) WCDMA \ 22.88 / / No. I15Z41994-SEM01 Page 130 of 147 ©Copyright. All rights reserved by CTTL. I.3 Measurement results SAR Values (GSM 850 MHz - Head) Frequency Side Te s t Position Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 848.8 251 Left Touch CAB31P0000C10.793 0.535 SAR Values (GSM 850 MHz - Body) Frequency Mode/Band Te s t Position Spacing (mm) Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 848.8 251 GPRS Rear 10 CAB31P0000C10.924 0.873 SAR Values (PCS 1900 MHz - Head) Frequency Side Te s t Position Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 1909.8 810 Left Touch CAB31P0000C1 0.543 0.510 SAR Values (PCS 1900 MHz - Body) Frequency Mode/Band Te s t Position Spacing (mm) Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 1909.8 810 GPRS Front 10 CAB31P0000C10.572 0.565 SAR Values (WCDMA 850 MHz - Head) Frequency Side Te s t Position Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 846.6 4233 Left Touch CAB31P0000C1 0.720 0.513 SAR Values (WCDMA 850 MHz - Body) Frequency Te s t Position Spacing (mm) Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 846.6 4233 Rear 10 CAB31P0000C1 0.967 0.728 I.4 Reported SAR Comparison Exposure Configuration Technology Band Reported SAR 1g (W/Kg): original Reported SAR 1g (W/Kg): spot check Head (Separation Distance 0mm) GSM 850 0.90 0.62 PCS 1900 0.62 0.59 UMTS FDD 5 0.92 0.81 Body-worn (Separation Distance 10mm) GSM 850 1.09 1.07 PCS 1900 0.67 0.66 UMTS FDD 5 1.23 0.94 No. I15Z41994-SEM01 Page 131 of 147 ©Copyright. All rights reserved by CTTL. GSM 850 Head Date/Time: 2015/8/4 Electronics: DAE4 Sn786 Medium: Head 900 MHz Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.939 S/m; ε r = 41.723; ρ = 1000 kg/m 3 Ambient Temperature:22.0 o C Liquid Temperature:21.5 o C Communication System: GSM Frequency: 848.8 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3151 ConvF(6.04, 6.04, 6.04); Left Cheek High/Area Scan (41x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.575 W/kg Left Cheek High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.802 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 0.689 W/kg SAR(1 g) = 0.535 W/kg…

Text truncated - open the document above for the full version.

©Copyright. All rights reserved by CTTL. TEST REPORT No. I15Z41994-GTE01 for TCL Communication Ltd. HSUPA/HSDPA/UMTS triple band /GSM quad band mobile phone Model Name: 4009I FCC ID: 2ACCJH033 with Hardware Version: PIO Software Version: v4B42 Issued Date: 2015-08-07 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: FCC 2.948 Listed: No.525429 CTTL,Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No. 52, Huayuan North Road, Haidian District, Beijing, P. R. China 100191. Te l:+86(0)10-62304633-2512, Fax:+86(0)10-62304633-2504 Email: [email protected], website: www.chinattl.com No. I15Z41994-GTE01 Page2 of 73 ©Copyright. All rights reserved by CTTL. REPORT HISTORY Report Number Revision Description Issue Date I15Z41994-GTE01 R ev.0 1st edition 2015-08-07 No. I15Z41994-GTE01 Page3 of 73 ©Copyright. All rights reserved by CTTL. CONTENTS 1. TEST LABORATORY ......................................................................................................................... 4 1.1. TESTING LOCATION .................................................................................................................... 4 1.2. TESTING ENVIRONMENT ........................................................................................................... 4 1.3. PROJECT DATA .............................................................................................................................. 4 1.4. SIGNATURE ..................................................................................................................................... 4 2. CLIENT INFORMATION ................................................................................................................... 5 2.1. APPLICANT INFORMATION ....................................................................................................... 5 2.2. MANUFACTURER INFORMATION ............................................................................................ 5 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 6 3.1. ABOUT EUT ..................................................................................................................................... 6 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 6 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ....................................... 6 3.4. NORMAL ACCESSORY SETTING ............................................................................................... 7 3.5. GENERAL DESCRIPTION ............................................................................................................ 7 4. REFERENCE DOCUMENTS ............................................................................................................. 8 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 8 5. LABORATORY ENVIRONMENT ..................................................................................................... 9 6. SUMMARY OF TEST RESULT S ..................................................................................................... 10 7. TEST EQUIPMENTS UTILIZED ..................................................................................................... 11 ANNEX A: MEASUREMENT RESULTS ................................................................................................ 12 A.1 OUTPUT POWER ........................................................................................................................... 12 A.2 EMISSION LIMIT ...........................................................…

Text truncated - open the document above for the full version.
