Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
12 www.sar-tick.com This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found on page 33 of this user guide. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 10 mm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. English - CJB28B1C9AAA Quick Start Guide PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. 1 Your mobile .................. 1.1 Keys and connectors Headset connector Micro-USB connector Back key Home key Recents key Touch screen Front Camera 5017W Pixi 3-4.5 4G_5017W_QG_US for Digicel_Eng_EN_02_150915.indd 1-22015/9/15 11:58:32 34 Power key • Press: Lock the screen/Light up the screen. • Press and hold: Show the pop-up menu to select from Restart/ Power off/Airplane mode. • Press and hold the Power key and Volume down key to capture a screenshot. Volume Keys • In call mode, adjusts the earpiece or headset volume. • In Music/Video/Streaming mode, adjusts the media volume. • In general mode, adjusts the ringtone volume. • Mutes the ringtone of an incoming call. Volume up Volume down Camera Flash/Torch Power key Recents key • Recent apps. Touch and hold to open a list of thumbnail images of apps you've worked with recently. Touch it to open an app. Swipe it left or right to remove a thumbnail from the list. Home key • From any application or screen, touch to return to the Home screen. • Touch and hold to open Google search. Back key • Touch to go back to the previous screen, or to close a dialog box, options menu, the notification panel, etc. Pixi 3-4.5 4G_5017W_QG_US for Digicel_Eng_EN_02_150915.indd 3-42015/9/15 11:58:32 56 Installing or removing the microSD card To install, insert the microSD card first, and then place it into the slot with the gold contact facing down. To remove the external microSD card, slide and take it out from the slot. Charging the battery Connect battery charger to your phone and plug into the socket. If the battery is very low, there will be no indication that power is being received until the charge is sufficient to show the charging status bar. To reduce power consumption and energy waste, once the battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background-running applications when not in use; reduce the backlight time, etc. 1.2 Getting started 1.2.1 Set up Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Power off your phone before inserting or removing the SIM card. Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. Your phone do not attempt to insert other SIM types like nano cards, otherwise you may damage your phone. Installing or removing the battery Power off your phone before removing the battery. • Insert and click the battery into place, then close the cover. • Unclip the cover, then remove the battery. Pixi 3-4.5 4G_5017W_QG_US for Digicel_Eng_EN_02_150915.indd 5-62015/9/15 11:58:33 78 1.3.1 Using the touchscreen Touch To access an application, touch it with your finger. Touch and Hold Touch and hold the item to enter the available options. Drag Place your finger on the screen to drag an object to another location. Slide/Swipe Slide the screen up and down to scroll through the applications, images, web pages, etc. Flick Similar to swiping, but flicking makes it move quicker. Pinch/Spread Place your fingers of one hand on the screen surface and draw them apart or together to scale an element on the screen. Rotate Automatically change the screen orientation from portrait to landscape by turning the phone sideways to have a better view. 1.3.2 Status bar From the status bar, you can view both phone status (to the right side) and notification information (to the left side). 1.2.2 Power on your phone Hold down the Power key until the phone powers on. It will take a few seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you should set the following options: Language, Google account, etc. Even if no SIM card is installed, your phone will still power on and you will be able to connect to a Wi-Fi network, sign into your Google account and use some of the phone's features. 1.2.3 Power off your phone Hold down the Power key from the Home screen until the phone options appear, select Power off. 1.3 Home screen You can move all of the items (applications, shortcuts, folders and widgets) you use most frequently to your Home screen for quick access. Touch the Home key to switch to the Home screen. Touch to enter application list. Status bar • Status/Notification indicators • Touch and drag down to open the notification panel. Touch an icon to open an application, folder, etc. Favorite tray applications • Touch to enter the application. • Touch and hold to move or change applications. Search bar • Touch to enter text search screen. • Touch to enter voice search screen. The Home screen is provided in an extended format to allow more space for adding applications, shortcuts etc. Slide the Home screen horizontally left and right to get a complete view. The user interface can be changed Pixi 3-4.5 4G_5017W_QG_US for Digicel_Eng_EN_02_150915.indd 7-82015/9/15 11:58:33 910 Notification icons New Gmail messageMissed call New Email messageCall forwarding is on New text or multimedia message Song is playing Problem with SMS or MMS delivery Connected to VPN New Google Hangouts message Radio is on New voicemailUploading data Upcoming eventDownload finished Screenshot capt…
Text truncated - open the document above for the full version.
TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Tel: +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com Date 2015-09-09 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: CTTL (Telecommunication Technology Labs,Academy of Telecommunication Research,MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Zhizhou GONG Product Certification Manager TCL Communication Ltd.
TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Tel: +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com 2015-09-09 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: 2ACCJH035 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

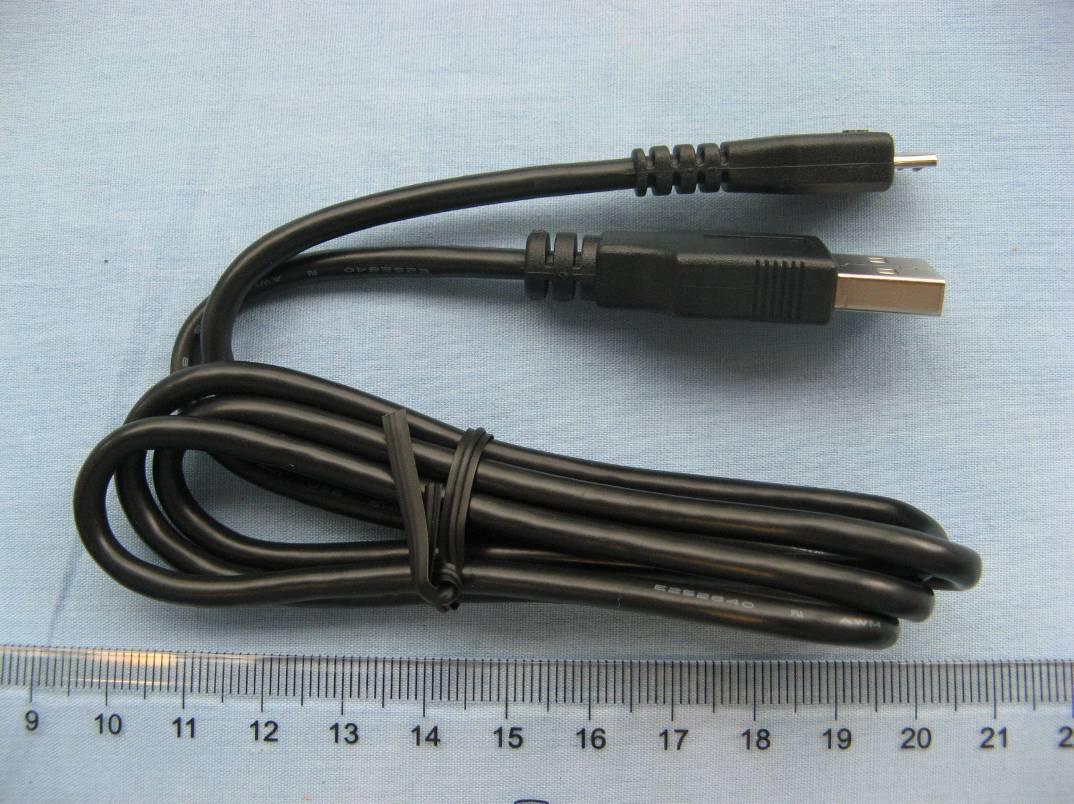

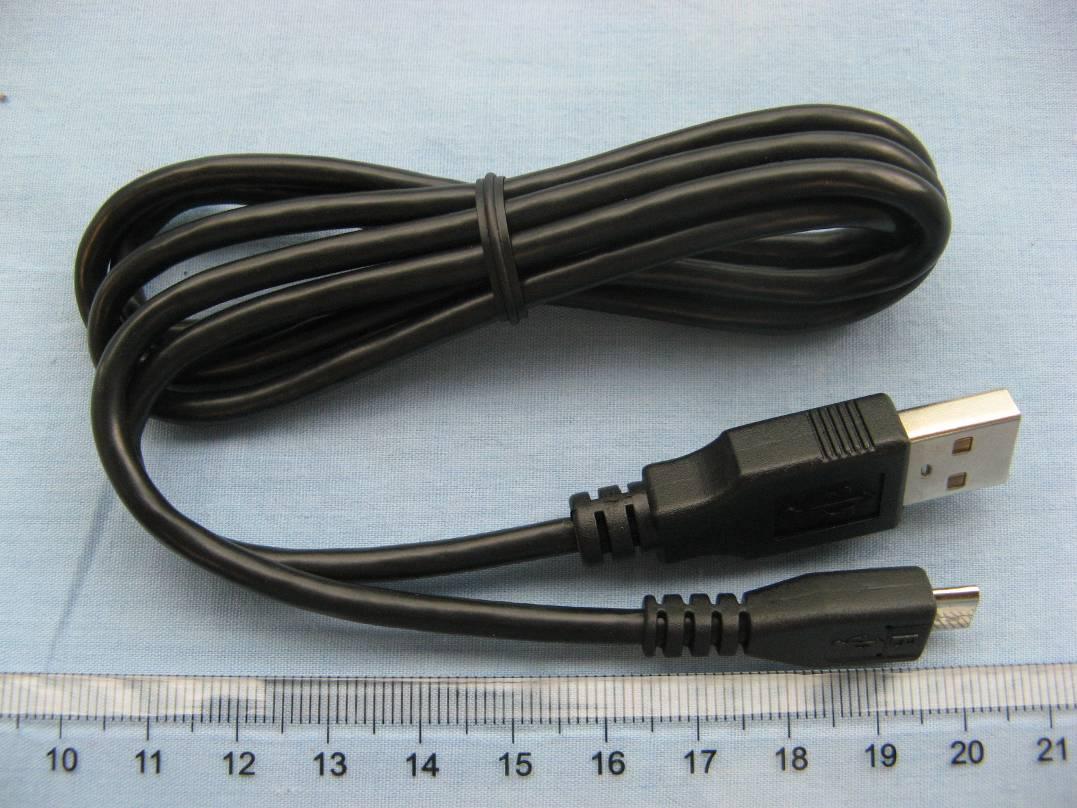

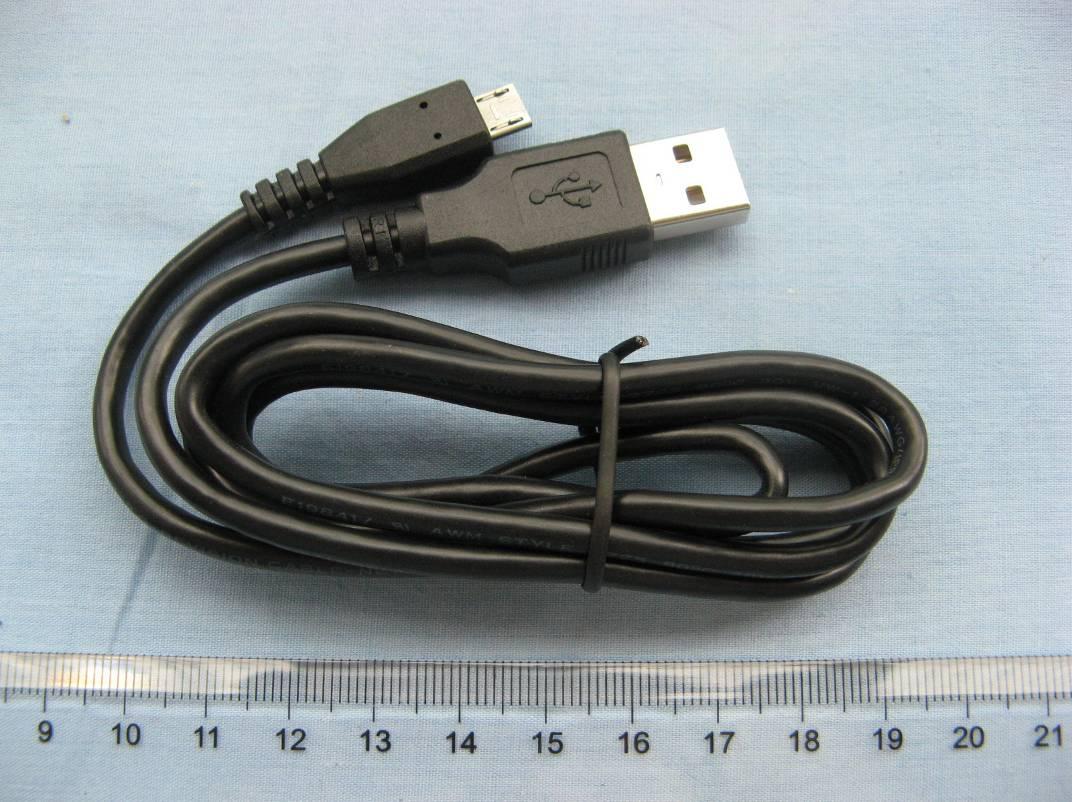

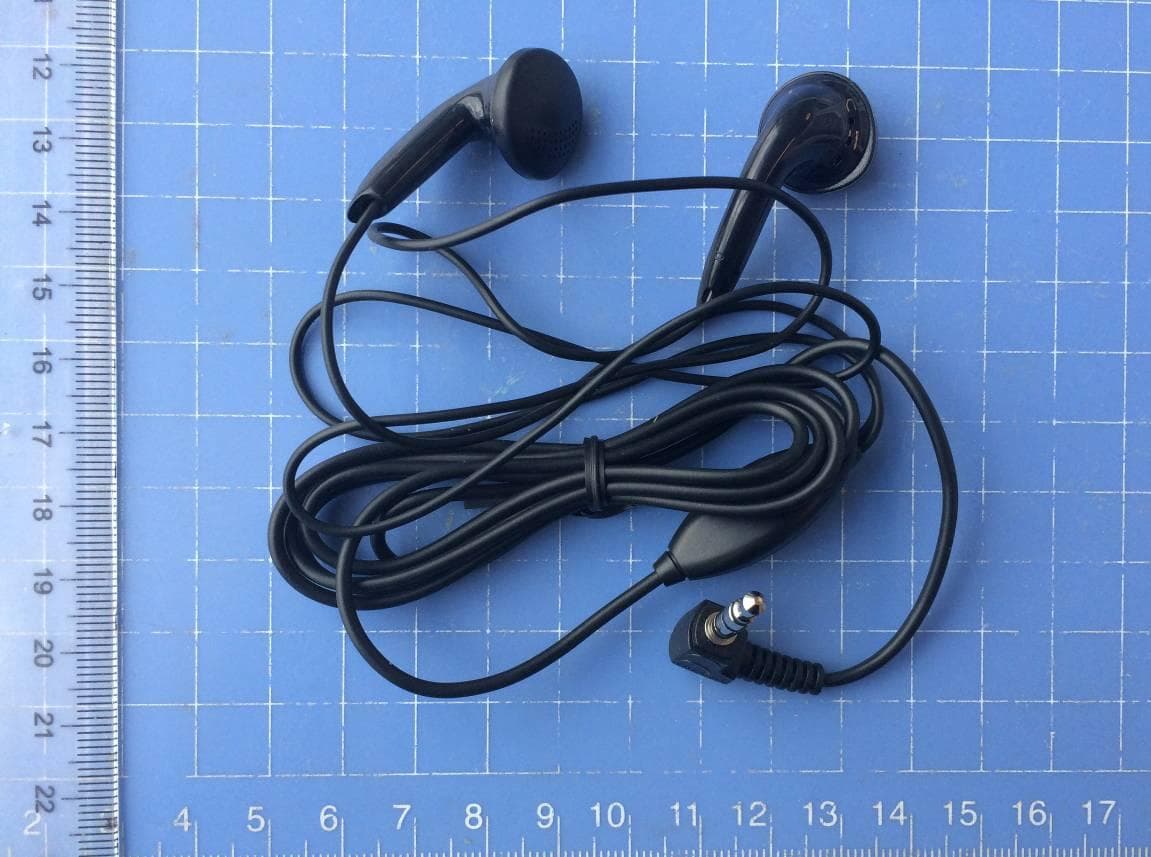

EUT photograph
5017W Label Placement
EUT Interior photograph Mobile Phone Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly
©Copyright. All rights reserved by CTTL. SAR TEST REPORT No. I15Z42273-SEM01 For TCL Communication Ltd. HSDPA/HSUPA/UMTS quad band / GSM quad band /LTE 7 bands mobile phone Model name: 5017W With Hardware Version: PIO Software Version: v1BD9 FCC ID: 2ACCJH035 Issued Date: 2015-09-11 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL, Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No. 51 Shouxiang Science Building, Xueyuan Road, Haidian District, Beijing, P. R. China100191 Te l:+86(0)10-62304633-2512,Fax:+86(0)10-62304633-2504 Email: [email protected], website:www.chinattl.com TESTING CNAS L0570 No. I15Z42273-SEM01 Page 2 of 207 ©Copyright. All rights reserved by CTTL. REPORT HISTORY Report Number Revision Issue Date Description I15Z42273-SEM01 Re v.0 2015-09-11 Initial creation of test report No. I15Z42273-SEM01 Page 3 of 207 ©Copyright. All rights reserved by CTTL. TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 5 1.1 TESTING LO C AT I O N ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE .................................................................................................. 6 3 CLIENT INFORMATION ................................................................................................................ 8 3.1 APPLICANT INFORMATION .............................................................................................................................. 8 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 8 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................. 9 4.1 ABOUT EUT ................................................................................................................................................... 9 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 9 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................ 9 5 TEST METHODOLOGY .............................................................................................................. 10 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 10 5.2 APPLICABLE MEASUREMENT STANDARDS .................................................................................................... 10 6 SPECIFIC ABSORPTION RATE (SAR) ...................................................................................... 11 6.1 INTRODUCTION ............................................................................................................................................. 11 6.2 SAR DEFINITION .......................................................................................................................................... 11 7 TISSUE SIMULATING LIQUIDS ................................................................................................. 12 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 12 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 12 8 SYSTEM VERIFICATION ............................................................................................................ 19 8.1 SYSTEM SETUP ............................................................................................................................................. 19 8.2 SYSTEM VERIFICATION ................................................................................................................................. 20 9 MEASUREMENT PROCEDURES .............................................................................................. 21 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 21 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 23 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 24 9.4 SAR MEASUREMENT FOR LT E ..................................................................................................................... 25 9.5 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 25 9.6 POWER DRIFT ............................................................................................................................................... 26 10 AREA SCAN BASED 1-G SAR ................................................................................................. 26 10.1 REQUIREMENT OF KDB .............................................................................................................................. 26 10.2 FAST SAR…
Text truncated - open the document above for the full version.
No. I15Z42273-SEM01 Page 66 of 207 ©Copyright. All rights reserved by CTTL. Combined standard uncertainty ∑ = = 21 1 22' i iic ucu 9.25 9.12 257 Expanded uncertainty (confidence interval of 95 %) ce uu2= 18.5 18.2 16.2 Measurement Uncertainty for Normal SAR Tests (3~6GHz) No. Error Description Type Uncertainty value Probably Distribution D iv. (Ci) 1g (Ci) 10g Std. Unc. (1g) Std. Unc. (10g) Degree of freedo m Measurement system 1 Probe calibration B 6.5 N 1 1 1 6.5 6.5 ∞ 2 Isotropy B 4.7 R 3 0.7 0.7 1.9 1.9 ∞ 3 Boundary effect B 2.0 R 3 1 1 1.2 1.2 ∞ 4 Linearity B 4.7 R 3 1 1 2.7 2.7 ∞ 5 Detection limit B 1.0 R 3 1 1 0.6 0.6 ∞ 6 Readout electronics B 0.3 R 3 1 1 0.3 0.3 ∞ 7 Response time B 0.8 R 3 1 1 0.5 0.5 ∞ 8 Integration time B 2.6 R 3 1 1 1.5 1.5 ∞ 9 RF ambient conditions-noise B 0 R 3 1 1 0 0 ∞ 10 RF ambient conditions-reflection B 0 R 3 1 1 0 0 ∞ 11 Probe positioned mech. restrictions B 0.8 R 3 1 1 0.5 0.5 ∞ 12 Probe positioning with respect to phantom shell B 6.7 R 3 1 1 3.9 3.9 ∞ 13 Post-processing B 4.0 R 3 1 1 2.3 2.3 ∞ Test sample related 14 Test sample positioning A 3.3 N 1 1 1 3.3 3.3 71 15 Device holder uncertainty A 3.4 N 1 1 1 3.4 3.4 5 16 Drift of output power B 5.0 R 3 1 1 2.9 2.9 ∞ Phantom and set-up 17 Phantom uncertainty B 4.0 R 3 1 1 2.3 2.3 ∞ 18 Liquid conductivity (target) B 5.0 R 3 0.64 0.43 1.8 1.2 ∞ 19 Liquid conductivity (meas.) A 2.06 N 1 0.64 0.43 1.32 0.89 43 No. I15Z42273-SEM01 Page 67 of 207 ©Copyright. All rights reserved by CTTL. 20 Liquid permittivity (target) B 5.0 R 3 0.6 0.49 1.7 1.4 ∞ 21 Liquid permittivity (meas.) A 1.6 N 1 0.6 0.49 1.0 0.8 521 Combined standard uncertainty ∑ = = 21 1 22' i iic ucu 10.8 10.7 257 Expanded uncertainty (confidence interval of 95 %) ce uu2= 21.6 21.4 16.3 Measurement Uncertainty for Fast SAR Tests (300MHz~3GHz) No. Error Description Type Uncertainty value Probably Distribution D iv. (Ci) 1g (Ci) 10g Std. Unc. (1g) Std. Unc. (10g) Degree of freedo m Measurement system 1 Probe calibration B 5.5 N 1 1 1 5.5 5.5 ∞ 2 Isotropy B 4.7 R 3 0.7 0.7 1.9 1.9 ∞ 3 Boundary effect B 1.0 R 3 1 1 0.6 0.6 ∞ 4 Linearity B 4.7 R 3 1 1 2.7 2.7 ∞ 5 Detection limit B 1.0 R 3 1 1 0.6 0.6 ∞ 6 Readout electronics B 0.3 R 3 1 1 0.3 0.3 ∞ 7 Response time B 0.8 R 3 1 1 0.5 0.5 ∞ 8 Integration time B 2.6 R 3 1 1 1.5 1.5 ∞ 9 RF ambient conditions-noise B 0 R 3 1 1 0 0 ∞ 10 RF ambient conditions-reflection B 0 R 3 1 1 0 0 ∞ 11 Probe positioned mech. Restrictions B 0.4 R 3 1 1 0.2 0.2 ∞ 12 Probe positioning with respect to phantom shell B 2.9 R 3 1 1 1.7 1.7 ∞ 13 Post-processing B 1.0 R 3 1 1 0.6 0.6 ∞ 14 Fast SAR z-Approximation B 7.0 R 3 1 1 4.0 4.0 ∞ Test sample related 15 Test sample positioning A 3.3 N 1 1 1 3.3 3.3 71 16 Device holder uncertainty A 3.4 N 1 1 1 3.4 3.4 5 17 Drift of output power B 5.0 R 3 1 1 2.9 2.9 ∞ No. I15Z42273-SEM01 Page 68 of 207 ©Copyright. All rights reserved by CTTL. Phantom and set-up 18 Phantom uncertainty B 4.0 R 3 1 1 2.3 2.3 ∞ 19 Liquid conductivity (target) B 5.0 R 3 0.64 0.43 1.8 1.2 ∞ 20 Liquid conductivity (meas.) A 2.06 N 1 0.64 0.43 1.32 0.89 43 21 Liquid permittivity (target) B 5.0 R 3 0.6 0.49 1.7 1.4 ∞ 22 Liquid permittivity (meas.) A 1.6 N 1 0.6 0.49 1.0 0.8 521 Combined standard uncertainty ∑ = = 22 1 22' i iic ucu 10.1 9.95 257 Expanded uncertainty (confidence interval of 95 %) ce uu2= 20.2 19.9 16.4 Measurement Uncertainty for Fast SAR Tests (3~6GHz) No. Error Description Type Uncertainty value Probably Distribution D iv. (Ci) 1g (Ci) 10g Std. Unc. (1g) Std. Unc. (10g) Degree of freedo m Measurement system 1 Probe calibration B 6.5 N 1 1 1 6.5 6.5 ∞ 2 Isotropy B 4.7 R 3 0.7 0.7 1.9 1.9 ∞ 3 Boundary effect B 2.0 R 3 1 1 1.2 1.2 ∞ 4 Linearity B 4.7 R 3 1 1 2.7 2.7 ∞ 5 Detection limit B 1.0 R 3 1 1 0.6 0.6 ∞ 6 Readout electronics B 0.3 R 3 1 1 0.3 0.3 ∞ 7 Response time B 0.8 R 3 1 1 0.5 0.5 ∞ 8 Integration time B 2.6 R 3 1 1 1.5 1.5 ∞ 9 RF ambient conditions-noise B 0 R 3 1 1 0 0 ∞ 10 RF ambient conditions-reflection B 0 R 3 1 1 0 0 ∞ 11 Probe positioned mech. Restrictions B 0.8 R 3 1 1 0.5 0.5 ∞ 12 Probe positioning with respect to phantom shell B 6.7 R 3 1 1 3.9 3.9 ∞ 13 Post-processing B 1.0 R 3 1 1 0.6 0.6 ∞ 14 Fast SAR z-Approximation B 14.0 R 3 1 1 8.1 8.1 ∞ Test sample related No. I15Z42273-SEM01 Page 69 of 207 ©Copyright. All rights reserved by CTTL. 15 Test sample positioning A 3.3 N 1 1 1 3.3 3.3 71 16 Device holder uncertainty A 3.4 N 1 1 1 3.4 3.4 5 17 Drift of output power B 5.0 R 3 1 1 2.9 2.9 ∞ Phantom and set-up 18 Phantom uncertainty B 4.0 R 3 1 1 2.3 2.3 ∞ 19 Liquid conductivity (target) B 5.0 R 3 0.64 0.43 1.8 1.2 ∞ 20 Liquid conductivity (meas.) A 2.06 N 1 0.64 0.43 1.32 0.89 43 21 Liquid permittivity (target) B 5.0 R 3 0.6 0.49 1.7 1.4 ∞ 22 Liquid permittivity (meas.) A 1.6 N 1 0.6 0.49 1.0 0.8 521 Combined standard uncertainty ∑ = = 22 1 22' i iic ucu 13.3 13.2 257 Expanded uncertainty (confidence interval of 95 %) ce uu2= 26.6 26.4 17 MAIN TEST INSTRUMENTS Table 17.1: List of Main Instruments No. Name Type Serial Number Calibration Date Valid Period 01 Network analyzer E5071C MY46110673 February 03, 2015 One year 02 Power meter NRVD 102196 March 03, 2015 One year 03 Power sensor NRV-Z5 100596 04 Signal Generator E4438C MY49071430 February 02, 2015 One Year 05 Amplifier 60S1G4 0331848 No Calibration Requested 06 BTS E5515C MY50263375 January 30, 2015 One year 07 BTS CMW500 129942 March 03, 2015 One year 08 E-field Probe SPEAG EX3DV4 3846 September 24, 2014 One year 09 DAE SPEAG DAE4 777 September 17, 2014 One year 10 Dipole Validation Kit SPEAG D750V3 1017 July 23, 2015 One year 11 Dipole Validation Kit SPEAG D835V2 4d069 July 23, 2015 One year 12 Dipole Validation Kit SPEAG D1750V2 1003 July 16, 2015 One year 13 Dipole Validation Kit SPEAG D1900V2 5d101 July 23, 2015 One year 14 Dipole Validation Kit SPEAG D2450V2 853 July 24, 2014 One year 15 Dipole Validation Kit SPEAG D2450V2 853 July 24, 2015 One year 16 Dipole Validation Kit SPEAG D2600V2 1012 July 24, 2015 One year ***END OF…
Text truncated - open the document above for the full version.
No. I15Z42273-SEM01 Page 118 of 207 ©Copyright. All rights reserved by CTTL. 2450MHz Date: 2015- 5- 18 Electronics: DAE4 Sn777 Medium: Head 2450 MHz Medium parameters used: f = 2450 MHz; σ = 1.815 mho/m; ε r = 38.23; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: CW Frequency: 2450 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(6.56, 6.56, 6.56) System Validation /Area Scan (61x81x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 88.603 V/m; Power Drift = -0.03 dB SAR(1 g) = 13.4 W/kg; SAR(10 g) = 6.33 W/kg Maximum value of SAR (interpolated) = 17.7 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 88.603 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 27.22 W/kg SAR(1 g) = 13.2 W/kg; SAR(10 g) = 6.19 W/kg Maximum value of SAR (measured) = 16.4 W/kg 0 dB = 16.4 W/kg = 12.15 dBW/kg Fig.B.9 validation 2450MHz 250mW No. I15Z42273-SEM01 Page 119 of 207 ©Copyright. All rights reserved by CTTL. 2450MHz Date: 2015- 5- 18 Electronics: DAE4 Sn777 Medium: Body 2450 MHz Medium parameters used: f = 2450 MHz; σ = 1.949 S/m; ε r = 52.63; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: CW Frequency: 2450 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(6.90, 6.90, 6.90) System Validation/Area Scan (81x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 87.813 V/m; Power Drift = -0.03 dB SAR(1 g) = 12.3 W/kg; SAR(10 g) = 5.76 W/kg Maximum value of SAR (interpolated) = 14.1 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 87.813 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 24.51 W/kg SAR(1 g) = 12.4 W/kg; SAR(10 g) = 5.85 W/kg Maximum value of SAR (measured) = 14.2 W/kg 0 dB = 14.2 W/kg = 11.52 dB W/kg Fig.B.10 validation 2450MHz 250mW No. I15Z42273-SEM01 Page 120 of 207 ©Copyright. All rights reserved by CTTL. 2450MHz Date: 2015- 8- 30 Electronics: DAE4 Sn777 Medium: Head 2450 MHz Medium parameters used: f = 2450 MHz; σ = 1.818 mho/m; ε r = 39.3; ρ = 1000 kg/m 3 Ambient Temperature: 22.9 o C Liquid Temperature: 22.5 o C Communication System: CW Frequency: 2450 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(6.56, 6.56, 6.56) System Validation /Area Scan (61x81x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 91.705 V/m; Power Drift = 0.03 dB SAR(1 g) = 13.5 W/kg; SAR(10 g) = 6.39 W/kg Maximum value of SAR (interpolated) = 16.8 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 91.705 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 27.43 W/kg SAR(1 g) = 13.3 W/kg; SAR(10 g) = 6.24 W/kg Maximum value of SAR (measured) = 16.6 W/kg 0 dB = 16.6 W/kg = 12.20 dBW/kg Fig.B.11 validation 2450MHz 250mW No. I15Z42273-SEM01 Page 121 of 207 ©Copyright. All rights reserved by CTTL. 2450MHz Date: 2015- 8- 30 Electronics: DAE4 Sn777 Medium: Body 2450 MHz Medium parameters used: f = 2450 MHz; σ = 1.976 S/m; ε r = 54.68; ρ = 1000 kg/m 3 Ambient Temperature: 22.9 o C Liquid Temperature: 22.5 o C Communication System: CW Frequency: 2450 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(6.90, 6.90, 6.90) System Validation/Area Scan (81x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 91.135 V/m; Power Drift = 0.04 dB SAR(1 g) = 12.6 W/kg; SAR(10 g) = 5.87 W/kg Maximum value of SAR (interpolated) = 14.7 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 91.135 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 25.03 W/kg SAR(1 g) = 12.8 W/kg; SAR(10 g) = 6.05 W/kg Maximum value of SAR (measured) = 14.9 W/kg 0 dB = 14.9 W/kg = 11.73 dB W/kg Fig.B.12 validation 2450MHz 250mW No. I15Z42273-SEM01 Page 122 of 207 ©Copyright. All rights reserved by CTTL. 2600MHz Date: 2015- 8- 29 Electronics: DAE4 Sn777 Medium: Head 2600 MHz Medium parameters used: f = 2600 MHz; σ = 1.902 mho/m; ε r = 38.95; ρ = 1000 kg/m 3 Ambient Temperature: 22.9 o C Liquid Temperature: 22.5 o C Communication System: CW Frequency: 2600 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(6.50, 6.50, 6.50) System Validation /Area Scan ( 81x81x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 84.87 V/m; Power Drift = 0.06 dB Fast SAR: SAR(1 g) = 13.9 W/kg; SAR(10 g) = 6.16 W/kg Maximum value of SAR (interpolated) = 21.3 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 84.87 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 28.91 W/kg SAR(1 g) = 14.1 W/kg; SAR(10 g) = 6.31 W/kg Maximum value of SAR (measured) = 21.5 W/kg 0 dB = 21.5 W/kg = 13.32 dB W/kg Fig.B.13 validation 2600MHz 250mW No. I15Z42273-SEM01 Page 123 of 207 ©Copyright. All rights reserved by CTTL. 2600MHz Date: 2015- 8- 29 Electronics: DAE4 Sn777 Medium: Body 2600 MHz Medium parameters used: f = 2600 MHz; σ = 2.138 mho/m; ε r = 54.07; ρ = 1000 kg/m 3 Ambient Temperature: 22.9 o C Liquid Temperature: 22.5 o C Communication System: CW Frequency: 2600 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(6.68, 6.68, 6.68) System Validation /Area Scan ( 81x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 83.22 V/m; Power Drift = -0.03 dB Fast SAR: SAR(1 g) = 14.7 W/kg; SAR(10 g) = 6.61 W/kg Maximum value of SAR (interpolated) = 22.6 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 83.22 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 31.16 W/kg SAR(1 g) = 14.5 W/kg; SAR(10 g) = 6.42 W/kg Maximum value of SAR (measured) = 22.4 W/kg 0 dB = 22.4 W/kg = 13.50 dB W/kg Fig.B.14 validation 2600MHz 250mW No. I15Z42273-SEM01 Page 124 of 207 ©Copyright. All rights reserved by CTTL. The SAR system verification must be required that the area scan estimated 1-g SAR is within 3% of the zoom scan 1-g SAR. Table B.1 Comparison between area scan …
Text truncated - open the document above for the full version.
No. I15Z42273-SEM01 Page 155 of 207 ©Copyright. All rights reserved by CTTL. 835 MHz Dipole Calibration Certificate No. I15Z42273-SEM01 Page 156 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 157 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 158 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 159 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 160 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 161 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 162 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 163 of 207 ©Copyright. All rights reserved by CTTL. 1750 MHz Dipole Calibration Certificate No. I15Z42273-SEM01 Page 164 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 165 of 207 ©Copyright. All rights reserved by CTTL.
No. I15Z42273-SEM01 Page 166 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 167 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 168 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 169 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 170 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 171 of 207 ©Copyright. All rights reserved by CTTL. 1900 MHz Dipole Calibration Certificate No. I15Z42273-SEM01 Page 172 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 173 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 174 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 175 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 176 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 177 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 178 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 179 of 207 ©Copyright. All rights reserved by CTTL. 2450 MHz Dipole Calibration Certificate for 2014 No. I15Z42273-SEM01 Page 180 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 181 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 182 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 183 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 184 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 185 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 186 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 187 of 207 ©Copyright. All rights reserved by CTTL. 2450 MHz Dipole Calibration Certificate for 2015
No. I15Z42273-SEM01 Page 188 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 189 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 190 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 191 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 192 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 193 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 194 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 195 of 207 ©Copyright. All rights reserved by CTTL. 2600 MHz Dipole Calibration Certificate No. I15Z42273-SEM01 Page 196 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 197 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 198 of 207 ©Copyright. All rights reserved by CTTL. No. I15Z42273-SEM01 Page 199 of 207 ©Copyright. All rights reserved by CTTL. No. I15…
Text truncated - open the document above for the full version.
