2ACCJH121LTE/UMTS/GSM Mobile Phone

Safety and Precautions This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found in the Radio waves section. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 15 mm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your phone near your ear while the loudspeaker is in use. www.sar-tick.com English - CQF2EG2ALAAA Printed in China 1 Safety and use ������������������������������������������������������������������������������������������������ We recommend that you read this chapter carefully before using your phone. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use or use contrary to the instructions contained herein. TRAFFIC SAFETY: Given that studies show that using a phone while driving a vehicle constitutes a real risk, even when the hands-free kit is used (car kit, headset, etc.), drivers are requested to refrain from using their phone when the vehicle is not parked. Check the laws and regulations on the use of wireless phones and their accessories in the areas where you drive. Always obey them. The use of these devices may be prohibited or restricted in certain areas. CONDITIONS OF USE: • You are advised to switch off the phone from time to time to optimize its performance. • Remember to abide by local authority rules of mobile phone use on aircrafts. • If your phone is a unibody device, where the back cover and battery are not removable, disassembling the phone will void your warranty. Disassembling the phone can cause bodily injury if the battery is punctured. • Always handle your phone with care and keep it in a clean and dust-free place. • Do not allow your phone to be exposed to adverse weather or environmental conditions, such as moisture, humidity, rain, infiltration of liquids, dust, sea air, etc. The manufacturer’s recommended operating temperature range is -10°C (14°F) to +45°C (113°F). At over 45°C (113°F), the legibility of the phone’s display may be temporarily impaired. • Do not open, dismantle, or attempt to repair your phone yourself. • Do not drop, throw, or bend your phone. • Use only batteries, battery chargers, and accessories which are recommended by TCL Communication Ltd. and its affiliates and which are compatible with your phone model. TCL Communication Ltd. and its affiliates disclaim any liability for damage caused by the use of other chargers or batteries. 2 • Your phone should not be disposed of in a municipal waste. Please check local regulations for disposal of electronic products. • Remember to make backup copies or keep a written record of all important information stored on your phone. • Some people may suffer epileptic seizures or blackouts when exposed to flashing lights, or when playing video games. These seizures or blackouts may occur even if a person has never experienced them before. If you have experienced seizures or blackouts, or if you have a family history of such occurrences, please consult your doctor before playing video games on your phone or enabling a flashing-lights feature on your phone. • Parents should monitor their children’s use of video games or other features that incorporate flashing lights on the phones. All persons should discontinue use and consult a doctor if any of the following symptoms occur: convulsion, eye or muscle twitching, loss of awareness, orientation, or movements. PRIVACY: Please note that you must respect the laws and regulations in force in your jurisdiction or other jurisdiction(s) where you will use your phone regarding taking photographs and recording sounds with your phone. Pursuant to such laws and regulations, it may be strictly forbidden to take photographs and/or to record the voices of other people or any of their personal attributes, and reproduce or distribute them, as this may be considered to be an invasion of privacy. It is the user's sole responsibility to ensure that prior authorization has been obtained, if necessary, in order to record private or confidential conversations or take a photograph of another person; the manufacturer, the seller or vendor of your phone (including the carrier) disclaim any liability which may result from improper use of the phone. BATTERY: For a non-unibody device: Observe the following precautions: • Do not attempt to open the battery (due to the risk of toxic fumes and burns). • Do not puncture, disassemble, or cause a short circuit in the battery. • Do not burn or dispose of a used battery in household garbage or store it at temperatures above 60°C (140°F). 3 Batteries must be disposed of in accordance with locally applicable environmental regulations. Only use the battery for the purpose for which it was designed. Never use damaged batteries or those not recommended by TCL Communication Ltd. and/or its affiliates. For a non-unibody device with a non-removable battery: Observe the following precautions: • Do not attempt to eject, replace, or open the battery. • Do not puncture, disassemble, or cause a short circuit in the battery. • Do not burn or dispose of your phone in household garbage or store it at temperature above 60°C (140°F). Phone and battery must be disposed of in accordance with locally applicable environmental regulations. For a unibody device: Observe the following precautions: • Do not attempt to open the back cover. • Do not attempt to eject, replace, or open the battery. • Do not puncture the back cover of your phone. • Do not burn or dispose of your phone in household rubbish or store it at temperature above 60°C (140°F). Phone and battery as a unibody device must be disposed of in accordance with locally …

Text truncated - open the document above for the full version.

TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong We, TCL Communication Ltd. declare that this EUT (FCC ID: 2ACCJH121) doesn’t have ad Hoc Mode function on “non-US/Canada frequencies“. In addition, the frequency selection feature is disabled by firmware for devices marketed to the US/ Canada. For DTS part of this device, only channels 1-11 will be used in North America. Country code selection is disabled. Should you have any questions or comments regarding this matter, Please have my best attention. Sincerely yours, Signature: Contact Person: Gong zhizhou Company: TCL Communication Ltd. TEL: +86-755-36611722 FAX: 0086-75536612000-81722 E-mail: [email protected]

Rev 11/20/07 TCL Communication Ltd. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2ACCJH121 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram, Schematics Operational Description Parts List Tune Up Block Diagram, Schematics Operational Description Parts List Tune Up The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, (signature) (printed name)

TCL Communication Ltd. C:\Users\cuiling.he\Desktop\Tokyo Pro\approval test request preparation\Documents\5029D FCC\POA_Letter_140225.docx Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2020-3-9 SUBJECT: FCC Application for: 2ACCJH121 To Whom It May Concern: We, the undersigned, hereby authorize Jim Huang at SGS-CSTC Standards Technical Services Ltd on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by SGS-CSTC Standards Technical Services Ltd on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Gong zhizhou

Amendment Letter TIMCO Engineering, Inc. This is to request report update for FCC ID: 2ACCJH121, The Major change filed under this application and the relevant report numbers are as below: Original report number New report number Revise content ZR20202000202 ZR20202000202-01 1.Add test site Information in section 2, 3.2 and 3.3 2.Modify data conversion error of antenna height in radiated spurious emission and Radiated band- edge. 3.Update equipment list in section 6. ZR20202000204 ZR20202000204-01 1.Add test site Information in section 2, 3.2 and 3.3 2.Modify data conversion error of antenna height in radiated spurious emission and Radiated band- edge. 3.Update equipment list in section 6. ZR20202000206 ZR20202000206-01 1.Add test site Information in section 2, 3.2 and 3.3 2.Modify data conversion error of antenna height in radiated spurious emission and Radiated band- edge. 3.Update equipment list in section 6. ZR20202000201 ZR20202000201-01 1.Add test site Information in section 2, 3.2 and 3.3. 2. Update equipment list in section 5. 3. Update the report NO. of appendix B in header with “-01” 4. Add antenna height and angle for ‘Field Strength of Spurious Radiation’ ZR20202000205 ZR20202000205-01 1. Revise test site Information in section 4.4, 4.5. 2. Modify data conversion error of antenna height in radiated emission. 3. Update equipment list in section 5. 4. Update Support Units. Setup Photo Add test location. Sincerely, (signature) (printed name) Derek Yang

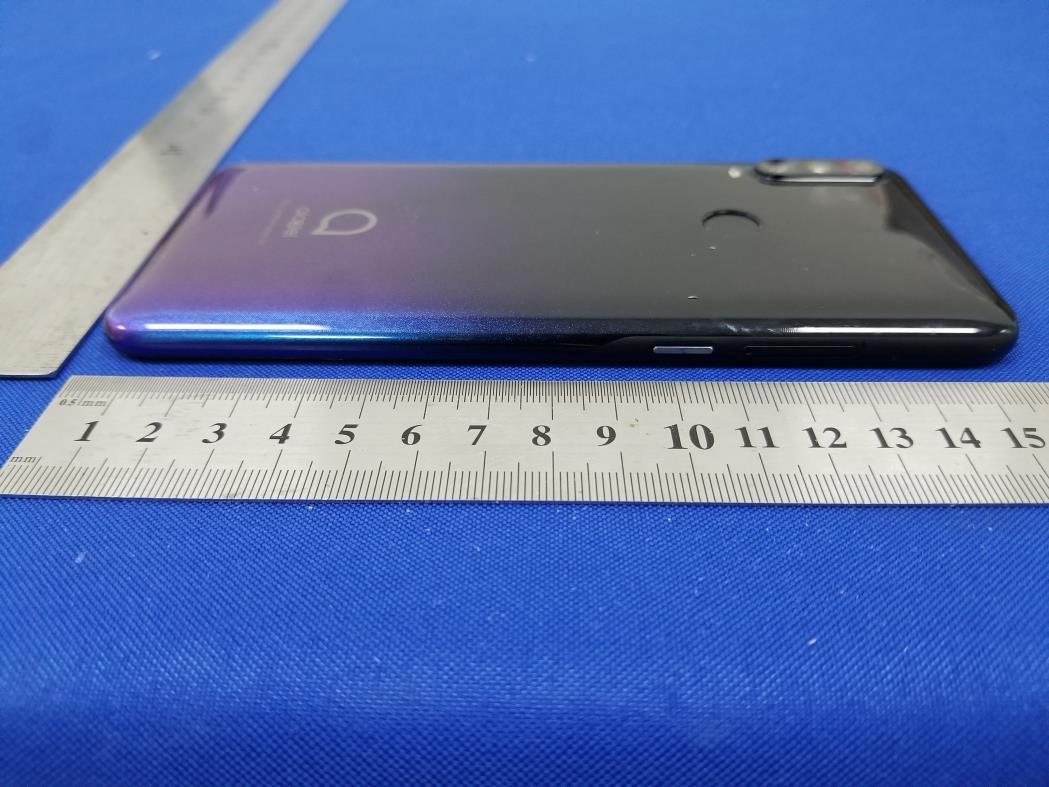

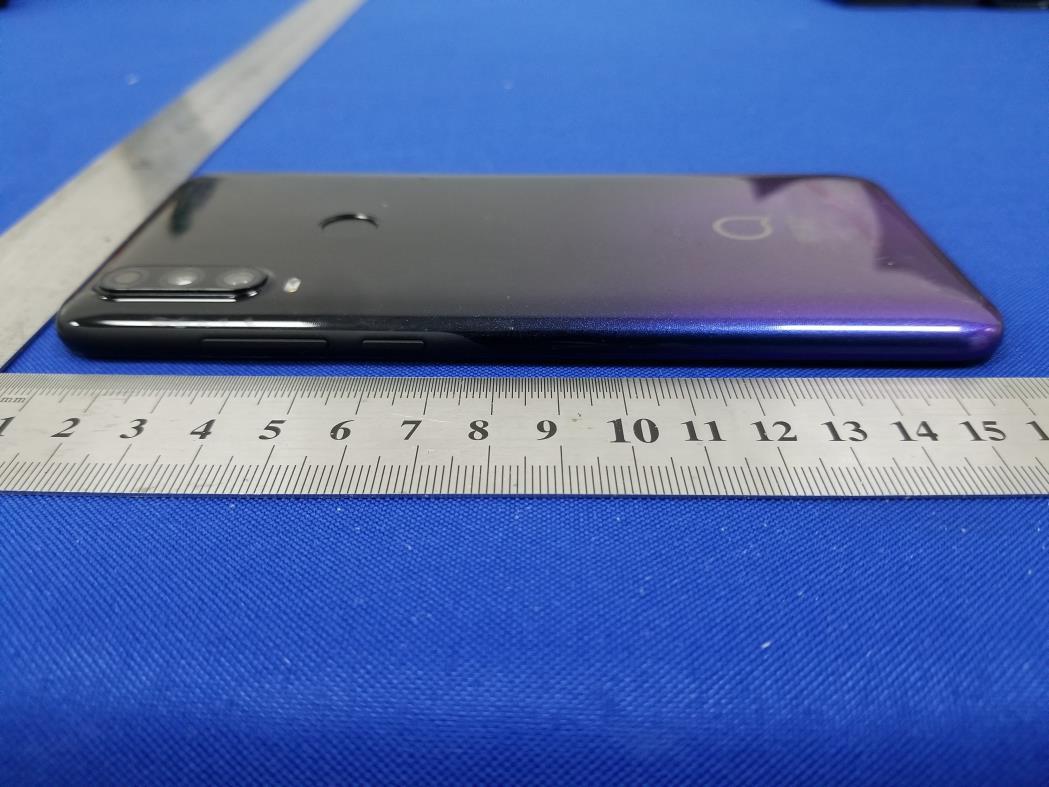

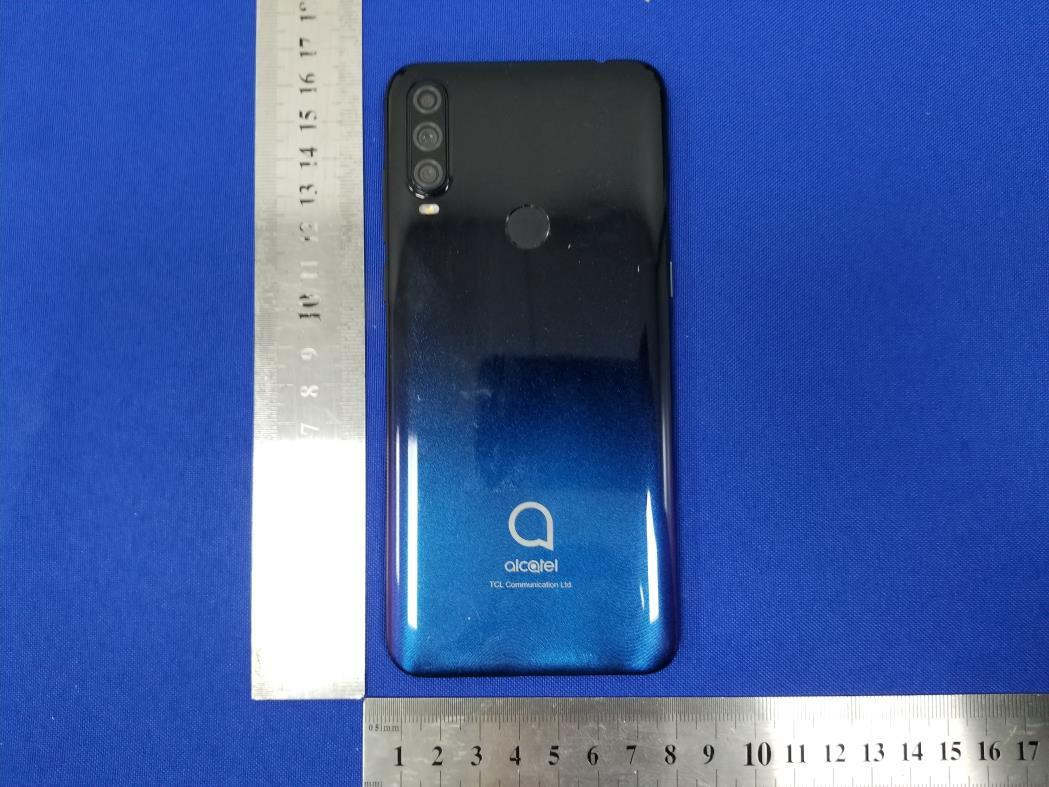

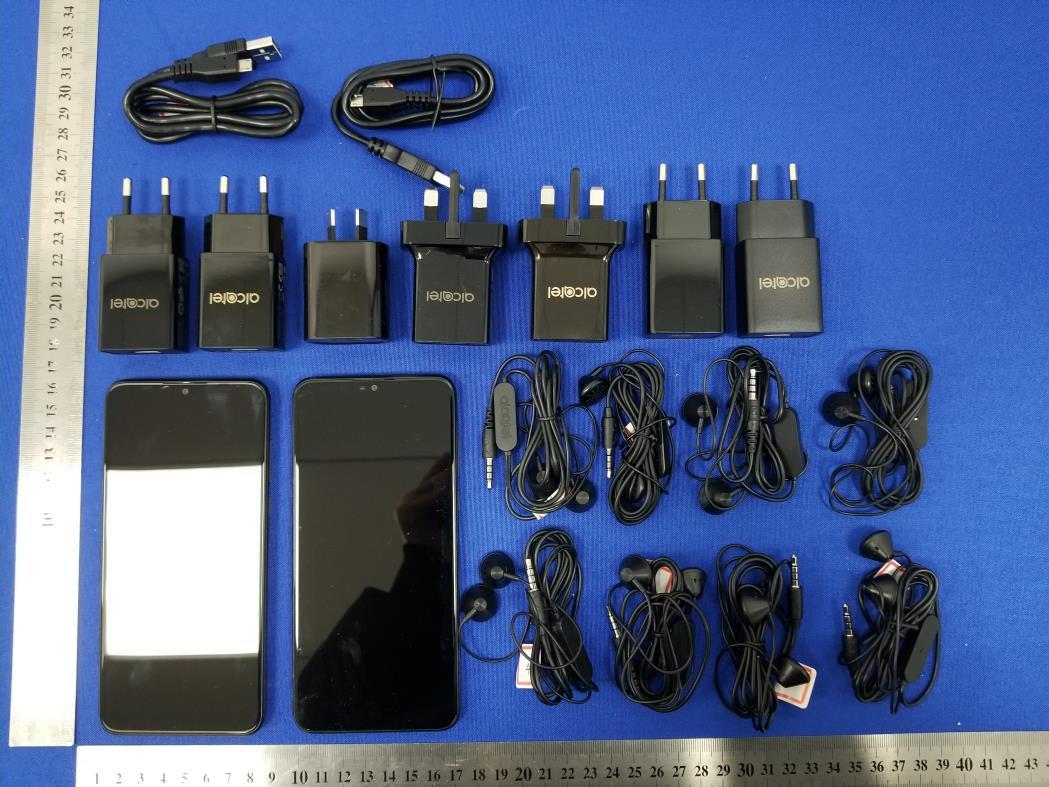

Model No.(EUT): 5029D

5029D Label

5029D label location

5029D Sample Label Sample Label location

SGS-CSTC Standards Technical Services Co., Ltd. Xi’An Branch Report No.: ZR/2020/2000203 Appendix A Detailed System Check Results 1.System Verification Results System Performance Check 835 MHz System Performance Check 1880 MHz System Performance Check 2600 MHz Date: 2020-3-02 Test Laboratory: SGS-SAR Lab HAC-E-Dipole CD835V3 DUT: CD835V3; Type: CD835V3; Serial: 1052 Communication System: UID 0, CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: Air;Medium parameters used: σ = 0 S/m, ε r = 1; ρ = 1000 kg/m 3 Phantom section: RF Section DASY 5 Configuration: Probe: EF3DV3 - SN4051; ConvF(1, 1, 1); Calibrated: 2019-06-18; Sensor-Surface: (Fix Surface) Electronics: DAE4 Sn896; Calibrated: 2019-09-18 Phantom: HAC Test Arch with AMCC; Type: SD HAC P01 BA; DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Dipole E-Field mea surement/E Scan - measurement distance from the probe sensor center to CD835 = 15mm/Hearing Aid Compatibility Test at 15mm distance (41x361x1): Interpolated grid: dx=0.5000 mm, dy=0.5000 mm Device Reference Point: 0, 0, -6.3 mm Reference Value = 130.8 V/m; Power Drift = -0.11 dB PMR not calibrated. PMF = 1.000 is applied. E-field emissions = 110.5 V/m Near-field category: M4 (AWF 0 dB) Cursor: Total = 121.1 V/m E Category: M4 Location: 0, 73, 8.7 mm PMF scaled E-field Grid 1 M4 109.1 V/m Grid 2 M4 110.5 V/m Grid 3 M4 107.7 V/m Grid 4 M4 65.14 V/m Grid 5 M4 65.38 V/m Grid 6 M4 63.74 V/m Grid 7 M4 118.6 V/m Grid 8 M4 121.1 V/m Grid 9 M4 118.3 V/m 0 dB = 121.1 V/m = 41.67 dBV/m Date: 2020-03-02 Test Laboratory: SGS-SAR Lab HAC-E-Dipo le CD1880V3 DUT: CD1880V3; Type: CD1880V3; Serial: 1044 Communication System: UID 0, CW; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: Air;Medium parameters used: σ = 0 S/m, ε r = 1; ρ = 1000 kg/m 3 Phantom section: RF Section DASY 5 Configuration: Probe: EF3DV3 - SN4051; ConvF(1, 1, 1); Calibrated: 2019-06-18; Sensor-Surface: (Fix Surface) Electronics: DAE4 Sn896; Calibrated: 2019-09-18 Phantom: HAC Test Arch with AMCC; Type: SD HAC P01 BA; DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Dipole E-Field measurement/E Scan - measurement distance from the probe sensor center to CD1880 = 15mm/Hearing Aid Compatibility Test at 15mm distance (41x181x1): Interpolated grid: dx=0.5000 mm, dy=0.5000 mm Device Reference Point: 0, 0, -6.3 mm Reference Value = 158.5 V/m; Power Drift = 0.00 dB PMR not calibrated. PMF = 1.000 is applied. E-field emissions = 91.79 V/m Near-field category: M3 (AWF 0 dB) Cursor: Total = 94.58 V/m E Category: M3 Location: 0, 34, 8.7 mm PMF scaled E-field Grid 1 M3 90.16 V/m Grid 2 M3 91.79 V/m Grid 3 M3 89.73 V/m Grid 4 M3 65.83 V/m Grid 5 M3 65.96 V/m Grid 6 M3 65.11 V/m Grid 7 M3 92.50 V/m Grid 8 M3 94.58 V/m Grid 9 M3 92.54 V/m 0 dB = 94.58 V/m = 39.52 dBV/m Date: 2020-03-11 Test Laboratory: SGS-SAR Lab HAC-E-Dipole CD2600V3 DUT: CD2600V3; Type: CD2600V3; Serial: 1021 Communication System: UID 0, CW (0); Frequency: 2600 MHz;Duty Cycle: 1:1 Medium: Air;Medium parameters used: σ = 0 S/m, ε r = 1; ρ = 1000 kg/m 3 Phantom section: RF Section DASY 5 Configuration: Probe: EF3DV3 - SN4051; ConvF(1, 1, 1); Calibrated: 2019-06-18; Sensor-Surface: (Fix Surface) Electronics: DAE4 Sn1267; Calibrated: 2019-12-17 Phantom: HAC Test Arch with AMCC; Type: SD HAC P01 BA; DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Dipole E-Field measurement /E Scan - measurement distance from the probe sensor center to CD2600 = 15mm/Hearing Aid Compatibility Test at 15mm distance (41x181x1): Interpolated grid: dx=0.5000 mm, dy=0.5000 mm Device Reference Point: 0, 0, -6.3 mm Reference Value = 72.64 V/m; Power Drift = -0.03 dB PMR not calibrated. PMF = 1.000 is applied. E-field emissions = 89.18 V/m Near-field category: M3 (AWF 0 dB) Cursor: Total = 97.26 V/m E Category: M3 Location: 0.5, 23.5, 8.7 mm PMF scaled E-field Grid 1 M3 88.27 V/m Grid 2 M3 89.18 V/m Grid 3 M3 86.47 V/m Grid 4 M3 86.21 V/m Grid 5 M3 86.62 V/m Grid 6 M3 84.67 V/m Grid 7 M3 95.56 V/m Grid 8 M3 97.26 V/m Grid 9 M3 94.21 V/m 0 dB = 97.26 V/m = 39.76 dBV/m

Report No.: E5/2020/30010 Appendix A Detailed System Check Results 1. System Performance Check System Performance Check 835 MHz Head System Performance Check 1900 MHz Head System Performance Check 2450 MHz Head System Performance Check 2600 MHz Head Date: 2020-02-24 Test Laboratory: SGS-SAR Lab System Performance Check 835 MHz Head DUT: D835V2; Type: D835V2; Serial: 4d105 Communication System: UID 0, CW (0); Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL835;Medium parameters used: f = 835 MHz; σ = 0.89 S/m; ε r = 40.972; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: • Probe: EX3DV4 - SN3789; ConvF(8.52, 8.52, 8.52); Calibrated: 2019-05-25; • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1374; Calibrated: 2019-09-24 • Phantom: SAM5; Type: SAM; Serial: 1481 • DASY52 52.8.8(1258); SEMCAD X 14.6.10(7373) Body/d=15mm, Pin=250mW/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 3.14 W/kg Body/d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 55.54 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 3.92 W/kg SAR(1 g) = 2.51 W/kg; SAR(10 g) = 1.58 W/kg Maximum value of SAR (measured) = 3.38 W/kg 0 dB = 3.38 W/kg = 5.29 dBW/kg Date: 2020-03-02 Test Laboratory: SGS-SAR Lab System Performance Check 835 MHz Head DUT: D835V2; Type: D835V2; Serial: 4d105 Communication System: UID 0, CW (0); Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL835;Medium parameters used: f = 835 MHz; σ = 0.927 S/m; ε r = 42.883; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: • Probe: EX3DV4 - SN3748; ConvF(8.76, 8.76, 8.76); Calibrated: 2019-06-19; • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE3 Sn414; Calibrated: 2019-12-17 • Phantom: SAM5; Type: SAM; Serial: 1481 • DASY52 52.8.8(1258); SEMCAD X 14.6.10(7373) Body/d=15mm, Pin=250mW/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 3.29 W/kg Body/d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 57.87 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 4.27 W/kg SAR(1 g) = 2.6 W/kg; SAR(10 g) = 1.65 W/kg Maximum value of SAR (measured) = 3.53 W/kg 0 dB = 3.53 W/kg = 5.53 dBW/kg Date: 2020-02-23 Test Laboratory: SGS-SAR Lab System Performance Check 1900 MHz Head DUT: D1900V2; Type: D1900V2; Serial: 5d028 Communication System: UID 0, CW (0); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL1900;Medium parameters used: f = 1900 MHz; σ = 1.394 S/m; ε r = 40.64; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: • Probe: EX3DV4 - SN3789; ConvF(7.3, 7.3, 7.3); Calibrated: 2019-05-25; • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1374; Calibrated: 2019-09-24 • Phantom: SAM6; Type: SAM; Serial: 1824 • DASY52 52.8.8(1258); SEMCAD X 14.6.10(7373) Body/d=10mm, Pin=250mW/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 9.7 W/kg Body/d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 90.02 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 19.3 W/kg SAR(1 g) = 10.3 W/kg; SAR(10 g) = 5.35 W/kg Maximum value of SAR (measured) = 12.0 W/kg 0 dB = 12.0 W/kg = 10.79 dBW/kg Date: 2020-03-07 Test Laboratory: SGS-SAR Lab System Performance Check 2450MHz Head DUT: D2450V2; Type: D2450V2; Serial: 733 Communication System: UID 0, CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL2450;Medium parameters used: f = 2450 MHz; σ = 1.855 S/m; ε r = 37.999; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: • Probe: EX3DV4 - SN3789; ConvF(6.85, 6.85, 6.85); Calibrated: 2019-05-25; • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1374; Calibrated: 2019-09-24 • Phantom: SAM6; Type: SAM; Serial: 1824 • DASY52 52.8.8(1258); SEMCAD X 14.6.10(7373) Body/d=10mm, Pin=250mW/Area Scan (8x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 14.3 W/kg Body/d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 92.09 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 27.6 W/kg SAR(1 g) = 13.7 W/kg; SAR(10 g) = 6.33 W/kg Maximum value of SAR (measured) = 22.8 W/kg 0 dB = 22.8 W/kg = 13.58 dBW/kg Date: 2020-03-04 Test Laboratory: SGS-SAR Lab System Performance Check 2600MHz Head DUT: D2600V2; Type: D2600V2; Serial: 1125 Communication System: UID 0, CW (0); Frequency: 2600 MHz;Duty Cycle: 1:1 Medium: HSL2600;Medium parameters used: f = 2600 MHz; σ = 1.966 S/m; ε r = 39.679; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: • Probe: EX3DV4 - SN3789; ConvF(6.8, 6.8, 6.8); Calibrated: 2019-05-25; • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1374; Calibrated: 2019-09-24 • Phantom: SAM6; Type: SAM; Serial: 1824 • DASY52 52.8.8(1258); SEMCAD X 14.6.10(7373) Body/d=10mm, Pin=250mW/Area Scan (8x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 16.9 W/kg Body/d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 87.82 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 28.6 W/kg SAR(1 g) = 13.5 W/kg; SAR(10 g) = 6.04 W/kg Maximum value of SAR (measured) = 23.2 W/kg 0 dB = 23.2 W/kg = 13.65 dBW/kg

SGS-CSTC Standards Technical Services Co., Ltd. Xi’An Branch Report No.: ZR/2020/2000203 Appendix B Detailed Test Results 1.GSM GSM850 for E-Field Emission GSM1900 for E-Field Emission 2.LTE LTE Band 38 for E-Field Emission Date: 2020-03-02 Test Laboratory: SGS-SAR Lab 5029D HAC-RF-GSM850 GSM Voice 128CH DUT : 5 029D; Type: LTE/UMTS/GSM mobile phone; Serial: UCZXCALZUS7XJFS8 Communication System: UID 10021 - DAC, GSM-FDD (TDMA, GMSK); Frequency: 824.2 MHz;Duty Cycle: 1:8.6896 Medium: Air;Medium parameters used: σ = 0 S/m, ε r = 1; ρ = 0 kg/m 3 Phantom section: RF Section DASY 5 Configuration: Probe: EF3DV3 - SN4051; ConvF(1, 1, 1); Calibrated: 2019-06-18; Sensor-Surface: (Fix Surface) Electronics: DAE4 Sn896; Calibrated: 2019-09-18 Phantom: HAC Test Arch with AMCC; Type: SD HAC P01 BA; DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Device E-Field measurement (E-field scan for ANSI C63.19-2007 & -2011 compliance)/E Scan - ER3D: 15 mm from Probe Center to the Device/Hearing Aid Compatibility Test (101x101x1): Interpolated grid: dx=0.5000 mm, dy=0.5000 mm Device Reference Point: 0, 0, -6.3 mm Reference Value = 110.1 V/m; Power Drift = -0.04 dB Applied MIF = 3.63 dB RF audio interference level = 40.90 dBV/m Emission category: M3 Cursor: Total = 42.09 dBV/m E Cate gory: M3 MIF scaled E-field Grid 1 M4 36.13 dBV/m Grid 2 M4 37.01 dBV/m Grid 3 M4 35.59 dBV/m Grid 4 M4 39.64 dBV/m Grid 5 M3 40.9 dBV/m Grid 6 M4 38.83 dBV/m Grid 7 M3 41.27 dBV/m Grid 8 M3 42.09 dBV/m Grid 9 M4 39.6 dBV/m Location: 1.5, 25, 7.7 mm 0 dB = 127.2 V/m = 42.09 dBV/m Date: 2020-03-02 Test Laboratory: SGS-SAR Lab 5029D HAC-RF-GSM850 GSM Voice 190CH DUT : 5 029D; Type: LTE/UMTS/GSM mobile phone; Serial: UCZXCALZUS7XJFS8 Communication System: UID 10021 - DAC, GSM-FDD (TDMA, GMSK); Frequency: 836.6 MHz;Duty Cycle: 1:8.6896 Medium: Air;Medium parameters used: σ = 0 S/m, ε r = 1; ρ = 0 kg/m 3 Phantom section: RF Section DASY 5 Configuration: Probe: EF3DV3 - SN4051; ConvF(1, 1, 1); Calibrated: 2019-06-18; Sensor-Surface: (Fix Surface) Electronics: DAE4 Sn896; Calibrated: 2019-09-18 Phantom: HAC Test Arch with AMCC; Type: SD HAC P01 BA; DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Device E-Field measurement (E-field scan for ANSI C63.19-2007 & -2011 compliance)/E Scan - ER3D: 15 mm from Probe Center to the Device/Hearing Aid Compatibility Test (101x101x1): Interpolated grid: dx=0.5000 mm, dy=0.5000 mm Device Reference Point: 0, 0, -6.3 mm Reference Value = 116.7 V/m; Power Drift = -0.03 dB Applied MIF = 3.63 dB RF audio interference level = 41.74 dBV/m Emission category: M3 Cursor: Total = 43.11 dBV/m E Cate gory: M3 MIF scaled E-field Grid 1 M4 36.74 dBV/m Grid 2 M4 37.45 dBV/m Grid 3 M4 35.98 dBV/m Grid 4 M3 40.61 dBV/m Grid 5 M3 41.74 dBV/m Grid 6 M4 39.47 dBV/m Grid 7 M3 42.43 dBV/m Grid 8 M3 43.11 dBV/m Grid 9 M3 40.33 dBV/m Location: 2, 25, 7.7 mm 0 dB = 143.0 V/m = 43.11 dBV/m Date: 2020-03-02 Test Laboratory: SGS-SAR Lab 5029D HAC-RF-GSM850 GSM Voice 251CH DUT : 5 029D; Type: LTE/UMTS/GSM mobile phone; Serial: UCZXCALZUS7XJFS8 Communication System: UID 10021 - DAC, GSM-FDD (TDMA, GMSK); Frequency: 848.8 MHz;Duty Cycle: 1:8.6896 Medium: Air;Medium parameters used: σ = 0 S/m, ε r = 1; ρ = 0 kg/m 3 Phantom section: RF Section DASY 5 Configuration: Probe: EF3DV3 - SN4051; ConvF(1, 1, 1); Calibrated: 2019-06-18; Sensor-Surface: (Fix Surface) Electronics: DAE4 Sn896; Calibrated: 2019-09-18 Phantom: HAC Test Arch with AMCC; Type: SD HAC P01 BA; DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Device E-Field measurement (E-field scan for ANSI C63.19-2007 & -2011 compliance)/E Scan - ER3D: 15 mm from Probe Center to the Device/Hearing Aid Compatibility Test (101x101x1): Interpolated grid: dx=0.5000 mm, dy=0.5000 mm Device Reference Point: 0, 0, -6.3 mm Reference Value = 133.8 V/m; Power Drift = -0.04 dB Applied MIF = 3.63 dB RF audio interference level = 42.72 dBV/m Emission category: M3 Cursor: Total = 43.97 dBV/m E Cate gory: M3 MIF scaled E-field Grid 1 M4 37.52 dBV/m Grid 2 M4 38.32 dBV/m Grid 3 M4 36.84 dBV/m Grid 4 M3 41.55 dBV/m Grid 5 M3 42.72 dBV/m Grid 6 M3 40.44 dBV/m Grid 7 M3 43.33 dBV/m Grid 8 M3 43.97 dBV/m Grid 9 M3 41.19 dBV/m Location: 2, 25, 7.7 mm 0 dB = 157.9 V/m = 43.97 dBV/m Date: 2020-03-02 Test Laboratory: SGS-SAR Lab 5029D HAC-RF-GSM1900 GSM Voice 512CH DUT : 5029D; Type: LTE/UMTS/GSM mobile phone; Serial: UCZXCALZUS7XJFS8 Communication System: UID 10021 - DAC, GSM-FDD (TDMA, GMSK); Frequency: 1850.2 MHz;Duty Cycle: 1:8.6896 Medium: Air;Medium parameters used: σ = 0 S/m, ε r = 1; ρ = 0 kg/m 3 Phantom section: RF Section DASY 5 Configuration: Probe: EF3DV3 - SN4051; ConvF(1, 1, 1); Calibrated: 2019-06-18; Sensor-Surface: (Fix Surface) Electronics: DAE4 Sn896; Calibrated: 2019-09-18 Phantom: HAC Test Arch with AMCC; Type: SD HAC P01 BA; DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Device E-Field measurement (E-field scan for ANSI C63.19-2007 & -2011 compliance)/E Scan - ER3D: 15 mm from Probe Center to the Device/Hearing Aid Compatibility Test (101x101x1): Interpolated grid: dx=0.5000 mm, dy=0.5000 mm Device Reference Point: 0, 0, -6.3 mm Reference Value = 9.018 V/m; Power Drift = 0.16 dB Applied MIF = 3.63 dB RF audio interference level = 30.36 dBV/m Emission category: M3 Cursor: Total = 31.07 dBV/m E Cate gory: M3 MIF scaled E-field Grid 1 M3 30.34 dBV/m Grid 2 M3 30.36 dBV/m Grid 3 M4 28.45 dBV/m Grid 4 M4 23.18 dBV/m Grid 5 M4 26.83 dBV/m Grid 6 M4 26.98 dBV/m Grid 7 M4 29.61 dBV/m Grid 8 M3 31.07 dBV/m Grid 9 M3 30.72 dBV/m Location: -2, 25, 7.7 mm 0 dB = 35.77 V/m = 31.07 dBV/m Date: 2020-03-02 Test Laboratory: SGS-SAR Lab 5029D HAC-RF-GSM1900 GSM Voice 661CH DUT : 5029D; Type: LTE/UMTS/GSM mobile phone; Serial: UCZXCALZUS7XJFS8 Communication System: UID 10021 - DAC, GSM-FDD (TDMA, GMSK); Frequency: 1880 MHz;Duty Cycle: 1:8.6896 Medium: Air;Medium parameters used: σ = 0 S/m, ε r = 1; ρ = 0 kg/m 3 Phantom section: RF Section DASY 5 Configuration: Probe: EF3DV3 - SN4051; ConvF(1, 1, 1); Cal…

Text truncated - open the document above for the full version.

Report No.: E5/2020/30010 Appendix B Detailed Test Results 1. GSM GSM850 for Head &Body GSM1900 for Head &Body 2. WCDMA WCDMA Band II for Head &Body WCDMA Band V for Head &Body 3. LTE LTE Band 5 for Head &Body LTE Band 7 for Head &Body LTE Band 38 for Head &Body 4. WIFI WIFI 2.4G for Head &Body 5. BT Bluetooth for Head Date: 2020-03-02 Test Laboratory: SGS-SAR Lab 5029D GSM850 GSM 251CH Left cheek DUT: 5029D; Type: Smart Phone; Serial: Y9NVHA4TTKV4IJIJ Communication System: UID 0, GSM Only Communication System (0); Frequency: 848.8 MHz;Duty Cycle: 1:8.30042 Medium: HSL835;Medium parameters used: f = 849 MHz; σ = 0.92 S/m; ε r = 41.836; ρ = 1000 kg/m 3 Phantom section: Left Section DASY 5 Configuration: • Probe: EX3DV4 - SN3748; ConvF(8.76, 8.76, 8.76); Calibrated: 2019-06-19; • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE3 Sn414; Calibrated: 2019-12-17 • Phantom: SAM5; Type: SAM; Serial: 1481 • DASY52 52.8.8(1258); SEMCAD X 14.6.10(7373) Configuration/Head/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.14 W/kg Configuration/Head/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 30.62 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 1.83 W/kg SAR(1 g) = 0.873 W/kg; SAR(10 g) = 0.517 W/kg Maximum value of SAR (measured) = 1.41 W/kg 0 dB = 1.41 W/kg = 1.49 dBW/kg Date: 2020-03-02 Test Laboratory: SGS-SAR Lab 5029D GSM850 GPRS 4TS 190CH Back side 10mm DUT: 5029D; Type: Smart Phone; Serial: Y9NVHA4TTKV4IJIJ Communication System: UID 0, GPRS/EGPRS Mode(4up) Communication System (0); Frequency: 836.6 MHz;Duty Cycle: 1:2.0797 Medium: HSL835;Medium parameters used: f = 837 MHz; σ = 0.912 S/m; ε r = 42.17; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: • Probe: EX3DV4 - SN3748; ConvF(8.76, 8.76, 8.76); Calibrated: 2019-06-19; • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE3 Sn414; Calibrated: 2019-12-17 • Phantom: SAM5; Type: SAM; Serial: 1481 • DASY52 52.8.8(1258); SEMCAD X 14.6.10(7373) Configuration/Body/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.395 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.36 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 0.592 W/kg SAR(1 g) = 0.310 W/kg; SAR(10 g) = 0.178 W/kg Maximum value of SAR (measured) = 0.475 W/kg 0 dB = 0.475 W/kg = -3.23 dBW/kg Date: 2020-02-23 Test Laboratory: SGS-SAR Lab 5029D GSM1900 GSM 661CH Right cheek DUT: 5029D; Type: Smart Phone; Serial: Y9NVHA4TTKV4IJIJ Communication System: UID 0, GSM Only Communication System (0); Frequency: 1880 MHz;Duty Cycle: 1:8.30042 Medium: HSL1900;Medium parameters used: f = 1880 MHz; σ = 1.368 S/m; ε r = 40.278; ρ = 1000 kg/m 3 Phantom section: Right Section DASY 5 Configuration: • Probe: EX3DV4 - SN3789; ConvF(7.3, 7.3, 7.3); Calibrated: 2019-05-25; • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1374; Calibrated: 2019-09-24 • Phantom: SAM6; Type: SAM; Serial: 1824 • DASY52 52.8.8(1258); SEMCAD X 14.6.10(7373) Configuration/Head/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.136 W/kg Configuration/Head/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.795 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.166 W/kg SAR(1 g) = 0.101 W/kg; SAR(10 g) = 0.059 W/kg Maximum value of SAR (measured) = 0.141 W/kg 0 dB = 0.141 W/kg = -8.51 dBW/kg Date: 2020-02-23 Test Laboratory: SGS-SAR Lab 5029D GSM1900 GPRS 4TS 661CH Bottom side 10mm DUT: 5029D; Type: Smart Phone; Serial: Y9NVHA4TTKV4IJIJ Communication System: UID 0, GPRS/EGPRS Mode(4up) Communication System (0); Frequency: 1880 MHz;Duty Cycle: 1:2.0797 Medium: HSL1900;Medium parameters used: f = 1880 MHz; σ = 1.368 S/m; ε r = 40.278; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: • Probe: EX3DV4 - SN3789; ConvF(7.3, 7.3, 7.3); Calibrated: 2019-05-25; • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1374; Calibrated: 2019-09-24 • Phantom: SAM6; Type: SAM; Serial: 1824 • DASY52 52.8.8(1258); SEMCAD X 14.6.10(7373) Configuration/Body/Area …

Text truncated - open the document above for the full version.
