2ACCJH128GSM/UMTS/LTE Mobile phone

TCL Communication Ltd.

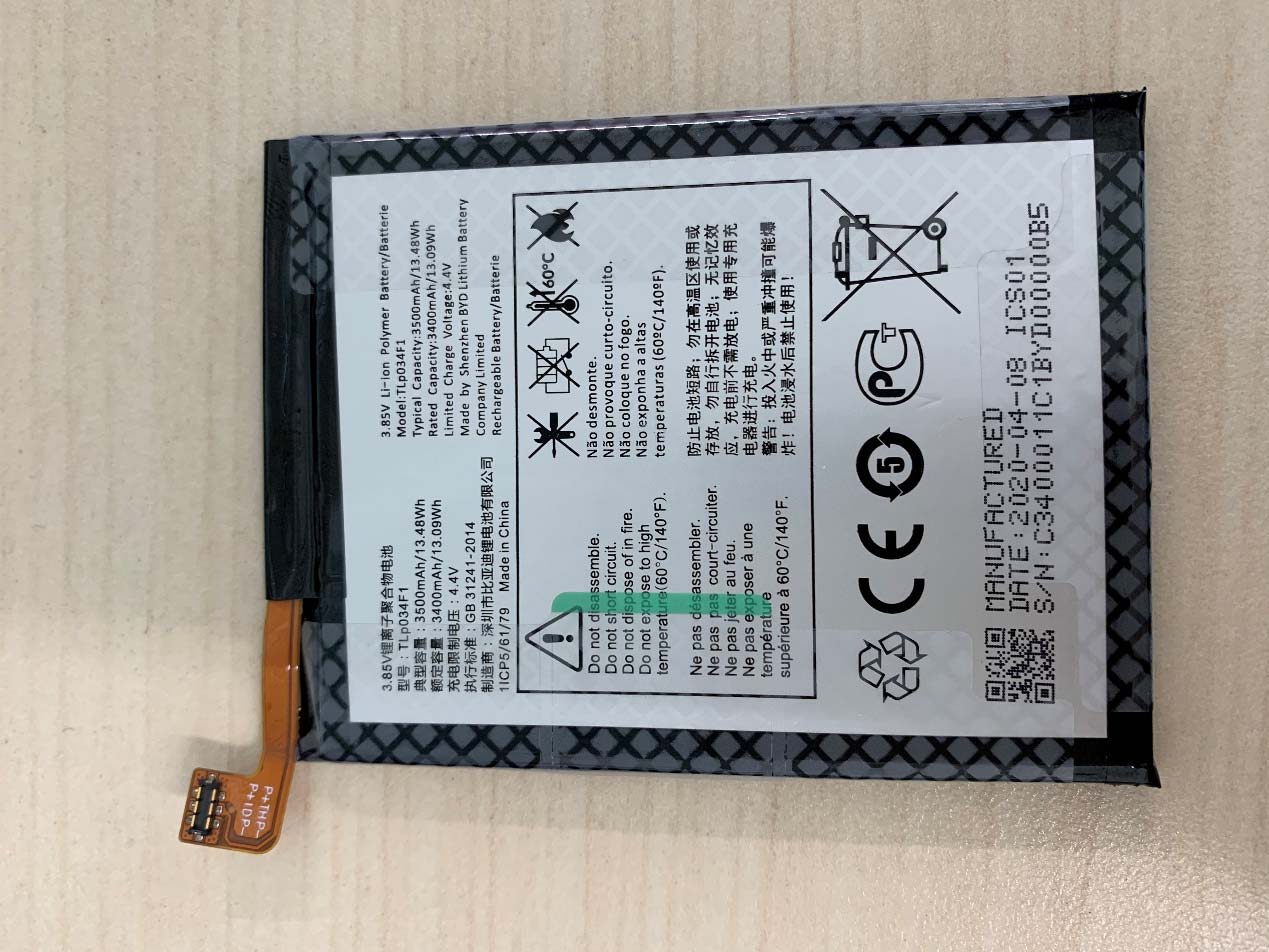

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Jul 06, 2020
Application Purpose: Original Equipment
Date of Application: Jul 02, 2020
Equipment Note: GSM/UMTS/LTE Mobile phone
Frequency Range: 829.00000000 - 844.00000000
Company: TCL Communication Ltd.
Country: China

Documents & Files

Select a file to view

Users Manual

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

7/F, Block F4, TCL Communication Technology Building, TCL International E City, Zhong Shan Yuan Road, Nanshan District, Shenzhen, Guangdong, P.R. China 518052 TEL: 0086-755-36611722 2020-06-29 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: SHORT-TERM Confidentiality request for FCC ID: 2ACCJH128 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days: - External Photos - Internal Photos - Test Setup Photos - User manual The applicant also acknowledges that they will also provide appropriate notice to ACB should either of the following occur: a) if the applicant requires additional 45 days extension periods they will notify ACB with a new request letter at least 7 days prior to the short-term confidentiality expiration date – [Note: up to a maximum of 3 extensions only are allowed], or b) immediately notify ACB in the event the information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Yours Sincerely, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

Cover Letter(s)

TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong Date 2020-05-15 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: CTTL (Telecommunication Technology Labs,Academy of Telecommunication Research,MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

Cover Letter(s)

TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong 2020-06-25 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: 2ACCJH128 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

ID Label/Location Info

Settings->System->Regulatory &safety

RF Exposure Info

©Copyright. All rights reserved by CTTL. SAR TEST REPORT No. I20Z60720-SEM01 For TCL Communication Ltd GSM/UMTS/LTE Mobile phone Model name: 5007W,5007Z With Hardware Version: 04 Software Version: 7HS05000 FCC ID: 2ACCJH128 Issued Date: 2020-6-30 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S.Government. Test Laboratory: CTTL, Telecommunication Technology Labs, CAICT No. 51, Xueyuan Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2512, Fax:+86(0)10-62304633-2504 Email: [email protected], website: www.caict.ac.cn No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 2 of 300 REPORT HISTORY Report Number Revision Issue Date Description I20Z60720-SEM01 Rev.0 2020-6-22 Initial creation of test report I20Z60720-SEM01 Rev.1 2020-6-30 Update the information on section 4.1 of test report. No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 3 of 300 TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 5 1.1 TESTING LOCATION ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE .................................................................................................. 6 3 CLIENT INFORMATION ................................................................................................................ 8 3.1 APPLICANT INFORMATION .............................................................................................................................. 8 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 8 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................. 9 4.1 ABOUT EUT ................................................................................................................................................... 9 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 9 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................ 9 5 TEST METHODOLOGY .............................................................................................................. 10 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 10 5.2 APPLICABLE MEASUREMENT STANDARDS .................................................................................................... 10 6 SPECIFIC ABSORPTION RATE (SAR) ...................................................................................... 11 6.1 INTRODUCTION ............................................................................................................................................. 11 6.2 SAR DEFINITION .......................................................................................................................................... 11 7 TISSUE SIMULATING LIQUIDS ................................................................................................. 12 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 12 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 12 8 SYSTEM VERIFICATION ............................................................................................................ 17 8.1 SYSTEM SETUP ............................................................................................................................................. 17 8.2 SYSTEM VERIFICATION ................................................................................................................................. 18 9 MEASUREMENT PROCEDURES .............................................................................................. 19 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 19 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 21 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 22 9.4 SAR MEASUREMENT FOR LTE ..................................................................................................................... 23 9.5 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 25 9.6 POWER DRIFT ............................................................................................................................................... 25 10 AREA SCAN BASED 1-G SAR ................................................................................................. 26 10.1 REQUIREMENT OF KDB ..............................…

Text truncated - open the document above for the full version.

RF Exposure Info

No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 189 of 300 2600 MHz Date: 6/12/2020 Electronics: DAE4 Sn777 Medium: Head 2600 MHz Medium parameters used: f = 2600 MHz; σ =1.956 mho/m; ε r = 39.01; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.3 o C Communication System: CW Frequency: 2600 MHz Duty Cycle: 1:1 Probe: EX3DV4 – SN3617 ConvF(7.52,7.52,7.52) System Validation /Area Scan (81x191x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 120.71 V/m; Power Drift = 0.02 Fast SAR: SAR(1 g) = 13.77 W/kg; SAR(10 g) = 6.15 W/kg Maximum value of SAR (interpolated) = 24.36 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value =120.71 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 28.93 W/kg SAR(1 g) = 13.91 W/kg; SAR(10 g) = 6.29 W/kg Maximum value of SAR (measured) = 23.56 W/kg 0 dB = 23.56 W/kg = 13.72 dB W/kg Fig.B.8 validation 2600 MHz 250mW No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 190 of 300 2600 MHz Date: 6/13/2020 Electronics: DAE4 Sn777 Medium: Head 2600 MHz Medium parameters used: f = 2600 MHz; σ =1.96 mho/m; ε r = 38.4; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.3 o C Communication System: CW Frequency: 2600 MHz Duty Cycle: 1:1 Probe: EX3DV4 – SN3617 ConvF(7.52,7.52,7.52) System Validation /Area Scan (81x191x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 118.41 V/m; Power Drift = 0.02 Fast SAR: SAR(1 g) = 13.71 W/kg; SAR(10 g) = 6.23 W/kg Maximum value of SAR (interpolated) = 24.49 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value =118.41 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 28.25 W/kg SAR(1 g) = 13.67 W/kg; SAR(10 g) = 6.31 W/kg Maximum value of SAR (measured) = 24.31 W/kg 0 dB = 24.31 W/kg = 13.86 dB W/kg Fig.B.9 validation 2600 MHz 250mW No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 191 of 300 5250 MHz Date: 6/14/2020 Electronics: DAE4 Sn777 Medium: Head 5250 MHz Medium parameters used: f = 5250 MHz; σ =4.729 mho/m; ε r = 36.07; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.3 o C Communication System: CW Frequency: 5250 MHz Duty Cycle: 1:1 Probe: EX3DV4 – SN3617 ConvF(5.39,539,5.39) System Validation /Area Scan (81x191x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 17.8 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value =75.93 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 27.55 W/kg SAR(1 g) = 19.98 W/kg; SAR(10 g) = 5.87 W/kg Maximum value of SAR (measured) = 18.01 W/kg 0 dB = 18.01 W/kg = 12.56 dB W/kg Fig.B.10 validation 5250 MHz 100mW No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 192 of 300 5600 MHz Date: 6/15/2020 Electronics: DAE4 Sn777 Medium: Head 5600 MHz Medium parameters used: f = 5600 MHz; σ =5.153 mho/m; ε r = 35.75; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.3 o C Communication System: CW Frequency: 5600 MHz Duty Cycle: 1:1 Probe: EX3DV4 – SN3617 ConvF(4.99,4.99,4.99) System Validation /Area Scan (81x191x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 19.45 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value =75.52 V/m; Power Drift = -0.1 dB Peak SAR (extrapolated) = 30.47 W/kg SAR(1 g) = 21.18 W/kg; SAR(10 g) = 6 W/kg Maximum value of SAR (measured) = 19.58 W/kg 0 dB = 19.58 W/kg = 12.92 dB W/kg Fig.B.11 validation 5600 MHz 100mW No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 193 of 300 5750 MHz Date: 6/16/2020 Electronics: DAE4 Sn777 Medium: Head 5750 MHz Medium parameters used: f = 5750 MHz; σ =5.201 mho/m; ε r = 35.73; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.3 o C Communication System: CW Frequency: 5750 MHz Duty Cycle: 1:1 Probe: EX3DV4 – SN3617 ConvF(5.10,5.10,5.10) System Validation /Area Scan (81x191x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 19.28 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value =72.33 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 31.37 W/kg SAR(1 g) = 19.9 W/kg; SAR(10 g) = 5.82 W/kg Maximum value of SAR (measured) = 18.56 W/kg 0 dB = 18.56 W/kg = 12.69 dB W/kg Fig.B.12 validation 5750 MHz 100mW No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 194 of 300 The SAR system verification must be required that the area scan estimated 1-g SAR is within 3% of the zoom scan 1-g SAR. Table B.1 Comparison between area scan and zoom scan for system verification Date Band Position Area scan (1g) Zoom scan (1g) Drift (%) 2020-6-5 750 Head 2.12 2.18 -2.75 2020-6-6 835 Head 2.39 2.45 -2.45 2020-6-7 835 Head 2.44 2.43 0.41 2020-6-8 1750 Head 8.99 9.02 -0.33 2020-6-9 1900 Head 9.76 9.73 0.31 2020-6-10 1900 Head 9.75 9.79 -0.41 2020-6-11 2450 Head 13.15 12.78 2.90 2020-6-12 2600 Head 13.77 13.91 -1.01 2020-6-13 2600 Head 13.71 13.67 0.29 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 195 of 300 ANNEX C SAR Measurement Setup C.1 Measurement Set-up The Dasy4 or DASY5 system for performing compliance tests is illustrated above graphically. This system consists of the following items: Picture C.1SAR Lab Test Measurement Set-up ⚫ A standard high precision 6-axis robot (StäubliTX=RX family) with controller, teach pendant and software. An arm extension for accommodating the data acquisition electronics (DAE). ⚫ An isotropic field probe optimized and calibrated for the targeted measurement. ⚫ A data acquisition electronics (DAE) which performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. The unit is battery powered with standard or rechargeable batteries. The sig…

Text truncated - open the document above for the full version.

RF Exposure Info

No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 217 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 218 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 219 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 220 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 221 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 222 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 223 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 224 of 300

RF Exposure Info

No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 225 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 226 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 227 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 228 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 229 of 300 ANNEX H Dipole Calibration Certificate 750 MHz Dipole Calibration Certificate No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 230 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 231 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 232 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 233 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 234 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 235 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 236 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 237 of 300 835 MHz Dipole Calibration Certificate No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 238 of 300

RF Exposure Info

No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 239 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 240 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 241 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 242 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 243 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 244 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 245 of 300 1750 MHz Dipole Calibration Certificate No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 246 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 247 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 248 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 249 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 250 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 251 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 252 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 253 of 300 1900 MHz Dipole Calibration Certificate No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 254 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 255 of 300

RF Exposure Info

No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 256 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 257 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 258 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 259 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 260 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 261 of 300 2450 MHz Dipole Calibration Certificate No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 262 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 263 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 264 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 265 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 266 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 267 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 268 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 269 of 300 2600 MHz Dipole Calibration Certificate No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 270 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 271 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 272 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 273 of 300

RF Exposure Info

No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 274 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 275 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 276 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 277 of 300 5 GHz Dipole Calibration Certificate No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 278 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 279 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 280 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 281 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 282 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 283 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 284 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 285 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 286 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 287 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 288 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 289 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 290 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 291 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 292 of 300

RF Exposure Info

No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 293 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 294 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 295 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 296 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 297 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 298 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 299 of 300 No.I20Z60720-SEM01 ©Copyright. All rights reserved by CTTL. Page 300 of 300 ANNEX I Accreditation Certificate

Test Report

No.I20Z60720-SEM03 ©Copyright. All rights reserved by CTTL. Page 1 of 93 HAC T-Coil TEST REPORT No. I20Z60720-SEM03 For TCL Communication Ltd. GSM/UMTS/LTE Mobile phone Model Name: 5007W,5007Z With Hardware Version: 04 Software Version: 7HS05000 FCC ID: 2ACCJH128 Results Summary: T Category = T3 Issued Date: 2020-6-22 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S.Government. Test Laboratory: CTTL, Telecommunication Technology Labs, CAICT No. 51, Xueyuan Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2512, Fax:+86(0)10-62304633-2504 Email: [email protected], website: www.caict.ac.cn No.I20Z60720-SEM03 ©Copyright. All rights reserved by CTTL. Page 2 of 93 REPORT HISTORY Report Number Revision Issue Date Description I20Z60720-SEM03 Rev.0 2020-6-22 Initial creation of test report No.I20Z60720-SEM03 ©Copyright. All rights reserved by CTTL. Page 3 of 93 TABLE OF CONTENT 1 TEST LABORATORY ................................................................................................................... 5 1.1 TESTING LOCATION .......................................................................................................................... 5 1.2 TESTING ENVIRONMENT ................................................................................................................... 5 1.3 PROJECT DATA ................................................................................................................................ 5 1.4 SIGNATURE ...................................................................................................................................... 5 2 CLIENT INFORMATION ............................................................................................................... 6 2.1 APPLICANT INFORMATION ................................................................................................................. 6 2.2 MANUFACTURER INFORMATION ......................................................................................................... 6 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................ 7 3.1 ABOUT EUT ..................................................................................................................................... 7 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................................................ 7 3.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST................................................................... 7 3.4 AIR INTERFACES / BANDS INDICATING OPERATING MODES .................................................................. 8 4 REFERENCE DOCUMENTS ........................................................................................................ 8 5 OPERATIONAL CONDITIONS DURING TEST ........................................................................... 9 5.1 HAC MEASUREMENT SET-UP .................................................................................................... 9 5.2 AM1D PROBE ................................................................................................................................ 10 5.3 AMCC ........................................................................................................................................... 11 5.4 AMMI ............................................................................................................................................. 11 5.5 TEST ARCH PHANTOM &PHONE POSITIONER .................................................................................... 11 5.6 ROBOTIC SYSTEM SPECIFICATIONS ................................................................................................. 12 5.7 T-COIL MEASUREMENT POINTS AND REFERENCE PLANE .................................................................... 12 6 T-COIL TEST PROCEDUERES ................................................................................................. 14 7 T-COIL PERFORMANCE REQUIREMENTS ............................................................................. 15 7.1 T-COIL COUPLING FIELD INTENSITY .................................................................................................. 15 7.2 FREQUENCY RESPONSE.................................................................................................................. 15 8 CMRS VOICE DUT CONFIGURATION ...................................................................................... 17 8.1 GSM CODEC INVESTIGATION .......................................................................................................... 17 8.2 UMTS CODEC INVESTIGATION ........................................................................................................ 17 9 VOLTE TEST SYSTEM SETUP AND DUT CONFIGURATION ................................................. 18 9.1 TEST SYSTEM SETUP FOR VOLTE OVER IMS T-COIL TESTING .......................................................... 18 9.2 CODEC CONFIGURATION ................................................................................................................. 19 9.3 RADIO CONFIGURATION .................................................................................................................. 19 9.4 LTE TDD UPLINK-DOWNLINK CONFIGURATION INVESTIGATION ......................................................... 20 10 VOWIFI TEST SYSTEM SETUP AND DUT CONFIGURATION .............................................. 22 10.1 TEST SYSTEM SETUP FOR VOWIFI OVER IMS T-COIL TESTING ...................................................... 22 10.2 CODEC CONFIGURATION .....................................................................…

Text truncated - open the document above for the full version.

Test Report

No.I20Z60720-SEM02 ©Copyright. All rights reserved by CTTL. Page 1 of 77 HAC RF TEST REPORT No. I20Z60720-SEM02 For TCL Communication Ltd. GSM/UMTS/LTE Mobile phone Model Name: 5007W,5007Z With Hardware Version: 04 Software Version: 7HS05000 FCC ID: 2ACCJH128 Results Summary: M Category = M3 Issued Date: 2020-6-22 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S.Government. Test Laboratory: CTTL, Telecommunication Technology Labs, CAICT No. 51, Xueyuan Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2512, Fax:+86(0)10-62304633-2504 Email: [email protected], website: www.caict.ac.cn No.I20Z60720-SEM02 ©Copyright. All rights reserved by CTTL. Page 2 of 77 REPORT HISTORY Report Number Revision Issue Date Description I20Z60720-SEM02 Rev.0 2020-6-22 Initial creation of test report No.I20Z60720-SEM02 ©Copyright. All rights reserved by CTTL. Page 3 of 77 TABLE OF CONTENT 1 TEST LABORATORY ................................................................................................................... 5 1.1 TESTING LOCATION ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4…

Text truncated - open the document above for the full version.

Contact Information
