2ACCJN001GSM Quad-band, UMTS Quad-band, LTE 6 band mobile phone

English - CJB61B1ALAAA Quick Start Guide Important: Your phone is a unibody device, so the back cover and battery are not removable. Unauthorized personnel are strictly prohibited from disassembling the phone. If your phone isn’t working normally, try to restart it by pressing and holding the Power key for at least 10 seconds until the startup screen appears. If your phone develops a serious error and can’t be restored by restarting it, you may need to restore factory settings by pressing and holding the Power key and Volume up key until the startup screen appears. Then select "reboot system now" and press the Power key to confirm. Note: Please take care when performing such operations because they will erase personalized settings and data saved in your phone, such as SMS, Contacts, Music, etc. For more information about how to use your device please visit www.alcatelonetouch.us to download the complete user manual. From the website, you can consult the FAQ, perform software upgrades, etc. Thank you for buying ALCATEL ONETOUCH 6045B. We hope you will enjoy your high-quality mobile communication experience. BC 1 1 Your mobile ������������������ 1�1 Keys and connectors Micro-USB Connector Front camera Headset connector LED indicator Home key Touch screen Back key Recents key Table of contents 1 Your mobile ���������������������������������������������������������������������1 2 Text input ����������������������������������������������������������������������11 3 Phone call ����������������������������������������������������������������������12 4 Contacts ������������������������������������������������������������������������15 5 Messaging�����������������������������������������������������������������������16 6 Email ������������������������������������������������������������������������������18 7 Getting connected ��������������������������������������������������������19 8 Find my location using GPS satellites ������������������������21 9 Data backup ������������������������������������������������������������������22 10 Factory data reset ��������������������������������������������������������22 11 Applications & Internal storage ����������������������������������23 12 Upgrade �������������������������������������������������������������������������24 Safety and use �������������������������������������������������������������������������25 General information ��������������������������������������������������������������33 TCL Communication Ltd� Warranty������������������������������������34 Troubleshooting����������������������������������������������������������������������36 PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. www.sar-tick.com This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found on page 29 of this user guide. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 1.0 cm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. 23 Camera Camera Flash/Flashlight Power key SIM card slot Volume key Recents key • Touch to view recently used applications. Home key • From any application or screen, touch to return to the Home screen. • Touch and hold to pop up Google search icon. Slide your finger to the icon to open Google search. Back key • Touch to go back to the previous screen, or to close a dialog box, options menu, the notification panel, etc. These keys are visible when the phone is unlocked. Power key • Press: Lock the screen/Light up the screen. • Press and hold: Shows the pop-up menu to select from Power off/Restart/Airplane mode. • Press and hold the Power key and Volume up key to reset. • Press and hold the Power key and Volume down key to capture a screenshot. • Press and hold the Power key for at least 10 seconds to force reboot or hold it longer to power off. Volume Keys • In call mode, adjusts the earpiece or headset volume. • In Music/Video/Streaming mode, adjusts the media volume. • In general mode, adjusts the ringtone volume. • Mutes the ringtone of an incoming call. • In camera preview mode, press Volume up or down key to enter burst shoot. 1�2 Getting started 1�2�1 Set up Inserting or removing the SIM/microSD card You must insert your SIM card to make phone calls. You do not need to power off your phone before inserting or removing the SIM card as this phone can support hot swap. 45 Before you install/remove the SIM card or microSD card, insert the SIM card tool provided into the small opening on the side of the device. The SIM/microSD card tray will pop out. Your phone only supports micro-SIM cards. Do not attempt to insert other SIM types like mini and nano cards; otherwise this may cause damage to your phone. Charging the battery Connect USB cable provided to your phone and charger. Then, connect charger to electrical outlet. The LED indicator will light while charging. To reduce power consumption and energy waste, when the battery is fully charged, disconnect your charger; switch off Wi-Fi, GPS, Bluetooth or background-running applications when not in use; reduce the backlight time, etc. 1�2�2 Power on your phone Hold down the Power key until the phone powers on. It will take a few seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you should set the following options: Language, Google account, etc. Even if no SIM card is installed, your phone will still power on and you will be able to connect to a Wi-Fi network, sign into your Google account and use some of the phone's features. 1�2�3 Power off your phone Hold down the Power key from the Home screen until the phone options appear, select Power off.…

Text truncated - open the document above for the full version.

Rev. 1/1/03 TCL Communication Ltd. 5F, C-Tower, No.232, Liangjing Road, Zhangjiang High-tech Park, Pudong, Shanghai, China Tel: +86 21 51798260 ; Fax: +86 21 61460600 Date: April 6, 2015 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2ACCJN001 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Parts List Operation Description Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

TCL Communication Ltd. 5F, C-Tower, No.232, Liangjing Road, Zhangjiang High-tech Park, Pudong, Shanghai, China Tel: +86 21 51798260 ; Fax: +86 21 61460600 Date: April 6, 2015 Power of Attorney To whom it may concern, Please be notified that I, Zhizhou Gong, have designated Michael Lin in Sporton International Inc. as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: 2ACCJN001 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, TEL: +86 21 51798260 FAX: +86 21 61460600 E-mail: [email protected]

1/1 TCL Communication Ltd. Date: April 6, 2015 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : 2ACCJN001 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, Public Notice DA 04-1705 of the Commission’s policy and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which TCL Communication Ltd. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, TEL: +86 21 51798260 FAX: +86 21 61460600 E-mail: [email protected]

TCL Communication Ltd. 5F, C-Tower, No.232, Liangjing Road, Zhangjiang High-tech Park, Pudong, Shanghai, China Tel: +86 21 51798260 ; Fax: +86 21 61460602 Date: April 14, 2015 Federal Communications Commission Office of Engineering and Technology Laboratory Division Subject: Reverse call feature of FCC ID: 2ACCJN001 To whom it may concern: This device employs a “reverse calling” feature based on the orientation of the device such that a call can be made or taken in either portrait orientation (“Normal” and “Upside Down”). The maximum output power is reduced for a number of wireless technologies, as specified in the parts list/tune-up info exhibit, for the reverse calling mode. When a user accepts or initiates a voice call, the normal or reverse calling mode is determined by the device according to the fixed set of rules described in the operational description exhibit. Once a call is connected, the device will lock that orientation state for the duration of the call, such that the user will not be able to rotate the device during a live call and continue the call in the reversed orientation. The feature is disabled by default and must be user activated in the device Settings menu. Detailed instructions on its proper use will be included in the User Manual of the device. After the user activates the reverse calling feature, a pop-up message is displayed to alert the user of this feature and proper use conditions. The details are also included in the User Manual of this device in the User Manual Exhibit The device has been tested in voice mode for head SAR exposure compliance in both normal and reverse calling mode according to the maximum output power specified in the parts list/tune-up info exhibit. Body-worn accessory and hotspot mode SAR compliance are tested at normal mode maximum output power without power reduction Should you have any question, please contact the undersigned. Sincerely, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

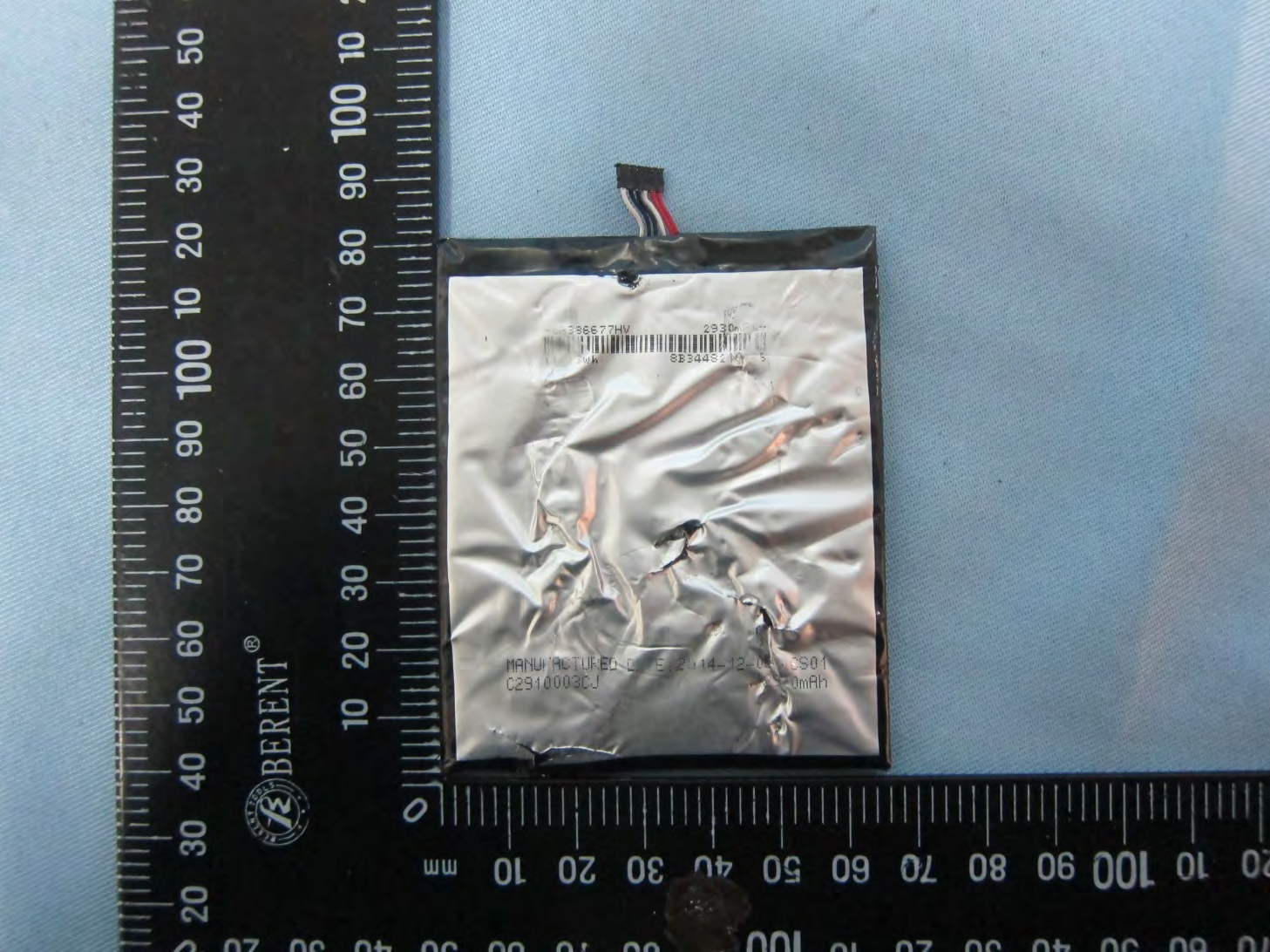

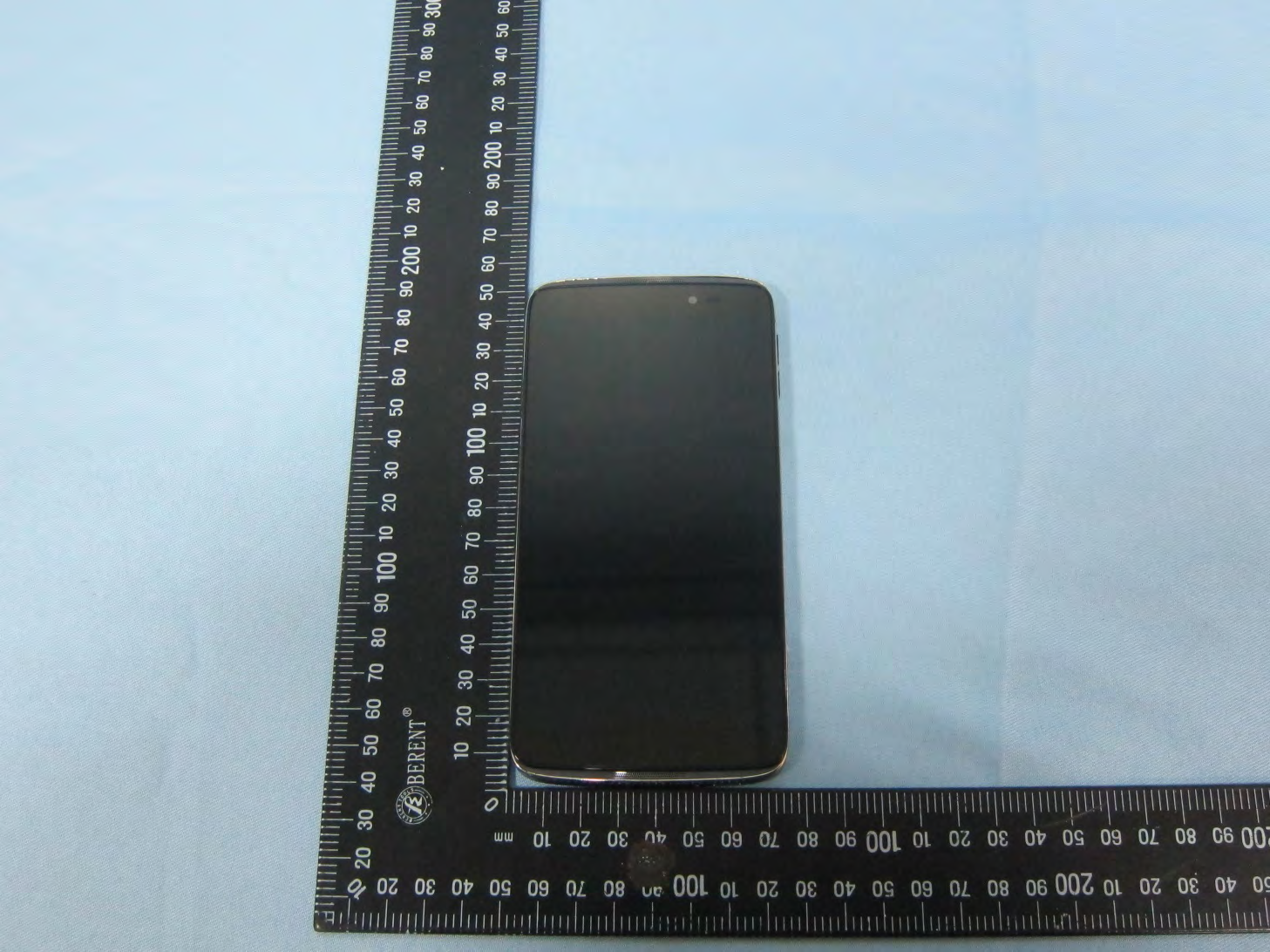

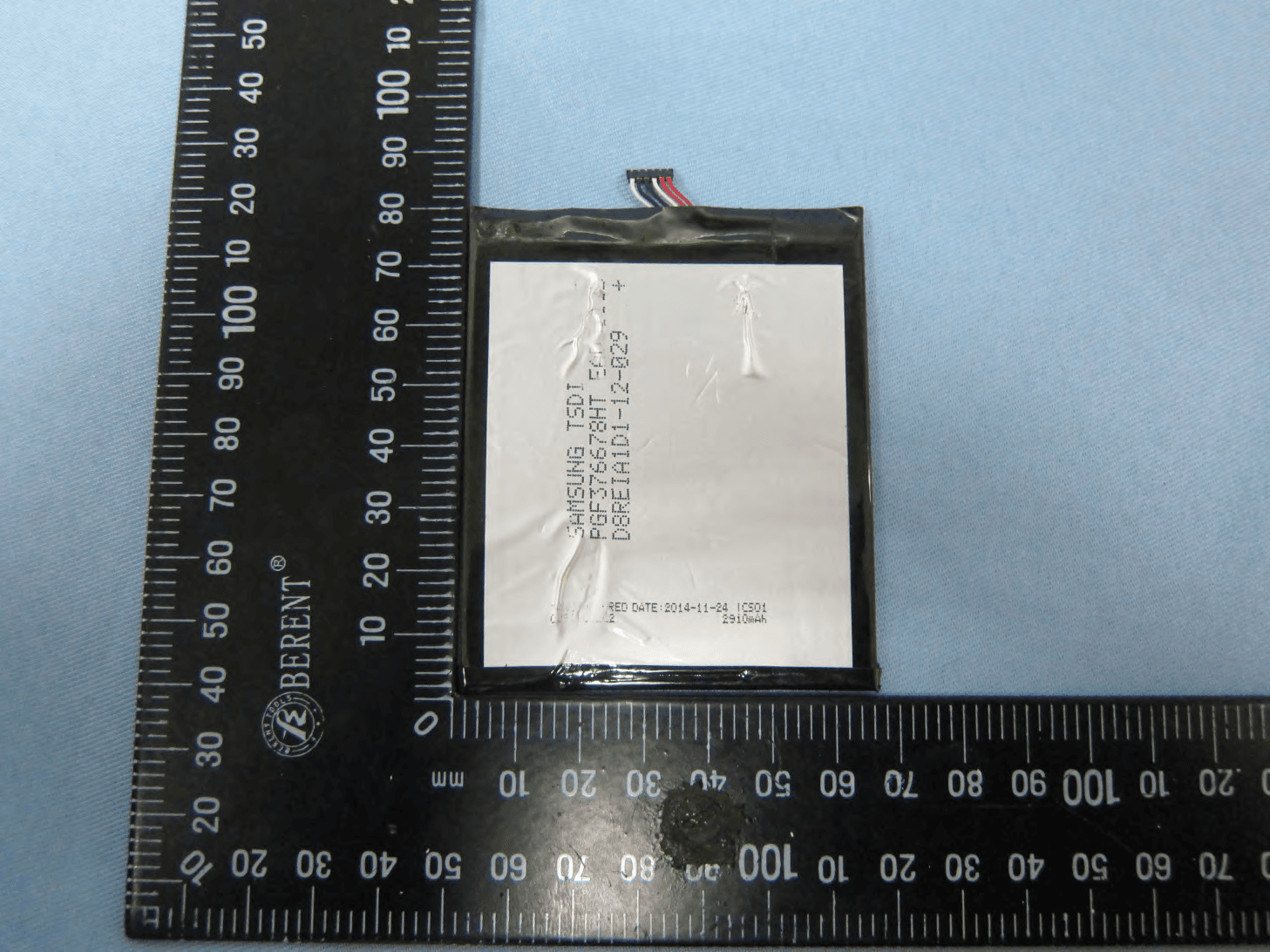

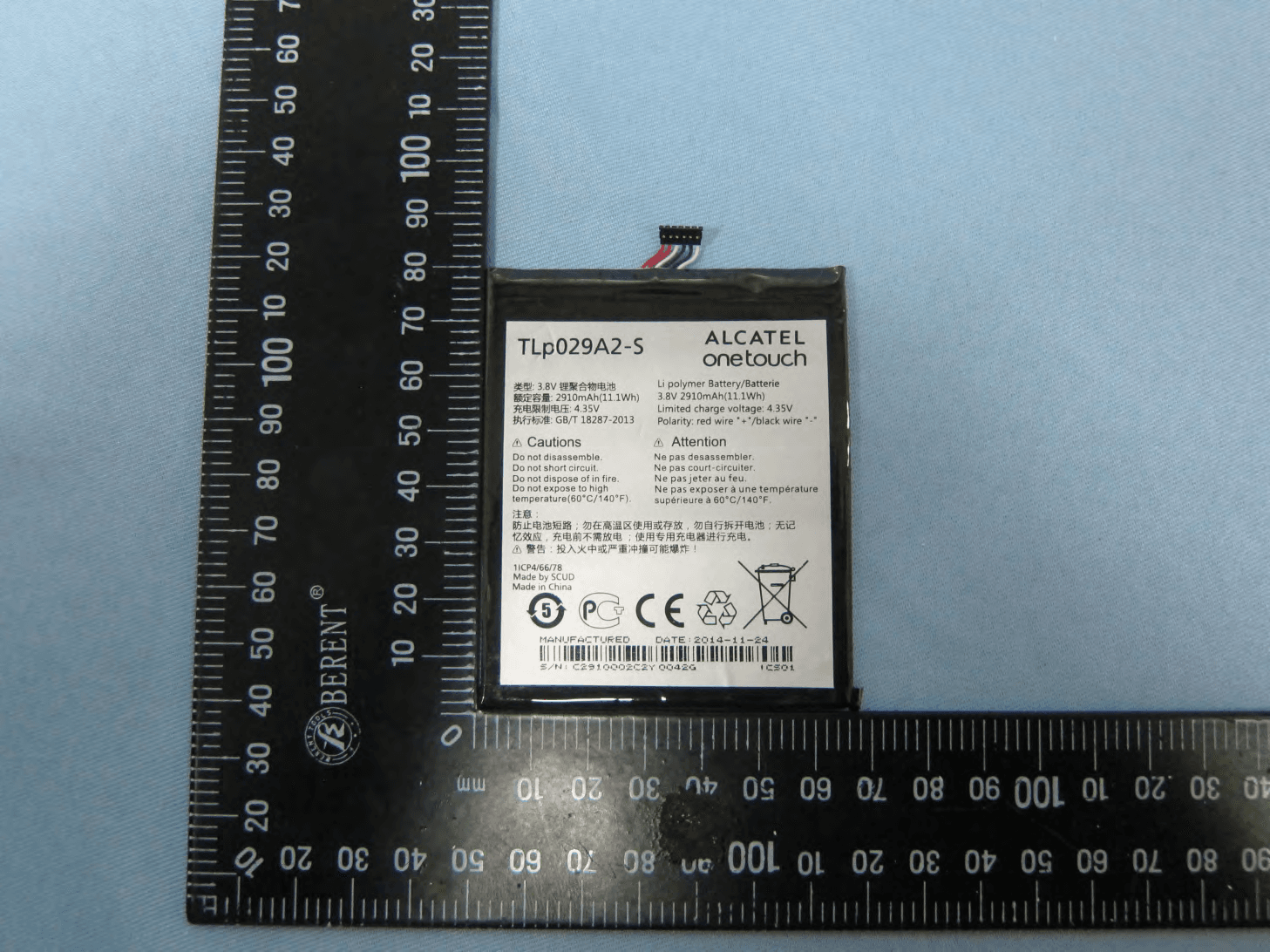

Photographs of EUT Report No.: EP511301 Brand Name: ALCATEL ONETOUCH Model Name: 6045B Marketing Name: ALCATEL ONETOUCH IDOL 3 (5.5) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 20, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : 2ACCJN001 1. External Photograph of EUT Photographs of EUT Report No.: EP511301 Brand Name: ALCATEL ONETOUCH Model Name: 6045B Marketing Name: ALCATEL ONETOUCH IDOL 3 (5.5) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 20, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : 2ACCJN001 Photographs of EUT Report No.: EP511301 Brand Name: ALCATEL ONETOUCH Model Name: 6045B Marketing Name: ALCATEL ONETOUCH IDOL 3 (5.5) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 20, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : 2ACCJN001 Photographs of EUT Report No.: EP511301 Brand Name: ALCATEL ONETOUCH Model Name: 6045B Marketing Name: ALCATEL ONETOUCH IDOL 3 (5.5) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 20, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : 2ACCJN001 Photographs of EUT Report No.: EP511301 Brand Name: ALCATEL ONETOUCH Model Name: 6045B Marketing Name: ALCATEL ONETOUCH IDOL 3 (5.5) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 20, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : 2ACCJN001 Photographs of EUT Report No.: EP511301 Brand Name: ALCATEL ONETOUCH Model Name: 6045B Marketing Name: ALCATEL ONETOUCH IDOL 3 (5.5) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 20, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : 2ACCJN001 Photographs of EUT Report No.: EP511301 Brand Name: ALCATEL ONETOUCH Model Name: 6045B Marketing Name: ALCATEL ONETOUCH IDOL 3 (5.5) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 20, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : 2ACCJN001 Specification of Accessory AC Adapter 1 Brand Name ALCATEL ONETOUCH Model Name UC13US (P/N: CBA0059AG0C1) AC Adapter 2 Brand Name ALCATEL ONETOUCH Model Name UC13US (P/N: CBA0059AG0C4) Battery 1 Brand Name ALCATEL ONETOUCH Model Name TLp029AJ Battery 2 Brand Name ALCATEL ONETOUCH Model Name TLp029A2-S Earphone 1 Brand Name ALCATEL ONETOUCH Model Name CCA0001A10C9 Signal Line Type 1.2m non-shielded without core Earphone 2 Brand Name ALCATEL ONETOUCH Model Name CCB0029A10CC Signal Line Type 1.38m non-shielded without core USB Cable 1 Brand Name ALCATEL ONETOUCH Model Name CDA0000043C2 Signal Line Type 1.01m shielded without core USB Cable 2 Brand Name ALCATEL ONETOUCH Model Name CDA0000043C1 Signal Line Type 1.01m shielded without core USB Cable 3 Brand Name ALCATEL ONETOUCH Brand Name CDA0000043C8 Signal Line Type 1.04m shielded without core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP511301 Brand Name: ALCATEL ONETOUCH Model Name: 6045B Marketing Name: ALCATEL ONETOUCH IDOL 3 (5.5) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 20, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : 2ACCJN001 Photographs of EUT Report No.: EP511301 Brand Name: ALCATEL ONETOUCH Model Name: 6045B Marketing Name: ALCATEL ONETOUCH IDOL 3 (5.5) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 20, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : 2ACCJN001 AC Adapter 1 Photographs of EUT Report No.: EP511301 Brand Name: ALCATEL ONETOUCH Model Name: 6045B Marketing Name: ALCATEL ONETOUCH IDOL 3 (5.5) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 20, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : 2ACCJN001 AC Adapter 2 Photographs of EUT Report No.: EP511301 Brand Name: ALCATEL ONETOUCH Model Name: 6045B Marketing Name: ALCATEL ONETOUCH IDOL 3 (5.5) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 20, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : 2ACCJN001 Battery 1 Photographs of EUT Report No.: EP511301 Brand Name: ALCATEL ONETOUCH Model Name: 6045B Marketing Name: ALCATEL ONETOUCH IDOL 3 (5.5) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 20, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : 2ACCJN001 Photographs of EUT Report No.: EP511301 Brand Name: ALCATEL ONETOUCH Model Name: 6045B Marketing Name: ALCATEL ONETOUCH IDOL 3 (5.5) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 20, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : 2ACCJN001 Battery 2 Photographs of EUT Report No.: EP511301 Brand Name: ALCATEL ONETOUCH Model Name: 6045B Marketing Name: ALCATEL ONETOUCH IDOL 3 (5.5) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 20, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : 2ACCJN001

Photographs of EUT Report No.: EP511301 Brand Name: ALCATEL ONETOUCH Model Name: 6045B Marketing Name: ALCATEL ONETOUCH IDOL 3 (5.5) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 20, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : 2ACCJN001 3. Internal Photograph of EUT WWANAntenna <Tx/Rx> Bluetooth & WLAN Antenna <Tx/Rx> NFC Antenna <Tx/Rx> GPS/Glonass Antenna <Rx> Photographs of EUT Report No.: EP511301 Brand Name: ALCATEL ONETOUCH Model Name: 6045B Marketing Name: ALCATEL ONETOUCH IDOL 3 (5.5) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 20, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : 2ACCJN001 Photographs of EUT Report No.: EP511301 Brand Name: ALCATEL ONETOUCH Model Name: 6045B Marketing Name: ALCATEL ONETOUCH IDOL 3 (5.5) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 20, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : 2ACCJN001 Photographs of EUT Report No.: EP511301 Brand Name: ALCATEL ONETOUCH Model Name: 6045B Marketing Name: ALCATEL ONETOUCH IDOL 3 (5.5) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 20, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : 2ACCJN001 Photographs of EUT Report No.: EP511301 Brand Name: ALCATEL ONETOUCH Model Name: 6045B Marketing Name: ALCATEL ONETOUCH IDOL 3 (5.5) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 20, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : 2ACCJN001 Photographs of EUT Report No.: EP511301 Brand Name: ALCATEL ONETOUCH Model Name: 6045B Marketing Name: ALCATEL ONETOUCH IDOL 3 (5.5) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 20, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : 2ACCJN001 Photographs of EUT Report No.: EP511301 Brand Name: ALCATEL ONETOUCH Model Name: 6045B Marketing Name: ALCATEL ONETOUCH IDOL 3 (5.5) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 20, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : 2ACCJN001 Photographs of EUT Report No.: EP511301 Brand Name: ALCATEL ONETOUCH Model Name: 6045B Marketing Name: ALCATEL ONETOUCH IDOL 3 (5.5) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 20, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : 2ACCJN001 Photographs of EUT Report No.: EP511301 Brand Name: ALCATEL ONETOUCH Model Name: 6045B Marketing Name: ALCATEL ONETOUCH IDOL 3 (5.5) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 20, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : 2ACCJN001 Photographs of EUT Report No.: EP511301 Brand Name: ALCATEL ONETOUCH Model Name: 6045B Marketing Name: ALCATEL ONETOUCH IDOL 3 (5.5) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 20, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : 2ACCJN001 Photographs of EUT Report No.: EP511301 Brand Name: ALCATEL ONETOUCH Model Name: 6045B Marketing Name: ALCATEL ONETOUCH IDOL 3 (5.5) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 20, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : 2ACCJN001 Photographs of EUT Report No.: EP511301 Brand Name: ALCATEL ONETOUCH Model Name: 6045B Marketing Name: ALCATEL ONETOUCH IDOL 3 (5.5) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 26 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 20, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : 2ACCJN001 Photographs of EUT Report No.: EP511301 Brand Name: ALCATEL ONETOUCH Model Name: 6045B Marketing Name: ALCATEL ONETOUCH IDOL 3 (5.5) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 27 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 20, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : 2ACCJN001 Photographs of EUT Report No.: EP511301 Brand Name: ALCATEL ONETOUCH Model Name: 6045B Marketing Name: ALCATEL ONETOUCH IDOL 3 (5.5) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 28 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 20, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : 2ACCJN001 Photographs of EUT Report No.: EP511301 Brand Name: ALCATEL ONETOUCH Model Name: 6045B Marketing Name: ALCATEL ONETOUCH IDOL 3 (5.5) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 29 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 20, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : 2ACCJN001 Photographs of EUT Report No.: EP511301 Brand Name: ALCATEL ONETOUCH Model Name: 6045B Marketing Name: ALCATEL ONETOUCH IDOL 3 (5.5) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 30 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 20, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : 2ACCJN001 Photographs of EUT Report No.: EP511301 Brand Name: ALCATEL ONETOUCH Model Name: 6045B Marketing Name: ALCATEL ONETOUCH IDOL 3 (5.5) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 31 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 20, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : 2ACCJN001 Photographs of EUT Report No.: EP511301 Brand Name: ALCATEL ONETOUCH Model Name: 6045B Marketing Name: ALCATEL ONETOUCH IDOL 3 (5.5) SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 32 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 20, 2015 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : 2ACCJN001 Photographs of EUT Report No.: EP511301 Brand Name: ALCATEL ONETOUCH Model Name: 6045B Marketing Name: ALCATEL O…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. TEL : 86-0512-5790-0158 / FAX : 86-0512-5790-0958 Issued Date : Apr. 10, 2015 FCC ID : 2ACCJN001 Page A1 of A1 Form version. : 141020 FCC SAR Test Report Report No. : FA511301 Appendix A. Plots of System Performance Check The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015.02.17 System Check_Head_835MHz_150217 DUT: D835V2 - SN:4d091 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835_150217 Medium parameters used: f = 835 MHz; σ = 0.885 mho/m; ε r = 41.087; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3857; ConvF(9.41, 9.41, 9.41); Calibrated: 2014.05.23 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2014.05.19 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 3.022 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.934 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 3.543 W/kg SAR(1 g) = 2.39 mW/g; SAR(10 g) = 1.57 mW/g Maximum value of SAR (measured) = 3.027 mW/g 0 dB = 3.030mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015.04.09 System Check_Head_835MHz_150409 DUT: D835V2 - SN:4d091 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835_150409 Medium parameters used: f = 835 MHz; σ = 0.893 mho/m; ε r = 41.38; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3857; ConvF(9.41, 9.41, 9.41); Calibrated: 2014.05.23 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2014.05.19 - Phantom: SAM2; Type: SAM; Serial: TP-1477 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 3.023 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.872 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 3.527 W/kg SAR(1 g) = 2.38 mW/g; SAR(10 g) = 1.56 mW/g Maximum value of SAR (measured) = 3.013 mW/g 0 dB = 3.010mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015.02.17 System Check_Head_1750MHz_150217 DUT: D1750V2 - SN:1069 Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL_1750_150217 Medium parameters used: f = 1750 MHz; σ = 1.398 mho/m; ε r = 41.384; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3857; ConvF(8.55, 8.55, 8.55); Calibrated: 2014.05.23 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2014.05.19 - Phantom: SAM2; Type: SAM; Serial: TP-1477 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 13.597 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 87.582 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 17.057 W/kg SAR(1 g) = 9.48 mW/g; SAR(10 g) = 5.08 mW/g Maximum value of SAR (measured) = 13.514 mW/g 0 dB = 13.510mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015.04.09 System Check_Head_1750MHz_150409 DUT: D1750V2 - SN:1069 Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL_1750_150409 Medium parameters used: f = 1750 MHz; σ = 1.373 mho/m; ε r = 41.392; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3857; ConvF(8.55, 8.55, 8.55); Calibrated: 2014.05.23 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2014.05.19 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 13.354 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 87.582 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 16.752 W/kg SAR(1 g) = 9.31 mW/g; SAR(10 g) = 4.99 mW/g Maximum value of SAR (measured) = 13.273 mW/g 0 dB = 13.270mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015.02.16 System Check_Head_1900MHz_150216 DUT: D1900V2 - SN:5d118 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_150216 Medium parameters used: f = 1900 MHz; σ = 1.424 mho/m; ε r = 39.036; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.9 °C DASY5 Configuration: - Probe: EX3DV4 - SN3857; ConvF(8.4, 8.4, 8.4); Calibrated: 2014.05.23 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2014.05.19 - Phantom: SAM2; Type: SAM; Serial: TP-1477 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 14.462 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 87.713 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 18.708 W/kg SAR(1 g) = 10 mW/g; SAR(10 g) = 5.14 mW/g Maximum value of SAR (measured) = 14.585 mW/g 0 dB = 14.590mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015.04.09 System Check_Head_1900MHz_150409 DUT: D1900V2 - SN:5d118 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_150409 Medium parameters used: f = 1900 MHz; σ = 1.423 mho/m; ε r = 39.08; ρ = 1000 kg/m 3 Ambient Temperature：23.7 °C; Liquid Temperature：22.5 °…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. TEL : 86-0512-5790-0158 / FAX : 86-0512-5790-0958 Issued Date : Apr. 10, 2015 FCC ID : 2ACCJN001 Page B1 of B1 Form version. : 141020 FCC SAR Test Report Report No. : FA511301 Appendix B. Plots of High SAR Measurement The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015.02.17 #01_GSM850_GPRS (4 Tx slots)_Left Cheek_Ch189 Communication System: GPRS/EDGE (4 Tx slots) (0); Frequency: 836.4 MHz;Duty Cycle: 1:2.08 Medium: HSL_835_150217 Medium parameters used: f = 836.4 MHz; σ = 0.886 mho/m; ε r = 41.069; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3857; ConvF(9.41, 9.41, 9.41); Calibrated: 2014.05.23 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2014.05.19 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.4.5 (3634) Ch189/…

Text truncated - open the document above for the full version.
