2ACCJN036HSUPA/HSDPA/UMTS 5 Bands/GSM Quad Bands/LTE 17 bands mobile phone

Safety and Precautions CQF66L102AAA 1 Printed in China This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found in the Radio waves section. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 15 mm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your phone near your ear while the loudspeaker is in use. www.sar-tick.com 2 Safety and use ������������������������� We recommend that you read this chapter carefully before using your phone. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use or use contrary to the instructions contained herein. TRAFFIC SAFETY: Given that studies show that using a phone while driving a vehicle constitutes a real risk, even when the hands-free kit is used (car kit, headset...), drivers are requested to refrain from using their phone when the vehicle is not parked. Check the laws and regulations on the use of wireless phones and their accessories in the areas where you drive. Always obey them. The use of these devices may be prohibited or restricted in certain areas. CONDITIONS OF USE: • You are advised to switch off the phone from time to time to optimize its performance; • Remember to abide by local authority rules of mobile phone use on aircrafts; • If your phone is a unibody device, where the back cover and battery are not removable, disassembling the phone will void your warranty. Disassembling the phone can cause bodily injury if the battery is punctured; • Always handle your phone with care and keep it in a clean and dust-free place; • Do not allow your phone to be exposed to adverse weather or environmental conditions, such as moisture, humidity, rain, infiltration of liquids, dust, sea air, etc. The manufacturer’s recommended operating temperature range is 0°C (32°F) to 55°C (131°F). At over 55°C (131°F), the legibility of the phone’s display may be temporarily impaired; • Do not open, dismantle, or attempt to repair your phone yourself; • Do not drop, throw, or bend your phone; • Use only batteries, battery chargers, and accessories which are recommended by TCL Communication Ltd. and its affiliates and are compatible with your phone model. TCL Communication Ltd. and its affiliates disclaim any liability for damage caused by the use of other chargers or batteries; • Your phone should not be disposed of in a municipal waste. Please check local regulations for disposal of electronic products; • Remember to make backup copies or keep a written record of all important information stored on your phone; • Some people may suffer epileptic seizures or blackouts when exposed to flashing lights, or when playing video games. These seizures or blackouts may occur even if a person never had a previous seizure or blackout. If you have experienced seizures or blackouts, or if you have a family history of such occurrences, please consult your doctor before playing video games on your phone or enabling a flashing-lights feature on your phone; • Parents should monitor their children’s use of video games or other features that incorporate flashing lights on the phones. All persons should discontinue use and consult a doctor if any of the following symptoms occur: convulsion, eye or muscle twitching, loss of awareness, orientation, or movements. 3 PRIVACY: Please note that you must respect the laws and regulations in force in your jurisdiction or other jurisdiction(s) where you will use your phone regarding taking photographs and recording sounds with your phone. Pursuant to such laws and regulations, it may be strictly forbidden to take photographs and/or to record the voices of other people or any of their personal attributes, and reproduce or distribute them, as this may be considered to be an invasion of privacy. It is the user's sole responsibility to ensure that prior authorization has been obtained, if necessary, in order to record private or confidential conversations or take a photograph of another person; the manufacturer, the seller or vendor of your phone (including the carrier) disclaim any liability which may result from improper use of the phone. BATTERY: Observe the following precautions: • Do not attempt to open the back cover; • Do not attempt to eject, replace, or open the battery; • Do not puncture the back cover of your phone; • Do not burn or dispose of your phone in household rubbish or store it at temperature above 60°C (140°F); Phone and battery as a unibody device must be disposed of in accordance with locally applicable environmental regulations. This symbol on your phone, the battery, and the accessories means that these products must be taken to collection points at the end of their life: • Municipal waste disposal centers with specific bins for these types of equipment; • Collection bins at points of sale. They will then be recycled, preventing substances being disposed of in the environment, so that their components can be reused. In European Union countries: These collection points are accessible free of charge. All products with this sign must be brought to these collection points. In non-European Union jurisdictions: Items of equipment with this symbol are not to be thrown into ordinary bins if your jurisdiction or your region has suitable recycling and collection facilities; instead they are to be taken to collection points for them to be recycled. In the United States you may learn more about CTIA’s Recycling Program at http://www.gowirelessgogreen.org/ CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. CHARGERS: Home A.C./ Trav…

Text truncated - open the document above for the full version.

TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Tel: +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com Date 2020-03-02 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: CTTL-Terminals Test Lab of China Academy of Telecommunication Research of MIIT is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong Tel: 0086-755-36611722; Fax: 0086-755-36612000-81722 Statement We, TCL Communication Ltd., states that our device with FCC ID: 2ACCJN036 is a multi-band mobile phone which supports GSM850/900/1800/1900, WCDMA Band 1/2/4/5/8, LTE Band 1/2/3/4/5/7/8/12/13/17/26/28/38/66/25/40/41 for cellular network. For connectivity functions, it is capable of 2.4GHz WiFi 11b/11g/11n-HT20/11n-HT40, 5GHz WiFi 11a/11n-HT20/11n-HT40, 11ac-VHT20/11ac-VHT40/11ac-VHT80 (5.725 GHz – 5.825 GHz frequency range disabled in EU countries’ area based on geo-information), and Bluetooth 5.0 LE (downward compatible and only LE 1M supported in BLE 5.0) , along with FM and NFC. However, LTE band 40 is not available in US market and Canada market, and will be disabled by software. Contact Person: Zhizhou Gong E-mail: [email protected]

TCL Communication Ltd. Declaration of pre-install of OTT voice service We, TCL Communication Ltd., as the manufacturer of FCC ID: 2ACCJN036 （Model: T770B）, declares that this model supports Wi-Fi Calling and only pre-installs Google DUO of OTT service with Android OS，and doesn’t support any other OTT services. We tested DUO using the software from Google according to KDB 285076 D02v03 Guidance for performing T-Coil tests for air interfaces supporting VOIP to support CMRS based telephone services. APPROVED BY: Projects Manager: Gong Zhizhou Signature: Company name: TCL Communication Ltd. Date: 2020-02-27

TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Tel: +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com 2020-03-02 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: 2ACCJN036 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Tel: +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com 2020-03-02 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: SHORT-TERM Confidentiality request for FCC ID: 2ACCJN036 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days: - External Photos - Internal Photos - Test Setup Photos - User manual The applicant also acknowledges that they will also provide appropriate notice to ACB should either of the following occur: a) if the applicant requires additional 45 days extension periods they will notify ACB with a new request letter at least 7 days prior to the short-term confidentiality expiration date – [Note: up to a maximum of 3 extensions only are allowed], or b) Immediately notify ACB in the event the information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Yours Sincerely, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

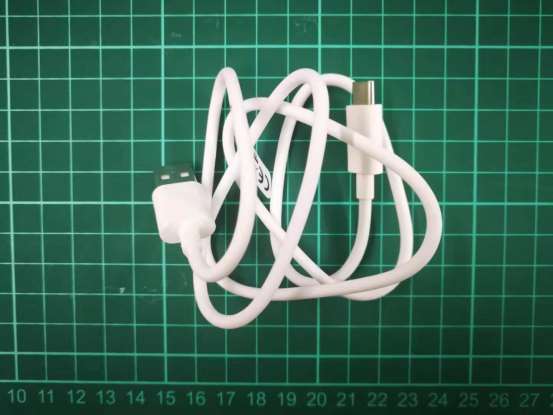

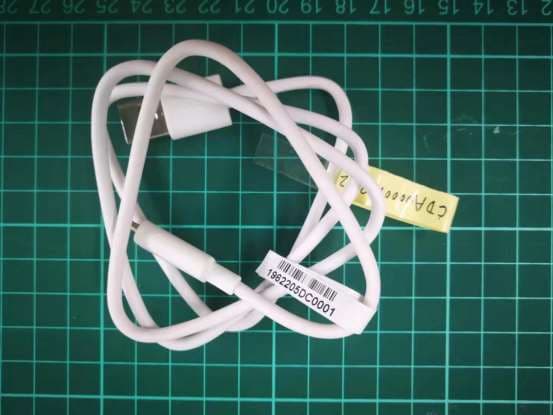

T770B TLp038D1-1 TLp038D1-2 TLp038D7-1 TLp038D7-2 UC13US UC13US-label CDA0000128C1 CDA0000128C2 SOCL110WTT-EU

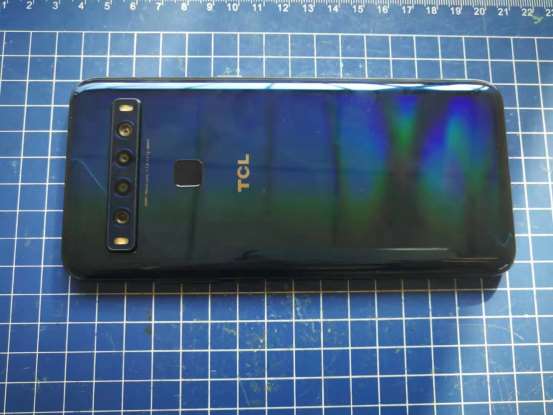

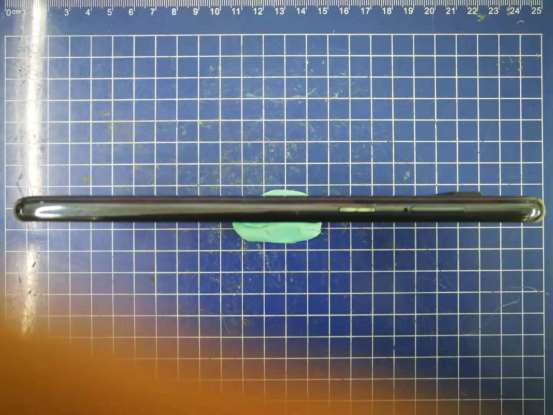

T770B

No.I19Z60229-SEM03 ©Copyright. All rights reserved by CTTL. Page 1 of 269 SAR TEST REPORT No. I19Z60229-SEM03 For TCL Communication Ltd. HSUPA/HSDPA/UMTS 5 Bands/GSM Quad Bands/LTE 17 bands mobile phone Model name: T770B With Hardware Version: 03 Software Version: 3C2G FCC ID: 2ACCJN036 Issued Date: 2020-3-2 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S.Government. Test Laboratory: CTTL, Telecommunication Technology Labs, CAICT No. 51, Xueyuan Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2512, Fax:+86(0)10-62304633-2504 Email: [email protected], website: www.caict.ac.cn No.I19Z60229-SEM03 ©Copyright. All rights reserved by CTTL. Page 2 of 269 REPORT HISTORY Report Number Revision Issue Date Description I19Z62229-SEM03 Rev.0 2020-3-2 Initial creation of test report No.I19Z60229-SEM03 ©Copyright. All rights reserved by CTTL. Page 3 of 269 TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 5 1.1 TESTING LOCATION ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE .................................................................................................. 6 3 CLIENT INFORMATION ................................................................................................................ 8 3.1 APPLICANT INFORMATION .............................................................................................................................. 8 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 8 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................. 9 4.1 ABOUT EUT ................................................................................................................................................... 9 4.2INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ........................................................................... 9 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................ 9 5 TEST METHODOLOGY .............................................................................................................. 10 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 10 5.2 APPLICABLE MEASUREMENT STANDARDS .................................................................................................... 10 6 SPECIFIC ABSORPTION RATE (SAR) ...................................................................................... 11 6.1 INTRODUCTION ............................................................................................................................................. 11 6.2 SAR DEFINITION .......................................................................................................................................... 11 7 TISSUE SIMULATING LIQUIDS ................................................................................................. 12 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 12 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 12 8 SYSTEM VERIFICATION ............................................................................................................ 17 8.1 SYSTEM SETUP ............................................................................................................................................. 17 8.2 SYSTEM VERIFICATION ................................................................................................................................. 18 9 MEASUREMENT PROCEDURES .............................................................................................. 19 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 19 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 20 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 22 9.4 SAR MEASUREMENT FOR LTE ..................................................................................................................... 23 9.5 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 25 9.6 POWER DRIFT ............................................................................................................................................... 25 10 AREA SCAN BASED 1-G SAR ................................................................................................. 26 10.1 REQUIREMENT OF KDB ......................................................…

Text truncated - open the document above for the full version.

No.I19Z60229-SEM03 ©Copyright. All rights reserved by CTTL. Page 136 of 269 LTE850-FDD26_CH26775 Rear Date: 2/7/2020 Electronics: DAE4 Sn1289 Medium: head 835 MHz Medium parameters used: f = 822.5 MHz; σ = 0.876 mho/m; εr = 40.71; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C, Liquid Temperature: 22.3 o C Communication System: LTE850-FDD26 822.5 MHz Duty Cycle: 1:1 Probe: EX3DV4 – SN7307 ConvF(10.45,10.45,10.45) Area Scan (71x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.39 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.1 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.557 W/kg SAR(1 g) = 0.335 W/kg; SAR(10 g) = 0.19 W/kg Maximum value of SAR (measured) = 0.45 W/kg Fig A.24 No.I19Z60229-SEM03 ©Copyright. All rights reserved by CTTL. Page 137 of 269 LTE2600-TDD41_CH41055 Right Cheek Date: 2/11/2020 Electronics: DAE4 Sn1289 Medium: head 2600 MHz Medium parameters used: f = 2636.5; σ = 1.992 mho/m; εr = 38.98; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C, Liquid Temperature: 22.3 o C Communication System: LTE2600-TDD41 2636.5 Duty Cycle: 1:1.58 Probe: EX3DV4 – SN7307 ConvF(7.65,7.65,7.65) Area Scan (71x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.951 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.046 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 1.43 W/kg SAR(1 g) = 0.653 W/kg; SAR(10 g) = 0.326 W/kg Maximum value of SAR (measured) = 0.979 W/kg Fig A.25 No.I19Z60229-SEM03 ©Copyright. All rights reserved by CTTL. Page 138 of 269 LTE2600-TDD41_CH41055 Left Date: 2/11/2020 Electronics: DAE4 Sn1289 Medium: head 2600 MHz Medium parameters used: f = 2636.5; σ = 1.992 mho/m; εr = 38.98; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C, Liquid Temperature: 22.3 o C Communication System: LTE2600-TDD41 2636.5 Duty Cycle: 1:1.58 Probe: EX3DV4 – SN7307 ConvF(7.65,7.65,7.65) Area Scan (71x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.566 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.808 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 0.749 W/kg SAR(1 g) = 0.372 W/kg; SAR(10 g) = 0.182 W/kg Maximum value of SAR (measured) = 0.556 W/kg Fig A.26 No.I19Z60229-SEM03 ©Copyright. All rights reserved by CTTL. Page 139 of 269 LTE1700-FDD66_CH132072 Left Cheek Date: 2/8/2020 Electronics: DAE4 Sn1289 Medium: head 1750 MHz Medium parameters used: f = 2636.5; σ = 2.196 mho/m; εr = 39.14; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C, Liquid Temperature: 22.3 o C Communication System: LTE1700-FDD66 2636.5 Duty Cycle: 1:1 Probe: EX3DV4 – SN7307 ConvF(8.86,8.86,8.86) Area Scan (71x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.105 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.802 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 0.115 W/kg SAR(1 g) = 0.081 W/kg; SAR(10 g) = 0.053 W/kg Maximum value of SAR (measured) = 0.0919 W/kg Fig A.27 No.I19Z60229-SEM03 ©Copyright. All rights reserved by CTTL. Page 140 of 269 LTE1700-FDD66_CH132322 Bottom Date: 2/8/2020 Electronics: DAE4 Sn1289 Medium: head 1750 MHz Medium parameters used: f = 2636.5; σ = 2.196 mho/m; εr = 39.14; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C, Liquid Temperature: 22.3 o C Communication System: LTE1700-FDD66 2636.5 Duty Cycle: 1:1 Probe: EX3DV4 – SN7307 ConvF(8.86,8.86,8.86) Area Scan (71x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.41 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 30.74 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 1.74 W/kg SAR(1 g) = 0.991 W/kg; SAR(10 g) = 0.513 W/kg Maximum value of SAR (measured) = 1.4 W/kg Fig A.28 No.I19Z60229-SEM03 ©Copyright. All rights reserved by CTTL. Page 141 of 269 LTE1700-FDD66_CH132322 Rear Date: 2/8/2020 Electronics: DAE4 Sn1289 Medium: head 1750 MHz Medium parameters used: f = 2636.5; σ = 2.196 mho/m; εr = 39.14; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C, Liquid Temperature: 22.3 o C Communication System: LTE1700-FDD66 2636.5 Duty Cycle: 1:1 Probe: EX3DV4 – SN7307 ConvF(8.86,8.86,8.86) Area Scan (71x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.22 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.415 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 1.45 W/kg SAR(1 g) = 0.923 W/kg; SAR(10 g) = 0.536 W/kg Maximum value of SAR (measured) = 1.22 W/kg Fig A.29 No.I19Z60229-SEM03 ©Copyright. All rights reserved by CTTL. Page 142 of 269 WLAN2450_CH1 Left Cheek Date: 2/10/2020 Electronics: DAE4 Sn1289 Medium: head 2450 MHz Medium parameters used: f = 2412; σ = 1.782 mho/m; εr = 39.88; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C, Liquid Temperature: 22.3 o C Communication System: WLAN2450 2412 Duty Cycle: 1:1 Probe: EX3DV4 – SN7307 ConvF(7.83,7.83,7.83) Area Scan (71x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.11 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.856 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 1.29 W/kg SAR(1 g) = 0.54 W/kg; SAR(10 g) = 0.265 W/kg Maximum value of SAR (measured) = 0.564 W/kg Fig A.30 No.I19Z60229-SEM03 ©Copyright. All rights reserved by CTTL. Page 143 of 269 WLAN2450_CH1 Right Date: 2/10/2020 Electronics: DAE4 Sn1289 Medium: head 2450 MHz Medium parameters used: f = 2412; σ = 1.782 mho/m; εr = 39.88; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C, Liquid Temperature: 22.3 o C Communication System: WLAN2450 2412 Duty Cycle: 1:1 Probe: EX3DV4 – SN7307 ConvF(7.83,7.83,7.83) Area Scan (71x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.308 W/kg Zoom Scan (7x7x7)/Cu…

Text truncated - open the document above for the full version.

No.I19Z60229-SEM03 ©Copyright. All rights reserved by CTTL. Page 159 of 269 1750 MHz Date: 2/8/2020 Electronics: DAE4 Sn1289 Medium: Head 1750 MHz Medium parameters used: f = 1750 MHz; σ =1.354 mho/m; ε r = 40.2; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.3 o C Communication System: CW Frequency: 1750 MHz Duty Cycle: 1:1 Probe: EX3DV4 – SN7307 ConvF(8.86,8.86,8.86) System Validation /Area Scan (81x191x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 106.22 V/m; Power Drift = 0.01 Fast SAR: SAR(1 g) = 9.32 W/kg; SAR(10 g) = 4.92 W/kg Maximum value of SAR (interpolated) = 13.82 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value =106.22 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 16.63 W/kg SAR(1 g) = 9.12 W/kg; SAR(10 g) = 4.92 W/kg Maximum value of SAR (measured) = 13.72 W/kg 0 dB = 13.72 W/kg = 11.37 dB W/kg Fig.B.3 validation 1750 MHz 250mW No.I19Z60229-SEM03 ©Copyright. All rights reserved by CTTL. Page 160 of 269 1900 MHz Date: 2/9/2020 Electronics: DAE4 Sn1289 Medium: Head 1900 MHz Medium parameters used: f = 1900 MHz; σ =1.411 mho/m; ε r = 39.38; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.3 o C Communication System: CW Frequency: 1900 MHz Duty Cycle: 1:1 Probe: EX3DV4 – SN7307 ConvF(8.56,8.56,8.56) System Validation /Area Scan (81x191x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 107.96 V/m; Power Drift = -0.04 Fast SAR: SAR(1 g) = 9.88 W/kg; SAR(10 g) = 5.27 W/kg Maximum value of SAR (interpolated) = 15.02 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value =107.96 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 17.82 W/kg SAR(1 g) = 10.01 W/kg; SAR(10 g) = 5.18 W/kg Maximum value of SAR (measured) = 14.99 W/kg 0 dB = 14.99 W/kg = 11.76 dB W/kg Fig.B.4 validation 1900 MHz 250mW No.I19Z60229-SEM03 ©Copyright. All rights reserved by CTTL. Page 161 of 269 2450 MHz Date: 2/10/2020 Electronics: DAE4 Sn1289 Medium: Head 2450 MHz Medium parameters used: f = 2450 MHz; σ =1.818 mho/m; ε r = 39.83; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.3 o C Communication System: CW Frequency: 2450 MHz Duty Cycle: 1:1 Probe: EX3DV4 – SN7307 ConvF(7.83,7.83,7.83) System Validation /Area Scan (81x191x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 116.37 V/m; Power Drift = -0.04 Fast SAR: SAR(1 g) = 13.15 W/kg; SAR(10 g) = 6.07 W/kg Maximum value of SAR (interpolated) = 21.83 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value =116.37 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 25.2 W/kg SAR(1 g) = 12.78 W/kg; SAR(10 g) = 6.12 W/kg Maximum value of SAR (measured) = 21.15 W/kg 0 dB = 21.15 W/kg = 13.25 dB W/kg Fig.B.5 validation 2450 MHz 250mW No.I19Z60229-SEM03 ©Copyright. All rights reserved by CTTL. Page 162 of 269 2600 MHz Date: 2/11/2020 Electronics: DAE4 Sn1289 Medium: Head 2600 MHz Medium parameters used: f = 2600 MHz; σ =1.956 mho/m; ε r = 39.01; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.3 o C Communication System: CW Frequency: 2600 MHz Duty Cycle: 1:1 Probe: EX3DV4 – SN7307 ConvF(7.65,7.65,7.65) System Validation /Area Scan (81x191x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 120.71 V/m; Power Drift = 0.02 Fast SAR: SAR(1 g) = 13.77 W/kg; SAR(10 g) = 6.15 W/kg Maximum value of SAR (interpolated) = 24.36 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value =120.71 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 28.93 W/kg SAR(1 g) = 13.91 W/kg; SAR(10 g) = 6.29 W/kg Maximum value of SAR (measured) = 23.56 W/kg 0 dB = 23.56 W/kg = 13.72 dB W/kg Fig.B.6 validation 2600 MHz 250mW No.I19Z60229-SEM03 ©Copyright. All rights reserved by CTTL. Page 163 of 269 5250 MHz Date: 2/12/2020 Electronics: DAE4 Sn1289 Medium: Head 5250 MHz Medium parameters used: f = 5250 MHz; σ =4.729 mho/m; ε r = 36.07; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.3 o C Communication System: CW Frequency: 5250 MHz Duty Cycle: 1:1 Probe: EX3DV4 – SN7307 ConvF(5.61,5.61,5.61) System Validation /Area Scan (81x191x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 17.8 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value =75.93 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 27.55 W/kg SAR(1 g) = 19.98 W/kg; SAR(10 g) = 5.87 W/kg Maximum value of SAR (measured) = 18.01 W/kg 0 dB = 18.01 W/kg = 12.56 dB W/kg Fig.B.7 validation 5250 MHz 100mW No.I19Z60229-SEM03 ©Copyright. All rights reserved by CTTL. Page 164 of 269 5600 MHz Date: 2/12/2020 Electronics: DAE4 Sn1289 Medium: Head 5600 MHz Medium parameters used: f = 5600 MHz; σ =5.153 mho/m; ε r = 35.75; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.3 o C Communication System: CW Frequency: 5600 MHz Duty Cycle: 1:1 Probe: EX3DV4 – SN7307 ConvF(5.12,5.12,5.12) System Validation /Area Scan (81x191x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 19.45 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value =75.52 V/m; Power Drift = -0.1 dB Peak SAR (extrapolated) = 30.47 W/kg SAR(1 g) = 21.18 W/kg; SAR(10 g) = 6 W/kg Maximum value of SAR (measured) = 19.58 W/kg 0 dB = 19.58 W/kg = 12.92 dB W/kg Fig.B.8 validation 5600 MHz 100mW No.I19Z60229-SEM03 ©Copyright. All rights reserved by CTTL. Page 165 of 269 5750 MHz Date: 2/12/2020 Electronics: DAE4 Sn1289 Medium: Head 5750 MHz Medium parameters used: f = 5750 MHz; σ =5.201 mho/m; ε r = 35.73; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.3 o C Communication System: CW Frequency: 5750 MHz Duty Cycle: 1:1 Probe: EX3DV4 – SN7307 ConvF(5.15,5.15,5.15) System Validation /Area S…

Text truncated - open the document above for the full version.

No.I19Z60229-SEM03 ©Copyright. All rights reserved by CTTL. Page 182 of 269 No.I19Z60229-SEM03 ©Copyright. All rights reserved by CTTL. Page 183 of 269 No.I19Z60229-SEM03 ©Copyright. All rights reserved by CTTL. Page 184 of 269 No.I19Z60229-SEM03 ©Copyright. All rights reserved by CTTL. Page 185 of 269 No.I19Z60229-SEM03 ©Copyright. All rights reserved by CTTL. Page 186 of 269 No.I19Z60229-SEM03 ©Copyright. All rights reserved by CTTL. Page 187 of 269 No.I19Z60229-SEM03 ©Copyright. All rights reserved by CTTL. Page 188 of 269 No.I19Z60229-SEM03 ©Copyright. All rights reserved by CTTL. Page 189 of 269

No.I19Z60229-SEM03 ©Copyright. All rights reserved by CTTL. Page 190 of 269 No.I19Z60229-SEM03 ©Copyright. All rights reserved by CTTL. Page 191 of…
