2ACCJN0425G NR/ LTE/WCDMA/GSM Mobile Phone

For more information on how to use the phone, please go to https://tclusa. com and download the complete user manual. User guide. 1 Note: This is a user manual for TCL SIGNA (790S). Table of Contents Safety and use ..............................................................5 Radio waves .................................................................13 Licenses........................................................................19 General information .................................................23 1 Your mobile .........................................................26 1.1 Keys and connectors .....................................26 1.2 Setting up your phone ...................................29 1.3 Home screen ......................................................33 2 Text input .............................................................45 2.1 Using the onscreen keyboard ....................45 2.2 Text editing ..........................................................47 3 Call, Call log and Contacts ................................48 3.1 Call ..........................................................................48 3.2 Call log ...................................................................54 3.3 Contacts ...............................................................55 4 Messaging ...........................................................62 4.1 Write a new message ....................................62 2 4.2 Manage messages ..........................................63 5 Calendar and Clock ..........................................65 5.1 Calendar ...............................................................65 5.2 Clock ......................................................................67 6 Getting connected ............................................70 6.1 Connecting to the internet ..........................70 6.2 Connecting to a Bluetooth device ..........72 6.3 Connecting to a computer via USB .........74 6.4 Sharing a mobile data connection ............75 6.5 Connecting to virtual private networks . 76 7 Multimedia applications ..................................78 7.1 Camera ..................................................................78 7.2 Viewing Photos or Videos ............................83 8 Others ...................................................................85 8.1 Other applications ..........................................85 9 Google applications ..........................................86 9.1 Chrome .................................................................86 9.2 Gmail ......................................................................86 9.3 Maps .......................................................................87 9.4 YouTube ................................................................87 9.5 Drive .......................................................................87 9.6 Play Store ............................................................88 9.7 YT Music ..............................................................88 9.8 Play Movies & TV .............................................89 3 9.9 Duo ..........................................................................89 10 Settings ................................................................90 10.1 Network & internet ..........................................90 10.2 Bluetooth & device connection .................92 10.3 Display ...................................................................94 10.4 NXTVISION .........................................................95 10.5 Home screen & wallpapers .........................96 10.6 Sound .....................................................................97 10.7 Advanced features ..........................................98 10.8 Smart Manager .................................................98 10.9 Security ................................................................99 10.10 Location ..............................................................100 10.11 Privacy ................................................................100 10.12 Apps .....................................................................100 10.13 Storage ................................................................101 10.14 Account ................................................................101 10.15 Digital Wellbeing & parental controls ....101 10.16 Google .................................................................102 10.17 Accessibility ......................................................102 10.18 System updates ..............................................102 10.19 System ................................................................102 11 Making the most of your phone ...................105 11.1 FOTA Upgrade .................................................105 4 This product meets applicable na- tional SAR limits of 1.6 W/kg. The specific maximum SAR values can be found in the Radio waves sec- tion. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 15 mm from the body to ensure compliance with RF expo- sure requirements. Note that the product may be transmitting even if you are not making a phone call. PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your phone near your ear while the loudspeaker is in use. www.sar-tick.com 12 Accessories ......................................................106 13 1 YEAR LIMITED WARRANTY .......................107 14 Troubleshooting ..............................................108 15 Specifications ....................................................117 5 This phone has been tested and rated for use with hearing aids for some of the wireless technologies that it uses. However, there may be some newer wireless technologies used in this phone that have not been tested yet for use with …

Text truncated - open the document above for the full version.

TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Tel: +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com Date 2020-08-11 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: Please be notified that I, Zhizhou Gong, have designated Jones Tsai of Sporton International Inc. as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out in their professional capacity by Jones Tsai of Sporton International Inc. in connection with all processes required for FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 862. This authorization is limited to the following product, and shall remain in place until completion of the certification, or until revoked, whichever is earlier: FCC ID: 2ACCJN042 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please don’t hesitate to contact me. Sincerely yours, Regards, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue Hong Kong Science Park, Shatin, NT Hong Kong China http://tclcom.tcl.com 2020-08-11 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: 2ACCJN042 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list - Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue Hong Kong Science Park, Shatin NT Hong Kong China http://tclcom.tcl.com Declaration - MIF for HAC RF Interference Evaluation To whom it may concern: This device, with FCC ID: 2ACCJN042 , Hearing Aid Compatibility Requirement is going to be certified under ANSI C63.19 2011 version per Part 20.19. For Radio Frequency Interference, Speag’s Audio Interference Analyzer (AIA) or other indirect or direct measurement was not used to determine the M rating. The M rating was determined by measuring the maximum steady state average E-field values in dB (V/m) or average antenna input power as documented in HAC test report exhibit, and adding the MIF value in dB. The MIF values below for the worst-case operation mode for all air interfaces are pre-determined values provided by Speag. We are confirming that the Speag simulation provided represents all the air interface modes applicable for a HAC rating for this handset. Sincerely, Zhizhou Gong [email protected]

TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue Hong Kong Science Park, Shatin NT Hong Kong China http://tclcom.tcl.com 2020-08-11 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: SHORT-TERM Confidentiality request for FCC ID: 2ACCJN042 To Whom It May Concern, Pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705. - External Photos - Internal Photos - Test Setup Photos - User manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Yours Sincerely, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

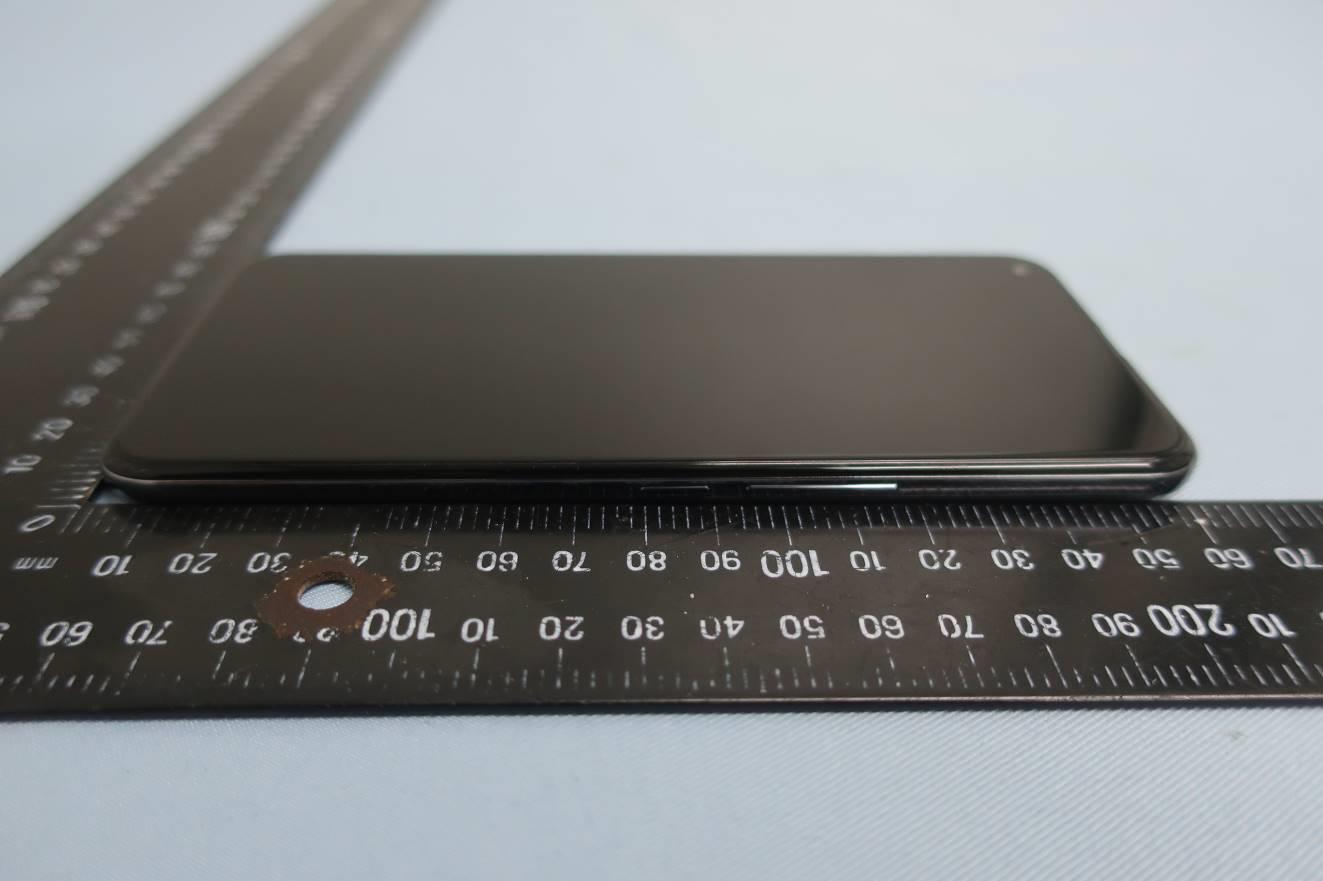

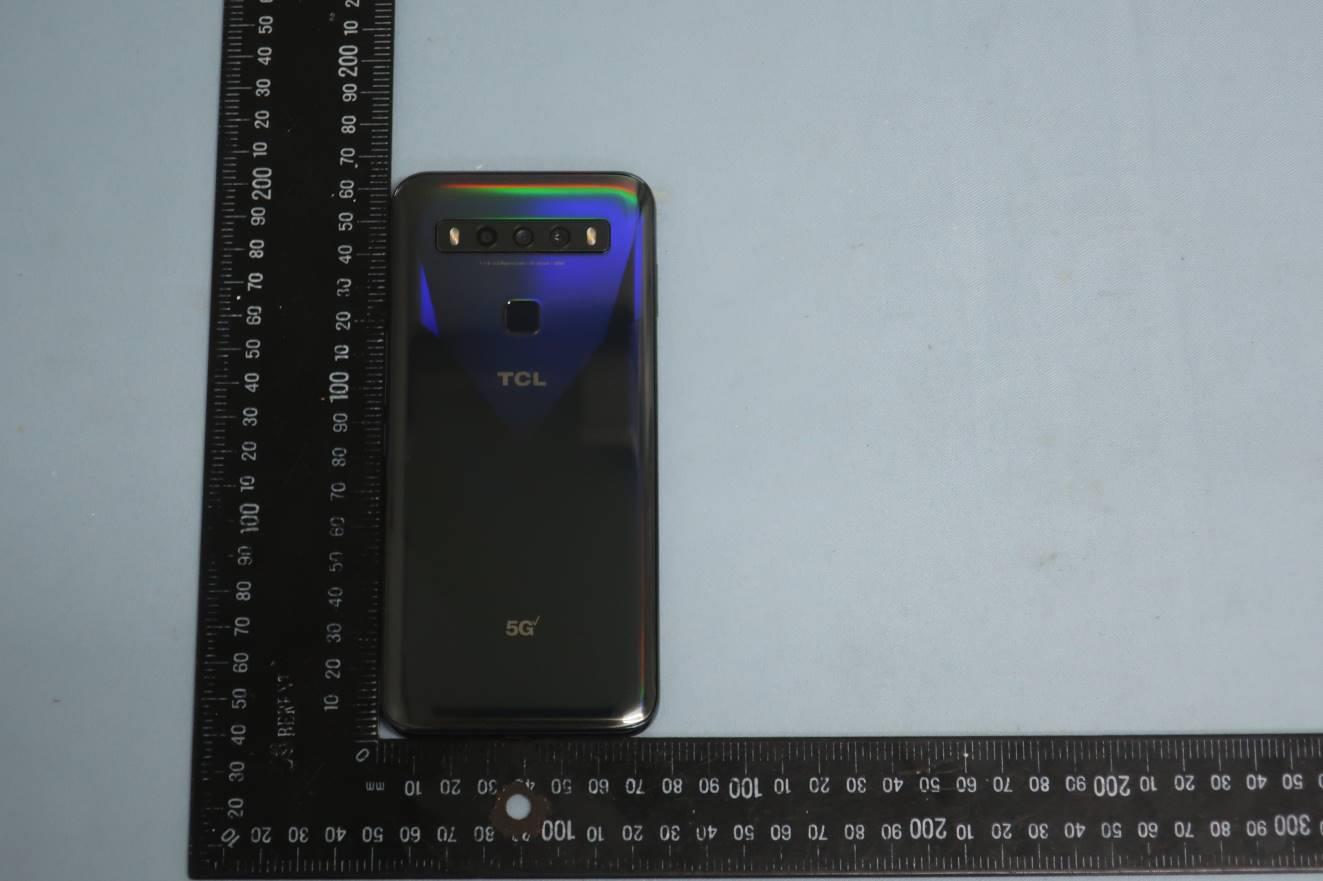

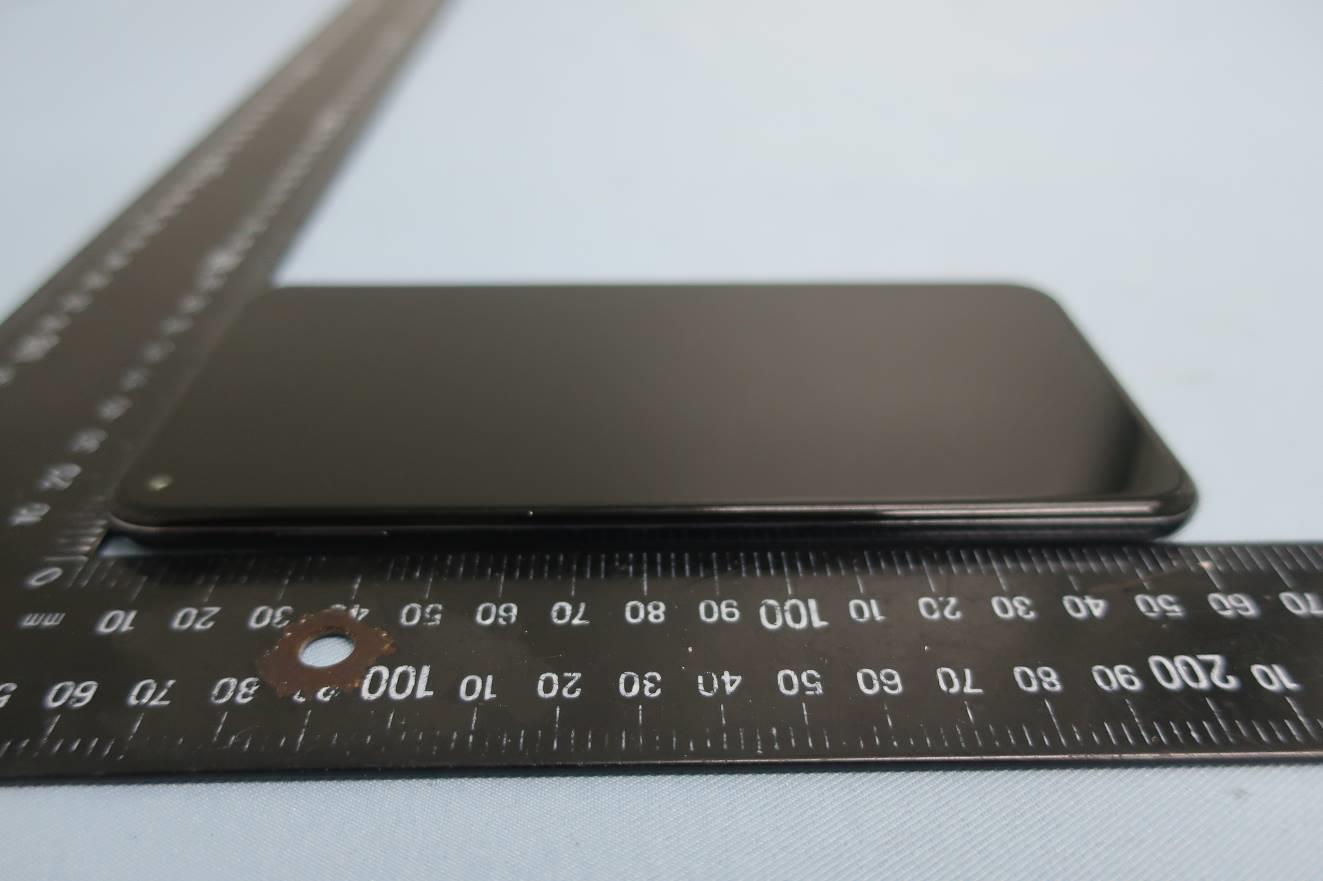

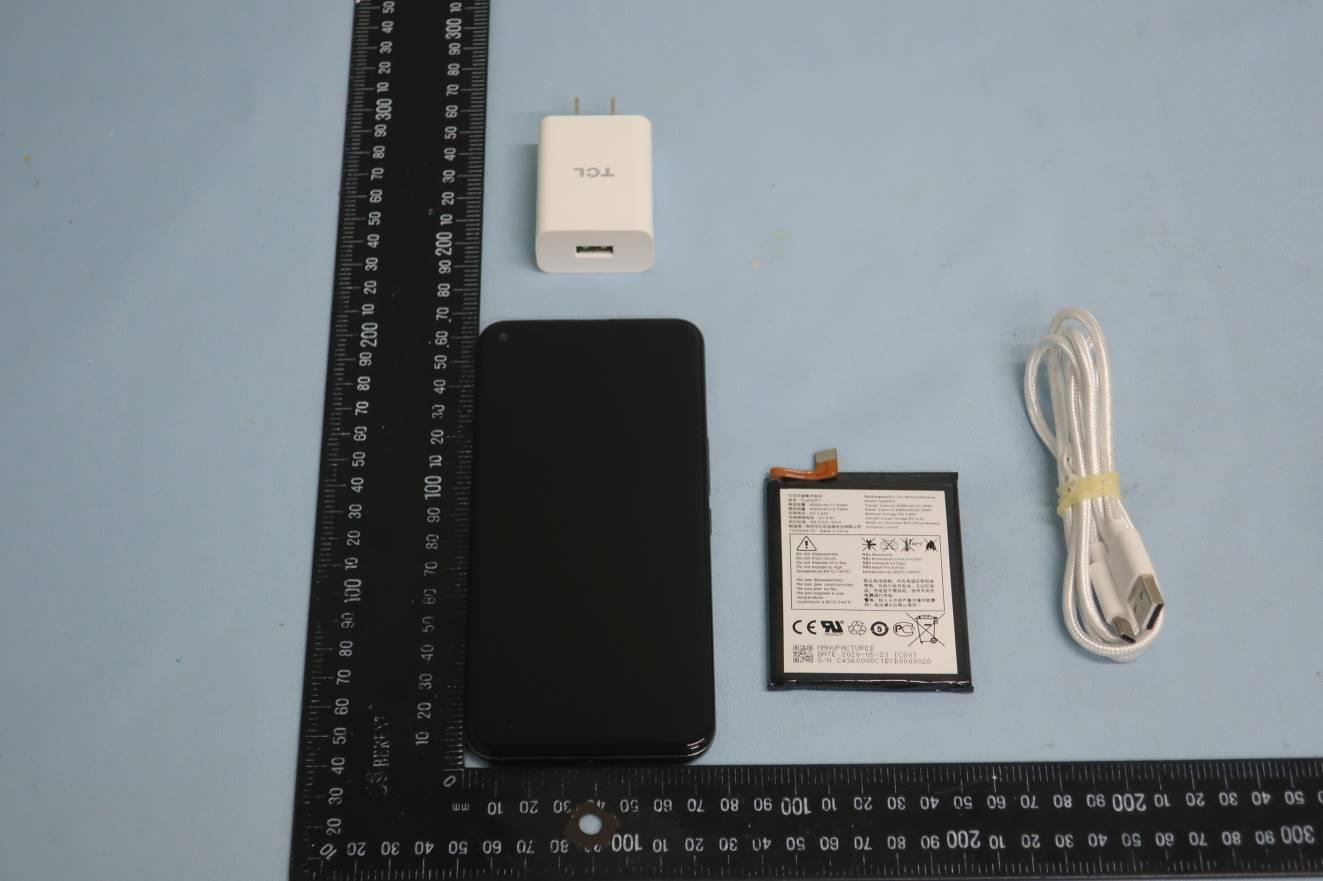

Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 1 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ACCJN042 1. External Photograph of EUT 720510 Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 2 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ACCJN042 Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 3 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ACCJN042 Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 4 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ACCJN042 Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 5 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ACCJN042 Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 6 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ACCJN042 Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 7 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ACCJN042 List of Accessory: Specification of Accessory AC Adapter Brand Name TCL(BYD) Model Name QC13US Power Rating I/P: 100-240 Vac, ~50/60Hz, 0.5A; O/P: 5/9/12Vdc, 3/2/1.5A Battery Brand Name TCL(BYD) Model Name TLp043F1 Power Rating 3.85Vdc, 4500mAh Type Li-ion USB Cable Brand Name TCL(Luxshare) Model Name CDA0000153CF Signal Line Type 1.0 meter, shielded cable, without ferrite core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 8 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ACCJN042 720510 Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 9 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ACCJN042 AC Adapter Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 10 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ACCJN042 Battery Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 11 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ACCJN042 Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 12 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ACCJN042 USB Cable 9

FCC E-Label Information A. Images of the e-label screen are provided below: B. Access to the required information on the e-label Users are able to access the information in no more than three steps in a device’s menu. The actual steps are: Settings->System->Regulatory & safety No any special accessories, access codes, or SIM card are required to go through the above steps. C. Devices have physical labels at point of marketing/sale visible to the purchaser (or in the alternative, on the packaging), and at time of importation? At the time of importation, marketing, and sale, the device will have the required physical label on the packaging, which will include the device’s FCC ID. D. Electronic labeling information is programmed into the device by the manufacturer at the time of manufacture. Yes. E. Electronic labeling information not modifiable by any third party. The e-label of the device is programmed by the grantee and secured in such a manner that it cannot be modified by third parties. F. All the applicable regulatory information required on the packaging or user instructions is provided according to the rules. Applicable regulatory information not found in the e-label is contained in the user manual.

Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 13 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ACCJN042 720510 WLAN 2.4G & 5G Antenna <Tx/Rx> Bluetooth Antenna <Tx/Rx> WWAN Antenna 2 <Tx/Rx> WLAN 2.4G & 5G Antenna<Tx/Rx> MMW Antenna 6<Tx/Rx> WWAN Antenna 1<Tx/Rx> MMW Antenna 7<Tx/Rx> GNSS Antenna <Rx> WWAN Antenna 3 <Tx/Rx> NFC Antenna <TX/Rx> 3. Internal Photograph of EUT Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 14 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ACCJN042 Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 15 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ACCJN042 Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 16 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ACCJN042 Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 17 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ACCJN042 Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 18 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ACCJN042 Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 19 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ACCJN042 Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 20 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ACCJN042 Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 21 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ACCJN042 Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 22 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ACCJN042 Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 23 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ACCJN042 Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 24 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ACCJN042 Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 25 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ACCJN042 Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 26 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ACCJN042 Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 27 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ACCJN042 Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 28 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ACCJN042 Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 29 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ACCJN042 Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 30 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ACCJN042 Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 31 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ACCJN042 Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 32 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ACCJN042 Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 33 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ACCJN042 Photographs of EUT Report No.: EP051926 Brand Name: TCL; Model Name: T790S Sporton International Inc. (KunShan) Page Number : 34 of 60 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 13, 2020 FAX : 86-0512-5790-0958 Report V…

Text truncated - open the document above for the full version.

Sporton International (Kunshan) Inc. TEL : +86-512-57900158 / FAX : +86-512-57900958 Issued Date : Aug. 24, 2020 FCC ID : 2ACCJN042 Page 1 of 85 Form version. : 181113 FCC SAR Test Report Report No. : FA051926 FCC SAR Test Report APPLICANT : TCL Communication Ltd EQUIPMENT : 5G NR/ LTE/WCDMA/GSM Mobile Phone BRAND NAME : TCL MODEL NAME : T790S FCC ID : 2ACCJN042 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2013 The product was received on May 19, 2020 and testing was started from Jul. 06, 2020 and completed on Aug. 19, 2020. We, Sporton International (Kunshan) Inc, would like to declare that the tested sample has been evaluated in accordance with the procedures and had been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of Sporton International (Kunshan) Inc., the test report shall not be reproduced except in full. Reviewed by: Rose Wang / Supervisor Approved by: Kat Yin / Manager Sporton International (Kunshan) Inc. No. 1098, Pengxi North Road, Kunshan Economic Development Zone Jiangsu Province 215300 People’s Republic of China Sporton International (Kunshan) Inc. TEL : +86-512-57900158 / FAX : +86-512-57900958 Issued Date : Aug. 24, 2020 FCC ID : 2ACCJN042 Page 2 of 85 Form version. : 181113 FCC SAR Test Report Report No. : FA051926 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 6 3. Guidance Applied .......................................................................................................................................................... 6 4. Equipment Under Test (EUT) Information ................................................................................................................... 7 4.1 General Information................................................................................................................................................ 7 4.3 General LTE SAR Test and Reporting Considerations ........................................................................................... 9 5. Smart Transmit feature for RF Exposure compliance .............................................................................................. 12 6. RF Exposure Limits ..................................................................................................................................................... 14 6.1 Uncontrolled Environment .................................................................................................................................... 14 6.2 Controlled Environment ........................................................................................................................................ 14 7. Specific Absorption Rate (SAR) ................................................................................................................................. 15 7.1 Introduction .......................................................................................................................................................... 15 7.2 SAR Definition ...................................................................................................................................................... 15 8. System Description and Setup ................................................................................................................................... 16 8.1 E-Field Probe ....................................................................................................................................................... 17 8.2 Data Acquisition Electronics (DAE) ...................................................................................................................... 17 8.3 Phantom ............................................................................................................................................................... 18 8.4 Device Holder ....................................................................................................................................................... 19 9. Measurement Procedures ........................................................................................................................................... 20 9.1 Spatial Peak SAR Evaluation ............................................................................................................................... 20 9.2 Power Reference Measurement ........................................................................................................................... 21 9.3 Area Scan ............................................................................................................................................................. 21 9.4 Zoom Scan ........................................................................................................................................................... 22 9.5 Volume Scan Procedures ..................................................................................................................................... 22 9.6 Power Drift Monitoring .......................................................................................................................................... 22 10. Test Equipment List .................................................................................................................................................. 23 11. System Verification ................................................................................................................................................... 24 11.1 Tissue Simulating Liquids ..............…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020.7.12 System Check_Head_2600MHz DUT: D2600V2 - SN:1061 Communication System: UID 0, CW (0); Frequency: 2600 MHz;Duty Cycle: 1:1 Medium: HSL_2600 Medium parameters used: f = 2600 MHz; σ = 2.023 S/m; ε r = 37.79; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3976; ConvF(7.48, 7.48, 7.48); Calibrated: 2020.1.27 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2019.11.20 - Phantom: SAM1; Type: SAM; Serial: TP-1503 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 22.6 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 84.82 V/m; Power Drift = 0.18 dB Peak SAR (extrapolated) = 30.1 W/kg SAR(1 g) = 14.1 W/kg; SAR(10 g) = 6.34 W/kg Maximum value of SAR (measured) = 22.0 W/kg 0 dB = 22.0 W/kg = 13.42 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020.7.20 System Check_Head_3700MHz DUT: D3700V2 - SN:1008 Communication System: UID 0, CW (0); Frequency: 3700 MHz;Duty Cycle: 1:1 Medium: HSL_3700 Medium parameters used: f = 3700 MHz; σ = 3.218 S/m; ε r = 38.674; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3976; ConvF(6.92, 6.92, 6.92); Calibrated: 2020.1.27 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2019.11.20 - Phantom: SAM1; Type: SAM; Serial: TP-1503 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Pin=100mW/Area Scan (91x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 12.2 W/kg Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 48.00 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 18.7 W/kg SAR(1 g) = 7.1 W/kg; SAR(10 g) = 2.69 W/kg Maximum value of SAR (measured) = 13.9 W/kg 0 dB = 13.9 W/kg = 11.43 dBW/kg Test Labora…
